AUTOMATIC RECOGNITION OF ROAD SIGNS IN DIGITAL
IMAGES FOR GIS UPDATE
Andr´e R. S. Marc¸al
Faculdade de Ciˆencias, Universidade do Porto, DMA, Rua do Campo Alegre, 687, Porto, Portugal
Isabel R. Gonc¸alves
Escola Superior de Tecnologia e Gest˜ao, Instituto Polit´ecnico de Viana do Castelo
Av. do Atlˆantico, Ap. 574, Viana do Castelo, Portugal
Keywords:
Image Processing, Road Sign Recognition, Mobile Mapping Systems, Geographic Information System.
Abstract:
A method for automatic recognition of road signs identified in digital video images is proposed. The method
is based on features extracted from cumulative histograms and supervised classification. The training of the
classifier is done with a small number of images (1 to 6) from each sign type. A practical experiment with
260 images and 26 different road sign was carried out. The average classification accuracy of the method with
the standard settings was found to be 93.6%. The classification accuracy is improved to 96.2% by accepting
the sign types ranked 1
st
and 2
nd
by the classifier, and to 97.4% by also accepting the sign type ranked 3
rd
.
These results indicate that this can be a valuable tool to assist Geographic Information System (GIS) updating
process based on Mobile Mapping System (MMS) data.
1 INTRODUCTION
There is a growing interest in having a detailed geo-
referenced representation of our environment. Digital
mobile mapping integrates digital imaging with direct
geo-referencing, providing an ideal tool for the acqui-
sition of large amounts of geo-referenced data. In the
last 10-15 years there has been considerable techno-
logical developments, allowing for vehicle-based Mo-
bile Mapping Systems (MMS) to be available at a rea-
sonably low cost. These systems are usually based on
Global Positioning System (GPS) and Inertial Nav-
igation System (INS) for the navigation component,
and two or more imaging cameras for the image data
component. The final goal of a MMS is usually to cre-
ate or update a Geographic Information System (GIS)
with interest objects, such as postal boxes, bus stops
or road signs.
The standard approach to data extraction from MMS
based image videos is to have an operator viewing
the video to identify interest objects. Once a rele-
vant object is encountered, the video is stopped and
an image pixel from the object is selected. The sys-
tem then identifies the conjugate point and, using the
stereoscopic image pair together with the position and
attitude recorded by GPS and INS, computes the ge-
ographic coordinates of the object identified. The op-
erator will then have to provide the attributes of the
object to be inserted in the GIS database (e.g. the type
of road sign).
Automatic object recognitioncan provide valuable as-
sistance to this process in two ways: (1) the identifi-
cation of an interest object in an image, (2) the recog-
nition of the object type or other relevant attributes.
For the case of road signs, several attempts to address
the issue of automatic identification and recognition
are reported in the literature. The system proposed
in (Piccioli et al., 1996) uses a normalized cross cor-
relation approach for the recognition component, re-
porting different values for the detection and classifi-
cation rates (21% to 98%), depending on the type of
images. A combined detection and classification sys-
tem is described in (Escalera et al., 1997), where the
classification, based on neural networks, was tested
with 18 sign types, but the experimental details are
unclear. The system proposed in (Hsu and Huang,
2001) uses matching pursuit filters for sign recogni-
tion. A total of 40 sign types were tested, 30 circular
and 10 triangular, with a recognition rate reported of
94% for triangular signs and 91% for circular signs.
The automatic road sign recognition system described
in (Fang et al., 2004) reports very high classification
129
R. S. Marçal A. and R. Gonçalves I. (2009).
AUTOMATIC RECOGNITION OF ROAD SIGNS IN DIGITAL IMAGES FOR GIS UPDATE.
In Proceedings of the First International Conference on Computer Imaging Theory and Applications, pages 129-134
DOI: 10.5220/0001790301290134
Copyright
c
SciTePress
results (99%), but the experiment was mostly centred
on the detection of signs in video sequences. The
recognition rate reported in (Kim et al., 2006) is also
99%, tested with 107 images, but only 10 sign types
were considered. Another system combining detec-
tion and classification, based on template matching,
is described in (Vavilin and Kang, 2006), with an av-
erage detection rate of 97.7% and a recognition rate
of 91.3% reported (for 172 signs), but the number of
sign types used is unclear.
The purpose of this work is to present an alternative
method for the automatic recognition of road signs
identified in digital images, assuming that the approx-
imate location of the sign in the image is known. The
manuscript is organized as follows: in section 2 the
proposed methodology for road sign recognition is
presented, in section 3 the experimental evaluation
strategy is described, section 4 presents the results,
and section 5 the conclusions.
2 METHODS
The road sign recognition method developed works
in three stages: (1) pre-processing, (2) feature extrac-
tion, (3) classification. The system accepts as an input
a RGB image of any size, and returns the sign type,
from a pre-defined set of types. Although the input
image can be of any size, it is expected that the mar-
gins are not too large.
2.1 Pre-processing
The aim of the pre-processing stage is to select the
area of the input image that actually contains the road
sign. The RGB (Red Green Blue) input image (I
in
) is
converted to the HSI (Hue Saturation Intensity) color
model. A thresholding segmentation is performed to
identify the areas of red and blue in the image. A
binary image for red (B
red
) is produced from pixels
with H ([0.00, 0.10[]0.80, 1.00])S [0.30, 1.00],
and a binary image for blue (B
blue
) is produced from
pixels with H ]0.57, 0.70[S ]0.25, 0.65] I
[0.13, 0.60[. Both binary images are subjected to
a filtering process to remove small objects and
irregularities due to mixed pixels and noise. First a
3 by 3 median filter is applied, which removes all
small isolated objects in the binary images. Then two
morphological filters are used to further smooth the
object edges and remove non-isolated small objects:
an erosion with a 2x2 square structuring element, and
a dilation with a diamond shaped structuring element
(Gonzalez and Woods, 2008). All remaining small
objects (less than 40 pixels) are removed from the
binary images.
After this processing step, only the largest object and
all other objects that are at least 60% of its size are
retained from each binary image (B
red
and B
blue
).
The interior of the remaining objects are then filled,
and the two binary images combined. The binary
image (B
s
) with only the object of interest (the road
sign) is obtained by selecting the largest object of
the two processed binary images B
red
and B
blue
. A
sub-section of the RGB image is then obtained using
the minimum enclosing rectangle of the object in B
s
.
The binary image B
s
is used to mask out the pixels
that do not belong to the road sign, resulting in a
RGB image I
s
where only the pixels belonging to the
road sign have non zero values. Examples of such
images are presented in grey scale in figure 1.

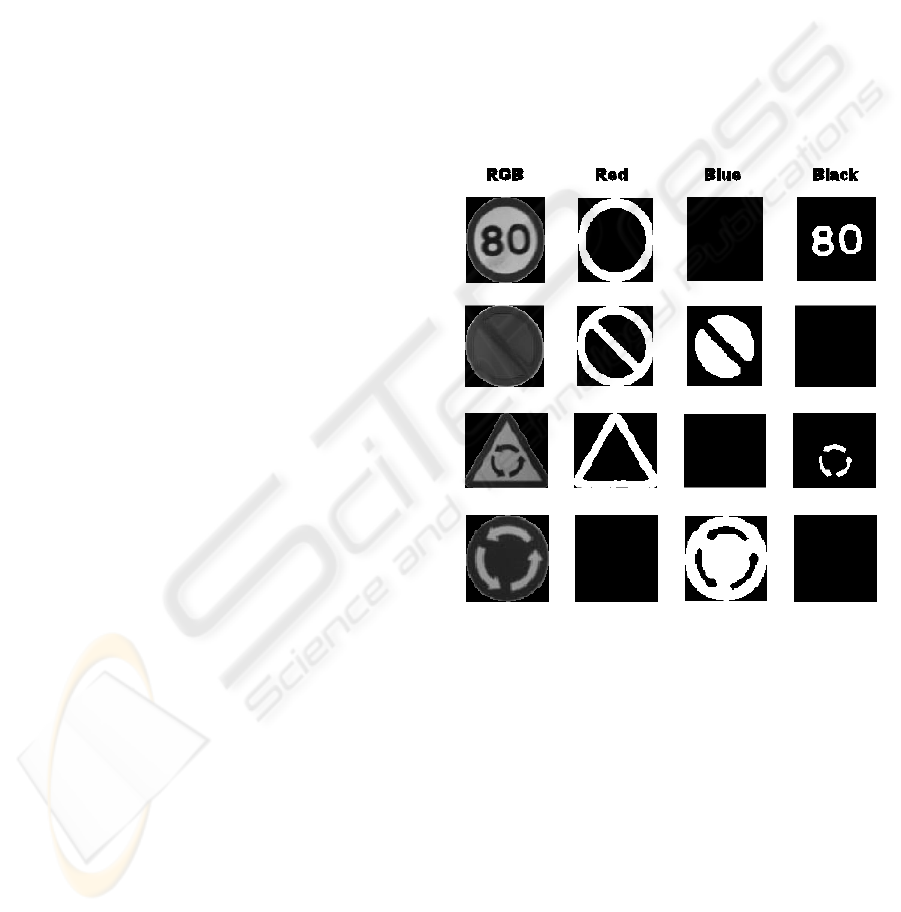

Figure 1: Examples of binary component extraction for
red, blue and black, from the RGB color images (here in
greyscale) obtained after the pre-processing stage.
2.2 Feature Extraction
The features that characterize the observed object
(road sign) are obtained from the red, blue and black
components of the RGB color image I
s
. The same
criteria described in section 2.1 is used for the ex-
traction of the red and blue binary image compo-
nents. The binary image for black (B
black
) is obtained
from pixels with H ([0.00, 0.10[]0.69, 0.90]) I
[0, 0.25]S [0, 0.35[. The implementation was done
in a way that each pixel can only belong to a binary
image, with priority for red, then blue, and black last.
Examples of the red, blue and black binary compo-
nent extraction are presented in figure 1.
IMAGAPP 2009 - International Conference on Imaging Theory and Applications
130
Let B(x, y) be a binary image, with X
0
by Y
0
pixels
(or X
0
columns by Y
0
lines). There are two possible
values for each pixel (x, y): 0 and 1. The operators F
and G applied to a binary image produce cumulative
histograms for columns (f) and lines (g), according to
(1) and (2), where x and y are integers between 1 and
X
0
and Y
0
.
F {B(x, y)} = f(x) =
Y
0
i=1
B(x, i) (1)
G{B(x, y)} = g(y) =
X
0
i=1
B(i, y) (2)
The application of operators F and G to B(x, y) pro-
duces two vectors: f with X
0
elements and g with Y
0
elements. As the binary images used have different
sizes, these vectors need to be normalized. The nor-
malization is done in two ways: in terms of the values
of f and g, and in terms of their number of elements.
The normalization of the vector values is done by di-
viding its values by the number of lines / columns of
the interest image, so that the range of values used is
0 to 1. The reason for normalizing the number of vec-
tor elements is to obtain a constant (relatively small)
number of elements, independently of the binary im-
age size. Let n be the number of elements of the nor-
malized vectors. Modified versions of vectors f and
g are initially created, where each element is repeated
n times. These new vectors (f
and g
) have nX
0
and
nY
0
elements. The normalized vectors f
n
and g
n
are
computed by (3) and (4).
f
n
( j) =
X
0
i=1
f
(i+ ( j 1)X
0
)
X
0
; j = 1, ..., n (3)
g
n
( j) =
Y
0
i=1
g
(i+ ( j 1)Y
0
)
Y
0
; j = 1, ..., n (4)
The normalized vectors f
n
and g
n
are computed for
the binary componentsB
red
, B
blue
and B
black
. The fea-
tures are thus 6 vectors (f
n
red
, f
n
blue
, f
n
black
, g
n
red
, g
n
blue
,
g
n
black
), each with n elements. As an illustration, fig-
ure 2 shows four examples of the binary component
for red and the corresponding vectors f, g, f
n
red
and
g
n
red
(with n = 10), presented as line and bar plots. In
this example the two feature vectors extracted from
the red binary image components ( f
n
red
and g
n
red
) are
clearly capable of distinguishing the signs.
2.3 Classification
A supervised classification process is used. Initially,
reference vectors (f
n
red
, f
n
blue
, f
n
black
, g
n
red
, g
n
blue
, g
n
black
)
are obtained for each road sign type, from a number of
training images (t). For each road sign type (or class),

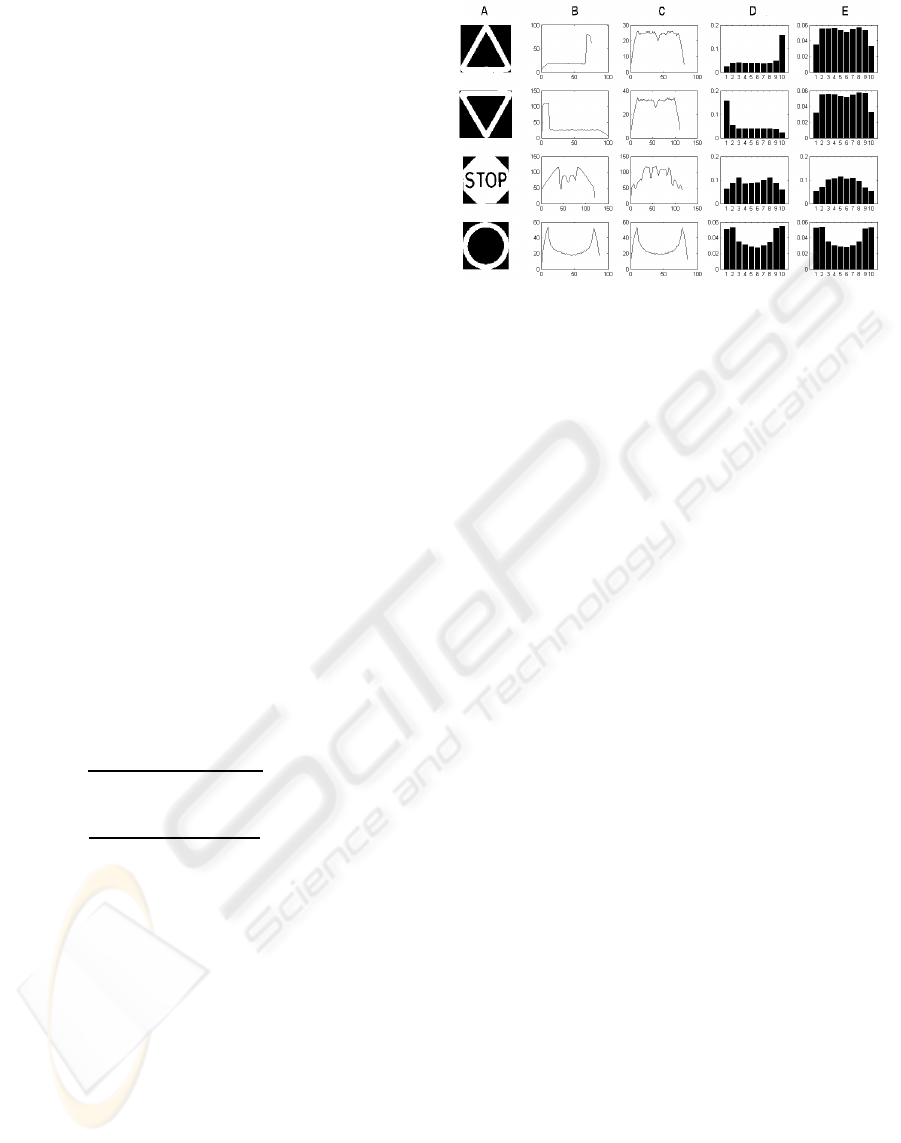

Figure 2: Example of feature extraction from binary im-
ages. Red binary image components (A), cumulative his-
tograms for lines (B) and collumns (C), normalised feature
vectors f
n
red
(D) and g
n
red
(E), with n = 10.
the distance between the observed and reference vec-
tor is computed for all six features. The sum of the
six distances (d) is the discriminative criteria used to
classify a sign. The class with the lowest value of d is
assigned to the observed road sign. The distances be-
tween two vectors were computed using the absolute
and the Euclidean distances.
3 EXPERIMENTAL SETUP
A practical application was carried out to evaluate the
performance of the proposed method with real MMS
image data.
3.1 Test Images
A video dataset acquired by a MMS was made avail-
able. The dataset has over 14000 images, of 640
by 480 pixels, acquired by a AVT Marlin camera
(Madeira, 2007). These images were inspected and
sub-sections with road signs extracted. Although
there are over 150 different road signs (DGV, 2003),
most of these signs are rarely used. The requirement
imposed to the experiment was to have at least 10 dif-
ferent images of the same road sign type. This limited
the number of different road sign types to only 26,
which are presented in figure 3 as standard references
(DGV, 2003). The road sign types #13 to #17 have
all the same standard reference, as they are all speed
limit signs: of 40 (#13), 50 (#14), 60 (#15), 80 (#16)
and 100 (#17). The sign type #25 used was in fact for
a speed of 50 (instead of 30, as presented in the stan-
dard image of figure 3). The original version of the
images in figure 3 are in color, with the light gray cor-
responding to red and darker gray to blue (except for
AUTOMATIC RECOGNITION OF ROAD SIGNS IN DIGITAL IMAGES FOR GIS UPDATE
131
sign #4, where the traffic signal also uses red, green
and yellow).
Real road signs are often different from the official
standards, such as those presented in figure 3. This
can be confirmed by an inspection of the test im-
ages used for signs #4 and #22, presented in figure
4. The most noticeable differences are the shape of
the arrow in image RS22 8, which is thicker that the
standard shape, and the absence of the black back-
ground on the traffic signal in image RS4 1. As for
the other signs, there are occasional variations from
the standard shape. Furthermore, in real images there
are differences in terms of illumination, size, orienta-
tion (although very oblique views were not used) and
noise (including blurred images and damaged signs).
Some of these situations can be observed in the ex-
amples presented in figure 4. There are images with
oblique view (RS4 2 and RS22 7), with a large mar-
gin (RS22 2), blurred (RS4 5) and signs damaged by
graffiti (RS22 9). There is also a large variety of illu-
mination conditions, both in terms of background and
on the sign itself, and in sizes (between 55x62 pixels
to 212x195 pixels in the examples of figure 4).
A total of 260 images (sub sections of the full MMS
video frames) were thus selected for the experiment
(10 images of each type), with a variety of sizes, il-
lumination and viewing conditions, margin sizes and
noise.

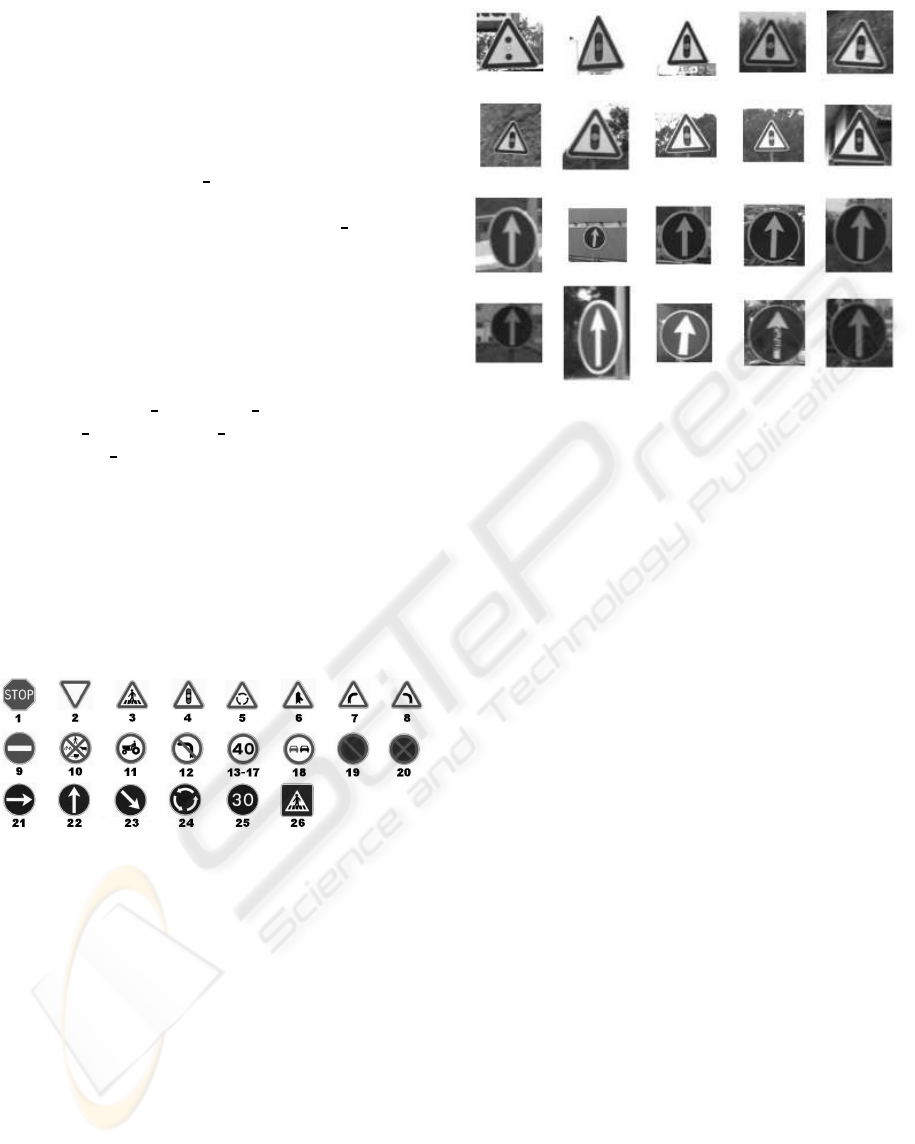

Figure 3: Standard road signs used in the experiment (DGV,
2003). Sign types #13-17 correspond to 5 different speed
limits: 40, 50, 60, 80 and 100. The speed used in sign #25
is 50 instead the standard value of 30.
3.2 Evaluation Strategy
The evaluation of the proposed road sign recognition
system is based on a reference scenario, with 4 im-
ages for training (t = 4) each sign type, normalization
with n = 10 and Euclidean distance classifier. Each
of these parameters was allowed to vary, within a lim-
ited range, with all remaining parameters fixed at the
reference values. As the number of images available
for each sign type was small (10), the parameter t was
only tested for values between 2 to 6, with the remain-
ing images (10 t) used for testing. The normalisa-
tion parameter (n) was tested for values 6, 8, 10, 12,
Figure 4: Test images used for road signs #4 and #22.
14, 16, 18 and 20. Two distance metrics were used
for the discriminative function used for the classifier:
Absolute and Euclidean. The Mahalanobis distance
was also tested, but it was not included because the
covariance matrix was not always invertible.
The average classification accuracy (A
1
) was com-
puted by the ratio between the number of images clas-
sified correctly and the total number of test images.
Two other classification accuracies were also com-
puted, by accepting the sign types ranked 1
st
and 2
nd
(A
12
) and accepting the sign types ranked 1
st
, 2
nd
and
3
rd
(A
123
).
4 RESULTS
The classification accuracies for the experiment
with the reference parameters (t = 4, n = 10 and
Euclidean distance) were: A
1
=93.6%, A
12
=96.2%
and A
123
=97.4%. This means that 146 out of the
156 images used for testing were correctly classified.
As for the remaining 10 images, 4 had the correct
road sign assigned as 2
nd
option and 2 as 3
rd
option.
In only 4 out of the 156 images (2.6%) the correct
road sign was not selected in the top 3 ranking. The
difficulties are mostly related to the speed limit signs
(#13–#17). Table 1 shows how these images were
classified. For the remaining 21 road sign types, there
was only one misclassified image (from sign #4 to
#7).
The experiment was repeated using different
training data sizes (t between 1 and 6) and distance
metrics. The results are presented in table 2. Gen-
erally, the classification accuracy tends to improve
IMAGAPP 2009 - International Conference on Imaging Theory and Applications
132
Table 1: Classification results for the speed limit signs
(#13–#17) with the reference scenario (t = 4, n = 10 and
Euclidean classifier).
#13 #14 #15 #16 #17
#13 5 0 0 0 1
#14 0 3 0 2 1
#15 0 0 3 3 0
#16 1 0 1 4 0
#17 0 0 0 0 6
with the increase in training data size. However, the
results are reasonably good even with a single image
of each sign type for training (t = 1). The results
produced using the Euclidean distance were better
than those produced by the absolute distance.
The impact of the feature normalization on the classi-
fication results was also investigated. The experiment
was repeated using normalization values n between
6 and 20. The Euclidean distance and the number of
training images (t=4) were kept fixed for all cases.
The classification accuracies A
1
, A
12
and A
123
are
presented in table 3. The reference value (n = 10)
seems to be a good choice, with slightly better values
only observed for higher values of n, for A
12
and A
123
.
Table 2: Average classification accuracy for different train-
ing data sizes (t between 1 and 6) and distance metrics
(n = 10 for all cases).
A
1
A
12
A
123
Absolute
t=1 82.1% 89.7% 92.7%
t=2 84.1% 91.4% 94.7%
t=3 86.8% 94.0% 96.7%
t=4 91.7% 96.2% 97.4%
t=5 88.5% 95.4% 97.7%
t=6 88.5% 94.2% 98.1%
Euclidean
t=1 85.0% 90.6% 94.0%
t=2 85.1% 91.4% 94.2%
t=3 88.5% 94.5% 96.7%
t=4 93.6% 96.2% 97.4%
t=5 90.0% 95.4% 97.7%
t=6 91.4% 95.2% 98.1%
The k nearest neighbors method was also tested
for the reference scenario (t = 4, n = 10), using the
Euclidean distance. However, the results were not
very good. The average classification accuracies were
74.3% for k=1, and 72.4% for k=3 and for k=5.
Table 3: Average classification accuracy for different fea-
ture normalization settings (n), with the other parameters
were kept fixed (t = 4 and Euclidean classifier).
A
1
A
12
A
123
n=6 87.8% 93.6% 97.4%
n=8 90.4% 96.2% 97.4%
n=10 93.6% 96.2% 97.4%
n=12 91.0% 96.2% 98.1%
n=14 91.7% 96.2% 98.1%
n=16 92.3% 96.2% 98.1%
n=18 93.0% 96.2% 98.1%
n=20 93.0% 96.2% 98.7%
5 CONCLUSIONS
The results of the proposed method for automatic
recognition of road signs in digital images are en-
couraging. The classification accuracies for the ex-
periment with the reference parameters (t = 4, n = 10
and Euclidean distance) were: A
1
=93.6%, A
12
=96.2%
and A
123
=97.4%. The features extracted from cumu-
lative histograms of red, black and blue binary com-
ponents of the RGB image seem to be effective for the
discrimination of road signs. The impact of the var-
ious classification and feature normalization parame-
ters could not be fully tested due to the limited size of
the training dataset (260 images of 26 types). How-
ever, one very promising aspect already observed was
the small number of training images required to train
the classifier. Future work includes the preparation
of a more extensive test dataset, as more MMS video
data should soon become available. The goal is to
have at least 40 sign types with 15 to 20 test images
from each. Once this dataset is available, it should be
possible to better evaluate the feature normalization
parameters and to test other classifiers. The use of
more sophisticated classifiers should compensate the
likely reduction in accuracy due to the increase in the
number of road sign types.
The proposed methodology can be used in a GIS in-
put system from MMS video datasets. The number
of road sign types will have to be increased to 50 or
more, which should not be a problem as the number
of images required for training was found to be small.
The classification accuracy will tend to decrease as
the number of types considered increases. However,
in this type of system the operator will always have to
confirm the classification proposed automatically. A
useful fixture would be to propose a sign, plus 2 or 3
alternatives (the 2nd and 3rd ranked in the discrimina-
tion function). The operator would then only have to
confirm the suggestion (1st option), select one of the
alternatives or, in the worst case scenario, to identify
AUTOMATIC RECOGNITION OF ROAD SIGNS IN DIGITAL IMAGES FOR GIS UPDATE
133
manually from the full list of attributes. The success-
ful implementation of such system can improve the
working ability of the operator, thus reducing costs
and speeding up the GIS updating process based on
MMS image data.
ACKNOWLEDGEMENTS
The authors would like to thank S´ergio Madeira and
Jos´e Alberto Gonc¸alves for providing the MMS im-
age video dataset.
REFERENCES
DGV (2003). Guia de Sinalizac¸˜ao Rodoviaria. Minist´erio
da Administrac¸˜ao Interna, Lisboa.
Escalera, A., Moreno, L., Salichs, M., and Armingol, J.
(1997). Road traffic sign detection and classification.
IEEE Transactions on Industrial Electronics, 44:848–
859.
Fang, C., Fuh, C., Yen, P., Cherng, S., and Chen, S. (2004).
An automatic road sign recognition system based on
a computational model of human recognition pro-
cessing. Computer Vision and Image Understanding,
96:237–268.
Gonzalez, R. C. and Woods, R. E. (2008). Digital Image
Processing. Prentice Hall, Upper Saddle River, New
Jersey, 3rd edition.
Hsu, S. and Huang, C. (2001). Road sign detection and
recognition using matching pursuit method. Image
and Vision Computing, 19:119–129.
Kim, G., Sohn, H., and Song, Y. (2006). Road infrastructure
data acquisition using a vehicle-based mobile map-
ping system. Computer-Aided Civil and Infrastructure
Engineering, 21:346356.
Madeira, S. (2007). Sistema M´ovel de Levantamento com
Integrac¸˜ao em SIG. PhD thesis, Faculdade de Ciˆencias
Universidade do Porto.
Piccioli, G., De Micheli, E., Parodi, P., and Campani, M.
(1996). Robust method for road sign detection and
recognition. Image and Vision Computing, 14:209–
223.
Vavilin, A. and Kang, H. J. (2006). Automatic detection and
recognition of traffic signs using geometric structure
analysis. In SICE-ICASE International Joint Confer-
ence, pages 1451–1456. ICASE.
IMAGAPP 2009 - International Conference on Imaging Theory and Applications
134
