A NOVEL SEGMENTATION METHOD FOR CROWDED SCENES

Domenico Bloisi, Luca Iocchi

Dipartimento di Informatica e Sistemistica, Sapienza University of Rome, Italy

Dorothy N. Monekosso, Paolo Remagnino

Kingston University London, Surrey, U.K.

Keywords:

Stereo vision, Background modeling, Segmentation, Crowded environments.

Abstract:

Video surveillance is one of the most studied application in Computer Vision. We propose a novel method to

identify and track people in a complex environment with stereo cameras. It uses two stereo cameras to deal

with occlusions, two different background models that handle shadows and illumination changes and a new

segmentation algorithm that is effective in crowded environments. The algorithm is able to work in real time

and results demonstrating the effectiveness of the approach are shown.

1 INTRODUCTION

Visual surveillance of dynamic and complex scenes

is currently one of the most active research topics in

Computer Vision. Traditional passive video surveil-

lance is ineffective when the number of cameras ex-

ceeds the ability of human operators to keep track

of the evolving scene. Intelligent visual surveillance

aims to automatically detect, recognize and track peo-

ple and objects from image sequences in order to

understand and describe dynamics and interactions

among them.

There exists (Hu et al., 2004; Heikkil¨a and Sil-

ven, 1999; Haritaoglu et al., 2001; Halevi and Wein-

shall, 1999; Haritaoglu et al., 1999) a wide spectrum

of promising applications for video surveillance sys-

tems, including access control in special areas, human

identiﬁcation at a distance, crowd ﬂow statistics and

congestion analysis, detection of anomalous behav-

iors and interactive surveillance using multiple cam-

eras, etc.

However, none of the above is able to deal with

all the problems a video surveillance system typically

encounters, namely occlusions, illumination changes,

shadows and tracking failures in crowded environ-

ments.

We present an algorithm that uses two stereo

cameras to deal with occlusions, two different back-

ground models that handle shadows and illumination

changes and a new approach for segmentating even in

a crowded environment.

The paper is organized as follows: after discussing

related work in Section 2, the general architecture of

the algorithm is described in Section 3. In Section 4

we present the segmentation module in general and in

Section 5 we detail our novel segmentation algorithm.

Section 6 shows a series of results obtained by our

approach, while Section 7 provides the conclusions.

2 RELATED WORK

There is extensive literature on tracking people in

crowded scenes and in every case the major difﬁculty

arises in tracking under occlusions. In (Tsai et al.,

2006) color models and optical ﬂow are used in order

to solve the problem, while in (Gilbert and Bowden,

2007) a global object detector and a localized frame

by frame tracker are combined for dealing with oc-

clusions. However, those papers present only scenes

with up to 4 people. More crowded situations are han-

dled by the method of (Khan and Shah, 2006), where

one of the limitations is its sensitivity to shadows and

only outdoor environments are considered.

In (Bahadori et al., 2007; Darrell et al., 2001; Ioc-

chi and Bolles, 2005) a ground plane view approach is

studied: in order to compute the localization of peo-

ple in the world, a ground plane view of the scene is

computed by projecting all foreground points onto the

484

Bloisi D., Iocchi L., N. Monekosso D. and Remagnino P. (2009).

A NOVEL SEGMENTATION METHOD FOR CROWDED SCENES.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 484-489

DOI: 10.5220/0001792604840489

 SciTePress

ground plane view reference system. This is achieved

by using the stereo calibration information of map

disparities into the sensors 3-D coordinate system and

then the external calibration information to map these

data in a world reference system. However, these ar-

ticles do not deal explicitly with crowded scenes.

In this paper we describe a system architecture

that integrates ground plane view analysis with a

novel segmentation algorithm that is robust to the

presence of many people.

The main difference between our work and (Ba-

hadori et al., 2007) is the number of people detectable.

In (Bahadori et al., 2007) scenes presenting more than

4 people are not considered and for segmenting peo-

ple close to one another a ground plane view ap-

proach is presented. We add to the segmentation mod-

ule a novel method called Height Image algorithm

(see Section 5) explicitly designed for dealing with

crowded environments (i.e., up to 15 people).

More speciﬁcally we developed a new algorithm

for segmenting people very close to one another or

even touching each other. The presence of a crowd in

the scene causes a great amount of noise in the 3-D

measures, especially if people are far from the cam-

era. Our height image algorithm (see Section 5) in-

tegrates the 3-D information from the stereo camera

with the background model in order to deal with the

measurement noise.

3 METHOD OVERVIEW

The method is applied to the training of nurses in the

School of Nursing Faculty of Health and Social Care

Sciences at Kingston University London

. The aim

is to detect and track people in order to analyze their

behavior.

Data are collected using two commercial stereo

cameras (Videre Design STH-MDCS

) each camera

connected to a computing unit (an Intel Core 2 Duo

2,0 GHz CPU Mac mini

) through a Firewire connec-

tion. Disparity is estimated with the Videre Design

stereo algorithm (Konolige, 1997) allowing for real

time computation of dense disparity maps.

The main functions of the system are: optical de-

tection and tracking of moving people present in the

ﬁeld of view of each stereo camera, computing posi-

tion and understanding behaviors of any moving tar-

get observed by a camera, and multi camera informa-

tion fusion. Those tasks are extremely hard to achieve

as part of the project ”Visual modeling of people be-

haviors and interactions for professional training”.

http://www.videredesign.com

http://www.apple.com/macmini

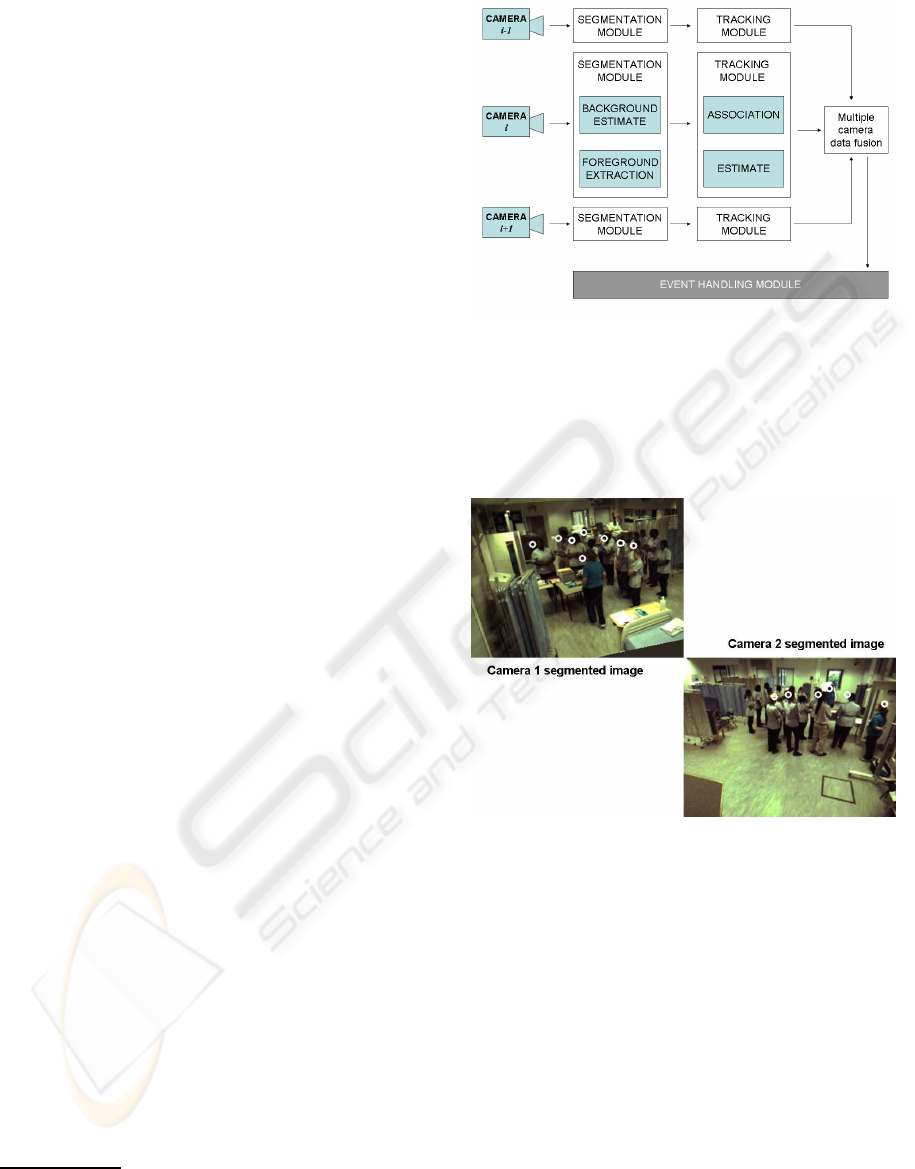

Figure 1: The general architecture of the approach.

due to both the clutter in the scene (up to 15 people)

and the uniform the nurses wear (see Fig. 2). Further-

more the scene is extremely dynamic because both

beds and room screens are frequently moved.

Figure 2: Two different camera views with the resulting seg-

mentation.

The general architecture of the approach is de-

picted in Fig. 1. It is made of three modules: seg-

mentation, tracking and data fusion. In the rest of the

paper we focus only on the segmentation one in order

to detail our novel algorithm specially designed for

dealing with crowded scenes.

4 SEGMENTATION

All the steps our method performs are depicted in

Fig. 3.

First of all, as in (Bahadori et al., 2007), two dif-

ferent background images are computed (see the top

left of Fig. 3): a color intensity background model and

a stereo background model.

A NOVEL SEGMENTATION METHOD FOR CROWDED SCENES

485

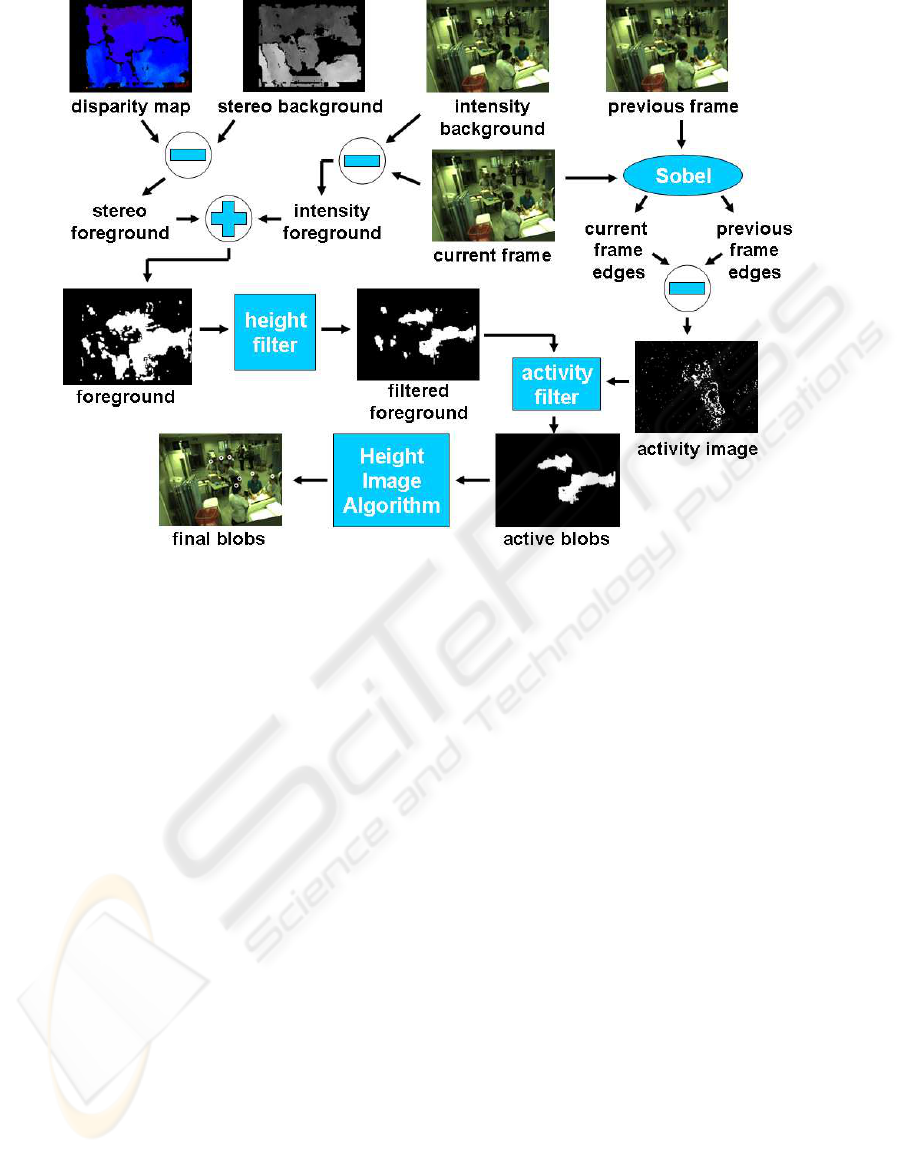

Figure 3: The segmentation algorithm.

Integrating two different backgroundmodels gives

many advantages. The use of the stereo background

is useful in eliminating shadows appearing on walls

and on the ground and in considering as foreground

even people that remains in the same position for long

periods of time. The use of the intensity background

can ”ﬁll the holes” that appear in the disparity map

due to homogeneous color clothes.

A set L of n frames from the left stereo rig is used

to build the intensity background image B which rep-

resents only the static (i.e., non-moving) part of the

scenario. This procedure is carried out continuously

(every 40 seconds) to adapt to changes in the sce-

nario, in fact the intensity background is not ﬁxed but

must adapt to both gradual and sudden illumination

changes (such as sunrays from the windows), artiﬁcial

light ﬂickering and changes in the background geom-

etry (such as moved objects like chairs, beds and room

screens).

Our approach to background modelling is based

on a mixture of Gaussians (Friedman and Russell,

1997; Stauffer and Grimson, 2000; Elgammal et al.,

2000): the algorithm computes the histogram for each

pixel (i.e., the approximation of the distribution) in

the RGB color space and it clusters the raw data in

sets based on distance in the color space. The clus-

tering is made online after each new sample is added

to L avoiding to wait until L is full. In this way the

background extraction process is faster because the

computational load is spread over the sampling inter-

val instead of concentrating it after having completely

ﬁlled L. In order to correctly manage the ﬂuctuating

artiﬁcial light, up to seven clusters (i.e., background

values) for each pixels are considered. Such a solu-

tion allows for representing ﬂickering in the illumi-

nation intensity as well as the natural light from the

windows and it was successfully applied also on out-

door environments.

The stereo background is computed only once ex-

ploiting a set S of n disparity images stored by the

stereo camera when the scene is empty (see for exam-

ple the top left frame in Fig. 5). It can be computed

ofﬂine or online (e.g., if the system is activated early

in the morning). In this way the stereo background

represents a 3-D map of the scene observed. The

stereo background is computed exploiting the same

algorithm used for the intensity background but using

disparity images.

From the current frame and the intensity back-

ground an intensity foreground is computed, while

using the current disparity image and the stereo back-

ground we extract a stereo foreground. The ﬁnal fore-

ground image is obtained merging those two images

(see the left side of Fig. 3).

From the foreground image a set of blobs is ex-

tracted. For each blob a height threshold is applied:

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

486

the part of the blob below 1.40 meters is discarded.

At the end of this process we obtain a ﬁltered fore-

ground image (see the middle of Fig. 3). The activ-

ity ﬁlter allows to discard all the inanimate objects

in the scene that are taller than 1.40 meters such as

room screens and opening doors, in fact people even

if standing in the same position perform always light

movements detectable through the Sobel’s operator.

Then we extract a set of blobs from the ﬁltered

foreground image and consider each found blob with

respect to its ”activity”: i.e., subtracting the current

frame edges from the previous frame ones an activity

image is computed (see the right side of Fig. 3). If a

blob covers a part of the activity image with a ”sufﬁ-

cient” number of non-zero points that blob is consid-

ered active: in this way a list of active blobs is stored.

We used 25 as a threshold for considering a blob

as active, but obviously that threshold depends on the

number of frame per seconds the application is com-

puting (our method’s speed is 8 fps, see Section 6).

For each active blob a process called height image

segmentation is carried on in order to segment the ex-

act number of people in the scene, i.e., the ﬁnal list

of blobs (see the bottom of Fig. 3). The height image

segmentation detailed description is given in the next

section.

5 THE HEIGHT IMAGE

ALGORITHM

The algorithm is detailed in Table 1 and Fig. 4 shows

its input and its output. The input is the list of all

the active blobs present in the scene (see Fig. 4 a), the

output is the ﬁnal list of people detected (see Fig. 4 c).

The height image (see Fig. 4 b) is a gray scale image

in which the pixel intensity values belonging to the

silhouette of the moving people are a representation

of their height. From each active blob a correspond-

ing height image is formed. This image is used for

segmenting people very close to one another or even

touching each other.

For each blob in the height image a mean value of

the height values is computed and the height image is

updated removing all the pixels belowthe mean value.

A new set of blobs is extracted and the mean value is

recomputed on that new set. The process is reiterated

until we are able to extract the ﬁnal list of centroids

(see Fig. 4 c) accordingto a predeﬁned thresholdt (we

chose 30 as a useful threshold for 320×240 frames).

Once we have found all the centroids we are able

to extract from the original foreground image a cylin-

der representing the detected person (see Fig. 5 and

Fig. 6).

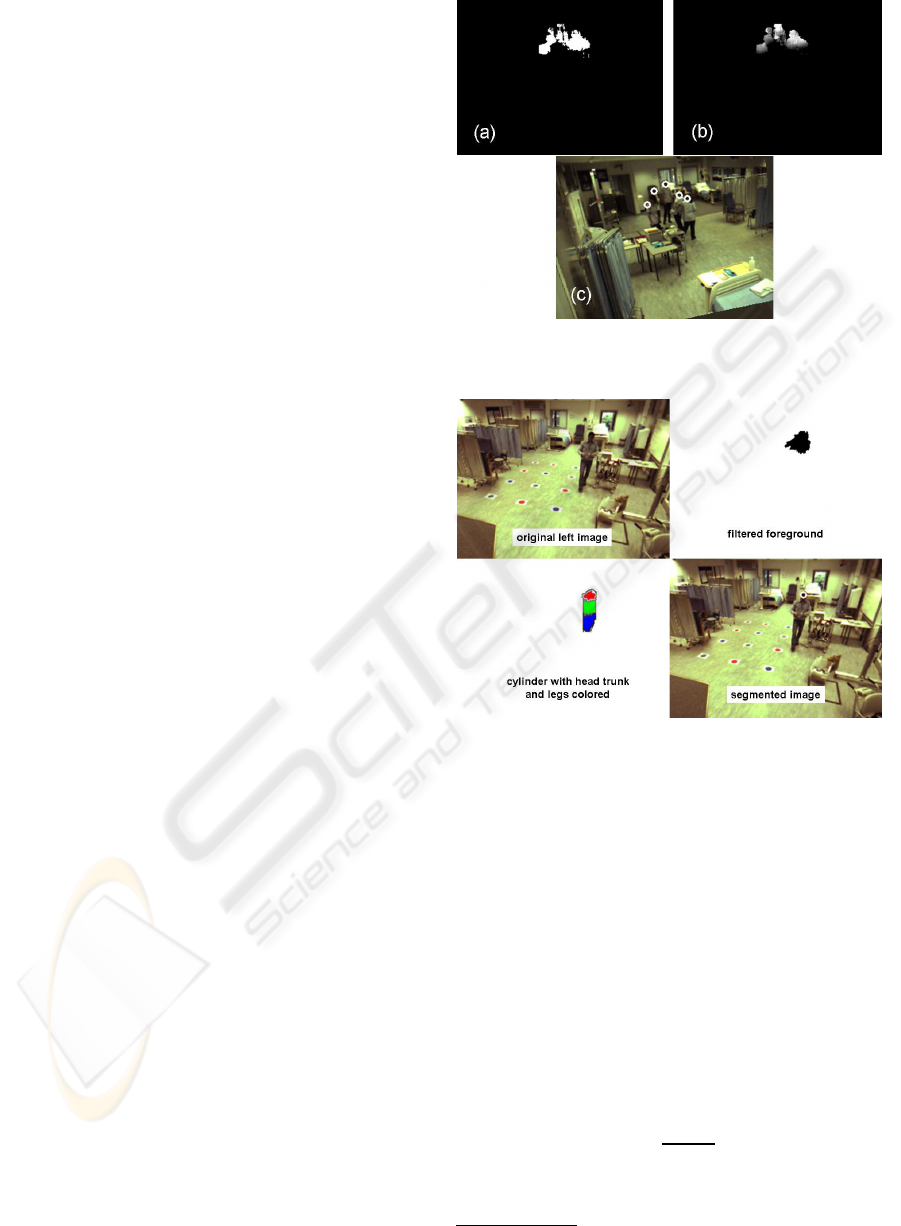

Figure 4: a) The height image algorithm input. b) The

height image. c) The output.

Figure 5: Head, trunk and legs sections.

6 RESULTS

The algorithm performance in terms of frame per sec-

onds are showed in Table 2.

We recorded 8 hours of training practice in two

different days and with different light conditions. In

order to test the accuracy of our system we visually

examined a set of randomly chosen frames taken from

different moments in the day and compared for each

frame how many people are actually in the camera

ﬁeld of view (FOV) and how many centroids are lo-

cated by the segmentation algorithm. We cannot use

a benchmark like PETS

or similar because does not

exist a benchmark for stereo images.

The error e

for each scene i is computed as

| ˆn− n|

(1)

where ˆn is the number of detected people and n is the

real number of people in the FOV. The accuracy a

for

http://www.cvg.cs.rdg.ac.uk/slides/pets.html

A NOVEL SEGMENTATION METHOD FOR CROWDED SCENES

487

Table 1: The height image algorithm.

Height Image Algorithm

Let t be the minimum area for a blob to be

considered of interest, A the set of found

activity blobs, F the ﬁnal set of the segmented

objects we are searching for and H the set of

height images.

input: t, A

output: F

For each activity blob a

∈ A {

1. Find the maximum M

and the minimum m

height associated to its pixels.

2. Normalize the pixels between 1 and 255.

3. Build a grayscale image h

formed from

the pixels in a

grey-colored according to the

previous normalization.

4. Add h

to H.

}

While H is not empty {

1. Extract an element h

from H and ﬁnd the

centroid C(h

2. Find the mean value v

for the pixel

intensities in h

3. Erase all the pixels from h

that are

below v

4. Extract from h

a set B of blobs such that

{∀ b

∈ B : b

⊂ h

∧ area(b

) > t}.

If B is empty then add C(h

) to F,

else add every element b

∈ B to H.

5. Delete h

from H.

}

Table 2: Algorithm speed.

Frame Dimensions Recording FPS

320×240 NO 12

320×240 YES 8

640×480 NO 8

each scene i is

= 1− e

(2)

The average accuracy A is

A =

∑

i=1

(3)

The result are showed in Table 3, where differ-

ent type of situations are considered depending on

the number of people in the FOV. A comparison with

other similar methods is not easy because those con-

sider quite often up to 3 or 4 people in the scene, while

we examined more crowded situations.

Table 3: Segmentation accuracy.

No. of people No. of samples Accuracy

in the scene considered A

0 to 3 25 0.99

4 to 7 25 0.93

8 to 11 25 0.86

12 to 15 25 0.85

Most of the errors are concentrated in an area of

the FOV far from the camera due to the noise in the

stereo disparity map. Those errors can be avoided

integrating the second camera segmentation on the

same image (see Fig. 2 where people not detected in

a view are detected in the second one).

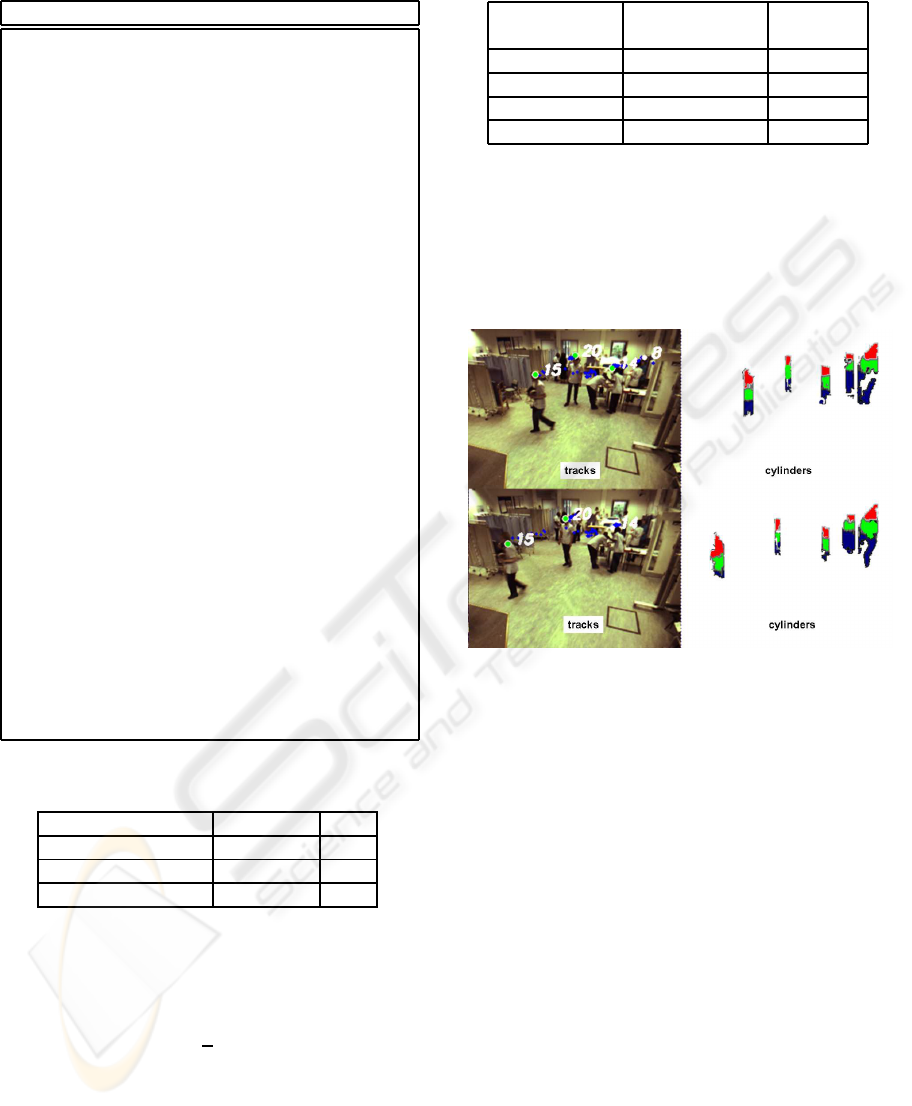

Figure 6: The tracking results.

As one can expect, performance of segmentation

depends on the height of the camera. In fact, high

cameras retrieves scenes with less occlusions.

7 CONCLUSIONS AND FUTURE

WORK

In this article we presented a novel approach for seg-

menting crowded environments. The major contribu-

tion of this study is the design of a method able to de-

tect up to 15 people in the scene at the same time. Dif-

ferently from other similar work that considers up to 3

of 4 people in the scene, we presented a real crowded

situation where the system may afford a challenging

task of counting a larger number of people.

Experimental results show the performance of the

system. The results in Table 3 refer only to the seg-

mentation module. We took in account only the er-

ror performed by that module due to the focus of this

paper on segmentation. If the system is considered

in all its parts, the tracking module is able to correct

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

488

the segmentation errors due to the Kalman ﬁlter ac-

tion. In fact the segmentation module outputs at 8 fps

while the tracking module can work even at a lower

data rate, thus a number of errors can be corrected.

As future work we intend to improve the integra-

tion between the two different types of background

and to add a series of zigbee sensors to the scene in

order to merge information coming from two different

sources: the stereo cameras and the zigbee sensors.

ACKNOWLEDGEMENTS

The authors thank Susan Rush for helping out in the

design and organization of the data acquisition exer-

cises.

REFERENCES

Bahadori, S., Iocchi, L., Leone, G. R., Nardi, D., and Scoz-

zafava, L. (2007). Real-time people localization and

tracking through ﬁxed stereo vision. Applied Intelli-

gence, 26(2):83–97.

Darrell, T., Demirdjian, D., Checka, N., and Felzenszwalb,

P. F. (2001). Plan-view trajectory estimation with

dense stereo background models. In ICCV, pages

628–635.

Elgammal, A. M., Harwood, D., and Davis, L. S. (2000).

Non-parametric model for background subtraction. In

ECCV ’00: Proceedings of the 6th European Con-

ference on Computer Vision-Part II, pages 751–767,

London, UK. Springer-Verlag.

Friedman, N. and Russell, S. (1997). Image segmentation

in video sequences: A probabilistic approach. pages

175–181.

Gilbert, A. and Bowden, R. (2007). Multi person tracking

within crowded scenes. In Workshop on Human Mo-

tion, pages 166–179.

Halevi, G. and Weinshall, D. (1999). Motion of distur-

bances: Detection and tracking of multi-body non-

rigid motion. Machine Vision and Applications,

11:122–137.

Haritaoglu, I., Cutler, R., Harwood, D., and Davis, L. S.

(2001). Backpack: Detection of people carrying ob-

jects using silhouettes. Computer Vision and Image

Understanding: CVIU, 81(3):385–397.

Haritaoglu, I., Harwood, D., and Davis, L. S. (1999). Hy-

dra: Multiple people detection and tracking using sil-

houettes. In ICIAP ’99: Proceedings of the 10th In-

ternational Conference on Image Analysis and Pro-

cessing, pages 280–285, Washington, DC, USA. IEEE

Computer Society.

Heikkil¨a, J. and Silven, O. (1999). A real-time system for

monitoring of cyclists and pedestrians. Proc. Second

IEEE International Workshop on Visual Surveillance,

June 26, Fort Collins, Colorado, USA, 74-81.

Hu, W., Tieniu, T., Liang, W., and Maybank, S. (2004). A

survey on visual surveillance of object motion and be-

haviors. Systems, Man and Cybernetics, Part C, IEEE

Transactions on, 34(3):334–352.

Iocchi, L. and Bolles, R. C. (2005). Integrating plan-view

tracking and color-based person models for multiple

people tracking. In ICIP (3), pages 872–875.

Khan, S. M. and Shah, M. (2006). A multiview approach

to tracking people in crowded scenes using a planar

homography constraint. In ECCV (4), pages 133–146.

Konolige, K. (1997). Small vision systems: hardware and

implementation. In Eighth International Symposium

on Robotics Research, Hayama, Japan.

Stauffer, C. and Grimson, W. E. L. (2000). Learning pat-

terns of activity using real-time tracking. IEEE Trans.

Pattern Anal. Mach. Intell., 22(8):747–757.

Tsai, Y.-T., Shih, H.-C., and Huang, C.-L. (2006). Mul-

tiple human objects tracking in crowded scenes. In

ICPR ’06: Proceedings of the 18th International Con-

ference on Pattern Recognition, pages 51–54, Wash-

ington, DC, USA. IEEE Computer Society.

A NOVEL SEGMENTATION METHOD FOR CROWDED SCENES

489
