MAGNETIC RESONANCE IMAGING OF THE VOCAL TRACT

Techniques and Applications

Sandra M. Rua Ventura

Área Científico-pedagógica da Radiologia, School of Allied Health Science – IPP

Rua Valente Perfeito 322, 4400-330 Vila Nova de Gaia, Portugal

Diamantino Rui S. Freitas, João Manuel R. S. Tavares

FEUP – Faculty of Engineering of University of Porto

Rua Dr. Roberto Frias, s/n 4200-465 Porto, Portugal

Keywords: Magnetic Resonance Imaging, Image Processing, 3D modeling, Vocal Tract Study, Speech Production.

Abstract: Magnetic resonance (MR) imaging has been used to analyse and evaluate the vocal tract shape through

different techniques and with promising results in several fields. Our purpose is to demonstrate the

relevance of MR and image processing for the vocal tract study. The extraction of contours of the air

cavities allowed the set-up of a number of 3D reconstruction image stacks by means of the combination of

orthogonally oriented sets of slices for each articulatory gesture, as a new approach to solve the expected

spatial under sampling of the imaging process. In result these models give improved information for the

visualization of morphologic and anatomical aspects and are useful for partial measurements of the vocal

tract shape in different situations. Potential use can be found in Medical and therapeutic applications as well

as in acoustic articulatory speech modelling.

1 INTRODUCTION

Magnetic Resonance (MR) improvements, in the

past decades, allowed vocal tract imaging, making it

currently one of the most promising tools in speech

research.

Speech is the most important instrument of

human communication and interaction.

Nevertheless, the knowledge about its production is

far from being complete or even sufficient to

describe the most relevant acoustic phenomena that

are conditioned at morphological and dynamic

levels. The anatomic and physiologic aspects of the

vocal tract are claimed to be essential for a better

understanding of this process. The quality and

resolution of soft-tissues and the use of non-ionizing

radiation are some of the most important advantages

of MR imaging (Avila-García et al., 2004; Engwall,

2003).

Several approaches have been used up to now for

the study of the vocal tract based on MR images.

Since the first study proposed by Baer et al. (Baer et

al., 1991), many MR techniques have been used

(from static to dynamic studies, and more recently

even done in real-time), starting by studies of vowel

production (Badin et al., 1998; Demolin et al.,

2000), followed by consonant production (Engwall,

2000b; Narayanan et al., 2004), for different

languages such as French (Demolin et al., 1996;

Serrurier & Badin, 2006), German (Behrends et al.,

2001; Mády et al., 2001), and Japonese (Kitamura et

al., 2005; Takemoto et al., 2003).

The work presented in this paper, consisting

basically in the static description of the vocal tract

shape during sustained vowels and consonants and

in the dynamic description of some syllables, is the

first to report the application of MR imaging for the

characterization of European Portuguese (EP). This

study started in 2004, having attained a first series of

results published in 2006 (Rua & Freitas, 2006). Our

approach can be seen as a contribution to the wide

area of articultory speech modeling, since it provides

geometrical data to the acoustic modeling phase or

research.

In the articulatory speech research of EP a few

studies of nasal vowels have been carried through, at

105

Rua Ventura S., S. Freitas D. and R. S. Tavares J. (2009).

MAGNETIC RESONANCE IMAGING OF THE VOCAL TRACT - Techniques and Applications .

In Proceedings of the First International Conference on Computer Imaging Theory and Applications, pages 105-110

DOI: 10.5220/0001792901050110

 SciTePress

the acoustic production and perceptual levels based

on acoustic analysis and electromagnetic

articulography (Teixeira et al., 2001, 2002, 2003).

More recently, another MR study of EP presents

some results relative to oral and nasal vowels

exploring contours extraction from 2D images,

articulatory measures and area functions (Martins et

al., 2008).

In former studies, vocal tract modelling has been

limited to the midsagittal plane (Engwall, 2000a;

Takemoto et al., 2003), but improvement of MR

imaging equipment system capabilities allowed the

expansion into this domain of research and made it

possible to obtain three-dimensional (3D) modelling

(Badin & Serrurier, 2006). The more realistic

models of the vocal tract shape that nowadays are

possible to obtain, are hugely needed in the research

towards improved speech synthesis algorithms and

more efficient speech rehabilitation.

The main purpose of this paper is to present

some 3D models of the vocal tract based on MR data

of some relevant sustained articulations of EP in a

static study. From the point of view of image

processing, a new approach for 3D modelling by

means of the combination of orthogonal stacks, to

describe the vocal tract shape in different

articulatory positions is presented. We also

demonstrate an MR technique to capture useful

image sequences during speech (dynamic study). In

addition, some preliminary results of this dynamic

study are presented.

The remaining of this paper is organized in four

sections. The next section is dedicated to the

methods and describes the equipment, corpus and

subjects, as well as the procedures used for the

speech study, namely for morphologic and dynamic

imaging of the vocal tract. The results are presented

in following section, through the exhibition of some

three-dimensional models built of the vocal tract and

an image sequence obtained during speech. Finally

the conclusions of the work described are presented.

2 METHODS

This study was performed in two phases: 1)

exploration of MR techniques applied to the vocal

tract imaging; 2) the use of image processing

techniques that can aid the analysis of vocal tract.

2.1 Equipment, Corpus and Subjects

An MR Siemens Magneton Symphony 1.5T system

and a head array coil were used, with subjects in

supine position. The image data were acquired from

two subjects (one male and one female) for the static

study, and from four subjects for the dynamic study,

all without any speech disorder.

The corpus of the static study consisted in twenty

five sounds of European Portuguese: oral and nasal

vowels, and consonants. For the dynamic study, the

subjects produced several repetitions of sequences of

three consonant-vowel syllables (/tu/, /ma/, /pa/)

during the acquisition.

Because of the MR acoustic noise produced

during image acquisitions, the acoustic recording of

the produced speech was not yet possible.

2.2 Techniques

According the safety procedures for MR, subjects

was previously informed about the exam and

instructed about the procedures during the

acquisitions. A consent informed was obtained from

each subject involved.

Furthermore, the training of the subjects was

performed to ensure the proper production of the

intended sounds for the static study, and to achieve

good speech-acquisition synchronization for the

dynamic one.

2.2.1 Static Study

A set of MR WT1-images using Turbo Spin-Echo

(TSE) sequences was acquired in sagittal and

coronal orientations. The subjects sustained the

articulation during 9 seconds for the acquisition of

three sagittal slices and 9.9 seconds for the four

coronal slices. The acquisition time was a

compromise between image resolution and the

duration of the sustained articulation allowed by the

subject.

Initially, a single midsagittal T1-weighted image

was acquired with subjects instructed to rest with

mouth close and the tongue in full contact with the

teeth. This reference image was used for teeth space

identification and contour extraction (Figure 1).

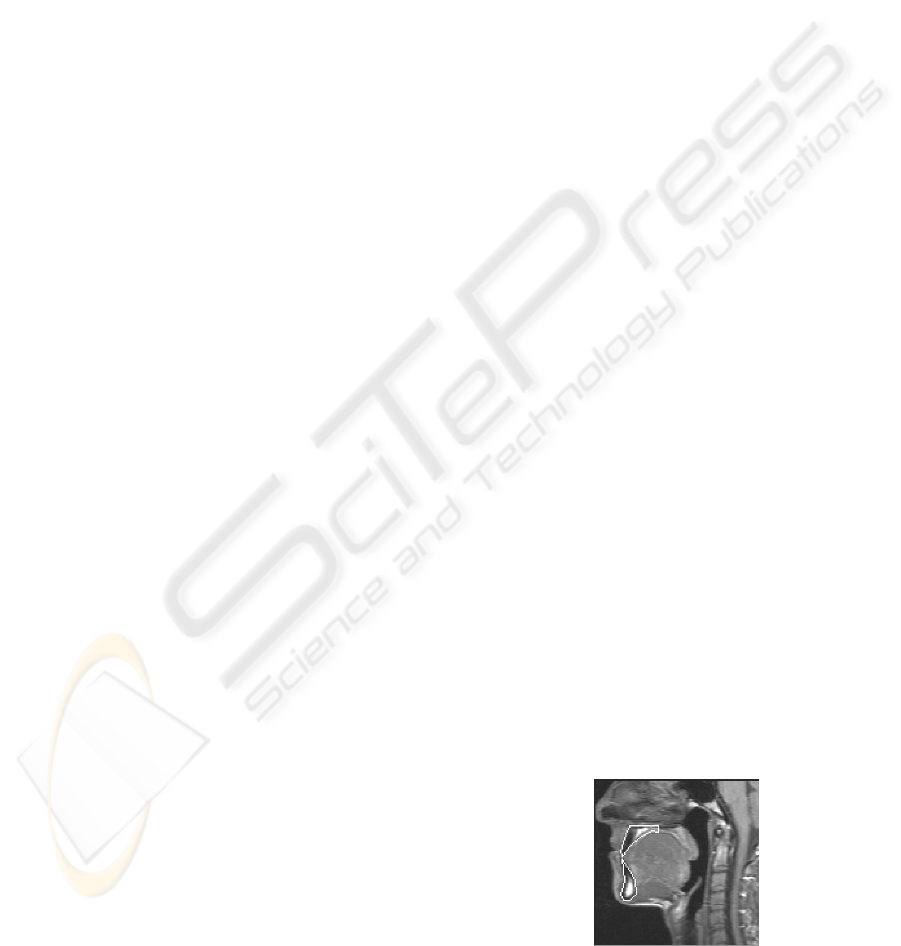

Figure 1: Midsagittal reference image for teeth

identification and contours extraction.

IMAGAPP 2009 - International Conference on Imaging Theory and Applications

106

The used protocol set includes the parameters

shown in Table 1.

Table 1: MR protocol for vocal tract imaging.

Sagittal slices Coronal slices

TR = 443 ms TR = 470 ms

TE = 17 ms TE = 15 ms

ETL = 7 ETL = 7

SNR = 1 SNR = 1.03

3 mm thickness 6 mm thickness and 10 mm gap

Three slices Four slices

Matrix size 128 x 128

Resolution = 0.853 px/mm

Field of View (FOV) = 150 mm

2.2.2 Dynamic Study

The dynamic study was performed following the

same principle of MR cardiac analysis, with the

modification of a FLASH-2D sequence using the

patient’s heart beat as a trigger signal, a 300 mm

field of view and the acquisition parameters: TR =

60 ms and TE = 4.4 ms. The subjects tried to

synchronize the utterance of the syllables to their

own cardiac rhythm by means of the acoustic

monitoring of their own simple electrocardiogram

(ECG) through a synchronous sound emission

conveyed to the subject by an earphone.

Each set of images from a single-slice

(midsagittal) of 6 mm thickness was collected during

12 to 22 seconds. For each sequence, a variable

number of images (4-6 images) were acquired with a

regularly increasing shift in synchrony from the start

of the cardiac cycle (Figure 2).

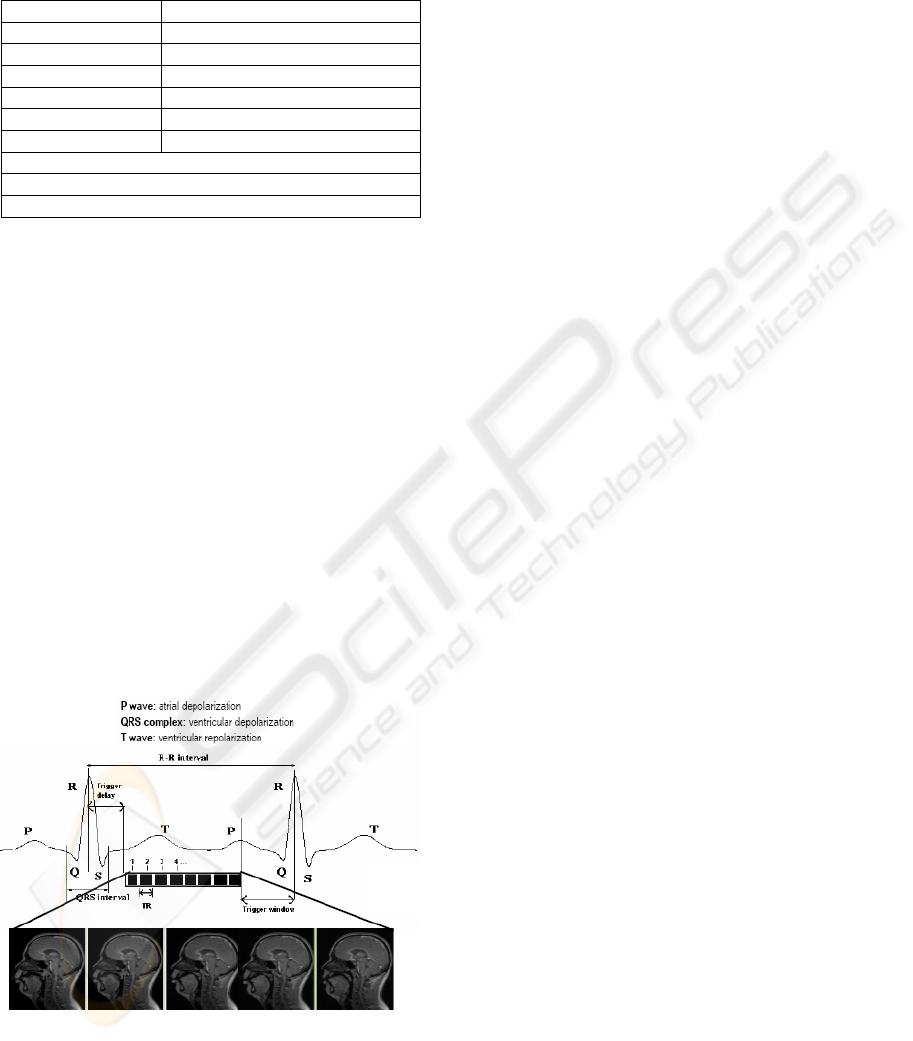

Figure 2: Diagram of the dynamic MR acquisition based

on ECG monitoring and synchronization.

The RR interval is the time duration between two

consecutive R waves (in ECG graph), and it is

usually the reference interval for programming the

slice acquisitions. It should be noted that depicted

the images were acquired in a single cardiac cycle

for the sake of representation, this is an under-

sampling method, assuming that the phenomenon is

stationary, which is quite good in cardiac analysis

but no so in repeated speech production. In fact, the

images were collected distributed along the time

with a period as short as possible, but always longer

than a cardiac cycle due to machine limitations.

2.2.3 Image Processing and Analysis

Few segmentation methods have been described in

speech studies for vocal tract contours extraction

from MR images. Briefly, those methods are based

on manual edition of curves, such as Bézier curves,

and threshold binarizations (Badin et al., 2000;

Engwall, 2004; Soquet et al., 2002). Soquet et al.

(1998) compared different approaches on the same

data in order to assess the accuracy of some manual

segmentation methods, and concluded that the

methods considered give comparable results and that

the threshold method is the one that presents lower

dispersion.

Here, image analysis and 3D model

reconstruction were accomplished in two stages:

 Image segmentation using the Segmenting

Assistant, a 3D editing plug-in of Image J the

image processing software developed by the

National Institute of Health and subsequent

3D reconstruction;

 Graphic representation and combination of

orthogonal stacks using the Blender software

for 3D graphics creation.

The histogram-derived threshold technique was

chosen for the segmentation of the airway from the

surrounding tissues. The extraction of the contours

of the vocal tract was then obtained by the following

sequence of procedures:

(a) Identification and closure of the vocal tract area

of interest, mandatory closure of the mouth, larynx,

vertebral column and velum, through the manual

superimposition of opaque objects;

(b) Manual overlapping of teeth image (done only

on the sagittal stacks), after extraction of the teeth

contours from the initially acquired sagittal

anatomic reference image;

each image of 2D slices using the Image J semi-

automatic threshold technique.

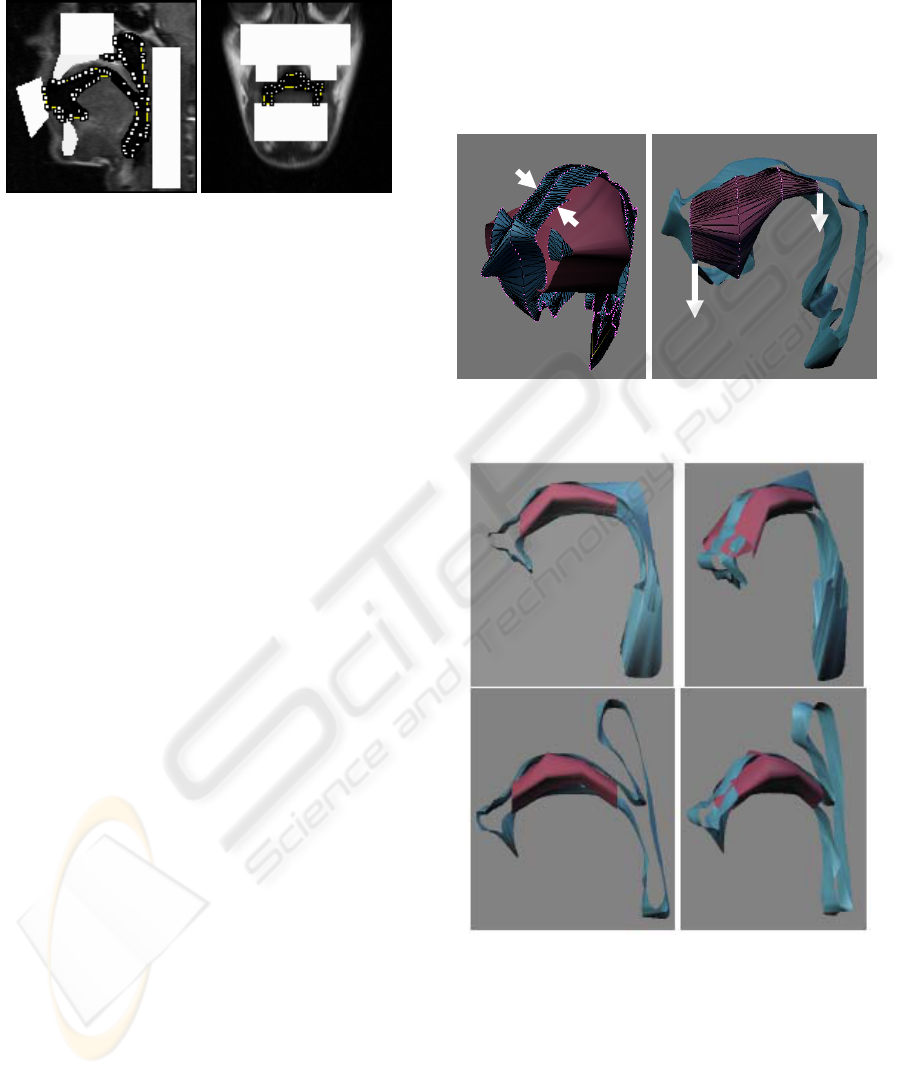

The Figure 3 depicts the image segmentation

procedure used in sagittal and coronal slices during a

sustained nasal vowel. The closure of the vocal tract

MAGNETIC RESONANCE IMAGING OF THE VOCAL TRACT -

Techniques and Applications

107

area was necessary to avoid contours to “escape”

and complicate the segmentation task.

Figure 3: Contours extraction from sagittal (right) and

coronal (left) slices after closure of the vocal tract area and

manual overlapping of teeth.

The contour extraction process resulted in a total

of 175 planar contours (maximally 7 contours for

each sound).

Outlines were subsequently used to generate a

3D surface, after importing the contours in .shapes

format, into the Blender software.

For each articulatory position, the next phase was

the combination of sagittal and coronal outlines (2D

curves). To make this possible, it was required that

the outlines be well aligned – this process is usually

known as image registration. In Computational

Vision, the term image registration means the

process of transforming the different sets of images

into one common coordinate system, what was here

necessary in order to be able to compare or integrate

the data obtained from different measurements.

3 RESULTS AND DISCUSSION

The static study was designed to obtain the

morphologic data of most of the range of the

articulators’ positions aiming the imaging

characterization of Portuguese sounds.

A variable

number of images were obtained by dynamic MR,

according to the cardiac cycle of each subject,

followed by the assembly of all images for sequence

visualization.

3.1.1 3D models

The following images (Figure 4) represent different

perspectives of the 3D model obtained for the vowel

[u]. In the presented images, the blue surface

represents the union of the three outlines extracted

from the sagittal stack. By other hand, the red

surface represents the union of the four outlines

extracted from the coronal stack.

The Figure 5 depicts two 3D models of the

vowels: corresponding to an oral sound (above) and

to a nasal sound (below). The different viewpoints

presented allow the identification of the velum

lowering, and especially the partial closure of the

oral cavity, comparatively to the oral sound. In

Portuguese there is a special interest in nasal sounds

due to their frequent use in common speech.

Figure 4: Surfaces representations for the 3D model of the

vowel [u].

Figure 5: Three-dimensional models of the oral (top) and

nasal (bottom) vowel [a] of European Portuguese.

In the 3D models obtained, some differences in

the vertical lengths between sagittal and coronal

stacks in some sounds were observed resulting in

some registration errors. This could reflect the

specific variability of the speaker in sound

production, due in this case, to the fact that

acquisitions of different orientations were separately

done (first sagittal images, and subsequently coronal

IMAGAPP 2009 - International Conference on Imaging Theory and Applications

108

images), to minimize the subjects’ effort needed for

an extra long utterance. On the other hand, the

segmentation process used had also some

implications for the determination of the vocal tract

area contour.

Furthermore, the coronal data is important for 3D

modelling of the vocal tract, because some

articulatory situations lead to occlusions in the

midsagittal plane, while lateral channels are

maintained open (e.g. lateral consonants, nasals

vowels). The models shown in Figure 6 intend to

demonstrate the relevance of coronal stacks for the

characterization of lateral consonants of Portuguese.

Although the 3D models built are not yet

completely closed, it can be observed several

essential features needed for the articulatory

description of speech.

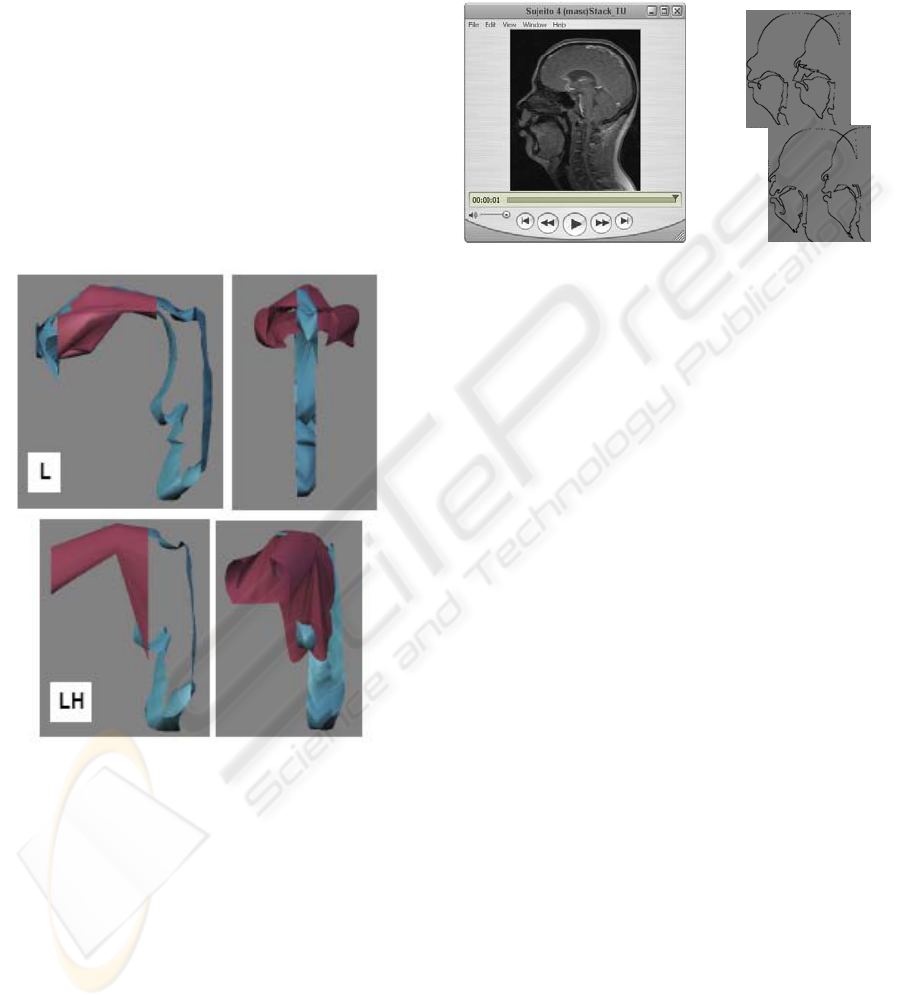

Figure 6: Three-dimensional models of the laterals

consonants [l] and [lh] of European Portuguese.

3.1.2 Image Sequence during Speech

A variable number of images (sagittal slices) were

obtained in dynamic studies, according to the

cardiac cycle (heart frequency) of each subject,

followed by the assembly of all images for image

sequences visualization. The best image features

were obtained for the syllable /tu/, as illustrate in

Figure 7, because the articulatory positions are very

different between single sounds, compared with the

other syllables.

When considering the differences verified

amongst the subjects, by image comparison, the

dynamic studies demonstrated the actual variability

in sounds production between subjects, not only due

to anatomic differences, but also because each

subject uses different strategies for motion control

and articulation.

Figure 7: Contours extracted from midsagittal images

obtained in the dynamic study by the repetition of the

sequence /tu/.

4 CONCLUSIONS

AND FUTURE WORK

In our study, a considerable number and diversity of

images were acquired aiming at not only

morphological but also a dynamic characterization,

by exploring various MR techniques. We tried to

acquire a number of images with enough anatomic

resolution, maximum vocal tract extension of

representative speech gestures, minimizing speaker

effort (reducing hyperarticulation). The image data

was analysed and processed resulting in the

reconstruction of 3D models for the entire corpus

(3D geometrical database).

For almost all 3D models obtained for

Portuguese sounds the morphologic data showed

that both orientations slices (sagittal and coronal) are

useful for the knowledge of the vocal tract shape

during speech production. Articulators’ positions are

better demonstrated in sagittal images, and the

coronal images allow the observation of the lateral

dimension of oral cavity.

The completion of the construction of the

surfaces for the hybrid models made from sagittal

and coronal stacks is the next step in the way to

obtain a complete 3D anatomical model of the vocal

tract, prepared for the subsequent prediction of the

acoustic output.

The extension of the dynamic sequences

obtained to other sequences is also important in

terms of coverage of the study, and will be done in

the near future.

MAGNETIC RESONANCE IMAGING OF THE VOCAL TRACT -

Techniques and Applications

109
