iTILE FRAMEWORK FOR CONSTRUCTING INTERACTIVE

TILED DISPLAY APPLICATIONS

Seokhwan Kim

Department of Computer Science, College of Software, Sangmyung University

7 Hongji_dong, Jongno_gu, Seoul, Republic of Korea

Minyoung Kim, Yonjoo Cho

Department of Digital Media Technology, College of Software, Sangmyung University

7 Hongji_dong, Jongno_gu, Seoul, Republic of Korea

Kyoung Shin Park

Multimedia Engineering, Division of Computer, College of Engineering, Dankook University

San 29, Anseo_dong, Dongnam_gu, Cheonan, Choongnam, Republic of Korea

Keywords: Tiled Display Framework, Large-sized and high-resolution display, Interaction.

Abstract: We describe a new scalable display framework, called iTILE, designed to help ease the development of

interactive graphics applications that run on a large tiled display. The framework supports the execution of

multiple interactive scene-graph applications, synchronized rendering, distributed data sharing, and unified

user interface mechanism on a cluster-driven tiled display. It enables the application window launching,

moving and resizing on a tiled display that requires a dynamic reconfiguration of rendering nodes. It also

provides the standardized method to support various input devices for the interactive contents. This paper

presents the design and the implementation of iTILE architecture and a few applications built using this

framework.

1 INTRODUCTION

Nowadays, there are many large public information

displays available in public spaces, such as the

airports, banks, and shopping centers. Such displays

are also found in the subway stations or at the bus

stops to provide information about the map of the

near district and other public transportation

schedules. However, current public information

displays are dedicated for display only, and so they

do not allow users to interactively acquire more

detailed information.

Recently, large high-resolution wall displays

have been used in some industry fields, such as the

military situation room, the 1:1 scale design of

mechanics, high-definition video streaming, and the

visualization of three-dimensional massive dataset.

(Ni et. al., 2006). The high-resolution display helps

users improve the efficiency of their tasks since it

allows users to see the fine detail view of the

contents if they get close to the displays and the

overview of the overall contents at a distance.

The scalable high-resolution displays can be built

using multiple projectors or multi-screen tiled

displays. Relatively large-sized and medium

resolution display is constructed with a few beam

projectors. It can generate a seamless display that

looks like one large single display if the projectors

are aligned perfectly well. The tiled display

constructed using many LCD panels does not need

recalibration. In addition, LCDs are relatively cheap,

and the colour variations across multiple screens are

low. The LCD tiled display is most widely adopted

because of its cost effectiveness and scalability.

There are several frameworks developed to

support scalable high-resolution tiled display. The

examples include SAGE (Jeong et. al., 2006),

WireGL/Chromium (Humphreys et. al., 2002),

367

Kim S., Kim M., Cho Y. and Park K.

iTILE FRAMEWORK FOR CONSTRUCTING INTERACTIVE TILED DISPLAY APPLICATIONS.

DOI: 10.5220/0001794603670372

In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications (VISIGRAPP 2009), page

ISBN: 978-989-8111-67-8

Garuda (Nirnimesh and Narayanan, 2007), and

Equalizer (http://www.equalizergraphics.com).

However, these works mostly focused on scalability

or distributed rendering of the tiled display and not

much considered user interaction. With the advent of

technology, we envision that the large high-

resolution tiled displays will allow users to

interactively view and use the multiple applications

simultaneously at the same time.

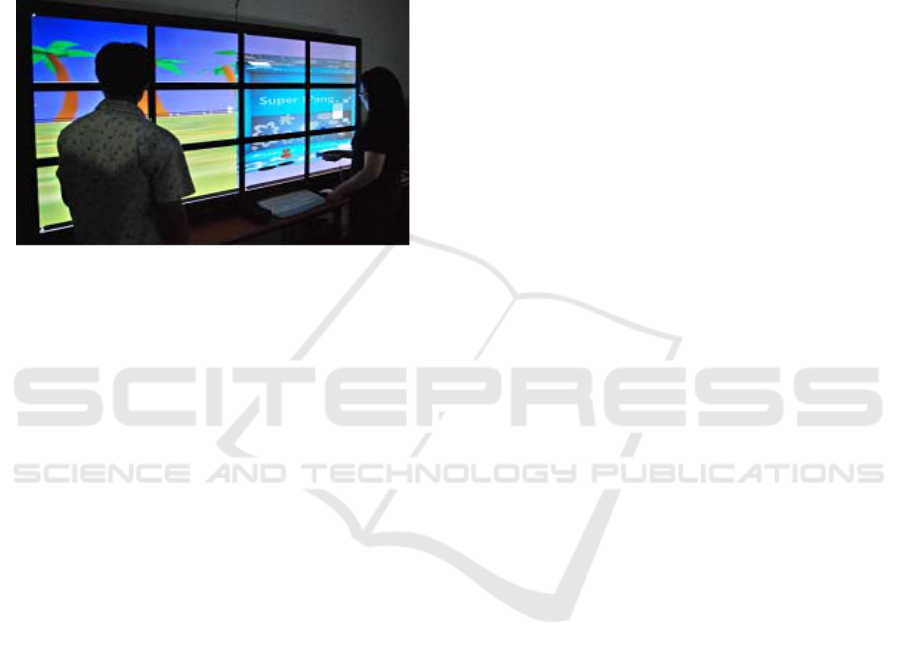

Figure 1: iTILE applications running on the tiled display

system.

In this paper, we describe a new interactive tiled

display framework, called iTILE, designed for

supporting easy construction of interactive

applications that can run on a scalable high-

resolution tiled display. Figure 1 shows iTILE

applications running on a 4x3 tiled display system

that uses one master and six slave computers. On the

left is the Field educational virtual reality application

running on three slave nodes and on the right is the

Super Pang interactive 3D game that runs on all six

slave nodes.

The main features of iTILE framework are the

execution of multiple three dimensional scene graph

applications, synchronized rendering and distributed

data sharing across the screens, and standardized

way to support various input devices on a PC-cluster

driven distributed tiled display system. It also

supports the application window launching, moving

and resizing on a tiled display that requires a

dynamic reconfiguration of rendering node in real-

time.

In following section, we will review some works

related to our framework and then describe the

design of iTILE system architecture and some

details implementations. Next, we briefly describe

some applications developed using iTILE

framework and future research directions.

2 RELATED WORK

WireGL is a parallel rendering framework on a

cluster computer system, designed to help render

three dimensional graphics by maximizing their

graphics power. It was not specifically designed for

tiled display, and more aims at parallel rendering

utilizing the distributed systems. It, however, could

support a sufficiently large image rendered on the

tiled display by dividing the large image into the

small sized image fit to each monitor. In WireGL,

when all node computers complete the rendering of

their part, they send the image to the central server.

Then, the server makes one large image and then

divides it to the small pieces of images for each

node. However, the performance is degraded when

the image gets very large. For example, if the image

resolution is 3200 X 2400 then the frame rate gets

below 20. WireGL also supports the hardware

implementation of tiled display rendering using

Lightning-2. (Stoll et. Al., 2001). Chromium is the

successor of WireGL; also designed for parallel

rendering framework. However, its performance and

mechanism for tiled display rendering is the same as

WireGL.

Equalizer developed by University of Zurich is

another parallel rendering framework similar to

WireGL and Chromium. Its rendering engine is also

based on OpenGL. Moreover, it sends the additional

rendering factors (such as, the location and the

orientation of virtual camera, and the viewport) to

each node, and then each node renders to show its

own part of the image. Equalizer provides the user

interface class for event handling. However, the

events are controlled by the GUI system rather than

directly from the operating system. That is, the event

processing routine for the input device should be

embedded to the GUI system’s loop. Thus, if a new

input device driver does not support transferring

inputs to the GUI system, the Equalizer application

developers have to implement this feature.

Garuda developed by Deemed University is an

Open Scene Graph (OSG) based three dimensional

graphics application framework for the tiled display.

Its performance is fairly good even under the 100

MB/s Ethernet and nVidia’s 6600GT graphics

chipset. The main purpose of this framework is to

support OSG application without any modification,

on the low-end PC cluster system. This framework

synchronizes all the nodes using a message passing

mechanism through a network. However, it does not

support multiple windows on the tiled display and

only support a mouse and keyboard as input devices.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

368

SAGE, developed by EVL, University of Illinois

at Chicago, is a high-resolution video streaming

middleware through an extremely fast network.

SAGE uses “the virtual frame buffer.” That is, the

images (generated from one computer or cluster

computers) are transferred to the virtual frame

buffer, and then the display nodes read the frame

buffer via a network and present the image. SAGE

also supports adjusting the size or location of the

image. Its virtual frame buffer is similar to

WireGL’s distributed rendering mechanism in which

it gathers the image from the nodes and redistributes

to them. SAGE uses an optical network to improve

the performance by reducing network delay.

Most of existing tile display frameworks focused

on scalability or distributed rendering, and hence

they provide limited user interaction schemes.

SAGE is designed to stream the screenshots of the

various applications from other computers onto the

tiled display system. SAGE supports multiple

windows using scripts, and it also allows moving

and resizing the application window. The primary

goal of WireGL/Chromium and Equalizer is to

distribute and balance the rendering loads to

multiple distributed computers. Equalizer supports

heading tracking of user to interact with the

application on the tiled display. Garuda aims at

running standalone Open Scene Graph applications

on a low-cost tiled display system without

modifying any source code. Garuda only supports

keyboard and mouse interaction to interact with the

application.

3 ITILE FRAMEWORK

The goal of iTILE framework is to support easy

construction of multiple interactive graphics

applications running on a tiled display system. It

also provides dynamic application window

management on the tiled display as well as user

interaction mechanism for iTILE applications.

Figure 2 shows the architecture of iTILE framework.

The framework consists of iTILE master, slave, and

framework utility service modules.

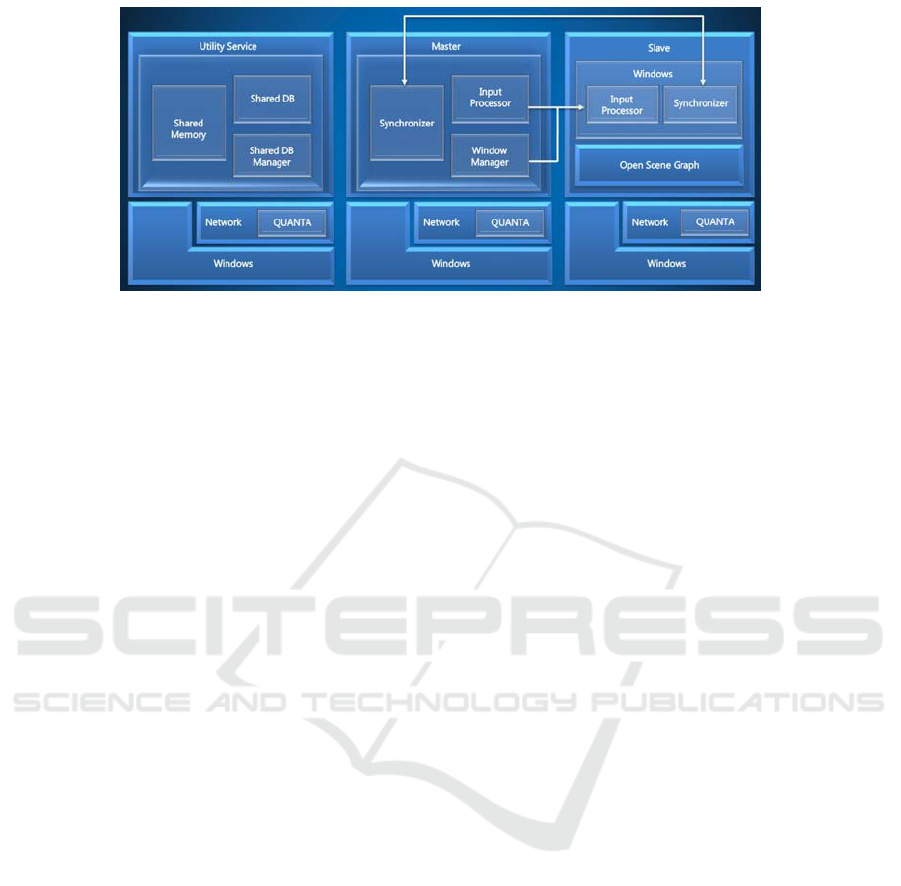

Figure 2: The Overall Architecture of iTILE Framework.

The master is in charge of dynamic application

window management and input event processing to

control the applications running on the slave nodes.

The slaves render the scenes of tiled display

applications. The framework utility services support

the features needed by both master and slaves, such

as shared database, shared database manager, and

shared memory. The master, slave, and framework

utility service are communicating each other via

message passing over the network. The framework

is written in C++ and Microsoft winsock2 and

QUANTA networking library. (DeFanti et. al.,

2003). The rendering modules of the slaves are used

Open Scene Graph (OSG) graphics library.

(http://www.openscenegrap.org).

The communication mechanism is implemented

in the Network Transfer Module, using QUANTA

networking library. We also use PGM Reliable

Transport Protocol Specification (RFC 3208) for

reliable multicast. PGM guarantees the transmission

and the order of packet like TCP protocol does.

However, it needs to resend the data packet to all

computers in a multicast group even if only one host

computers does not receive the packet. Consequently,

the host which already gets the packet also receives

the same packet twice when this retransmission

occurs. iTILE gets around this retransmission

problem by limiting the size of the data packet and

putting packet number.

iTILE FRAMEWORK FOR CONSTRUCTING INTERACTIVE TILED DISPLAY APPLICATIONS

369

3.1 Utility Service

The framework utility service has a set of

independent modules like shared DB, shared DB

manager and shared memory.

The shared DB is used for sharing data among

all slave nodes, and the shared DB manager makes

sure to maintain data consistency and

synchronization in shared DB. Shared memory is

considered as a shared DB on a local machine.

Shared memory is independent to the master but it

runs on the same master computer. If the application

writes data in shared memory, the framework reads

the data and executes specified routine.

Shared DB is an implementation of distributed

shared memory (under we will use the term DSM).

When the users navigate in the virtual world that

consists of static objects, the master’s input

processor is used to distribute the virtual camera

information according to the viewing perspectives

required in the slave nodes. However, when the

world is more dynamic, DSM is used to share the

dynamic object’s state changes synchronously across

all slaves. Shared DB is an independent process that

can run on any slave machine, and the synchronized

data in shared DB can be accessed by any process at

any time.

Shared DB manager provides the

synchronization mechanism for data in shared DBs.

iTILE’s shared DB manager enhances the weak

consistency model. (Dubois et. al., 1986). In our

implementation, the slave node first asks the shared

DB manager to get a lock to the shared memory.

Then, the slave can access the critical memory

section if the shared DB manager allows it. After

updating the data, the slave node needs to release the

lock back to the shared DB manager.

Our implementation of shared memory service is

a wrapper of shared memory served by operating

system. Shared memory is used in shared DB to

enable accessing data across multiple processes. It is

also used for new input device. The master’s input

processor reads the specific range of shared memory

for a new input device and then executes the

interaction routine. The map between interaction

routine and data needs to be specified in the program.

Using the iTILE’s shared memory, it is easy to

create a routine that writes the input data into the

shared memory.

3.2 Master Module

The master module is composed of window manager,

input processor and synchronizer. Master’s window

manager processes the windowing events, such as

moving or resizing application windows. Master’s

input processor handles the application events, such

as user navigation and manipulation of virtual

objects. Master’s synchronizer works with slaves’

counterparts to update the application’s screen

rendering simultaneously.

Master’s window manager controls the

information about the application windows for all

slave nodes, such as window location and viewport.

It enables dynamic creation and removal of multiple

application windows on the tiled display system at

run-time. It keeps monitoring whether the window

events are happened or not. If so, the window

manager re-configures the location and size of the

window as well as recalculates the graphical

viewport and view frustum to properly render three

dimensional environments in each slave’s

application window. The window manager sends the

window information via multicast protocol to each

slave’s input processor.

Master’s input processor is another core module

of iTILE framework. Input processor receives events

based on the values from input devices. If it reads

out the values from input devices, it generates a

message (in pre-defined form) and sends it to the

slave nodes. It also sends the virtual camera

information such that slave nodes can render right

view perspectives. As shown in Figure 2, the

messages from both input processor and window

manager are sent to slave’s input processor.

When a new application window is launched

from the master, new synchronizer threads get also

created in both master and slaves. When each slave

node renders a scene and is ready to swap the frame

buffer, it sends a notification to the master’s

synchronizer. When the master’s synchronizer

receives the notifications from every rendering node,

it sends a rendering message to all slaves so that

they can actually draw on their screens.

3.3 Slave Module

The slave module consists of Open Scene Graph

renderer and slave’s window. The slave’s window

consists of input processor and synchronizer. We

employ the Open Scene Graph open-source graphics

APIs for graphics rendering. Slave’s input processor

identifies the appropriate message handler for the

application windows running on the slave node. The

slaves also have a synchronizer for each iTILE

application window to make sure all slaves

rendering updated simultaneously.

Slave’s input processor manages both

windowing events and application specific events.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

370

When the input processor receives the messages

from the master, the input processor’s message

dispatcher determines the appropriate module for

those messages. If the message is from master’s

window manager, the slave’s window updates its

size and location changes. If the message is from the

master’s input processor, the slave’s input processor

analyzes the message and then executes the message

handler routine.

Slave’s synchronizer sends the rendering status

(such as, ready to render new frame buffer) to the

master’s synchronizer. Then, the master sends the

allowance message to the slaves when all slaves are

ready to swap their frame buffer. The slave’s display

buffer swapping is blocked until slave’s

synchronizer receives the allowance message from

the master.

4 APPLICATIONS

Figure 3 shows users interactive with three iTILE

framework applications on the 4x3 tiled display

system, which was constructed with 12 LCD panels

and one master and six slave computers. In this

section, we will briefly discuss some applications

written using iTILE framework: the Field

educational virtual environment, the Moyangsung

virtual heritage environment, the Super Pang

interactive 3D game, and the simple OSG model

viewer controlled by a Nintendo Wii remote

controller.

4.1 Field Virtual Environment

Field is an educational virtual reality application

originally developed by Electronic Visualization

Laboratory, University of Illinois at Chicago for

helping elementary students to teach scientific

inquiry learning skills. There are many kinds of

flowers and plants in the virtual field that consists of

grass, gravel, and sand area. In field, users can freely

navigate the world and observe the natural

phenomena for scientific inquiry. This application is

originally developed by using SGI Performer

graphics library and YG virtual reality scripting

framework (http://www.evl.uic.edu/yg/). We have

re-implemented Field written using iTILE

framework and OSG library.

iTILE framework provides several derived

modules for the OSG rendering and input processing

classes. Hence, simple OSG applications containing

static object models and navigation can easily be

ported to the iTILE applications by simply replacing

the viewer and the manipulator classes for the

master or the slave nodes. The efforts required

converting this kind of OSG applications to iTILE’s

are relatively low – In the Field application, for

example, less than ten lines of the source code are

changed.

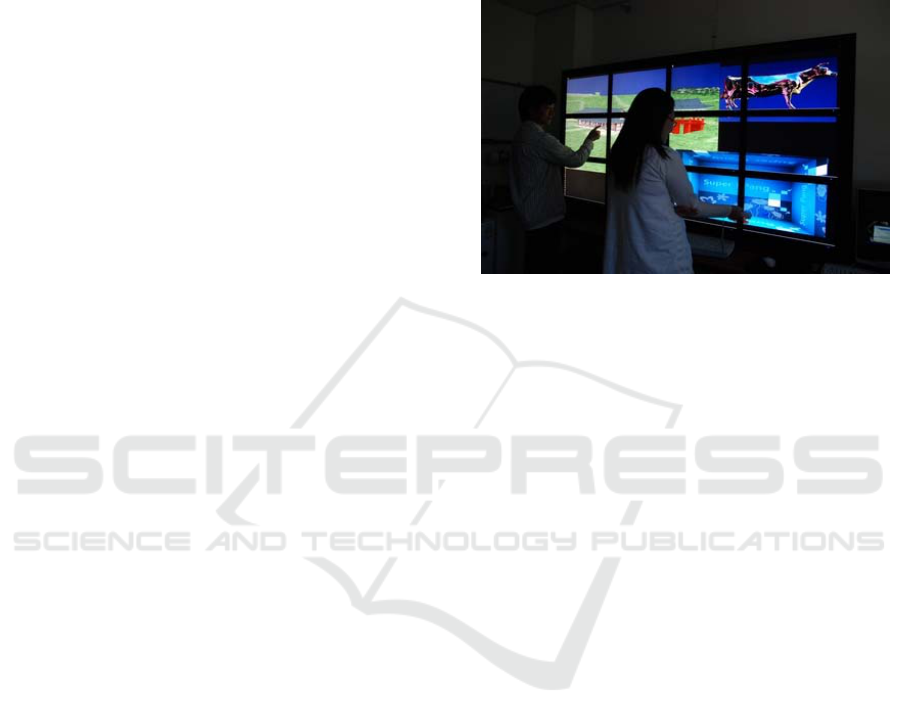

Figure 3: Users interact with three iTILE applications on

the 4x3 iTILE tiled display system.

4.2 Moyangsung Virtual Environment

Moyangsung is a virtual reality cultural heritage

environment designed for users to learn cultural

background story of a Korean war-defensive castle.

It is constructed on a hill as a fortress. There are four

main gates and about twenty-two traditional

buildings inside the castle, and bamboo and pine tree

forests. Users can freely walk around the virtual

Moyangsung to experience various cultural sites.

This application is also written using SGI Performer

graphics library and YG virtual reality scripting

framework. Similar to Field, the Moyangsung

application is simply re-written using OSG library

and iTILE framework’s master/slave viewer and

manipulator classes.

4.3 Super Pang Interactive 3D Game

Our framework’s distributed shared memory

mechanism helps developers easily translate more

dynamic VR applications, such as Super Pang, to the

tiled display system. Super Pang is a simple OSG-

based interactive 3D game developed by

Sangmyung University. This game starts with a

character agent and a balloon floating in the world; a

player uses a keyboard or wii remote controller to

move the character and shoot the laser beam to hit

the balloon. The balloon would get split if the beam

crosses it. Then, the player continues to shoot the

balloons until all balloons get removed within a

limited time.

iTILE FRAMEWORK FOR CONSTRUCTING INTERACTIVE TILED DISPLAY APPLICATIONS

371

Unlike Field, the Super Pang game world is more

dynamic with moving objects and user interactions.

We employed the iTILE’s shared DB class to share

the user input data and the game character’s position,

across the slave nodes to render the correct contents

in the tiled display. The DSM is also used to update

the state of all moving objects (i.e., balloons) in the

3D world across the slave computers.

4.4 3D Model Viewer

We extended a simple OSG application, osgViewer,

to allow it to manipulate 3D object models with a

Nintendo Wii remote controller (often called

Wiimote). In this application, we developed a

specialized input processor class,

CMasterOSGTrackballManipulatorWithIO, for the

master node. This specialized input device handling

module simply reads Wiimote data and put them in

the shared memory as specified in the master node’s

input processor. Then, users can use the new device

for several user interactions, such as zooming in/out,

moving the object model left/right/up/down, and

rotating the model within the viewer application

without modifying any source code of the program.

This application demonstrates the convenience of

our framework, which provides a mechanism to

easily add new input device handling without

changing any code in the application program.

5 CONCLUSIONS

Tiled displays offers scalability, large-format, and

high-resolution used for various applications, such

as high-resolution image, massive scientific

visualization, video streaming, and design

prototyping. However, the development of tiled

display applications requires a lot of efforts. While

several scalable high-resolution tiled display

frameworks have been developed, they mostly focus

on scalability or distributed rendering of computer

graphics and not much considered user interaction.

This paper presented the design and

implementation of iTILE framework. iTILE

framework is designed to support easier and faster

development of the interactive graphics applications

for the scalable tiled display. This framework works

on the PC-cluster driven tiled display system

consisting of a master and multiple slave computers.

It provides the window manager for executing

multiple application windows, synchronized

rendering, distributed data sharing using shared DB

manager, and standardized mechanism to support

various input devices.

We have also showed some examples where

existing OSG applications can easily be ported to

run on the tiled display using our framework.

However, current iTILE framework is little tightly

coupled to Open Scene Graph library and hence it

only supports OSG-based applications. In our

current framework, the interaction with the input

device is needed to be specified in the application

program. In the future, we will continue to improve

our framework to decouple it from Open Scene

Graph library and add the new standardized

component structure for interaction scheme.

ACKNOWLEDGEMENTS

This research was supported by the Collaboration

Research Project program, supervised by the Korea

Research Council of Fundamental Science and

Technology under the Korea Institute of Science and

Technology Information.

REFERENCES

T, Ni., G, Schmidt., O, Staadt., M, Livingston., R, Bell.,

1999. A Survey of Large High-Resolution Display

Technologies, Techniques, and Applications. In VR

Conference 2006. IEEE.

B, Jeong., L, Renambot., R, Jagodic., R, Singh., J,

Aguilera., A, Johonson., J, Leight., 2006. High-

Performance Dynmaic Graphics Streaming for

Scalable Adaptive Graphics Environment. In SC.

IEEE.

G, Humphreys., M, Houston., R, Ng., R, Frank., S, Ahen.,

P, D, Kirchner., J, T, Klosowski., 2002. Chromium: a

stream-processing framework for interactive rendering

on clusters. In ACM Transactions on Graphics. ACM.

H, P, Nirnimesh., P, J, Narayanan., 2007. Garuda: A

Scalable Tiled Display Wall Using Commodity PCs.

In IEEE Transactions on Visualization and Computer

Graphics. IEEE.

G. Stoll., M. Eldridge., D, Patterson., A, Webb., S,

Berman., R, Levy., C, Caywood., M, taveira., S, Hunt.,

P, Hanrahan., 2001. Lightning-2: a high-performance

display system for PC clusters, In Proceedings of the

28th annual conference on Computer graphics and

interactive techniques. ACM.

E, He., J, Alimohideen., J, Eliason., N, Krishaprasad., O,

Yu., Leigh., T, Defanti., J, 2003. Quanta: a toolkit for

high performance data delivery over photonic

networks. In Future Generation Computer Systems.

ACM.

M, Dubois., C, Scherurich., F, A, Briggs., 1986. Memory

Access Buffering in Multiprocessors. In 13th Annual

International Symposium on Computer Architecture.

ACM.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

372
