PARALLEL IMPLEMENTATION OF A GLOBAL LINE MONTE

CARLO RADIOSITY

Roel Mart

ınez, Adri

a For

es and Ignacio Mart

ın

Institut d’Inform

atica i Aplicacions, Universitat de Girona, Campus de Montilivi, E-17071 Girona, Spain

Keywords:

Global illumination, Radiosity, Monte Carlo.

Abstract:

Radiosity methods are known by their expensive computational cost. To compute high quality images with a

lot of polygons or patches may take hours. For this reason parallel processing will be a good option in order

to decrease the computational cost. On the other hand, Monte Carlo methods offer good alternatives for paral-

lelization, given their intrinsic decomposition properties in independent subtasks. We have implemented our

multipath method for radiosity using a cluster of PCs. Results are presented for 1 to 8 processors, exhibiting a

good efﬁciency and scalability.

1 INTRODUCTION

Global illumination algorithms compute the single re-

ﬂection of the light many times to simulate the multi-

ple reﬂections. To obtain a single reﬂection at a point

the estimate of the incoming radiance from a direction

should be weighted by the probability of the reﬂection

to a given direction and integrated taking into account

all the possible incoming directions. Consequently,

global illumination is basically a numerical integra-

tion problem. Thus global illumination is computa-

tionally very expensive, which means that in order to

obtain a high quality image, with a lot of polygons

or patches, may take hours. This high cost makes re-

searchers in the area to look into parallelization alter-

natives to reduce it (Reinhard et al., 1998).

Local Monte-Carlo approaches sample the do-

main of the integration randomly using a probability

density p, evaluate the integrand f (~x) here, and pro-

vide the f /p ratio as the primary estimate of the in-

tegral. This estimate is accurate if we can ﬁnd p to

mimic f precisely, i.e. to make f /p as ﬂat as possi-

ble. This strategy, which is commonly referred to as

importance sampling, places more samples where the

integrand is high. Since in practice p can be very far

from the integrand, the estimator may have high vari-

ance. Thus to get an accurate result many indepen-

dent primary estimators should be used and compute

the secondary estimator as their average.

Global Monte-Carlo methods do not rely on ﬁnd-

ing good sampling density. Instead, they take advan-

tage of the fact that it is usually easy to evaluate the

f at a well structured set of sample points x

,. ..,x

The emphasis is on that the simultaneous computa-

tion of f (x

),. .., f (x

) is much cheaper that the indi-

vidual computation of f (x

),.. ., and f (x

) by a local

method, thus in this way we can have many more sam-

ples for the same computational effort. The bad side

of this technique is that, ﬁnding a probability den-

sity that simultaneously mimics the integrand at many

points is very difﬁcult, thus practical methods usually

use uniform sampling probability. In this way, global

methods are implemented using global uniformly dis-

tributed lines, ﬁrst used in (Buckalew and Fussell,

1989), in contrast with “local” lines, generated from

sampled points in the scene.

The multipath algorithm for radiosity (Sbert et al.,

1996; Sbert, 1997) is part of this family of global lines

algorithms which has seen a further development in

(Besuievsky and Pueyo, 1997; Szirmay-Kalos and

Purgathofer, 1998; Szirmay-Kalos, 1999; Bekaert,

1999; Mart

ınez, 2004).

On the other hand, task farm (or naive) Monte

Carlo parallelization is based on the fact that we can

decompose a Monte Carlo computation with n lines or

rays into m independent smaller ones with n/m rays

each with no loss in precision (Zareski et al., 1995;

Sbert et al., 1995; Alme et al., 1998).

We have implemented our parallel solution on a

cluster of PCs. We choose a high performance clus-

ter for decreasing the execution time of the radiosity

algorithm.

164

MartÃ nez R., ForÃl’s A. and MartÃ n I.

PARALLEL IMPLEMENTATION OF A GLOBAL LINE MONTE CARLO RADIOSITY.

DOI: 10.5220/0001801501640169

In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications (VISIGRAPP 2009), page

ISBN: 978-989-8111-67-8

The rest of the paper is organized as follows. In

section 2 we present the radiosity multipath method.

In sections 3 and 4 we introduce the whole steps for

the sequential and parallel implementation of the mul-

tipath method, respectively. In section 5 we show our

results and ﬁnally we present our conclusions in sec-

tion 6.

2 MULTIPATH METHOD

The multipath algorithm, described in (Sbert et al.,

1996; Sbert, 1997), uses segments of global lines to

build random walks that mimic classic random walks

with inﬁnite path length (see ﬁgure 1). The main

differences as compared to the classic (local) ran-

dom walk approach is the source probability selec-

tion which is proportional to the area of the patch,

the simultaneous advance of different paths thanks to

global lines, and transporting different logical paths in

a single geometrical one. The ﬁrst difference makes

it only efﬁcient in “smoothed“ scenes, with emittance

occupying a large part of the scene and more or less

equilibrated. For this reason a ﬁrst shot distributing

direct illumination before applying the algorithm is

necessary (Castro et al., 1998; Szirmay-Kalos et al.,

2000). First shot method uses Monte Carlo local

lines for the initial energy distribution from the light

sources (see ﬁgure 2, right). After the ﬁrst shot execu-

tion, it runs the multipath algorithm that uses Monte

Carlo global lines to compute the light reﬂectances

(see ﬁgure 2, left).

The multipath algorithm casts a predetermined

number of random global lines using for instance, ran-

dom points on an enclosing sphere. Each line will

produce an intersection list, and the list is traversed

taking into account each successive pair of patches

(see ﬁgure 3). Each patch (if not emitter) stores two

quantities. One records the power accumulated, and

the other the unshot power. For every pair of patches

along the intersection list, the ﬁrst patch of the pair

will transmit its unsent power to the second patch of

the pair. So the unshot energy of the ﬁrst patch is reset

to zero, and the two quantities at the second patch, the

accumulated and the unsent energy, are incremented.

In the case of a source a third quantity i.e., the emitted

power per line exiting the source is also kept. This

power is precomputed in the following way: Given

the number of lines to cast, the forecast number of

lines passing through any source is found. This can

be done with the Integral Geometry methods (San-

tal

o, 1976). The division of the total source power

by this number of forecast lines gives the predicted

power of one line. Then, if the ﬁrst patch of a pair

Source

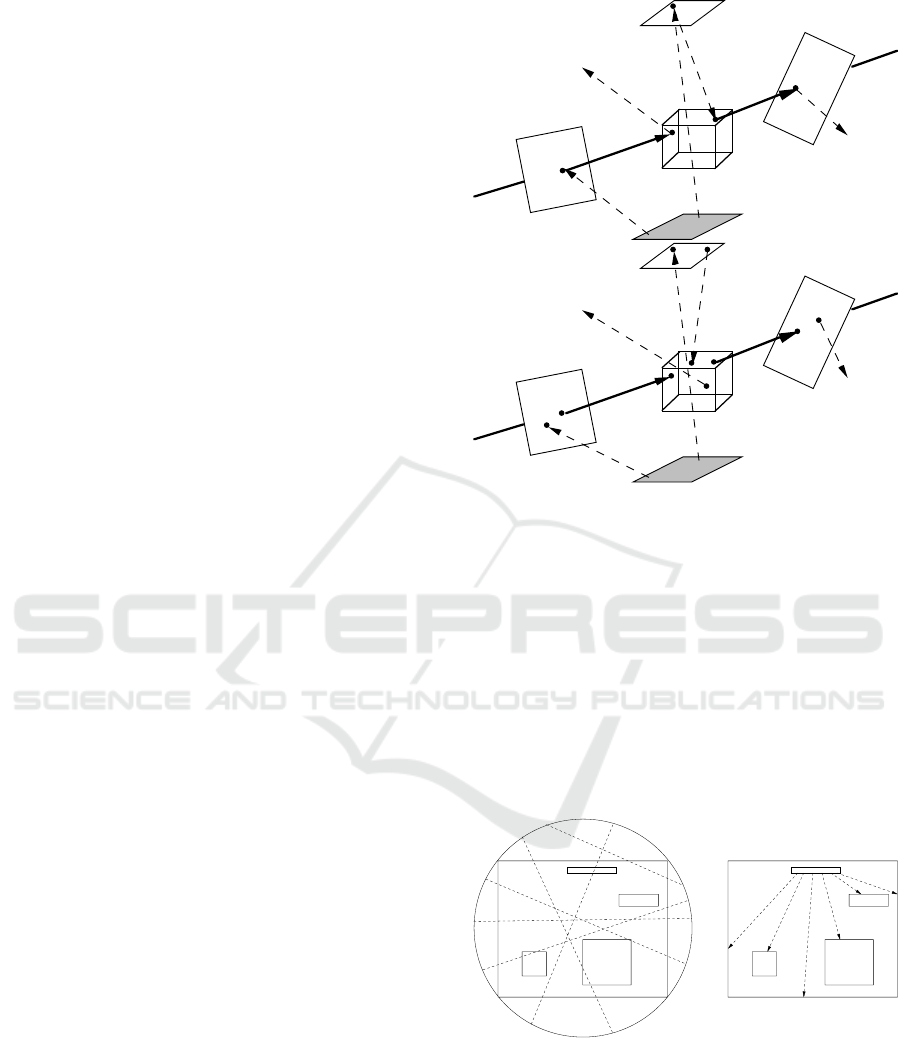

Figure 1: Random walk simulation with global lines. Top

image, a global line (the thick continuous one) makes two

paths advance at once (using previous global lines). Con-

sidering bidirectionality of the global lines, two other paths

(cube surface and the more left polygon) will also advance

in the reverse direction of the line. Down image, the exit

point on each surface is random but the random walk simu-

lation is still the same.

is a source patch, the power transported to the sec-

ond patch of the pair will also include this predicted

power portion. Considering bidirectionality, the same

process is applied for the second patch of the pair of

face to face patches.

Figure 2: From left to right, global line and local line

Monte Carlo methods. Global lines are cast from a bound-

ing sphere and all intersections, that the line made with the

scene, are considered. Local lines are cast from a patch and

just the ﬁrst intersection, that the line made with the scene,

is considered.

PARALLEL IMPLEMENTATION OF A GLOBAL LINE MONTE CARLO RADIOSITY

165

Figure 3: From left to right, the local line goes from the

emitter patch to the ﬁrst intersection of the line, there is

a unidirectional energy sent from P1 to patch P2. On the

right, the global line AB will transport power from patch

P1 to P2 and from patch P3 to patch P4. There is no energy

exchange between P2 and P3 because the related segment is

inside an object. Considering bidirectionality, the line will

also transport power from P2 to P1 and from P4 to P3.

3 SEQUENTIAL

IMPLEMENTATION

The sequential implementation ﬁrst reads the scene

geometry and then the scene is subdivided in patches.

Second, the ﬁrst shot step, with a predeﬁned, by the

user, number of lines, is computed. Third, the multi-

path method, with predeﬁned number of lines, is ap-

plied. Finally, the resulting scene is saved. This is

summarized in ﬁgure 4. The ﬁrst shot step and the

multipath method are given by the following pseu-

docode:

begin firstShot()

for i=0 to total number of patches do

if patch[i] is a source then

compute number of rays for this source

according to its power

for j=0 to number of rays do

cast a local line // see figure 2

transfer energy from the source to

the first intersected patch

endFor

endIf

endFor

end

begin multipath()

create a bounding sphere for the whole scene

for i=0 to total number of rays do

cast a global line // see figure 2

compute all intersections

for all intersections do

// see figure 3

exchange power between pair of patches

endFor

end

It is easy to see that the more consuming parts,

in our sequential implementation, are the firstShot

and multipath steps. The idea is then to execute both

functions in parallel.

read scene data first shot multipath write results

Figure 4: Sequential algorithm scheme of our radiosity im-

plementation.

4 PARALLEL

IMPLEMENTATION

In our parallel implementation we have two regions

in our code: the sequential region and the parallel re-

gion. In our case the parallel region is given by the

ﬁrst shot step and the multipath method. Every cluster

node has its own copy of the scene data and radiosity

solution vector. Thus, every node computes its own

solution of the ﬁrst shot step and multipath method

according to the code explained in previous section.

The sequential region is given by three sections. The

ﬁrst section is loading the data at the beginning of the

process. The second one is the combination of the

results after the ﬁrst shot and the distribution of this

result to all the nodes. And the third one is the compu-

tation of the ﬁnal results at the end of the process. In

ﬁgure 5 we can see how all these tasks are structured

in our implementation.

read scene data

first shot first shot

combine results

first shot

write results

combine and

multipath multipath multipath

Figure 5: Parallel algorithm scheme of our radiosity imple-

mentation.

The tasks for each node is balanced because the

predeﬁned number of rays is divided by the number

of processors. The cost of every line depends of the

number of intersections. In the case of local lines the

cost is more less the same but for global lines the cost

can be very different. Considering that a scene needs

millions of global lines then the average intersection

cost will be almost the same at the end of the process.

On the other hand, the sequential cost depends of

the communication cost plus the master node CPU

time. Our communication cost is very low because

there are just two communications steps in our imple-

mentation: one is bidirectional and the other one is

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

166

unidirectional. The bidirectional communication pro-

cess is used after the ﬁrst shot step. The result of each

node is sent to the master node and this node com-

bines them. The ﬁnal result is then sent back to each

node in order to use this result as an initial values of

the multipath method. The unidirectional communi-

cation step is applied at the end of the process. The

task of combining the results is simple. The master

node CPU has to add, for every scene patch, all the

radiosity results and divide them by the number of

processors. Thus the execution time, in the master

node, is proportional to the number of patches.

5 RESULTS

We have used a high performance cluster composed

by four servers HP ProLian DL145, each server has

two AMD Opteron 244 (1.8GHz) processors and 2GB

of RAM memory. Also a 100Mbps network switch is

used. The cluster has been conﬁgured with OSCAR

(Open Source Cluster Application Resources) on a

GNU/Linux Suse 10.0 OS. We did our implementa-

tion in C++ using the SIR architecture (see (Martin

et al., 1998)) and LAM/MPI (Message Passing Inter-

face) libraries. We tested our implementation with the

museum stairs and airplane cabin scenes (see ﬁgures

8 and 9).

Speed-up and Efﬁciency are measures that indi-

cate how well a program has been parallelized. Let

T (p) be the execution time in p CPUs. The Speedup

S(p) and Efﬁciency E(p) are deﬁned as:

S(p) =

T (1)

T (p)

p = 1, 2,3...n

E(p) =

S(p)

Figures 6 and 7 show the speed-up and efﬁciency,

respectively, of our parallel implementation, for the

museum stairs scene in ﬁgure 8. We can see that

the speed-up keeps around 90% for different number

of CPUs. Scalability shows that the efﬁciency E(p)

remains constant over a large number of processors.

Following this idea, we can see that our implementa-

tion has a good scalability.

According to our experiments, in order to get a

better result, the best proportion is 50% of local lines

and 50% of global lines. But it is important to note

that the bounding sphere volume is around 30% big-

ger than the bounding box volume of the scene. It

means that 30% of the global lines will not intersect

any scene polygon because are passing through an

”empty” space.

The museum stairs scene was subdivided in

614.778 patches and 100 million rays for the ﬁrst shot

step and 130 million for the multipath method were

cast. The execution time using the sequential imple-

mentation was 1346.4 seconds (484.7 seconds for the

ﬁrst shot and 861.7 for the multipath method) and for

our parallel implementation, using 8 CPUs, was 189.5

seconds (70.2 seconds for the ﬁrst shot and 119.3 for

the multipath method).

The airplane cabin scene was subdivided in

438.518 patches and 100 million rays for the ﬁrst shot

step and 130 million for the multipath method were

cast. The execution time for the sequential and paral-

lel implementation was 951.3 (337.7 seconds for the

ﬁrst shot and 613.6 for the multipath method) and

130.5 seconds (47 seconds for the ﬁrst shot and 83.5

for the multipath method), respectively. This scene

shows similar speed-up and efﬁciency than the mu-

seum stairs scene.

1 2 3 4 5 6 7 8

CPU count

0.6

0.7

0.8

0.9

Efﬁciency

Figure 6: Efﬁciency for the museum stairs scene in ﬁgure 8.

1 2 3 4 5 6 7 8

CPU count

Speedup

Figure 7: Efﬁciency for the museum stairs scene in ﬁgure 8.

PARALLEL IMPLEMENTATION OF A GLOBAL LINE MONTE CARLO RADIOSITY

167

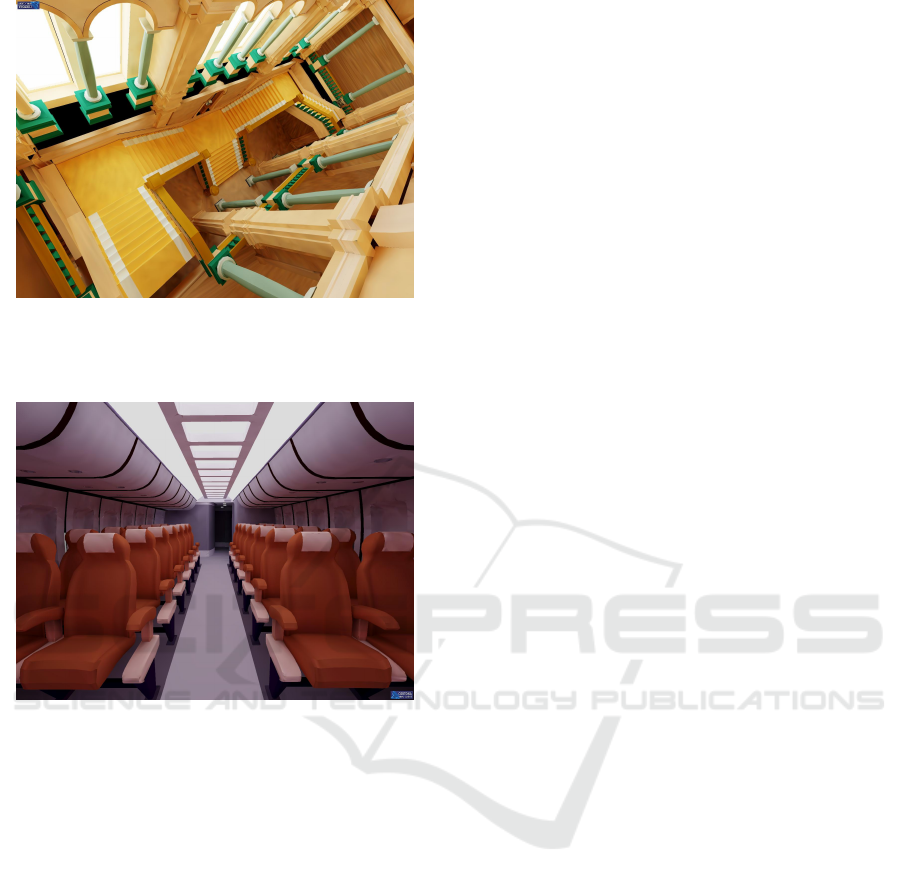

Figure 8: Museum stairs scene (a view from the top) with

614.778 patches computed using 100 million rays for the

ﬁrst shot step and 130 million for the multipath method.

Figure 9: Airplane cabin scene with 438.518 patches com-

puted using 100 million rays for the ﬁrst shot step and 130

million for the multipath method.

6 CONCLUSIONS

We have presented a parallel implementation of the

multipath method for radiosity. The implementation

has been done in a cluster of PCs. Tests have been

done for 2 to 8 processors, showing good efﬁciency

and scalability.

As future work is possible to implement other re-

lated global line Monte Carlo algorithms. Also, other

architectures, like multicore shared memory, are a

good option for Monte Carlo methods.

ACKNOWLEDGEMENTS

This project has been funded in part with grant num-

ber TIN2007-68066-C04-01 of the Spanish Govern-

ment.

REFERENCES

Alme, H., Rodrigue, G., and Zimmerman, G. (1998). Do-

main decomposition methods for parallel laser-tissue

models with monte carlo transport. In Niederreiter,

H. and Spanier, J., editors, Proceedings of the Third

International Conference on Monte Carlo and Quasi-

Monte Carlo methods in Scientiﬁc Computing, Clare-

mont, California, USA. Springer-Verlag.

Bekaert, P. (1999). Hierarchical and Stochastic Algo-

rithms for Radiosity. PhD thesis, Department of Com-

puter Science, Katholieke Universiteit Leuven, Leu-

ven, Belgium.

Besuievsky, G. and Pueyo, X. (1997). Making Global

Monte Carlo Methods Useful: An Adaptive Approach

for Radiosity. In Actas VII Congreso Espa

nol de In-

form

atica Gr

aﬁca (CEIG ’97), Barcelona, Spain.

Buckalew, C. and Fussell, D. (1989). Illumination Net-

works: Fast Realistic Rendering with General Re-

ﬂectance Functions. In Computer Graphics (ACM

SIGGRAPH ’89 Proceedings), volume 23, pages 89–

98.

Castro, F., Mart

ınez, R., and Sbert, M. (1998). Quasi-

monte carlo and extended ﬁrst-shot improvement

to the multi-path method. In Szirmay-Kalos,

L., editor, Proc. Spring Conference on Com-

puter Graphics ’98, pages 91–102, Budimerce,

Slovakia. Comenius University. Available from

http: //www.dcs.fmph.uniba.sk /˜sccg/ proceedings/

1998.index.htm.

Martin, I., Perez, F., and Pueyo, X. (1998). The SIR Render-

ing Architecture. Computers & Graphics, 22(5):601–

609.

Mart

ınez, R. (2004). Adaptive and Depth Buffer Solutions

with Bundle of Parallel Rays for Global Line Monte

Carlo Radiosity. PhD thesis, Universitat Polit

ecnica

de Catalunya, Barcelona, Spain. Available from

http://ima.udg.es/˜roel.

Reinhard, E., Chalmers, A. G., and Jansen, F. W.

(1998). Eurographics ’98 State of the Art

Reports, chapter Overview of Parallel Photo-

Realistic Graphics, pages 1–25. Available from

http: // www.cs.bris.ac.uk /Tools /Reports /Authors /

alan.html.

Santal

o, L. A. (1976). Integral Geometry and Geometric

Probability. Addison-Wesley, New York.

Sbert, M. (1997). The Use of Global Random Direc-

tions to Compute Radiosity: Global Monte Carlo

Techniques. PhD thesis, Universitat Polit

ecnica

de Catalunya, Barcelona, Spain. Available from

http://ima.udg.es/˜mateu.

Sbert, M., Perez, F., and Pueyo, X. (1995). Global Monte

Carlo: A Progressive Solution. In Hanrahan, P. M. and

Purgathofer, W., editors, Rendering Techniques ’95

(Proceedings of the Sixth Eurographics Workshop on

Rendering), pages 231–239, New York, NY. Springer-

Verlag.

Sbert, M., Pueyo, X., Neumann, L., and Purgathofer, W.

(1996). Global Multipath Monte Carlo Algorithms for

Radiosity. The Visual Computer, 12(2):47–61.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

168

Szirmay-Kalos, L. (1999). Stochastic Iteration for Non-

Diffuse Global Illumination. In Computer Graphics

Forum ( Proceedings Eurographics ’99), volume 18,

pages C–233–C–244.

Szirmay-Kalos, L. and Purgathofer, W. (1998). Global Ray-

Bundle Tracing with Hardware Acceleration. In Dret-

takis, G. and Max, N., editors, Rendering Techniques

’98 (Proceedings of Eurographics Rendering Work-

shop ’98), pages 247–258, New York, NY. Springer

Wien.

Szirmay-Kalos, L., Sbert, M., Mart

ınez, R., and Tobler,

R. F. (2000). Incoming First-Shot for Non-Diffuse

Global Illumination. In Spring Conference on Com-

puter Graphics, Budmerice, Slovakia. Available from

http://www.fsz.bme.hu/˜szirmay/puba.htm.

Zareski, D., Wade, B., Hubbard, P., and Shirley, P. (1995).

Efﬁcient parallel global illumination using density es-

timation. In Proceedings of Visualization ’95 - Paral-

lel Rendering Symposium, pages 219–230.

PARALLEL IMPLEMENTATION OF A GLOBAL LINE MONTE CARLO RADIOSITY

169
