Spontaneous Speech Database for the Romanian

Language with Medical Applicability

Cristina Sorina Petrea

, Diana Mirela Haneş

, Andi Buzo

Vladimir Popescu

1, 2

and Corneliu Burileanu

Faculty of Electronics and Telecommunications, “Politehnica”

University of Bucharest, Romania

Laboratoire d'Informatique de Grenoble, Grenoble INP, France

Abstract. The research in the field of spontaneous speech for Romanian

language has direct applicability in the medical process of patient remote

monitoring and in helping the dyslexics and the dyspraxic people. It is an

unexplored domain, with high potential for worthy results in speech recognition

area. The goal is to achieve performance in helping persons with disabilities and

common patients.

This paper describes the statistical results and the achievements obtained in the

field of spontaneous speech recognition, beginning with the new Romanian

corpus, built from scratch with words and triphones.

The challenge is to create a spontaneous speech recognition tool for Romanian

language with medical applicability for the benefit of persons with difficulties

in mobility, communication and even common people.

1 Introduction

Spontaneous speech is an opened area in the large domain of speech recognition and

has direct applicability in medical environment. It has applicability in patients’ remote

monitoring process and also in helping people with dyslexia and those with dyspraxia.

1.1 Spontaneous Speech Recognition Characteristics and Applicability

Nowadays, research work is done in medical remote monitoring domain, with the aim

of detecting abnormal patient behavior at home in the context of residential health

care [1], [2]. Speech is analyzed in order to extract informative key words like “Help

me” and “Doctor” for distress identification.

Research is also intensively done in the dyslexia and dyspraxia domain. Dyslexia

has been diagnosed in people of all levels of intelligence [10].

People suffering from dyslexia and dyspraxia have troubles with typing and hand

writing and these persons monitored in their own homes or in the hospitals need

special attention and help. Creating a speech recognition system that makes use of

spontaneous speech, will remove the need to type or hand write for a dyslectic or a

dyspractic and will provide the ability to help a supervised person on request by

understanding his urgent needs.

Petrea C., Hanes D., Buzo A., Popescu V. and Burileanu C. (2009).

Spontaneous Speech Database for the Romanian Language with Medical Applicability.

In Proceedings of the 1st International Workshop on Mobilizing Health Information to Support Healthcare-related Knowledge Work, pages 78-86

DOI: 10.5220/0001818300780086

 SciTePress

Stuttering and cluttering are warning signs of dyslexia [10]. Many dyslexics also

can have problems with speaking clearly. That’s why spontaneous speech is the right

filed needing attention in helping these people.

In spontaneous speech the speaker does not preserve rules; he talks freely, not

necessarily grammatically correct. He can pronounce words in slang or in short forms,

he can come up with unexpected interjections, he can make pauses or he can speak

too fast, he may stammer or he may deeply breathe, he may hesitate, he may be

incoherent. He may or may not be aware that his words are not always grammatically

correct and his language contains disfluencies.

The speaker’s mood has a big influence on his spontaneously spoken behavior as

he may yawl, he may whisper, he may get confused and begin to stammer, he may

laugh or cry and all his emotions will get reflected into the way he is expressing.

Some of the issues in processing spontaneous speech are: false starts, filled pauses,

incoherence of the speaker with possible ungrammatical constructions. These

mentioned problems make the spontaneous speech more difficult to deal with,

compared to the read speech, when it comes to recognition.

1.2 State-of-the-Art

The state-of-the-art in the field of speech recognition reveals poor accuracy for the

freely spoken spontaneous speech. As the spontaneous speech makes use of the

acoustic and linguistic models that have been created especially for speech read from

scripts, the results are far away from the desired ones.

There are major differences between speech read from scripts and real time mind

made and freely expressed spontaneously speech.

The most well known speech recognition software is “Dragon NaturallySpeaking”

and is used to create documents, reports, emails and for desktop searching purposes. It

makes use of continuous speech (no pauses), large vocabulary (300,000 words) [11].

Dyslectics, dyspractics, persons with mobility disabilities and also common

patients are not trained speakers for speech recognition purposes. They express

themselves and ask for help in a natural manner, they are spontaneous speakers.

Implementing the spontaneous speech recognition tool will bring novelty and

improvement to the existing implementations, as it’s suppose to use free speech of

non-trained users, so everybody will be able to use it no matter the social condition,

the context, the knowledge or other momentary impediments.

2 Recognition System Architecture

Building a speech recognizer from scratch involves in the first place a very good task

and sub-task determination and separation [4], [5]. Figures 1 and 2 represent the

proposed approach for the spontaneous speech recognition system with both training

and testing phases. At the end of these processing steps, the output of the recognition

is represented by a number of alternative word sequences, for an utterance. The

choice of the most relevant alternative, in a specified context, is the responsibility of

other components in the dialogue system.

In general terms speech recognition involves finding a word sequence, using a set

of determined models, acquired in a prior training phase, and matching those models

to the input speech signal [4], [5]. For small vocabularies (a few tens of words), these

models can capture word properties, but sounds units are generally modeled (such as

phonemes or triphones) [4], [5].

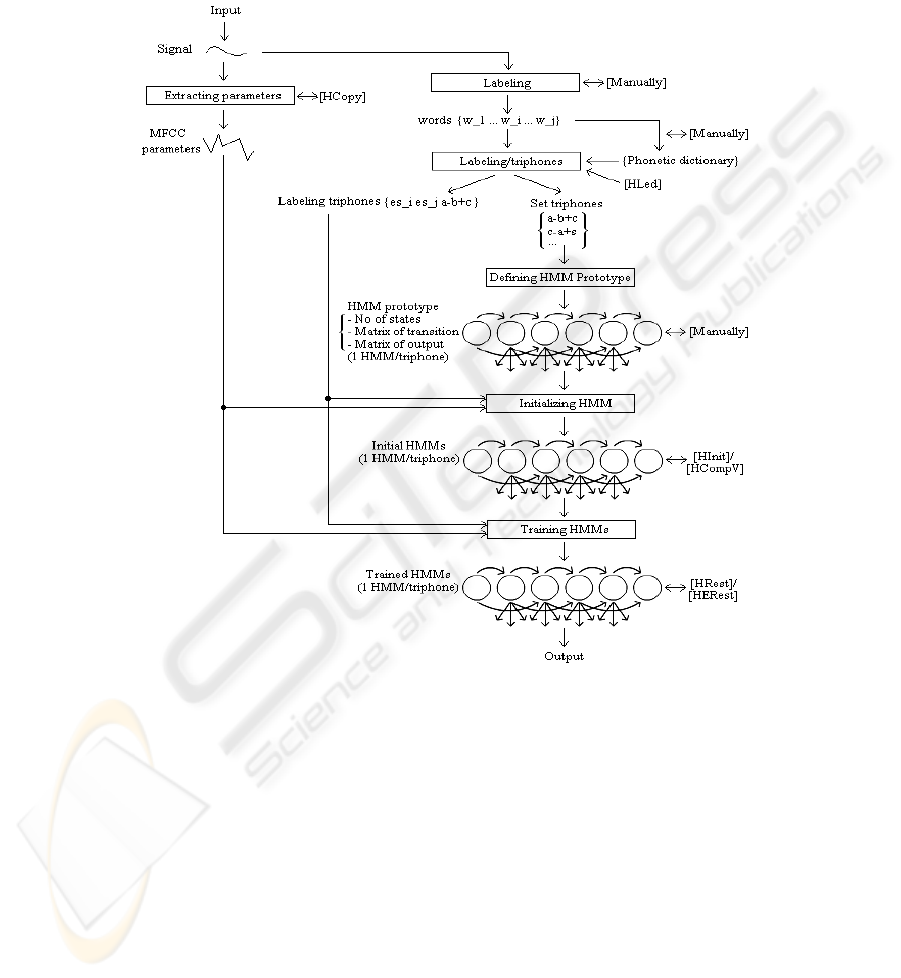

Fig. 1. The system architecture considered for the HMMs training phase.

The most successful approaches nowadays consider this model matching as a

probabilistic process that has to account for the temporal variability and acoustic

variability [3].

2.1 Training Phase

Recorded voice files have been used as input in the training phase. The wave files

labeling was most time consuming.

The phonetic transcription using SAMPA conventions [8] was done in order to

build the phonetic dictionary. After these steps, the labeling passed at triphone level.

The recognition system is based on Hidden Markov Models (HMMs)

[4], [5].

One important step in the training phase was the definition of a HMM prototype

for each triphone. This step was done manually. In the first place one prototype was

chosen for all triphones and then several parameters of the prototype were varied in

order to obtain a higher score. HMMs were initialized with a default matrix of

transitions and observations.

These steps were performed by using the HTK tools HInit and HCompV [7].

The voice signal MFCC parameters were needed

[4], [5] to be used together with

the labeled triphones for training the HMMs for each triphone. An iterative Viterbi

alignment for the HMMs was used

[4], [5], using HRest and HERest HTK tools [7].

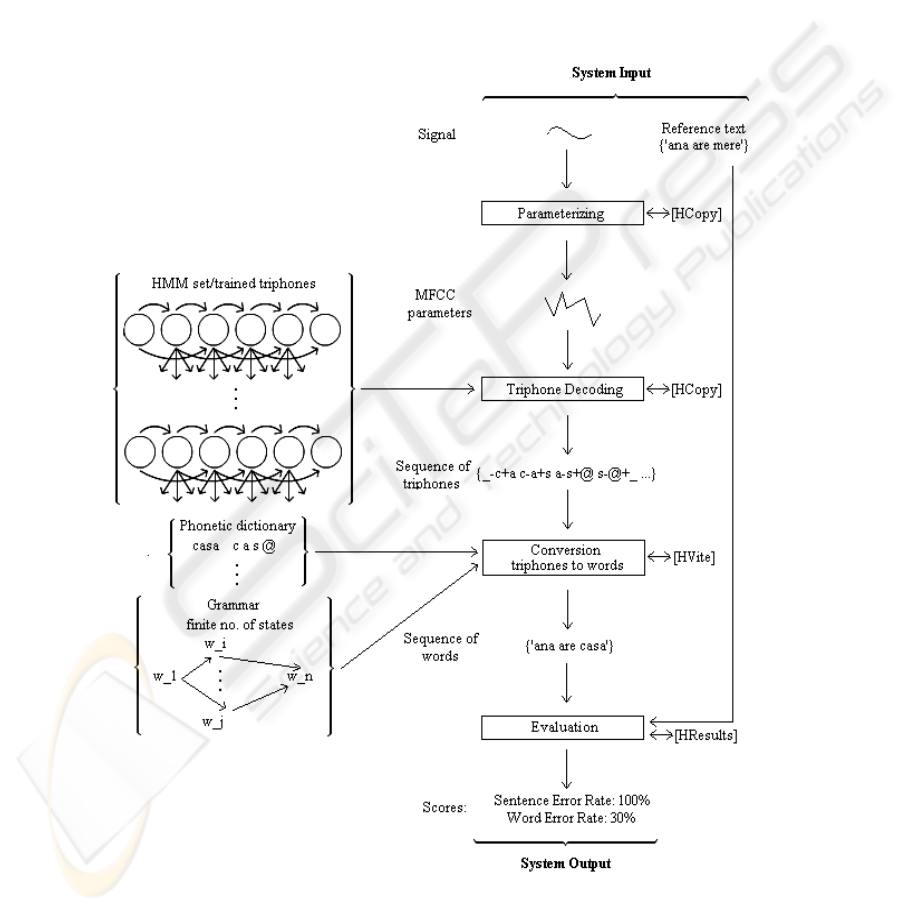

Fig. 2. The system architecture considered for the testing phase.

2.2 Testing Phase

The testing phase uses all the output obtained in the training phase [4], [5], as

represented in figure 2.

Testing sentences were used as input and the voice signal was chosen from the

already existent database. The wave files used as input were first parameterized and

the MFCCs (Mel Frequency Cepstrum Coefficients) parameters were extracted using

the HCopy HTK tool [7].

The MFCC acoustic parameters were used as input for the next step – the triphone

decoding phase. At this step the acoustic parameters were decoded using the HMMs

trained for each of the existent triphones and a sequence of triphones was obtained.

At the next step this sequence of triphones was converted into a word sequence.

This was done by also considering a grammar with a finite number of states.

Having the reference text, the results can be evaluated. Reference text was

compared to the text obtained by the system and spontaneous speech recognition tool

performance can be determined with two kinds of evaluation scores: Sentence Error

Rate and Word Error Rate.

3 Spontaneous Speech Database Building

The corpora used in speech recognition should have the property of being wide. A

series of problems and specific elements have been identified related to construction

of databases for spontaneous speech recognition.

Table 1 shows the main characteristics for the newly created database.

Table 1. Database characteristics.

Collecting procedure

Recording Internet broadcasted Romanian TV shows

Used language Spoken Romanian

Recordings duration ~4 hours with vocal signal

Speakers 12

Females 8

Males 4

Sessions per speaker 3-20

Time between recording One day to two weeks

Words total occurrences 37604

Words unique occurrences 8068

Speech type Oral, spontaneous

Recording environment TV studio

Vocal recorded signal sampling

frequency

8kHz

The recordings gather radio news, stories, TV shows, medical discussions,

financial discussions, weather forecasts and other kind of information. The speaker

variability is easy observed as the audio database contains twelve speakers taken from

different domains, with different styles of life, knowledge, experience and speaking

habits. For each speaker, there are between five and thirty-eight wave files.

3.1 Data Annotation Protocol

During the mentioned bellow phases spell check had to be performed several times.

Audio-to-text translation: the translation of the audio files into text files was done

manually [4], [5]. In the translated text file the exact pronunciation was reproduced in

writing.

One step was jumped by directly writing the words with the phonetic translations

for the diacritics: ă -> @; â -> i_; î -> i_; ş -> S; ţ -> ts. Foreign names, acronyms and

all other words were written the way they are pronounced in Romanian. As a

convention for the research it was decided that long vocals should be written double.

All text files were gathered in a unique text file. This file contains all the unsorted

words from all the speakers. It contains multiple occurrences of the spoken words.

The histograms created for this file in order to obtain the number of occurrences

for each word show a total number of words of 37604 as in table 1. Alphabetical

sorting the file and taking out the multiple occurrences of the words generated another

file with a total number of 8068 words with single occurrences. As figure 3 states, in

the multiple word occurrences file, there are 12147 words with more than 100

occurrences each.

12147 words with more than 100 occurences

14%

de 1659 la 891 i_n 803 a 667 Si 656 s@ 512 pe 505

cu 469 o 442 nu 432 c@ 416 din 390 mai 371 s i 311

se 307 care 303 pentru 301 ce 283 au 233 fost 225 un 219

es te 181 ast@zi 152 virgul@ 135 cum 134 fi 130 dar 129 ca 127

sut@ 125 e 119 trei 114 dou@ 105 acum 101 ne 100 dup@ 100

Fig. 3. The words with most occurrences in the new created database.

Creating the phonetic dictionary [4], [5]: the phoneme translation was made using

the SAMPA conventions [8], [6]. The dictionary consists in a file with two columns -

the first column contains the word from the unique occurrences file and the second

column contains the phonetic transcription of the word with a blank space between

the phonemes. The two columns are separated by a blank space.

Words labeling: the labeling was done manually using wavesurfer tool. The word

labeled files were obtained using conventions: there is a short pause between every

spoken word labeled with "sp", the long pauses are labeled with "sil"; there are long

pauses considered between sentences or phrases or when the speaker is obviously

deep breathing.

In order to considerably reduce the time for the labeling process which is done

manually and is time consuming, maximum three labels for each audio file were used:

the first and the last labels are "sil"s representing ambient noise, and the middle label

contains all the spoken text with "sp"s and "sil"s.

Triphones labeling: from the phonetic word transcriptions the triphonetic

transcriptions were created using HTK HLEd tool [7]. The histogram created for the

triphonetic occurrences is illustrated in figure 4. From the word labeled files and the

triphonetic transcriptions the triphonetic labeled files were generated. The assumption

that all triphones of a word have equal duration is not so true, but it was taken as a

convention that has to be reconsidered in the next stage.

3.2 Data Coding

For this phase Mel Frequency Cepstral Coefficients were used [4], [5], having as

input the wave files. The HTK tool HCopy [7] automatically converted the input data

into MFCC vectors. The mfc files were obtained.

The delta component is used and not the acceleration component (MFCC_E), the

frame period is 10ms (HTK uses units of 100ns), the output is not saved in

compressed format, and a crc checksum is not added. The FFT uses a Hamming

window of 20 ms and the signal has first order preemphasis applied using a

coefficient of 0.97. The filterbank has 26 channels and 12 MFCC coefficients are

output.

Creating these files reduces the amount of preprocessing required during training,

which itself can be a time-consuming process.

4 Statistics for Romanian Language

The database was created from scratch for future work and research in the

spontaneous speech recognition domain. The results of the work are illustrated in the

histograms and the statistics regarding the number of the occurrences at word level

and triphones level. Instead of simple phonemes, set of three phonemes was used.

Given the fact that the words are separated by the “sp” marker, which is not

actually a phoneme, word beginnings and ends are realized as diphones. For instance,

the word “c a s @” contains the phonetic constructions: “c-a”, “c-a+s”, “a-s+@” and

“s+@”. The reason of using triphones is that they permit the context analyzing, as

they are entities that preserve the before and the after neighbors of a phonem, by

including the left and right context phoneme in the triphonetic construction.

The most representative triphones in the newly created corpus are presented in the

following figure, as they have the most occurrences in the used words.

Figure 4 illustrates the triphones that have more than 2000 occurrences in the

corpus words. The triphones that have the most occurrences are “d+e” with 2305

occurrences and “d-e” with 1897 occurrences.

2305

1897

1511

1324

1217

1146

1115

1094

1041

983

500

1000

1500

2000

2500

d+e d-e i_+n t-e r-e u-l S+i S-i p+e l-a

Tr i phone s

Occurences

Fig. 4. The triphones with most occurrences in the corpus.

< 5 occurences

41%

5 .. 10 occurences

16%

10 .. 30 occurences

19%

30 .. 40 occurences

50 .. 100 occurences

100 .. 500 occurences

> 1000 occurences

500 ..1000 occurences

> 1000 occurences

500 ..1000 occurences

100 .. 500 occurences

50 .. 100 occurences

30 .. 40 occurences

10 .. 30 occurences

5 .. 10 occurences

< 5 occurences

Fig. 5. Total number of triphones.

In figure 5, only one percent from the total amount of 5095 triphones has more

than 500 and less than 1000 occurrences in the words considered in the database.

5 Conclusions and Future Work

At the moment, a medium size database for Romanian language has been created. On

short term, the goal is to enlarge the database with common words and with specific

words to be used in remote monitoring.

The big number of triphones that has been obtained is specific to spontaneous

speech. There are cases when some triphones combinations have a bigger number of

occurrences compared to others. For instance, triphones “d+e”, “d-e” and “i_+n” have

more than 1500 occurrences. Triphones with lower number of occurrences will not be

ignored. 2903 triphones have less than 10 occurrences and they represent 57% from

the total amount of triphones. When enlarging the size of the database it is expected

that the triphones with less occurrences will have an increased number of entries. Due

to the nature of spontaneous speech, it is expected to obtain a completely different

view over the triphones occurrences, on database size enlarging. Not ignoring

triphones that have a small number of occurrences is assumed to be a characteristic of

spontaneous speech and as such they have to be taken into consideration.

The corpus and the spontaneous speech recognition results will have applicability

in medical monitoring from remote locations and will help the persons with mobility,

communication and writing difficulties. As the already existent recognition tools

which make use of continuous speech are frequently used, the spontaneous speech

recognition tool intended to be implemented will be highly appreciated. It will ease

the work of the user, taking off some of the existent constraints, like forcing to speak

grammatically correct, stressing a dyslectic who is not able to pick up correctly his

words, etc.

References

1. Rialle, V., Lamy, J.B., Noury, N., Bajolle, L.: Remote monitoring of patients at home: A

Software Agent approach. Computer Methods and Programs in Biomedicine (2003)

2. Vacher, M., Serignat, J.F., Chaillol, S., Istrate, D., Popescu, V.: Speech and Sound Use in a

Remote Monitoring System for Health Care

3. Russell, S., Norvig, P.: Artificial Intelligence – A Modern Approach, Prentice Hall, Second

Edition (2003)

4. Martin, J., Jurafsky, D.: Spoken Language Processing, Prentice Hall, Third Edition (2007)

5. Huang, X., Acero, A., Wuen-Hon, H.: Spoken Language Processing – A Guide to Theory,

Algorithm, and System Development, Prentice Hall (2001)

6. Burileanu, D.: Basic research and implementation Decisions for a text-to-speech synthesis

system in Romanian International Journal of Speech Technology (2002)

7. Young, S., Evermann, G., Gales, M., Hain, T., Kershaw, D., Liu, X. (Andrew), Moore, G.,

Odell, J., Ollason, D., Povey, D., Valtchev, V., Woodland, P.: The HTK Book (2005)

8. Munteanu, D.: Contribuţii la realizarea sistemelor de recunoaştere a vorbirii continue pentru

limba română, Teză de doctorat, Academia Tehnică Militară din Bucureşti (2006)

9. Schultz, T., Kirchhoff, K.: Multilingual Speech Processing, Academic Press (2006)

10. http://www.dyslexic.com/

11. http://www.dragontalk.com/
