MODELLING AND DEPLOYING SECURITY POLICIES

Xabier Larrucea

European Software Institute-Tecnalia, Parque Tecnologico de Zamudio 204, Zamudio, Spain

Rubén Alonso

Visual Tools, Gijon Science & Technology Park - C/ Los Prados 166, Gijon, Spain

Keywords: Method Engineering, SOA, Security Policy.

Abstract: Web Services (WS) platform is one of the most widely accepted implementations of Service Oriented

Architectures (SOA). There is a huge amount of specifications related to the so-called WS-*. In this context

Security Policies specification and deployment support is still immature and it needs improvement. This

paper is focused on the growing importance of security, the increase of collaboration amongst organizations

and the emergent need of modelling SOA and security aspects. This paper presents a methodology and

modelling framework based on Eclipse platform for designing security aspects in SOA and a derivation

mechanism in order to automatically generate web service security elements. This approach is illustrated

with an example.

1 INTRODUCTION

Non functional aspects (NFA) have an evident

impact in the resulting architecture and they are

specialized for a specific platform. WS-Security is

an open standard which defines means to add end-

to-end security to the Web Services. Concretely, it

includes mechanisms for enduing Web Services with

integrity (through digital signature), confidentiality

and authentication. These mechanisms are defined in

the headers of SOAP messages as series of elements

described in the standard. On the one hand, XML

Encryption and XML Signature are the elements

providing the services with confidentiality and

integrity. On the other hand, the named Security

Tokens allow authentication and authorization in

Web Services platform. These security tokens allow

the definition of the authentication and authorization

methods of messages, which can comprise from the

classic user/password authentication to X.509

certificates or only authorize users with Kerberos

tickets

The wide range of available authentications

mechanisms and, encryption and digital signature

algorithms have favoured the development of a

policy standard, specially oriented to security.

A standard known as and the WS-Policy

extension for including security related asserts.

Therefore, WS-Security Policy. (WS-security policy

1.2, 2007) is the base to be used for including in our

servers constraints and requirements to be fulfilled

by the clients to access to the services and vice

versa, since a client could demand, for example, an

encrypted response from the server.

This paper is an extension of previous work such

as (Larrucea et al., 2008) where some mechanisms

are developed for modelling security specifications.

This paper is structured as follows. The first section

describes mechanisms for modelling security

policies. The second section describes some

recommended tasks used for applying the

mechanisms. The third section represents a case

study where we have evaluated our approach. And

finally a conclusion section is provided in order to

summarise the approach.

2 INDEPENDENT SOA

SECURITY SPECIFICATION

In previous work (Larrucea et al., 2007) a Model

Driven Architecture (MDA®) is combined with

Service Oriented Architecture (SOA) in order to

solve interoperability issues focused on

411

Larrucea X. and Alonso R.

MODELLING AND DEPLOYING SECURITY POLICIES.

DOI: 10.5220/0001825504110414

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

functionalities. In (Benguria et al., 2006) a

metamodel is defined in order to design SOA

models. This metamodel has been recently proposed

as an OMG standard as response to the UML Profile

and Metamodel for Services (UPMS) Request For

Proposal (RFP) (UML Profile and Metamodel for

Services, 2006). This metamodel called PIM4SOA

(Platform Independent Model for Service Oriented

Architectures) represents the Platform Independent

Model (PIM) level in the Model Driven Architecture

promoted by the Object Management Group (OMG).

PIM4SOA metamodel is structured in 4 metamodels

interrelated which are described deeply in (Benguria

et al., 2006).

UML™ Profile for Modeling Quality of Service

and Fault Tolerance Characteristics and Mechanisms

specification is used for describing and specifying

security policies. In fact, the QoS metamodel

described in this specification represents the

metamodel that we are going to use as basis. QoS

metamodel can be used to model “non functional

aspects like: latency, throughput, capacity,

scalability, availability, reliability, safety,

confidentiality, integrity,[...].”.

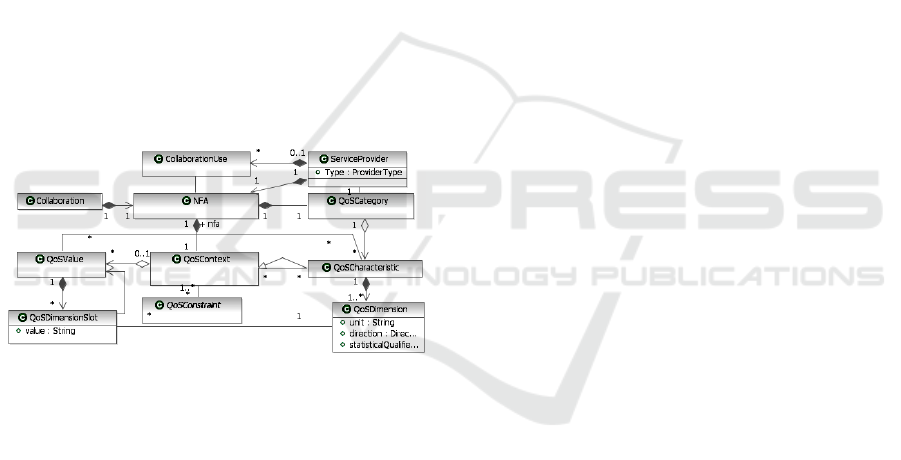

Figure 1: QoS enhanced metamodel.

3 METHOD ENGINEERING

SUPPORT

Based on (Larrucea, 2008) we have adopted a

method engineering approach for designing a

methodology supporting our approach. We have

defined a set of method fragments representing

building blocks for methodology definition. In our

work we have been focused on task definition but

they are other method fragment to consider such as

roles and guidelines.

Previous sections are focused on the mechanisms

such as metamodels for modelling security policies.

The main purpose of this section is to provide some

guidelines for modeling and deploying security

policies.

In fact we have identified some tasks and work

products as a basis for these guidelines. These

method fragments are categorized by the metamodel

aspects described on section 2:

Services

• Identify services in your software architecture:

we need to identify which part of the

architecture is accessed as a service

• Identify services publicly available or consumed

by third parties. This kind of services are called

critical services

• Relate services among them as consumer-

provider relationship

Processes

• Identify flows between services in your

software architecture: we need to identify which

are the enacted processes that will be executed

• Identify public flows: there are some flows that

are followed by consumer and users.

• Identify private flows: flows controlled and not

accessed by third parties or external users

Information

• Identify Information exchanged in your

software architecture

• Identify public Information: we define work

products according to this public information

• Identify private Information: we define work

products according to this private information

QoS

• Define QoSCategories: this element classifies

kind of characteristics

• Define QoSCharacteristics: this element

represents a security element and it is associated

to a service.

• Relate critical services with QoSCharacteristics

• Assign values to QoSCharacteristics

• Define Integrity for each critical service

• Define Confidentiality for each critical service

• Define Availability for each critical service

All tasks should be analysed from the following

point of view because security mechanism is based

on messages exchanged between services:

• At Service level

• At Endpoint level

• At Operation level

• At Message level

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

412

4 CASE STUDY: ONLINE

BOOKSHOP

We have applied this approach using as a basis the

following scenario. This scenario describes a service

architecture defined for an online bookshop.

In this scenario integrity and confidentiality

aspects for the CreditCard Web Service are proved.

In this context petitions are signed and the content of

messages are encrypted.

These security elements help to validate that

credit card number is not exposed and the message

has not been modified by third parties.

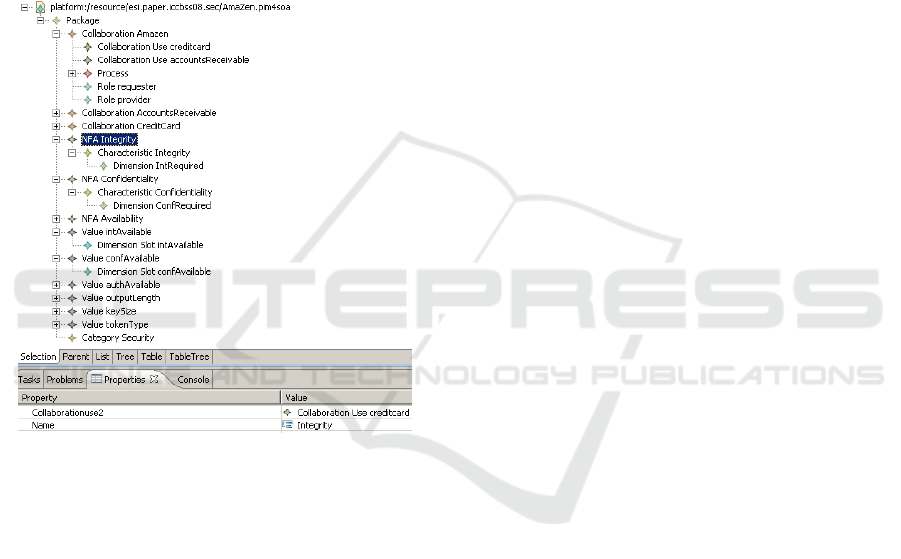

Figure 2: Cases study snapshot.

Figure 2 represents a typical snapshot of an

Eclipse based plug-in. In this scenario there are three

services specifications (collaboration nodes): the

main service called Amazen and the other two

services: AccountsReceivable and CreditCard. The

purpose is to show the definition of these services,

the definition of security policy elements and the

relationship between them.

NFA Integrity represents the integrity

requirement and it is used to prevent any

modification of interchanged messages. This

element is selected and its properties as described

below are Collaborationuse2 and Name. These

properties specify the name and the relationship with

the usage of a service. This relationship is used to

attach the generated WSDL and WS-Security

policies.

This example shows a WSDL definition

(CreditCard) with an embedded policy

(SecureCreditCard) obtained from the model

defined in the scenario description and it is applied

to the messages for the operation called

ValidateCreditCard.

5 CONCLUSIONS

This paper presents an approach providing a holistic

view of a service oriented architecture environment.

This approach allows the definition of functional and

non functional aspects in a coherent way based on

metamodel and a method engineering support. In

fact we have provided a way to define and deploy

security policies specifications in SOA. Using this

approach we can generate web service artefacts such

as WSDL, XSD, BPEL and WS-SecurityPolicy as a

whole.

This approach is implemented using the Eclipse

platform and facilities, and therefore it is a modular

and extendable approach. However and as it is

shown in the example we need to develop a

graphical environment and this is one of the current

improvements we are focused on. Moreover the

modelling side (PIM4SOA) could be extended with

parts of the WS-SecurityPolicy1.2 specification that

are out of scope of the approach presented in this

paper. Another future work is to set up the

relationships at higher levels of abstraction such as

Business Process Definition Metamodel.

In addition the approach presented in this paper

is aligned with OMG standardisation initiatives such

as (UML Profile and Metamodel for Services, 2006)

where a service metamodel and UML profile is

being developed.

ACKNOWLEDGEMENTS

This work is being supported in part by MetaMethod

project (TIN2006-15175-C05-04) funded by

Ministerio de Educacion y Ciencia, Spain

government and by the Vulcano project (Proyecto

Singular Ministerio Industria, Turismo y Comercio-

TSI-020301-200822).

REFERENCES

Benguria, G. Larrucea, X., Elvesaeter, B.Neple, T.,

Beardsmore, A, Friess M. “A Platform Independent

Model for Service Oriented Architectures”. I-ESA

conference 2006, March 22-24, Bordeaux. Springer

MODELLING AND DEPLOYING SECURITY POLICIES

413

Larrucea, X. 2008. Method Engineering Approach for

Interoperable Systems Development. Journal on

Software Process: Improvement and Practice. Vol 13

issue 2. Pages 127-133. ISSN: 1077-4866.

Larrucea, X. Alonso, R. 2008 ISOAS: Through an

independent SOA security specification. International

Seventh IEEE Conference on Commercial-off-the-

Shelf (COTS)-Based Software Systems Pages 92-100.

2008 ISBN:978-0-7695-3091

Larrucea, X. Benguria G, Schuster S. 2007. "MDSOA for

Achieving Interoperability," iccbss, p. 247. Sixth

International IEEE Conference on Commercial-off-

the-Shelf (COTS)-Based Software Systems

(ICCBSS'07)

UML Profile and Metamodel for Services, 2006 Request

For Proposal (RFP-OMG).

http://www.omg.org/docs/soa/06-09-09.pdf

UML™ Profile for Modeling Quality of Service and Fault

Tolerance Characteristics and Mechanisms. 2004,

Object Management Group.

http://www.omg.org/docs/ptc/04-09-01.pdf .

WS-security policy 1.2 (OASIS) 2007. http://docs.oasis-

open.org/ws-sx/ws-securitypolicy/200702/ws-

securitypolicy-1.2-spec-cs.pdf

World Wide Web consortium. Web Services Policy 1.5,

2007 Attachment http://www.w3.org/TR/ws-policy-

attach/

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

414
