USING THE STRUCTURAL CONTENT OF DOCUMENTS TO

AUTOMATICALLY GENERATE QUALITY METADATA

Lars Fredrik Høimyr Edvardsen

Intelligent Communication AS, Kristian Augusts Gate 14, Oslo, Norway

Department of Computer and Information Science, Norwegian University of Science and Technology

Sem Sælands vei 7-9, Trondheim, Norway

Ingeborg Torvik Sølvberg, Trond Aalberg, Hallvard Trætteberg

Department of Computer and Information Science, Norwegian University of Science and Technology

Sem Sælands vei 7-9, Trondheim, Norway

Keywords: Automatic Metadata Generation, Extraction, Metadata Quality, Word, PowerPoint, PDF, OpenXML.

Abstract: Giving search engines access to high quality document metadata is crucial for efficient document retrieval

efforts on the Internet and on corporate Intranets. Presence of such metadata is currently sparsely present.

This paper presents how the structural content of document files can be used for Automatic Metadata

Generation (AMG) efforts, basing efforts directly on the documents’ content (code) and enabling effective

usage of combinations of AMG algorithms for additional harvesting and extraction efforts. This enables

usage of AMG efforts to generate high quality metadata in terms of syntax, semantics and pragmatics, from

non-homogenous data sources in terms of visual characteristics and language of their intellectual content.

1 INTRODUCTION

Metadata are used to describe the key properties of

documents and are normally created by individuals

based on a pre-defined metadata schema. The

process of manually creating metadata is time

consuming and can introduce inconsistencies. These

issues can be reduced or avoided by enabling

applications to generate metadata instead of or, as a

supplement to, manual metadata actions. Such

technologies are known as Automatic Metadata

Generation (AMG) (Cardinaels et al., 2005;

Greenberg, 2004; Meire et al., 2007). AMG

algorithms depend upon data consistency and correct

data to generate high quality metadata.

Current AMG efforts are closely related to

specific collections of documents with similar visual

characteristics and intellectual content based on the

same natural language: Boguraev & Neff (2000),

Giuffrida et al. (2000) and Seymore et al. (1999)

extracts metadata based on highly structured

conference-, journal or newspaper template formats.

Flynn et al. (2007) automates the document type

characteristics before performing visual

characteristic AMG efforts, though were still

dependent upon recognition of specific visual

characteristics. Commonly used document creation

applications (content creation software), such as

Microsoft (MS) Word, MS PowerPoint and Adobe

Distiller, use AMG to generate embedded document

metadata, but their quality vary extensively. These

data are stored in the document code along with

other descriptions of visual and non-visual content.

<html>

<head>

<title>Metadata challenges</title>

</head>

<tr><td>Exciting paper on metadata

challenges</td></tr>

Lars F. H. Edvardsen and

Ingeborg T. Sølvberg</p>

</td></tr>

</table></body>

</html

Figure 1: The “document code” of a HTML document.

354

Edvardsen L., SÃÿlvberg I., Aalberg T. and TrÃ˛etteberg H.

USING THE STRUCTURAL CONTENT OF DOCUMENTS TO AUTOMATICALLY GENERATE QUALITY METADATA.

DOI: 10.5220/0001841003540363

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

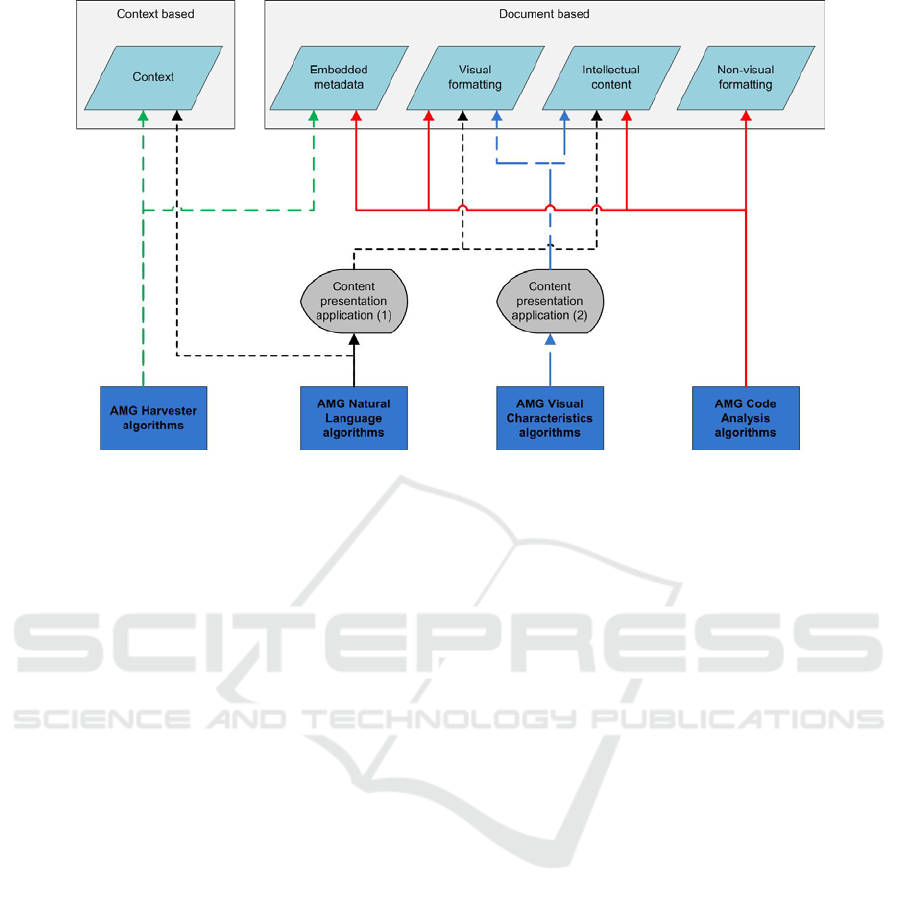

Figure 2: AMG content analysis algorithms and the data sources which they use.

AMG efforts need to generate high quality

metadata regardless of visual characteristics and

from multi-linguistic documents. This is best

undertaken by using the best available algorithm(s)

for the specific document, and by using its most

desired data sources. The goal of this research was

to find methods to automatically generate metadata

from non-homogeneous document collections.

Basing AMG efforts around document code analysis

can enable detailed, structured and correct metadata

from non-homogeneous documents. To achieve the

research goal, the following questions were

answered: (1) What is the quality of automatically

generated document content (embedded metadata

and document formatting)? (2) Can AMG

approaches be combined or selectively used on a

document-by-document basis?

Chapter 2 presents AMG basics, while Chapter 3

presents the research approach. Chapters 4, 5 and 6

present the research results. Chapter 7 evaluates the

research, with conclusions presented in Chapter 8.

2 AUTOMATIC METADATA

GENERATION

AMG algorithms are sets of rules that enable access

to data source(s), identification of desired content,

collection of these data and storage of them in

accordance with metadata schema(s). AMG

algorithms can use the document itself and the

context surrounding the document as data sources.

Collecting embedded metadata is known as metadata

harvesting (Greenberg, 2004; Open Archives

Initiative, 2004). The process by which AMG

algorithms create metadata that has previously not

existed is known as metadata extraction (Seymore et

al., 1999; Greenstone, 2007). AMG efforts represent

a balancing act between obtaining high quality

metadata descriptions and avoiding the generation of

metadata that does not reflect the document.

Document content analysis is currently the main

approach for generating document specific metadata.

Four different approaches are used:

• Harvesting of Embedded Metadata. This

approach uses the embedded metadata created by

applications or by the user and stored as part of the

document (Greenstone, 2007; Bird and the Jorum

Team, 2006; Google, 2009; Scirus, 2009; Yahoo,

2009). This approach is vulnerable to generating

false metadata if the data sources do not contain high

quality metadata.

• Extraction based on Visual Appearance. This

approach uses a special content presentation

application to generate a visual representation of the

document before executing rules to extract content

based on the visual appearance of the document

(Giuffrida et al., 2000; Kawtrakul and Yingsaeree,

2005; Flynn et al., 2007; Li et al., 2005a; Liu et al.,

2007). This approach is vulnerable to generating

false metadata if the documents do not share the

visible appearance(s) with which the algorithm has

been developed to perform. Hence, such algorithms

only perform as desired on pre-known document

types.

• Extraction of Metadata based on Natural

Language. This approach uses a content

presentation application to retrieve only the

USING THE STRUCTURAL CONTENT OF DOCUMENTS TO AUTOMATICALLY GENERATE QUALITY

METADATA

355

intellectual content of the document, creating a

plain text data source upon which rules based on

natural language are executed (Boguraev and

Neff., 2000; LOMGen, 2006; Greenberg et al.,

2005; Li et al., 2005b; Liddy et al., 2002; Jenkins

and Inman, 2001). Such algorithms commonly

include collection of unique words and

comparisons of the document vocabulary against

a reference ontology for generating keywords,

descriptions and subject classification. This

approach is vulnerable to generating false

metadata if the data sources contain documents

in multiple languages or document sections in

different languages.

• Extraction based on Document Code Analysis.

This approach uses the document code directly

without the need for additional content

presentation applications to interpret the

document content. This enables full and direct

access to the entire document’s content. This

includes template identification, template content

identification and formatting characteristics

regardless of visual characteristics, and the

language of the intellectual content. Current,

popular document formats are binary (e.g. PDF,

Word and PowerPoint) or non-standardized (e.g.

Word and PowerPoint). This has limited the

research based on document code analysis to

HTML documents (Jenkins and Inman, 2001).

With the emergence of new document file

formats; this research will explore the use of

document code analysis on Word and

PowerPoint documents.

3 RESEARCH SETUP

This research needed to base its efforts on

documents with diverse visual and intellectual

content. These documents were analyzed in regards

to their document contents and in regards to

generation of metadata. The results of these

analysis’ were evaluated using an existing

framework for measuring “quality”.

The Learning Management System (LMS) “It’s

learning” (It’s learning, 2009), which is used by the

Norwegian University of Science and Technology,

has been used for this project. This LMS allows

lecturers and students to publish documents without

restrictions regarding document types and visual

characteristics, though requiring a user-specified

title for each document stored as part of the LMS,

not in the files. The LMS automatically generates

metadata regarding the publisher based on the

logged-in user’s user name and gives a timestamp

regarding publishing date. This project gained access

to 166 distinct courses covering a multitude of

subjects, including medicine, linguistics, education

and fine art. Here the users published documents

without changing any of its characteristics and

without restrictions regarding document type or

visual characteristics. Over 3500 unique, stand-alone

document files were retrieved from these courses.

This project conducted qualitative analyses in

order to fine-tune its efforts and gain experience

before a more extensive qualitative analysis. For the

qualitative analysis, random selections of documents

were conducted for in-depth analysis. Ninety-one

percent of the stand-alone documents uploaded to

the LMS were in PDF, Word or PowerPoint

document formats. The qualitative analyses are

consequently concentrated on these file formats. The

content of the MS Office documents (Word and

PowerPoint) was explored by lossless converting

them into MS Office 2007 Open XML document

formats using the MS Office 2007 application suite.

This conversion process was verified lossless by

using third-party software for document content

comparisons. The exception is the “Last saved date”

metadata elements which were changed. Selected

document types are frequently converted before

being published, e.g. from Word to PDF document

formats. This affects the document content and

hence increases the vulnerability to generation of

false metadata: (1) Content can be added, altered or

removed; non-visible formatting data is commonly

discarded. (2) The converted document can contain

metadata that reflects the converted document but

not the original. (3) Documents can be subject to

security restrictions, which prevent AMG algorithms

from accessing their content.

The research results were evaluated using a

framework for measuring “quality” presented by

Lindland et al. (1994). This framework categorizes

“quality” based on (1) Syntax, (2) Semantics and (3)

Pragmatics. Additionally, supplemental quality

terms were used based on Bruce and Hillmann

(2004) by including dedicated metadata quality

terms for completeness, accuracy and provenance,

conformance to expectations, logical consistency

and coherence, timeliness and accessibility. The

IEEE Learning Object Metadata (LOM) (IEEE

LTSC, 2005) schema was used to generate a

common vocabulary and to define the content of

specific elements and their valid value spaces.

However, this research is not restricted to this

specific schema.

4 QUANTITATIVE ANALYSIS

The LMS shows extensive varieties in regards to

published documents, as all documents are accepted

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

356

for publication. This research found 41 document

file formats, a range in content types (texts, spread-

sheets, presentations etc.), content qualities (from

informal notes to papers) and intellectual content in

a multitude of different languages. The documents

have a diverse visual appearance, ranging from

being based on predefined official administrative

templates used by university employees, to

documents without structure created by students on

private computers. The following embedded

metadata elements (and their synonyms) from these

documents have been analyzed:

The “Date” Elements. All Word and

PowerPoint documents and 91% of PDF documents

contained embedded date metadata. However, less

than a handful of documents contained visible date

content against which an evaluation could be

performed. All the embedded “Date” elements were

based on the timer (clock) of the user’s local

computer. There was no information stored as part

of the document or from the LMS that could verify

that this timer was correct when the metadata was

generated. Therefore, the correctness of these

entities cannot be determined, although a few

elements could be confirmed as being false, because

the entities indicated that they were modified before

being created or that they were published before

being created or last saved. This confirms that

“Date” elements cannot be fully trusted.

The “Creator” Element. All Word and

PowerPoint documents and 76% of PDF documents

contained a “Creator” (or “Author”) element. These

elements are commonly automatically generated by

applications using software license user names and

default values. Only 46% of PDF, 22% of Word and

30% of PowerPoint documents contained visible

author information, making validation of these

entities challenging.

The “Template” Element. Ninety-five percent

of Word documents were based on the blank default

template, which is without any visible content.

Eighty-two percent of PowerPoint documents were

based on the application’s default template

“normal.pot” which contains visible “Title” and

“Sub-title” sections. These sections are identifiable

and retrievable though analysis of the document

code. This template information is discarded when

the original documents are converted to PDF

documents.

The “Title” Element. All Word and PowerPoint

documents and 84% of PDF documents contained a

“Title” element. These elements are commonly

automatically generated by applications the first

time the document is stored. The documents’ visible

title and the embedded metadata “Title” were

identical for only 14% of the documents. This

indicates that the visible titles were changed when

the documents were resaved or that the AMG

algorithms used generated false entities.

The “Description”, “Subject” and

“Keywords” Elements. Just 0.1% of the Word and

1% of PDF documents contained a “Description”

element. Most of these entities were valid. No

PowerPoint documents contained valid

“Description” elements. One percent of PDF

documents contained a “Subject” entity, though only

one-eighth of these entities were valid. No

documents contained a valid “Keywords” entity.

The “Language” Element. No documents

contained metadata regarding the language of the

document’s intellectual content.

The quantitative analysis was used as basis for

the further efforts of the qualitative analysis. There

is no more data in the dataset to determine the

correctness of the “Date” elements. Further analysis

has therefore not been undertaken. Further analysis

is presented in Chapters 5.1 and 5.2 regarding the

“Creator” and “Title” elements. These efforts use the

“Template” entities. The uncommon, but valid use

of the “Description”, “Subject” and “Keywords”

elements show the need for AMG algorithms based

on natural language. In a multi-linguistic

environment, these algorithms are dependent on

document and document section language

information. This is discussed in Chapter 5.3.

5 QUALITATIVE ANALYSIS

5.1 Generating “Creator” Elements

This chapter analyses embedded “Creator” entities

of common document formats and AMG approaches

for generating such entities. For this analysis, 300

PDF, Word and PowerPoint documents were

selected at random. Visual data to verify element

content were present in only a limited way, which

increased uncertainties and our ability to draw

conclusions regarding the embedded metadata and

the extracted metadata. Word and PowerPoint

documents can have embed “Author” and “Last

author” elements. PDF documents can embed a

general “Author” element and an Extensible

Metadata Platform (XMP) section with

“DC.Creator” and “XAP.Author” elements. The

entities presented in the XMP section contained a

number of character errors, with characters being

added, removed or replaced. All these entities were

also found in the general element section but without

the issues described above. These elements could

therefore be used exclusively without losing data.

The majority of documents contained author or

USING THE STRUCTURAL CONTENT OF DOCUMENTS TO AUTOMATICALLY GENERATE QUALITY

METADATA

357

organization names in their embedded metadata,

though only a fraction of these entities could be

visually verified as correct. One in ten PDF

documents contained verifiable false entities, mainly

as commercial content for online converting

services. A third of Word documents contained

verifiable false entities such as “standard user” and

“test.” The larger number of PowerPoint documents

with visible creator data present made it possible to

validate more entities possible. One in five entities

could be verified as either correct or false.

Different AMG approaches to generate

“Creator” entities were taken based on visual

characteristics. Using the first visible line or the text

section with the largest font resulted in correctness

rates of between 0% and 3%, varying between the

document formats. Extraction efforts based on

collection of the content located immediately

beneath the correctly identified title resulted in

correctness rates of between 4% and 20%.

Word and PowerPoint documents can contain

style tags that present the formatting used for

specific sections in the document, typically based on

template data. No documents contained the style

tags “Author” or “Creator”. PDF documents also

support inclusion of style tags. No PDF documents

were found that included the desired tags.

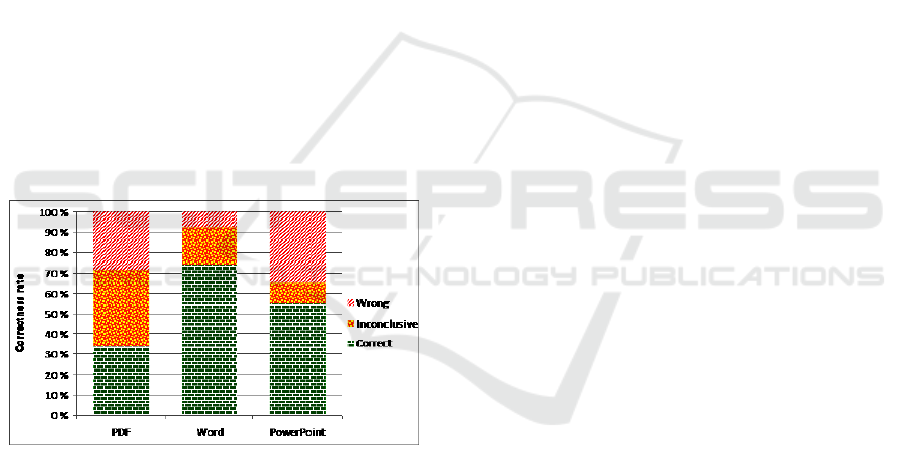

Figure 3: Documents created by LMS publisher

Half of the PowerPoint documents contained

“Sub-title” style tags. Two-thirds of all visible

creator information was found in this section. These

sections were visually formatted in a variety of

ways, and contained a range of different data, such

as sub-titles, dates, course descriptions and creator

information in a multitude of different orders.

Creator information was included in 60% of the

“Sub-title” sections present. Eight percent of the

“Sub-title” sections contained only creator

information. The variety in regards to content types

and visual formatting makes extraction efforts from

this section reliant upon identification of user- and

organization names in among the text.

An alternative to generating creator metadata

could be the harvesting of context publisher data

from the LMS, which could then be used as creator

metadata. Such an approach can generate valid

entities for individual publishers, although false

entities would be generated for groups of authors.

The current research compared the LMS’ user name

against the embedded metadata and visible

characteristics. This approach was able to confirm

that three-quarters of Word documents were

published by their creators, that PowerPoint

documents were more frequently published by

others than the document creators, and that there

were extensive uncertainties regarding PDF

documents. Hence, this approach still produces a

great deal of uncertainty and false results.

5.2 Generating “Title” Elements

This chapter analyses embedded “Title” entities

from common document formats and AMG

approaches for generating such entities. This is

performed with a special focus on using document

code analysis as basis for extraction efforts. The

PDF document code showed not to include content

relevant for this analysis. These efforts were

therefore focused on Word and PowerPoint

documents; 200 Word and PowerPoint documents

were selected at random. Two corrupted PowerPoint

documents could not be analyzed. The remaining

documents were losslessly converted to their

respective Open XML document formats. The

baseline AMG results were generated based on the

efforts of related work:

• File Name. Obtained from the file system (Bird

and the Jorum Team, 2006).

• Embedded Metadata. Harvested from the

document (Greenstone, 2007; Google, 2009;

Scirus, 2009; Yahoo, 2009; Jenkins and Inman,

2001; Singh et al., 2004).

• First Line. Extracted from the first visible line

of text (Greenstone, 2007).

• Largest Font. Extracted the text section on the

first page based on the largest font size

(Giuffrida et al., 2000; Google, 2009).

The results of the baseline efforts were

categorized as correct, partly correct, no results and

false results:

• Correct. The generated entity was identical or

nearly identical to the visible title. Small

variations, such as spaces that had been removed

between words, were accepted.

• Partly Correct. The generated entity was either

partly correct or larger differences were present.

• No Results. No content was generated by the

algorithm. This can be the result of documents

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

358

without embedded metadata or documents

without text-based content.

• False Results. The generated entity does not

result in a representative “Title” element.

The baseline results show that using the content

with the largest font generated the most correct

entities. The embedded metadata was strongly

influenced by being automatically generated the first

time the document was stored, and hence was not

updated as the document evolved during the creation

process. The first line algorithm frequently collected

the document header section from page tops.

Table 1: Baseline “Title” results: Word documents.

Table 2: Baseline “Title” results: PowerPoint documents.

Open XML documents are zip archives

containing standardized, structured content

regardless of the document content. There are

dedicated XML files for the footer and header

sections. As a result, these sections can be avoided

entirely. By analyzing the content of the main

document XML file of Word and PowerPoint

documents, it is possible to analyze the main

document content based on facts without the need

for visual interpretations e.g. regarding font name

and size, placements and section content.

Eight of ten PowerPoint documents contained a

“Title” style tagged section. These sections

contained nothing but titles, formatted in a variety of

different ways. Three percent of Word documents

also contained such sections, though two out of three

documents used this section for data other than title

information.

The key property that allows the document code

analysis approach to be combined with other AMG

methods is that it does not deliver a result when the

desired content is not located. This enables it to be

combined with other AMG methods. Our research

demonstrated this by testing three different

document code analysis based algorithms:

A Document Code Exclusively. Generates

“Titles” elements based exclusively on the document

Figure 4: Logical structure of algorithm C.

code.

A) Document Code and Largest Font. Extends

algorithm A by evaluating if algorithm A

provides an entity. If not, then the content with

the largest font section is collected.

B) Document Code, Largest Font, Context Filter

and Alternative Data Sources. Extends

algorithm B by evaluating if algorithm B

provides an entity after performing context data

filtering (e.g. course codes and course

descriptions). If no entity is generated, then the

embedded metadata entity is harvested. If this

entity is empty then the file name is used as

entity.

The falsely labeled Word document appeared in

the algorithm results. As these AMG efforts were

constructed to demonstrate the possibilities of using

document code analysis, these results have been

accepted. The AMG efforts associated with

algorithm B focus on documents for which there

were no results from algorithm A. This results in a

large portion of correct records, though with faults.

The inclusion of context data filters in algorithm C

reduced the number of false records greatly. One

document was given a title based on the file name,

since neither the document body nor the embedded

metadata contained text-based content. By excluding

use of algorithm A for Word documents, the

correctness rate would increase by two percentage

points, reducing the number of false records by a

similar amount.

Algorithm A employed the “Title” style tags that

are frequently included in PowerPoint documents.

All these sections contained valid titles. The

remaining AMG efforts of algorithm B then

concentrated on documents that did not have a style

formatted title. This resulted in one document being

given a false label while three documents received a

Algorithm Correct Partly No result False

File name 40% 45% 0% 15%

Embedded 27% 29% 8% 36%

First line 38% 15% 1% 46%

Largest fon

69% 8% 1% 22%

Algorithm Correct Partly No

result

False

File name 21% 52% 0% 27%

Embedded 28% 10% 0% 62%

First line 37% 34% 2% 28%

Largest fon

76% 14% 2% 8%

USING THE STRUCTURAL CONTENT OF DOCUMENTS TO AUTOMATICALLY GENERATE QUALITY

METADATA

359

correct title. Algorithm C gave titles based on the

file name to the documents without text-based

content. No filtering of content was performed.

Table 3: Basic AMG approach results: Word documents.

Table 4: Basic AMG approach results: PowerPoint

documents.

5.3 Generating “General.Language”

Elements

This chapter presents usage of the existing,

automatically generated language tags from common

document formats for AMG purposes. The

document code can contain tags reflecting the

language of the document’s intellectual content. This

allows for populating the IEEE LOM’s

“General.Language” element (IEEE LTSC, 2005)

and execution of AMG algorithms based on natural

language in multi-linguistic environments. Language

recognition is automatically performed by

applications such as MS Word and MS PowerPoint

on document text sections to enable spelling and

grammar checks. These section-wise language

descriptions are stored as language tags in the

documents. Our research documented that language

tags are discarded if the document is converted to a

PDF. This research is hence focused on Word and

PowerPoint documents. One hundred documents

were selected at random, resulting in 60 Word and

40 PowerPoint documents. These documents were

lossless converted to their native Open XML

document format. The analysis was performed on

the main document content of Word documents and

on the first slide of PowerPoint documents.

All Word documents contained US English

language tags, though less than one in ten of the

Word documents used these tags. Extraction efforts

need to be focused on the tags that are in practical

use. The extraction effort showed that all text

sections were formatted with a single language tag.

This allows for using language-specific natural

language AMG algorithms on individual sections

formatted with a specific language tag. Both single

and multi-lingual documents were found.

PowerPoint documents typically contain a

limited number of complete sentences for which

language recognition can be performed. Hence less

data is commonly available to determine the

language used in the document. This can result in

less accurate language tags than for Word

documents. Single language PowerPoint documents

were found in Norwegian, US English and British

English. One document contained false language

tags, when a few Norwegian keywords were

included on the first slide of an US English slide

show. This illustrates the difficulties of recognizing

short language sections. Thirty percent of the

PowerPoint documents were correctly labelled as

containing multi-lingual intellectual content.

6 EVALUATION

The analysis of Chapters 4 and 5 revealed issues

which affect the quality of the metadata which can

be automatically generated based on these data

sources. This chapter review these issues based on

the quality terms of Lindland et al. (1994) and Bruce

and Hillmann (2004). Chapter 6.1 presents the

embedded metadata. Chapter 6.2 presents the effects

of the extraction efforts and Chapter 6.3 summons

up the effects of the document creation process.

6.1 Embedded Metadata

The documents created in the controlled user

environment did not contain embedded metadata.

This evaluation of embedded metadata is hence

concentrated on stand-alone documents. We

observed that embedded metadata was created by

applications and users, and inherited from templates

and old versions of the documents. None of the

document formats analyzed contained meta-

metadata. The provenance aspect of the metadata

quality was hence very low. The applications could,

based on reasoning, be determined to be the author

of most of the embedded metadata. Determining the

creator of semantic elements was difficult since

these elements were free for all parties to use.

Standardized entities meant that the metadata creator

could be determined in selected document-specific

cases.

Each document format has its own approach to

embedded metadata. The metadata harvesting efforts

therefore needed to be adapted to each document

format in order to access, interpret and retrieve the

metadata. This reduces the quality of the

accessibility of the metadata. It also requires

ongoing efforts to adapt the harvesting efforts to

Algorithm Correc

Partly No result False

A 0% 0% 98% 2%

B 71% 6% 1% 22%

C 91% 6% 0% 3%

Algorithm Correct Partly No result False

A 85% 0% 15% 0%

B 94% 0% 3% 3%

C 97% 0% 0% 3%

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

360

new document formats or new versions of the

document formats over time.

Our research did not explicitly discover content

from the main section of the document (document

content) that was syntactic false. However, a few

documents were found where the syntactic

requirements of the document format were not met.

These documents were hence corrupted. These

documents became corrupted before or as a part of

the transfer process to the LMS.

The security restriction properties of specific

PDF documents presented themselves as a hurdle for

both harvesting and extraction of metadata. For PDF

documents with security restrictions, the semantic

quality of the metadata was very low since the

metadata are unavailable. Security restrictions also

limit the possibilities to extract metadata based on

these documents.

Selected PDF documents showed false semantic

metadata formatting. This reduces the logical

consistency aspect of the metadata quality.

However, because these problems were present in a

systematic way, error correction can be

automatically performed. Semantic issues were

discovered regarding characters in the XMP

metadata section of PDF documents. This reduces

these entities’ quality based on accuracy.

This research was able to prove that some of the

“Date” related entities were false, which made their

quality in terms of accuracy less than optimal. The

vast majority of dates could not be verified as

correct. A very limited number of documents could

be confirmed to have false entities. The semantic

quality of the “Date” elements could not be fully

verified and hence remains undetermined.

Most of the semantic uncertainties we

discovered were in the “Title” element. This element

was commonly automatically generated by the

applications. The generated entities were of a low

semantic quality due to: (1) Timeliness: The

metadata could be collected from template data or

from earlier versions of the document. This affected

the quality in terms of the currency of these

elements. (2) Accuracy: The AMG algorithms used

generated entities that do not reflect upon the

metadata schema’s definition of the element content.

Some applications do not to use the document as

data source for generating semantic elements. The

quality in accuracy for the “Title” entities was low

when compared to the visually presented title. The

quality varied between document formats as

different applications use the main document’s

intellectual content in different ways to generate

these entities and due to the templates used. The

pragmatic quality of these entities from Word and

PowerPoint documents was low.

The above issues also affected the “Creator”

element. The dataset showed that user creation of

manual “Creator” elements was even more limited

than for “Title” elements. The entities that are

present are often based on applications user names

rather than the name of the user. Very few

documents had visible creator data, so there were

very few documents that could be confirmed as

having a valid “Creator” element. The semantic

quality of the “Creator” element was thus presumed

very low.

None of the document formats analyzed

contained metadata on the language of the

documents’ intellectual content. The metadata

quality in terms of completeness was hence very

low.

6.2 Extraction Efforts

The extraction efforts confirmed that high quality

metadata can be generated based on document code

analysis, although the “Creator” data were not found

as style tags, or was visually present only to a

limited extent. There was therefore not enough data

for the extraction efforts to perform optimally. This

confirmed that extraction efforts, such as Giuffrida

et al. (2000), Kawtrakul and Yingsaeree (2005) and

Liu et al. (2007) are not able to perform on such a

diverse dataset. Using an external data source, such

as proposed by Bird and the Jorum Team (2006) and

Greenberg et al. (2005), generated higher quality

metadata, although still with a large number of

errors and much uncertainty.

The content of the style tagged “Title” sections

of PowerPoint documents were of very high

semantic quality. Such formatting was extensively

used by users because this section visually presented

in the default PowerPoint templates. We did not

observe that Word documents visually promoted

document sections. As a direct result, very few used

document formatting in accordance with the pre-

defined style types. The semantic quality of these

formatting tags from Word documents was low. In

the LMS’ controlled user environment, the “Title”

section contained consistently high semantic quality

entities, because of no alternative title presentation

and since it is mandatory to use. Our analysis

confirmed that the document code provided a more

accurate approach for extraction efforts, either based

on the document code directly, or by combining the

document code with other extraction algorithms.

The generation of “General.Language” elements

resulted in entities of very high semantic, syntactic

and completeness quality for Word and PowerPoint

documents. Some uncertainties were found when

only short text sections were available.

USING THE STRUCTURAL CONTENT OF DOCUMENTS TO AUTOMATICALLY GENERATE QUALITY

METADATA

361

6.3 Effects of the Document

Creation Process

Stand-alone documents provide a user flexibility that

is not found in the controlled user environment. This

ensures that the users’ creative efforts can be used to

the fullest to express the intellectual content of the

document. The applications used can create

extensive metadata descriptions and create content

with high syntactic and semantic quality. But this

creative freedom comes at the expense of the

documents’ systematic quality properties:

• Templates (or old documents) can contain

content (embedded metadata and visible

intellectual content) that is false or becomes false

when used as the basis for new documents.

• The syntactic quality of the document format

cannot be assured due to diverse usage among

various applications.

• The user may violate template content and its

intended usage.

• Converting original documents can alter, add or

remove metadata, formatting data and

intellectual content.

• Documents can have security restrictions, which

prevent AMG algorithms from accessing the

documents’ content.

Compared to the controlled user environment,

stand-alone documents subjected to AMG efforts

require different approaches in treating data sources.

The data sources from stand-alone documents can be

of a variety of qualities. This makes it essential to

learn the characteristics of each document format

and its practical usage before AMG efforts are

undertaken. Harvesting and extraction efforts based

on stand-alone documents are less systematic than

those based on documents from the controlled user

environment.

7 CONCLUSIONS AND FUTURE

WORK

AMG algorithms base their efforts on systematic and

consistent properties of the documents at hand in

order to generate quality metadata in accordance

with pre-defined metadata schema(s). AMG

algorithms need to find common structures in which

to base their efforts, even if the dataset is not

homogenous. Recognition of the most correct and

most desirable document properties is the basis for

automatic generation of high quality metadata.

This research vastly extends the Stage-of-the-art

for using document code analysis for AMG efforts

and enabling combination of AMG algorithm types

on the same resources, validated against an

established framework for defying the resulting data

quality. This research has documented that

document code analysis can be used to automatically

generate metadata of high quality even though the

data source is not homogenous. Common, non-

visual document formatting that can be obtained

though document code analysis enables the

generation of high quality metadata. This code is

unique for each document format, although it is

shared by all documents of the same document

format version. Document code analysis allows for

the unique identification of all sub-sections of the

documents and enables extraction from each

formatted section individually, which in turn allows

for the generation of a multitude of different

metadata elements. AMG efforts based directly on

document code analysis only generate results when

the desired content is present, avoids interpretation

of the document content and can provide other AMG

algorithms document descriptions based on facts.

These properties enable efficient combinations of

AMG algorithms, allowing different harvesting and

extraction algorithms to work together in order to

generate the most desired, high quality results.

AMG efforts based on stand-alone documents

require an understanding of how the documents are

used by the document creators (users), what the user

specifies and what is automatically generated based

on templates and application specific AMG

algorithms. This research has documented that such

efforts can generate high quality metadata from

stand-alone documents from a non-homogeneous

dataset. This research has presented how AMG

efforts can be combined in order to generate high

quality metadata from a user controlled document

creation environment.

The AMG research field is still young and much

remains unexplored. At the same time the use of

digital documents is increasing dramatically, which

offers the potential for extensive research efforts in

the years to come. Future work should include (1)

Analysis of the impact of the usage environment in

which documents are created, and (2) Exploring the

possibilities for practical experiments using AMG

technologies.

REFERENCES

Bird, K. and the Jorum Team. 2006. Automated Metadata

- A review of existing and potential metadata

automation within Jorum and an overview of other

automation systems. 31st March 2006, Version 1.0,

Final, Signed off by JISC and Intrallect July 2006.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

362

Boguraev, B. and Neff, M. 2000. Lexical Cohesion,

Discourse Segmentation and Document

Summarization. In In RIAO-2000, Content-Based

Multimedia Information Access.

Bruce, T.R. and Hillmann, D.I. 2004. The Continuum of

Metadata Quality: Defining, Expressing, Exploiting.

ALA Editions, In Metadata in Practice, D. Hillmann &

E Westbrooks, eds., ISSN: 0-8389-0882-9

Cardinaels, K., Meire, M. and Duval, E. 2005. Automating

metadata generation: the simple indexing interface. In

Proceedings of the 14th international conference on

World Wide Web, Chiba, Japan, pp.548-556, ISBN:1-

59593-046-9

Flynn, P., Zhou, L., Maly, K., Zeil, S. and Zubair, M.

2007. Automated Template-Based Metadata

Extraction Architecture. Proceedings of the ICADL

2007.

Giuffrida, G., Shek, E. C. and Yang, J. 2000. Knowledge-

Based Metadata Extraction from PostScript Files. In

Digital Libraries, San Antonio, Tx, 2000 ACM 1-581

13-231-X/00/0006

Google. 2009. Google. http://www.google.com

Greenberg J., Spurgin, K., Crystal, A., Cronquist, M. and

Wilson, A. 2005. Final Report for the AMeGA

(Automatic Metadata Generation Applications)

Project. UNC School of information and library

science.

Greenberg, J. 2004. Metadata Extraction and Harvesting:

A Comparison of Two Automatic Metadata

Generation Applications. In Journal of Internet

Cataloging, 6(4): 59-82.

Greenstone. 2007. Source only distribution.

http://prdownloads.sourceforge.net/greenstone/gsdl-

2.72-src.tar.gz (source code inspected)

IEEE LTSC. 2005. IEEE P1484.12.3/D8, 2005-02-22

Draft Standard for Learning Technology - Extensible

Markup Language Schema Definition Language

Binding for Learning Object Metadata, WG12:

Related Materials.

It’s learning. 2009. It’s learning.

http://www.itslearning.com

Jenkins, C. and Inman, D. 2001. Server-side Automatic

Metadata Generation using Qualified Dublin Core

and RDF. 0-7695-1022-1/01, 2001 IEEE

Kawtrakul A. and Yingsaeree C. 2005. A Unified

Framework for Automatic Metadata Extraction from

Electronic Document. In Proceedings of IADLC2005

(25-26 August 2005), pp. 71-77.

Li, H., Cao, Y., Xu, J., Hu, Y., Li, S. and Meyerzon, D.

2005a. A new approach to intranet search based on

information extraction. Proceedings of the 14th ACM

international conference on Information and

knowledge management, Bremen, Germany, Pages:

460 – 468, ISBN:1-59593-140-6, ACM New York,

NY, USA.

Li, Y., Dorai, C. and Farrell, R. 2005b. Creating MAGIC:

system for generating learning object metadata for

instructional content. Proceedings of the 13th annual

ACM international conference on Multimedia, Hilton,

Singapore, pp.367-370, ISBN:1-59593-044-2

Liddy, E.D., Allen, E., Harwell, S., Corieri, S., Yilmazel,

O., Ozgencil, N.E., Diekema, A., McCracken, N.J.,

Silverstein, J. and Sutton, S.A. 2002. Automatic

metadata generation and evaluation. Proceedings of

the 25th Annual International ACM SIGIR

Conference on Research and Development in

Information Retrieval, August 11–15, Tampere,

Finland, ACM Press, New York, pp.401–402.

Lindland, O.I., Sindre, G., Sølvberg, A. 1994.

Understanding Quality in Conceptual Modeling. In

IEEE Software, march 1994, Volume: 11, Issue: 2, pp.

42-49, ISSN: 0740-7459, DOI: 10.1109/52.268955

Liu, Y., Bai, K., Mitra, P, and Giles, C.L. 2007.

TableSeer: Automatic Table Metadata Extraction and

Searching in Digital Libraries. Proceedings in

JCDL’07, June 18–23, 2007, Vancouver, Canada,

ACM 978-1-59593-644-8/07/0006

LOMGen. 2006. LOMGen.

http://www.cs.unb.ca/agentmatcher/LOMGen.html

Meire, M., Ochoa, X. and Duval, E. 2007. SAmgI:

Automatic Metadata Generation v2.0. In Proceedings

of World Conference on Educational Multimedia,

Hypermedia and Telecommunications 2007, pp. 1195-

1204, Chesapeake, VA: AACE

Open Archives Initiative. 2004. Protocol for Metadata

Harvesting – v.2.0.

http://www.openarchives.org/OAI/

openarchivesprotocol.html

Scirus. 2009. Scirus – for scientific information.

http://www.scirus.com

Seymore, K., McCallum, A. and Rosenfeld, R. 1999.

Learning hidden Markov model structure for

information extraction. In Proc. of AAAI 99

Workshop on Machine Learning for Information

Extraction, pages 37-42, 1999.

Singh, A., Boley, H. and Bhavsar, V.C. 2004. LOMGen: A

Learning Object Metadata Generator Applied to

Computer Science Terminology. National Research

Council and University of New Brunswick, Learning

Objects Summit Fredericton, NB, Canada, March 29-

30, 2004

Yahoo. 2009. Yahoo!. http://www.yahoo.com

USING THE STRUCTURAL CONTENT OF DOCUMENTS TO AUTOMATICALLY GENERATE QUALITY

METADATA

363
