RICH PRESENCE AUTHORIZATION USING SECURE WEB

SERVICES

Li Li and Wu Chou

Avaya Research Lab, Avaya Inc., 233 Mt Airy Road, Basking Ridge, New Jersey, U.S.A.

Keywords: Role-Based Access Control (RBAC), Presence Authorization, Web Services.

Abstract: This paper presents an extended Role-Based Access Control (RBAC) model for rich presence authorization

using secure web services. Following the information symmetry principle, the standard RBAC model is

extended to support data integrity, flexible and intuitive authorization specification, efficient authorization

process and cascaded authority within web services architecture. In conjunction with the extended RBAC

model, we introduce an extensible presence architecture prototype using WS-Security and WS-Eventing to

secure rich presence information exchanges based on PKI certificates. Applications and performance

measurements of our presence system are presented to show that the proposed RBAC framework for

presence and collaboration is well suited for real-time communication and collaboration.

1 INTRODUCTION

In communication and collaboration, presence

information describes a person’s availability and

willingness to communicate or participate, as well as

the environment, such as location. Many internet IM

systems offer certain degrees of presence

information, such as “available, busy, and away.”

Presence information is exchanged between a

“presentity” who owns and discloses the presence

states and a “watcher” who requests (subscribes) and

receives the presence states. This information

exchange occurs within a presence session until

either the presentity or the watcher terminates the

session. By this generalization, a presentity or a

watcher can be a person, an automaton, or a group of

such entities. Presence information in general

improves social connections (keep in touch with

family and friends) and collaboration within teams

and organizations. When used properly, it

significantly reduces the uncertainty and cost in

communication and collaboration. For this reason,

industrial standard organizations, e.g. IETF (Day

2000) and Parlay (Parlay X 2007), have begun to

develop presence architectures and standard

protocols.

Rich presence contains fine-grained and in some

way private information about a presentity. For

example, Parlay X Web Service Presence (Parlay X

2007) specifies 10 presence attributes, including

Activity, Place, Sphere, Privacy, etc. where each

attribute can have 20 to 30 values about the presence

state in that category. Some of the presence values

disclose the presentity’s private life, e.g. the

presentity is in a bar, prison or sleeping.

Albeit being useful, rich presence information

may inevitably raise the privacy concerns about the

presentity, and the needs to reveal or conceal such

information have to be justified as appropriate.

Negatively correlated with presence, privacy is a

highly contextual and subjective issue and must be

dealt with carefully to achieve a balance between

ease of collaboration and personal freedom.

Therefore, a privacy aware presence architecture

must provide intuitive, uniform and flexible

presence authorization model for the presentities to

determine what presence information should be

disclosed to which watcher and under what kind of

context. For example, a person can expose different

presence information to friends, parents, co-workers

and managers. On the other hand, a company may

enforce a central presence policy and leave the rest

to the discretion of its employees.

Our observation is that the presence authorization

to large extent is based on the social relation

between the watcher and the presentity. This relation

can be characterized by the role of the watcher from

the perspective of presentity. The notion of role is

an intuitive concept, which is meaningful to people

even without technical background. For this reason,

Li L. and Chou W.

RICH PRESENCE AUTHORIZATION USING SECURE WEB SERVICES.

DOI: 10.5220/0001842700290036

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

we adopt Role-Based Access Control (RBAC) and

apply the NIST standard RBAC model (Sandhu

2000) to presence authorization.

Various RBAC models have been traditionally

used in business enterprises for access control to

resources. The basic RBAC model assigns a user to

roles which are associated with permissions. Such

model grants a user only to permissions associated

with the roles activated for him. Roles can be

organized into hierarchies in which the permissions

can be inherited. Constraints can also be added to

various RBAC components to prevent undesired

configurations. One typical constraint is to enforce

Separation of Duty (SOD) such that mutually

exclusive roles are not assigned to the same user at

the same time. RBAC is a natural fit for enterprises

where roles represent the tasks, responsibilities and

qualifications that users assume within an enterprise.

RBAC thus provides a valuable level of abstraction

and modularization to specify and enforce

authorization policies based on the Least Privilege

Principle that cannot be achieved by other access

control models.

These fundamental RBAC security concepts and

mechanisms are applicable to presence authorization

and we do not have to reinvent the wheel. However,

presence authorization cannot be regarded as a

special case of the standard RBAC models. The

differences are elaborated below.

First, the concept of role in presence

authorization is different from the standard RBAC

models. In presence system, roles represent relations

between two users (watcher and presentity), whereas

in standard RBAC model they represent functions of

users within an enterprise. This implies that role

assignment in presence system depends on both

participants, instead of on one user as in the standard

RBAC models. Furthermore, in presence system, the

role assignment may depend on other contextual

factors, such as the time and nature of the

engagement.

Second, the standard RBAC models do not

support cascaded authorization, where a central

authority establishes common authorization rules

and its subordinates can refine them. Cascaded

authority is necessary to assert certain global control

while permitting personal choices in organizational

and social environment. For instance, an enterprise

may have global presence rules that require or

prohibit disclosure of certain activities, but the

employees can exercise personal judgement within

the perimeters of these rules. An online community

may also mandate a minimal set of presence

requirements and leave the rest to its members.

Third, the standard NIST RBAC model only

defines the core concepts and semantics, but it

leaves the user authentication, permission

presentation and protocol integration to the

implementations. In particular, we need to

seamlessly integrate RBAC models with the web

services architecture which is based on the notion of

service contract. Since the contract exposes the data

model about the presentities, the RBAC model can

be used to grant contract access to only qualified

watchers. Another reason to incorporate contract

into RBAC model is to maintain data integrity such

that the contract (presence data model) discovered

by the watchers is identical to the one published and

updated by the presentity. For permission

representation, RBAC model should allow both

watchers and presentities to select presence states at

different level of granularity. Overall, the presence

protocols and RBAC models should be combined to

maximize symmetric information flow such that the

watchers and presentities have equal knowledge and

control over presence information.

To address these issues, we developed a secure

web service based rich presence architecture using

the extended RBAC model that we developed for

presence authorization. The proposed RBAC based

model extends the role assignment mechanism and

adds new features to support cascaded authority. It

emphasizes the importance of context and presence

data model in order to facilitate web service

discovery and invocations. In particular, we propose

an abstract presence data model by combining

Parlay X Web Service Presence (Parlay X 2007) and

RFC5025 authorization (Rosenberg 2007). In this

architecture, we use WS-Eventing (WS-Eventing

2006) as the presence protocol. We treat the

presentity as event source and presence information

that is sent to the watchers as events. WS-Eventing

is composed with WS-Security (WS-Security 2006)

for end-to-end user authentication, message integrity

and confidentiality. Using WS-Eventing instead of

the full-blown Parlay X Presence Web Service

allows us to limit the number of running web

services on communication endpoints, and in

addition, provide a generic methodology for

presence authorization in collaboration and social

networks.

The rest of the paper is organized as follows: In

Section 2, we survey some related work in RBAC,

presence authorization and web services. In section

3, we outline the presence protocol over the Web in

which the RBAC model operates. We then present

our extended RBAC models in two steps. First, the

basic model that incorporates the relation, context

and data models is described to address the specific

need of presence authorization. Second, we

formalize the special constraints for role hierarchy to

support cascaded RBAC models. In section 4, we

discuss a prototype presence architecture based on

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

secure web services using WS-Security and WS-

Eventing with PKI and UDDI servers. Within this

architecture, we study the performance and

applications of the proposed presence system for

web services enabled softphones. The paper is

concluded in section 5 with some thoughts on future

work.

2 RELATED WORK

Privacy aware design has been an active research

area in recent years (Hong 2004, Lederer 2004,

Laugheinrich 2001, Jorns 2004). A recurring

principle in these researches is “information

symmetry” such that parties participating in

information exchange should have equal awareness

and control over the information flows.

The concept of role has shown up in several

presence architectures, but none of them formally

adopts RBAC models.

Hong et al (Hong 2004) proposes an analytical

privacy risk model which considers the roles and

social relationships between presentity and watcher

as one of the input parameters to the model. The

authors recommend “push” mode delivery of

presence information to lower privacy risks, because

the presentity initiates the data transmission.

Lederer et al (Lederer 2004) discusses five

pitfalls in privacy aware design based on their

experience of developing a GUI for setting presence

preferences. A preference rule has three parts: a role,

situations and a face, meaning that if someone of

this role (roommate, parent, boss) requests in these

situations, it should show the presence states defined

in the face. This clearly is a RBAC based approach,

but the author does not make any reference to

RBAC. Their usability studies showed that users

expressed discomfort with hiding presences behind

faces, which is a permission definition issue in

RBAC models. The general lessons are that the

privacy component should be simple, transparent,

intuitive and easy to change. The paper recommends

the practice of plausible deniability – people can

choose to ignore presence requests or customize

information disclosure without having to explaining

why.

Jorns (Jorns 2004) provides an overview of

location based systems in the face of privacy and

proposes a pseudonym based scheme to enhance

privacy in a mobile communication system. The

scheme is based on “symmetric information data

arrangement” where the presentity has control over

to whom the location information is disclosed using

pseudonym management, in contrast to “asymmetric

arrangement” where a presentity has no such

control. Hengartner et al (Hengartner 2004) proposes

a digital certificate based access control framework

for sharing personal location information in a

heterogeneous environment. The authorization is

achieved by checking the trust delegation relations

expressed in certificates. The paper also uses “local

names” to designate a group of people in a single

certificate instead of creating certificates for each

person. Local names can be regarded as roles in our

RBAC approach.

RBAC model has been standardized by NIST

(Sandhu 2004), and it is still a very active research

area for improvements (Chen 2008, Ni 2007, Zhang

2008). Traditionally, it is used for enterprise

resource protection. There are some recent efforts to

extend RBAC to incorporate privacy (Ni 2007,

2008) and geospatial and temporal factors (Chen

2008). On one hand, however, these generic models

are too complex for presence, and on the other they

do not address the specific issues in presence and

web services. For instance, the privacy aware RBAC

model (Ni 2008) does not consider the relational

information in role assignment. Its new features,

such as action, purposes and obligations do not seem

applicable to presence system. Still focusing on

enterprise usages, this model does not address the

data integrity or cascaded authority in web service

based presence exchange. For this reason, we rely on

the standard NIST RBAC model.

Godefroid et al (Godefroid 2000) developed a

framework to ensure the correctness of presence

authorization rules using model checking

techniques. Each rule has a condition and an action.

Conditions are defined in terms of the presentity’s

state, such as “user i’s door is open” and the action

includes invite, accept, reject, etc. However, these

rules are not based on RBAC models.

There are many research work based on the SIP

presence framework (Rosenberg 2004, 2007, Beltran

2008, Singh 2006). IETF RFC5025 (Rosenberg

2007) defines presence authorization rules for SIP

Instant Messaging and Presence (SIMPLE). This

specification is based on a three level presence data

model. The top level consists of three entities:

device, service and person. The second level is the

attributes: activity, place, mood, etc., and the third

level is a range of presence values. The authorization

rule consists of condition, action and

transformations, and it is applied to each presence

subscription. The condition checks the identity of

the watcher and the sphere of the presentity. If the

condition matches, the action and transformations

are carried out. The actions (block, confirm, polite-

RICH PRESENCE AUTHORIZATION USING SECURE WEB SERVICES

block and allow) determine the status of the

subscription. The transformations define which the

presence entities and attributes will be included.

However, the authorization rules of (Rosenberg

2007) are user centric instead of role based and the

transformations do not apply to presence values.

RFC3856 (Rosenberg 2004), the protocol for SIP

presence subscription, does not provide a

mechanism for a watcher to indicate the presence

preference in subscriptions and to know the

authorized presence attributes. This information

asymmetry may lead to information overload to the

watchers. In particular, Singh et al (Singh 2006)

outlines some authentication mechanisms within SIP

architecture, including using PKI certificates.

Parlay X Presence Web Service (Parlay X 2007)

defines a two level presence data model. The top

level is a set of attribute types and the second level is

a set of values about the presence state of a person.

The presence web service includes interfaces for

watchers to subscribe or poll presence data. Similar

to SIMPLE, a watcher can request a subset of

presence attributes, and the presentity can grant

permissions (yes or no) to the requested attributes.

When the presentity changes the authorization of an

existing presence subscription, the service will

notify watchers accordingly. However, neither

watcher nor presentity can select presence values

from the attributes. Also, the standard does not

specify a standard presence authorization process.

WS-Security (WS-Security 2006) is an OASIS

standard for securing end-to-end web services

interactions. It provides support for user name

tokens and password, message timestamp, digital

signature of message, and message encryption based

on a variety of cartographical schemes, including

PKI architecture. WS-Eventing (WS-Eventing 2006)

is a W3C submission and in the process of becoming

a W3C standard recommendation. It defines a

subscribe/notify web service interaction pattern for

managing event subscriptions between event sources

and event sinks. It has been applied in web service

oriented communications as shown in (Chou 2007,

2008). UDDI (UDDI 2002) is another OASIS

standard for web services to publish their structural

information so that services can be discovered and

consumed. A UDDI repository at the minimum

contains the name and URI of web services, but it is

extensible to store other type of information.

3 EXTENDED RBAC MODEL

In our web service based presence framework,

watchers and presentities interact over the Web

though the web service protocols. The high level

interaction sequence that leads to a presence session

is depicted in the following diagram (Figure 1). In

this architecture, a presentity s first publishes its web

services onto the Web (UDDI registry or Web

server). A watcher w interested in s can discover the

presentity’s data model d over the Web, subject to

the authorization approval. To obtain the presence,

the watcher w subscribes to d with its preference q.

The subscription is then subject to the authorization

process. Upon approval, a filter f is returned along

with the current presence states v of s and a

reference m to the subscription. Subsequent presence

event from s will be delivered to w only if it matches

f. Either s or w can cancel the subscription m to

terminate the presence session.

This sequence of operations is valid regardless if

a presence server is deployed between w and s or

there are peer-to-peer connections between them.

For the same reason, the RBAC models can be

deployed either in the presence server or in the

presentity or both. If a presence server is used, the

presentity can delegate part or all authorization to

the server. For clarity, this diagram only illustrates

the deployment of RBAC model on the presentity.

Regardless where the RBAC model is installed, the

authorization process will be the same.

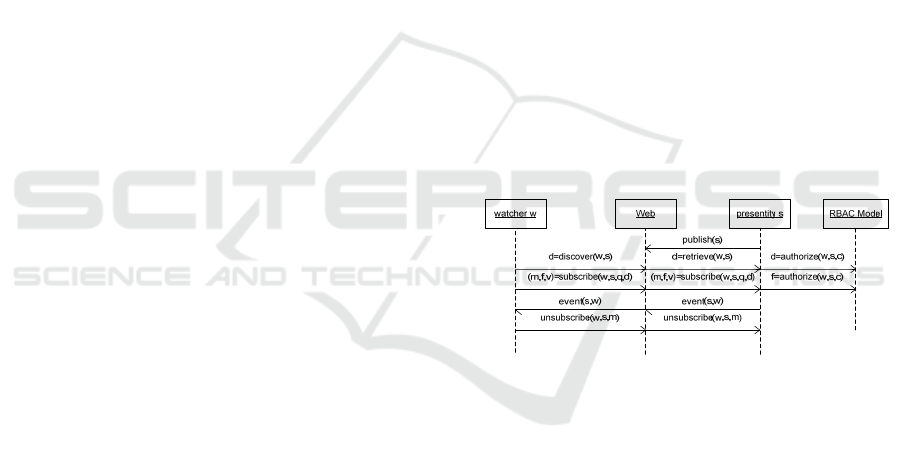

Figure 1: High level Web service based presence protocol.

Our extended RBAC model M consists of the

following sets of entities: presentities (S), watchers

(W), contexts (C), roles (R), presence data model

(D), permission actions (A), and data model

transformations (T). The sets S and W correspond to

the users (U) of the standard RBAC model. The sets

P and R have the same meaning as in the standard

RBAC model.

The following additional entities are introduced

in our extended RBAC model. The set C denotes a

set of application dependent contexts. The set D is a

set of presence data models (service contracts) of the

presentity. Presentities S are represented as trees.

The set T is a set of transformations that create valid

subtrees from D. The subtree is a permission tree if

the nodes are decorated with actions defined in the

set A (Rosenberg 2007), e.g. allow (A), block (B),

polite-block (L) and confirm (I). In permission trees,

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

a node without action will inherit its parent’s action,

whereas a node’s own action overrides its parent’s

action.

The authorization specification of M is defined

by the following mappings (Formula 1).

× S × C→[Role]→R→[Granted]→

× T(D)

(1)

f(w, s, c) = Requested(w, s, c) ∩

Granted(Role(w, s, c))

(2)

Received(w, s, c)=f(w, s, c) ∩Presence(s)

(3)

Here Requested(w,s,c)

∈ C× T(D) denotes the

presence request from watcher w to the presentity s

in the context c. The presence filter f for this request

can be computed by Formula 2 following the

relations in M. Formula 3 shows that the presence

events from s is filtered by f before received by w.

To elaborate the authorization process, Figure 2

shows that a watcher w, subscribing certain presence

data represented as a tree q, is assigned to role r. The

role r is associated with a permission tree t decorated

with some actions. In this case, the watcher w

requests presence values v11 and v12 of the attribute

a1 and all values of a2, whereas the permission tree

grants access to values v11 of the attribute a1 and all

values of a2 only if it is confirmed by s. Assuming

the presentity rejects attribute a2, then we have

f={a1/v11}. If there is a presence event

{a1/v11,a1/v12}, only {a1/v11} will be delivered to

the watcher due to the filtering.

watcher w

presentity s

role r

tree q

-c

tree t: A

-c

a2a1

v12v11

a2: Ia1

v13: Bv11

tree d

Figure 2: A RBAC model with watcher request and role

permission represented as trees created from the same data

model.

The data security and integrity is maintained in this

model because the watchers can only discover

elements in D and that all permission trees are

created from D. By using permission trees, the

presentity can designate presence disclosure with

different granularity, ranging from the entire tree to

individual presence values. The information

symmetry is achieved by the same data model and

the presence filter shared between the watcher and

presentity during the presence session. In other

words, the shared filter guarantees that no presence

values will ever leak to the watcher without the

consensus of the presentity. By the same token, no

granted presence values will be concealed from the

watcher. The only exception to this rule is polite-

block, where the presentity hides its presence from

the watcher. However, this is a well accepted

privacy practice following the Plausible Deniability

principle (Lederer 2004) that favours privacy over

presence.

This extended RBAC model is particularly

suitable for creating cascaded authorities using role

hierarchy. Our goal is, given a RBAC model M

representing a central authority, to derive a new

model M

that maintains all the mandatory aspects

of M

. To support this, we propose new constraints

on standard role hierarchy to prevent the mandatory

aspects from being overridden. Since what

constitutes the mandatory aspects is domain

dependent, we introduce a new attribute, final (F), to

decorate the permission trees in M

. This attribute

separates nodes that must be inherited by M

from

those that can be overridden, thus providing

protection as well as flexibility in cascaded models.

In this process, we leave out the role assignments

until the final RBAC model is assembled. More

formally, let M

= (R

, C

, T

), A

) and M

, C

, T

), A

), representing the roles, context,

transformations, and actions of two RBAC models

respectively. M

is a valid derivation of M

iff the

following conditions hold:

212121

D D A A C C⊆∧⊆∧ ⊆

(4)

2222 1111

12 1 2

(, ) ( )(, ) ( )

( ( ) ( ) ( (, ) ( (, )

() ))

ct C T D ct C T D

dt dt rolect

unior role c t

final t t

∀

∈× ∃ ∈×

=→ ∈

∧∈

(5)

By the first condition, the data models, actions and

contexts of M

are sanctioned by M

. The second

condition ensures that if a tree t

in M

has the same

data model as a tree t

in M

, then t

’s role inherits

’s role and all final nodes of t

, if any, are inherited

by t

as well. The final model M3 is assembled by

∪ M

The following diagram (Figure 3) illustrates two

models: M

with role manager and M

with role

director

that satisfy these conditions. In this case, M

marks a1:A (allow attribute a1) as final but leaves a2

open. The derived M

changes a2 from I (confirm)

to A (allow), and adds a new node a3. If t

had a

node a1:B (block attribute a1), it would violate the

conditions. The final RBAC model contains both

roles. This derivation process can be repeated as

long as necessary.

RICH PRESENCE AUTHORIZATION USING SECURE WEB SERVICES

Figure 3: Cascaded RBAC models using constrained role

hierarchy.

This role hierarchy can be interpreted by standard

RBAC semantics, as either permission hierarchy or

activation hierarchy (Sandhu 2000). To enable

efficient computation of permissions, the cascaded

models can be flattened into one final RBAC model

whose permission trees are the unions of all

permission trees along the inheritance relations. The

permission tree of a senior role will inherit nodes

from the junior role if it does not have them, and it

will overwrite nodes from the junior role by its own.

Following this rule, the collapsed tree for the role

director

in M

is {a1:A, a2:A, a3:I}.

4 IMPLEMENTATION

The presence architecture is illustrated in Figure 4,

which consists of a UDDI server, presentity, watcher

and a Certificate Authority (CA) server. Each

presentity and watcher in our study is a softphone

hosting identical set of web services (WS-Eventing

and WS-Security). PKI certificates (public and

private keys) generated from the CA are

administrated to each softphone. Each softphone

publishes or deletes its web services registry and its

public key in the UDDI server, when the user logs in

or off the softphone. The UDDI server thus acts as a

coarse grained presence server and a public key

repository. To start a presence session outlined in the

previous section, the watcher’s softphone finds the

presentity web service location from the UDDI and

invokes them accordingly.

The security for all message exchanges,

including presence subscriptions and events, is

achieved by WS-Security based on the PKI

certificates.

Figure 5 shows the WS-Security

component intercepts outgoing and incoming SOAP

messages to add and check security features. On the

presentity side, once the presence subscription

passes the security check, it is submitted to the

presence authorization module which employs the

RBAC model to authorize the request as discussed

in previous section.

Figure 4: High level presence architecture based on web

services.

Figure 5: SOAP message security procedure using WS-

Security.

The proposed RBAC based presence architecture

prototype was implemented on top of the Google

Android mobile phone platform (Android 2008). We

developed WS-Eventing and utilized the WS-

Security infrastructure provided by gSOAP (gSOAP

2008). Our prototype system has four roles:

manager, peer, subordinate and anonymous, with

some predefined permissions against the Parlay X

Presence. To demonstrate the approach, four

presence attributes: Activity, Privacy, Place and

Sphere, of the Parlay X Presence data model are

selected. The role anonymous, inherited by other

roles, grants everyone access to the presence data

model and some rudimentary presence information.

Figure 6 shows a screenshot of the presence

subscription interface used by the watchers.

Figure 7

shows the presence states displayed in the softphone.

The presence information is combined with the

call management of the softphone to enable presence

aware communication. One application is presence

aware calling that can put an active call on hold

when it is not answered and automatically reconnect

when the callee presence state changes to available.

This avoids the hassle for the caller to frequently try

the luck of getting connected with the callee.

certificates

UDDI

public keys

Presentity

web services

certificates

RBAC model

Watcher

web services

certificates

RBAC model

inquiry

publish

presence

administrate

response

WS-Security Interceptor

SOAP

Message

SOAP

Message

Add Timestamp, user name, signature

Authentication, verification

SOAP

Message

SOAP

Message

public

key

Sender

Receiver

UDDI

private

key

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

Figure 6: Screenshot of presence subscription interface on

the softphone.

Figure 7: Screenshot of a user’s presence state displayed

in the contact list on watcher’s softphone.

The performance measurement of the presence

system is summarized in the following table (Table

1). The time (millisecond) were averaged over 10 to

100 trials on a notebook computer with 1.79GHz

CPU and 1G RAM running Windows XP

Professional in a LAN environment.

The “Watcher” column is the round-trip latency

of presence subscription messages measured at the

watcher side, with and without WS-Security.

Similarly, the “Presentity” column is the total

subscription processing time on the presentity side,

with and without WS-Security. The total processing

time includes SOAP engine and WS-Eventing

module. The “WS-Eventing” is the time spent in

executing the WS-Eventing code, which included

the presence authorization. These results show that

the overall performance is acceptable for real-time

telecommunication.

Table 1: Performance measurement of the prototype.

Component Watcher Presentity

with WS-Security 20.35 7.45

no WS-Security 17.27 5.77

WS-Eventing N/A 4.76

It should be pointed out that WS-Security ensures

end-to-end security that is agnostic of transport

protocols. This level of security allows sensitive

presence information to be passed between value-

add 3

party applications without sacrificing

message integrity and confidentiality. The PKI

certificates also eliminate the need for shared secret,

which is difficult or even impractical in open-ended

communications.

The web service based approach is also

extensible by service composition. For instance, if

we need message reliability, we can compose a

proper web service for reliability with the existing

ones without any change to the existing service

implementations.

5 CONCLUSIONS

This paper presented an extended RBAC model for

presence authorization and a presence architecture

using this model with secure web services for

privacy protection. The standard RBAC model is

extended in two ways. The first is to incorporate

presence relation, context and data model to support

data integrity, flexible authorization specification

and efficient authorization process within web

services architecture. The second is to introduce the

constraints for cascading RBAC models using role

hierarchy to support central authority. The

effectiveness of the extended RBAC model is

illustrated in facilitating information symmetry in

rich presence exchange. A prototype implementation

using WS-Security, WS-Eventing, UDDI registry

and PKI CA server and application of the proposed

presence architecture was demonstrated based on

web services enabled softphones. The experimental

results indicated that the system performance is well

suited for real-time communication and

collaboration.

For future work, we will study the combination

of RBAC models with the context of enterprise

organizations and social networks, to enable

presence aware communication and collaboration

efficiently without loosing privacy.

RICH PRESENCE AUTHORIZATION USING SECURE WEB SERVICES

ACKNOWLEDGEMENTS

The authors would like to thank Wei Zhang and

Yanbing Yu for their contributions to this project.

REFERENCES

Android - An Open Handset Alliance Project. In:

http://code.google.com/android/

Beltran, V. and Paradells, J.: Middleware-Based Solution

to Offer Mobile Presence Services. In: Mobileware’08,

February, 2008 (2008)

Chen, L. and Crampton, J.: On Spatio-Temporal

Constraints and Inheritance in Role-Based Access

Control. In: ASIACCS’08, March, 2008, pages 205-

216 (2008)

Chou, W., Li, L., and Liu, F.: Web Services Methods for

Communication over IP, ICWS 2007, pages 372-379,

Salt Lake City, July 2007 (2007)

Chou, W. and Li, L.: WIPdroid – a two-way web services

and real-time communication enabled mobile

computing platform for distributed services

computing, Proceedings of International Conference

on Services Computing 2008, July 2008, Vol. 2, pages

205-212, July 2008

Day, M., Rosenberg, J., and H. Sugano, "A Model for

Presence and Instant Messaging", RFC 2778, February

2000 (2000)

gSOAP. In: http://gsoap2.sourceforge.net/

Godefroid, P., Herbsleb, J.D. Jagadeesan, L.J., and Li, D.:

Ensuring Privacy in Presence Awareness Systems: An

Automated Verification Approach. In: Proceedings of

the 2000 ACM conference on Computer supported

cooperative work, pages: 59-68, 2000 (2000)

Hong, J.I., Ng, J.D., Ledere, S., and Landay J.A.: Privacy

Risk odels for Designing Privacy-Sensitive Ubiquitous

Computing Systems. In: DIS2004, August 1-4, 2004,

pages 91-100 (2004)

Jorns, O.: Privacy Enhancing Architectures Overview. In:

Intensive Program on Information and Communication

Security: Secure Embedded Systems (IPICS’04),

November 25, 2004 (2004)

Langheinrich M.: Privacy by Design – Principles of

Privacy-Aware Ubiquitous Systems. In: Proceedings

of the 3rd international conference on Ubiquitous

Computing, pages: 273-291, (2001)

Lederer, S., Hong, J.I., Dey, A.K., and Landay J.A.:

Personal privacy through understanding and action:

five pitfalls for designers. In: Personal and Ubiquitous

Computing, Volume 8, Issue 6, pages: 440-454

(November 2004)

Ni, Q. and Trombetta, A.: Privacy-aware Role Based

Access Control. In: SACMAT’07, June, 2007, pages

41-50 (2007)

Ni, Q. et al.: Conditional Privacy-Aware Role Based

Access Control, Computer Security ESORICS 2007,

Lecture Notes in Computer Science, Springer

Berlin/Heidelberg, pages 72-89, 2008.

Parlay X: Draft ETSI ES 202 391-14 v0.0.8 (2007-06),

Open Service Access (OSA), Parlay X Web Services,

Part 14: Presence (Parlay X 2) (2007)

Rosenberg, J., Request for Comments: 3856, A Presence

Event Package for the Session Initiation Protocol

(SIP), August 2004 (2004)

Rosenberg, J., Request for Comments: 5025, Presence

Authorization Rules, December 2007 (2007)

Sandhu, R., Ferraiolo, D., Kuhn R.: The NIST Model for

Role-Based Access Control: Towards A Unified

Standard. In: Proceedings of 5th ACM Workshop on

Role Based Access Control, July 26-27, 2000 (2000)

Singh, V.K. and Schulzrinne, H.: A Survey of Security

Issues and Solutions in Presence. In:

http://www1.cs.columbia.edu/~vs2140/presence/prese

ncesecurity.pdf (2006)

UDDI Version 2.04 API Specification, UDDI Committee

Specification, 19 July 2002 (2002)

Urs Hengartner and Peter Steenkiste: Implementing

Access Control to People Location Information,

SACMAT’04, page 11-20, June 2004.

Web Services Security: SOAP Message Security 1.1,

(WS-Security 2004), OASIS Standard Specification, 1

February 2006 (2006)

Web Services Eventing (WS-Eventing), W3C Member

Submission, 15 March 2006 (2006)

Zhang, Y. and Joshi, J.B.D.: UAQ: A Framework for User

Authorization Query Processing in RBAC extended

with Hybrid Hierarchy and Constraints. In:

SACMAT’08, June, 2008, pages 83-91 (2008)

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies
