USING GRIDS TO SUPPORT

INFORMATION FILTERING SYSTEMS

A Case Study of Running Collaborative Filtering Recommendations on gLite

Leandro N. Ciuffo and Elisa Ingrà

Istituto Nazionale di Fisica Nucleare, Sez. di Catania, Via S. Sofia 64 – 95123, Catania, Italy

Keywords: Recommender systems, Personalization, Collaborative filtering, Grid computing, Distributed computing,

gLite middleware.

Abstract: Today’s business becomes increasingly computational-intense. Grid computing is a powerful paradigm for

running ever-larger workloads and services. Commercial users have been attracted by this technology,

which can potentially be exploited by industries and SMEs to offer new services with reduced costs and

higher performance. This work aims at presenting a “gridified” implementation of a Recommender System

based on the classic Collaborative Filtering algorithm. It also introduces the core services of the gLite

middleware and discusses the potential benefits of using Grids to support the development of such systems.

1 INTRODUCTION

Recommender Systems (RS) are best known for

their use in e-commerce Websites. Such systems are

a type of Information Filtering system that use

inputs about customers’ interests to generate a list of

tailored items for them. In general, the more

accurate the recommendations are, the bigger will be

the sales.

In recent years, Collaborative Filtering (CF)

(Resnick,1994)(Cöster,2002) has proven to be one

of the most popular algorithms used in

Recommender Systems. Its technique essentially

automates the process of "word-of-mouth"

recommendations. Items are recommended to an

active user based on the evaluations of users who

have similar preferences.

However, CF requires computations that are very

expensive and grow polynomially with the number

of users and items in a system. For a large retailer

like Amazon.com, with huge amount of data, tens of

millions of customers and millions of distinct

catalog items, generate accurate recommendations in

real-time is impractical (Linden,2003). Such

limitation has driven the research of a vast amount

of alternative solutions. Hence, several variations of

the classic CF algorithm are present in the literature,

including the adoption of Bayesian network,

clustering techniques, dimensionality reduction,

sampling and many others – all of which reduce, in a

certain extent, recommendation’s quality.

In this scenario where traditional CF systems

have suffered from scalability issues, Grid

computing appears as an innovative approach that

can be used for running ever-larger workloads and

services.

Although developed over a relatively short

timeframe, Grid computing is a fairly mature area

which is rapidly gaining momentum in many diverse

industries and among the biggest IT players like

IBM, HP, Microsoft, Sun and Oracle. In addition,

several international Grid projects such as EGEE

(2008), BEinGRID (2006) and Biz2Grid (2008)

have pushing industries and SMEs (Small and

Medium-sized Enterprises) to have their business

applications running in their Grid infrastructure.

Also, it is commonly recognized that computing

resources can be treated as a commodity that can be

sold. The provision of on-line business services can

ease ICT companies from over-provisioning and

from dealing with low level resources. In fact, many

users are gaining confidence of outsourcing

production services and part of their IT

infrastructure to cloud providers such as Amazon

(Bégin,2008). For this reason, the Grid community

is working on the implementation of new services

and accounting mechanisms that will soon allow the

commercial use of Grids (Ragusa,2007).

N. Ciuffo L. and Ingrà E. (2009).

USING GRIDS TO SUPPORT INFORMATION FILTERING SYSTEMS - A Case Study of Running Collaborative Filtering Recommendations on gLite.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Software Agents and Internet Computing, pages 12-18

DOI: 10.5220/0001845300120018

 SciTePress

This work aims at presenting a “gridified”

implementation of the classic CF algorithm as well

as discussing the potential benefits of using Grids to

support the development of information systems. In

order to test empirically our proposed approach, we

developed an application that runs on a Grid test-bed

based on gLite middleware (2008) and uses CF to

generate recommendations to the users of an on-line

Movie Recommender System (Ciuffo,2001). To the

best of our knowledge, no other group has deployed

a recommender system over a gLite-based Grid.

2 RECOMMENDER SYSTEMS

Recommender Systems (RS) have been used for

suggesting items (books, movies, songs, restaurants

and even jokes) (Herlocker,2000) that users might

like. In e-commerce environments, Recommender

Systems are software applications that aim at

supporting users/customers in the decision-making

and buying process. The main tasks of such systems

typically include the elicitation of user preferences,

the construction (or update) of the user’s profile and

the generation of personalized recommendations.

Figure 1 depicts the operation of a simple basic RS.

Figure 1: Operation schema of a simple RS.

2.1 Collaborative Filtering

Roughly, Collaborative Filtering (CF) considers the

following hypothesis: users who agreed in the past

will probably agree again in the future. For instance,

imagine an active user U

who wants to receive a

movie recommendation. First, the RS must look for

users who have similar profiles, i.e., users who have

watched the same movies in the past and evaluated

them in a similar way (the neighbors of U

). Then,

the RS will either recommend the movies best

evaluated by the similar users or predict the U

ratings based on its neighbors’ profiles.

A traditional CF algorithm uses as input a mXn

matrix of ratings (Table 1). Each line represents an

user and each column a distinct catalog item. The

cells contain normalized ratings provided by user m

to item n. The empty cells indicate that the item has

not been rated by the respective user.

Table 1: A simple matrix of ratings.

item 1 item 2 item 3 item 4 item 5

John

2 2 5

Rick

6 4 4 2

Jully

5 4 3 2 5

Maria

5 4 4

Paul

4 5 6 3 5

In order to compute the similarities between

users, a variety of similarity measures has been

proposed, such as Pearson correlation, cosine vector

similarity, Spearman correlation and mean square

difference. The proposed application adopts Pearson

correlation, since it is the most commonly technique

used in the literature. Thus, the correlation between

an user a and another user b is calculated by:

∑∑

∑

−−

)()(

))((

),(

bibaia

NNNN

bar

(1)

where:

i ∈ items evaluated by both users: a and b

iuN , the rating given by user u to the item i

uN the average rating of user u (arithmetic

mean)

Applying the correlation calculus for each pair of

users in Table 1, the following matrix is generated.

Table 2: Similarity matrix.

John Rick Jully Maria Paul

John 1

- 0.816 - 0.618 - 0,8 - 0.943

Rick

- 0.816

+ 0.916 + 0.447 + 0.314

Jully

- 0.618 + 0.916

- 0.176 + 0.269

Mari

- 0.8 + 0.447 - 0.176

+ 0.754

Paul

- 0.943 + 0.314 + 0.269 + 0.754

The result varies from +1 (identical profiles -

perfect linear relationship) to -1 (opposed profiles).

A correlation degree close to zero can’t be used to

infer accurate predictions.

USING GRIDS TO SUPPORT INFORMATION FILTERING SYSTEMS - A Case Study of Running Collaborative

Filtering Recommendations on gLite

Analyzing the Table 2, one can note that John

and Paul have opposite tastes, i.e., John like the

items that Paul doesn't like.

Once calculated the similarity among the active

user and all other users in the matrix, the next step

consists of using this information to select the

neighborhoods. Basically two different approaches

can be used: Correlation Weight Threshold and

Maximum Number of Neighbors (Herlocker,2000).

The first technique is to set a default correlation

degree, where all neighbors with absolute

correlations greater than the default threshold are

selected. The second approach is to pick the best N

neighbors for a given N. This technique may reduce

the accuracy of the recommendations, but on the

other hand it always manage to set neighborhoods,

even for small datasets.

The third and last step of the algorithm is to

infer, for each unrated item of a given user, his/her

most likely rating based on his/her neighbors’

ratings for that item. The rating prediction p

a,i

for the

active user a for an item i can be calculated by

means of the weighted average presented below:

∑

−

uauiu

rNN

aia

(2)

where n is the number of neighbors who have rated i

and r

a,u

is the similarity weight between the active

user a and his neighbor u, as defined by the Pearson

correlation.

One of the advantages of the CF is that it can be

applied in every domain, with no additional efforts

required for humans editors to classify items or tag

contents. However, this technique depends on the

participation of a great number of users to tune the

RS. In general, the larger the number of evaluations

provided, the more accurate the recommendations

will be. For this reason the CF algorithm is best

suitable to operate with large databases and therefore

suffers from complexity issues.

2.1.1 Worst Case Complexity

The most expensive computation of the classic CF is

the calculation of the user-to-user similarities. In

order to deal with this, major e-commerce systems

use to carry out such computations offline and feed

the database with updated information periodically

(Linden,2003). This approach may allow them to

provide quick recommendations based on pre-

computed similarities, but it fails on providing

recommendations with the highest degree of

confidence, since ratings submitted between two

offline computations are not considered. The worst

case complexity of maintaining a similarity matrix

with the Pearson correlation between every pair of

users is O(m

n) (Papagelis,2005), where m is the

number of users and n is the number of catalogue

items. Alternatively, if the user similarities are not

pre-computed offline, they need to be calculated at

the time a recommendation is requested. In this case,

there is no need for computing the whole user

similarities matrix, but only the similarities between

the active user and all the others. This computation

has a computational cost of O(mn).

3 GRID COMPUTING

A computational Grid is a geographically distributed

system aimed at putting together large sets of

heterogeneous resources (computing power, storage

space, software applications, data etc.) among

communities of users federated in the so-called

Virtual Organizations (VOs). It derives its name

from the fact that its idealistic goal is to grant access

to computing resources in a transparent and easy

way as the Power Grid does with the electrical

power. VOs are sets of individuals and institutions

that agree upon common policies for sharing and

accessing resources.

The interaction between users and the resources

is made possible by a software layer known as

middleware. It is a set of components that provides

the user with high-level services for scheduling and

running computational jobs, accessing and

transferring data, obtaining information on the

available resources and so on, covering the most

relevant operations that can be done in a Grid

environment.

Currently, there is not a single Grid (as there is

one single "Internet"). Instead, there are many Grid

initiatives around the world created by group of

organizations wanting to share their local resources

to increase their individual access to the overall Grid

resources.

The work presented in this paper makes use of

the GILDA Grid (Babera,2008), a fully fledged Grid

test-bed devoted to training and outreach activities

which has been adopted as the official training

infrastructure by many Grid projects all around the

world.

GILDA adopts the gLite middleware (2008), an

European solution developed by the CERN jointly

with the EGEE project. Next section briefly presents

the main characteristics of the gLite architecture.

ICEIS 2009 - International Conference on Enterprise Information Systems

3.1 The gLite Middleware

Distributed under a business friendly open source

license, gLite integrates components from the best of

current middleware projects, such as Condor

(Thain,2003) and the Globus Toolkit (2007), as well

as components developed for the LCG project

(2008).

The gLite middleware is based on the concept of

"Job Submission". A job is an entity which contains

information about all the stuff needed for a remote

execution of an application, such as its executable

program, the environment settings, the input data

and the expected output files to be retrieved. All

these parameters are defined in a text-file written in

the Job Description Language (JDL) syntax, that is a

high-level specification language based on the

Classiﬁed Advertisement language (2004).

End users can access the Grid through a Grid

component called User Interface (UI), which is a

client properly configured to authenticate and

authorize the user to use the Grid resources. When a

user wants to execute a computational job, he/she

composes a JDL file and submits it to the Workload

Management System (WMS), which is the service in

charge of distributing and managing tasks across the

computing and storage resources. The WMS

basically receives requests of job execution from a

client, finds the required appropriate resources and

then dispatches and follows the jobs until

completion, handling failure whenever possible.

The jobs are sent to Computing Elements (CEs),

which manage the execution queue of the Worker

Nodes (WNs), the computers where a job actually

run. In other words, a CE acts as an interface to the

computing farm installed in a Grid site.

Once the task has been accomplished, all the

output files listed in the JDL are packed in the

Output Sandbox and sent back to the WMS. Finally,

the user can retrieve the Output Sandbox onto

his/her UI. Applications that need to manage large

data files (either as input or output) can

store/retrieve the data by accessing directly the Grid

Storage Elements (SEs) using the data management

API provided by the middleware.

It is important to mention that although data files

are held in SEs, they are made available through File

Catalogues, which record information for each file

including the locations of its replicas (if any). The

File Catalogue adopted by gLite is the LCG File

Catalogue (LFC). This tool allows users to view the

entire Grid as a single logical storage device.

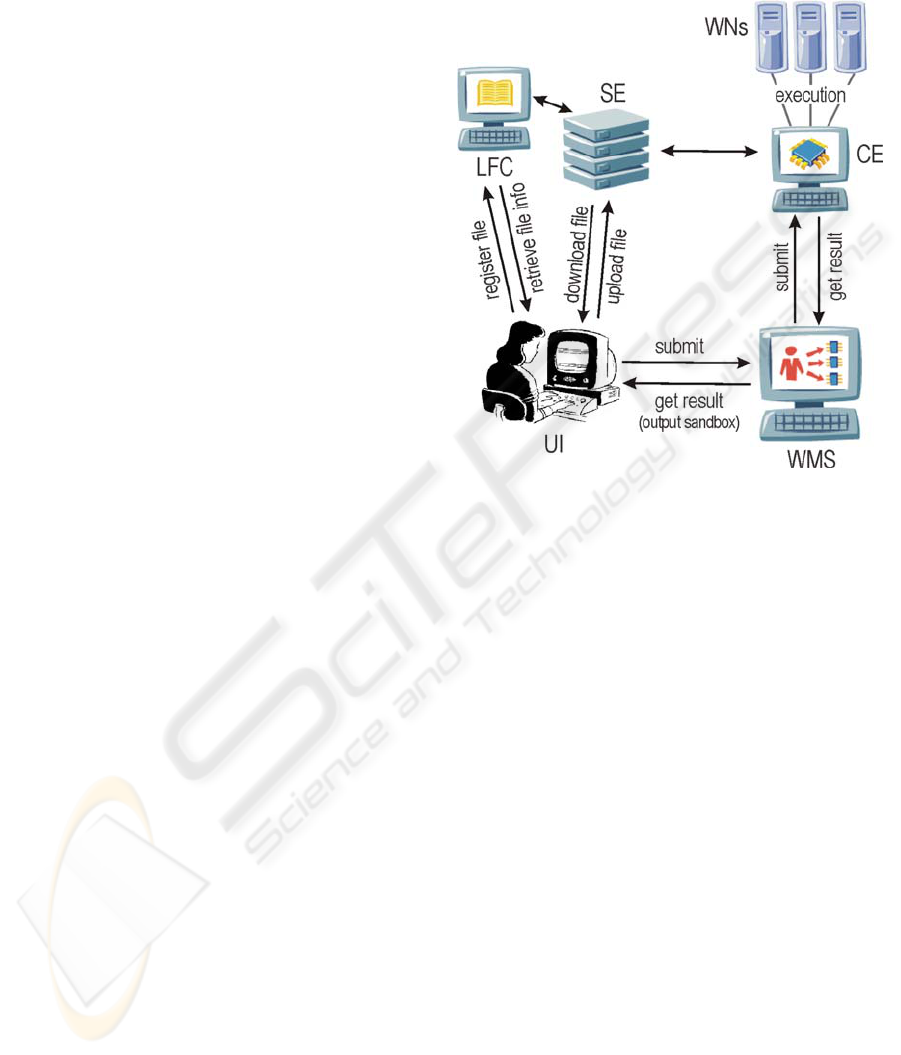

Figure 2 roughly presents the interaction among

the aforementioned Grid elements. Please notice that

although only one SE and CE are represented in the

picture, a Grid infrastructure might have hundreds of

these elements geographically distributed.

Figure 2: Schematic diagram of some Grid elements.

Another Grid service relevant to this work is the

Metadata Catalogue, which permit users to attach

metadata to the files stored in the Grid. Typically,

each file being described has a respective entry in

the catalogue. The entries are described by user-

definable attributes, which are key/value pairs with

type information. The Metadata Catalogue adopted

by gLite is the Arda Metadata Catalogue Project

(AMGA,2006).

For further definitions about the gLite

architecture, the reader is requested to consult

(Laure,2006).

4 GRIDIFICATION APPROACH

Just like "webifying" applications to run on a web

browser, Grid users need to "gridify" their

applications to run on a Grid. This process may

comprises the creation of additional bash scripts as

well as changes in the original source codes in order

to include APIs to directly interact with Grid

components. In some cases, it is also necessary to

stop using services and libraries that are not

supported by the standard distribution of the adopted

Grid middleware.

USING GRIDS TO SUPPORT INFORMATION FILTERING SYSTEMS - A Case Study of Running Collaborative

Filtering Recommendations on gLite

As aforementioned, we developed a RS to

recommend movies at Cinefilia website

(Ciuffo,2001). To be able to get movie

recommendations, Cinefilia visitors need to sign in

and to rate at least 20 movies. The rating scale varies

from 0 to 6 for each watched movie. There is also an

option that enable users to indicate the movies that

he/she hasn't watched yet.

Altogether, more than 800 movies are available

to be rated, from classics to the latest releases. Our

current dataset consist of 32,817 ratings (ranging

from 0 to 6) provided by 327 unique users. It is

important to remark that this is considered a small

dataset for what concern the measurement of either

the accuracy of the generated recommendations or

the performance of the proposed workflow. Both

analyses are out of scope of this work.

The implementation strategy for porting our

Recommender System on the GILDA test-bed is

depicted in Figure 3 and explained as follows: users

can freely interact with the Cinefilia website to rate

as much movies as they can. Cinefilia makes use of

a standard MySQL database to store and retrieve

information about its users (1). In order to generate

recommendations, a pre-processing script must be

executed in the Grid User Interface. This is a bash

script that can be launched either on-demand or by

using cron to run it many times a day on a schedule.

The pre-processing script is in change of

downloading all ratings from the on-line database

(2); chopping the users’ ratings into several text-file

strings - one per user (3); registering the files in the

LFC (4) and storing them on a Grid SE (5). The pre-

processing script should also dynamically create the

JDL file (6). In our approach we are using

parametric Jobs (Giorgio,2008) where each user ID

is a parameter of the actual executable file called

“recommender”. This is a compiled code originally

written in C that implements the classic CF

algorithm and calculates recommendations for a

single user – specified as a parameter. The

“recommender” code uses as input the text files

obtained from the database and generates as output a

.SQL file containing recommendations to the

specified user. For the reader's convenience, the JDL

file is shown in Figure 4.

The last action of the pre-processing script is to

submit the parametric job to the WMS (7), which

dispatches multiple jobs (one job per user, as defined

in the parameters list) to the available Computing

Elements (8). The usage of parametric jobs ensures

the distributed characteristic of our approach, where

each user can have his/her recommendations

calculated simultaneously by different Worker

Nodes (in different Computing Elements queues).

Figure 3: Implementation workflow.

Figure 4: JDL file generated by the pre-processing script.

One can note that the “recommender” code is

included in the Input Sandbox and therefore

transferred to be executed in the Worker Nodes.

[

Type = "Job";

JobType = "Parametric";

Executable = "start-recommender.sh";

Arguments = "_PARAM_";

StdOutput = "output_PARAM_.out";

StdError = "error_PARAM_.err";

InputSandbox = {"recommender",

"start-recommender.sh"};

OutputSandbox = {"recommendations.sql",

"output_PARAM_.out","error_PARAM_.err"};

Parameters =

{userID1,userID2,userID3,...,userID320};

]

ICEIS 2009 - International Conference on Enterprise Information Systems

Also, the text-files previously stored in the SE are

downloaded to be used as input files by each job

execution (9).

At the end of the execution, it is possible to

retrieve multiple output files (one .SQL file per

user). Therefore, another script must be launched in

order to assemble all these files into a single one

containing recommendations for all users. The

ultimate step of this workflow is to update the on-

line database using the generated .SQL file.

To keep track of all executions of our

Recommender System, the post-processing script is

also in charge of storing some relevant statistics into

the AMGA Metadata Catalogue, such as the date

and time when the .SQL file was generated, the total

of ratings, the amount of users entitled to get

recommendations, the number of generated

recommendations and so forth.

5 CONCLUSIONS AND FUTURE

WORKS

Grids ﬁrst emerge within scientiﬁc communities,

like High Energy Physics (HEP) experiments.

However, the enormous research activity in recent

years has contributed to the development of new

areas of interest. Commercial users have been

attracted by this technology, which can potentially

be exploited by industries and SMEs to offer new

services with reduced costs and higher performance.

This expansion from science to business is

nearing Grids to “utility computing”, where

computing power is viewed as a utility, available on

a pay-as-you-use basis, like gas or electricity. This is

not yet the case, but there are several ongoing

initiatives to develop new tools and Grid services

that should allow the outsourcing of computing

resources in the short term.

Although the case study presented in this paper

did not focus on a comparative analyses between

our approach and other implementations of CF

algorithm, it is interesting to note that the resources

required to run our Recommender System are owned

by other entities, letting our own resources

(computers and storage) free to perform other tasks.

This is an immediate benefit of using Grids,

specially for SMEs that cannot afford to have their

own computer farm to run their

simulations/algorithms.

The distributed approach used in this case study

has helped to reduce the time consumption of the

original algorithm, since each job launched to the

Grid is in charge of calculating the recommendations

for one single user - O(mn). The overall execution

time to generate recommendations to all users will

depend on the number of Computing Elements and

Worker Nodes available in the Grid. The best

scenario would be to have all jobs running

simultaneously in different Worker Nodes. The

bigger the number of free CPUS in a Grid, the better

is the chance of this scenario occurs.

The strategy of fetching data from the database

and splitting it into several text-files is due to a lack

of a Grid enabled DataBase Management System

(DBMS) supported by the middleware and available

to the users. However, since many applications need

to access, manage and process huge amount of data,

there are several initiatives trying to face this

important challenge. One of them is the Grid

Relational Catalog Project (GRelC,2007), which

provides a data access interface to access standards

DMBS (MySQL, PostgreSQl, Oracle etc.) in a Grid

environment.

As a future work, we intend to create a new

version of our Recommender System exploring the

GRelC service. We also intend to deploy our system

in the EELA-2 production Grid infrastructure, since

GILDA is devoted to learning purposes only. The

results and discussions of both experiments will be

presented in future papers.

REFERENCES

Amga (2006). The gLite Grid Metadata Catalogue.

Retrieved February 8, 2009, from:

http://amga.web.cern.ch/amga/

Barbera, R., Ardizzone, V., Ciuffo, L.N. et al. (2008) Grid

INFN virtual Laboratory for Dissemination Activities -

GILDA (2008). 6th International Conference on Open

Access, Lilongwe, Malawi. GILDA portal available at:

https://gilda.ct.infn.it/

Bégin, M.E. (2008) An EGEE comparative study: Grids

and Clouds - Evolution or Revolution? Retrieved

February 8, 2009, from:

https://edms.cern.ch/file/925013/4/EGEE-Grid-Cloud-

v1_2.pdf

Beingrid. (2006). Business Experiments in Grid. Retrieved

February 8, 2009, from: http://www.beingrid.eu/

Biz2Grid. (2008). Moving Business to the Grid. Retrieved

February 12, 2009, from: http://www.biz2grid.de

Ciuffo, L.N. (2001). Cinefilia website. Retrieved February

12, 2009, from: http://canalcinefilia.com.br

ClassAd. (2004). Condor Classiﬁed Advertisements.

Retrieved February 12, 2009, from:

http://www.cs.wisc.edu/condor/classad

USING GRIDS TO SUPPORT INFORMATION FILTERING SYSTEMS - A Case Study of Running Collaborative

Filtering Recommendations on gLite

Cöster, R. (2002) The architecture and implementation of

a system for collaborative and content-based filtering,

Technical Report, Stockholm University.

Eela-2. (2008). E-science grid facility for Europe and

Latin America. Retrieved February 7, 2009, from:

http://www.eu-eela.eu

Egee. (2008). Enabling Grids for E-sciencE. Retrieved

February 8, 2009, from: http://www.eu-egee.org/

Egee and Business (2008). Retrieved February 8, 2009,

from: http://www.eu-egee.org/index.php?id=120

Garcia, A. C. B. & Ciuffo, L.N. (2005) Applying the

HYRIWYG incentive mechanism in a Recommender

System. In: IEEE/WIC/ACM International Conference

on Web Intelligence (WI'05), Compiègne. Proceedings

of the WI'05. IEEE Computer Society, 2005. pp.770-

773.

Giorgio, E. (2008). Gilda Wiki - Quickstart for complex

jobs. Retrieved February 7, 2009, from:

https://grid.ct.infn.it/twiki/bin/view/GILDA/WmProxy

Use

gLite (2008). Documentation. Retrieved February 7, 2009,

from: http://glite.web.cern.ch/glite/documentation/

Globus Toolkit. (2007). Homepage. Retrieved February 7,

2009, from: http://www.globus.org/toolkit/

Grelc. (2007). Grid Relational Catalog Project. Retrieved

February 7, 2009, from: http://grelc.unile.it/home.php

Herlocker, J.L. (2000). Understanding and Improving

Automated Collaborative Filtering Systems, Ph.D.

Thesis, University of Minnesota.

LCG (2008). Large Hadron Collider (LHC) Computing

Grid. Retrieved February 7, 2009, from:

http://lcg.web.cern.ch/LCG/

Laure, E., Fisher S.M., Frohner, A., Grandi, C. et al (2006)

Programming the Grid with gLite. Computational

Methods in Science and Technology. pp.33-45.

Linden G., Smith, B. & York J. (2003). Amazon.com

Recommendations: Item-to-Item Collaborative

Filtering. IEEE Internet Computing, ISSN:1089-7801,

v.7, Issue 1. pp.76-80.

Papagelis, M., Rousidis, I., Plexousakis, D. &

Theoharopoulos, E. (2005). Incremental Collaborative

Filtering for Highly-Scalable Recommendation

Algorithms. Lecture Notes in Computer Science.

Heidelberg, Germany: Springer-Verlag, ISSN 0302-

9743, Issue 3488, 2005. pp.553-561.

Ragusa, C., Arinisi, S., Longo F. & Puliafito, A. (2007). A

Grid-based Infrastructure for Business Applications.

Proceedings of the Symposium "Grid Open Days at

the University of Palermo", Italy, ISBN: 978-88-

95892-00-9. pp.205-211.

Resnick, P., Iacovou, N., Suchak, M., Bergstrom, P. &

Riedl, J. (1994). GroupLens: an open architecture for

collaborative filtering of netnews. Proceedings of the

Conference on Computer Supported Cooperative

Work (CSCW'94), Chapel Hill, NC, EUA. ACM

Press, pp. 175-186.

Shen, R.-m., Yang, F., Han, P. & Xie, B. (2005). PipeCF:

a DHT-based Collaborative Filtering recommendation

system. Journal of Zhejiang University SCIENCE,

China, ISSN 1009-3095, v.6A; pp.118-125.

Thain, D. Tannenbaum, T. & Livny M. (2003) Condor

and the grid. Grid Computing: Making the Global

Infrastructure a Reality, F. Berman, G. Fox, and T.

Hey, Eds. John Wiley & Sons Inc.

ICEIS 2009 - International Conference on Enterprise Information Systems
