SECURITY ANALYSIS OF THE GERMAN ELECTRONIC

HEALTH CARD’S PERIPHERAL PARTS

Ali Sunyaev, Alexander Kaletsch, Christian Mauro and Helmut Krcmar

Chair for Information Systems, Technische Universität München, Boltzmannstraße 3, 85748 Garching, Germany

Keywords: Security Analysis, Electronic Health Card, Health Care Telematics.

Abstract: This paper describes a technical security analysis which is based on experiments done in a laboratory and

verified in a physician’s practice. The health care telematics infrastructure in Germany stipulates every

physician and every patient to automatically be given an electronic health smart card (for patients) and a

corresponding health professional card (for health care providers). We analyzed these cards and the

peripheral parts of the telematics infrastructure according to the ISO 27001 security standard. The

introduced attack scenarios show that there are several security issues in the peripheral parts of the German

health care telematics. Based on discovered vulnerabilities we provide corresponding security measures to

overcome these open issues and derive conceivable consequences for the nation-wide introduction of

electronic health card in Germany.

1 INTRODUCTION

During the next years in Germany the present health

insurance card will be replaced by the new

electronic health card (eHC) (Sunyaev et al., 2009).

The introduction tends to improve the efficiency of

the health system and the patients’ rights (Bales,

2003, p.5). In order to reduce costs in the public

sector and to create a homogeneous communication

basis a nationwide system is created – the health

care telematics infrastructure (TI). The eHC will not

only contain administrative data but also detailed

information about the patient and his treatments.

These pieces of information, covered by the

obligation of secrecy in the physician-patient

relationship and highly protected by law (Berg,

2004, pp.412-413), will now be stored in central

databases in order to improve services for the

patients.

Digitizing this information bears risks (Mandl et

al., 2007). Insurance companies, banks, employers

or marketing firms are only a few of several

organizations highly interested in health data (Huber

et al., 2008, p.1). Getting to know people’s state of

health, etiopathology or congenital diseases could

give them a remarkable competitive advantage. Each

individual whose data are stolen could get into

serious trouble (Blobel, 2004). As a consequence

patients could possibly get significant issues when

taking out a loan or trying to find insurance

(Anderson, 2001). Furthermore, one’s reputation

could get tarnished when the wrong pieces of own

sensitive medical information becomes publicly

accessible (Schneider, 2004).

This paper is based on extensive laboratory

experiments and on a detailed review of gematik’s

specifications (detailed information about health

care telematics specifications can be found at the

organization`s website - http://www.gematik.de).

Based on ISO 27001 for Information Security

Management Systems Standard and BSI Security

Guidelines (BSI, 2004), we focus on security issues

in the peripheral parts of the telematics system and

verify them in practice. These concerns are

categorized and possible solutions are presented in

this paper.

After the introduction of the German health care

telematics and its peripheral parts, the configurations

of the laboratory and the physician`s practice are

described in section 4. The results of the performed

security analysis and possible consequences are

presented in sections 5 and 6. Section 7 summarizes

our key findings and provides recommendations for

future work in this area.

Sunyaev A., Kaletsch A., Mauro C. and Krcmar H. (2009).

SECURITY ANALYSIS OF THE GERMAN ELECTRONIC HEALTH CARD’S PERIPHERAL PARTS.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages 19-26

DOI: 10.5220/0001854000190026

 SciTePress

2 THE GERMAN HEALTH

TELEMATICS

INFRASTRUCTURE

As requested by law (SGB V, 2007, § 291b) the

business organisation gematik (Gesellschaft für

Telematikanwendungen der Gesundheitskarte mbH)

was created in order to lead the introduction of the

electronic health card in Germany. gematik created

all specifications used in the health care telematics

infrastructure.

A nationwide telematics project was set up in

order to introduce the eHC in Germany. The health

care telematics infrastructure is divided in the central

part, which consists of data centres with central

databases and the peripheral parts, which are at the

different renderers of service – e.g. in physician’s

practice, hospitals or pharmacy (gematik, 2008e,

p.8). Both will be connected via a VPN tunnel. At

the client’s side the connection is established from

the so-called connector and at the central part

accepted by the VPN concentrator (gematik, 2008e,

p.8). The connector allows the primary systems and

the card reader to interact, which are both

components of the peripheral part as well.

The electronic health card has the same

proportions as a normal plastic card, e.g. like a credit

card. On the front side there are individual-related

information, a picture of the insurant and the

microchip. Also some recognition features like

braille, the name and logo of providing insurance

company are placed there. On the back there is the

European health insurance card (EHIC) (Drees,

2007, p. 1).

The eHC is a smartcard, which means it has its

own microprocessor with its own instruction set

(Caumanns et al., p.343). This distinguishes it from

the present health insurance card in Germany, which

is only a memory card. Not only administrative data

about the insurant is stored on the card, but also

medical data like electronic prescriptions. The

insurant can decide whether information for medical

emergencies, pharmaceutical documentations,

insurants receipts and medical reports will be stored

and if whether directly on the eHC or on central

databases (Neuhaus et. al., p.1).

3 PRIMARY SYSTEMS IN THE

PERIPHERAL

INFRASTRUCTURE

Primary systems are types of software which offer

the eHC’s functionality to the renderers of service,

e.g. practice or hospital information systems. This

software is usually installed on normal personal

computers which are used in the reception and

treatment rooms. As these are standard PCs also

standard services and programs are offered, e.g.

email and internet.

These facts make the primary systems’

computers a highly interesting target for attackers

who want to achieve access to patients’ data

(Sunyaev et al., 2008b, p.3). In experiments and

reviews attacks were subdivided into three different

target categories: users, hardware and software.

Hardware can be stolen or hidden, keyloggers (e.g.:

http://www.keyloggersdirect.com/

index.php?products) could be attached. Users could

be blackmailed, corrupted or spied on. But the most

likely scenario is that software could be

manipulated. This could be done by trojans, viruses

or spyware which infiltrate systems by accessing

websites, emails or through other security

vulnerabilities (Sunyaev et al., 2008a).

In order to handle these issues detailed security

knowledge is needed, not only when setting up the

systems, but also when using them. Practice personal

has to be trained to use these systems securely

(Schneider, 2004).

A big issue is that there is no present standard for

secure practices. gematik shifts them into the service

consumer tier (SCT) and in this vein they place the

responsibility for the primary systems on the

renderers of service. It is defined that SCT’s systems

are not part of the telematics infrastructure, but only

use them (gematik, 2008d, p.71). This means that

there are no rules defined for them at gematik

(gematik, 2008c, pp.134-138) and there is no

separate security concept as well. Also gematik

states that it should not be a problem that primary

systems can be unsupervised for up to 30 minutes

(gematik, 2008b, p.22).

4 LABORATORY’S/PHYSICIAN’S

PRACTICE CONFIGURATION

The laboratory consists of three main components:

the connector, the card reader and the primary

system. This is a standard configuration which is

used in every physician’s practice in Germany.

The connector is the central component in the

peripheral part of the telematics infrastructure. If the

primary system is to access an electronic health card

placed into the card reader it has to call a

connector’s function in order to proceed. It is not

ICEIS 2009 - International Conference on Enterprise Information Systems

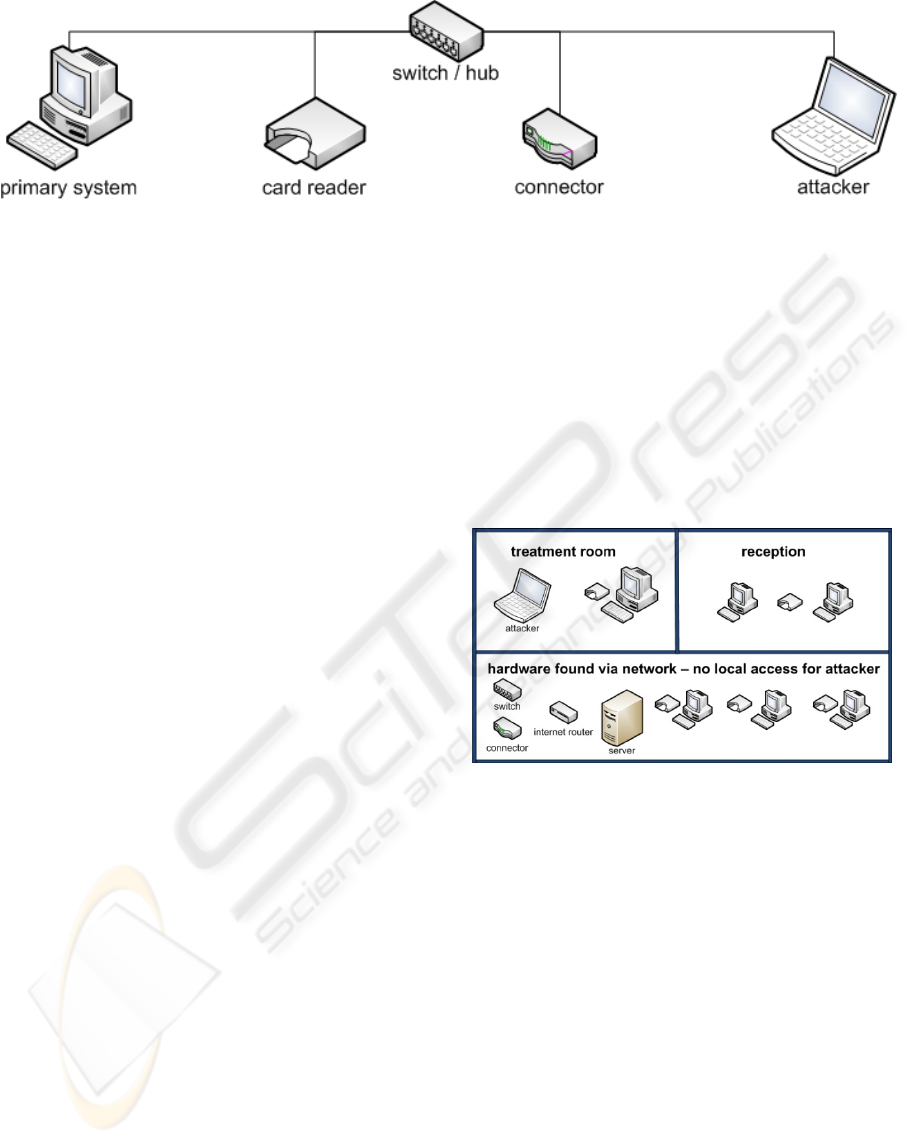

Figure 1: The laboratory’s configuration (Source: own Figure).

possible to establish a direct connection between

card reader and primary system. So if data have to

be transferred into the central part of the health care

telematics infrastructure only the connector can do

so. The connector used in this test is part of the

Futro S400 series by Siemens in version V1.07R4.5;

hpscV1.07R4_build_2493_R13198.

The card reader Cherry SICCT Terminal in

version 10037 is another component attached to the

laboratory’s network. At the card reader the

electronic health card and the health professional

card (HPC) can be inserted (Mauro et. al., 2008). It

also has a keypad where numeric codes can be

entered in order to gain access to these cards.

A usual personal computer was used as primary

system which had an AMD Opteron Processor 144

with 1.81 GHz and 2.5GB RAM. Windows XP with

Service Pack 2, DocConcept 8.2, DocConnect and

Siemens Trusted Viewer are installed on the

computer. With the practice software the connector’s

functions can be initialized in order to use the

electronic health card’s functionality. The functions

allow the user to read administrative data, electronic

prescriptions and emergency information stored on

the eHC.

These components are normally connected by

LAN via a standard switch. But when doing special

network analyses this switch was replaced by a

repeating hub (Figure 1).

A laptop acting as an attacker joined to the

network was used for some experiments. It is

equipped with a Core 2 Duo T74002x 2.16GHz

processor and 2.0GB RAM. While running

Windows Vista Business with Service Pack 1 as

operating system, it has none of the tools which are

normally used to connect to the electronic health

card. But it has several tools installed which allow

analyzing the network’s traffic. Also an own client

for the connector was developed.

In order to validate the results of the experiments

tests were performed in a real physician’s practice.

A treatment room was used for the trials. Within

these an attacker accessed the LAN by using a port

behind a small commode. Figure 2 shows which

hardware was found by analyzing the network and

which of them were accessible.

As the practice has a well secured network, it

was not possible to break into the windows domain

which connected the practice computers, but it was

possible to access the telematics hardware. That

means that the attacker did not have access to any

PC with practice software, but it was able to control

the connector and with it every card reader in the

practice.

Figure 2: The Practice Network from the Attacker’s Point

of View (Source: own Figure).

5 THE NETWORK TRAFFIC

ANALYSES AND ITS

CONSEQUENCES

While analyzing the data sent over the network, all

components were connected via a repeating hub.

That means in contrast to a normal switch all data

are sent to every attached device. Now, the use of

tools like Wireshark (http://www.wireshark.org) or

EttercapNG (http://ettercap.sourceforge.net) makes

it possible to get a good impression of the network’s

dataflow.

The results show:

a) The connection between the card reader and

connector is fully encrypted.

SECURITY ANALYSIS OF THE GERMAN ELECTRONIC HEALTH CARD'S PERIPHERAL PARTS

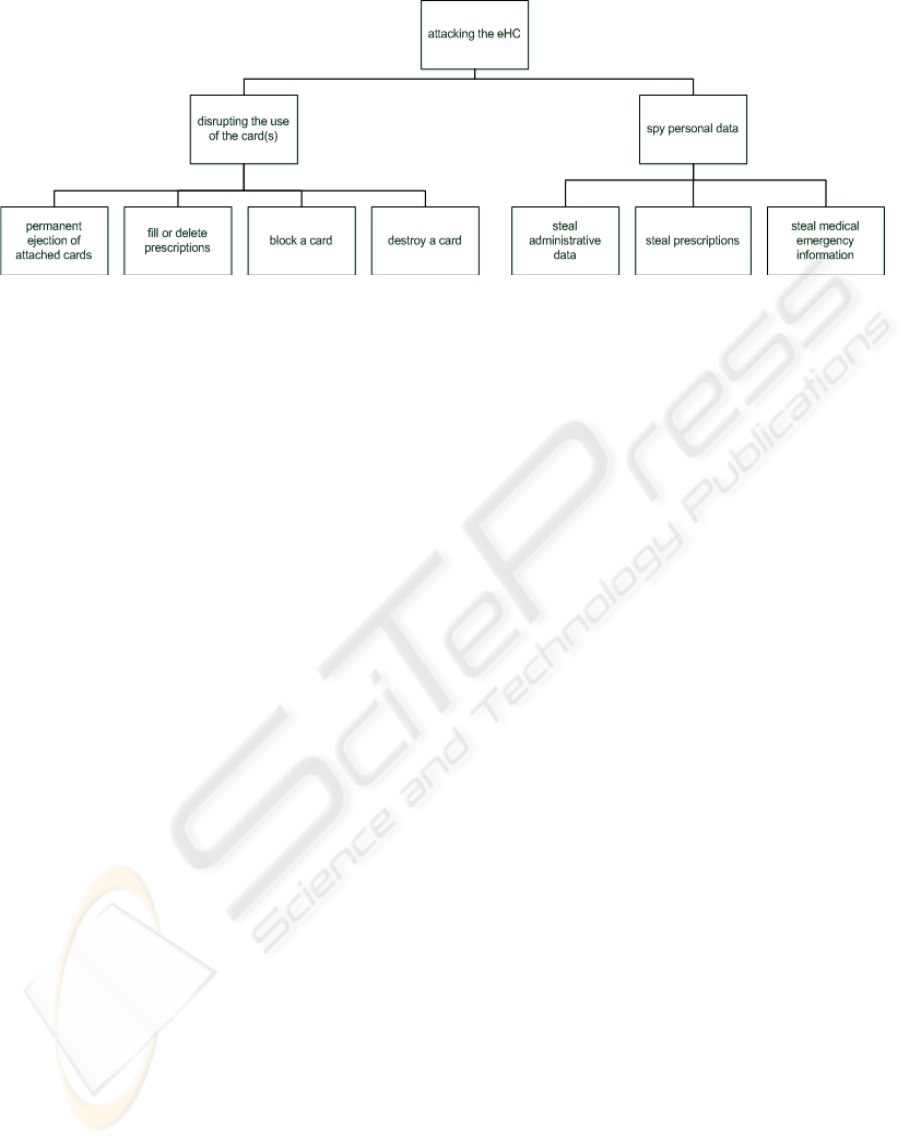

Figure 3: Attack Tree (Source: own Figure).

b) There is no encryption between the primary

system and the connector.

The encrypted connection between the card

reader and the connector is enforced by gematik

(2008a, p.21). The missing encryption between

primary system and connector is caused by a lack in

the specification of gematik (2008b, pp.16-17;

2008c, p.297), which defines the use of a TSL

encryption between connector and primary system

as optional. As there is no encryption in the

implementation all requests and answers from the

primary system and the connector can be captured

and looked at in plain text by a third party. This

security issue is known at gematik (2008b, p.270),

but it is labelled as a residual risk. It is left to the

readers to decide if the possible theft of their private

data, which includes administrative data as well as

medical emergency information or electronic

prescriptions, is an acceptable threat.

In addition to the fact that there is no encryption

between the primary system and the connector there

is also no enforced authentication. That means

everyone can access the functions offered by the

connector. Using PHP (http://www.php.net) as

programming language in combination with the

principles of extreme programming (Beck, 2000) an

own client was implemented in order to fulfil

derived attack scenarios. The program can be

controlled via different interfaces, e.g. with a

command line tool or a web interface.

There are three modes offered by the program:

– The “direct”-mode allows calling functions

instantly.

– The “wait”-mode tries every three seconds to

find an attached card and then sends the request.

– The “listen”-mode registers at the connector

and waits for an event, which is triggered when a

card is attached and then the request will be send

to the connector.

The client is able to call all functions at the

connector that could also be used by DocConnect

8.2. So it can act like a normal primary system and

keeps itself quite well covered.

Abusing the functions provided by the connector

leads to some strong attack scenarios.

6 ATTACKING THE GERMAN

ELECTRONIC HEALTH CARD

The attack tree shown in Figure 3 denotes that the

attacks can be classified into disrupting and spying

types. The utilisation can be interrupted when

permanently ejecting all cards, which get attached to

a card reader. The deletion of prescriptions stored on

the electronic health card is as possible as the

blocking or destruction of the card itself. An attacker

can also steal administrative data, prescriptions and

medical emergency information stored on eHCs.

All attacks are based on the following scenario:

The attacker can gain access to the physician’s

practice network, e.g. through hacking the WLAN or

just plugging into a socket. Also another common

procedure is needed in order to call some functions:

The physician unlocks his own health professional

card (HPC) with his personal identification number

(PIN) in the morning and locks the card in the

evening, which means the card is ready to use for the

whole day.

Table 1 shows the specifications of the functions

that will be abused in the following in order to attack

the German electronic health card.

ICEIS 2009 - International Conference on Enterprise Information Systems

Table 1: Connector’s Functions that can be abused.

Permanent-Card-Ejection

PIN needed: None

supported card types: All

Connector’s function: EjectCard

gematik’s

specification:

gematik 2008e, 200f; chapter

5.4.3.3.6

Delete or fill all prescriptions

PINs needed:

HPC practice’s PIN

Supported card types:

EHC

Connector’s function

names and their

gematik’s specification

• ReadVO: gematik

2008h, 73ff; chapter 6.2

• DeleteVO: gematik

2008h, 79ff; chapter 6.4

• DispenceVO: gematik

2008h, 76ff; chapter 6.3

Block a Card

PINs needed:

PIN to change

Supported card types:

EHC, HPC

Connector’s function: ChangePin

gematik’s

specification:

gematik 2008e, 204f; chapter

5.4.3.3.8

Destroy a Card

PINs needed: PUK for locked PIN

Supported card types:

EHC, HPC

Connector’s function: UnblockPin

gematik’s

specification:

gematik 2008e, 209f; chapter

5.4.3.3.12

Steal private data from electronic health card

PINs needed: HPC practice’s PIN

Supported card types: • EHC

Connector’s functions

and their gematik’s

specification:

• ReadVSD: gematik

2008f, 52ff; chapter 7.1

• ReadVO: gematik

2008h, 73ff; chapter 6.2

• ReadNFD: gematik

2008g, 31ff; chapter 6.2

6.1 Permanent-Card-Ejection

The Attack. There are two ways to realize a

permanent ejection. On the one hand it is possible to

constantly call a function that ejects a card, e.g.

every three seconds. On the other hand the

registration to an event handler at the connector is

possible. Then an event is triggered and immediate

response can take place. Regardless of the way used

it is not possible to attach any card to a card reader

anymore (Figure 4).

A Possible Solution. As there is no additional

benefit created when ejecting a card via the network

this functionality could be easily removed. It is fully

satisfying when a card can only be ejected locally at

the card reader.

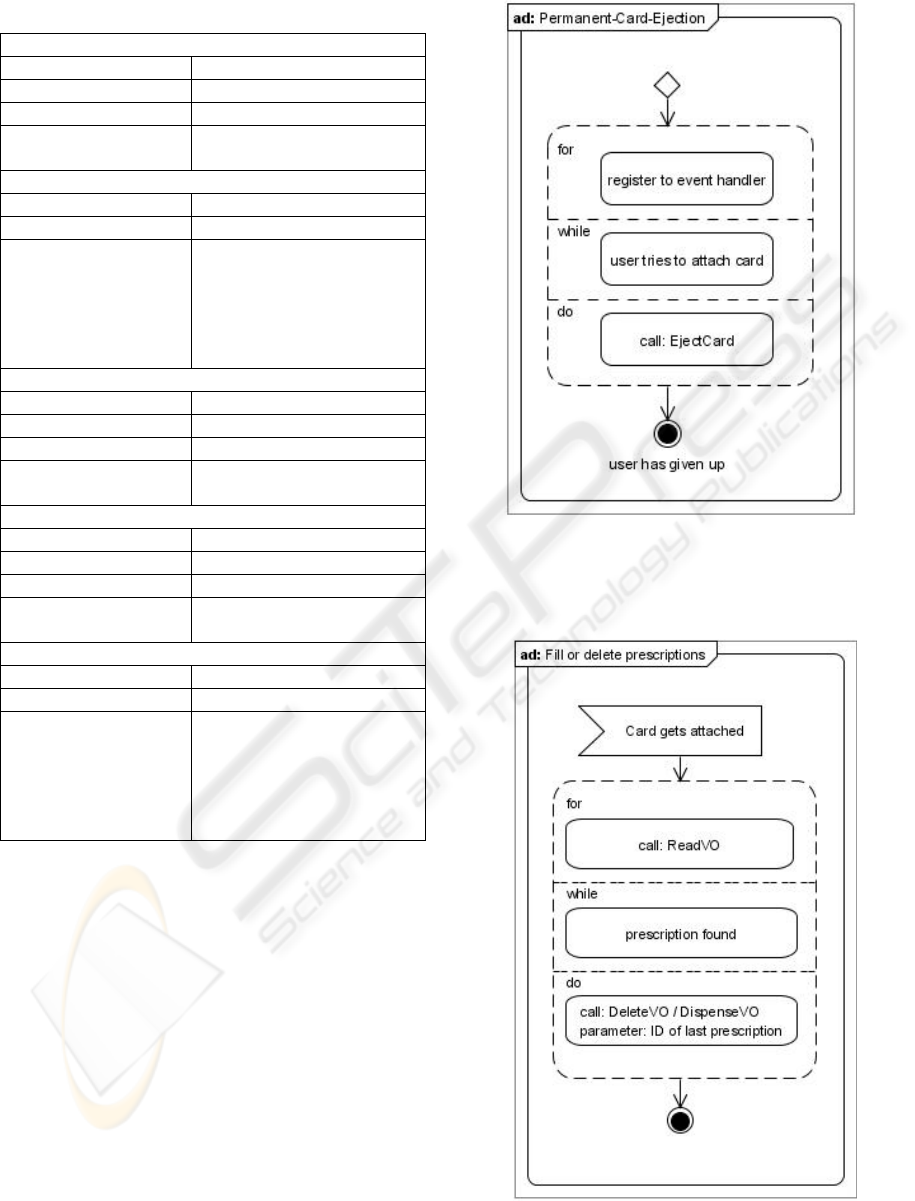

Figure 4: Activity Diagram - Permanent Card Ejection

(Source: own Figure)

6.2 Fill or Delete Prescriptions

Figure 5: Activity Diagram - Fill or Delete Prescriptions

(Source: own Figure).

SECURITY ANALYSIS OF THE GERMAN ELECTRONIC HEALTH CARD'S PERIPHERAL PARTS

The Attack. In order to delete or fill a prescription

its Object ID is needed which is received from the

connector in a first step. After the receipt the

function for deleting or fulfilling the prescription can

be called (Figure 5). As there is a maximum capacity

of eight prescriptions on every electronic health card

this procedure will repeat at most eight times then

every prescription will be dispensed or deleted.

A Possible Solution. For writing or changing a

prescription on an eHC the physician’s signature

personal identification number is needed. The usage

of this PIN while deleting or dispensing electronic

prescriptions would suppress a fully automated

function call as described above. Therefore, the

attack would not be possible anymore, because

every action had to be authorized by a human on the

card reader.

6.3 Lock a Card’s PIN

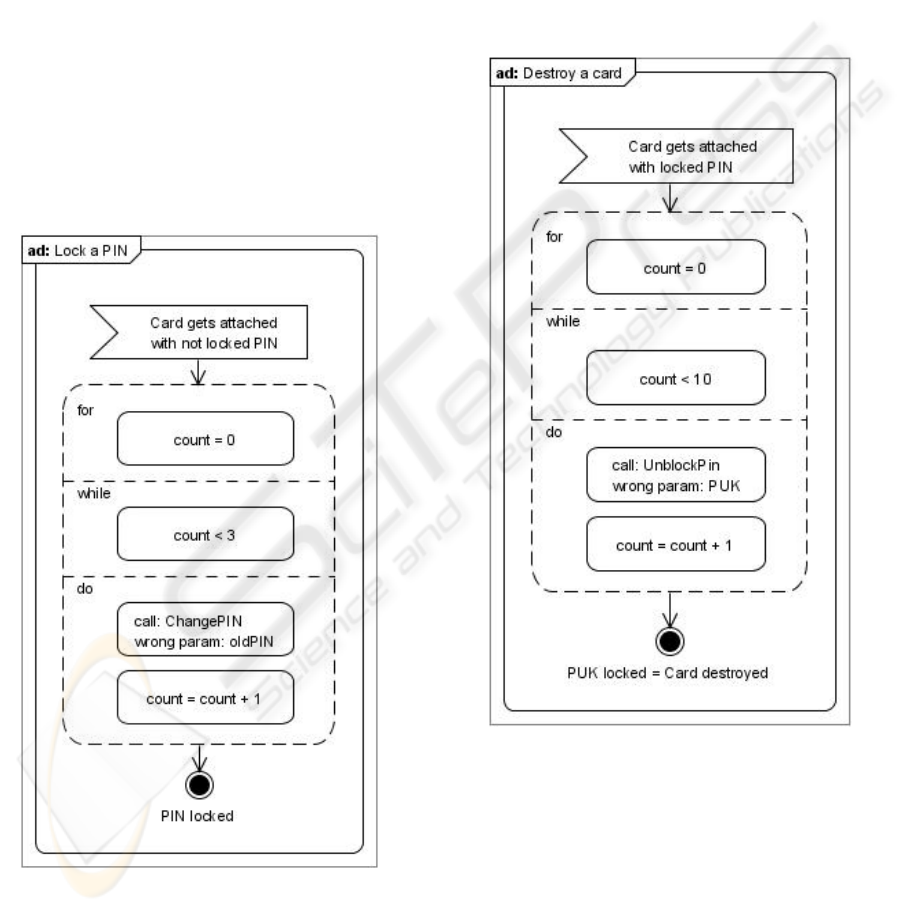

Figure 6: Activity Diagram - Lock a PIN (Source: own

Figure).

The Attack. There is a connector’s function which

enables the user to change a card’s PIN remotely. A

PIN can be entered wrong three times before it is

locked. This means abusing this functionality could

block the card (Figure 6). In an experiment it took

350ms to call this function. That means within about

one second a PIN can be locked.

A Possible Solution. As this function does not

generate additional value and would be probably

used very rarely, e.g. only initially, the function

should be removed. It would be sufficient to be able

to change the PIN only directly at the card reader.

6.4 Destroy a Card

Figure 7: Activity Diagram - Destroy a card (Source: own

Figure).

The Attack. When a PIN is locked, a function can

be called which allows the user to unlock the PIN.

As a parameter the personal unlocking key (PUK) is

needed. It can only be used ten times before it

becomes finally locked. So using this function with a

wrong PUK for ten times on a locked PIN would

lead to a locked PIN and a locked PUK. Not being

able to unlock the PIN means that the card cannot be

used anymore. The card is destroyed (Figure 7).

ICEIS 2009 - International Conference on Enterprise Information Systems

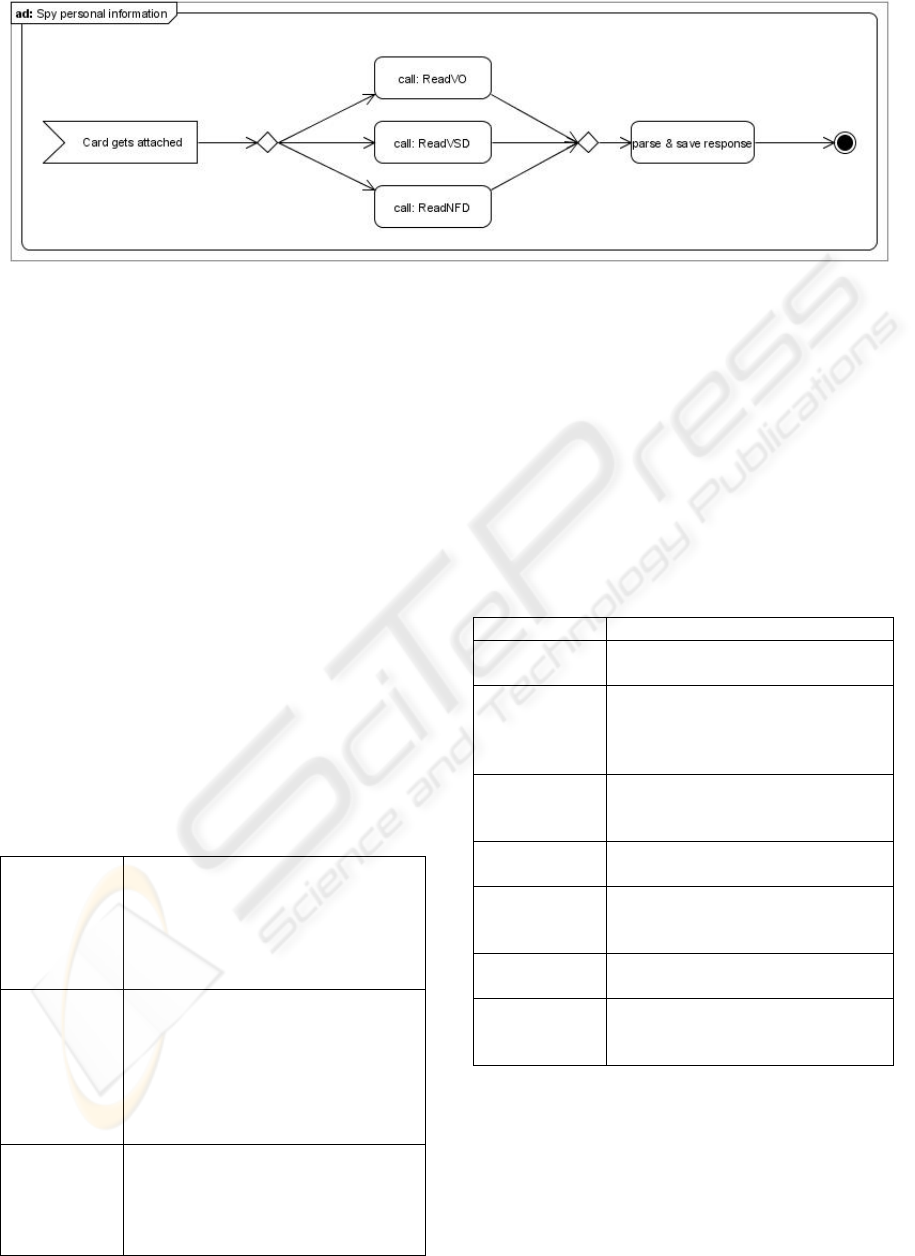

Figure 8: Activity Diagram - Spy Personal Information (Source: own Figure).

A Possible Solution. The case of a locked PIN

should be an exception. So there is no real need to

implement a function like this in the connector and

the primary systems. Furthermore, it would be

sufficient if the PIN can be unlocked directly on the

card reader.

6.5 Spy Personal Information

As the thefts of administrative data, electronic

prescriptions and emergency information work the

same way they are all combined in Figure 8.

The Attacks. When a card is inserted, connector’s

functions can be called in order to steal

administrative data, electronic prescriptions and

emergency information (Figure 8). As response a

XML file will be provided which can be easily

parsed and saved. The collection of these data (see

Table 2) gives the attacker private information about

the patient and detailed knowledge about his state of

health.

Table 2: Summary of Content that can be spied out.

administrative

data

– insurant id

– given name, family name

– birthday, sex

– full address

– information about insurance coverage

and the insurance company

electronic

prescriptions

– date of issue

– patient’s and physician’s administrative

data

– information about the prescription

– name of medication

– name of pharmacy

– usage information

emergency

information

– (past) diseases

– medication (and incompatibility)

– attending physician

– persons to be notified

– other notices (free text)

A Possible Solution. As these functions are

essential they cannot be removed. Protecting them

with a separate PIN would delay practice work. So

only a secure connection between the primary

system and the connector, which is encrypted and

authenticated, will solve the problem.

7 CONCLUSIONS AND

OUTLOOK

Table 3: Attacks tested in Laboratory and Practice.

Attack Consequences

Permanent-Card-

Ejection

Practice system cannot be used during an

attack. This results in a work delay.

Delete all

prescriptions

Patient looses all his prescriptions; this is

very annoying, especially if he has had

prescriptions form different physicians

on the card.

Block Card Unlocking with PUK is possible, but at

first the PUK has to be send to the

insurant by mail.

Destroy Card The insurant has to order a new card at

his insurance company.

Spy

administrative

data

Name, address, birthday and insurance

data get stolen.

Spy

prescriptions

Data which gets stolen can be used to

deduce the recent state of health.

Spy emergency

information

Information about medication

intolerance, previous diseases and other

highly private data gets stolen.

In the course of the present work critical security

issues in the German electronic health card’s system

have been discovered. These have been tested in a

laboratory and have been verified in a real

physician’s practice (Table 3). Therefore the

following statements must be made:

SECURITY ANALYSIS OF THE GERMAN ELECTRONIC HEALTH CARD'S PERIPHERAL PARTS

– Patient’s private and very sensible data stored

on the German electronic health card are not

secure and it is possible to steal them, because

the card is used in an unsecured environment.

– Also manipulations of the eHC and health

professional card are feasible.

Possible solutions to these security treatments

have been given. It is undeniable that the connection

between the connector and primary system must be

encrypted and authentication has to be enforced. The

given solutions are not extremely expensive or

complicated. Also, it should be possible to

implement them in time. In this regard rules and

scenarios for primary systems should also be

included in the specification in order to create a

nationwide standard for practice information

technology.

For future work, the components should also be

exposed to further penetration tests. E.g. man in the

middle attacks should be launched between the TLS

encrypted network parts and hardware manipulations

should be tried.

REFERENCES

Anderson, R. J., 2001. Security Engineering: a Guide to

Building Dependable Distributed Systems. 1st. John

Wiley & Sons, Inc.

Bales, S., 2003. Die Einführung der Telematik im

Gesundheitswesen als Herausforderung für die

Weiterentwicklung der Patientenrechte in

Deutschland. [Talk] Bonn: gematik. Available at:

http://www.dimdi.de/dynamic/de/ehealth/karte/downlo

adcenter/veroeffentlichungen/vortraege/bagh-bonn-

bal-031107.pdf [Accessed 9 September 2008].

Beck, K., 2000. Extreme programming eXplained:

embrace change. Reading, MA: Addison-Wesley.

Berg, W., 2004. Telemedizin und Datenschutz.

Medizinrecht, 22 (8), pp. 411-414.

Blobel, B., 2004. Authorisation and access control for

electronic health record systems. International Journal

of Medical Informatics, Vol. 73 Nr. 3, pp. 251-257.

BSI, Bundesamt für Sicherheit in der Informationstechnik,

2004. Studie zu ISO-Normungsaktivitten ISO/BPM -

Anforderungen an Information Security Management

Systeme.

Caumanns, J. et al., 2006. Die eGK-Lösungsarchitektur

Architektur zur Unterstützung der Anwendungen der

elektronischen Gesundheitskarte. Informatik-

Spektrum, 29 (5), pp. 341-348.

Drees, D., 2007: The Introduction of Health Telematics in

Germany. In: European Commission Directorate

General Information Society, Information Security

Solutions Europe/SECURE 2007 Conference. Poland,

Warsaw 25 27 September 2007. Vieweg: Wiesbaden.
