A P2P IMPLEMENTATION FOR THE HIGH AVAILABILITY

OF WEB SERVICES

Zakaria Maamar

, Mohamed Sellami

, Samir Tata

and Quan Z. Sheng

Zayed University, Dubai, U.A.E

Institut TELECOM, Evry, France

The University of Adelaide, Adelaide, Australia

Keywords:

Web service, Community, High availability, Peer-to-Peer.

Abstract:

This paper introduces a P2P-based approach to sustain the high-availability of Web services using a similarity-

based replication strategies. To this end three strategies known as active, passive, and hybrid, are studied. This

approach takes replication one step further by focussing on Web services that offer the same functionality as

the original Web service does (i.e., the one to back up). This functionality similarity is built upon communities

that gather similarly-functional Web services. To prove the suitability of the selected replication strategy for

Web services high-availability, a P2P testbed on top of the JXTA platform is developed.

1 INTRODUCTION

This research work discusses the high availability of

Web services using the concept of communities. In a

dynamic, open environment like the Internet, it is un-

likely that applications built around software compo-

nents such as Web services can be constantly available

at run-time. Multiple reasons could make these appli-

cations break down, which triggers corrective plans

execution to achieve business-operation continuity.

Despite the increasing popularity of Web services

for the development of service-centric applications,

there is still room for boosting this popularity by tar-

geting critical systems (e.g., medical, nuclear) where

availability is a central concern. Availability, as de-

ﬁned in (Avizienis et al., 2004), is an attribute of de-

pendability that qualiﬁes the readiness of an applica-

tion. Traditional solutions to achieve availability are

mostly based on replication (Juszczyk et al., 2006;

Salas et al., 2006). Replication “refers to the use of

redundant resources, such as software or hardware

components, to improve reliability, fault-tolerance, or

performance. Replication typically involves replica-

tion in space, in which the same data is stored on

multiple storage devices or the same computing task

is executed on multiple devices, or replication in time,

in which a computing task is executed repeatedly on a

single device” (Wikipedia Online Dictionary).

Although replication seems to be the trend in the

development of highly-available Web services in the

last few years (Juszczyk et al., 2006; Salas et al.,

2006), this paper shows how we can substitute replica

Web services (identical copies of the original Web

service) with communities that host Web services se-

mantically equivalent to the original Web service. In

agreement with other deﬁnitions (Benatallah et al.,

2003; Bentahar et al., 2007; Medjahed and Bouguet-

taya, 2005), we deﬁne community as a means to

gather Web services with similar functionalities re-

gardless of who developed these Web services, where

these Web services are located, and how these Web

services function. The high availability of applica-

tions built around Web services is then, ensured not

by replicas of these Web services but by a commu-

nity of Web services that are similarly functional to

these Web services. Through the use of communi-

ties, several immediate beneﬁts are obtained because

of this shift in tackling the high-availability concern

of Web services. For example, code management be-

tween replica Web services in case of changes, is no

longer needed since these replica Web services have

different codes. A second beneﬁt is the possibility of

screening communities when looking for similar Web

services instead of traditional registries like UDDI.

Although these beneﬁts are appealing to any system

developer, some of them are considered as obstacles

in the existing replication strategies. For example, any

minor code change in an application requires an im-

mediate reﬂection of this change on all replicas.

Section 2 provides a short literature review on

the topic of Web services high-availability. Sec-

tion 3 summarizes the architecture and functioning of

Maamar Z., Sellami M., Tata S. and Z. Sheng Q. (2009).

A P2P IMPLEMENTATION FOR THE HIGH AVAILABILITY OF WEB SERVICES.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Software Agents and Internet Computing, pages 19-24

DOI: 10.5220/0001855500190024

 SciTePress

a community of Web services. Our approach based on

communities for the high availability of Web services

is detailed in Section 4. Section 5 presents some ex-

perimental details on the feasibility of our approach.

Finally, Section 6 concludes the paper.

2 BRIEF LITERATURE REVIEW

Our literature review identiﬁed a good number of re-

search projects, but a few promote the idea of using

semantically-equivalent Web services to achieve this

high-availability. In (Abraham et al., 2005), Abra-

ham et al. report that little work on availability of

Web services exists. As a result, Web services are au-

tomatically excluded from the technologies reserved

for the development of mission-critical applications.

Furthermore, Abraham et al. note that current spec-

iﬁcations such as WS-ReliableMessaging and WS-

Transaction do not support the availability of Web

services. Abraham et al.’s approach suggests an en-

terprise level gateway and a Web service hub. The

former operates at the enterprise level and has a moni-

toring role, while the latter operates across enterprises

and has a selection role.

In (Juszczyk et al., 2006), Web services discovery,

replication, and synchronization in ad-hoc networks

are considered. This type of networks poses chal-

lenges to those who are in charge of supporting Web

services high-availability due to dynamic topologies

and unpredictable moves of hosts. As a result, when

a Web service ceases to exist or changes its loca-

tion, appropriate information need to be broadcasted

to different recipients for instance UDDI registries.

Juszczyk et al.’s solution consists of a discovery and

registry system that feeds distributed UDDI registries

with up-to-date information on available Web ser-

vices, and a replication and synchronization mecha-

nism that improves Web services reliability.

In (Laranjeiro and Vieira, 2007), the authors ex-

amine Web services availability from a fault-tolerance

perspective. Their solution promotes the use of alter-

native Web services that are grouped by functional-

ity. Each group is headed by an adapter (or proxy)

that assesses the status of each member Web service

in the group using metrics (response time, response

correctness, etc.) before either simultaneously or se-

quentially invoking the alternative Web services. One

of the issues that Laranjeiro and Vieira plan to address

in the future is the lack of state consistency between

alternative Web services in a group. We show in our

approach how this lack of state consistency restricts

the type of replication strategy to use.

In (Ribeiro et al., 2007), Ribeiro Jr. et al. propose

smart proxies as a solution to access replicated Web

services. These Web services are semantically equiv-

alent and might be located in different and compet-

ing organizations or in the same organization. The

smart proxies are adopted to encapsulate a variety

of server-selection policies for selecting independent,

autonomous Web services and to deploy adapters that

bridge potential interface incompatibilities between

Web services and clients.

3 COMMUNITY OF WSS

A communitycan be deﬁned through the functionality

of a representative abstract Web service (called mas-

ter), i.e., without explicitly referring to any concrete

Web service that will implement this functionality at

run-time (Maamar et al., 2007). A community is es-

tablished and dismantled with respect to some ded-

icated protocols. Moreover, a community has a dy-

namic nature; Web services enter and depart at their

convenience. All this happens with respect to other

protocols as well (Maamar et al., 2007).

In a community, a special Web service acting as

a master Web service leads the community of slave

Web services. Interactions between master and slave

Web services and the designation of a master Web ser-

vice outside this paper’s scope. Some responsibilities

of the master Web service include attracting Web ser-

vices to the community it leads using rewards, con-

vincing Web services to stay longer in the commu-

nity, and identifying the Web services to participate

in composition scenarios and to

backup

the function-

ing of their peers if needed. Extensive details about

communities of Web services and their functioning

are given in (Bentahar et al., 2007).

4 OUR APPROACH

Replication is the de facto option to tackle the high

availability challenge of applications. Simply put,

replication means (i) distribute copies of a software

application over a network and (ii) make these copies

back up the functioning of this application when prob-

lems arise. The way the original copy of the ap-

plication and its replicas function relies on strate-

gies known as active, passive, and hybrid (Wiesmann

et al., 2000). For applications built around Web ser-

vices, we propose in this paper substituting repli-

cas with Web services extracted out of a commu-

nity. We show that maintaining state-consistency be-

tween replicas and reﬂecting code changes over repli-

cas are to a certain extent no longer needed in our

ICEIS 2009 - International Conference on Enterprise Information Systems

community-based high availability approach.

4.1 Failure Types and Detection

Several types of failures exist ranging from crashes

where a Web service simply stops working to situa-

tions where a Web service delivers incorrect results.

In this paper, we restrict ourselves to late-timing fail-

ures for the sake of illustration. To detect failures,

several ways are identiﬁed such as test acceptance,

watchdog, timeout, and voting (Kim, 2000). Among

them two approaches could suit Web services: Watch-

dog and Timeout.

Since it is unreasonable that Web services gener-

ate signals for watchdogs, our approach combines the

aforementioned techniques where signals are gener-

ated upon watchdogs’ requests, i.e., a watchdog pings

a Web service for liveness checking. We use timeout

to avoid endless wait for feedback. Since watchdogs

can be themselves subject to failures as well, our solu-

tion makes users act as watchdogs. Communications

are supposed to be dependable, i.e., absence of sig-

nals’ communications that Web services send to users

acting as watchdogs are treated as Web services fail-

ures as well.

4.2 Replication Strategies Groundwork

The following points are parts of our community-

based high-availability approach regardless of the

replication strategy (active, passive, or hybrid) to use.

Control vs. Operational Flows. Using state

charts (Harel and Naamad, 1996), we specify a Web

service using two types of ﬂow: control and oper-

ational (Fig. 1). Both ﬂows interact with one an-

other like Fig. 2 shows. The control ﬂow describes

the business logic that underpins the functionality of

a Web service. And the operational ﬂow guides the

execution progress of the control ﬂow of a Web ser-

vice. Because state synchronization in some replica-

tion strategies is mandatory , our approach synchro-

nizes only the operational ﬂows of Web services in a

community.

To illustrate the use of the control and operational

ﬂows, let us use WeatherWS as an example. Its func-

tionality is to return a ﬁve-day weather forecast for a

certain city. Fig. 2 shows how these ﬂows interact to-

gether. Two types of transitions are shown: intra-ﬂow

(plain lines) and inter-ﬂow (dashed lines). The initia-

tion of WeatherWS is indicated with activated state in

the operational ﬂow.

Because of (activated,city-located) inter-ﬂow

transition, the execution of WeatherWS begins by

searching for the requested city using a dedicated

a) Control flow

Refinement

Submission

City located

Unavailable

Available

Access

Weather

collected

Access

failed

Search

cancelled

Report

delivered

Connection

closed

Completion

b) Operational flow

Abortion after

failed retrials

Compensation after failed retrials

Commitment

Done

Start

Not

activated

Activated

Rolling back

Compensated

Exception

Retrial

Suspended Aborted

Failure

Compensation

after commitment

Figure 1: Control and operational ﬂows of WeatherWS.

Operational flow Control flow

a)

Operational flow

Control flow

b)

Legend

Inter-flow transition Intra-flow transition

Activated

Done

Activated

Aborted

City located

DB

City located

DB

Weather

collected

Report

delivered

Access failed

Connection

closed

WeatherWSUsers WeatherWS Users

Figure 2: Control and operational ﬂows in interaction

database. This now makes WeatherWS take on city-

located state but this time in the control ﬂow. After

carrying out the necessary actions in this state, two

cases are identiﬁed:

• In case a), everything goes ﬁne and a ﬁve-day

weather-forecast report is delivered back to the

user. This makes WeatherWS complete its oper-

ation with success by transiting to done state in

the operational ﬂow.

• In case b), the access to the database fails. This

makes WeatherWS terminate its operation with

failure by transiting to aborted state in the oper-

ational behavior.

Those two cases illustrate how transitions in the

operational ﬂow of a Web service are affected by the

states that this Web service binds to in the control

ﬂow.

Backup slave Web service. When a user selects

a community because of the functionality that satis-

ﬁes her needs, its respective master Web service is

contacted. The master Web service has to identify

a speciﬁc slave Web service that will implement this

functionality. It sends all slave Web services a call

for bids to express interest in implementing this func-

tionality. The slave Web services in a community that

positivelyresponded to the call for bids are all notiﬁed

A P2P IMPLEMENTATION FOR THE HIGH AVAILABILITY OF WEB SERVICES

of their non-selection (except the one that is notiﬁed

of its selection). The selected slave Web service will

take over the role of primary, meaning that it will ex-

ecute the functionality that the user needs.

The extra notiﬁcation, for non selection, means

that the unselected slave Web services might have to

take over the role of backup to support the primary

slave at run-time. These slave Web services can ei-

ther accept or reject to act as a backup.

4.3 “Twisting” Replication Strategies

In this part of the paper, we discuss how the exist-

ing replication strategies can be either adopted or dis-

carded due to the characteristics of the community-

based high-availability approach.

4.3.1 Active-replication strategy

Active replication requires that all replicas receive

and process the same sequence of users’ requests in

the same order. Result consistency across all replicas

is guaranteed because requests are processed in a de-

terministic way. The main advantage of this strategy

is its simplicity and failure transparency. If a replica

goes down, the rest of replicas continue running. At

the end, results are collected from one of them. The

deterministic constraint is the major drawback in this

strategy (Wiesmann et al., 2000).

Fig. 3 uses WeatherWS to illustrate the interac-

tions in the active-replication strategy. Plain lines

correspond to the interactions that take place be-

tween users and Web services and between the oper-

ational and control ﬂows of WeatherWS (primary and

backup) and dashed lines correspond to the interac-

tions that take place between the operational ﬂows of

WeatherWS and backup WeatherWSs. Dashed line (1)

illustrates WeatherWS that forwards a user’s request

to its backups and initiate their execution. The master

Web service provides the list of backup slave Web ser-

vices to the primary slave. Afterwards, all Weather-

WSs concurrently process this request. If the primary

WeatherWS fails the other backup slave Web services

continue running. In addition, one of them needs now

to be selected to act as a primary so that it can deliver

responses to the user.

4.3.2 Passive-replication Strategy

Passive replication suggests that users submit their re-

quests directly to a speciﬁc application (usually the

original copy), which is the primary backup. This

application processes users’ requests and regularly

sends the rest of backup applications update requests

during processing. These latter are on standby waiting

to receive these update requests to implement them in

order to get their respective behaviors synchronized

with the original application’s behavior. This strat-

egy is unsuitable for Web services with respect to

our approach. The discrepancies in the control ﬂows

that exist between the primary backup and other back-

ups prevents the correct execution of this replication

strategy. Indeed, actions that the primary backup car-

ries out, can not match the actions that backups have

to carry out as well. In addition, when a primary

backup fails, the control ﬂow of the new elected pri-

mary backup can not be updated because of the dis-

parity with the old primary backup control ﬂow.

4.3.3 Hybrid-replication strategy

Hybrid replication handles the deterministic con-

straint of the active replication by referring inde-

terministic decisions to a speciﬁc component called

leader. The leader makes the choice among several

available ones and sends it to all followers. In our ap-

proach, indeterminism exists by default since all Web

services are expected to return different results. As

a result and like the passive-replication strategy, the

hybrid-replication strategy is not suitable for Web ser-

vices with respect to our approach.

5 EXPERIMENTS

To illustrate the feasibility of our Web services high-

availability approach using communities, we de-

ployed a P2P based-testbed on top of Sun Microsys-

tems’s JXTA platform (Traversat et al., 2003). JXTA

is an open source P2P technology that permits sim-

ulating virtual overlay networks and grouping peers

according to some common interests that these peers

express. It was enriched with services known as

JXTA services and offers a wide range of prede-

ﬁned P2P facilities including service/peer advertise-

ment/discovery and messaging. The JXTA platform

is suitable for implementing our proposed approach;

it enables the handling of the dynamic nature of com-

munities like Web services arrival and departure. A

community is then viewed as a peer group where each

Web service corresponds to a JXTA peer.

Our experimental work implements the active

replication strategy. Here, a client peer interacts with

a group of peers, i.e., a community, that hosts a set

of peers, i.e., Web services. Three JXTA peers have

been developed: MasterServicePeer acting as a com-

munity master, SlaveServicePeer acting as commu-

nity slave, and ﬁnally ClientPeer acting as a user who

interacts with the MasterServicePeer to invoke the

ICEIS 2009 - International Conference on Enterprise Information Systems

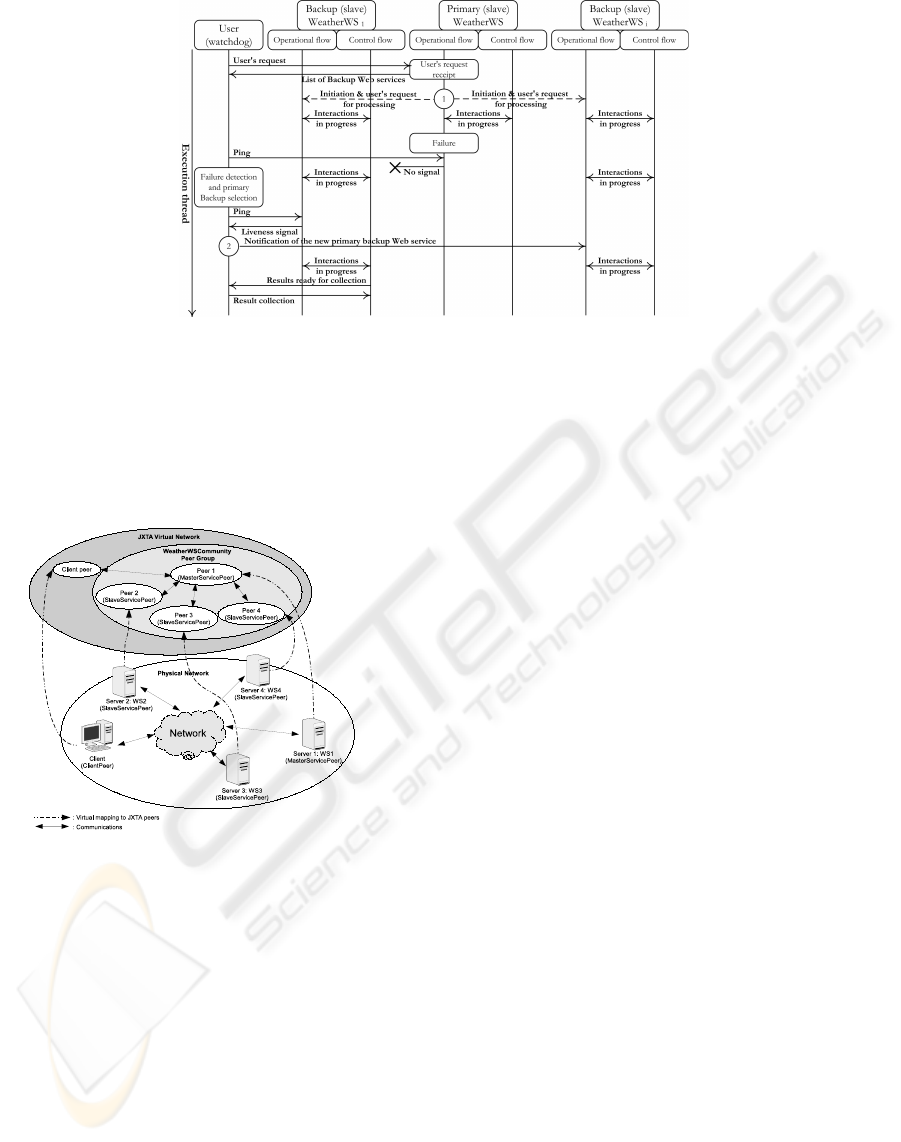

Figure 3: Interactions in active-replication strategy

functionality of a SlaveServicePeer. The aforemen-

tioned JXTA peers have been deployed over various

distributed platforms. Clients’ queries to a commu-

nity are routed to Web services via their representative

JXTA peers, creating thus a virtual network on top of

the physical network (Fig. 4).

Figure 4: Implementation of our high-availability approach

In our experiments, we created a MasterServi-

cePeer, two SlaveServicePeer(s) that belong to the

community and connected to Web services, and a

ClientPeer.Fig. 5 uses some screenshots to illustrate

the interactions between the peers at run-time. In this

ﬁgure, the different interactions are numbered. For il-

lustration purposes, SlaveServicePeer(s) provide con-

nection to Web services offering weather forecast for

a city submitted by a client. The master service peer

and slave service peers belong to the same community

(JXTA peer group), which we denote by WeatherWS-

Community. When a client peer contacts the master

service peer (Fig. 5, interaction (i1)), this one assigns

a slave service peer among the available slave service

peers (i2-i3) and tags the ﬁrst slave as primary and the

rest as backups. This assignment and tagging hap-

pen in compliance with the description we provided

in Section 4.2. The master service peer sends the

name of this primary slave service peer to the client

peer (i4). Afterwards, the client peer interacts with

the primary slave service peer (i5) (i.e., sends “Paris”

as input). When the client peer request is received,

the primary service peer initiates the backup slave ser-

vice peers as well so that all slaves are now running in

parallel (i6). The names of the initiated backup slave

service peers are sent to the client peer (i7). To im-

plement a failure detection mechanism, we made the

client peer acts as a Watchdog; it regularly pings the

primary slave service peer for the sake of testing its

availability (i8). We trigger a failure by simply stop-

ping the primary slave service peer. Upon failure de-

tection due to lack of response, a slave service peer

from the backup slaves is elected by the client peer as

the new primary slave (i9). The client peer contacts

the ﬁrst slave service peer from the backup slaves list

previously received from the ex-primary slave service

peer. If the ﬁrst slave service peer responds, it will

be considered as the new primary slave service peer.

When it completes its execution, the ﬁrst slave ser-

vice peer submits its results to the client peer (i10)

(i.e., sends the weather forecast of “Paris”).

Currently, our Web services are deployed on Web

service containers for instance AXIS and JXTA peers

bind and convey requests to them. In term of

testbed improvement, we are working on using JXTA-

SOAP (Amoretti et al., 2008) so that JXTA peers pass

on requests to Web services.

6 CONCLUSIONS

In this paper, we looked into the high-availability is-

sue of Web services and put forward solutions that

A P2P IMPLEMENTATION FOR THE HIGH AVAILABILITY OF WEB SERVICES

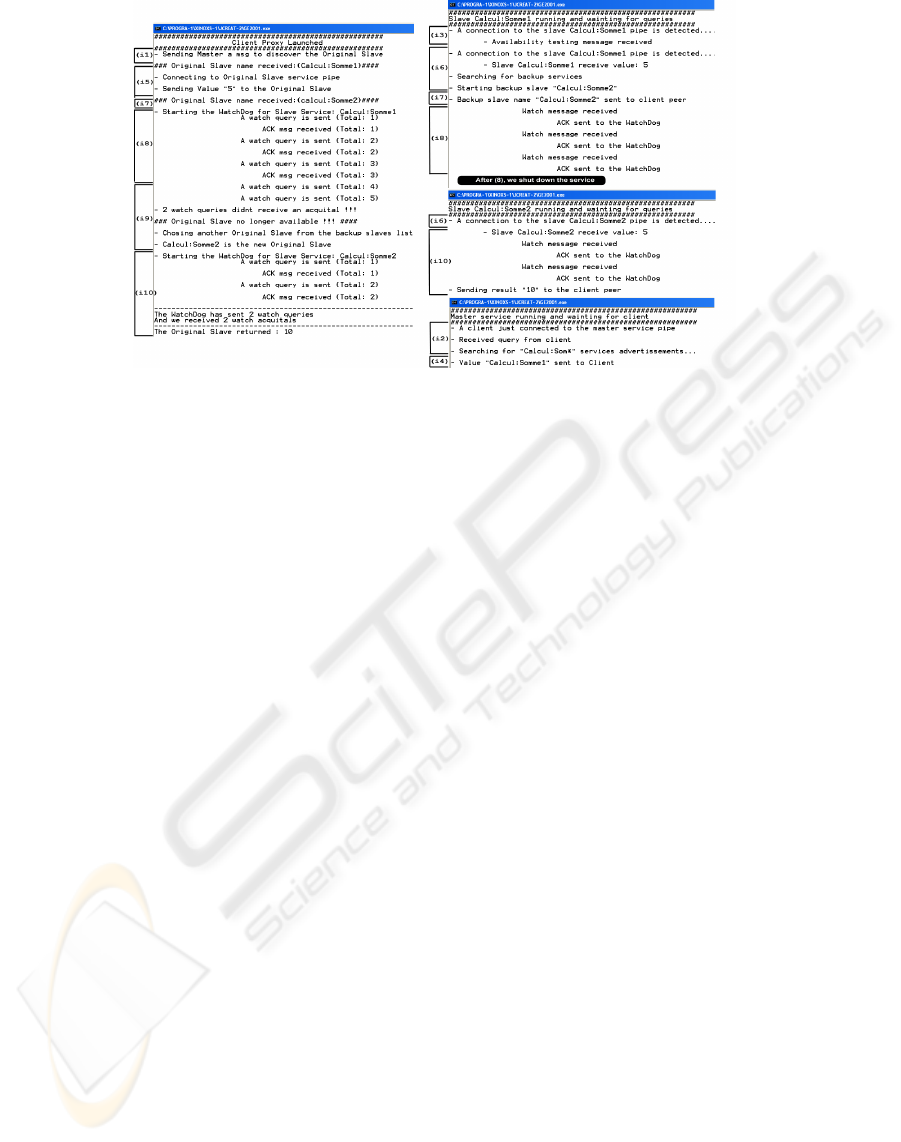

Figure 5: Some screenshots captured at run-time.

promote communities. We proposed a replication

based approach for sustaining Web services high

availability where replicas are Web services extracted

out from a community. Putting the active, passive,

and hybrid replication strategies in the context of

communities revealed the suitability of the ﬁrst strat-

egy only. We speciﬁed the functioning of similarly-

functional Web services using control and operational

behaviors. We also demonstrated and deployed the

active-replication strategy on top of a JXTA-based

tested we developed.

Our future research work will focus on continuing

the testbed we started and investigating various issues

in terms of (1) how much transactional properties im-

pact the high-availability requirementof Web services

from a community perspective, (2) how to assess the

semantic impact of replacing a failed Web service

with a backup Web service on the progress of a com-

position scenario in which the failed Web service was

taking part and (3) how to select within a community

a backup Web service that could maintain the same

level of QoS that the failed Web service and/or user

requirements in terms of QoS.

REFERENCES

Abraham, S., Thomas, M., and Thomas, J. (2005). Enhanc-

ing Web Services Availability. In ICEBE’2005.

Amoretti, M., Zanichelli, F., Conte, G., and Bisi, M. (2008).

Enabling peer-to-peer Web service architectures with

JXTA-SOAP. In e-Society’08.

Avizienis, A., Laprie, J. C., Randell, B., and Landwehr, C.

(2004). Basic Concepts and Taxonomy of Depend-

able and Secure Computing. IEEE Transactions on

Dependable and Secure Computing, 1(1).

Benatallah, B., Sheng, Q. Z., and Dumas, M. (2003). The

Self-Serv Environment for Web Services Composi-

tion. IEEE Internet Computing, 7(1).

Bentahar, J., Maamar, Z., Benslimane, D., and Thiran,

P. (2007). Using Argumentative Agents to Manage

Communities of Web Services. In WAMIS’2007.

Harel, D. and Naamad, A. (1996). The STATEMATE Se-

mantics of Statecharts. ACM Transactions on Soft-

ware Engineering and Methodology, 5(4).

Juszczyk, L., Lazowski, J., and Dustdar, S. (2006). Web

Service Discovery, Replication, and Synchronization

in Ad-Hoc Networks. In ARES’2006.

Kim, K. H. (2000). Issues Insufﬁciently Resolved in Cen-

tury 20 in the Fault-Tolerant Distributed Computing

Field. In SRDS’2000.

Laranjeiro, N. and Vieira, M. (2007). Towards Fault Toler-

ance in Web Services Compositions. In EFTS’2007.

Maamar, Z., Lahkim, M., Benslimane, D., Thiran, P., and

Sattanathan, S. (2007). Web Services Communities -

Concepts & Operations -. In WEBIST’2007.

Medjahed, B. and Bouguettaya, A. (March 2005). A Dy-

namic Foundational Architecture for Semantic Web

Services. Distributed and Parallel Databases, Kluwer

Academic Publishers, 17(2).

Ribeiro, J. J. G., do Carmo, G. T., Valente, M. T., and C.,

M. N. (2007). Smart Proxies for Accessing Repli-

cated Web Services. IEEE Distributed Systems On-

line, 8(12).

Salas, J., P´erez-Sorrosal, F., Pati˜no Mart´ınez, M., and

Jim´enez-Peris, R. (2006). WS-Replication: A

Framework for Highly Available Web Services. In

WWW’2006.

Traversat, B., Arora, A., Abdelaziz, M., Duigou, M., Hay-

wood, C., Hugly, J.-C., Pouyoul, E., and Yeager, B.

(2003). Project JXTA 2.0 Super-Peer Virtual Network.

Technical report, Sun Microsystems.

Wiesmann, M., Pedone, F., Schiper, A., Kemme, B., and

Alonso, G. (2000). Understanding Replication in

Databases and Distributed Systems. In ICDCS’2000.

ICEIS 2009 - International Conference on Enterprise Information Systems
