SIHC: A STABLE INCREMENTAL HIERARCHICAL CLUSTERING

ALGORITHM

Ibai Gurrutxaga, Olatz Arbelaitz, Jos

e I. Mart

ın, Javier Muguerza, Jes

us M. P

erez and I

nigo Perona

Computer Architecture and Technology Dept., University of the Basque Country, Donostia, Spain

Keywords:

Hierarchical clustering, Incremental, Stability.

Abstract:

SAHN is a widely used agglomerative hierarchical clustering method. Nevertheless it is not an incremental

algorithm and therefore it is not suitable for many real application areas where all data is not available at the

beginning of the process. Some authors proposed incremental variants of SAHN. Their goal was to obtain

the same results in incremental environments. This approach is not practical since frequently must rebuild the

hierarchy, or a big part of it, and often leads to completely different structures. We propose a novel algorithm,

called SIHC, that updates SAHN hierarchies with minor changes in the previous structures. This property

makes it suitable for real environments. Results on 11 synthetic and 6 real datasets show that SIHC builds

high quality clustering hierarchies. This quality level is similar and sometimes better than SAHN’s. Moreover,

the computational complexity of SIHC is lower than SAHN’s.

1 INTRODUCTION

Clustering is an unsupervised pattern classiﬁcation

method which partitions the input space into groups

or clusters. The goal of a clustering algorithm is to

perform a partition where objects within a group are

similar and objects in different groups are dissimi-

lar. Therefore, the purpose of clustering is to identify

natural structures in a dataset and it is widely used

in many ﬁelds (Jain and Dubes, 1988; Mirkin, 2005;

Sneath and Sokal, 1973).

Many clustering algorithms exist, but all of them

can be broadly classiﬁed in two groups: partitional

and hierarchical. Partitional algorithms process the

input data and create a partition that groups the data

in clusters. On the other hand, hierarchical algorithms

build a nested partition set called cluster hierarchy.

The procedures to obtain this nested set of partitions

are classiﬁed as agglomerative (bottom-up) and divi-

sive (top-down).

These clustering hierarchies are suitable to present

in a graphical way. The most usual procedure is to

draw them as a tree diagram called dendrogram. The

root node of this tree contains the topmost partition

while the leaf nodes contain the partition at the lower

level of the hierarchy. A merge in an agglomerative

algorithm is represented as a new node which is set to

be the parent of the merged nodes. Similarly, a split in

a divisive algorithm is viewed as new nodes which are

set to be the children of the split node. This graphical

representation is very helpful for the end user since

it allows a rapid identiﬁcation of the most interesting

structures in the data.

Several hierarchical algorithms exist (Fisher,

1987; Jain and Dubes, 1988; Mirkin, 2005). SAHN is

a widely known general method to build cluster hier-

archies (Sneath and Sokal, 1973). It deﬁnes a simple

and intuitive procedure and has been widely used in

many areas. Unfortunately it is not an incremental

method, meaning that we must rebuild the entire hier-

archy if we want to add some new data to an existing

one. Since many real applications work with a data

stream some authors proposed incremental versions

of the SAHN method (El-Sonbaty and Ismail, 1998;

Ribert et al., 1999). The goal of these approaches is

to incrementally build a tree identical to the one that

would be obtained with the original SAHN method.

This goal is interesting from a theoretic point of view,

but we claim it is not crucial from a practical point of

view.

Final users of incremental clustering algorithms

need a stable structure. The user updates its knowl-

edge as the incremental procedure is carried out. Con-

sequently this process must keep the main structure

of the updated dendrogram. If the addition of few

new cases leads to a dramatic change of the learned

300

Gurrutxaga I., Arbelaitz O., Martín J., Muguerza J., Pérez J. and Perona I. (2009).

SIHC: A STABLE INCREMENTAL HIERARCHICAL CLUSTERING ALGORITHM.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

300-304

DOI: 10.5220/0001857103000304

 SciTePress

structures, the user will be unable to assimilate the

changes. In addition, it will lose conﬁdence on the

learning algorithm. The incremental versions of the

SAHN algorithm do not provide a stable structure.

Since their goal is to obtain the same tree we would

obtain with the original method they must, in many

cases, rebuild the entire tree or an entire branch of it.

The purpose of our work is to present a stable in-

cremental version of SAHN algorithm. The proposed

algorithm adds a new case without varying the previ-

ously obtained structures.

To evaluate the proposed algorithm we answer two

main questions in this paper. Which is the quality of

the incremental dendrograms compared to those built

with the SAHN method? How does the arrival order

of the new cases affect the updating algorithm? We

experimented with 11 synthetic and 6 real datasets

and 3 algorithms based on the SAHN method. Re-

sults conﬁrm that the incremental algorithm is able to

update dendrograms with no quality loss. Therefore,

we claim this algorithm is a good choice on real in-

cremental environments where stability and compre-

hensibility are important factors.

Next section is devoted to describe the SAHN

method and some previous incremental approaches.

The algorithm we propose is described in Section

3. In Section 4 we describe the experimentation de-

signed to measure the quality of the proposed algo-

rithm and results are described in Section 5. Finally,

Sections 6 and 7 are devoted to discuss the results and

draw conclusions.

2 HIERARCHICAL CLUSTERING

In this section we ﬁrst describe the SAHN method: a

method to obtain cluster hierarchies. Then, we brieﬂy

describe two previously published incremental ver-

sions.

The SAHN method is based on two main steps.

First, each individual point of the input dataset forms

a cluster on its own. That is, if n denotes the number

of data points in the dataset the method begins with

a partition of n singleton clusters. Second, the two

closest clusters are merged. This second step is re-

peated until all the points are merged in a single clus-

ter. This method automatically obtains a set of nested

partitions forming a hierarchy. The output of this pro-

cedure is a set of exactly n partitions, from the n sin-

gleton clusters to the all-in-one cluster partition.

To measure the proximity of two clusters we

must deﬁne a cluster proximity measure. The SAHN

method is often used with one of the following prox-

imity measures: single-linkage (nearest neighbour),

complete-linkage (farthest neighbour) and average-

linkage (group average). Single-linkage computes the

distance between two clusters as the distance between

the two nearest points in both clusters. Similarly,

complete-linkage computes the distance between the

two farthest points in both clusters. Finally, average-

linkage computes the average distance between all the

points from one cluster to the points in the other clus-

ter.

(Ribert et al., 1999) proposed an incremental vari-

ation of the SAHN method. The tree they obtain is ex-

actly the same obtained applying the SAHN method

to the union of the initial dataset and the new case. Al-

though an analysis of the computational cost of the in-

cremental method is not done, empirical results show

similar behaviour to SAHN’s. On the other hand, the

memory usage is considerably reduced.

(El-Sonbaty and Ismail, 1998) described another

incremental version of the single-linkage algorithm.

Its computational cost is O(n

), opposite to the O(n

)

cost of the SAHN method. They empirically showed

that the algorithm obtains the same tree as the single-

linkage algorithm for some values of an internal pa-

rameter of the algorithm. Nevertheless, the new

method cannot be applied to other proximity mea-

sures commonly used with the SAHN method.

3 SIHC ALGORITHM

The aim of the algorithm we present, called SIHC, is

to incrementally add new cases to dendrograms built

with the SAHN method. The novelty of this incre-

mental algorithm is that the updated tree keeps its

main structure. This way users will easily assimilate

the small variations produced by the learned cases.

Although the algorithm can be used on its own, we

designed it as an updating method for SAHN-based

dendrograms.

SIHC is a top-down process described in Algo-

rithm 1. It is a recursive procedure that begins at the

root node. This procedure computes the distance be-

tween the new case and the cluster represented by the

current node. This distance can be based on any prox-

imity measure, so the method adapts to any SAHN-

based algorithm. If the height of the node is less or

equal than the computed distance the recursive proce-

dure stops. A new node, whose children are the new

case and the current node, is created and it replaces

the current node in the dendrogram.

If the height of the current node is higher than the

distance from the new case to it, the recursive proce-

dure is repeated on the child nearest to the new case.

In this case the height of the traversed node should be

SIHC: A STABLE INCREMENTAL HIERARCHICAL CLUSTERING ALGORITHM

301

Algorithm 1 : SIHC.

node

← distance(newcase,node)

if node.height ≤ d

node

then

singleton ← new leaf node

singleton.addCase(newcase)

newnode ← new internal node

newnode.addChildren(node,singleton)

newnode.height ← d

node

replace node with newnode

else

nearest ← arg min

child

(distance(newcase,child))

update

height(node)

SIHC(newcase,nearest)

end if

updated. The new height is easily computed since it is

the distance between its children once the new case is

added to the nearest children. Anyway, for most used

proximity measures there is a simple way to compute

this value. Let h be the height of the traversed node,

near

the number of cases in the child nearest to the

new case and d

f ar

the distance from the new case to

the farthest child. The new height of the node is com-

puted as follows:

• Single-linkage: min(h,d

f ar

)

• Complete-linkage: max(h,d

f ar

)

• Average-linkage: (h × n

near

+ d

f ar

)/(1 + n

near

)

Similar functions can easily be found for other prox-

imity measures.

The algorithm ensures that the addition of a new

case will not vary previously deﬁned structures. It

just adds a new node where appropriate. Notice that

the deﬁnition of the procedure prevents incoherences

such as a node being located higher than its parent

node.

4 EXPERIMENTAL SETUP

In this section we describe the experimental work per-

formed to measure the quality of the dendrograms up-

dated with the SIHC algorithm. We ran the algorithm

over 11 synthetic and 6 real datasets as explained next.

We split each dataset in 20 folds and built a dendro-

gram using the SAHN method and k folds. We incre-

mentally added the remaining 20 − k folds based on

SIHC algorithm. k varied from 1 to 19, and we used

three proximity measures: single, average and com-

plete linkage. This procedure allowed us to measure

how variation on the fraction of incrementally learned

cases affects the obtained dendrogram.

Table 1: Characteristics of the real datasets.

Dataset Dimensions Clusters Cases

Iris 4 3 150

Glass 9 7 214

Wine 13 3 178

Ecoli 8 8 336

Haberman 3 2 306

Ionosphere 34 2 351

To measure the effect produced by the arrival or-

der of the data we repeated the procedure 25 times.

We built 5 dendrograms for each k value randomly

selecting the k folds. Furthermore, we incrementally

added the remaining cases in 5 different orders. This

means that we built 25 incremental dendrograms for

each dataset, k value and proximity measure. In or-

der to have a valid reference we also built a SAHN

tree with all the data from each dataset, resulting in

24,276 dendrograms altogether.

We draw the 6 real datasets from the UCI repos-

itory (Asuncion and Newman, 2007). Their charac-

teristics are described in Table 1. 9 of the synthetic

datasets we designed follow the same pattern and are

named as Normal d s. Here d means the number of

dimensions and we set it to 2, 4 and 6. In each dataset

there is a cluster per dimension created drawing 50

points each from a multivariate normal distribution.

The mean of the distribution of cluster i is set to s ∗ e

and the covariance matrix of every cluster is the iden-

tity matrix. e

is the vector where i

position is set

to 1 while the rest is set to 0. We set s to 3, 5 and

10, and hence obtained clusters with different over-

lapping level. The remaining two datasets, Concen-

tric and T&U, are 2-dimensional and deﬁne clusters

that are hard to detect for many clustering algorithms.

The former contains 3 concentric ring-shaped clusters

and a total of 400 points. The latter is composed by

one T-shaped and one U-shaped cluster, of 150 points

each. The trunk of the T is in the concave part of the

To measure the quality of a dendrogram we pref-

ered the partition membership divergence (PMD) dis-

tance rather than the widely used cophenetic distance

because “identical topologies may still prove very dif-

ferent in cophenetic levels” (Podani, 2000). PMD is

deﬁned as the number of partitions implied by the

dendrogram in which a given pair of cases do not be-

long to the same cluster. We measured the quality of

a dendrogram computing the correlation between the

PMD matrix of the dendrogram and the distance ma-

trix.

Although the aim of the proposed algorithm is

not to obtain the same dendrogram SAHN would

ICEIS 2009 - International Conference on Enterprise Information Systems

302

build, we consider interesting to compare the den-

drograms obtained by both algorithms. We compared

two dendrograms computing the correlation between

their PMD matrices.

5 RESULTS

In Figure 1 we show the quality of the dendrograms

obtained by SIHC. In order to have a valid reference

all values were divided by the quality of the cor-

responding SAHN-based dendrogram. This means

that a value greater than 1 represents higher quality

than the SAHN-based dendrogram and a value lower

than 1 represent lower quality. Remind that for each

dataset, algorithm and k value we computed 25 den-

drograms. Each result showed in Figure 1 refers to

the average value of those 25 runs.

The left side of the ﬁgure shows average results

for the synthetic datasets. It is clear that the qual-

ity of the dendrogram increases with k value. This

means that better dendrograms were obtained when

less cases were incrementally added. Incremental

dendrograms based on single-linkage never improve

the quality of the SAHN-based dendrogram. On the

other hand, those based on complete and average-

linkage achieve improvements, provided that no more

than 30% or 20% of the data was added incremen-

tally. If we focus on real datasets — on the right side

of the ﬁgure— results for single-linkage are better,

improving SAHN-based dendrograms for 5 k values.

For complete and average-linkage results are similar

to those obtained for synthetic datasets, but they are

slightly better for low k values and slightly worse

for high k values. Anyway, the quality of dendro-

grams with about 25% of incrementally added data

is higher than the quality of the corresponding SAHN

dendrograms. All individual datasets show a similar

behaviour pattern.

Previous results suggest that incremental dendro-

grams differ from SAHN dendrograms, at least those

built with average or complete linkage. We have mea-

sured this dissimilarity relation comparing all incre-

mental dendrograms to their corresponding SAHN

dendrogram. Results show that similarity increases

with k. SIHC is very similar to SAHN for single-

linkage while for average and complete-linkage high

similarity levels are obtained for just the highest k val-

ues. Nevertheless, we saw that this dissimilarities of-

ten allowed a quality increment.

Since the result for each dataset, algorithm and

k value was the average value of 25 executions we

computed the standard deviation of the quality of the

dendrograms— the correlation of the PMD matrix of

each dendrogram and the distance matrix. The goal

of this analysis was to measure the stability of SIHC

faced to modiﬁcations in the arrival order of the data.

Results show that the variation is insigniﬁcant. Aver-

age standard deviation was below 0.04 and just a few

cases exceeded 0.15. No signiﬁcant pattern could be

found in these results although it seems that variance

decreases when k increments.

6 DISCUSSION

The results of the experimentation show that SIHC al-

gorithm builds high-quality dendrograms. This qual-

ity is even higher than SAHN’s provided that no more

than a speciﬁc fraction of the total number of cases

have been incrementally added. This threshold is

database and proximity measure dependant, but is

about 35%. Results conﬁrm that SIHC can be used on

its own, but is better used as an updating method for

SAHN dendrograms. Nevertheless, if single-linkage

proximity measure is used, results for SIHC are sim-

ilar to SAHN’s even in stand-alone mode. The al-

gorithm works in optimal conditions if it is used to

update a SAHN dendrogram with a low ﬂow of new

data.

Results also show that the incrementally updated

dendrograms differ from the SAHN dendrograms,

particularly if average or complete-linkage is used.

The positive point is that the differences produced by

SIHC are often used to improve SAHN’s results.

Regarding to the computational cost of SIHC a

worst case analysis determines a O(n

×log(n)) com-

plexity. Notice that each case must traverse, at worst

case, a whole branch of the tree from the root to

a leaf node. The length of this path is O(log(n)).

In each node the new case must be compared to

the cases already in it, which is O(n). Since n is

the total number of cases the overall complexity is

O(n

× log(n)). This complexity level is sensitively

lower than SAHN’s O(n

) complexity.

7 CONCLUSIONS

In this work we presented SIHC: a new incremental

algorithm based on SAHN method. This algorithm

allows to incrementally add new cases to a previously

built dendrogram. The novelty of the algorithm is that

it adds the new data with no changes in the main struc-

ture of the updated dendrogram. It simply adds a new

node were appropriate. This stability is fundamental

for many practical purposes and was ignored in pre-

vious incremental approaches. Furthermore, the loca-

SIHC: A STABLE INCREMENTAL HIERARCHICAL CLUSTERING ALGORITHM

303

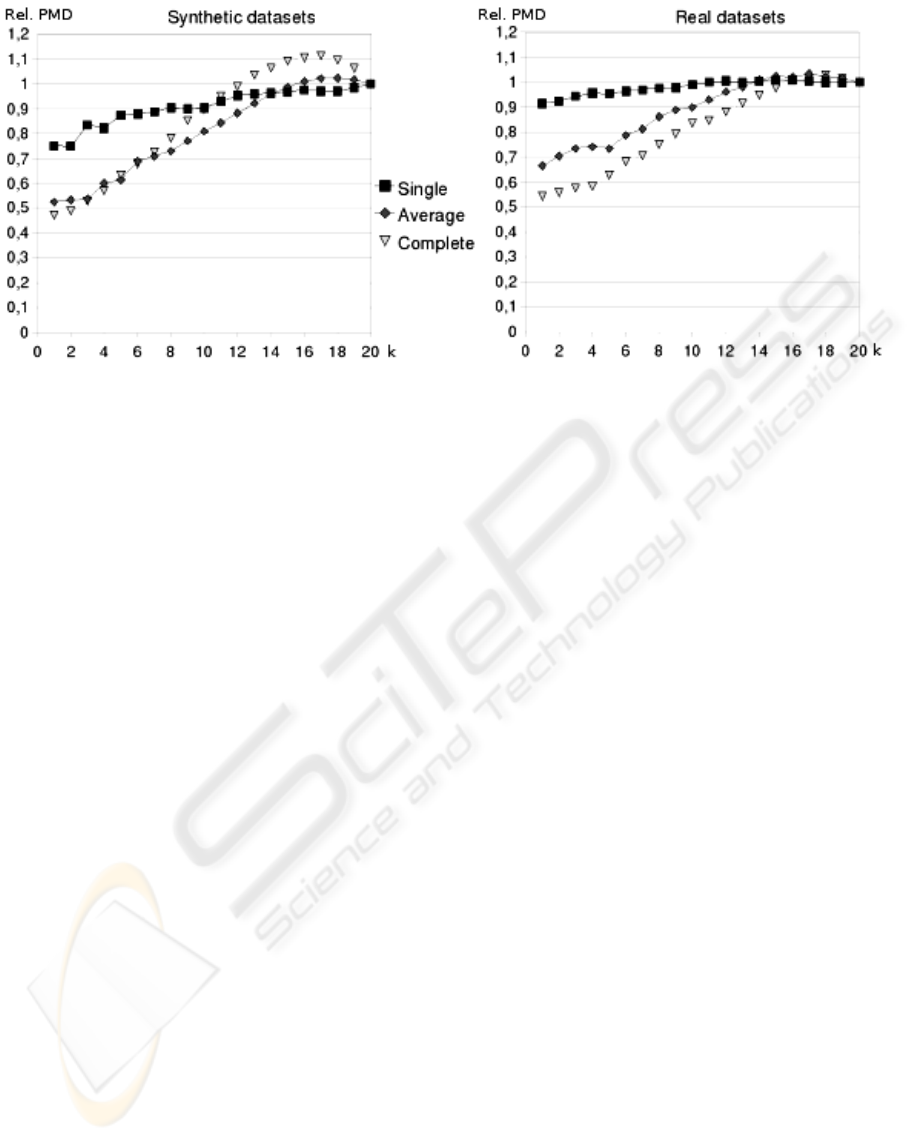

Figure 1: Quality of the incremental dendrograms.

tion of the added node can be used with classiﬁcation

purposes, since it determines the membership of the

new case to previously detected structures or clusters.

Results show that the proposed algorithm builds

similar dendrograms to SAHN for single-linkage, but

differences arise with other proximity measures. Nev-

ertheless, these differences allow SIHC to build bet-

ter quality dendrograms. It seems that these improve-

ments are kept while the incrementally added data is

about half of the data in the initial SAHN tree.

The incremental algorithm can be adapted to any

proximity measure used with SAHN method. More-

over, many computations can be avoided based on

properties that the most used proximity measures

have. On the other hand, although SIHC depends on

how the incremental data is ordered, variations are not

signiﬁcant.

We also showed that the complexity of SIHC sig-

niﬁcantly reduces the complexity of SAHN method

from O(n

) to O(n

× log(n)).

In few words, we present a new algorithm that al-

lows updating SAHN dendrograms, at a reduced com-

putational cost, keeping the main cluster structures.

This capabilities make the algorithm suitable for prac-

tical use in real enterprise environments.

ACKNOWLEDGEMENTS

The work described in this paper was partly done

under the University of the Basque Country, project

EHU 08/39. It was also funded by the Diputacin Foral

de Gipuzkoa and the European Union.

REFERENCES

Asuncion, A. and Newman, D. (2007).

UCI machine learning repository.

http://www.ics.uci.edu/∼mlearn/MLRepository.html

El-Sonbaty, Y. and Ismail, M. (1998). On-line hierarchichal

clustering. Pattern Recognition Letters, 19:1285–

1291.

Fisher, D. H. (1987). Knowledge acquisition via incremen-

tal conceptual clustering. Machine learning, 2:139–

172.

Jain, A. K. and Dubes, R. C. (1988). Algorithms for Clus-

tering Data. Prentice-Hall, Inc., Upper Saddle River,

NJ, USA.

Mirkin, B. (2005). Clustering for Data Mining: A Data

Recovery Approach. Chapman & Hall/CRC.

Podani, J. (2000). Simulation of random dendrograms and

comparison tests: Some comments. Journal of Clas-

siﬁcation, 17:123–142.

Ribert, A., Ennaji, A., and Lecourtier, Y. (1999). An incre-

mental hierarchical clustering. In Vision Interface ’99,

pages 586–591, Trois-Rivi

eres, Canada.

Sneath, P. H. A. and Sokal, R. R. (1973). Numerical Taxon-

omy. Books in biology. W. H. Freeman and Company.

ICEIS 2009 - International Conference on Enterprise Information Systems

304
