ALIGNING GOAL-ORIENTED REQUIREMENTS

ENGINEERING AND MODEL-DRIVEN DEVELOPMENT

Fernanda Alencar

1,2

, Oscar Pastor

, Beatriz Marín

, Giovanni Giachetti

Technical University of Valencia, Avenida de los Naranjos s/n, Valencia, Spain

Jaelson Castro

Universidade Federal de Pernambuco, Centro de Informática, Av. Prof. Luiz Freire S/N, 50740-540, Recife, Brazil

Keywords: Goal-orientation, Requirements engineering, Requirements modelling, Conceptual modelling, MDD.

Abstract: In order to fully capture the various system facets, a model should have not only software specifications but

it should integrate multiple complementary views. Model-Driven Development (MDD) and Goal-Oriented

Requirements Engineering (GORE) are two modern approaches that deal with models and that can

complement each other. We want to demonstrate that a sound software production process can start with a

GORE-based requirements model and can finish with advanced MDD-based techniques to generate a

software product. Therefore, we intend to show that GORE and MDD can be successfully put together.

1 INTRODUCTION

Recently, the focus on software development is

moving from the simple code writing to the models

specification and models transformations to obtain

the code. A model should have not only software

specifications, but also multiple complementary

views: intentional, structural, responsibility,

functional, and behavioral.

Model-Driven Development (MDD) and Goal-

Oriented Requirements Engineering (GORE) are

two modern approaches that are generating a lot of

literature. Nevertheless, few rigorous attempts to

show how they can be properly being joined exist.

Model-driven development methods were

devised to take advantage of using models. MDD

defends that quality software must be seen as a

sequence of well-defined model transformations

(Mellor, 2003).

Goal-Oriented Requirements Engineering (van

Lamsweerde, 2008) focuses on the activities that

precede the formulation of software system

requirements. It is said that GORE is an adequate

approach to dealing with more and more complex

software systems. However, too often works on

GORE stay at the Requirements Engineering level,

and how to go from their requirements models to the

corresponding software products remains basically

undefined.

In order to fill up this gap, there are researches

focusing on mechanisms that facilitate the

generation of a software system from early

requirements specifications. For instances, (van

Lamsweerde, 2008) considers the KAOS method,

(Martinez, 2008) presents an approach inserted at

the Tropos context (Giorgini, 2005) including the i*

framework (Yu, 1995), and (Alencar, 2003;

Santander, 2002; Castro, 2001) propose

transformations from i* models to generate UML

conceptual models. However these approaches do

not use a MDD approach, avoiding the possibility to

automatically generate the final software product.

The main contribution of our work is mainly

practical: we show that GORE and MDD can be

successfully combined. On the GORE side we select

the original i* framework. From the MDD part we

have taken the OO-Method approach (Pastor, 2007)

and its industrial tool - Olivanova (Care, 2008) - that

generates a complete software product through a

compilation process from an OO Conceptual Model.

The last piece of that puzzle is to select a real

problem: we choose a domain based on an Agency

of Photographers that was solved in the PROS

Research Center. From the requirements description,

we construct an early requirements model to

347

Alencar F., Pastor O., Marín B., Giachetti G. and Castro J. (2009).

ALIGNING GOAL-ORIENTED REQUIREMENTS ENGINEERING AND MODEL-DRIVEN DEVELOPMENT.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

347-350

DOI: 10.5220/0001956303470350

 SciTePress

represent the organizational context. Next, we will

deal with late requirements and we will introduce

the information system that will automate some

services. Then we compare this model with the

conceptual schema (an extended class diagram)

previously created with OO-Method. So that, we

will answer the question: “Can we use the i*

framework as the requirement model for OO-

Method?” Additionally, we can evaluate how much

of the involved process can be automated.

To achieve these objectives, section 2 presents

the modeling process used to obtain the initial

evidence for using the two approaches together (i*

framework and the OO-Method MDD approach).

Finally, the section 3 summarizes the paper and

points out future works.

2 THE APPLICATION OF THE I*

It seems interesting that the requirements models can

be more expressive and capture intentionality,

rationales, and alternatives; but above all, that it will

possible to transform the i* requirements model into

the conceptual model of the OO-Method MDD

approach. We use a pre-existing industrial case

study: the Photographic Agency, which was

modelled using the OO-Method approach. For

reasons of space, we show a partial view. A

complete version can be found in (PROS, 2008).

2.1 The Research Methodology

In order to answer our main question: Can we use

the i* framework as the requirement model for the

OO-Method approach?, we have structured our

research in five steps: (1) elicitation of basic

requirements and construction of initial description

in natural language, (2) model the business

processes using the i* models (the Strategic

Dependency model – SD- and the Strategic

Rationale model - SR), (3) seek to automate some

business process by the insertion of a information

system, (4) comparison of the conceptual models get

in the OO-Method context with the i* models lately

drew in order to identify the common elements, and

(5) definition of a subset of i* elements that can be

used as an intermediate model, or as a requirement

model in the OO-Method approach.

2.2 Applying the Metodology

In the first step, we construct a requirements

description of our case study, which deals with the

business processes of making available the

photographic report by a publishing house. The

photography agency manages the photo reports and

their distribution for publishing houses that operate

with freelance photographers. These freelances

present requests to the photography agency. The

publishing houses also must be subscribed into the

agency. Usually, the publishing houses are attended

by the production department, which searches in the

file of photo reports the more interesting reports

according to the topics asked by the publishing

houses. If a publishing house request for a photo

report, this is sent with a delivery note that must be

signed by the publishing house, and brought by

messengers.

In the second step, all the actors involved are

identified: the Publishing House, the Production

Department (Dep.) and the Messenger (Figure 1).

After that we determine the intentional dependency

among the actors. For example, the Publishing

House need that the Production Dep. satisfies its

goal of Some photo report be make available (a goal

dependency). Moreover, the Publishing House

needs that the Production Dep. makes available a list

with the description of the different photo reports (a

resource dependency) that it has. In addition, the

Production Dep. requires that the Publishing House

make available the Desired Topics and its Report

request (both are resource dependency). Some other

dependencies are specified in the i* model and we

have detected that all correspond to resource

dependencies. This reflects the viewpoint of the

developer whom made the textual description. In

particular, since the OO-Method focuses on

functional aspects, we explain this fact below.

Afterwards, we began to expand the actors (SR

model) to identify the intentions and the “Why´s” of

dependency relationships among the actors. The

Figure 1 shows a partial view of the SR i* model. In

this model, almost all elements are tasks which are

broken down into other tasks (task-decomposition

link in the SR model). For example, at the

Production Dep. actor we see only two goals (The

Publishing House be attended and The description of

different photo reports be sent), which have been

modeled as the ends to be reached by some means (a

means-end link in the i* SR model). These

intentional goals were inferred from reading the

Photography Agency description. They were not

explicitly raised.

In the third step of the research methodology, we

introduced an actor that represents the system that

we need. We call it by PAS (Photographic Agency

System), which will not be expanded.

ICEIS 2009 - International Conference on Enterprise Information Systems

348

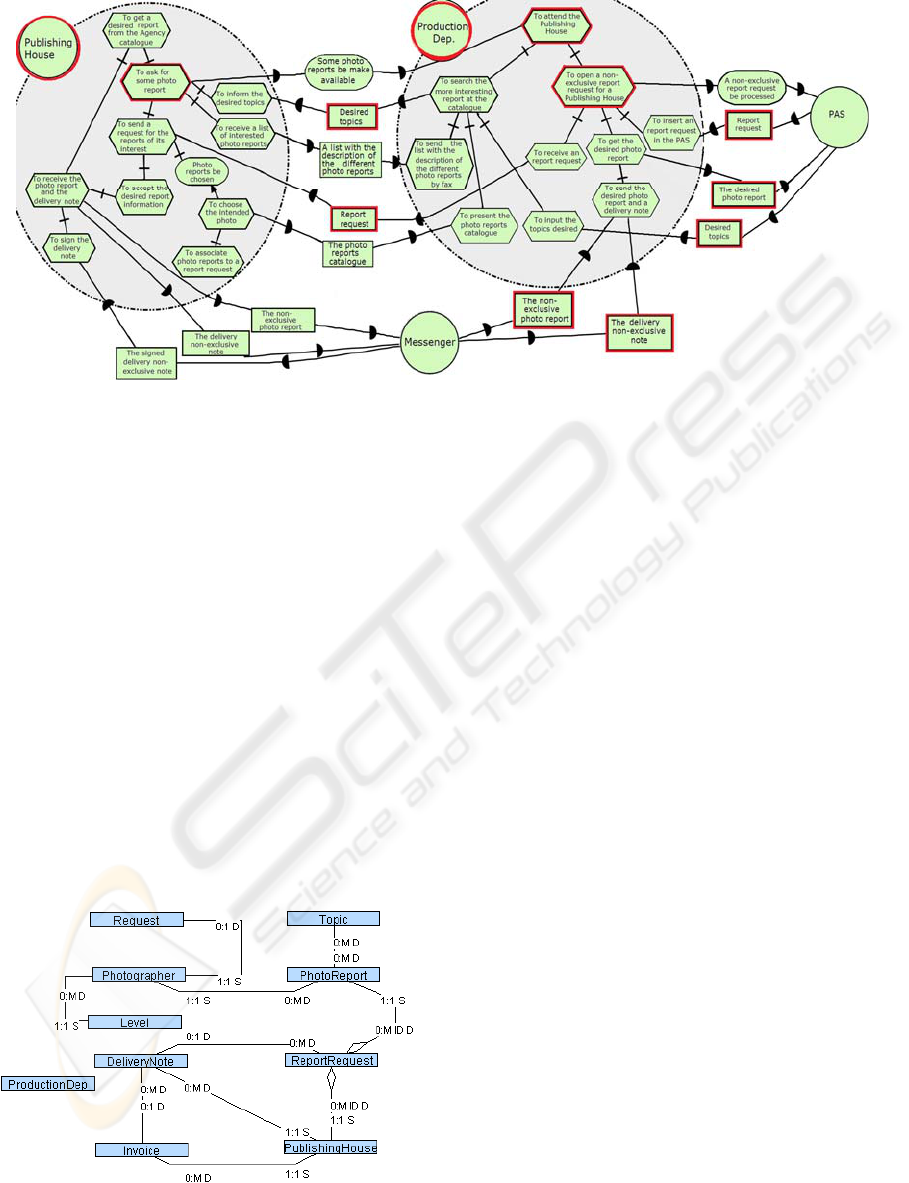

Figure 1: The Organizational SR model for the Photographic Agency.

By the client decision, only the Agency´s

Departments actors will interact with the system (an

internal system). The Production Dep. will do its

work with the help of the PAS. Thus, some processes

now will be done by the PAS. The PAS must record

information about the Publishing House, its Photo

Report request, its desired Topics, and the Photo

Report. Some others business processes are not

automated and continue to depend on the

relationship with the Publishing House, the

Production Dep. and the Messenger (whom deliver

orders).

In the fourth step, the comparison between the i*

model and the OO-Method class diagram has been

developed according the problem description. In this

diagram the classes correspond to the functional

elements of the final system. Due to space

constraints, we only present the resultant class

diagram in the Figure 2.

Figure 2: The Conceptual Class Diagram of the

Photographic Agency System for the Publishing House

Request.

In our comparison between the i* model (Figure

1) and the conceptual class diagram (Figure 2) we

only focus on the request for a desired photo report.

From the interaction of the Production Dep. actor

with the PAS actor we find a particular goal: A non-

exclusive report request must be processed. The

satisfaction of a goal may include the execution of

several tasks, and the production and usage of

resources in the i* models. We started our studies

highlighting those resources in the i* model (Figure

1). By definition, a resource is an entity, physical or

informational. Then, in Figure 2 we found that all

these elements were modeled as classes.

Thus, we are appraising that we have three

options for modeling, specifically when we have a

resource dependency: (1) if the resource element it is

not related with the system it will not modeled; (2) if

the resource is related with the intended system and

represents an entity, then it will be represent by a

class; (3) if the resource is related with the intended

system and represents an informational entity, then it

will be modeled by a class attribute.

We must study the other i* elements. Therefore,

we look for the actors and try to answer the

questions: Who are the actors whose data must be

captured and store by the system? and Who are the

actors that we do not store its data but directly use

the system?

For the first question we met the actor Publishing

House. This element was modeled as a class in the

class diagram. For the second question, we met the

actors Production Dep. using the system. Thus, we

highlight this element (Figure 1) and, we observe

that this element is an agent class in the class

ALIGNING GOAL-ORIENTED REQUIREMENTS ENGINEERING AND MODEL-DRIVEN DEVELOPMENT

349

diagram. This distinction is done by the OO-method

approach (Pastor, 2007). The actor (Messenger) does

not use the system and we do not need to store

his/her data, or any information related When we are

looking for an actor we will have: (1) to represent it

as class, as in the first case; (2) to represent it as

agent, as in the second case; or (3) do not represent

it at the class diagram. When the decomposition of

the task To ask for some photo report at the

Publishing House actor boundary is analyzed, we

identify that it will be necessary to choose the

intended reports and to associate these photos to a

report request. Thus, we deduced that will have an

association among three classes: Publishing House,

Report request, and the desired photo repots.

Despite the class name, the Figure 2 models this

situation as an aggregation relationship.

In spite of the main strengths of the OO-Method

approach, which allow the automatic generation of

information systems from well-defined conceptual

models, this method also presents disadvantages,

such as the lack of traceability between the classes

(of the class diagram) and the requirements from

which these classes are generated. Thus, when

someone read the class diagram, some information is

not presented. It is true that not all the information

captured in an early requirement phase is useful in

the implementation of object-oriented systems.

However, some of them might to be. In our research,

we encounter these evidences by using a rich

requirement ontology (like i* framework) that can

be very useful for us to go toward building

conceptual models richer.

3 CONCLUSIONS

Summarizing, we try to answer the question: Can we

use the i* framework as the requirement model for

the OO-Method?” We conclude that it is possible to

use the i* framework. Indeed, we need to derivate an

intermediate requirements model with rationales

from which, using transformations functions on

MDD, derive some elements of the class diagram.

Sure, the initial phase needs a more abstract model

while the final phases of development need a more

concrete model. Thus, some arguments should be

introducing in the later phases models. Therefore,

we can reduce the gap from requirements

specification in the problem space to conceptual

models in the solution space. In sequence, we will

formalize this proposing a simple and direct way of

extract from a requirement models the main

elements that the OO-Method conceptual model

needs.

At this moment we are working to formalize

concrete guidelines to determine an intermediate

requirement model from which we can generate a

conceptual model as the model of the OO-Method

approach. To perform this generation, we are

focusing on model transformations that are based on

the metamodels of the involved models.

REFERENCES

Alencar, F., Pedroza, F., Castro, J., Amorim, R., 2003.

New Mechanism for the Integration of Organizational

Requirements and Object Oriented Modeling. In Proc.

of the VI Workshop on Requirements Engineering

(WER 2003), Piracicaba, Brazil. November, pp.109-

123

Care Technologies Company, 2008. OlivaNova Suite.

Availble at www.care-t.com.

Castro, J., Alencar, F., Cysneiro Filho, G. , Mylopoulos,

J., 2001. Integrating Organizational Requirements and

Object Oriented Modeling In: 5th IEEE International

Symposium on Requirements Engineering, 2001,

Toronto. Proc. of RE´01. IEEE Press, 2001c. p.146 –

153.

Giorgini P., Mylopoulos J.,Sebastiani R., 2005. Goal-

Oriented Requirements Analysis and Reasoning in the

Tropos Methodology. In Engineering Applications of

Artificial Intelligence, Elsevier 18(2), March.

I-star wiki, 2008. i* Guide. Available in http://istar.rwth-

aachen.de/tiki-view_articles.php.

Martínez, A.: Conceptual Schemas Generation from

Organizational Models in an Automatic Software

Production Process, PhD Thesis, Polytechnic

University of Valencia, Spain (2008)

Miller, J., Mukerji, J., 2003. MDA Guide Version 1.0.1.

Mellor, S. J., Clark, A. N., Futagami ,T., 2003. Guest

Editors” Introduction: Model-Driven Development".

IEEE Software, vol. 20, no. 5, Sep/Oct, pp. 14-18.

Pastor, O. and Molina, J. C. Model-Driven Architecture in

Practice: A Software Production Environment Based

on Conceptual Modeling, Springer-Verlag New York,

USA (2007)

PROS: The Photography Agency: A Case Study of the

OO-Method Approach. Available at:

http://www.pros.upv.es/. Last access: Dec (2008).

Santander, V., Castro, J.: Deriving Use Cases from

Organizational Modeling. 10th Anniversary IEEE

Joint International Conference on Requirements

Engineering (RE 2002), Essen, Germany. September,

pp. 32-42 (2002)

van Lamsweerde, A., 2008. Requirements Engineering:

From Craft to Discipline. ACM SIGSOFT 2008/FSE-

16, November 9–15, Atlanta, Georgia, USA.

Yu, E. et al., Strategic Actors Modeling with i*. Tutorial

Notes. 2008. International Conference on

Requirements Engineering (RE’08), IEEE Computer

Society, Spain, pp. 01–60.

ICEIS 2009 - International Conference on Enterprise Information Systems

350
