VAODA

A Viewpoint and Aspect-Oriented Domain Analysis Approach

António Pedro Rodrigues and João Araújo

CITI/Departamento de Informática, Faculdade de Ciências e Tecnologia

Universidade Nova de Lisboa, Quinta da Torre, Caparica, Portugal

Keywords: Aspect-Oriented Requirements Engineering, Domain Analysis, Feature Modelling, Viewpoints.

Abstract: Requirements approaches can be integrated to specify domain requirements. Among them, viewpoint-

oriented approaches stand out by their simplicity, and efficiency in organizing requirements. However, none

of them deals with modularization of crosscutting concerns. Aspect-Oriented Domain Analysis (AODA) is a

growing area of interest as it addresses the problem of specifying crosscutting properties at domain analysis

level. The goal is to obtain a better reuse at this abstraction level through the advantages of aspect

orientation. This work proposes an AODA approach that integrates feature modeling and viewpoints.

1 INTRODUCTION

Software reusability is key to significant

productivity gains and its success is granted mostly

by the use of Domain Analysis (DA). According to

the Software Engineering Institute, DA is "the

process of identifying, collecting, organizing and

representing the relevant information in a domain,

based upon the study of existing systems and their

development histories, knowledge captured from

domain experts, underlying theory, and emerging

technology within a domain”.

DA is a means to build reusable infrastructures to

support the specification and implementation of

restricted classes of applications. Some domain

requirements can be referenced as crosscutting as

they “cut across” other domain requirements, and

that can be a problem when changes in the domain

requirements occur, causing problems to system

evolution. To overcome this issue, some approaches

have been developed within the software

engineering community, like Object-Oriented

Domain Analysis (OODA) (Shlaer and Mellor,

1989), and Feature-Oriented Domain Analysis

(FODA) (Kang et al., 1990).

But none of these approaches are enough to

specify crosscutting properties of the domain.

Aspect-Oriented Requirements Engineering (AORE)

techniques can be easily adapted to do this such as

Arcade (Rashid et al. 2003) which combines aspects

with viewpoints. In this paper we will propose

VAODA: a new approach which extends the Arcade

approach with feature modelling.

This paper is organized as follows. Section 2

presents and applies our approach to using a case

study. Section 3 draws some conclusions and

highlights some future work.

2 THE VAODA APPROACH

Most of feature modelling approaches have little

integration with other domain specification

approaches. Their integration should give a broader

vision of the domain. Crosscutting concerns are not

specifically addressed, so the approach we propose

in this paper tries to fulfil that gap. This approach

integrates domain analysis with aspects, feature

models and viewpoints and it should specify models

at both domain and application engineering. To

illustrate the approach it will be used a car park

system. The requirements are stated as follows.

A car parking system may be accessed through a

ticket, a gizmo or a card. In the first case a client has

to get a ticket from a machine after pressing a

button. Afterwards, the car is allowed to enter and

park in an available place. When s/he wants to leave

the parking place, s/he has to pay the ticket. The

amount depends on the time spent. After paying the

client can leave by inserting the ticket in a machine.

In the second case a gizmo can be purchased

through a simple process where the client gives

351

Rodrigues A. and Araújo J. (2009).

VAODA - A Viewpoint and Aspect-Oriented Domain Analysis Approach.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

351-354

DOI: 10.5220/0001960203510354

 SciTePress

her/his personal info, her/his debit card and the

vehicle which will be associated to the gizmo. To

enter the park it is necessary to have the gizmo

placed in the vehicle’s windscreen, and as the driver

chooses to enter the park pressing a button, the

gizmo is read and the gate is opened. To exit the

park the process is similar. The amount to pay is

shown in a display. This amount is sent to the

client’s bank in order to debit. In the third case, the

client can use a pre-purchased card that is used to

enter the park and will be debited every time he

leaves the car park. The system has to control if the

car parking is full or not and if it is closed or not.

2.1 VAODA in Domain Engineering

VAODA at Domain Engineering (DE) level is

composed by six main activities: Identify and

specify domain viewpoints and concerns; Specify a

feature model; Identify crosscutting requirements;

Specify aspectual viewpoints; Compose aspectual

viewpoints; Integrate aspect-oriented viewpoints

with feature model (see Figure 1). They will be

described in detail and illustrated with the case study

next.

Identify and Specify Domain Viewpoints and

Concerns. Viewpoints represent an encapsulation of

partial information about the system’s requirements,

of a particular perspective. They can be associated to

stakeholders, environment and system domain. A

viewpoint-oriented approach to requirements

elicitation recognizes that all information cannot be

obtained only considering one perspective. The

viewpoints identified in this example are: ATM,

Bank, Driver, Entry Machine, Exit Machine, Gizmo,

Park, Park Attendant, Paying Machine, Vehicle and

Vehicle Owner. Examples of relevant concerns are:

Availability, Multi-Access, Response Time,

Security, Usability. Templates of the viewpoints

Entry Machine and Exit Machine are shown in

tables 1 and 2.

Specify a Feature Model. A feature model

represents a hierarchy of properties of domain

concepts. Feature modeling was proposed as part of

the Feature-Oriented Domain Analysis (FODA)

(Kang et al., 1990) method, and since then, it has

been applied in a number of domains. Based on the

information provided by the viewpoint requirements

and the domain experts we can derive a feature

model. In our example, figure 2 shows a feature

model for the case study. In our approach this is

done manually, by analyzing the viewpoint

requirements.

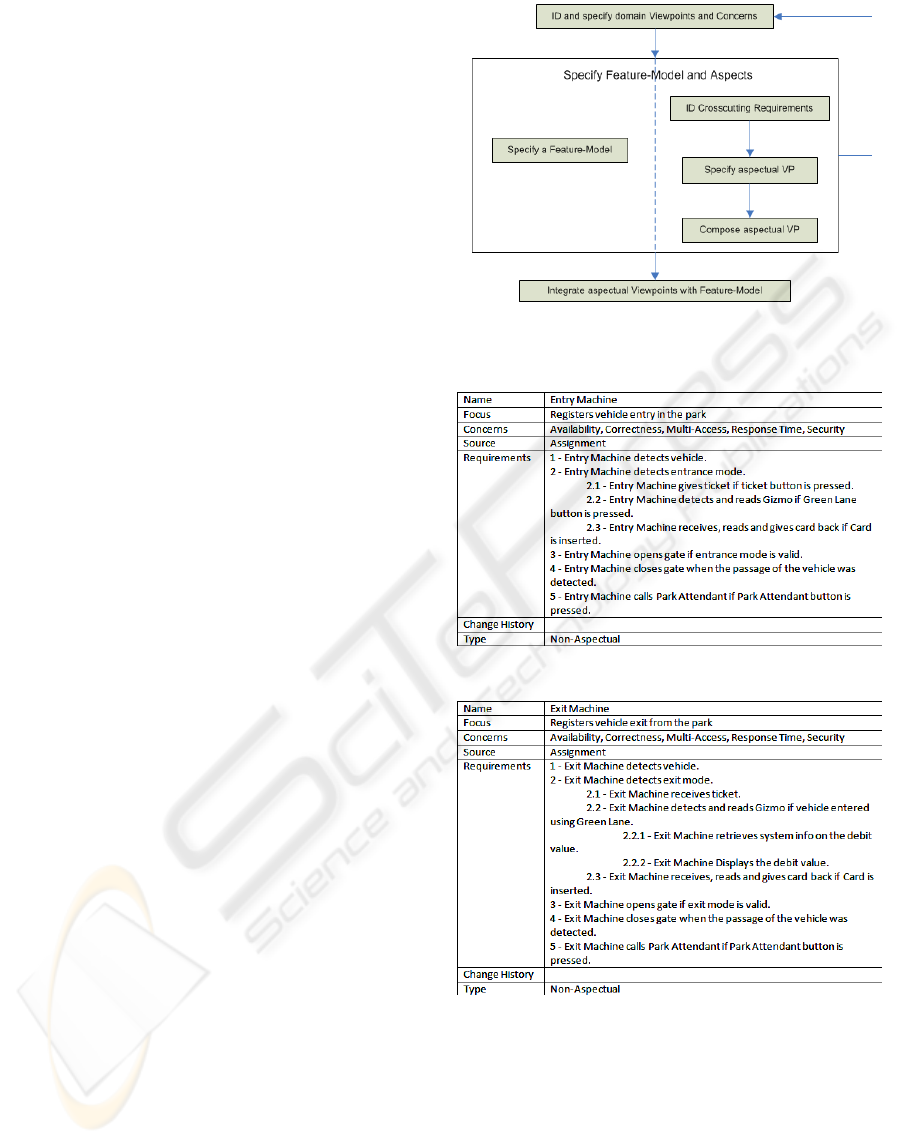

Figure 1: VAODA process in DE.

Table 1: Template for the Entry Machine viewpoint.

Table 2: Template for the Exit Machine viewpoint.

For example, Entry Machine can be defined as a

feature decomposed into several obligatory features

(e.g. display, gate, intercom, park attendant button

and vehicle sensor), and some variable features, in

this case the kind of access to the park (e.g. by card,

by ticket or using Green Lane gizmo).

ICEIS 2009 - International Conference on Enterprise Information Systems

352

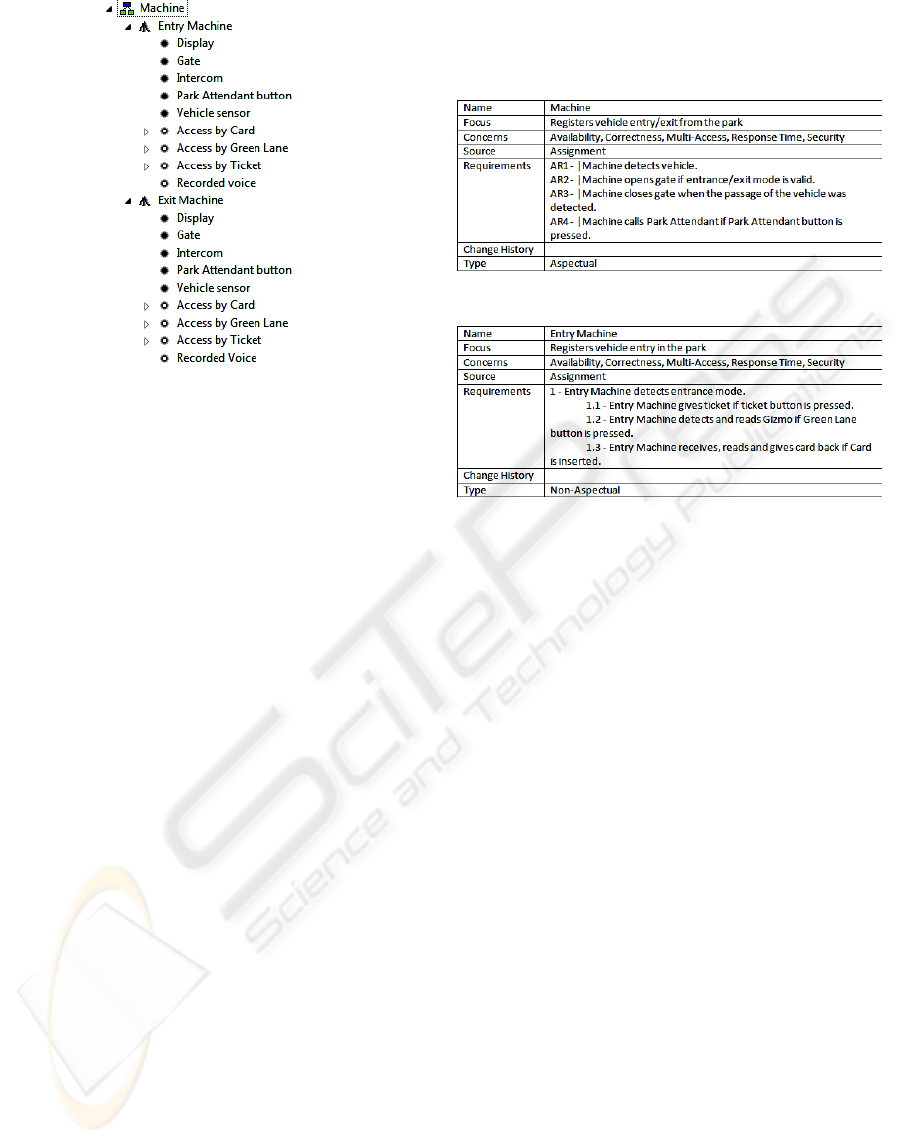

Figure 2: FMP model for the case study.

Identify Crosscutting Requirements, Specifying

and Composing Aspectual Viewpoints. When

there are requirements scattered in several

viewpoints, those are called “Aspectual

Requirements” and are modularized in a new

“Aspectual Viewpoint” that will now be defined.

Looking at the viewpoints above one can notice that

some requirements are very similar, they only defer

in the kind of machine involved. For example, we

have:

• “Entry machine detects the vehicle”, in Entry

Machine viewpoint;

• “Exit machine detects the vehicle”, in Exit

machine viewpoint.

By removing these requirements from the

original viewpoints we define aspectual viewpoints.

Thus, for a requirement to be considered an

“aspectual” one, all his sub-requirements have to be

similar too. Note that the requirements are similar

not equal, as they differ on the subject. Thus, we will

encapsulate this kind of requirement into an

aspectual viewpoint and will be redefined using

“Roles”. Roles work as variables that can be

instantiated and deal with similar requirements. This

technique has been successfully applied to specify

crosscutting scenarios (Whittle and Araújo, 2004).

Table 3 shows the aspectual viewpoint Machine.

The crosscutting requirements include roles

(represented by the names preceded with a “|”) that

are instantiable parts of the requirements, i.e. during

composition they will be instantiated to a concrete

value. In the example |Machine will be instantiated

to Entry or Exit Machine.

Aspects can be also defined for the non-

functional concerns, which are often crosscutting.

We will not focus on this here as the work in

(Rashid et al., 2003) deals with this in detail. Re-

writing the viewpoint Entry Machine by removing

the aspect we obtain the new templates in table 4.

Table 3: Template for the Machine aspectual viewpoint.

Table 4: New version of Entry Machine viewpoint.

To compose aspectual and non-aspectual

viewpoints, firstly, we need to instantiate the roles in

the aspectual viewpoint and then we compose them.

Intuitive composition rules are shown below:

Compose Entry Machine with Machine

Bind |Machine to Entry Machine

Add requirements AR1 to AR4 in Entry

Machine.

Integrate the Feature Model with the Viewpoint

Model. Table 5 shows the relationships between

features and viewpoints. Fields marked with an “x”

are considered mandatory whereas marked with “o”

are considered optional.

2.2 VAODA in Application

Engineering

The application engineering process defines how the

system assets are used for the development of

applications in the domain. In VAODA, the

application engineering process consists of three

steps: Configure the feature model; Reuse

Viewpoints; Reuse composition rules.

Configure the Feature Model. It consists of

defining an application model within the domain. In

this case, the car park considered will only be

accessed by card, as it is a residential one, only

granting access to residents of that specific building.

Based on the information provided by the viewpoint

requirements, a configured feature model of the case

study for application engineering can be made,

(figure 3).

VAODA - A Viewpoint and Aspect-Oriented Domain Analysis Approach

353

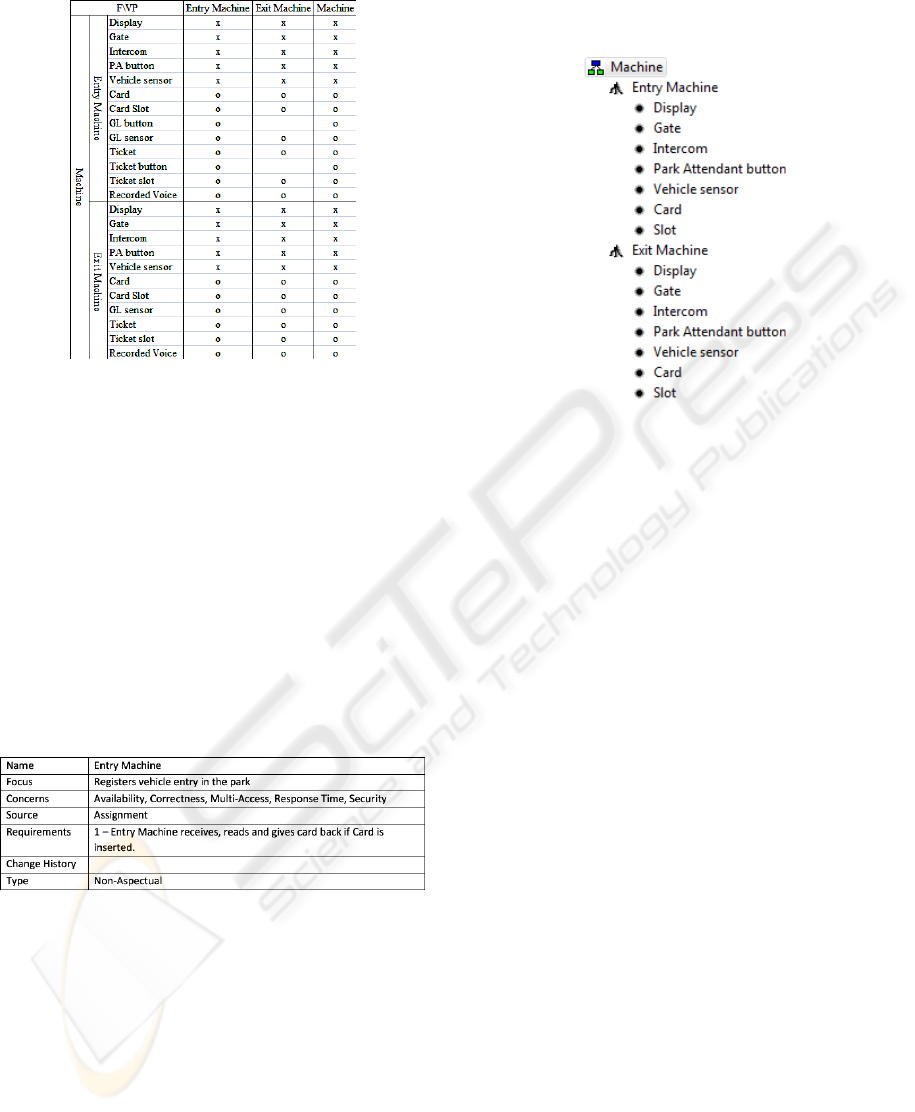

Table 5: Features vs viewpoints at Domain Engineering.

Reuse Viewpoints and Aspects According to the

Configured Feature Model. The reused viewpoints

declared in domain engineering are adapted to the

specific model configured before. There are several

differences between the Car Park at the Domain

level, and the Car Park at the Application level, as at

the domain level all possibilities have to be taken

into account: at application level there will be no

ATM, Bank, Gizmo, Paying Machine. The concerns

are the same as the ones for the Domain Engineering

level. The template for the viewpoint Entry Machine

is shown in table 6. The aspectual viewpoints also

have to be simplified to just express the access by

card.

Table 6: The configured Entry machine viewpoint.

Reuse Composition Rules According to

Configured Feature Model. They are also reused

according to the application model. The composition

rules are very similar to the ones already specified in

the DE.

Compose Entry Machine with Machine

Bind |Machine to Entry Machine

Add requirements AR1 in Entry Machine.

Add requirements AR2 to AR4 in Entry

Machine.

In addition to the approach, a tool was developed

in order to find the candidates to aspectual

requirements among the viewpoints of a given

system. This tool was developed in Java, also using

the Swing widget toolkit (an API for providing a

graphical user interface (GUI) for Java programs).

Figure 3: Configured feature model for the Car Park.

3 CONCLUSIONS

This paper proposed an approach to handle

crosscutting requirements (i.e. candidate aspects) in

domain analysis, called VAODA. The approach is

composed of two main parts, the domain and

application engineering parts. A tool was developed,

in order to help identifying the aspectual functional

requirements within a set of domain viewpoints.

For future work a more complete composition

language is also a matter to take into account, when

dealing with aspectual requirements. Finally feature

interaction should also be contemplated.

REFERENCES

Czarnecki, K., Antkiewicz, M., Kim, C. H. P., Lau, S. &

Pietroszek, K. (2005a) Fmp And Fmp2rsm: Eclipse

Plug-Ins For Modeling Features Using Model

Templates. Oopsla'05, Acm Press, , Usa.

Kang, K., Cohen, S., Hess, J., Novak, W. & Peterson, A.

S. (1990) Feature-Oriented Domain Analysis (Foda)

Feasibility Study. Sei, Cmu, Cmu/Sei-90-Tr-21, Nov.

Rashid, A., Moreira, A., Araújo, J. (2003) Modularisation

And Composition Of Aspectual Requirements. Aosd,

Acm Press, Boston, Usa.

Shlaer, S. & Mellor, S. J. (1989) An Object-Oriented

Approach To Domain Analysis. Acm Sigsoft Software

Engineering Notes, 14, 66-77.

Whittle, J. & Araujo, J., (2004) "Scenario Modeling With

Aspects", Iee Proceedings.

ICEIS 2009 - International Conference on Enterprise Information Systems

354
