A GESTURAL INTERFACE FOR ORCHESTRAL CONDUCTING

EDUCATION

Lijuan Peng and David Gerhard

Computer Science, University of Regina, Regina, Saskatchewan, Canada

Keywords: Computer-based conducting system, Drill and practice, Gestural interface, Pedagogy, Visual representation.

Abstract: Over the past few years, a number of computer-based orchestral conducting systems have been designed

and implemented. However, only a few of them have been developed to help a user learn and practice

musical conducting gestures. This paper is intended to address research related to this area. It utilizes an

infrared baton and an acceleration sensor to track the standard conducting gestures. The infrared baton is

similar to a conducting baton and has little influence on the conducting. A drill and practice instructional

strategy has been applied in this gestural interface. Five options are implemented. Once an option is chosen,

users must conduct according to the supported conducting gestures. While a student is conducting, his/her

gestures are identified and followed by the system using an accurate and relatively simple process. The

conducting is interpreted using a few visual items that clearly show a conducting gesture and reveal its

quality. In addition, aural representation informs students of beats or errors when eyes are busy.

1 INTRODUCTION

Since the 1980s, various computer-based conducting

systems have been developed (

Nintendo, 2006)

(

Satoshi, 1998) to allow a student to conduct a piece

of music using a digital system. Most of these

systems focus on the act of conducting instead of

gestures or education. Visual representation as a

straightforward interpretation for a gesture has only

been implemented in one system (

Guy, 1999). The

research described here is intended to present a

gestural interface that is designed and implemented

for pedagogy. It presents both visual and aural

representations for students.

2 RELATED RESEARCH

2.1 Instructional Strategies

As computer and electronic instruments spread,

computer-based musical systems have been a

supplement to traditional teaching approaches (e.g.

printed music notation). Several instructional

strategies, such as programmed learning and drill

and practice, have been used. A system supporting

programmed learning presents some questions and

gives feedback to students’ answer according to

expected one. Drill and practice let students do some

pre-designed activities repeatedly. (

Brandao, 1999)

2.2 Visual Representation of Musical

Parameters

Although it is natural for music education systems to

provide aural responses, since music is based on

hearing, aural responses can interfere with music

being used as an exercise or target. Therefore,

visual representation is also supported in many

music education systems. It is important to note,

however, that visual feedback can interfere with the

learning of visual aspects of music in the same way.

In an example of visual feedback, pianoFORTE

(

Stephen, 1995), a system for piano education, utilizes

different colors and shapes on the original score to

show the difference between the performance of

teachers and students.

2.3 Computer-based Conducting

Systems

A few current conducting systems have a

pedagogical purpose. For example, Wireless sensor

interface and gesture follower (

Frederic, 2007) was

406

Peng L. and Gerhard D. (2009).

A GESTURAL INTERFACE FOR ORCHESTRAL CONDUCTING EDUCATION.

In Proceedings of the First International Conference on Computer Supported Education, pages 406-409

DOI: 10.5220/0001967904060409

 SciTePress

designed to find problems in a student's gesture

compared to a teacher's gesture.

Various sensors have been used in computer-

based conducting systems. Acceleration sensors

(

Satoshi, 1998) can be equipped on baton-like

devices, which may change the weight and balance

of the controller. Cameras (Paul, 2004) capturing the

front view of a conductor can show a 2-dimensional

trajectory of a conductor's motions. Infrared sensors

(Guy, 1999) only track the movement of infrared

light sources thus avoiding the influence of

background or other confounding visual objects. In

addition, other sensors, such as the Wii Remote

(

Nintendo, 2006), have been used for conducting.

3 INSTRUCTIONAL

STRATEGIES

The gestural interface presented in this paper is

designed for learning and practicing conducting

gestures. Currently, drill and practice has been used.

Once an option (there are five options in all.) is

chosen, students can repeat a certain conducting

gesture to practice it. The feedback from the system

lets students know the accuracy of the gestures.

4 DESIGN AND

IMPLEMENTATION

This gestural interface has five aspects: tracking,

analysis, recognition, following, and response.

The implementation is on an iMac personal

computer using Max/MSP, Jitter, and Java. Once the

system is run, a main window (Figure 1) is shown on

the screen. It displays the menu, the conducting

window, and the information related to tempo and

dynamics. The visual feedback is also displayed on

this main window.

For the right hand, there are two modes: the

option selection mode and the conducting mode. The

“Menu” bar is used to go back to the menu area

(option selection mode). In the menu, if students

stay on an option, for example 2-Beat, for a period

of time, the focus will be moved back to the

conducting window (the conducting mode). An

infrared baton is used as both a mouse and an

infrared light source. Thus, a lot time is saved on the

switch between system manipulation and

conducting.

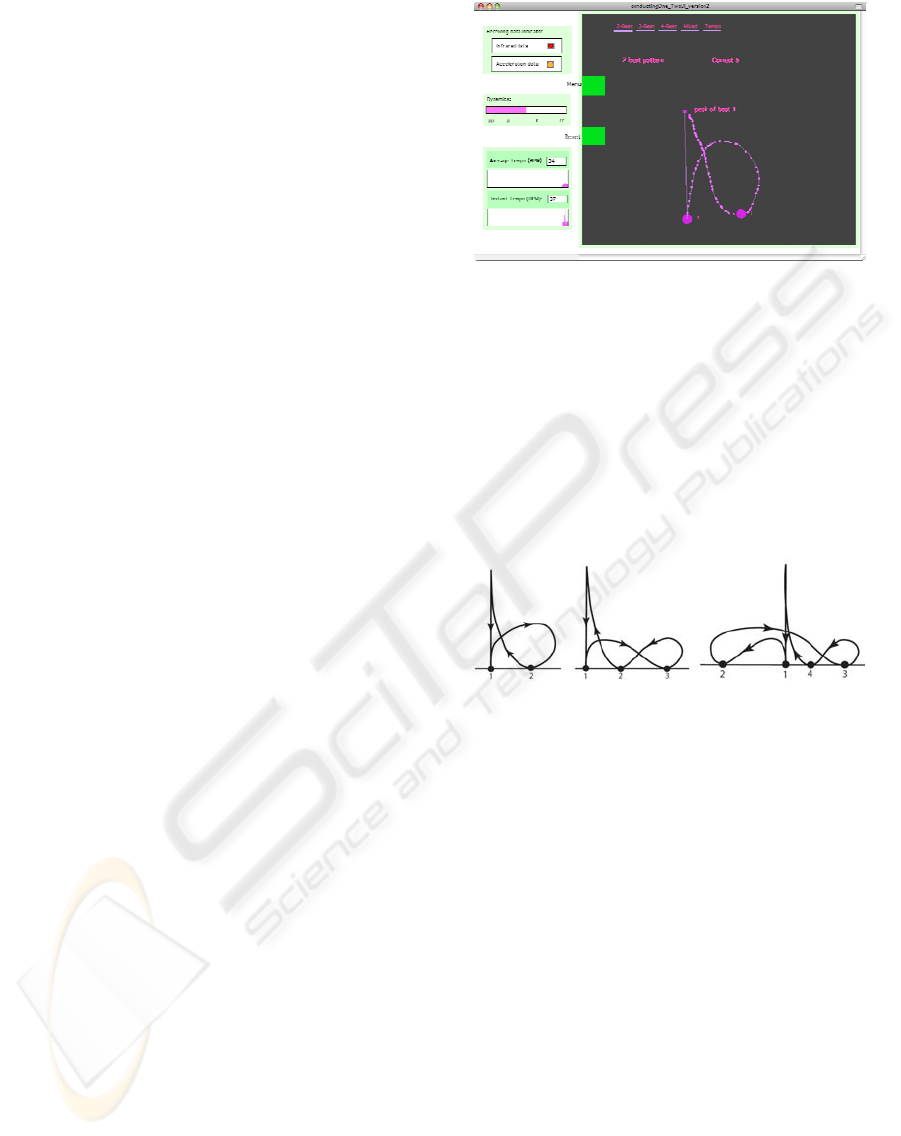

Figure 1: A snapshot of the main window.

4.1 Gestures

When conducting, the movements of both the right

hand and the left hand are located in a chest-high

virtual rectangle named the conducting window.

For the right hand, this gestural interface focuses

on expressive legato gestures (continuous, curved)

as shown in Figure 2 (

Joseph, 2000) (Brock, 1989). It

can be extended to support other beat patterns.

Figure 2: 2-beat pattern, 3-beat pattern, and 4-beat pattern.

For the left hand, the gestures to show dynamics

are supported. When the left hand is held with the

palm facing up, it means louder. The palm facing out

means softer playing.

4.2 Gesture Tracking

The system described in this paper uses an infrared

sensor because it has higher sensitivity and less

computation time compared to systems using a video

camera, and data captured by an infrared sensor is

easier for visualization compared to those collected

by an acceleration sensor.

The infrared baton (Figure 3) used in this

gestural interface consists of a conducting baton, an

infrared LED (110 degrees viewing angle), a button,

and a battery. During conducting, a student holds the

infrared baton in the right hand like holding a real

conducting baton and presses the baton using his/her

thumb. Thus, it is not difficult for a student to learn

to use. A Wii Remote (Figure 4) is employed as an

infrared camera in front of a student. An acceleration

A GESTURAL INTERFACE FOR ORCHESTRAL CONDUCTING EDUCATION

407

sensor named WiTilt v2.5 (Figure 4) is applied to

capture the movement of the left hand.

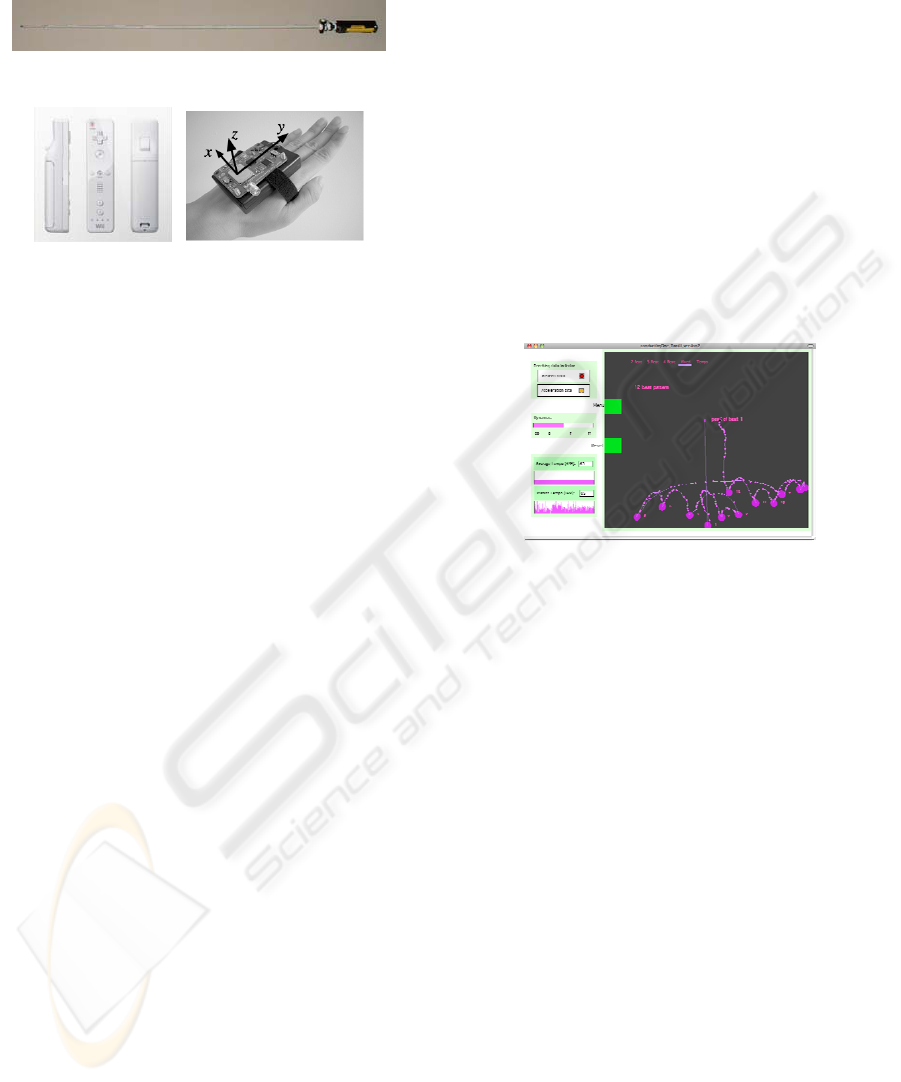

Figure 3: The infrared baton.

Figure 4: Wii Remote (from (Wii, 2008)) and WiTilt v2.5.

4.3 Gesture Analysis

The features for the right hand consist of coordinates

and beats. Coordinates of the tip of a baton at each

time are used to generate beats, fundamental

components of a beat pattern. Figure 2 shows that a

beat always occurs at the vertical minimum of a

movement. A beat detection algorithm is developed

to detect the peaks and troughs of a trajectory.

The results of gesture analysis are displayed as

shown in Figure 1. All coordinates are small dots. A

trough (beat) is represented with a larger dot. Thus,

it is easy for a student to visually differentiate one

feature from another. A curve connects these dots

and represents the trajectory of the movement. The

result is a quantitative interpretation which shows

students exactly what their gesture looked like, and

can be compared to a reference gesture from a

teacher or textbook.

For the left hand, 3-dimensional acceleration

data are features and will be used directly in gesture

recognition/following.

4.4 Gesture Recognition

4.4.1 Task-target Gestures

The first gesture recognition is able to tell whether a

beat pattern is conducted correctly or not on the

basis of an assumption that the beat pattern is known

beforehand. It is reasonable because the conductor

and performers in an orchestra have the score that

indicates the time signature. Currently, it only

supports 2-beat, 3-beat, and 4-beat per measure. It is

not difficult to extend to other patterns.

Initially, the downbeat is detected as a downward

motion based on horizontal coordinate comparison

and represented visually by a vertical line.

Subsequent beats are then detected according to their

coordinate position relative to the downbeat. The

recognized result is displayed on the upper left side

of the conducting window as shown in Figure 1.

The accuracy of this recognition depends on the

downbeat identification and the quality of other

beats. If the student performs the gesture correctly,

the system recognizes it and rewards the student.

4.4.2 Free-form Conducting Gestures

The second recognition is a more general one,

allowing the student to conduct any beat pattern. The

downbeat is detected first, as for the task-target

gestures, and then the number of beats is

accumulated until the next downbeat is found. The

amount of beats reveals the beat pattern performed.

Figure 5 shows an example of 12-beat patterns.

Figure 5: An example of 12-beat pattern.

The downbeat of a subsequent gesture affects the

recognition accuracy because an incorrect downbeat

does not stop the beat counter. As a result, the

number of beats increases until a beat is identified as

a downbeat.

4.5 Gesture Following

4.5.1 Tempo Tracking

Tempo tracking reveals the speed of conducting,

enabling a student to practice consistent timing.

Each time a beat occurs, the value of the tempo will

be calculated using beats per minute (BPM). Both

average and instant values are supported. The

average value is a moving average and estimated

based on the past 10 beats. Therefore, it can follow

the changes, especially the significant changes, in

tempo quickly and also show the speed trend of

conducting clearly. The instant value is intended to

show current speed of conducting.

There are two representations for the value of the

tempo (Figure 5). The numerical tempo value is a

value at a certain time. The diagram clearly shows

CSEDU 2009 - International Conference on Computer Supported Education

408

the changes of the tempo in terms of remaining

steady, the increase, and the decrease.

An experiment was performed to demonstrate the

accuracy of the tempo tracking system. Individuals

were asked to conduct a piece at a specific tempo

measured in real time. Results are shown in Table 1.

Table 1: Comparison between the calculated average

tempo and the real average tempo.

4.5.2 Dynamics Tracking

Dynamics tracking is for the left hand and done on

the basis of 3-dimensional accelerometer values

measuring tilt. As the orientation of the left hand

changes, the tilt values change corresponding to the

intended change in dynamics. A particular hand

position equates to a specific dynamic, and the

recognized result is shown using a slider, which is a

conventional visual representation for the volume

and easy to understand for students.

4.6 Response

In this gestural interface, visual and aural feedback

are presented once a gesture is recognized.

Visual representation is intended to present a

more direct interpretation to gestures and can be

compared to that of a teacher’s or a diagram on a

textbook. It may be easier for students to adjust and

improve their gestures.

Aural representation consists of playing a certain

tone corresponding to the recognition of a certain

beat. For example, C4 will be played when the

downbeat is found. This kind of aural representation

gives students the feedback they need while

conducting, but does not require them to keep their

eyes on the screen. Correct gestures and errors are

identified this way. This aural representation also

allows professionals and instructors to use the

system as they conduct a real orchestra.

5 CONCLUSIONS

This gestural interface aims to help conducting

students learn and practice conducting gestures. The

Wii Remote is not expensive and easy to acquire.

Students do not need to spend time learning how to

manipulate the whole system because real

conducting gestures are employed with an infrared

baton, which is similar to a real baton. Both visual

and aural representations are presented to students.

The process of gesture recognition and following is

simple, fast, and accurate.

REFERENCES

Brandao M., Wiggins G., Pain H., 1999. Computers in

music education. In Proceedings of the AISB'99

Symposium on Musical Creativity.

Brock McElheran, 1989. Conducting technique for

beginners and professionals revised edition, Oxford

University Press.

Frederic Bevilacqua, Fabrice Guedy, Norbert Schnell,

Emmanuel Flety, Nicolas Leroy, 2007. Wireless

sensor interface and gesture-follower for music

pedagogy. In Proceedings of the 7th international

conference on New interfaces for musical expression.

Pages 124-129.

Guy E. Garnett, Fernando Malvar-Ruiz, Fred Stoltzfus,

1999. Virtual conducting practice environment. In

Proceedings of the International Computer Music

Conference. ICMA. Pages 371-374.

Joseph A. Labuta, 2000. Basic conducting techniques,

fourth edition, Prentice Hall.

Nintendo, 2006. Wii Music Orchestra.

http://www.gamespot.com/wii/puzzle/wiimusicorchest

ra/index.html. Retrieved May 18, 2008.

Paul Kolesnik, 2004. Conducting gesture recognition,

analysis and performance system. Master's thesis,

McGill University.

Satoshi Usa, Yasunori Mochida, 1998. A multi-modal

conducting simulator. In Proceedings of the

International Computer Music Conference. ICMA.

Pages 25-32.

Stephen W. Smoliar, John A. Waterworth, Peter R.

Kellock, 1995. pianoFORTE: a system for piano

education beyond notation literacy. In

MULTIMEDIA'95: Proceedings of the 3rd ACM

International Conference on Multimedia. ACM Press.

Pages 457-465.

The Wii Remote,

http://www.nintendo.com/wii/what/controllers/remote,

Retrieved May 18, 2008.

Amount

(2-beat)

Calculated tempo

by the system

(BPM)

Real tempo by a

stopwatch (BPM)

15 115.38 115.68

30 99.45 100.19

45 128.27 128.85

A GESTURAL INTERFACE FOR ORCHESTRAL CONDUCTING EDUCATION

409
