C PORTAL

Online Educational Framework for C and C++ Languages

Ad´am G´abor, D´enes N´emeth and Imre Szeber´enyi

Budapest University of Technology and Economics, M˝uegyetem rkp 3-5, Budapest, Hungary

Keywords:

C programming language, C++ programming language, Educational portal, Moodle framework, GRE security,

Chroot, Resource limitation.

Abstract:

This paper introduces the C portal educational framework, which helps teachers to assign C and C++ program-

ming language problems to students and automatically compile and test the received solutions in a secured

environment. The paper evaluates how the compiled untrusted binary can be executed with minimal security

risk with focus on privilege escalation and uncontrolled resource usage. The paper also proposes how the

system can be integrated in the existing systems intended for programming education like Moodle or dokeos.

1 INTRODUCTION

For more than a thousand year papers, letters or books

were the main medium for delivering thoughts, ideas

and theories between people. This has changed a lot

with the spread of interconnected and telecommuni-

cation systems. These technologies make it possible

to receive, send and share huge amount of informa-

tion within a fraction of a second. The effects of these

developments are estimated to be as big as the ﬁrst

industrial revolution.

These changes affect all aspects of the everyday

life, which includes the educational system too. Our

goal was to create an on-line interactive e-learning

system for the C and C++ programming languages.

There are several e-learning systems, but most of

them can only handle tests or essay-like exams and

hardly any supports the teaching of programming lan-

guages. The tools of this type mainly deal with inter-

preted languages like Prolog, ASP, PHP, Lisp, etc. or

languages which can be easily tested in a secured con-

tainer like Java or ran on the client side.

The C language is something completely differ-

ent. It is a compiled language usually used for system

programming, which means that it is hard to safely

execute a C based program either by previous pars-

ing of the source code or limit the capabilities of the

binary executable by the operating system.

The goal of our system is to provide an environ-

ment in which solutions to C based e-problems can be

safely tested. This environment consists of two parts:

1) a plugabble user interface described in the 2.1

section, 2) a batch system described in sections 2.3

and 2.4. The batch system is responsible for han-

dling, executing and testing the submitted solutions.

The last section of the paper covers the security risks

and implications of the presented system.

2 THE INFRASTRUCTURE

The structure of the system consists of four logical

components, which are illustrated on ﬁgure 1. The

ﬁrst is the user interface which handles the interac-

tion with students and teachers. The interoperabil-

ity interface stores all input and output data in a re-

lational databases and shares it between the different

componentsof the system. The third component is the

workload manager, which is responsible for global

job scheduling and separating the database from the

unsafe running jobs, the last component is the execu-

tion system, which executes, tests and separates jobs

from eachother. This last component can be com-

posed of multiple physical computers. The last two

components are called the batch system.

2.1 User Interfaces

The platform where certain users can interact with

the system are the user interfaces. These are dy-

namic web pages, accessed via SSL using certiﬁcates,

248

Gábor Á., Németh D. and Szeberényi I. (2009).

C PORTAL - Online Educational Framework for C and C++ Languages.

In Proceedings of the First International Conference on Computer Supported Education, pages 247-252

DOI: 10.5220/0001975502470252

 SciTePress

Execution system instance

Globbal scheduler

Job

acceptor

Local scheduler

Queued

jobs

Transfer

service

Database

Web

interface

Result

provider

Executed

jobs

Executor

Moodle

interface

Workload manager

Interoperability

interface

User

interfaces

Execution host

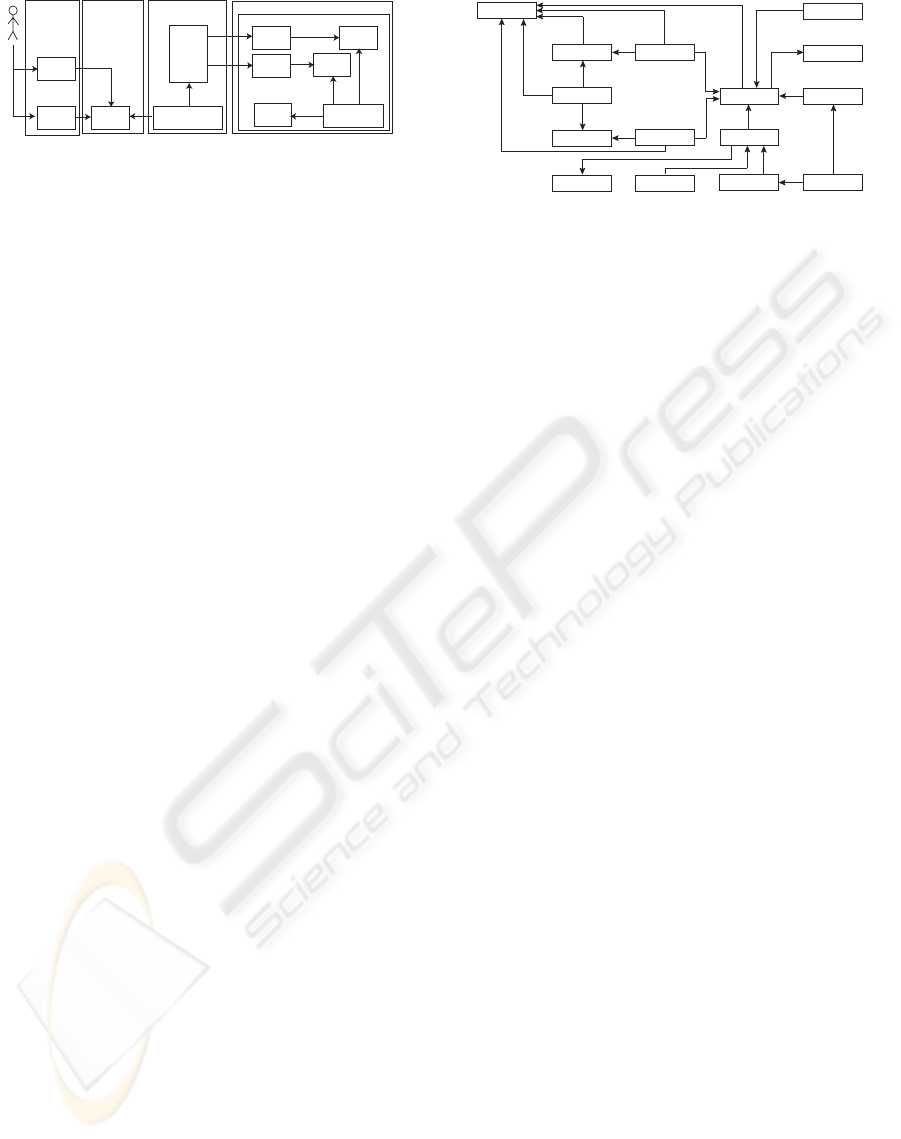

Figure 1: The structure of the system.

where the user has to authenticate with a username

and password. The web pages are implemented using

PHP, a widespread script language for developing dy-

namic web pages and applications (McArthur, 2008;

Adam Trachtenberg, 2006). The user interface on de-

velopment level is separated to two distinct layers: the

data processing layer and the presentation layer.

The data processing layer collects all the input

generated by the user (via submitting a form, or

just clicking on a hyperlink), and executes the script

for the actual target object. After the processing

is ﬁnished, including veriﬁcations, validations and

database transactions, the presentation layer is called

by the appropriate parameters describing the structure

of the page to be displayed and the generated content.

The presentation layer is a collection of self writ-

ten and Smarty template engine (Sweat, 2005) tem-

plates. The Smarty template engine is also imple-

mented in PHP, and gives a very simpliﬁed but en-

hanced way of generating web pages from predeﬁned

templates by providing an object oriented api for pass-

ing content.

All input generated by the user is being veriﬁed

and validated to prevent malicious code to be inserted

and executed, to prevent cross-side scripting and sql

injections. The input types are classiﬁed in order to

how the content is to be veriﬁed and validated. There

are input types for what the user can only choose a

value, but there are free input ﬁelds which have in-

put scope boundaries. These inputs are supervised by

regular expressions and built in methods.

Apart from php and database security the most

threat comes from the user written C and C++ codes

which are too difﬁcult (impossible) to ﬁlter. There-

fore we rely on the strength of the execution system

defense mechanism.

There are two completed user interfaces ready and

in use: the administrative and the student interfaces.

The integration with the Moodle e-learning content

management system is already started.

2.2 Interoperability Interfaces

The interoperability interface has two functionali-

ties: First to provide asynchronous communication

between the global scheduler and the user interfaces.

admin_user

member

user

user_assign

groups

group_assign

ex_type

exercise_files

test_result

solution_files

result

solution

exercise

test_case

ehosts

Figure 2: The schema of the database structure.

Secondly to act as a data storage for the neighbor-

ing components. The best choice for both tasks was

an SQL database (Koﬂer, 2005; Dubois, 2007). The

complex structure of the database used by these mod-

ules is shown on Fig. 2. This structure was chosen

to provide maximal modularity and scalability for the

system.

As this interface is used by more than one com-

ponent, it has to provide granular data to each sub-

system without the ability to identify the component

which is doing the query. Tables have been divided

to ensure ﬂexibility, and to provide a simple way of

accessing data independent from the type or content,

while keeping the existing connections among the ob-

jects. As of security concerns, each component were

granted different access privileges to the database -

select, insert, update and delete rights -, keeping the

number of these rights at the minimum, but still suf-

ﬁcient to ensure the expected functionality to be pre-

sented by each component. This is done by deﬁning

roles - collection of privileges -, and associating them

to the appropriate subsystem.

Further concern was to enable the integration and

cooperation of this system with existing, e-learning

projects, such as Moodle (Cole and Foster, 2007; Ko-

rte, 2007). As being a complex e-learning content

managementsystem, Moodlealready has a well docu-

mented, distributed database infrastructure with more

than two hundred tables. It includes the storage of

a wide variety of educational data templates, such as

tests, quizzes, discussion boards, etc.

As the redesign of the database schema of Moodle

is impossible we had to add new ﬁelds and tables to

our database to ensure the functionality of the new

Moodle module, while keeping the connections and

data structure provided by Moodle untouched.

2.3 The Workload Manager

The workload manager runs the global scheduler,

which implements two functionalities: the informa-

tion collector for the execution system and the global

resource broker. The information collector gathers all

C PORTAL - Online Educational Framework for C and C++ Languages

249

metrics (queued jobs, running jobs, available slots)

of the execution system instances, these are needed

for global load balancing. The global resource broker

uses this information to track and schedule the jobs.

The job scheduling covers three tasks: 1) query of

the interoperabilityinterface for new jobs, 2) selection

of an executor instance for job locations and 3) trans-

fer of the results of the solutions from the executor

instance to the database through the interoperability

interface.

The workload manager also contains the transfer

service, which moves the data between the execution

system instances and the workload manager. This is

implemented as an SSH client, which holds the pri-

vate keys of the job acceptor and the result provider

users of each execution system instance. This oper-

ates in a push/pull mode, which means that it pushes

a job to the execution system instance, and periodi-

cally queries the result provider for available results.

The pull mode on one side has a slight overhead, but

on the other side it allows a much clearer separation

between the two systems.

2.4 The Execution System

The execution system consists of several execution

hosts. Each host runs four services. These are job ac-

ceptor, result provider, execution and local scheduler

services. These services are explained in the follow-

ing sections.

Execution system hosts are physically separated

from the Internet by sitting in a private network which

is connected to the workload manager over a switch

but not to Internet. This separation prevents all com-

puters except the workload manager to communicate

with the executor hosts.

2.4.1 The Job Acceptor

The job acceptor accepts jobs pushed from the work-

load manager. Currently it is implemented as a simple

SSH server, which only accepts connections from the

workload manager and a unique user which can write

to one single directory, which is the execution queue.

2.4.2 The Result Provider

The result provider is a pullable service, which allows

the transfer service to move the produced result of the

pushed solution back to the workload manager. In

our system it is implemented as a simple SSH server,

which allows a single user of the transfer service to

handle the results queue:

• count the number of entries in a single directory,

which represents the results queue

create home

copy sources

compile

hidden

sources

remove hidden sources

compile

remaining

sources

link

copy back executeable

destroy home

Local

scheduler

Executor

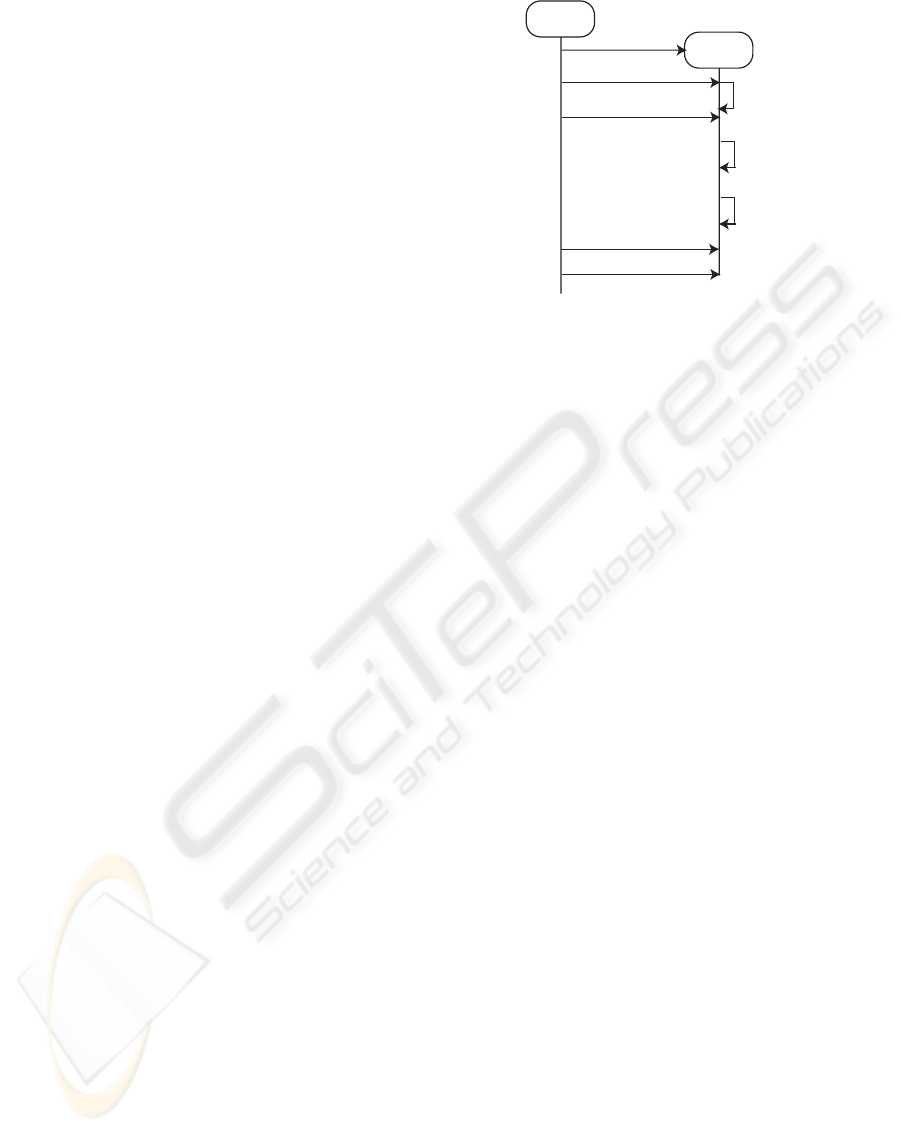

Figure 3: The comilation process.

• retrieve and remove elements from this queue

2.4.3 The Local Scheduler

The local scheduler is responsible for two tasks. 1)

measure the metrics related to the execution hosts.

These metrics are the load and the number of run-

ning and queried jobs. 2) drive the execution service,

namely to decide which task should be executed from

the received jobs. In the current implementation this

is a shell script running in the background.

2.4.4 The Execution Service

The execution service driven by the local scheduler

provides the safe container for running and testing so-

lutions. The execution environment is a read only

image, which contains a minimal operating system

with pool users used for compiling and executing so-

lutions. If the scheduler notices that a solution needs

to be tested from the local queue it selects a pool

user(PU) and compiles the user supplied and hidden

source ﬁles as illustrated on ﬁgure 3.

The home of the user is a separate memory based

temporary image created on demand and mounted in-

side the read only environment. After the home is

mounted the sources are copied. First the hidden

source ﬁles are compiled, than they are deleted and

only the compiled object ﬁles are available in the fur-

ther steps. After this the user supplied and non-hidden

ﬁles are compiled. If all compilation was success-

ful the objects are linked, and the ﬁnal executable is

copied outside of the read-only environment. Before

the complete home is destroyed the log ﬁle is trans-

ported and parsed outside of the sandbox environment

by the local scheduler.

If everything regarding the compilation process

succeeded according to the settings deﬁned by the in-

CSEDU 2009 - International Conference on Computer Supported Education

250

create home

copy pre script

execute

pre script

copy executeable

destroy home

Local

scheduler

Executor

remove private keys

copy all keys

execute

solution

periodically

check state

resource limits

time limits

kill job

pull results

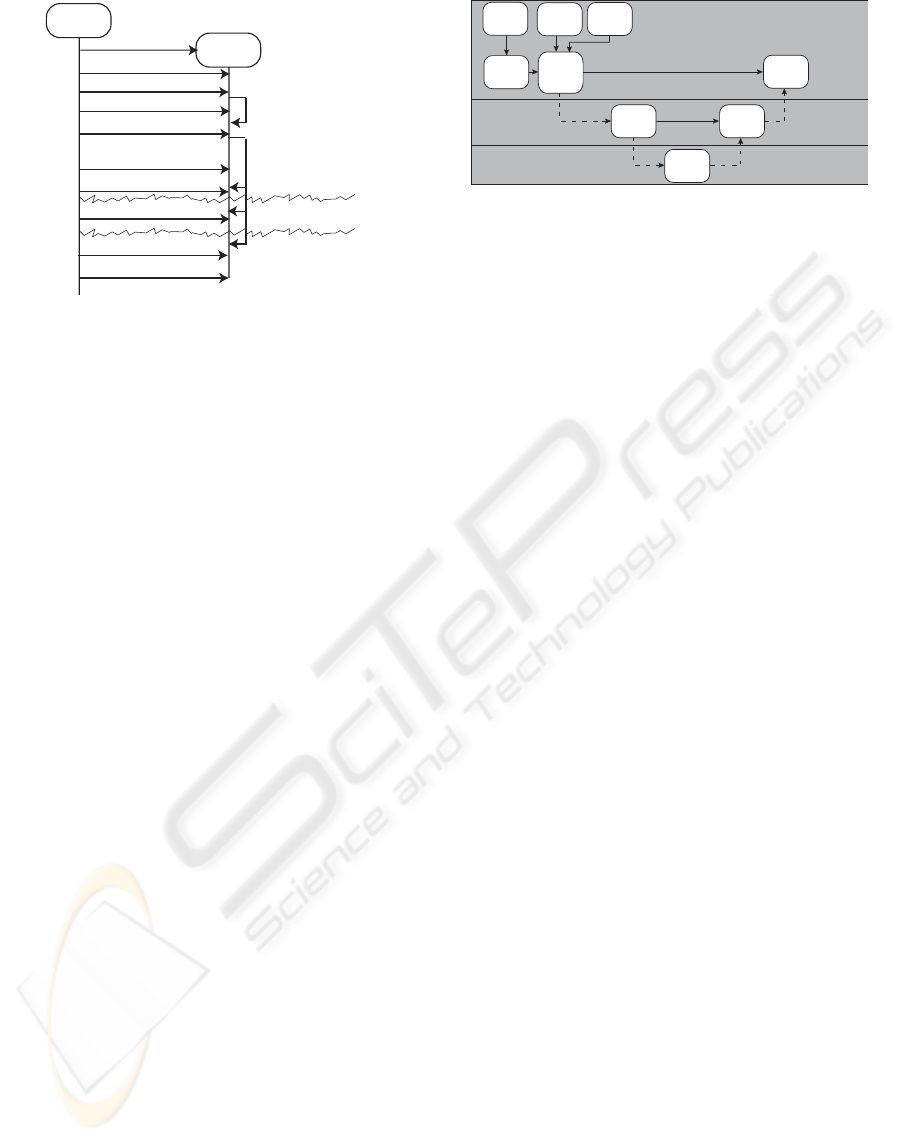

Figure 4: The execution process.

teroperability interface the testing phase begins. In

this phase each test case is executed separately. The

process of a test case execution is illustrated on ﬁgure

4. This process also starts with a temporary home cre-

ation and all keys, the executable and the pre scripts

are copied there. After this step the system executes

the pre script, which can create user speciﬁc input or

data for the executable. After the pre script ﬁnished

the compiled executable is started.

The local scheduler chroots(Joy, ) to the scratch-

box and executes the wrapper of the job, which is bi-

nary that closes the standard input and outputs (stdin,

stdout, stderr) of the wrapper and reopens them: The

ﬁle called INPUT is used as standard input and the

STD.OUT and STD.ERR ﬁles are opened for stan-

dard output and standard error respectively. If the

streams are opened successfully the wrapper calls the

exec system call for the compiled binary.

The following limitations are set for the solution

execution:

1. The shell of the PU is the compiled executable

2. The PU can write only in its home

3. The PU can haveonly one process (it can not fork)

4. The PU can use maximum 32 MB memory

5. The PU can not use the network

6. The PU can not use more then 60 sec CPU time

7. The PU can not use more then 300 sec real time

8. The PU can not access device ﬁles

9. The PU can not access the sys or proc ﬁle system

The pool user is preventedfrom breaching 5, 8 and

9 limitations on kernel level, while the UNIX stan-

dard limits utility is used to enforce limitations 3, 4

and 6. The rule 2 is enforced by using a ﬁle system

for the operating system which lacks write operations

and ismounted as read-only. The home of the user is

a memory ﬁle system. The 1 limit is hard coded into

define

exercise

types

create

exercise

content

manage

students

manage

student

groups

associate

students,

groups and

exercises

create

solution

process

solution

view

result

view

statistics

TEACHER

INTERFACE

STUDENT

INTERFACE

EXECUTION

SYSTEM

Figure 5: The usecase worrkﬂow of the user interfaces.

the read only image. The limitation 7 is enforced by

the local scheduler, which terminates the running pro-

cess if the consumed amount of real time is more than

allowed.

If none of these limitations are breached and the

test case process exits normally, then the post script

is executed. which processes the output and decides

whether the test case is accepted or not. This post

script is a simple shell script, which has access to

the all keys of the test case. If the post script exists

normally it creates a done ﬂag, which is checked by

the local scheduler which moves all data to the results

queue.

2.5 The Workﬂow

The workﬂow is centralized to the lifecycle of an ex-

ercise, shown on Figure 5. The account of the main

administrator is automatically generated, and by au-

thenticating with this account, the administrator has

full management and administrative access to every

object in the system. The main administrator has to

initialize the database by inserting the available exer-

cise types, and generating the student database. The

admin has full access to the user management mod-

ule, so it is possible to add users when the system

operates.

As the user upload module accesses the interoper-

ability interface, ﬁve pairs of public and private keys

are generated automatically and associated to each

student user, thus enabling the modules of the exe-

cution system to ensure privacy by accommodating

encryption algorithms without querying the database

for personal data.

The main admin may also generate sub-admin ac-

counts in the same way as students (for the assistant

lecturers for example). Sub-admins can create student

groups conformly with the labor or seminar groups.

The next step is the creation of an exercise. This

is a complex task for the teacher user, because all the

required information have to be inputted. These pa-

rameters describe the method of giving the exercises

to the students, and specify the parameters of how the

solutions are to be veriﬁed, validated and evaluated.

C PORTAL - Online Educational Framework for C and C++ Languages

251

Header ﬁle contents can be added to provide dis-

tinctive api to the students, as well as hidden ﬁles

needed only for the compiler while building and test-

ing the program from the source code handed in.

When setting the speciﬁcation of the exercise, the

teacher may add student speciﬁc parameters automat-

ically generated by the system at runtime. This can

be done by explicitly the teacher: the body of the pa-

rameter generating script can be entered manually for

each exercise, so as the students receive the exercise

speciﬁcation, the parameters are generated by the in-

put function body as a static part of the speciﬁcation,

so the student acquire these parameters transparently.

Any number of test cases can be assigned to the exer-

cise.

At the point when the execution system success-

fully compiles the solution source code, it runs a se-

ries of tests deﬁned by the creator by input and output.

Prescripts and postscript can be also deﬁned to each

test case, enabling the conﬁguration of the execution

system to react and function in a unique way, while

processing the solutions and evaluating each test case

for each exercise. The creator has full access to man-

age and modify the settings of the exercise while it

is not associated and distributed to the student users.

Other teacher users have read privilege to exercises

of other creators, and can easily create new ones with

using similar settings or header ﬁles.

When an exercise is successfully entered into the

system, every teacher user may assign it indepen-

dently from the identity of the creator of the exercise

to single student users. Exercises can also be assigned

to groups of students (even if it is already assigned to

individual student users), but with the limitation that

the teacher user may only assign it to groups created

by their own. The procedure of removing associations

is similar.

As a student user authenticates on the student web

interface, the assigned and completed exercises are

prompted. In this page a student may hand in so-

lutions to the associated exercises - the number of

possible tries, the content length and the maximum

number of uploadable ﬁle content are all deﬁned by

teacher users -, and is also able to view the results of

each previously handed in solution. When a solution

is submitted, it is passed to the interoperability inter-

face, from where the execution service takes all the

parameters of the actual exercise, and the contents of

the solution. After the evaluation is completed, and

result data is written back into the database, the status

of the solution changes to evaluated, thus enabling the

web page for the student to view the results of the pro-

vided solution and maybe create a newer one based on

the evaluated solution.

3 SECURITY CONSIDERATIONS

During the development of the framework the two

most important principles used were to keep the sys-

tem simple, stupid and use only well proven, out

of the box technologies. Since no system can pro-

vide 100 percent protection against all local exploits,

one of the best choices is to keep the used technolo-

gies as updated as possible and use the strongest en-

forced privilege and service separation and prevent

the spreading of the compromisation.(Bishop, 2003)

In an order to secure the infrastructure we run each

functionality from 1-4 on separate nodes, and deploy

ﬁrewalls between them.(Rash, 2007) These ﬁrewalls

should allow only the absolutely necessary network

communication between the services. The physically

separated part of the infrastructure are the execution

instances, the most easily breachable part of the sys-

tem. They are only connected to the workload man-

ager, which drops every incoming network packets

and only allows the SSH client of the transportation

service to reach the executor instances. This makes it

impossible for the executor instance to reach the rest

of the infrastructure. Even if the execution system is

compromised, the rest of the system stays protected

from internal attacks.

The workload manager runs the global scheduler

as a non root user, which on one hand writes to the

execution system through SSH and to the interoper-

ability interface through PHP and MySQL. It accepts

incoming connections only from the user interface

while anything else is dropped. It is difﬁcult to by-

pass this node as the rest of the system is connected

only to this and there is no direct transfer of any net-

work trafﬁc.

The hardest part is the protection of the execu-

tor system. This not only includes the privilege pro-

tection, but the ensuring that the running test do not

jeopardize the system, by creating dead locks, starva-

tion or high load, which renders the system unusable.

These problems are further explained in the (Daniel

J. Barrett, 2003) and (Bishop, 2003) books.

The privilege protection is achieved by the tech-

nologies explained in the limitation enumeration, but

the rest has to be achieved by the created architecture.

The too extensive I/O usage limiting is achieved by

using a read only scratch box and a temporary 2 MB

size tmpfs created in the memory acting as the home

of the pool user. This creates a maximal disk quota

and converts disk usage to memory access, which is

indirectly the already limited CPU usage.

The pool user is prevented from network usage by

GRE security. This is required to protect the network

from ﬂooding. (Simson Garﬁnkel, 2003; Vacca, 2007)

CSEDU 2009 - International Conference on Computer Supported Education

252

The UNIX based systems normally can not handle

more then 65536 processes, so the pool users must be

preventedfrom ﬂooding the system with huge amount

of processes, so the maximal number of processes for

a single pool user is limited to one.

The pool users are separated from each other by

the standard UNIX UID/GID structure to prevent un-

wanted interference.

Above these limitations the solutions of the stu-

dents are fairly queued, which means that the system

tries to allocate the same amount of resources to each

student. This prevents a single user to ﬂood the sys-

tem with jobs, which wait in the queue and delay the

solutions of other users for a longer amount of time.

On the interoperability interface the backups of

the databases must be periodically stored on a sep-

arate node. There are several tools to backup a

database, so secured backups are out of the scope of

this paper.

We can draw the following conclusion on the se-

curity side: This system is an educational supporting

framework and not a mission critical banking system

or airplane control unit and should not be treated as

such. If an incident happens, the main goal is to pro-

tect the database, notice the event and identify the stu-

dent who submitted the dangerous code.

If only the executor instance is compromised, it

can be easily reinstalled, since it holds no states. The

lost jobs, which are not transported back to the work-

load manager can be rerun.

4 CONCLUSIONS

As the implementation of the necessary core function-

ality of the system has been ﬁnished, our goal was

to construct an environment consisting of distributed

elements capable of compiling and testing C based

problem solutions. Private and public testing proved

that the modules of the system are well constructed

and stable, and its usage did not produce any unex-

pected event.

Due to its distributed structure, the vulnerability

of singular components does not affect the stability of

the whole system, thus it provides a stable solution for

a distributed system to be applied in an educational

institute. As the system is already being used by more

than half a year by more than two hundred students

without severe errors or malfunctions, we can state

that our security assumptions were correct. As usage

increased many software ergonomical problems were

resolved and interfaces were made more user-friendly.

There are lots of e-learning platform and portal

implementations used by major institutions, and as

our framework was designed to be compact but modu-

larly structured, it is a bearable and sustainable devel-

opment to integrate our system as a module to these

bigger platforms. The integration into the Moodle

e-learning content management system is almost ﬁn-

ished.

ACKNOWLEDGMENTS

Part of this work was funded by the P´azm´any P

ter

programm (RET-06/2005) of the National Ofﬁce for

Research and Technology, the authors would like to

thank the EGEE-III (INFSO-RI-222667) program.

REFERENCES

Adam Trachtenberg, D. S. (2006). PHP Cookbook.

O’Reilly.

Bishop, M. (2003). Computer security: Art and science.

Addison-Wesley Publishing Co.

Cole, J. and Foster, H. (2007). Using Moodle: Teaching

with the Popular Open Source Course Management

System. O’Reilly Media, Inc., 2nd edition.

Daniel J. Barrett, Richard E. Silverman, R. G. B. (2003).

Linux Security Cookbook. O’Reilly Media, Inc.

Dubois, P. (2007). MySQL Cookbook. O’Reilly, 2nd edi-

tion.

Joy, B. Chroot on unix operating systems.

http://en.wikipedia.org/wiki/Chroot.

Koﬂer, M. (2005). The Deﬁnitive Guide to MySQL 5.

Apress, 3rd edition.

Korte, L. (2007). Moodle Magic: Make It Happen. FTC.

McArthur, K. (2008). Pro PHP: Patterns, Framework, Test-

ing and More. Apress.

Rash, M. (2007). Linux Firewalls - Attack Detection and

Response. O’Reilly Media, Inc.

Simson Garﬁnkel, Gene Spafford, A. S. (2003). Practical

UNIX and Internet Security. O’Reilly Media, Inc.

Sweat, J. E. (2005). PHP Architect’s Guide to PHP Design

Patterns. Marco Tabini & Associates, Inc.

Vacca, J. R. (2007). Practical Internet security. No Starch

Press.

C PORTAL - Online Educational Framework for C and C++ Languages

253
