QGM – A SYSTEM TO IMPROVE MATHS e-LEARNING
José Casimiro Pereira
1
and Joaquim Sousa Pinto
2
1
Instituto Politécnico de Tomar, Quinta do Contador, 2300-313 Tomar, Portugal
2
Universidade de Aveiro, Campus de Santiago, 3810-193 Aveiro, Portugal
Keywords: Learning Objects, LOM, MathML, XML.
Abstract: The main goal of Projecto Matemática Ensino (Mathematics Teaching Project) – PmatE – is to promote the
learning of mathematics. To achieve that, PmatE has been developing since 1990 an internet project
especially designed to increase the interest of students in the discipline. The core of the Project anchors on
the so-called “Questions Generator Model” (from the Portuguese “Modelo Gerador de Questões”). Each
“model” is a tool based on parameterized expressions, which usually allows thousands of different questions
to be generated (different formulations of the same “model”) formally equivalent in terms of pedagogic
content. The scope of this paper is to redesign the former “model” using the IEEE LOM’s structure to define
the learning object and redefine the model structure itself to allow for independence of the technological
platform used to support the Project.
1 INTRODUCTION
The Mathematics Department of Aveiro University
(Portugal) has been developing a project named
Projecto Matemática Ensino (Mathematics Teaching
Project) – PmatE since 1990 which aims at
promoting the learning of mathematics using new
information technologies. The central focus of this
project is a structure called modelo gerador de
questões (questions generator model) (Vieira,
Carvalho et al., 2004).
Each questions generator model (QGM) is a
piece of software that generates questions about a
predefined theme, based upon scientific and learning
objectives. These questions are randomly generated
with parameterized expressions; the parameters
depend on the age and educational level of their
users. For each question, there are at least four
possible answers, again randomly chosen among a
set of possible answers.
Matching a question to an answer a true or false
statement is obtained. All questions may be true or
false. The user’s task is to answer correctly to each
statement. The QGM’s may be organized in
“competition mode” or in “evaluation and learning
mode”. In the competition mode, a collaborative
competition is suggested. In the learning and
evaluation mode, the cooperation among
schoolmates and teacher is an intrinsic aspect of the
process (Isidro, Pinto et al., 2005). Whatever the
mode, the evaluations to be performed by the
students will use, approximately, 20 models.
The randomness of the QGM’s is the key of this
project. In fact, for the same QGM thousands of
different formulations with the same pedagogical
and scientific value can be formulated. This feature
enables two computers running side-by-side to have
different questions and a different set of possible
answers while using the same QGM. Combining the
previous statement with the fact that the time to
perform the evaluation is restricted, makes almost
impossible for two students to practise any form of
plagiarism (Pinto, Oliveira et al., 2007).
To materialise this project, PmatE has
continuously developed an information system that
offers a set of contents related with the several
disciplines of Mathematics. Portuguese and Biology
QGM’s are also available recently. These learning
materials are, however, prisoners of the technology
used in their creation. They are all coded in Visual
Basic 6.0 and stored in ActiveX dynamic link
libraries (dll’s). The content of these libraries are
used to generate the questions that will be presented
in a browser, using the ASP technology (Isidro,
Fernandes et al., 2003). Such technological
260
Pereira J. and Sousa Pinto J. (2009).
QGM A SYSTEM TO IMPROVE MATHS e-LEARNING.
In Proceedings of the First International Conference on Computer Supported Education, pages 259-265
DOI: 10.5220/0001976302590265
Copyright
c
SciTePress
dependency implies that sharing or reusing QGM’s
is very difficult, if not impossible.
The next two pictures show the system look and
feel. They represent two distinct formulations of the
QGM with ID 76.

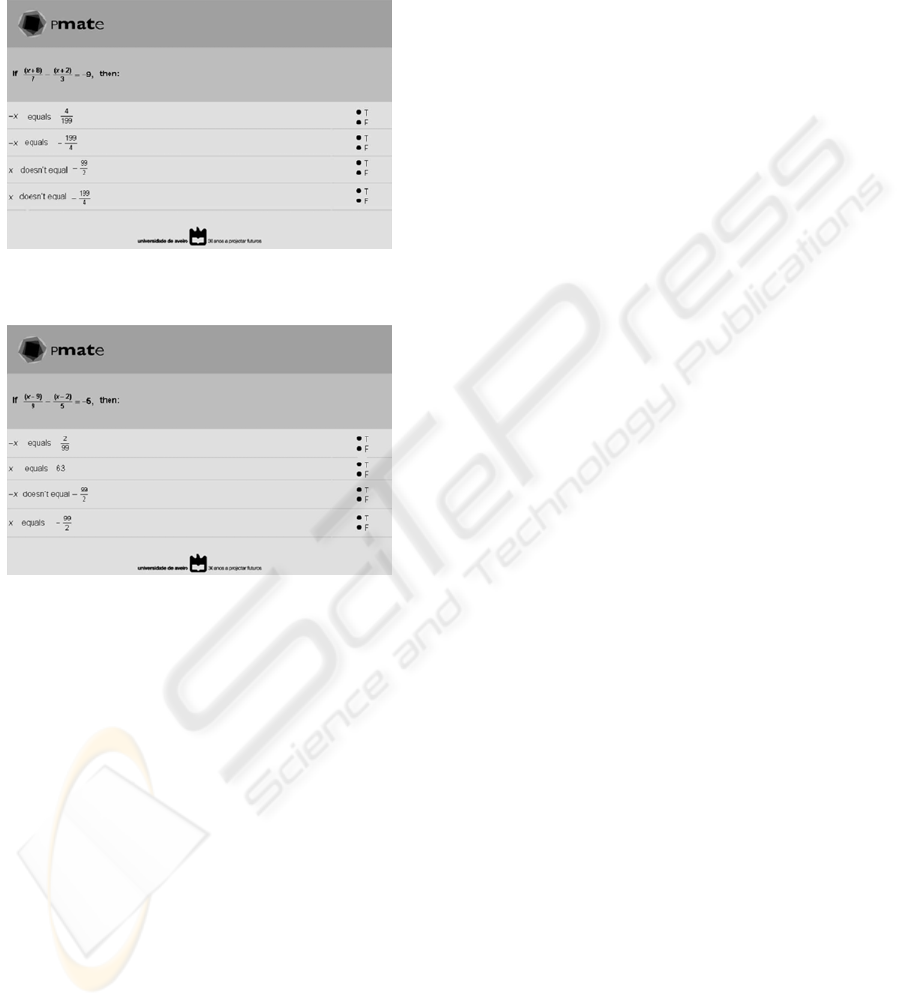

Figure 1: Using QGM number 76 (Pinto, Oliveira et al.,
2007).
Figure 2: Another formulation of QGM number 76 (Pinto,
Oliveira et al., 2007).
The pictures above show the power of the
QGM’s. To make it possible for the QGM’s to be
shared throughout Portuguese and international
networks of Learning Objects, PmatE is promoting
their adaptation. To do that, we are dealing with two
distinct concerns: the QGM’s must become
independent from the technological platform and
must comply with the international standards used to
describe Learning Objects.
In this article, a description is given of the efforts
made to transform the QGM’s. First, we present the
QGM LOM structure and the arrangements made to
adapt it. Then we present the new QGM structure
and syntax and finally we present the efforts done to
test it.
2 LEARNING OBJECTS
There is no consensus on the definition of Learning
Objects (LO) (Daniel and Mohan, 2004). Therefore,
we will use the IEEE definition: “a learning object is
defined as any entity, digital or non-digital, that may
be used for learning, education or training” (IEEE,
2002).
According to that definition, we can consider that
the QGM’s defined and built by PmatE are suitable
to be viewed as learning objects.
2.1 Learning Objects Metadata (LOM)
Before we start, just a few introductory questions:
What is a Learning Object? In a simple way, a
Learning Object is the conjunction of metadata
about a learning object and the learning object itself.
What is metadata? Metadata is knowledge about
knowledge (Taylor, 2003)) or information about
information. Why is metadata so important? The
major reason is that with such information we are
able to understand the usefulness of a learning
object.
In 15 July 2002, the IEEE published the final
“Draft Standard About Learning Objects Metadata”
(IEEE, 2002). This was the end of a long journey
that started in 1997 with the efforts of the IMS
Project, a non-profit consortium of US institutions of
higher education (Consortium, 2006). They aimed to
develop a specification for learning content metadata
and an open market-based standard for online
learning. One year later, IMS and ARIADNE
(Alliance of Remote Instructional Authoring and
Distribution Networks for Europe) proposed
together to the IEEE, a new proposal of the Learning
Objects Metadata. After four years of development,
the final release was published (IEEE, 2002). This
final release proposed a structure to represent the
metadata about an LO. This strongly hierarchical
XML-based structure has nine sessions:
Generaldescribes the general information of
the LO;
Lifecycle – specifies the actual state of the LO
and its evolution;
Meta-Metadata – specifies the knowledge
about the LOM, not about the LO;
Technical – describes the technical
requirements and technical characteristics of
LO;
Educational – describes the pedagogical and
educational characteristics of the LO;
QGM - A SYSTEM TO IMPROVE MATHS e-LEARNING
261
Rights – describes the copyrights and terms of
use of the LO;
Relation – describes the kind of links that this
LO could have with other LOs;
Annotation – in this session comments on the
educational use of the LO can be provided;
Classification – specifies the classification
system of the LO, if any.
Together they form the LOMv1.0 Base Schema.

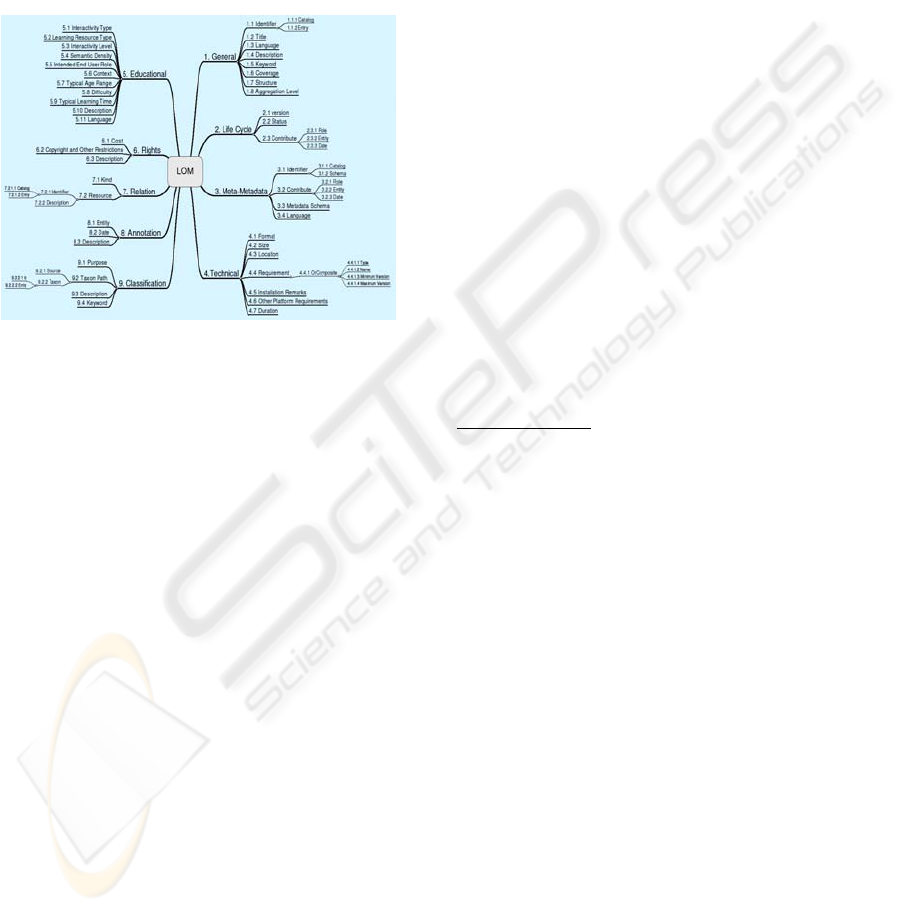

Figure 3: The LOM structure (Barker 2005).
Every element has sub-elements, and several of
them have, again, new sub-elements. All the
elements have their predefined data type. There are
two kinds of data types: aggregate data elements and
simple data elements. Simple data elements have
individual values, defined by scope and data type.
For aggregate data elements, LOM v1.0 Base
Schema does not define individual values.
Whenever possible, the LOM v1.0 Base Schema
restricts the values a user can choose to a predefined
list. This is useful to increase the interoperability of
the LOM within several systems.
For IEEE, LOM can be defined as strictly
conforming if it complies with all the rules and has
no extended elements or, as conforming, if it has
extended elements. Extended elements should have
their own namespace, instead of using the LOM’s
namespace.
2.2 The LOM Models
As mentioned above, the QGMs are captive of the
technological solution that had made them grow.
Bearing that in mind, PmatE started to redefine the
structure of the QGMs. This new model follows the
Learning Object architecture: the QGM has two
distinct sections:
the metadata about the QGM, described using
the LOM structure;
and
the QGM itself.
The metadata section will contain the necessary
to process information to allow compliance with the
LOM’s structure. Almost every LOM elements will
be used.
The QGM internal structure will be completely
rebuilt. The new structure is one of the scopes of this
article and will be further discussed in Session 5.
2.3 The <bibliography> Element
Besides the LOM architecture, it accomplishes
almost everything. However, during the process of
QGMs implementation in LOM, we faced a
problem: where to place the bibliographic references
necessary to produce and support scientifically a
QGM?
Our first attempt was to describe the
bibliographic issues in the
<annotation> element of
the LOM’s structure. Nevertheless, that solution
conflicts with the nature of the LOMs – the
interoperability between several metadata systems.
Therefore, we decided to create a new element
(the 10
th
) in the LOM’s proposed structure – the
<bibliography> element. Our goal is to define the
<bibliography> element accordingly to leading
software in this area that represents the bibliography.
This procedure will allow to export/import
bibliographic information to/from LOM’s structure.
This new element follows the Portuguese
standard for bibliographic references. We also
studied other formats used to describe bibliographic
references, in XML: EndNote (EndNote, 2007) and
BibTex (Patashnik and Feder, 2006; Gundersen and
Hendrikse, 2007).
2.3.1 The <bibliography> Structure – 1
The <bibliography> element has one sub-element
<item> that could be used once or several times.
Each
<item> element represents one bibliographic
reference. This element has one attribute named id,
which is mandatory. The attribute aims to identify
uniquely each
<item> element.
This element is then divided into 9 (nine) sub-
elements: type, authors, titles, publisher, edition
Number, updatedDate, normalizedNumber, accessed
URL, comment. All elements can be used only once.
The
<type>, <authors> and <titles> elements are
mandatory. The others are optional.
CSEDU 2009 - International Conference on Computer Supported Education
262
The
<type> element identifies the class of
bibliographic item and has a list of predetermined
options. Those options are almost every types
defined by (EndNote, 2007): Ancient Text,
Audiovisual Material, Book, Book Section, Chart or
Table, Computer Program, Conference Paper,
Conference Proceedings, Dictionary, Encyclopedia,
Figure, Journal Article, Magazine Article,
Manuscript, Newspaper Article, Online Multimedia,
Personal Communication, Report, Thesis,
Unpublished Work, Web Page. To allow other types
not specified in that set, we have the option Other
Type.
The
<authors> element represents the
bibliographic reference authors. The
<authors>
section has, at least, one sub-element, named
<author>. If the bibliographic reference has more
than one author, one
<author> element must be
filled by author. The order of the
<author> element
in the
<authors> section follows the order used in
the source. We consider that the first author is the
most important.
The
<titles> element stores the title of the
bibliographic item. It has four sub-elements: title,
chapter, pages and language. As the name suggests,
<title> represents the title of the bibliographic
item. This element is mandatory. <chapter> and
<pages> represent the sections of the book that is
important to be noted. If the bibliography is
something written, it should be important to express
the
<language>. The data type of this element is
LangString.
The
<publisher> element represents the editor’s
name of the bibliography. It has three sub-elements:
editorName, editionYear and local. The
<editorName> element expresses the editor’s name
of the bibliography. If
<publisher> element is used,
this sub-element is mandatory.
<editionYear> and
<local> represents the date and local where the
bibliographic item was published. The data type for
<editionYear> is DateTime.
<editionNumber> expresses the edition’s number
of the bibliographic item.
<updateDate> records the date of last update of
the bibliographic item. Its data type is DateTime.
The
<normalizedNumber> element is the place to
represent the kind of standard number that is used to
identify the bibliography. This element has an
attribute named type. This attribute uses a list of
predetermined options corresponding to six different
standards: ISBN, ISSN, LCCN, PCN, CIP and DOI.
If the bibliography was accessed in the Internet,
the element
<accessedURL> expresses that url. This
element has two sub-elements: url and visitedDate.
If
<accessedURL> is used, the two sub-elements are
mandatory. As their names suggest, url represents
the URL of the bibliography, and visitedDate
represents the date when the reference was visited.
For this last sub element, the data type is DateTime.
The last element,
<comment>, allows the possible
recording of comments about the bibliographic item.
Its data type is LangString.
The default data type is text.
2.3.2 The <bibliography> Structure – 2
The next code presents the <bibliography> structure:
Figure 4: The <bibliography> structure definition.
2.3.3 <bibliography> Example
Here is an example of the use of this new element:
<bibliography>
<item id="unique identifier">
<type>type of bibliography</type>
<authors>
<author>Name of first
Author</author>
<author>Name of
Author</author>
</authors>
<titles>
<title>Book’s title</title>
<chapter>Chapter’s name</chapter>
<pages>consulted pages</pages>
<language>Book’s language</language>
</titles>
<publisher>
<editorName>Editor’s name</editorName>
<editionYear>
<dateTime>2008</dateTime>
</editionYear>
<local>Edition place</local>
</publisher>
<editionNumber>Edition number</editionNumber>
<updatedDate>
<dateTime>2008-12-20</dateTime>
</updatedDate>
<normalizedNumber type="ISBN">ISBN Number
</normalizedNumber>
<accessedURL>
<url>URL</url>
<visitedDate>
<dateTime>2008-12-20</dateTime>
</visitedDate>
</accessedURL>
<comment>
<string language="en">possible comment about
this bibliographic item</string>
</comment>
</item>
</bibliography>
QGM - A SYSTEM TO IMPROVE MATHS e-LEARNING
263
Figure 5: A <bibliography> example.
2.3.4 The <bibliography> Validation
Since this is an element that was added to the
LOM’s structure, to allow the validation of such
element it was necessary to write a new Schema and
integrate it with the Schema provided by IEEE
(IEEE, 2005). With that integration, we are now able
to perform a total validation of the new LOM’s
structure.
To support this extension, we defined a new
namespace: http://PmatE.ua.pt/lomExtended.xsd.
4 MATHML
MathML is the acronym for Mathematical Markup
Language. This markup language is especially
suitable for representing mathematical notation. It
can represent the structure and capture the content of
a mathematical expression (Ausbrooks, Bos et al.,
2007). MathML, like other markup languages, is an
XML file. It is possible to write MathML documents
with two distinct notations: presentation and content.
Presentation markup is a more pleasant way to write
but this version only encodes the notational
structure. If it is necessary to encode the functional
structure of an expression, the content markup is the
best option. Nevertheless, this version is very hard to
code. When both presentation and content markup
are required, MathML allows the mix of the two
markups.
The QGMs started to be mathematical learning
objects, so the use of the MathML occurred
naturally. With the new version of the QGMs,
MathML gained a new importance. As will be
explained in the next section, MathML will be used
to represent mathematical expressions and to
represent the validation expressions of the QGMs.
Here the representation is necessary, but the
knowledge about what is represented is crucial. That
was the reason why we use the MathML content
markup version.
5 A QGM AS LEARNING OBJECT
The new QGM uses the XML as a description
language. With that, we intend to create a structure
that is suitable to be represented by a browser or
perhaps used in another system. By writing their
learning materials in XML, PmatE promotes the
content exchange with several platforms of Learning
Objects. At this moment, PmatE is making an effort
to diversify the subjects of their QGMs. The
majority of them are about mathematics, but the
number of QGMs in physics, biology and
Portuguese are increasing. This structure is
independent of the QGM subject.
A QGM has three sections:
parameters (<dominioParametros>),
text (<texto>), and
answers (<respostas>).
Figure 6: A QGM structure.
The <dominioParametros> element has several
sub-elements. Each one describes the set of possible
<modelo>
<dominioParametros>
...
</dominioParametros>
<texto>
...
</texto>
<respostas>
...
</respostas >
</modelo>
<bibliography>
<item id="01">
<type>Web Page</type>
<authors>
<author>Duval, Erik</author>
<author>Wason, Tom</author>
<author>Hodgins, Wayne</author>
<author>and others</author>
</authors>
<titles>
<title>Draft Standard for
Learning Object Metadata
</title>
<language>en</language>
</titles>
<publisher>
<editorName>IEEE</editorName>
<editionYear>
<dateTime>2002</dateTime>
</editionYear>
</publisher>
<editionNumber>IEEE 1484.12.1-2002
</editionNumber>
<updatedDate>
<dateTime>2002-07-15</dateTime>
</updatedDate>
<accessedURL>
<url>http://ltsc.ieee.org/wg12/
files/LOM_1484_12_1_v1_Final
_Draft.pdf
</url>
<visitedDate>
<dateTime>2008-12-06</dateTime>
</visitedDate>
</accessedURL>
</item>
</bibliography>
CSEDU 2009 - International Conference on Computer Supported Education
264
values to each variables and the options that are
required to use the QGM. All values are represented
in MathML.
All elements have several attributes, needed to
format the values they represent. We use the
<![CDATA[ element to isolate the MathML code and
avoid inconsistencies with the Schema.
Figure 7: Example of a <operador> element.
The <texto> element contains the text used to be
presented as question in the normal usage of the
QGM. If the question has options, they are
represented also in MathML.
The last section,
<respostas> contains the set of
possible answers that can be presented to the user
when a QGM is instantiated. Since each question
always has four possible answers, this set must have
at least four answers. The necessary information to
each answer is stored in three sub-elements: answer
text (
<textoResposta>), validation (<validacao>)
and additional objectives (
<objAdicional>). The
<textoResposta> and <validacao> sub-elements
use MathML. In
<textoResposta> the MathML is
used to prepare the information that will be
presented to the user. In
<validacao> the MathML
is used to implement the validation expression that
will determine whether the response of the user is
valid or not.
6 THE QGM PARSER
The entire system required has three modules:
the LOM’s editor;
the QGM editor;
and the QGM parser.
So far, only the first version of the QGM parser
is available.
The parser has the following architecture:

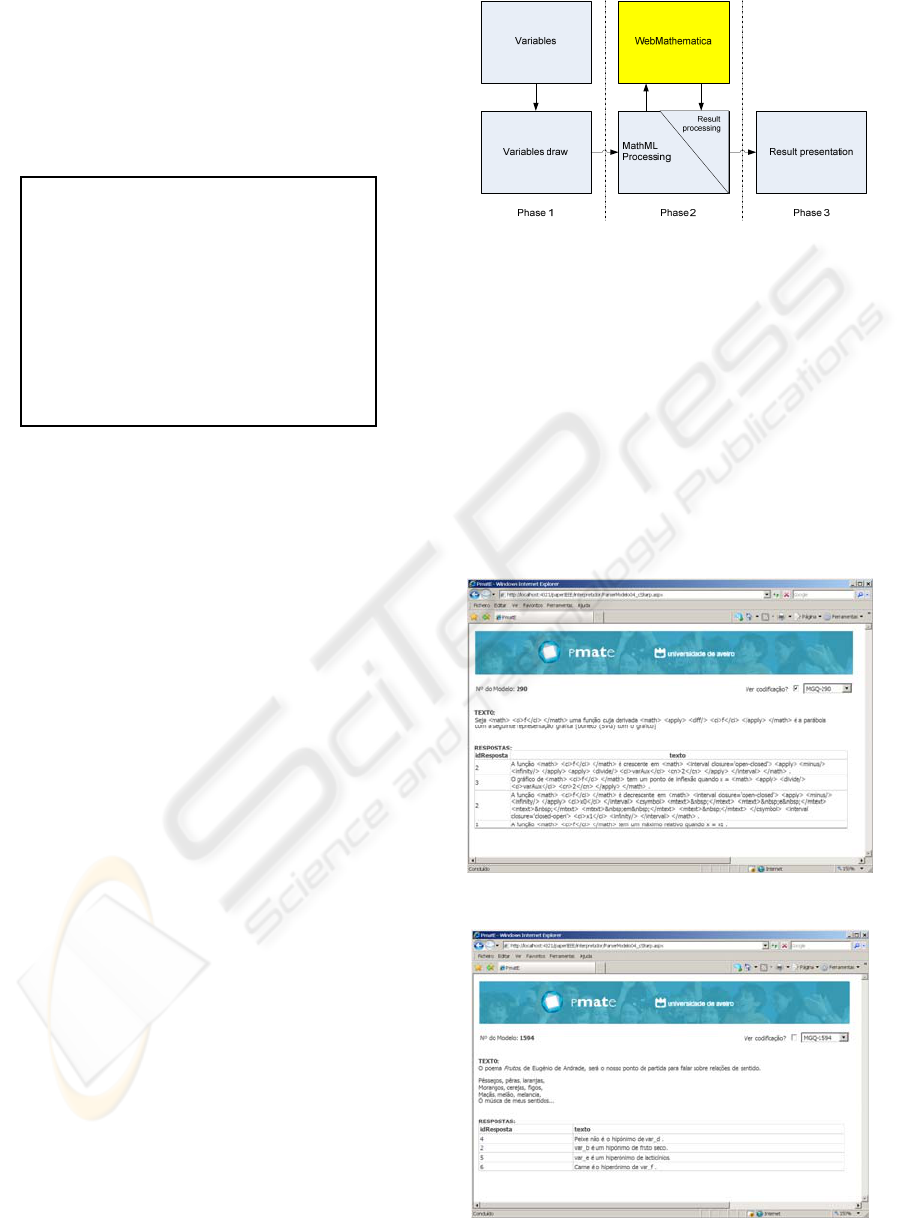

Figure 8: Parser architecture.
As referred, a QGM Learning Object uses
XML as description language, and has a set of
possible answers. In order to instantiate a new
question and present it to a user, a parser is required.
Such parser will select the possible answers and the
difficulty level according to some parameters such
as the user age.
Figure 9 shows the instantiation of the QGM
number 290. It is possible to see the MathML code
required to produce the answers that a user has to
choose. Figure 10 shows the instantiation of the
QGM number 1594 about the Portuguese language.
Figure 9: Parser result of math QGM.
Figure 10: A Portuguese language QGM.
<operador id="op2_aberto" nOpcoes="1">
<opcao varDependente="false"
calcular="true">
<![CDATA[<math>
<cn>1</cn>
</math>]]>
</opcao>
<opcao varDependente="false"
calcular="true">
<![CDATA[<math>
<cn>-1</cn>
</math>]]>
</opcao>
</operador>
QGM - A SYSTEM TO IMPROVE MATHS e-LEARNING
265
The parser uses an XML Schema to validate the
QGM and XSLT files to extract the information.
A QGM is a very complex document, with many
options that the parser has to choose. Most of these
options are coded in MathML. However, MathML is
a complex language too and making a good parser
for it would be very difficult. So, we decided to
extend our own parser with WebMathematica. This
leading software in the math’s domain would be
accessed through a web service and would be
responsible for validating the choices made by the
parser. The code produced in step 1 of the parser is
complete but step 2 was impossible to test so far due
to the high cost of WebMathematica’s license. To
test phase 3 we were able to solve the MathML
manually.
7 CONCLUSIONS
At the beginning of this work we were confronted
with two problems: How to pass on our long-term
experience to Portuguese and international networks
of Learning Objects? How to make our Learning
Objects independent from the technological
structure?
Although the PmatE project was older than the
LOM proposal, the QGM metadata have evolved
due to the efforts of its staff. Therefore, the
adjustment of QGM’s metadata to the LOM
structure occurred straight. The only problem found
was the lack of bibliography references in the LOM
reference model. That limitation was overcome by
adding the
<bibliography> element.
The definition of the QGM structure through
XML makes it freely available for other uses. In
fact, now with a XSLT file it is possible to extract
information from them rapidly. That was not
possible with the older structure.
Another major advantage of this new architecture
is the speed of development. Actually, due to the
volume of material to be developed, it took us two to
three months to be able to generate questions with a
QGM. With the QGM editor, it will be possible to
reduce that time by 90%, because we do not have to
code and we can try it immediately.
In the whole work we had a remarkable setback:
the inability to test our parser with the
WebMathematica. Despite this setback, we believe
that our new structure will be the future and it will
work.
REFERENCES
Ausbrooks, R., B. Bos, et al. (2007). "Mathematical
Markup Language (MathML) Version 3.0."
Retrieved 2008-03-01, from
http://www.w3.org/TR/2007/WD-MathML3-
20071214/.
Barker, P. (2005, 2005/01/05). "What is IEEE Learning
Object Metadata/IMS Learning Resource Metadata?"
cetis standards briefings series Retrieved 2009/02/09,
2009, from http://metadata.cetis.ac.uk/guides/
WhatIsLOM.pdf.
Consortium, I. G. L. (2006, 2006/08/31). "IMS Meta-data
Best Practice Guide for IEEE 1484.12.1-2002
Standard for Learning Object Metadata." Retrieved
2008-12-27, 2008, from
http://www.imsproject.org/metadata/
mdv1p3/imsmd_bestv1p3.html.
Daniel, B. K. and P. Mohan (2004). A Model for
Evaluating Learning Objects. IEEE International
Conference on Advanced Learning Technologies.
EndNote (2007). EndNote X1.0.1.
Gundersen, V. B. and Z. W. Hendrikse. (2007).
"BibTeXML." Retrieved 2008/Abril/28, 2008, from
http://bibtexml.sourceforge.net/.
IEEE. (2002, 1992-07-15). "Draft Standard for Learning
Object Metadata." Retrieved 2006-10-06, from
http://ltsc.ieee.org/wg12/files/LOM_1484_12_1_v1_F
inal_Draft.pdf.
IEEE. (2005). "Draft Standard for Learning Technology
— Extensible Markup Language (XML) Schema."
Retrieved 2007-06-30, from http://ltsc.ieee.org/wg12/
files/IEEE_1484_12_03_d8_submitted.pdf.
Isidro, R., R. Fernandes, et al. (2003). EquaMat2002:
Descrição da Infra-Estrutura do Sistema de
Informação. 3º Congresso Luso-Moçambicano de
Engenharia, Maputo - Moçambique.
Isidro, R. O. G., J. S. Pinto, et al. (2005). SA3C - Platform
of Evaluation System and Computer Assisted
Learning. WSEAS Transactions on Advances in
Engineering Education, Athens - GR, WSEAS.
Patashnik, O. and A. Feder. (2006, 2006). "BibTeX."
Retrieved 2008/Abril/28, 2008, from
http://www.bibtex.org.
Pinto, J. S., M. P. Oliveira, et al. (2007) "TDmat -
mathematics diagnosis evaluation test for engineering
sciences students." Internation Jornal of Mathematical
Education in Science and Technology, Volume 38,
DOI: 10.1080/00207390601035476
Taylor, C. (2003). "An Introduction to Metadata."
Retrieved 2007-09-07, from
http://www.library.uq.edu. au/iad/ctmeta4.html.
Vieira, J. C. D., M. P. Carvalho, et al. (2004). Modelo
Gerador de Questões. Conferência IADIS Ibero-
Americana WWW/Internet, Madrid - Espanha.
CSEDU 2009 - International Conference on Computer Supported Education
266
