ARTIFICIAL LIFE CONTEST

A Tool for Informal Teaching of Artiﬁcial Intelligence

Diego Milone

CONICET, sinc(i)-FICH-UNL, Ciudad Universitaria, 3000, Santa Fe, Argentina

Georgina Stegmayer

CONICET, CIDISI-FRSF-UTN, Lavaise 610, 3000, Santa Fe, Argentina

Daniel Beber

FI-UNER, Ruta 11 Km. 10, Oro Verde, Entre Rios, Argentina

Keywords:

Informal teaching, Students motivation, Artiﬁcial life, Game-based learning.

Abstract:

This work reports an experience in using an Artiﬁcial Life competitive game that simulates an artiﬁcial life

environment for unstructured and informal Artiﬁcial Intelligence (AI) teaching to students from computer sci-

ence engineering careers. The game consists of a simulated Petri dish where two colonies of microorganisms

–software agents– must struggle to survive. To achieve this goal, the participants must implement surviving

strategies for their agents, which include ﬁghting strategies and basic reproduction rules to prevail over all the

artiﬁcial environment. The technical bases of the contest as well as a description of the artiﬁcial life model are

explained in detail. The pedagogical experience acquired in the contest development is discussed, as well as

the resulting learning experience, which generated students enthusiasm and has helped them to develop mental

models of possible AI algorithms.

1 INTRODUCTION

Artiﬁcial Life (AL) has a special attractive to com-

puter science and engineering students. The promo-

tion and foster of creativity in problem solving and

the stimulation of spontaneous ﬁnding of solutions

to previously unknown problems are important chal-

lenges while teaching. Given the impact of modern

computer games on teenagers and young students, the

time they spend on those games and the skills they de-

velop for abstraction and generation of creative solu-

tions, a game-like competition can encourage students

to individual learning and the development of these

skills by themselves. Thus, computer games may pro-

vide a great source of motivation when teaching artiﬁ-

cial intelligence (AI) and other topics in computer sci-

ence. Furthermore, an informal learning methodology

gives the possibility to freely act in unknown situa-

tions and self learning without any obligations (based

on the free choice of interests), which promotes the

development of responsibility and self management.

The initial model, previous to the contest, was mo-

tivated by a simple and direct connection between

a biological cell and a software object. After that,

a model to reproduce the output of the well-known

prey-predator system modeled by the Lotka-Volterra

equations (Lotka, 1925)(Volterra, 1926) was devel-

oped. Some years later, based on this population

model two new simulations for teaching topics related

with object oriented programming, AI and biological

models have been created.

The ﬁrst model was a homework requiring the

simulation of microorganisms having an internal arti-

ﬁcial neural network model that sensed the neighbor-

hood for nutrients and decided the next movement.

In this simulation, a sower planted traces of nutri-

ents and the microorganisms evolutionarily learnt the

weights of the neural networks to follow these traces.

After several iterations, all dead microorganisms are

replaced by the offspring, obtained by crossover and

mutations of the alive ones.

The second model was the Artiﬁcial Life Con-

test

, where students should develop their own strate-

gies of survival, with their own ideas about microor-

http://alifecontest.sourceforge.net/

119

Milone D., Stegmayer G. and Beber D. (2009).

ARTIFICIAL LIFE CONTEST - A Tool for Informal Teaching of Artiﬁcial Intelligence.

In Proceedings of the First International Conference on Computer Supported Education, pages 119-124

DOI: 10.5220/0001979001190124

 SciTePress

ganisms modelling. The created microorganisms

must compete for survival in a common environment

(with reduced nutrients availability). In this competi-

tion, they have to design and implement an artiﬁcial

life form (a software agent), applying their AI and

programming knowledge in a different, perhaps more

attractive way than in a structured class. The simula-

tion environment and its interactions with the agents

are provided, therefore the students may only focus

on deﬁning the agent strategies for survival and how

it decides what action to execute in each interaction

with the environment.

For the contest development, object-oriented pro-

gramming in C++ language is used (Milone et al.,

2003). Students can access the environment source

code (although they cannot modify it) and several ex-

amples of simple agents. Tournaments are organized

periodically using the original environment (provided

by the organizers) and the source code of the students

agents.

The organization of this paper is the following:

Section 2 presents the environment and artiﬁcial life

simulation of the contest. Section 3 explains the soft-

ware agents that must survive and interact in the arti-

ﬁcial environment. Section 4 presents some details

regarding winner deﬁnition and organization of the

tournaments. Finally, the conclusions and future work

are presented in Section 5.

2 MOTIVATION

There is a historically close relationship between Ar-

tiﬁcial Intelligence (AI) and games, such as chess,

backgammon or poker, which have provided chal-

lenge problems for AI research. The use of AI

in games presents an opportunity for AI educators

to motivate students to learn about AI technologies

through interactive learning and simulations. Playing

any game well requires a player to choose a course of

action taking into account the environment (the game

situation) and the likely actions of other competitors

or enemies (oppponents), so as to maximise opportu-

nities for achieving goals (winning the game). Com-

puter games as educational tools also have an intrinsic

motivational factor that encourages curiosity and cre-

ates the impression that the students are in control of

their own learning (Hingston et al., 2006).

There have been reported in literature several ex-

amples of AI teaching with games. In (Chiang, 2007)

the traditional Pacman game has been adapted to pro-

vide student learning motivation for case-based rea-

soning AI technique learning. In (Kim, 2006) a vir-

tual agent platform is presented for teaching agent

systems design through a tournament game. This

work aims at teaching agents in the ﬁrst year of a

computer science career and, differently from our un-

structured learning approach, the authors use this tool

as part of a formal course and for students evaluation.

In fact, all of these proposals use the game for teach-

ing inside a formal class environment.

Our approach, instead, aims at providing an in-

formal learning methodology to senior students. This

methodology has provided them an interesting oppor-

tunity to exercise the use of their imagination to solve

previously unknown problems through self-learning,

without a formal obligation, which also promotes self

management. In general, the students that participate

in the contest could organize their duties and man-

age their available time, exercising responsibility by

themselves, without it being imposed from external

pressions nor formal structures. In contrast to the

classic approach to teaching AI with an objectivist ap-

proach, and similarly to (Pantic et al., 2005), we are

focused in providing a simulation environment and

a problem that needs to be solved through some AI

technique. Like stated by this author, following a con-

structivist approach, an authentic real-world environ-

ment is provided in which students apply and test their

knowledge and skills.

According to a recent analysis of game-based

teaching and training systems (Martens Alke and

Steffen, 2008) games have a high motivational char-

acter, often missing in traditional computer-based

training systems. According to this analysis, this

work, regarding learning theory, is an example of

training with a microworld, a small world with a

closed environment which functions based on its own

artiﬁcial rules.

3 ARTIFICIAL LIFE CONTEST:

THE ENVIRONMENT

The Artiﬁcial Life Contest is a competition of soft-

ware agents that have to be designed with the objec-

tive of surviving in an artiﬁcial environment. The

agents must move in order to get food, they can re-

produce themselves, they can decide ﬁghting against

another species or, if they have not enough energy, to

run away to avoid dying in a battle.

In the Artiﬁcial Life Contest, the environment

represents a Petri dish which contains Agar (with

nutrients) and two different microorganism (MOs)

colonies, which must ﬁght for survival inside this en-

vironment (see Figure 1). The competition model in-

cludes these four classes: Petri, Agar, Colony and

Microorganism, shown in Figure 2. The ﬁgure also

CSEDU 2009 - International Conference on Computer Supported Education

120

shows the classes MO 1 and MO 2, which are two

different microorganisms developed by competitors,

from which colonies will be built. The energy and

food for the MOs are managed by the Petri and Agar

classes, which will be explained in detail in the fol-

lowing subsections.

Figure 1: The “real” life environment, then simulated in the

artiﬁcial life contest.

class

Petri

- col oni es: Colony

- dx: int

- dy: int

- maxX: int

- maxY: int

- radi us: int

+ createMO(pos, i d, ener) : void

+ moveMO(old, new) : void

+ moveColonies() : void

+ mitosis(pos) : void

Colony

- myMOs: Microorganism

+ l i ve(x, y) : void

+ m ove(old, new) : voi d

+ kill(x, y) : voi d

Microorganism

# id: i nt

# pos: Posi tion

# ene: float

+ author() : string

+ name() : string

+ mitosis(dup) : void

+ move(mov) : void

Agar

- di stN: int

- mxX: int

- mxY: int

- rx: int

- ry: int

- cel l s: Cell

+ m axX() : i nt

+ m axY() : i nt

+ distNutri() : int

+ energy(x, y) : fl oat

+ nutrients(x, y) : fl oat

+ ocupation(x, y) : voi d

Cell

MO_1

# id: int

# pos: Posi tion

# ene: float

+ author() : string

+ name() : string

+ mitosis(dup) : void

+ move(mov) : void

MO_2

# id: i nt

# pos: Posi tion

# en: fl oat

+ author() : string

+ name() : string

+ mitosis(dup) : void

+ move(mov) : void

Figure 2: Artiﬁcial Life Contest model.

3.1 The Petri Class

The MOs life takes place at the container class Petri,

where the rules of life are applied. This set of rules

verify the validity of the movements required by ev-

ery MO. The MOs are randomly ordered and then,

from each of them, an action is requested and whether

they want to reproduce themselves or not. After each

agent action, the Agar is updated. The MOs can “see”

during all the simulation an updated version of the en-

vironment, which is totally accessible for them.

According to the rules of the artiﬁcial life simula-

tion, the MOs may feed, ﬁght or procreate. The main

rules are the following:

• Initially, 50 MOs of each colony are created, with

1000 energy units each.

Figure 3: Artiﬁcial Life Contest: graphical user interface.

The colonies are on the right window, inside the Petri dish,

competing on a nutrient distribution given by two bidimen-

sional Gaussians. The window at the bottom indicates the

total energy of each colony.

• The MOs are all randomly positioned inside the

Petri dish.

• Every MO looses 5 energy units per time unit due

to aging, and it wastes 10 energy units for each

movement.

• Every time step, all MOs increase their energy by

feeding with 1% of the nutrients existing in their

current position.

• The initial nutrient distribution and the way it

could vary during the competition is chosen by

Petri. There are actually six food distributions and

there is battle for each one of them. For exam-

ple, a bidimensional gaussian mixture distribution

could be selected

G(x, y) =

∑

−



x−x

∆



−



y−y

∆



where N

is the maximum for each gaussian com-

ponent, (x

, y

) are positions and ∆

is related with

each dispersion. This distribution can be seen in

Figure 3 together with the graphical user interface

of the competition. For this particular distribution

case, a colony having a strategy to detect and re-

main in one of the energy peaks would certainly

obtain an important vantage over the other colony.

• With respect to allowed agent actions, if a MO

wants to move to a speciﬁc position, three possi-

ble situations are possible:

1. The position is empty and it is inside the Petri

dish: Petri allows it and moves the MO.

2. The position is occupied by a MO belonging

to the opposite colony: then the MOs ﬁght and

ARTIFICIAL LIFE CONTEST - A Tool for Informal Teaching of Artificial Intelligence

121

the one whose energy level is higher survives.

The winner does not simply kills the looser, but

an amount of energy is taken which is equal to

the difference of energy between them. If the

looser remains with an energy level minor to

zero, it then dies. After the ﬁght, both MOs

remain in the same previous position and the

winner increments its energy in a 7.5% level re-

garding the looser.

3. Reproduction may be requested, by mitosis (a

process of cell division, which results in the

production of two children from a single par-

ent cell). It could take place if there is a free

adjacent place to put the new MO, and the fa-

ther and the son remain with an energy equal to

the 49% of the father energy.

3.2 The Agar Class

The Agar class acts like a proxy between the agents

and the artiﬁcial environment, providing the MOs,

when requested, the perceptions they can use for in-

ternal decision making. It models the food where the

MOs may feed from and, this way, increase their en-

ergy. Agar knows the exact position and energy of

every MO in the Petri dish, and this information is

constantly updated.

The MOs can also ask the Agar about any infor-

mation they may need, that is, the nutrient distribu-

tion, the amount of nutrients on a speciﬁc position

(x, y) or the energy and species of a MO located at

this point.

A very simple example of such kind of requests

may be the following:

if (id <> agar.ocupation(myX+1,myY))

{ // to do something with a competitor

// existing at the right of my position

}

if (ene > agar.energy(myX+1,myY))

{ // to take action according to energy

// levels

}

where id and ene are the identiﬁer and the energy of

the MO, respectively.

4 ARTIFICIAL LIFE CONTEST:

THE SOFTWARE AGENTS

In this artiﬁcial life model, the software agents rep-

resent microorganisms (MOs) that must live inside a

Petri dish, feeding, reproducing themselves or ﬁght-

ing for survival. Each contestant must develop the

survival algorithm of their MOs that will compete

with other colonies for the exclusivity of the envi-

ronment. The contest provides two basic classes that

model the MOs and their colonies: the Colony class

and the Microorganism class.

The Colony class contains a group of MOs that

belong to the same species (in this case, same par-

ticipant). Its main responsibility is moving the MOs

when Petri requires it. The Microorganism class de-

ﬁnes the MOs basic behavior. Starting from this class,

the students must develop their MOs by inheritance,

with their own survival tactics.

The possible actions that a MO may perform to

achieve its survival goal are: eating the food, re-

producing itself though mitosis and ﬁghting against

an enemy colony. Each MO must provide a virtual

method that returns the position where the MO wants

to move to, and consequently making a choice about

feeding and attacking. In addition, MOs must pro-

vide another virtual method to communicate their de-

cisions about mitosis.

Figure 4 shows a very simple example of a com-

petitor MO, named SearchN, because its strategy con-

sists of simply looking for the nearest position with

higher food level. Through agar.nutrients(x,y),

a perception regarding the amount of nutrients exist-

ing in any position is requested. In the example, a

mitosis as simple as: “if the MO has more than 5000

units of energy then divide” is implemented. This MO

is very simple because it only considers the positions

where there are more nutrients, and does not takes

into account enemies positions, nor those of its own

colony.

More developed algorithms may make better use

of the available information to achieve more effective

strategies, such as making mitosis according to the

amount of available nutrients, attacking the contrary

MOs, seeking and remaining in regions having more

food, among others.

5 ARTIFICIAL LIFE CONTEST:

DISCUSSION

The idea of converting the original artiﬁcial life model

into a contest was a great motivation and a real chal-

lenge for the students. They arrive to the competition

as contestants, that is to say, developers of microor-

ganisms, as well as developers of the environment.

Each year new contestants arrive and only a few of

them participate more than 2 consecutive years.

About each 2 weeks we organize the “tourna-

ments” where all the participants bring their new re-

leases of microorganisms and “ﬁght” in six “battles”

CSEDU 2009 - International Conference on Computer Supported Education

122

//--------------------------------------------------------

class SearchN: public Microorganism { public:

virtual string name();

virtual string author();

virtual void move(Movement & mov);

virtual void mitosis(bool & dup);

};

//--------------------------------------------------------

string SearchN::name() { return("Search for Nutrients"); }

//--------------------------------------------------------

string SearchN::author() { return("DGD"); }

//--------------------------------------------------------

void SearchN::move(Movement & mov)

{ // the MO will move to any

// of the 8 neighborhood positions having more food

int x_rel, y_rel; // relative testing position

int x_max, y_max; // relative position having more

// nutrients

x_max=0;

y_max=0;

for (x_rel=-1; x_rel<2; x_rel++)

for (y_rel=-1; y_rel<2; y_rel++)

if (agar.nutrients(pos.x+x_rel,pos.y+y_rel) >

agar.nutrients(pos.x+x_max,pos.y+y_max))

{ x_max=x_rel;

y_max=y_rel;

};

mov.dx=x_max;

mov.dy=y_max;

}

// ------------------------------------------------------

void SearchN::mitosis(bool & dup)

{ if (ene>5000) dup=true;

else dup=false;

}

// ------------------------------------------------------

Figure 4: Example of a simple MO-agent code.

for the survival in our common environment. Students

may form groups to design a MO-agent. A tourna-

ment begins and ends with only one source code per

group, but it can be improved during the weeks be-

tween two tournaments.

Each battle is performed on six different food dis-

tributions (shown in Figure 5), such as: an inclinated

plane, a vertical bar or uniform distribution, a ring, a

lattice, a bimodal gaussian and a ﬁve steps stair distri-

bution. The colony that dominates the other ones and

accumulates the major living energy is the winner of

the tournament and wins 3 points for the global rank-

ing; the second one obtains 2 points and 1 point is for

the third one.

Open source is a very important philosophical

framework behind all development about computer

science, both for teaching as for academic research

(Sonnenburg et al., 2007). Thus, we promote these

ideas not only by publishing the source code of the

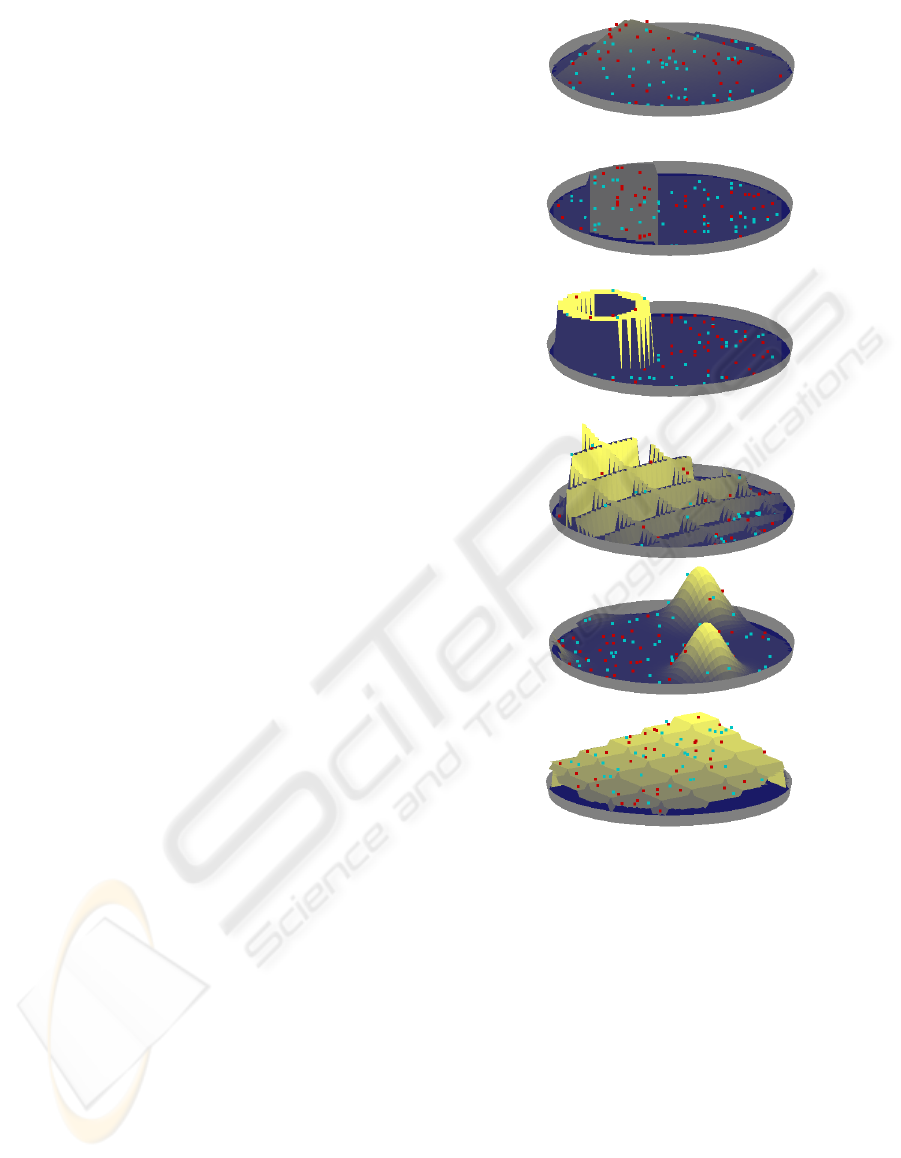

Figure 5: The six nutrient distributions used in the Artiﬁcial

Life Contest battles. From top to bottom: inclinated plane,

vertical bar or uniform distribution, ring, lattice, bimodal

gaussian and ﬁve steps stair.

environment but also by uploading the source code of

the winner of each tournament (with public access for

all the other participants). At the end of the cham-

pionship, the participant with more points is awarded

with some gift from the organizing Universities and

all the participants explain their strategies to the oth-

ers in a common presentation.

To offer an environment as much unstructured or

informal as possible, we have minimized the rules of

the competition. If there is any situation outside of

what would be expected, the same participants are the

ones who discuss and decide, guided by the teach-

ers, about how to solve the problem. For example,

in principle it would not be allowed something like

ARTIFICIAL LIFE CONTEST - A Tool for Informal Teaching of Artificial Intelligence

123

“hacking” the Petri class. However, if the idea is orig-

inal enough that the remaining participants may learn

from this code and accept it, the method can become

a valid strategy for future tournaments.

Another example of an unexpected situation was

a winner that had encrypted all of his source code,

changing identiﬁers by sequences of “ ” characters.

This way, when his code was made public and avail-

able to all other contestants, nobody could know his

strategies. This situation was submitted to the opin-

ion of all other participants and it was decided that,

if the competitor wanted to continue participating,

he should provide a completely documented source

code.

6 CONCLUSIONS

This paper has described an Artiﬁcial Life competi-

tion based on a computer program that simulates an

artiﬁcial life environment: a Petri dish where two

colonies of microorganisms must survive. The con-

test model has been explained and exempliﬁed, and

the competition rules have been presented as well.

This didactic tool has generated great enthusiasm

regarding programming and AI techniques among

students. We noted important improvements along

the competitions in many different aspects: abstrac-

tion, codiﬁcation skills, team work, dedication, in-

novation, creativity when designing and implement-

ing software agents; something that does not gener-

ally happen when teaching with traditional structured

methods.

The publication of the winners source code was a

big motivation for improving other competitors codes,

learning by themselves from the winner strategies.

Some people were more motivated to improve the ar-

tiﬁcial simulation environment while others preferred

to focus on more competitive algorithms. Many of

them tried to applied advanced AI techniques, such as

artiﬁcial neural networks or genetic algorithms, read-

ing and asking about these subjects to teachers, but

without a formal structure.

We consider that this kind of informal learning

methodology has provided an interesting opportunity

to students to exercise the use of their imagination

to solve previously unknown problems through self-

learning, without a formal obligation, which also pro-

moted self management. In general, the students that

participate in the contest could organize their duties

and manage their available time, exercising responsi-

bility by themselves, without it being imposed from

external pressions nor formal structures.

Among future work we can cite the development

of a new model design, that could provide higher ﬂex-

ibility (through plugins) to generate different kinds of

competitions, for example distinguishing between be-

ginners and advanced students. Also, we are working

to provide a new version of the contest in Java, which

could simplify the multi-platform programming and

would allow to also incorporate pre-compiled C++

MOs, with a more compact and integrated graphical

interface.

REFERENCES

Chiang, A. (2007). Motivate ai class with interactive com-

puter game. Proc. of IEEE Int. Workshop on Digital

Game and Intelligent Toy Enhanced Learning, 1(1).

Hingston, P., Combes, B., and Masek, M. (2006). Teaching

an undergraduate ai course with games and simula-

tion. LNCS, 3942(1):494–506.

Kim, I.-C. (2006). 3d interactive computer games as a ped-

agogical tool. LNCS, 4270(1):536–544.

Lotka, A. J. (1925). Elements of physical biology. Williams

& Wilkins Co., Baltimore.

Martens Alke, D. H. and Steffen, M. (2008). Transactions

on Edutainment I - Game-Based Learning with Com-

puters Learning, Simulations, and Games. Springer.

Milone, D., Beber, D., and Biurrun, J. (2003). Artiﬁcial

Life Contests: Encouraging Creativity. In Doblar

M., Cerrolaza, M., and Rodr

ıguez, H., editors, Pro-

ceedings of the International Congress on Computa-

tional Bioengineering, Zaragoza, Espa

na.

Pantic, M., Zwitserloot, R., and Grootjans, R. J. (2005).

Teaching introductory artiﬁcial intelligence using a

simple agent framework. IEEE Transactions on Ed-

ucation, 48(3):382–390.

Sonnenburg, S., Braun, M. L., Ong, C. S., Bengio, S., Bot-

tou, L., Holmes, G., LeCun, Y., Mller, K.-R., Pereira,

F., Rasmussen, C. E., Rtsch, G., Schlkopf, B., Smola,

A., Vincent, P., Weston, J., and Williamson, R. (2007).

The need for open source software in machine learn-

ing. J. Mach. Learn. Res., 8:2443–2466.

Volterra, V. (1926). Variazioni e ﬂuttuazioni del numero

d’individui in specie animali conviventi. Mem. R. Ac-

cad. Naz. dei Lincei. Ser. VI, 2.

CSEDU 2009 - International Conference on Computer Supported Education

124
