A REVISED MODELLING QUALITY FRAMEWORK

Pieter Joubert, Stefanie Louw, Carina De Villiers and Jan Kroeze

Department of Informatics, University of Pretoria, Pretoria, South Africa

Keywords: Systems modelling, Quality, Quality frameworks.

Abstract: Systems modelling quality plays a critical role in the quality of the final system. Better quality systems are

one aspect of addressing system failures which are still common today. This research paper studies quality

frameworks for systems modelling techniques, presenting a revised framework. Several authors built their

frameworks on the Lindland et al. (1994) conceptual model quality framework. Those frameworks are more

abstract and static – they do not clearly illustrate the flow of information through the systems modelling

process. The proposed framework makes it much easier to identify which quality aspects have to be in place

at which points within the modelling process for it to be successful in its purpose. In addition, it creates

awareness on issues such as the kind of skills and background knowledge that people, who are involved in

this process, need to have.

1 INTRODUCTION

Most of the previous research on model quality

involves the development of frameworks with the

purpose of illustrating modelling qualities and

related aspects.

These frameworks are mostly abstract

representations, which do not clearly illustrate the

information flow between the relevant actors

involved. In this paper a framework is proposed to

identify the quality aspects which influence the

creating and understanding of system models, as

well as the effect of information flow between the

involved actors on the overall quality.

2 BACKGROUND

Systems modelling is used to communicate with a

number of different people involved in the system

development lifecycle. This would include

communicating with non-technical users as well as

technical support staff, such as database

administrators, programmers, testers, etc. of these

models. Models are used for communicating the

most important statements from the domain, as well

as to facilitate the understanding and agreement of

problem statements from the domain. They are also

used for the development of the system and, should

these models not correctly represent the domain, the

system will not be adequate and will most likely fail

in its purpose.

3 MODELLING QUALITY

FRAMEWORKS

Several conceptual model quality frameworks have

been proposed of which the Lindland et al. (1994)

framework has been used as a foundation by most.

The framework identifies three qualities, namely

syntactic quality, semantic quality and pragmatic

quality. The framework consists of four

cornerstones, namely the domain, referring to the

relevant and correct statements to solve the problem;

the model, referring to both an implicit and explicit

model of the statements actually made; the

language, referring to the language used according

to the specific modelling language syntax; and

audience interpretation, referring to both technical

or social actors who are interpreting the model.

This framework has formed the basis for many

extensions and improvements by a number of

authors (Siau & Tan, 2005; Krogstie, 1998; Cheng et

al., 2001; Krogstie et al., 2006; Jørgensen, 2004;

Wand & Wang, 1996; Nelson & Monarchi, 2007;

Gemino & Wand, 2004 describing Norman’s Theory

of Action). All of these frameworks were

incorporated in the framework proposed in this

paper.

162

Joubert P., Louw S., De Villiers C. and Kroeze J. (2009).

A REVISED MODELLING QUALITY FRAMEWORK.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

162-167

DOI: 10.5220/0001991001620167

 SciTePress

The following concepts are borrowed from the

Lindland et al. (1994) framework:

 Syntactic quality which refers to the extent to

which the model corresponds to the modelling

language;

 Semantic quality which refers to the extent to

which the model corresponds to the domain;

and

 Pragmatic quality which refers to the extent to

which the model corresponds with the

audience’s interpretation of the model.

The following concepts are borrowed from the

Krogstie (1998) framework:

 Perceived semantic quality was identified by

Krogstie et al. (1998), but has been revised by

Krogstie et al. (2006) to say that it should only

refer to semantic quality and not perceived

semantic quality. The proposed framework in

this research paper will, therefore, refer only

to semantic quality and not perceived

semantic quality;

 Physical quality refers to the fit between the

modelling language and the participants. It is

the knowledge of the participant that is

externalised by the use of the modelling

language. It refers to both externalisation,

which is the level of externalisation of the

participant’s knowledge, and internalisation,

which refers to the knowledge obtained

through the interpretation of the model;

 Social quality refers to the level of agreement

on the model viewer’s interpretation of the

model. In the newly proposed framework,

social quality refers to the level of agreement

on all participants’ interpretation of both the

implicit and external model; and

 Knowledge quality refers to the correlation

between the participants’ knowledge and the

domain.

The following concepts are borrowed from the

Krogstie and Sølvberg framework, adapted from

Siau & Tan (2005):

 Empirical quality refers to the ‘error

frequencies’ that occur when the model is

created or viewed and consist of

comprehensibility matters such as graph

layout and readability indexes for text.

The following concepts are borrowed from the

SEQUAL framework, adapted from Krogstie et al.

(2006):

 Organisational quality refers to the

correspondence between the model and the

organisational goals or earlier base-lined

models; and

 Tool quality refers to the technical actor’s

interpretation of the model which occurs

through the use of a software tool.

The following concepts are borrowed from the

revised SEQUAL framework, adapted from Krogstie

et al. (2006):

 Ideal semantic quality (prescriptive) refers to

the model correspondence between the model

and the organisational goals or earlier base-

lined models. Ideal semantic quality

corresponds with the organisational quality

mentioned earlier; and

 Ideal semantic quality (descriptive) has the

same meaning as the semantic quality, which

was used in the previous SEQUAL

framework.

The following concepts are borrowed from the

Nelson & Monarchi (2007) framework:

 Inferential quality will test the reasonableness

of the inferences taken from understanding the

representation.

4 THE REVISED FRAMEWORK

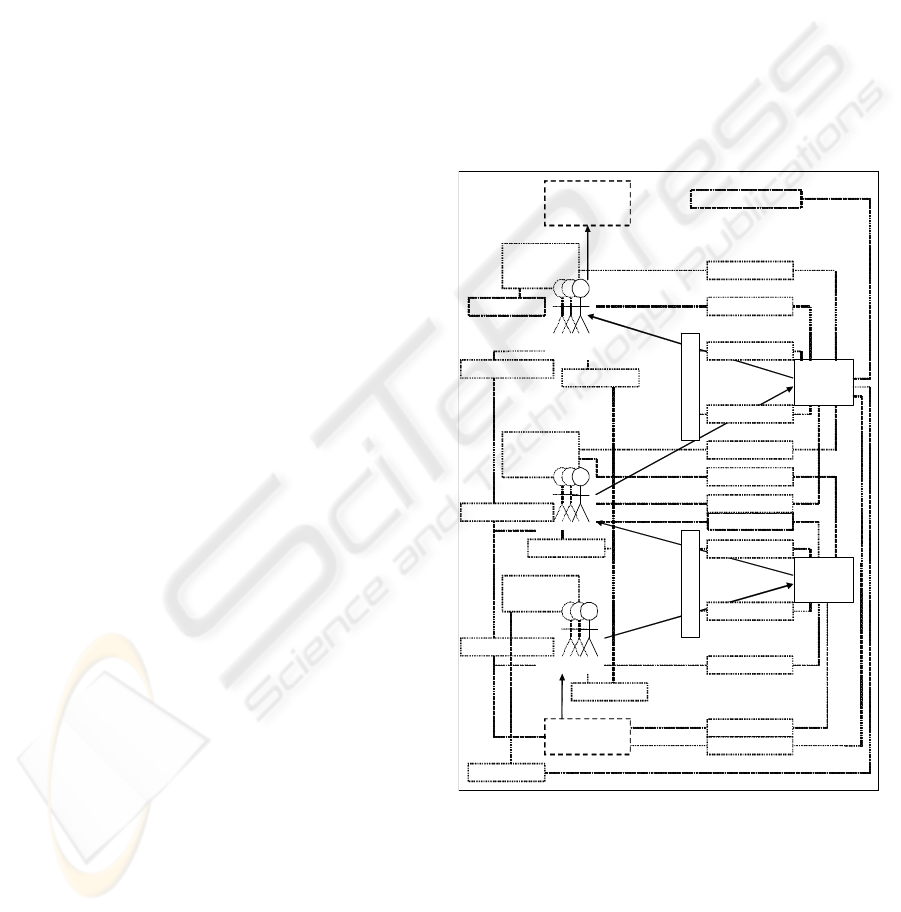

The revised framework (see figure 1) takes into

account all of the previous modelling quality

frameworks. Aspects from the framework are as

follows:

 Domain refers to all possible correct and

relevant statements necessary to solve the

problem. The domain can also be seen as

being synonymous to the ideal knowledge

about the domain;

 Domain expert refers to the expert who holds

knowledge about the domain in a cognitive

manner and usually works in the domain area

to be modelled. The domain expert may also

provide already explicit documentation about

the domain to the model creator;

 Perceived domain refers to the understanding

about the domain which is held by the domain

expert cognitively. The knowledge about the

domain may be partial or incorrect and

therefore refers to cognitive understanding;

A REVISED MODELLING QUALITY FRAMEWORK

163

 Language 1 refers to the language which is

used to communicate the perceived model of

which the outcome is represented as an

implicit model. The language is usually

natural language such as English.;

 Implicit model refers to the model which is

created by the domain expert after relevant

problem statements have been elicited and

communicated from his or her perceived

domain view;

 Model creator refers to the person who will

create the explicit model and is also in some

cases referred to as the analyst or the technical

actor;

 Perceived implicit model refers to the

understanding of the model creator about the

implicit model which was communicated

through Language 1. The model creator

should also be able to understand the language

which was used to communicate the implicit

model;

 Language 2 refers to the language which is

used to create the explicit model. An example

of a language is UML for the creation of use

case diagrams;

 Explicit model refers to the actual explicit

model which was created by the model

creator;

 Model viewer refers to the person(s) viewing

the explicit model and includes the model

creators, domain experts, as well as other

participants. A time aspect is of relevance,

because the domain expert is part of the model

viewer group, after the explicit model is

created; and

 Perceived explicit model refers to the

understanding held by the model viewer when

the explicit model is read. In this case the

model viewer also has to understand

Language 2 to be able to understand the

model.

 Optimal domain is the situation that the

organisation would want; even though they

feel that it is too simplistic to expect all

members of the organisation to have the same

view of the optimal domain.

It is important to note that the information flow

through the modelling process is not strictly

sequential, but also involves iterative processes.

Within this proposed framework several

modelling stakeholders are represented, namely:

domain experts, model creators and model viewers.

These stakeholders are subjected to several qualities

discussed below (see figure 1).

The domain experts are subjected to quality areas,

which impact on how well the implicit model is

communicated to the model creator. These qualities

include the following:

 Social quality 1 refers to the level of agreement

between the different domain experts on the

implicit model;

 Empirical quality 1 refers to the ‘error

frequencies’ that occur in the process to create

the implicit model;

 Syntactic quality 1 refers to the extent that the

model is corresponding with the modelling

language. Usually the domain experts

communicate with natural language to the

model creator. If the domain expert’s language

ability is poor, it will reflect on the syntactic

quality;

 Semantic quality 1 refers to how the implicit

model corresponds to the domain. Here, the

implicit model is measured against the

domain;

 Knowledge quality 1 refers to the participant’s

knowledge of the domain. Here it is looked at

how well the domain actor’s knowledge

corresponds with the domain; and

 Physical quality refers to the knowledge of the

participants that is externalised, indicating the

fit between the participants and the modelling

language.

It can be seen that several qualities have to be in

place when communicating to the model creator.

The domain expert also has to understand the model

that is created, which will be discussed further under

the model viewer section. Both the model creators

and the domain experts form part of the model

viewer group, which will be discussed in more detail

as well.

The model creators are subjected to two areas

namely the understanding of the implicit model

which is created by the domain expert, as well as the

creation of the explicit model through a modelling

language. The qualities relevant to the understanding

of the implicit model are identified as follows:

 Syntactic quality 2: The domain expert

communicates through natural language and

the model creator should be able to understand

the language and its syntax;

 Empirical quality 2 refers to the ‘error

frequencies’ which occur when the implicit

model is understood;

 Social quality 2: In some instances more than

one person may be involved with the creation

of models, which means that there could be a

ICEIS 2009 - International Conference on Enterprise Information Systems

164

communication aspect between the involved

model creators;

 Knowledge quality 2: The model creator’s

knowledge should correspond with the domain

while the model is created, otherwise the

model will not reflect the problem statements

from the domain correctly;

 Pragmatic quality 1 refers to how well the

implicit model created by the domain expert is

interpreted by the model creator; and

 Organisational quality refers to the

correspondence between the model and the

organisational goals or earlier base-lined

models.

The qualities which are of relevance when the

model creator creates the explicit model are

identified as follows:

 Empirical quality 3 refers to the ‘error

frequencies’ which occur when the explicit

model is created;

 Tool quality refers to the correspondence

between the explicit model, created with the

use of a software application and the model

creator’s interpretation of the model;

 Syntactic quality 3 refers to the correspondence

between the model and the modelling

language. The modelling language consists of

certain modelling notation which is used to

create the model;

 Knowledge quality 2 refers to the model

creator’s knowledge about the domain when

the explicit model is created. The problem

statements from the domain should be

correctly understood to be able to reflect it

correctly on the model;

 Social quality 2: When a model is created,

agreement between the model creators and the

implicit model should first take place before

the explicit model can be created; and

 Semantic quality 2 refers to how well the

explicit model corresponds with the problem

statements from the domain.

The model viewers, also referred to as audience

in the literature, include both the domain experts

(also referred to as social actors) and the model

creators (also referred to as technical actors).

The following qualities are relevant to the

understanding of the explicit model:

 Syntactic quality 4 refers to the extent of which

the model corresponds with the modelling

language. The model viewers will also have to

be trained on the modelling language to

understand the notation;

 Knowledge quality 3 refers to how well the

model viewers are knowledgeable about the

domain. Their background knowledge about

the domain will impact on how the explicit

model is perceived;

 Social quality 3 refers to the agreement

between the model viewers and the explicit

model;

 Empirical quality 4 refers to the ‘error

frequencies’ which occur when the explicit

model is viewed;

 Pragmatic quality 2 refers to how well the

explicit model corresponds with the model

viewer’s interpretation of the model; and

 Inferential quality tests the reasonableness of

the inferences taken from understanding the

explicit model.

Perceived

Explicit

Model

Domain

Domain Experts

Perceived

Domain

Perceived

Implicit

Model

Expli cit

Model

Mod el Cr eator s

ntactic

ualit

ntactic

ualit

Semantic

ualit

Semantic

ualit

Pra

matic

ualit

ntactic

ualit

ir ical

ual it

ir ical

ual it

Optimal

Domain

Organisational quality

Tool

ualit

Social

ualit

Model Vi ewe rs

Social

ualit

Social

ualit

Knowledge quality 3

Knowled

ualit

Knowledge quality 1

sical

ualit

Inferential

ualit

ntactic

ualit

ir ical

ual it

ir ical

ual it

Implicit

Model

Pra

matic

ualit

Figure 1: The proposed modelling quality framework.

5 CONCLUSIONS

By looking at the newly proposed modelling

framework, a person is able to see the many

problematic issues which could influence the

modelling process. Quality aspects are illustrated

A REVISED MODELLING QUALITY FRAMEWORK

165

which all need to be in place for the modelling

process to be a quality one. Should all quality

aspects be in place except one, the modelling

process will be flawed. It has been previously

mentioned by Moody et al. (2003) that some of the

quality aspects may be more important than others.

They concluded that semantic quality is the most

important, but it should be noted that they have

focused only on semantic, syntactic and pragmatic

quality in their study.

Krogstie et al. (2006) have decided not to

include physical, empirical and syntactic quality into

their revised framework as they feel it is not the

most problematic. By contrast, Moody et al. (2005)

have identified syntactic quality as an important

basis for other qualities, because they say by

improving syntactic quality and semantic quality,

pragmatic quality will improve, because if the model

is not of good syntactic quality it will be difficult to

interpret it. If pragmatic quality is improved,

semantic quality will be improved, because a model

that is difficult to interpret will not be related to the

domain.

Several quality aspects are relevant to the actors

in the modelling process: the domain expert, model

creator and model viewer. The new framework

illustrates the information flow through the

modelling process, between the different actors.

By using this framework, arguments from the

literature can be evaluated accordingly. As an

example, Gorla & Lam (2004) indicate that an

analyst’s (in this section referred to as model

creator) analytical skills are more important than

behavioural skills in small teams. They say that in

smaller teams the analyst may be given additional

tasks to systems analysis, which can include system

design and programming. In larger teams, the

systems analyst may be tasked only with

requirement determination and system specification.

In the newly proposed framework, more qualities

relate to a person’s analytical skills than behavioural

skills, which would substantiate the argument

presented by Gorla & Lam (2004).

Several quality aspects are relevant to the actors

in the modelling process: the domain expert, model

creator and model viewer. The new framework

illustrates the information flow through the

modelling process, between the different actors:

Domain expert(s):

 Need to be able to communicate well to each

other in order to improve social quality 1.

Certain organisational communications

channels also need to be in place e.g. e-mail,

telephone, bulletin boards, etc., to facilitate

communication within the group.

 Have to receive training and coaching to

improve their knowledge about the domain,

consequently improving knowledge quality 1

as well as semantic quality 1.

 Need to be able to communicate through a

natural language such as English. If the

person’s language ability is not good, he or

she needs to attend training to improve it,

consequently improving syntactic quality 1.

Model creator(s):

 Should be able to communicate effectively with

the domain expert through natural language,

consequently improving syntactic quality 2.

 Should ensure that efficient communication

channels exist to facilitate communication

between them. They need to agree on the

implicit model as created by the domain

expert. They could discuss and document their

viewpoints of the implicit model, which can

also be seen as the perceived implicit model,

in order to improve social quality 2.

 Need to have background knowledge of the

domain as well as having the skills to create

the explicit model in order to improve

knowledge quality 2. The skills needed to

create the model include knowledge about the

language as well as the software tool which is

used to create the model.

 Need to possess good analytical skills in order

to interpret the implicit model, where after an

explicit model is created. If the interpretation

of the implicit model can be improved,

pragmatic quality 1 will also be improved. An

iterative process of understanding will

improve the agreement on the implicit model.

 Should be enabled, by using quality software

applications, also referred to as computer-

aided modelling tools, to create a model with

all needed domain statements, hence

improving tool quality. Tool quality also has

an impact on syntactic quality, because with

the use of a software application, syntax can

be checked. By using a software application,

manual checking is less and it is faster to

create and check the model. Computer-aided

modelling tools may help to limit errors

occurring, through automatic layout and

model organisation, hence improving

empirical quality.

ICEIS 2009 - International Conference on Enterprise Information Systems

166

 Need to be aware of all organisation goals or

earlier base-line models in order to create the

explicit model according to it. Background

knowledge on the organisation would be

needed in order to improve organisational

quality. Should the model not fulfil the

organisation goals, the system will most likely

fail its purpose.

 Need to watch the correspondence between the

domain and explicit model, which would

mean that all the qualities in the process up to

this point need to be successful in order for

semantic quality 2 to be good.

 Need to have the skill in order to be able to

create a model according to the modelling

language. If the model is not created with the

correct modelling syntax, syntactic quality 3

will be poor.

Model viewer(s):

 Need to be able to understand the explicit

model, therefore knowledge about the

modelling language is needed. The modelling

process is also a learning process and the

model viewers may need training in order to

understand the modelling language syntax.

This will improve syntactic quality 4.

 Need to have background knowledge on the

domain in order to improve knowledge quality

3. The model viewer may communicate with

several domain experts, as well as request any

related documentation regarding the domain to

get a better picture of the domain.

 Need to communicate with other model viewers

in order to agree on the explicit model, hence

improving social quality 3. Meetings could be

held in order to improve communication

between model viewers.

 Should be asked to provide their prompt

feedback on the explicit model to be able to

reach an agreement, improving pragmatic

quality 2. A process of iteration will also assist

to achieve better agreement between the

stakeholders. Social quality also plays a role

here, because if communication is improved

between the model viewers, it will be easier to

reach an agreement. This can also be seen as

an iterative process of understanding, hence

improving inferential quality as well.

REFERENCES

Cheng, P.C.H., Lowe, R.K. and Scaife, M. 2001.

Cognitive science approaches to understanding

diagrammatic representations. Artificial Intelligence

Review, 15(1-2), pp79-94.

Gemino, A. and Wand, Y. 2004. A framework for

empirical evaluation of conceptual modeling

techniques. Springer (9) pp248-260.

Gorla, N. and Lam, Y.W. 2004. Who should work with

whom? Building effective software project teams.

Communications of the ACM 47 (6) pp79-82.

Jørgensen, H.D. 2004 Interactive process models. PhD

Thesis, Department of Computer and Information

Science, Norwegian University of Science and

Technology, Trondheim., Norway. Springer Verlag:

Berlin, Germany.

Krogstie, J. 1998. Integrating the understanding of quality

in requirements specification and conceptual

modeling. Communications of the ACM 23 (1) pp86-

91.

Krogstie, J., Sindre, G. and Jørgensen, H. 2006. Process

models representing knowledge for action: a revised

quality framework. European Journal of Information

Systems (15) pp91-102.

Lindland, O.D., Sindre, D. and Sølvberg, A. 1994.

Understanding quality in conceptual modeling. IEEE

Xplore (11) pp 42-49.

Moody, D.L., Sindre, G., Brasethvik, T. and Sølvberg, A.

2003. Evaluating the quality of information models:

empirical testing of a conceptual model quality

framework. Presented at the 25th international

conference on software engineering, Portland, Oregon.

Nelson, H.J. and Monarchi, D.E. 2007. Ensuring the

quality of conceptual representations. Software Quality

Journal (15) pp213-233.

Siau, K. and Tan, X. 2005. Improving the quality of

conceptual modeling using cognitive mapping

techniques. Data & Knowledge Engineering (55)

pp343-365.

Wand, Y. and Wang, Y. 1996. Anchoring data quality

dimensions in ontological foundations.

Communications of the ACM (39) 11 pp86-95.

A REVISED MODELLING QUALITY FRAMEWORK

167
