USING ONTOLOGIES WITH HIPPOCRATIC DATABASES

A Model for Protecting Personal Information Privacy

Esraa Omran, Albert Bokma

Department of Computing, Engineering & Technology, Sunderland University, Sunderland, U.K.

Shereef Abu Al-Maati

Computer Science and Engineering, American University of Kuwait, Kuwait

Keywords: Hippocratic database, Ontology, privacy, Health personal information.

Abstract: In the age of identity theft and the increased misuse of personal information held in databases, a crucial

topic is the incorporation of privacy protection into database systems. Several initiatives have been created

to address privacy protection in various forms, from legislation such as PIPEDA to policies such as P3P.

Unfortunately, none of these effectively enforce protection of data. Recent solutions have emerged to

enforcing data privacy & protection such as the Hippocratic database. But this technique has proved

complex in practice. To overcome this deficiency we propose to use personal information ontologies in

combination with Hippocratic databases. This method introduces a new way in reducing the complexity and

in clearly identifying terms of privacy in the database architecture.

1 INTRODUCTION

Data privacy is a growing concern among

researchers for numerous sectors such as healthcare,

finance, e-commerce, and government. Many

countries have recognized the importance of privacy

protection and have set laws and acts such as the

Personal Information Protection and Electronic

Documents Act (PIPEDA) (University of Alberta,

2005). We will present an overview of this and its

principles, and we discuss the Platform for Privacy

Preferences Project (P3P) (W3 website). The P3P

system enables Websites to express their privacy

practices in a standard format that can be retrieved

automatically and interpreted easily by user agents.

P3P user agents allow users to be informed of site

practices (in both machine- and human-readable

formats) and to automate decision-making based on

these practices when appropriate. Thus users need

not read the privacy policies at every site they visit

(W3 website). But setting the rules does not

guarantee their application. Therefore, researchers

have thought of applying privacy protection at the

technical level in what is now known as Privacy-

enforcing technology that aims at making privacy

protection guidelines and laws an integrated part of

the technology. In addition, this technology ensures

that privacy laws and guidelines are practically

applied to the data. Thus, an information system is

designed to embed components that allow

monitoring compliance of the system to privacy

rules, guidelines and conditions. One of the leading

technologies in this field was the Hippocratic

database (Agrwal 2002) by Agrawal where a new

idea is presented based on the classical Hippocratic

Oath for medical doctors: “And about whatever I

may see or hear in treatment, or even without

treatment, in the life of human beings – things that

should not ever be blurted out outside – I will

remain silent, holding such things to be unutterable”

and applying this to managing database access. The

Hippocratic Database requires authorization for

access to the datab it manages. This authorization

makes data users access the attributes only for the

usage purposes specified in the privacy policies. A

more sophisticated mechanism to control access is

achieved by integrating it to Personal Information

ontology. As the personal information ontology will

give specified meaning to each purpose, this will

help in reducing the numerous number of purposes

because it will forbid redundant purposes. In

addition, the ontology will help in clarifying the

376

Omran E., Bokma A. and Abu Al-Maati S. (2009).

USING ONTOLOGIES WITH HIPPOCRATIC DATABASES - A Model for Protecting Personal Information Privacy.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

376-382

DOI: 10.5220/0002001803760382

 SciTePress

relations between the users and the purposes that

they have the permission to access. This idea gives

a new dimension to database security and privacy.

In this paper, we introduce a prototype

implementation addressing several key issues in

privacy management, and we demonstrate this

prototype in the context of healthcare data

management, a sector in which maintaining the

privacy of individual information is of essential

importance.

The remainder of this paper is organized as follows.

Section2 describes the Hippocratic database

techniques. Section 3 presents the Personal

Information Ontology. Section 4 discusses different

scenarios for Information Collecting and storing,

information sharing, Data Retrieval and compliance

auditing with the Hippocratic technique. Finally, a

brief discussion of future work is presented.

2 HIPPOCRATIC DATABASE

The Platform for Privacy Preferences (P3P) provides

a privacy policies specification and exchange but

unfortunately it does not provide any mechanism to

ensure that these promises are applied consistently in

the internal data processing. On the other hand, K-

anonymization has been investigated to meet the

needs for statistical research. Its main idea is to

suppress or generalize the personal information data

in order not to disclose the identity of the record

holders. But the k-anonymity can not be used in

general database access managing applications as it

was developed for statical researchers to perform

reliable analysis on real data.

On the other hand, classical Hippocratic databases

have been introduced as systems that enforce

privacy policies by technical means. The

Hippocratic database idea has emanated from the

traditional Hippocratic Oath which is concerned

with safeguarding the privacy of a patient's health

information. A Hippocratic database includes

privacy policies and authorizations that associate

with each attribute and each user the usage

purpose(s).

Privacy protecting access control deals with privacy

policy specification and private data management

systems (Sabah Al-Fedaghi, 2007). The purpose is

the main factor in the Hippocratic database. A

request to access to data depends on access purpose,

and accessing permission is determined after

comparing such a purpose with the intended

purposes of that data in the privacy policies stored

tables. Each user has authorizations for a set of

access purposes. For example, nurses can access the

patient health record for temperature and weight

recording while doctors can access it for treatment

purposes and so on. Though of its advantages in data

management access, it has significant problems such

as the complexity of users-purposes management

and the purposes huge variety.

In this paper we will build on the classical idea of

Hippocratic databases in investigating a new system.

This will be achieved by integrating a suitable

personal information ontology with the classical

Hippocratic database. Management of attributes and

users purposes is a complicated issue in the classical

Hippocratic database.

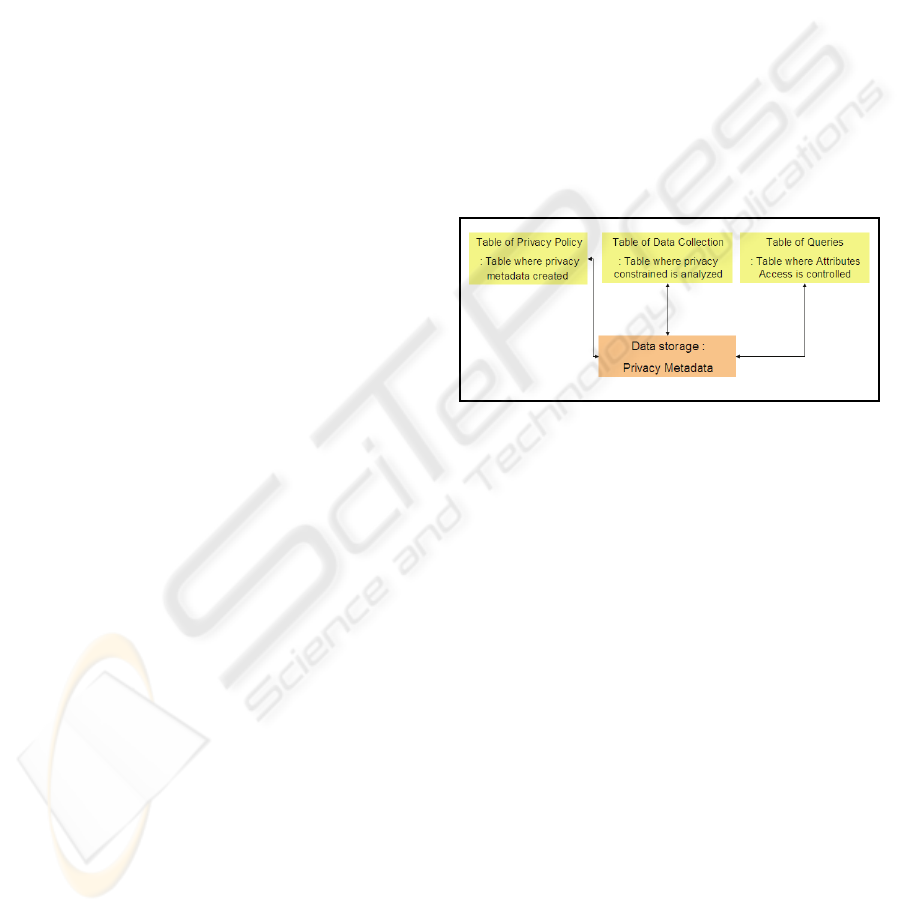

Figure 1: The infrastructure of the Hippocratic database.

For privacy protection, the Hippocratic database

stores privacy metadata. Privacy metadata contains

privacy policies and privacy authorizations. Privacy

policies refer to administrator's policies for data

collection and usage, including usage purposes.

Privacy authorizations are like passport data

administrators gives to data users to ensure that data

are accessed only according to privacy policies.

These authorizations specify usage purposes and

authorized users for each attribute of a data and

allow data users to access the attributes only for the

usage purposes specified in the privacy policies.

The Hippocratic database applies privacy checking

during data collection and query processing. Data

providers specify privacy preferences during the

data collection. Privacy preferences represent the

data provider's intention (usage purposes).

Hippocratic database stores data records along with

the usage purposes included in the privacy

preferences if the privacy preferences match privacy

policies only. During query processing, the

Hippocratic database checks that data users access is

in accordance with the data provider's intention.

Hippocratic database ensures this by first checking

USING ONTOLOGIES WITH HIPPOCRATIC DATABASES - A Model for Protecting Personal Information Privacy

377

usage purposes specified in privacy authorizations at

the schema level, and then, by checking the usage

purposes stored with the data at the record level.

3 PERSONAL INFORMATION

ONTOLOGY

In addition to our first definition, privacy is also the

right of individuals to determine for themselves

when, how and to what extent information about

them is communicated to others.

Ontologies as a method for creating a machine

processable model of a domain has been studied

since the early 1990s. This allows to create a model

of a domain by specifying the concepts in it and

their relationships and typically involves the

modelling of classes and subclasses to create a class

hierarchy to which properties can be attached and

where observations or data from the domain can be

associated to in terms of instances. Thus a shared

conceptualisation can be created that can be used to

manage information about a domain and share this

between users or applications.

Using ontologies has been proposed (Gurber,

2001) as a solution for managing the intrinsic

heterogeneity present in knowledge from different

sources. For our purpose we will adopt the logical

theory view of ontology, and the constraining

axioms will play a crucial role in defining the

semantic role in our database design. While we

allow the communicating agents (doctors, nurses

etc...) to have their own data access based on

Hippocratic database and ontology, we will require

the existence of a common ontology expressive

enough to interpret the concepts in all agents'

ontologies. The principal benefit of this approach is

that it provides a formal base for reasoning about the

properties of systems that perform automated

knowledge and data translation based on a shared

ontology.

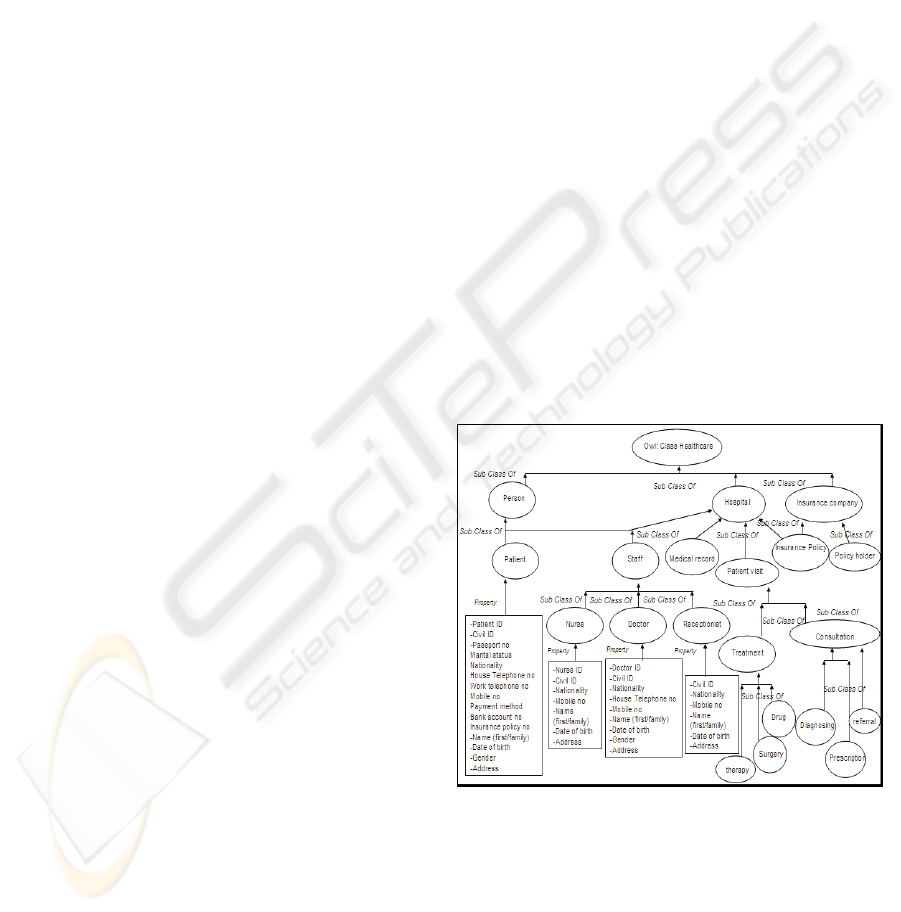

In this paper we construct an ontology for

personal information, therefore we will next have an

overview on a Personal Information Act, PIPEDA.

The Personal Information Protection and

Electronic Documents Act was enacted to establish

national rules for personal information protection in

the private sector and establishes, as law, the

Canadian Standards Association’s Model Code for

the Protection of Personal Information, which

encompasses the following principles:

accountability; identifying purposes; consent;

limiting collection; limiting use, disclosure, and

retention; accuracy; safeguards; openness; individual

access; and challenging compliance (University of

Alba, 2005).

PIPEDA has been phased in over a three year

period: 2001, 2002 and 2004. PIPEDA defines

personal information to mean identifiable

information about an individual and personal health

information is defined from (University of Alba,

2005) as follows:

(a) information concerning the physical or mental

health of the individual;

(b) information concerning any health service

provided to the individual;

individual of any body part or any bodily

substance of the individual or information

derived from the testing or examination of a

body part or bodily substance of the individual;

(d) information that is collected in the course of

providing health services to the individual; or

(e) information that is collected incidentally to the

provision of health services to the Individual.

Figure 2: Investigated Personal Information Ontology.

Taking care of the above principles and

consulting experiences from the International Health

Clinic in Kuwait, we have investigated our Personal

Health Information Ontology in Fig. 2 and 3 and its

application as a layer on the top of the Hippocratic

database as in Fig 5. The ontology has been

constructed using the Protégé Owl tool (Fig 3) in

ICEIS 2009 - International Conference on Enterprise Information Systems

378

order to be connected in the future to a real project

from the health sector. The Web Ontology Language

(OWL) is part of the growing stack of W3C

recommendations related to the Semantic Web. The

Semantic Web is a vision for the future of the Web,

in which information is given explicit meaning,

making it easier for machines to automatically

process and integrate information available on the

Web. So when we construct our ontology using

OWL environment, we make it more general to be

used in other health care projects. This usage will

enrich our ontology as each project will add to the

ontology new concepts. For example: For the

medical record subclass it could add new properties

that we haven't stated in more detail yet.

(a) (b)

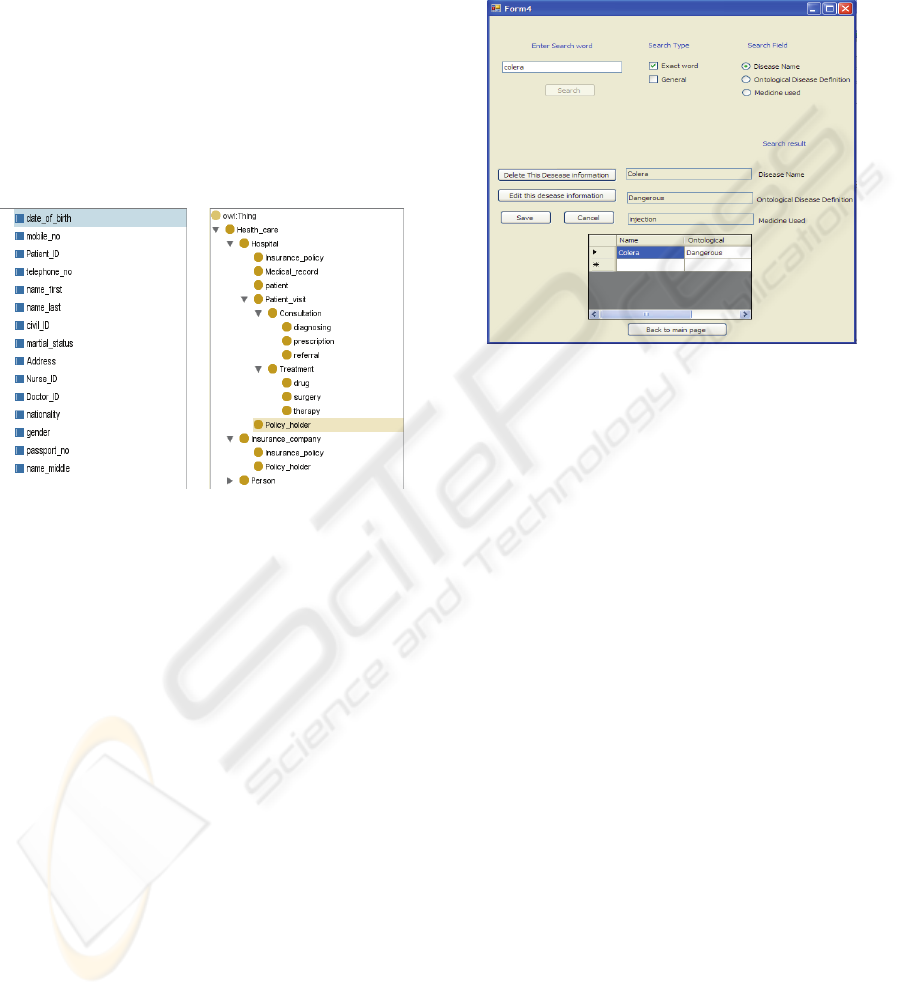

Figure 3: The Investigated Personal Information Ontology

in protégé OWL (a-classes/b-properties).

The ontology has been created in a way that goes

through all the concepts that have been proved to be

the most common and reliable in health care,

depending on the knowledge of an expert in the field

(who designed the database for many hospitals in

Kuwait). In addition, the ontology has been built to

the information abstracted from real records at the

International Clinic in Kuwait and forms from the

internet and countless meetings with physicians,

nurses and reception officials have been held in

order to build a reliable ontology.

In this paper we have constructed a health

system ontology based (using visual basic)

connected to an Access database. This system will

help physicians and researches in classifying

diseases ontologically. The benefit of this

classification appears clear during search process.

The ontology helps in saving time and effort during

the search process, as the ontology defines the

disease asymptotes clearly for each case. For

example, in Figure 4 we have shown the window

that appears when we press the "search disease

information" button. This window offers many

helpful options to find disease information from the

patient's database. This will help the physicians in

diagnosing; help the researchers in finding useful

statistics without affecting the patient's privacy.

Figure 4: Search process using the Investigated

ontological Health system.

4 DISCUSSION OF ONTOLOGY

HIPPOCRATIC INTEGRATION

This section will discuss scenarios (comparable to

(Agrawal, 2002) scenarios) to show the expected

advantages from integrating the Personal

Information ontology into the Hippocratic database.

The ontology will add a new dimension to the

Hippocratic database which is classification. The

classification that the ontology provides, will define

first the meaning of each data access purpose, and

then which user is permitted to access for which

purpose(s).

The effectiveness of the Ontology-Hippocratic

integration will clearly appear through the scenarios.

As this integration should improve the query

performance as it will help in saving time and effort.

In addition, it should improve the privacy saving as

it improves the data access management. The

scenarios will mainly concentrate on the health

sector.

Electronic health records have attracted

considerable interest by researchers, because of their

numerous benefits, including improving health care

delivery by allowing timely and accurate access to

information by those involved in patient care,

USING ONTOLOGIES WITH HIPPOCRATIC DATABASES - A Model for Protecting Personal Information Privacy

379

reducing medical errors and adverse health events,

augmenting security of patient information; and

enhancing availability of information to support

health system planning and reform as well as

research (University of Alba, 2005).

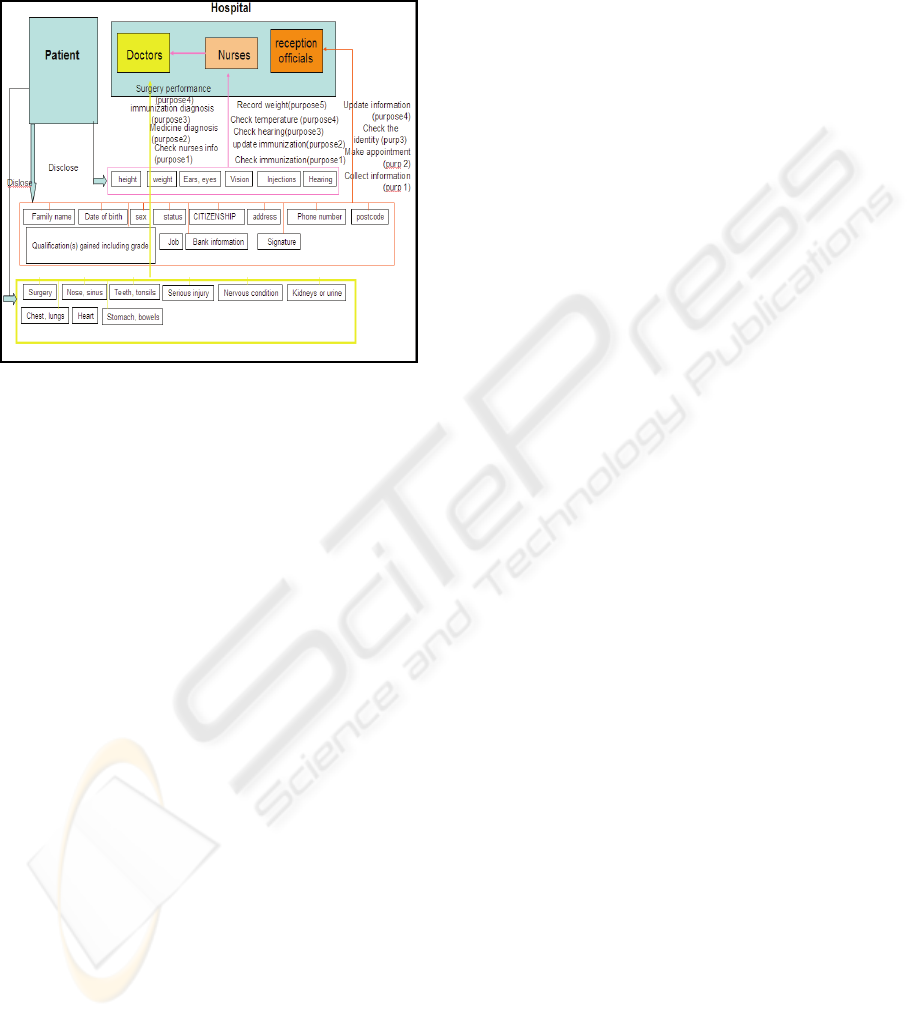

Figure 5: The prototype (Integrating ontology into the

Hippocratic database).

4.1 Scenario for Information Collecting

and Storing with the Proposed

Approach

John wants to register for health care. First a

receptionist collects his personal information (such

as Name, birth date, etc). The personal information

ontology will help in this step by specifying the

information to be collected and the exact meaning of

each piece of information in order to collect the

necessary information. Then the receptionist stores

his personal information. Then, the system

processes these information in order to

disclose/share them by Doctors and nurses as

appropriate. The Hippocratic ontology based

functionality will be in making a decision of whom

to share what information. Here is where the role of

ontology appears; the ontology will give each piece

of personal information a clear and specific

definition, then according to this definition, the

personal information based ontology tables will be

connected to their appropriated purposes.

4.2 Scenario for Information Sharing

with the Proposed Approach

Here we will present a scenario demonstrates how

the proposed appraoch can be used to facilitate

policy-compliance information sharing among

multiple organizations. Sara is a professor at a

University Medical School with access to

International’s patient database under a joint

research agreement. She is currently working on a

project to evaluate the effect of pollution on the

blood pressure. To begin her research, Sara logs into

web portal and submits the following SQL query to

the International Hospital database:

Select * from patients where blood pressure>190

Without Hippocratic ontology base controls, Sara

would be given total access to the records of all

patients with blood pressure > 190. This is a

violation of International privacy policy and EU data

protection laws, because not all patients have

consented to reveal their health information to third

parties for research purposes. With the proposed

approach in place, the system rewrites Sara’s query

to comply with International’s data disclosure policy

and patient opt-in and opt-out choices. Thus, the

system filters out the personal data that patients did

not opt to share with third parties for drug research

purposes and returns the remaining data that is

responsive to the query. Again, the ontology would

play a role in the construction of the SQL views, as

SQL views perform a better classified access to the

database. Ontology will save time and effort

consumed in deciding what view to appear to each

user.

4.3 Scenario for Data Retrieval with

the Proposed Approach

A year after his annual physical exam, John has a car

accident and his back has been affected. His doctor

sends him to RadioTech Labs, an International

affiliate, to have a series of X-rays performed. The

lab technician types John's’s name into a computer

terminal and requests access to his medical records.

In the absence of the proposed approach controls,

the technician could potentially see all of John’s

personal health records stored in the International

Clinic’s database. However, with the proposed

system in place, the application returns only John’s

contact information and the records of his latest

hospital visit, but no other health records. This

complies with International’s data disclosure policy

and John’s privacy preferences.

4.4 Scenario of Compliance Auditing

George is an actor and a patient at the International

Hospital. A local magazine discloses portions of

George's personal health records, indicating that he

ICEIS 2009 - International Conference on Enterprise Information Systems

380

has been treated for depression. He believes that the

International Hospital is responsible for this

unlawful disclosure and threatens to sue the hospital

under national data protection laws. The Hospital

manager is very concerned about this case and

requests that Mary, the database administrator,

immediately provide him with an accounting of all

who have accessed George’s personal health data

and to make all the efforts to know if any one in the

hospital has disclosed George's health information.

Mary logs into the audit interface of our proposed

system to begin the investigation. Mary would first

like to know the identities of all persons who have

accessed George’s medical information in the past

year. She starts with the allowed (user/purpose)

combinations. In order to focus her search, she chose

to know those who can access his health information

only not other personal records (e.g., address,

telephone number, payment information). This task

was to be very difficult and takes more time without

the aid of the proposed method. She has tracked and

analyzed the queries that have accessed George

health information. Especially those who have

accessed his nervous records. Mary notices that the

results show a large number of queries accessing

George’s medical records, but not all of those

queries revealed the diagnosis of depression or his

prescription for anti-depression medication. She has

noticed in particular, that a nurse called Sally has

accessed George's nervous record 50 times in one

month. Though, she has no purpose for that as she

has finished from giving him injections. It appears to

Mary, that Sally is accessing George's nervous

records without reasons for 50 times in one month

using the same query. That's why she suspects in her

and submits a report of all her database analysis to

the manager. He did his investigations and he

discovered that she has disclosed the depression

information to the magazine. Without the aid of the

proposed system, Mary would spend months looking

in files and may have gotten no result at the end. The

proposed system has shortened the way to Mary and

made her job much easier than analyzing an ordinary

database.

5 CONCLUSIONS

In this paper, we have opened the door for research

in using ontology in data access management. We

have integrated the Hippocratic database method

with investigated personal information ontology in

order to provide better privacy security. We

achieved that by first giving a presentation to the

Hippocratic ontology based technology and how it

could play significant role in protecting the privacy

of personal health records without sacrificing the

value of information for diagnosis, treatment, or

research purposes. Our presentation demonstrates

how this technology enables efficient management,

sharing, and processing of sensitive data in

compliance with the principles of the PIPEDA and

other data protection acts and laws. We have also

discussed number of scenarios to demonstrate the

importance of the new method. Finally we have

presented some technical challenges that have been

addressed. We have demonstrated this method as a

possibility for privacy protection technologies and

overcoming its difficulties and problems (Bertino,

2005). We hope that the technology outlined herein

serve as a base for modern health records

infrastructures and encourage the researches in

applying ontology in information management

security.

6 FUTURE WORK

The investigated system has been built in a

prototype implementation and will shortly be

applied to a real health project in order to prove its

reliability. In addition the new method will be

compared with traditional methods from literature

such as classical Hippocratic database and k-

anonymity (Sweeny, 2002).

REFERENCES

Sabah Al-Fedaghi, January 29th - 2nd February, 2007,

"Beyond Purpose-Based Privacy Access Control", The

18th Australasian Database Conference, Ballarat,

Australia.

R. Agrawal, J. Kiernan, R. Srikant, and Y. Xu. , VLDB

2002, "Hippocratic databases".

Rakesh Agrawal and Christopher Johnson." Securing

Electronic Health Records without Impeding the Flow

of Information" IBM Almaden Research Center

University of Alberta, Health Law Institute, University of

Victoria, School of Health Information Science, April

2005, "Electronic Health Records and the Personal

Information Protection and Electronic Documents

Act", Report prepared with generous funding support

from the Office of the Privacy Commissioner of

Canada.

http://www.w3.org/P3P/

M. Richardson, R. Agrawal, P. Domingos, October 2003,

“Trust Management for the Semantic Web”, 2nd Int'l

Semantic Web Conf., Sanibel Island, Florida.

USING ONTOLOGIES WITH HIPPOCRATIC DATABASES - A Model for Protecting Personal Information Privacy

381

Thomas R. Gruber, 1991, "The role of common ontology

in achieving sharable, reusable knowledge bases", In

Richard Fikes, James A. Allen, and Erik Sandewall,

editors, Proceedings of the Second International

Conference, Principles of Knowledge Representation

and Reasoning.

K. LeFevre, R. Agrawal, V. Ercegovac, R. Ramakrishnan

and Y. Xu. , VLDB 2004 "Limiting disclosure in

Hippocratic databases".

Elisa Bertino and Ravi Sandhu, JANUARY-MARCH

2005 "Database Security—Concepts, Approaches, and

Challenges", IEEE Transactions on Dependable and

Secure Computing, VOL. 2, NO. 1.

L. Sweeney,2002, "K-anonymity: A model for protecting

privacy", International Journal on Uncertainty,

Fuzziness, and Knowledge Based Systems, pp. 557-

570.

ICEIS 2009 - International Conference on Enterprise Information Systems

382
