A SHAPE ERROR CONCEALMENT TECHNIQUE FOR ROBUST

MPEG-4 SYSTEM

Shih-Chang Hsia and Cheng Hung Hsiao

Department of Computer and Communication Engineering, National Kaohsiung

First University of Science and Technology, Kaohsiung, Taiwan, R.O.C.

Keywords: MPEG-4, Shape information, Error concealment, Interpolation.

Abstract: This paper presents a fast-efficient error concealment method for recovering the shape information. The

proposed technique consists of the block classification, the edge direction interpolation and the filtering

interpolation. The missing block with the logic criterion is classified to four types that are transparent,

opaque, edge and isolated blocks. Most of the computations cost on the edge block and the isolated block to

obtain better cost-performance tradeoffs. For the edge-block recovery, the edge slope is computed by

referring the near available block, and then the missing shape is interpolated along the edge direction. We

deal with the isolated block using the cascaded filter to approximate the real shape. The experimental results

show that the proposed method can achieve better cost-performance to restore the shape information

compared to the other competing algorithms in both of the numerical parameters and the shape images. The

processing speed is faster about 2~3 times to the well-known methods. The adaptive algorithm employed

the low computational load overhead to make it applicable to a real-time MPEG-4 coding system.

1 INTRODUCTION

Recently the MPEG-4 system enables content-based

functionality, as well as high coding efficiency, by

taking into account shape information for the low

bit-rate system (Jan, 1999). If the shape information

cannot be reconstructed, the decoded object would

produce very serious distortions. Recently, there are

some literatures focused on the error concealment

techniques for shape recovery (Lee et al., 2001,

Salama and Huang, 2002, Li et al., 2002, Soares and

Pereira, 2004). Lee, etc. al. used the fuzzy theory to

recover the shape error (Lee et al., 2001). First, the

error block is computed with the bilinear

interpolation. Then the result is modified according

to their fuzzy membership function to truncate the

pixel to a binary form with one threshold. Shirani

etc. al. presented a novel error concealment method

for recovering shape information (Salama and

Huang, 2002), which iteratively interpolate the

missing pixel with a set of weight along eight

directions. With iterative procedures, the error shape

is recovered better and better. Li etc. al. proposed

recursive error concealment to recover the shape

information (Li et al., 2002). With line-correction,

line-prediction and line detection approaches, the

recovered shape error can be kept in small distortion.

However, we hardly estimate the computational time

for this approach, which is away from real-time

applications.

This paper presents a new method to recover the

object shape for the intra frame and still image. The

proposed algorithm consists of the block

classification scheme and the edge interpolation, to

achieve better quality but using low computational

cost. This paper is organized as follows. The

proposed algorithm for shape recovery is presented

in Section II. The simulation results and

comparisons with other approaches are shown in

Section III. Concluding remarks are outlined in

Section IV.

2 THE PROPOSED ALGORITHM

Figure 1 illustrates the processing flow of the

proposed algorithm. According to the feature of

neighboring blocks, the processed block can be

classified into four groups. If the neighboring blocks

all are dark or bright, the current block should be an

opaque or transparent block. This block is easily

recovered since we can directly replicate the data

103

Hsia S. and Hsiao C. (2009).

A SHAPE ERROR CONCEALMENT TECHNIQUE FOR ROBUST MPEG-4 SYSTEM.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 103-106

DOI: 10.5220/0002164001030106

 SciTePress

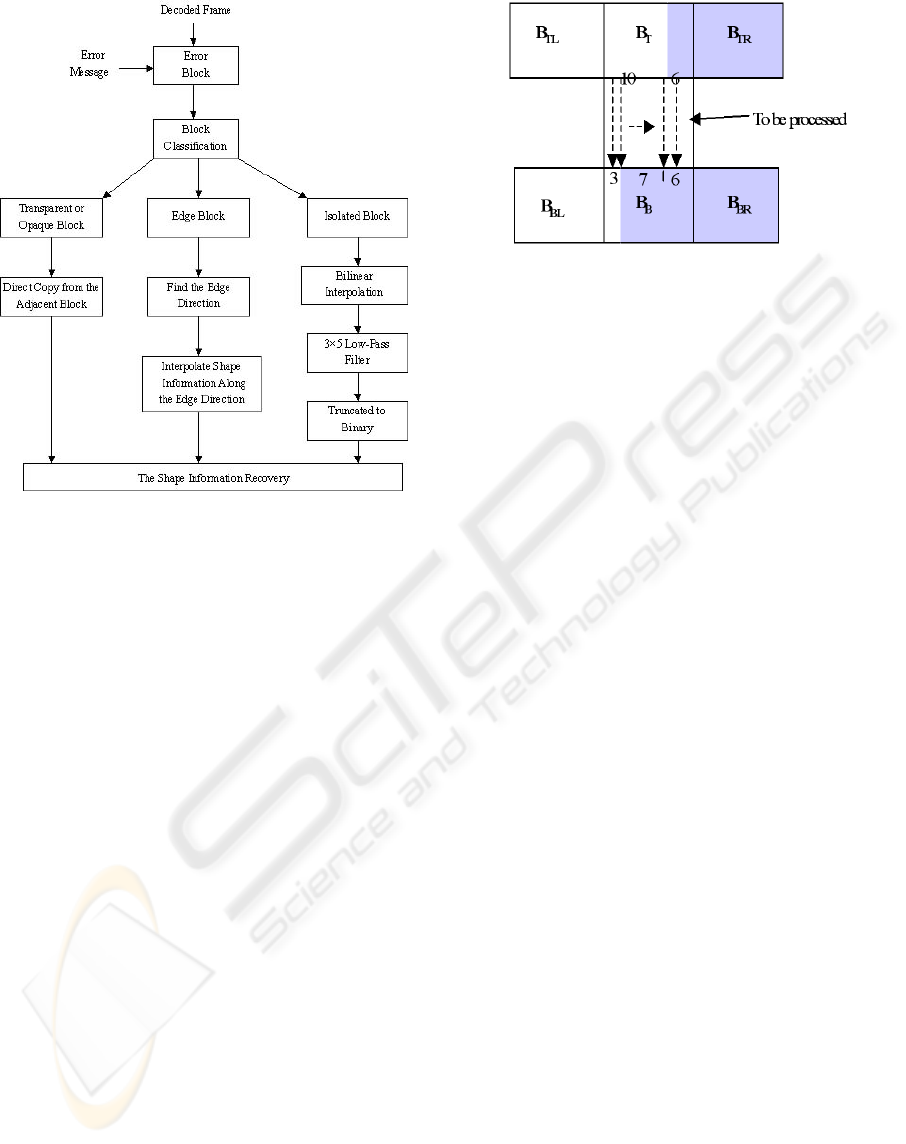

Figure 1: The flowchart of the proposed shape recovery.

with the adjacent pixels. However, when the

neighboring blocks contain the edge information that

is partial dark and partial bright, we try to find the

edge direction for interpolating the shape. The last

is an isolated block that its neighboring blocks are

different groups. This block always locates at the top

or bottom of object, which is difficult to be

recovered perfectly.

Figure 2 illustrates the position of the missing

block processing. If the B

, B

and

blocks all are zero (or one), the current block

belongs to an opaque (or transparent) block. We

only fill the zero or one for all missing pixels

without computations. If the T-block and B-block

have the edge information, the lost block would be

an edge block, where T-block is defined by

consisting of blocks B

, B

and B

, and B-block

combining with blocks B

, B

and B

. The block

can be classified according to the information of T-

block and B-block. To fasten processing, the simple

AND and OR operations are used. We define

“T_{and}” function that the boundary pixels of the

, B

and B

blocks (T-Block) are performed

with AND function as

)...

......(}_{

12101

2101210

−−

−

•••••

••••••=

TRTRTRTR

TTT

TLTLTLTL

BBBBB

BBBBBBBandT

(1)

,where

B and B ,B

is the i

boundary pixel

of blocks B

TL,

and B

TR,

respectively. If the block

size is N×N, we need to perform (3N-1)-bit AND

Figure 2: The block position.

operations. By the same concept, “B_{and} “,

“T_{or}” and “B_{or}” are defined to perform the

AND function of B-block, the OR function of T-

block and the OR function of B-block, respectively.

Table-1 lists the block classification with T_{and},

B_{and}, T_{or} and B_{or}. Obviously, if all

operation results are zero or one, which be an

opaque or transparent block. While T-block and B-

block have the edge information, the partial data is

zero or one. Hence the T_{and} and B_{and} should

be zero, but T_{or} and B_{or} are one. There are

four cases. For case 1, the background is dark and

the missing block is at the top of object, the result of

T_{and}, B_{and}, T_{or} and B_{or}={0001}.

For case 2, the missing block changes to at the

bottom of object, and the following result is {0010}.

If the background is bright, the results of the bottom

and top of object are {0111} and {1011} for case 3

and 4 respectively.

For an edge block, XOR operation is used to

estimate the edge direction. If the block size is N×N,

the XOR of the block B

and B

is performed by

),.......,,(

111100 −−

⊕⊕⊕=

TBTBT

BBBBBBES

(2)

to denote the edge shift (ES) between the two

blocks.

B and B

is the i

boundary pixel of

blocks B

and B

For example, in Figure 2, ES

=(0,0,0,1,1,1,1,1,1,1,0,0,0,0,0,0). ES_one=7 is by

counting the number of one. The ES value is used to

find the vector distance for the missing block. The

missing block is interpolated with along the edge

direction of the blocks B

and B

. Since the shape

information is binary, first we can fill 0 and 1 for

two-line values along the edge direction. The

proposed algorithm is available for the vertical edge

blocks, but fail for horizontal edges. The horizontal

edge block is classified to the isolated block type

since its adjacent top and bottom blocks belong to

different block groups.

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

104

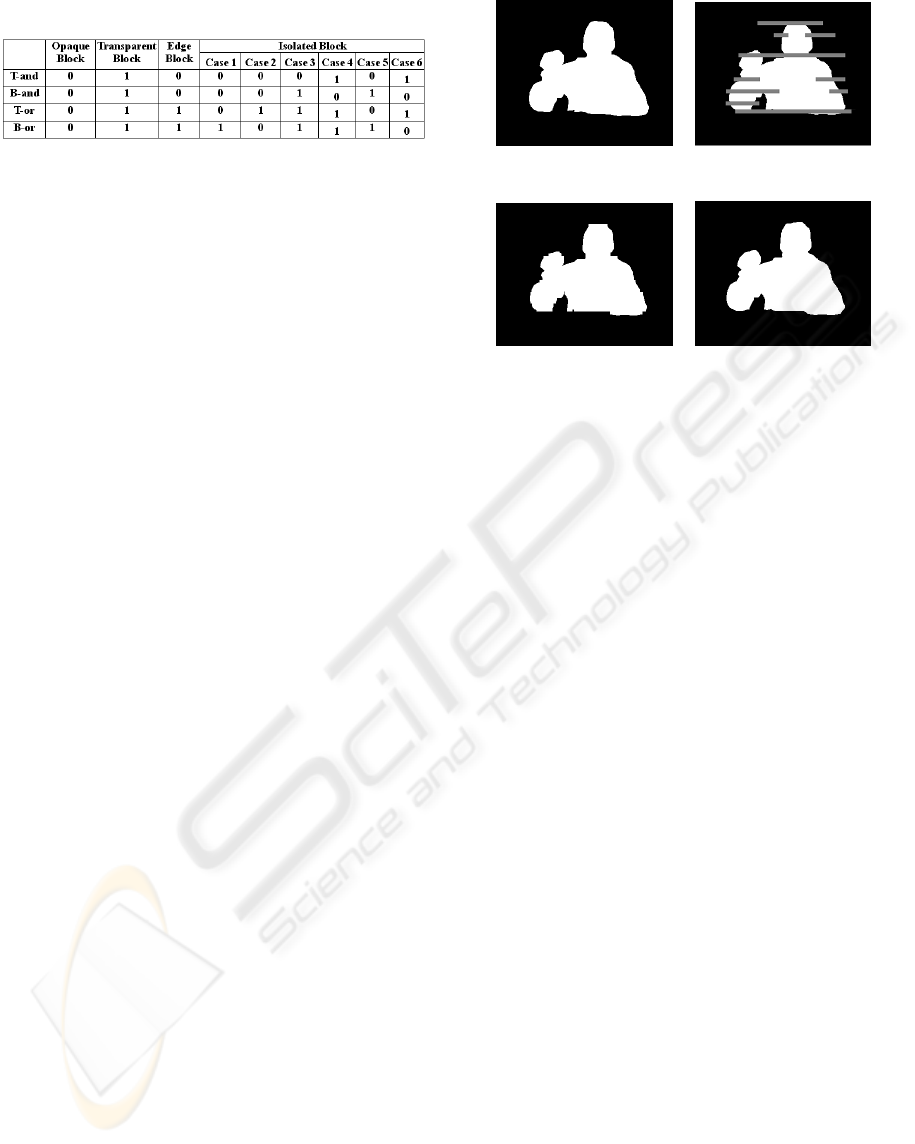

Table 1: Block Classification with the Boundary Pixels.

For isolated block processing, we proposed a

filtering interpolation to recover the isolated block

efficiently. With the processing flow of Figure 1,

first we do the linear interpolation for the lost block

with the boundary pixels of B

and B

blocks. As

N=16, the pixel of the first vertical line can be

interpolated by line interpolation. The interpolation

result will be gray level since the top block B

high and the bottom block B

is zero level.

recover the error blocks to near real shapes, the

interpolated value is further processed with a low-

pass filter. Our motivation is that we attempt to use

the low-pass filter to spread the normal shape

information of the neighbor blocks to modify the

gray level of the error block to recover the shape. If

the processing window covers the object pixels that

its level is 255, the gray level of error pixel after

low-pass filtering will increase. As closer to the

background, the level will decrease since the

window covers more black pixels. This approach

can modify the bilinear interpolation result for the

lost block to approach the practical object shape.

Finally, the gray-level is truncated with a threshold

to become the binary shape data. The threshold

value is adaptive according to the neighboring

available shape block. If the processed block is close

to the object, the threshold will be increased.

However, when the processed block possibly cannot

be decided according to the case of the Table-1. The

non-defined block types are also processed with the

same as the processing flow of the isolated block.

3 SIMULATIONS

To evaluate the performance of the proposed

algorithm, three video sequences “TV”, “Salesman”

and “Irene” are selected. The data is encoded with

MPEG-4 encoder. There are possibly partial or

complete slice errors by error patterns. The block

size used 16×16, so there are 16×16×m data

corrupted, where m is the number of error blocks.

The error rate is about in the bounding box. Figure 3

and 4 shows the original shape and error shape with

20% ~30% error for “Salesman”. First, we employ

the bilinear interpolation to fill the missing block

and then to truncate the interpolated results with the

Figure 3. Figure 4.

Figure 5. Figure 6.

threshold 127. We find that the performance is poor

since the shape outline has great distortion, as shown

in Figure 5. The fuzzy theory is used to refine the

result of bilinear processing. The data is first

processed with bilinear interpolation and then the

result is revised with its fuzzy decision rule. The

final result is also truncated to get the binary shape

information. The result is better than that of the

bilinear method. Next, the shape information is

recovered with our proposed algorithm. First, we

classify the processed block with our algorithm. The

complete result is shown in Figure 6 for “Salesman”

sequence from the error shape in Figure 4. The

proposed technique outperformed all the others

against which it was compared. The edge error

concealment algorithm can recover most of shape

information. The 3-stage low-pass filter is used for

isolated blocks in experiments. If the lost block has

high-variance in its shape, it faces difficulty to

conceal errors for the block from neighboring slices.

In the special case, the missing block in bottom is

simulated with the Figure 5. Clearly the B-blocks are

not available. However, we need two-boundary data

for the bilinear interpolation. For simulations, the

non-available pixels use the zeros for bilinear

computations. The results from bilinear and fuzzy

interpolations are poor. The proposed algorithm

recovers the shape information for the missing block

in bottom along the edge direction.

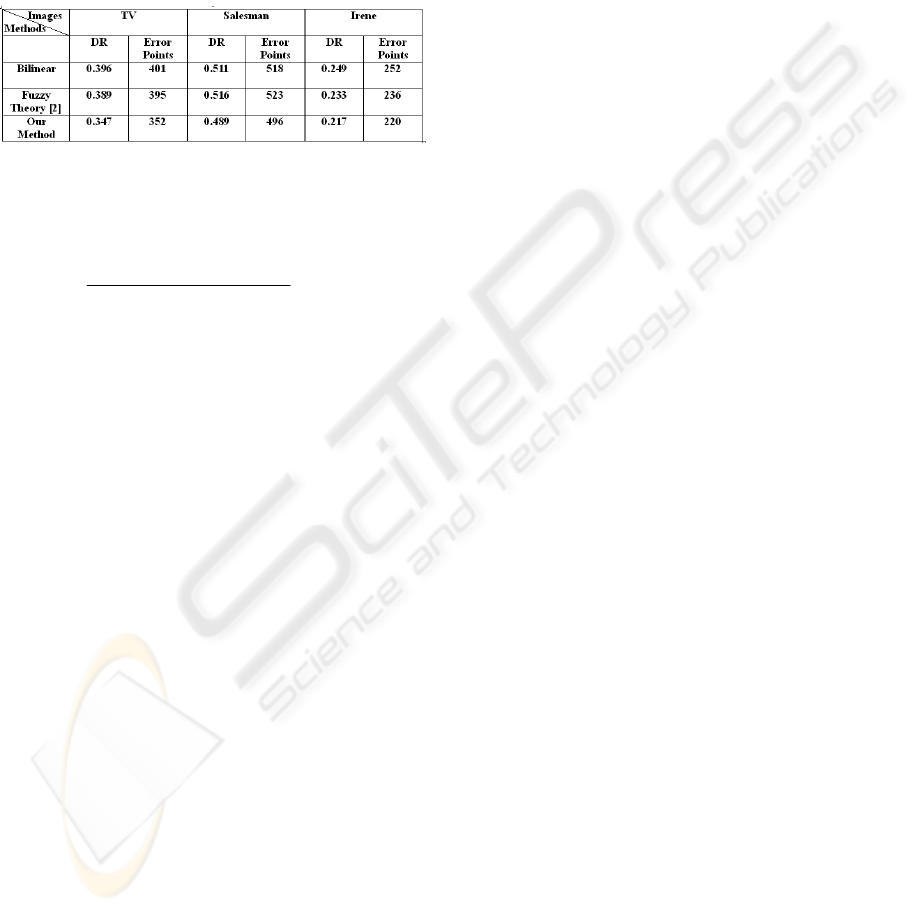

For numerical analysis, we also can compute the

error value by comparisons with the original shape

image and the restored image. The number of error

points is checked by XOR operation of the original

shape image and the restored image. If the pixel of

the restored image is different from the pixel of the

original shape image at the same position, the result

of XOR operation becomes high. When all pixels are

compared with XOR operation, the number of

A SHAPE ERROR CONCEALMENT TECHNIQUE FOR ROBUST MPEG-4 SYSTEM

105

“high” is counted to denote the number of error

points that is used to adjudge the performance of

error recovery. Besides, we can segment the object

from the image according to the decoding shape

information after error concealment processing.

The error is estimated with the distortion ration and

the number of error points. Table-2 lists the DR result

Table 2: Comparisons with DR and Recovery Error Points

from Various Algorithms.

and the error points from recovery with the bilinear,

fuzzy (Lee et al., 2001) and proposed methods,

respectively. The distortion rate (DR) can be

evaluated with

%100×=

Size

rame

Point Error of Numuber

(3)

If the shape is more complex, the performance of

error concealment will be reduced since the detail

content is difficult to recover. The results shown that

our performance is better than the bilinear

interpolation and the fuzzy theory. The

computational complexity is an important term for

real-time applications. The computational load of the

proposed algorithm is adaptively dependent on what

kind of the block.

With the logic criterion to classify the block type,

we can save the computational power for the opaque

and transparent block since these blocks can be

simply restored without any distortion. As for the

edge block, we only employ logic operations to find

the edge direction and to interpolate the shape data

between the T-block and B-block. The

computational load is not high. Most of the

computations cost for the isolated block to achieve

better quality. We employ the local filtering

approximated approach for the isolated block

processing. In fact, the number of edge and the

isolated blocks in the error sequence will dominate

both the complexity and the reconstructed quality.

The statistic analysis from the practical experiments,

the transparent and opaque blocks occupy about

60% of the full missing data. The edge block and

isolated block is about 30% and 10% respectively,

but being dependent on the error pattern. Due to

most of the processing blocks without using

computations, the computational complexity of the

proposed system is low. Experiments result that our

computation time is about 50% and 30% of the

bilinear and fuzzy method respectively. Therefore,

the proposed method is suitable applied on low-cost

and high-speed video coding products.

4 CONCLUSIONS

This paper presents a fast high-efficiency method for

the shape information recovery. First, the processed

block is classified into four catalogs and then we

employ various techniques to process the different

block to restore the shape information with better

cost-performance. We do not waste any

computational power for the simple opaque and

transparent blocks since these blocks are easily to be

restored by copying the neighboring pixels. Instead,

we make more computations for the edge block and

isolated block because these blocks quality will

greatly determine the recovery performance. To

restore the edge block, we proposed an edge-

oriented algorithm that employed the boundary

matching with the simple logic operations rather

than complex computations. Then, we used spatial

interpolation to recover the edge information of a

missing block from the result of boundary search.

But the boundary matching method fails to recover

the isolated block. Instead, the filtering interpolation

is used to recover the shape information for the

isolated block. The results demonstrate that the

shape information can be efficiently restored, but

using low computational load to make it applicable

to real-time systems. Hence the proposed algorithm

is very valuable for the shape recovery while

applying for high robust MPEG-4 systems.

REFERENCES

Jan. 1999. Coding of audio-visual objects: video,MPEG 4

, ISO/IECJTC/SC29/WG11.

P. J. Lee, L. G. Chen, 2001. W.J. Wang and M.J. Chen,”

Robust error concealment algorithm for MPEG-4 with

the aids of fuzzy theory”, IEEE International

Conference on Consumer Electronics, PP. 154-155.

P. Salama and C. Huang, 2002. ” Error concealment for

shape coding”, International Conference on Image

Processing, September 22-25, pp.II-701-704.

X. Li, G.M. Schuster and A.K. Katsaggelos, 2002. “A

recursive shape error concealment method,” IEEE

International Conference on Image Processing,

September 22-25, pp.I-177-180.

L. D. Soares and F. Pereira, Apr. 2004. “ Spatial shape

error concealment for object-based image and video

coding”, IEEE Trans. Image Processing, vol. 13, no.4

pp. 586-599.

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

106
