MULTI-CORE COMPUTING UNIT FOR ARTIFICIAL NEURAL
NETWORKS IN FPGA CHIP
Marek Bohrn and Lukas Fujcik
Department of Microelectronics, Brno University of Technology, Udolni 53, Brno, Czech Republic
Keywords: Artificial neural networks, Computation acceleration, FPGA, VHDL, Spartan-3.
Abstract: This article describes a design and features of a multi-core unit for performing computing operations
required for artificial neural network functioning. Its purpose is to speed up computing operations of the
neural network. The number of computing cores can be altered as needed to achieve the required
performance. VHDL language has been used to build this module. It has been optimized for the Spartan-3
family FPGA chips from Xilinx. These chips are favorable because of their low price and a high number of
on-chip multipliers and block memory units. Spartan-3 chips facilitate parallel computing operations within
neural networks to a very high level and thus help to achieve high computing power.
1 INTRODUCTION
Artificial neural networks are suitable for various
tasks, such as pattern recognition, signal processing,
classification, function approximation, prediction,
data compression, etc.
It is possible to apply analog circuits, micro-
controllers, computers, signal processors, and FPGA
chips of neural networks implementation. Analogue
neural networks are not used because of their
implementation complexity and computing
accuracy. Micro-controllers are cheap and easy to
use, however, they do not achieve the required
computing performance. Implementation of a neural
network in a computer is easy, but it is unsuitable for
use in industry or as embedded application due to
the high cost and/or enormous size.
Signal processors and FPGA chips are suitable
platforms for the implementation of neural networks.
Signal processors are easier to use, they can be
programmed in C language and they are very cheap
for this purpose. Their disadvantage is that their
computing power cannot be increased easily due to
their fixed structure.
FPGA chips, on the other hand, have the capacity
to facilitate parallel computing operations at a very
high level and their structure can be adjusted to
target application. The programming language used
for FPGA chips is usually VHDL which is suitable
for the description of parallel structures and pipe-
line circuits. Application of these techniques allows
for achieving the maximum computing power and
speed and thus competes with all remaining
alternatives of neural networks implementation.
The unit described in this article takes advantage
of all benefits of FPGA chips and has been
optimized for Spartan-3 family from Xilinx. The
solution provided herein performs parallel
computing operations and use pipe-line structure.
The number of computational cores can be adjusted
as needed. The biggest chip of Spartan-3 family
(XC3S-5000) can employ up to 100 computational
cores (Xilinx, 2006). The XC3S-200 chip was
chosen to carry out the implementation and testing
of the unit.
2 THEORETICAL ANALYSIS
2.1 Artificial Neuron
Artificial neuron – perceptron (Figure 1) is
composed of an input vector, synaptic weight vector,
summation unit, activation function and output.
Its function is as follows:
The input vector is multiplied by the weight
vector. The results are summed up and they compose
the inner potential of the neuron as depicted in
Equation 1 (Fausett, 1994).
=
=
x
n
nn
inwi
1
*
(1)
149
Bohrn M. and Fujcik L.
MULTI-CORE COMPUTING UNIT FOR ARTIFICIAL NEURAL NETWORKS IN FPGA CHIP.
DOI: 10.5220/0002172101490152
In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2009), page
ISBN: 978-989-8111-99-9
Copyright
c
2009 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
w
1
w
2
w
x
in
1
in
2
in
x
Activation
f(i)
out
inner potential
of neuron

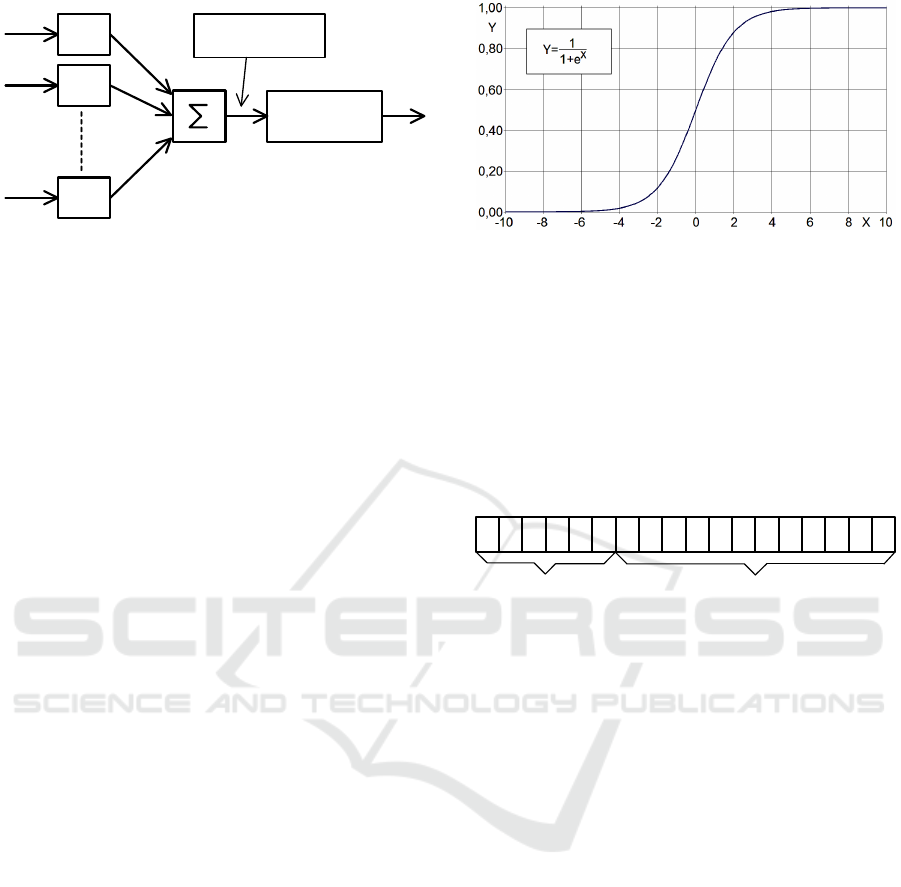

Figure 1: Structure of artificial neuron.
This value is fed into the activation function. The
activation function is usually a step function, a
sigmoid or ramp function; its task is to saturate the
output value within the set limits, usually between 0
and 1.
2.2 Computations Inside Neural
Network
Multiplication and summation are the most
important computations within the neural network.
These can be carried out using the multiply-
accumulate (MAC) function, however, the chosen
target chip Spartan-3 does not support this particular
function. Instead, the MAC operation is replaced by
sequential multiplication and summation operations.
Spartan-3 chips include hardware multipliers and the
summation operations are performed by gates.
The computation of inner potential of a neuron is
always performed by one computational block.
These blocks are in a parallel arrangement which
increases the data throughput capacity as well as the
overall computing power of the entire unit. The
Spartan-3 chips can work up to 375 MHz under ideal
conditions; however, the actual frequency of
operation is slightly lower.
For the activation function, the unipolar sigmoid
has been chosen (Figure 2) because it is the most
common function for neural computations. The
activation function is carried out using interpolation
from the lookup table. It is possible to add other
activation functions to the chip or replace the
unipolar sigmoid by another function, if needed.
2.3 Format of Data
The data format for the weight vectors and input
information transfer and the computational
operations are the same within the neural network.
The 18-bit mode is the most suitable width for buses
employed in the Spartan-3 chips because of the 18-
bit inputs of the embedded multipliers. The block
Figure 2: Sigmoid activation function.
memory units can also be adjusted to the 18-bit
mode.
The data are represented as a fixed point number
and are stored in two's complement. The 6 most
significant bits of the data word represent the integer
part and the next 12 bits represent the fraction part
as illustrated in Figure 3 (Suhap, Becerikili, Yazici,
2006).
i f f f f f f f f f f f fiiiii
MSB(17) LSB(0)
Integer part Fraction part
Figure 3: Format of number representation.
3 REALIZATION IN FPGA CHIP
3.1 Circuit Overview
Figure 4 shows a block diagram of the entire circuit
for neural network computations. The control logic
block, neuron computation blocks, and activation
function are the main parts of the circuit.
The control logic includes a map of the neural
network which is the basis of data and commands
sent out to neuron computation blocks. The selection
of weight is done by an address sent to the bus
controlling the memory blocks. Weight coefficients
are stored in these memory blocks. Each memory
block can store up to 1,024 weight coefficients. In
the XC3S-200 chip used for testing the design, up to
10,240 synapses can be implemented.
Data coefficients are transmitted on the basis of
an external requirement and a neural network
computational status. Either data stored in the
neuron data memory or data from the input port are
used. The selected neuron data memory
configuration allows for storage of 1,024 neuron
ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics
150
outputs which means that the unit can handle a
neural network consisting of up to 1,024 neurons.
The control logic can also send the following
commands to the computational blocks: reset, MAC,
BIAS, send result. Each neuron computation block is
connected to an individual command bus. By
separating the command buses of individual
neurons, it is possible to arrange them in a way so
that each neuron performs computational operations
simultaneously at a different layer of the neural
network. Possibly some of the neuron cores can be
disconnected by sending only the reset command.
MAC command together with BIAS command
calculates the inner potential of the given neuron.
Once the commands are received by the neuron
cores, the computational core starts to multiply the
weight coefficients by data inputs and stores the
results in the internal register. The send result
command initiates the transfer of the inner potential
value to the next register. Subsequently, the neuron
waits for an impulse to send the data to the
activation function.
Control logic
Network input
Network
response
Neuron
block
Weight
memory
Neuron
block
Neuron
block
Weight
memory
Weight
memory
Activation
function
Priority decoder
Neuron data
memory
Weight
select bus
Data and
command
bus
Activation
function
lookup and
interpolator
Neuron
output bus

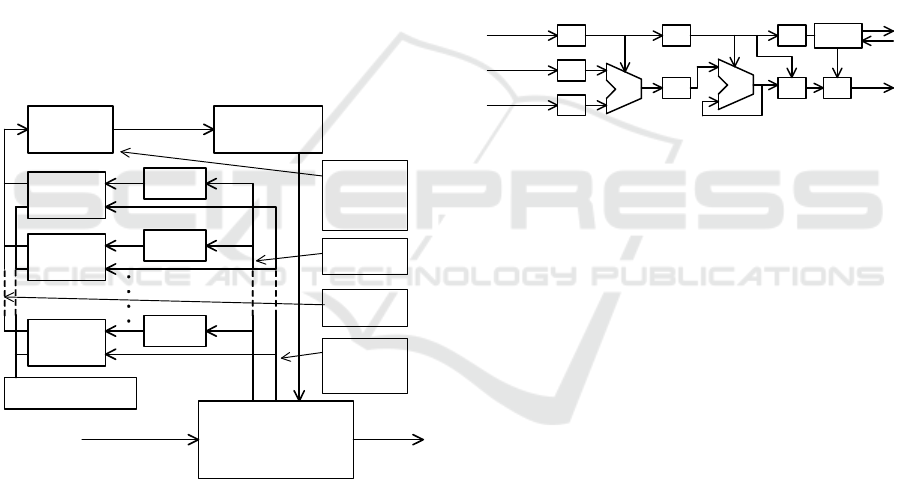

Figure 4: Block diagram of a complete unit.
The output bus of neuron computing blocks is
shared by all computing blocks because its capacity
utilization should be the low. When required to send
the data to the activation function, neurons wait for
the priority decoder’s impulse. Data are sequentially
brought from computing blocks to the activation
function and no internal FIFO buffer implementation
in necessary.
After the data pass through the activation
function, they are stored in the neuron data memory
- dual port RAM. If needed they are read and sent
from this memory via the data bus to the computing
blocks. If the stored data belong to the last neuron
layer, they are transferred to the unit output.
3.2 Neuron Computation Block
The block diagram of a neuron computing block is
illustrated in the Figure 5. The block is arranged as a
three stage pipe-line circuit to increase the speed.
The input data of this block are command, data and
weight.
In the first stage, the input data are multiplied
according to the chosen command, the second stage
is composed as a summation block. These two
together implement the MAC function and calculate
the internal neuron potential. When the send result
command is received, the internal potential is sent to
the last pipe-line stage and waits for the impulse to
be transferred to the activation function.
FFD
FFD
FFD
Command
Data
Weight
FFD
FFD
+
X
FFD
FFD FFD
Request
to send
Result
Figure 5: Block diagram of a neuron computation block.
After receiving the reset command, the internal
potential is set to zero and the block can start
computing another neuron regardless of the fact
whether the result was sent or is waiting in the last
stage, the result remains in an unchanged state.
3.3 Activation Function

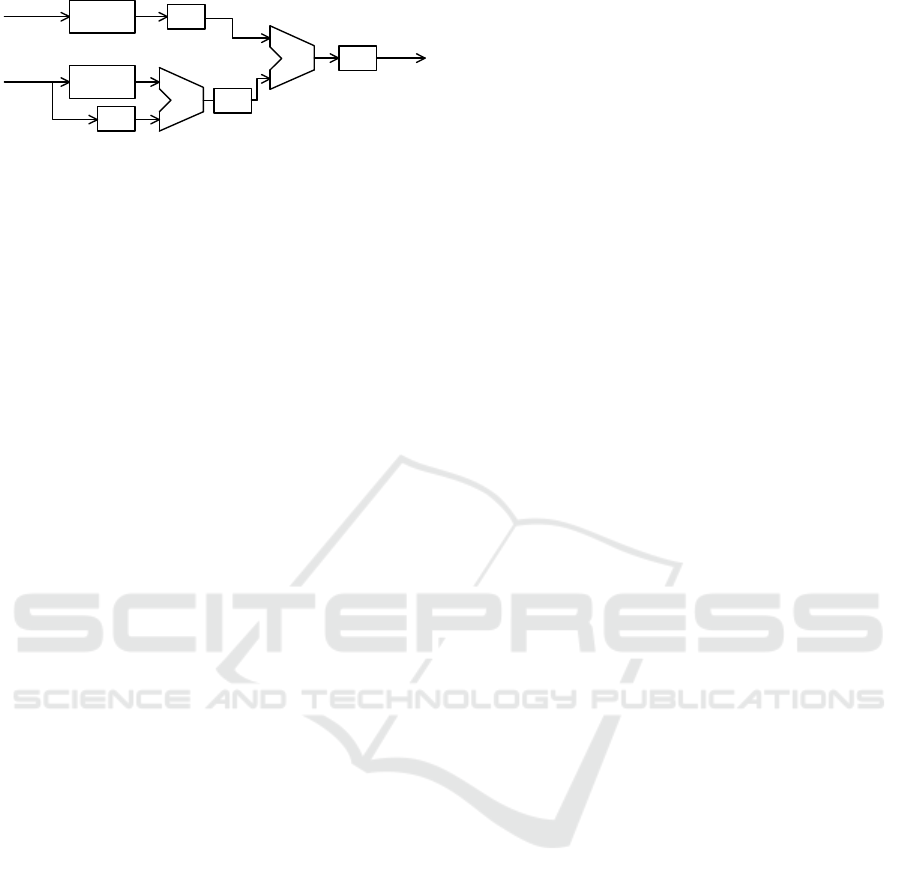

Activation function is composed by an interpolated
lookup table. The activation function circuit
structure is pipe-line similar to computing block, it
includes a multiplier and an adder.
The activation function has only one input which
is divided into two parts. The upper part (bits 17 .. 9)
is transferred into two lookup memory units. The
lookup value for interval offset is stored in one of
them and gradient of interval in the other. Gradient
is multiplied by the lower part of the input (bits 8 ..
0) and is transferred to the summation part. Offset is
delayed by a one clock period and it is also
transferred to the summation block. The interpolated
value of the activation function connected to the
output is achieved in this way. The activation
function output is stored in the neuron data memory
which can be accessed by the control logic.
MULTI-CORE COMPUTING UNIT FOR ARTIFICIAL NEURAL NETWORKS IN FPGA CHIP
151
Input
(17 .. 9)
Input
(8 .. 0)
Interval
memory
Gradient
memory
FFD
+
X
FFD
FFD
Output
FFD
Figure 6: Block diagram of an activation function
interpolator.
Since the activation function is realized by a
lookup table, it is easy to change its shape using
different coefficients. The circuit function can be
extended by adding another block with a different
activation function. For example, the activation
function for output layer will be a step function if we
require binary result.
3.4 Testing of Complete Circuit
The circuit was described in VHDL language, the
source code is modular and optimized for the
Spartan-3 family chips from Xilinx and fully
synthesizable. Since most of the circuit is arranged
into pipe-lines, it can work with the clock frequency
up to 133MHz.
The target XC3S-200 chip includes 12 blocks of
RAM and 12 dedicated multipliers. Activation
function requires at least one block RAM and one
multiplier. Neuron data memory needs one block
RAM. For this reason it is possible to implement 10
computing blocks, needing one block of on-chip
RAM for storing weight coefficients and one
multiplier for computing.
The circuit function was tested on an application
recognizing hand-written numbers. A network with
88 neurons in the input layer, 40 neurons in the
hidden layer and 10 in the output layer was realized.
The network model and the training algorithm were
realized in a computer and weight coefficients were
transferred to weight memory blocks on FPGA chip
(Masters, 1993).
Calculation of response of the neural network
require 88 times 4 clock periods for the hidden layer,
40 clock periods for the output layer plus latency of
the activation function of 4 periods. For one
character recognition, 396 clock cycles were needed.
At the working frequency of 133 MHz the circuit
can recognize 336000 numbers per a second. In
comparison to the single core signal processor which
would need for such a calculation at least 3920 clock
cycles, this is an excellent result.
4 CONCLUSIONS
The neural network function is very demanding
regarding to the computing power. In the FPGA
chips, however, it is possible to parallelize the
calculations very efficiently. The designed circuit
speeds up the computation for neural network
approximately 10 times in comparison to signal
processor. With using the biggest chip XC3S-5000
from the Spartan-3 family, it would be possible to
implement up to 100 computing cores into the
circuit and thus increase the computing power
theoretically up to 100 times.
The entire circuit is very modular and allows for
realization of neural networks in various
configurations. From very small networks up to
networks consisting of thousands of neurons and
hundreds of thousands synapses with a very high
computing power kept.
Spartan-3 family chip was chosen for the
implementation because of its low price and good
accessibility of development kits. Its disadvantage is
that it cannot process the MAC command in one
clock cycle. This problem is solved by higher FPGA
families, such as Virtex-5 family chips are able to
process up to 580 Giga MAC per second while their
computing of MAC command is performed within
one clock cycle.
ACKNOWLEDGEMENTS
This research has been supported by the Czech
Ministry of Education in the frame of long term
Program Plan MSM 0021630503 MIKROSYN New
Trends in Microelectronic Systems and
Nanotechnology and by the Czech Science
Foundation as the project GA102/08/1116.
REFERENCES
Ohomondi, Amos, R., Rajapasake, Jagath, C., 2006.
FPGA Implementations of Neural Networks, Springer
Netherlands
Fausett, L., 1994. Fundamentals of Neural Networks,
Prentice Hall New Jersey
Masters, T., 1993. Practical Neural Network Recipes in
C++, Academic Press California
Xilinx, 2006. Spartan-3 FPGA Family: Complete Data
Sheet, Xilinx company
Suhap, S., Becerikili, Y., Yazici, S., 2006. Neural Network
Implementation in Hardware Using PFGAs, 13
th
International Conference, ICONIP 2006, Springer-
Verlag Germany
ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics
152
