IMPLEMENTING TRUE RANDOM NUMBER GENERATORS IN

FPGAS BY CHIP FILLING

Octavian Creţ, Radu Tudoran, Alin Suciu and Tamas Györfi

Technical University of Cluj-Napoca, 15, C. Daicoviciu street, Cluj-Napoca, Romania

Keywords: True random number generators, FPGA, Electrostatic and magnetic interferences.

Abstract: This paper presents a new method for implementing TRNGs in FPGA devices. The design is based on

filling the chip close to its maximal capacity and exploiting the interconnection network as intensely as

possible. This way, there are strong chances for the design to exhibit a nondeterministic behavior. Our

design is a computationally intensive core that generates 64-bit numbers, accumulated into a normal, fixed-

point accumulator. From the 64-bit words only those bits are extracted that exhibit the maximal entropy.

They are then post-processed using the classical XOR-based bias elimination method. The resulting TRNG

provides high quality random numbers; other advantages of this new method are its stability and the fact

that the design encapsulates all its components in one chip. An explanation of the observed phenomenon is

proposed, based on electromagnetic interferences inside the chip and cross talk. A method for developing

new designs based on this approach is also proposed.

1 INTRODUCTION

The increasing need for random numbers is due to

the emergence of many application fields where

these numbers are indispensable. Random numbers

are useful for a variety of purposes, such as

generating data encryption keys, simulating and

modeling complex phenomena and for selecting

random samples from larger data sets. When

discussing single numbers, a random number is one

that is drawn from a set of possible values, each of

which is equally probable, i.e., a uniform

distribution. When discussing a sequence of random

numbers, each number drawn must be statistically

independent from the others.

A supplementary constraint on the random

numbers is the throughput at which they are

generated. This is also a condition for proving the

randomness itself. In some cases, if a generator only

yields a few numbers, it is almost impossible to

check their statistical properties, because the number

of output values is insufficient.

Although it is impossible to prove that a given

sequence is random, it is possible to conclude that

the sequence is not random. This is done by

performing some statistical tests grouped in batteries

like Diehard (Marsaglia 1996), NIST (Rukhin et al.

2001) and more recently TestU01 (L’Ecuyer and

Simard, 2007).

Most true random number generator (TRNG)

systems rely on physical phenomena to capture

randomness. But after capturing entropy by some

analog device, the signals must be sampled and

digitized to become useful bits. This hybrid

approach has a set of disadvantages: low speed, poor

throughput, high vulnerability against harmful

attacks (this aspect is important especially in

cryptographic applications).

It is thus by far preferable to have the whole

system in one digital chip. But it is difficult to get a

digital system to do something “by chance”. For

instance, a computer is (or should be, if not broken)

completely predictable.

There is a lot of ongoing research for improving

and obtaining new methods to generate true random

numbers, based on software (Drutarovsky and

Galajda, 2007) and hardware (Gentle, 2004)

strategies. There are three main approaches to

generating random numbers using a computer, with

quite different characteristics:

• Pseudo Random Number Generators (PRNGs)

are algorithms that use mathematical formulae

or simply pre-calculated tables to produce

sequences of numbers that appear random. A

good deal of research has gone into pseudo-

167

Cret O., Tudoran R., Suciu A. and Györﬁ T. (2009).

IMPLEMENTING TRUE RANDOM NUMBER GENERATORS IN FPGAS BY CHIP FILLING.

In Proceedings of the International Conference on Security and Cryptography, pages 167-174

DOI: 10.5220/0002177001670174

 SciTePress

random number theory. If the algorithm is

complex and the period of the PRNG sequence

is long enough, it can produce quality numbers.

The advantage is that they are easy to

implement in software; the major disadvantage

is their predictability: for equal external seeds

the output sequence will always be the same.

• Unpredictable Random Number Generators

(URNGs) are algorithms that basically rely on

unpredictable human-computer interaction to

capture entropy. Such examples are the mouse

movement on a given area by a human operator

or the amount of time between keystrokes. Even

though the source is not a truly entropic one (a

good knowledge of the operator’s habits can

ease the prediction of the next event), the results

generated show a good quality and this type of

methods are used in several cryptographic

products (e.g. PGP). By combining several such

entropy sources the results can be improved.

• True Random Number Generators (TRNGs)

produce the random numbers based on some

physical phenomena (e.g. radiation, jitter, ring

oscillators, internal noise etc.) that are digitized.

They do not have an internal state like the

PRNGs and the next generated bit is based

entirely on the physical process. In general

these bits are not uniformly distributed (the

probability of a ‘1’ is not 50%) so they require

some post processing in order to reduce the

bias.

The main difference between PRNGs and

TRNGs can be seen as follows: in a PRNG anyone

can predict with 100% accuracy the next state based

on the current state, while in a TRNG nobody can do

that (even its designer).

At this moment, three main techniques were

reported in the literature for creating TRNGs:

• Ring oscillators (ROs): basically, this method is

exploiting the jitter of a clock signal in a purely

digital design (Kohlbrenner and Gaj, 2004),

(Schellekens et al. 2006);

• Direct amplification of the noise that is intrinsic

in analog signals: this method relies on the

amplification of the shot noise, the thermal

noise, the atmospheric noise or the nuclear

decay. The noise is amplified and then, using

comparators and analog-to-digital converters,

bits are “extracted” from it (Jun and Kocher,

1999);

• Chaos-based TRNGs: this method is based on a

well-defined deterministic analog signal that

exhibits chaos. Existing implementations

exploit Markov’s chaotic sources theory

(Drutarovsky and Galajda, 2006) and use mixed

analog-digital chips.

In this paper we report an empirical discovery:

the possibility to obtain high quality TRNGs in

FPGAs by almost completely filling the chip with

active logic and intensely using the interconnection

network. This way, a design that should work

deterministically starts exhibiting a nondeterministic

behavior. We measure the quality of the random bits

obtained this way and propose an explanation of the

observed phenomena. Finally, we propose a new

method for implementing TRNGs in FPGAs based

on these observations.

2 RELATED WORK

There are systematic efforts for creating RNGs both

in software and hardware. Few TRNGs exist

nowadays in software, because of the problems they

face with and due to the reduced number of true

sources of randomness. Such problems are for

instance the throughput – for generators which rely

on user’s actions, or the strong dependency on some

computer hardware components – e.g. the network

card activity. Even a generator which does not

depend on such inefficient factors – like the one

proposed in (Colesa et al., 2008) – faces difficulties

regarding the dependency of the output sequence on

the environment of the workstation on which it was

obtained.

The hardware methods proved to behave better

than the software ones, but they also face sometimes

problems like portability or sensibility to physical

environment factors.

FPGAs are emerging as an attractive platform

for cryptographic implementations, offering benefits

such as:

• compactness: the generator is embedded in a

single chip;

• fully digital: the ideal source of entropy is a

digital signal, not a mixed analog-digital one;

• low development costs;

• reduced time-to market.

One of the first FPGA-based implementations

was proposed in (Fischer and Drutarovsky, 2002),

where the oscillator jitter was used as the entropy

source. The system was based on PLLs (Phase

Locked Loop, a component available in Altera

FPGAs and used for frequency synthesis and clock

skew reduction) in which very fine control of the

SECRYPT 2009 - International Conference on Security and Cryptography

168

output frequency is possible. Unfortunately, this

implementation is limited to Altera FPGAs.

A reliable FPGA vendor-independent

implementation of TRNGs is based on ring

oscillators (ROs) and on the exploitation of jitter.

An RO is a circuit composed of an odd number of

inverters connected to form a ring (i.e. the output of

the last inverter is connected to the input of the first

one, in a “circular” manner). The RO can also

contain Latches, to allow the fine tuning of the

propagation delays inside it. In all implementations,

at least a pair of ROs is necessary.

There are two main methods of using ROs for

building TRNGs:

• One of the ROs is sampling the other one – this

method was proposed in (Kohlbrenner and Gaj,

2004)

• The ROs are working independently, in parallel,

and the entropy is collected from them by

means of an XOR gate – this method was

proposed by (Schellekens et al., 2006) and

further developed by (Klein et al., 2008).

3 A NEW METHOD FOR

CREATING ENTROPY

The method we introduce here was empirically

discovered while working at another design. Even

though the underlying phenomenon is not new, the

possibility to exploit it in a coherent and useful

manner was a surprise.

It is common knowledge between experienced

designers that problems can arise when a design fills

the FPGA chip almost completely. After 90% of

logic resources consumption, strange manifestations

can appear: a design that used to work fine becomes

totally unpredictable after extending it with more

logic blocks. In short, the design becomes

nondeterministic after passing a “fill threshold” in

the amount of logic resources used.

The concept of “design usage percentage”

usually refers to the amount of active logic that is

used in the design. In our opinion, for this design

one must also consider the concept of

“interconnection network usage”, with a particular

accent on the number of repeaters that are used. The

two concepts are related, but the latter is more

important in TRNGs design using the method

presented in this paper.

Unfortunately, it is not clear where this threshold

is positioned, because there are also many designs

that behave normally (i.e., completely deterministic,

as expected) even if almost 100% of the FPGA chip

is used. However, the nondeterministic behavior

around 90% of chip usage is a phenomenon that

occurs too often to be ignored.

We discovered such a behavior while working on

a complex design that implies creating a multi-stage

pipeline of arithmetic floating-point operators. This

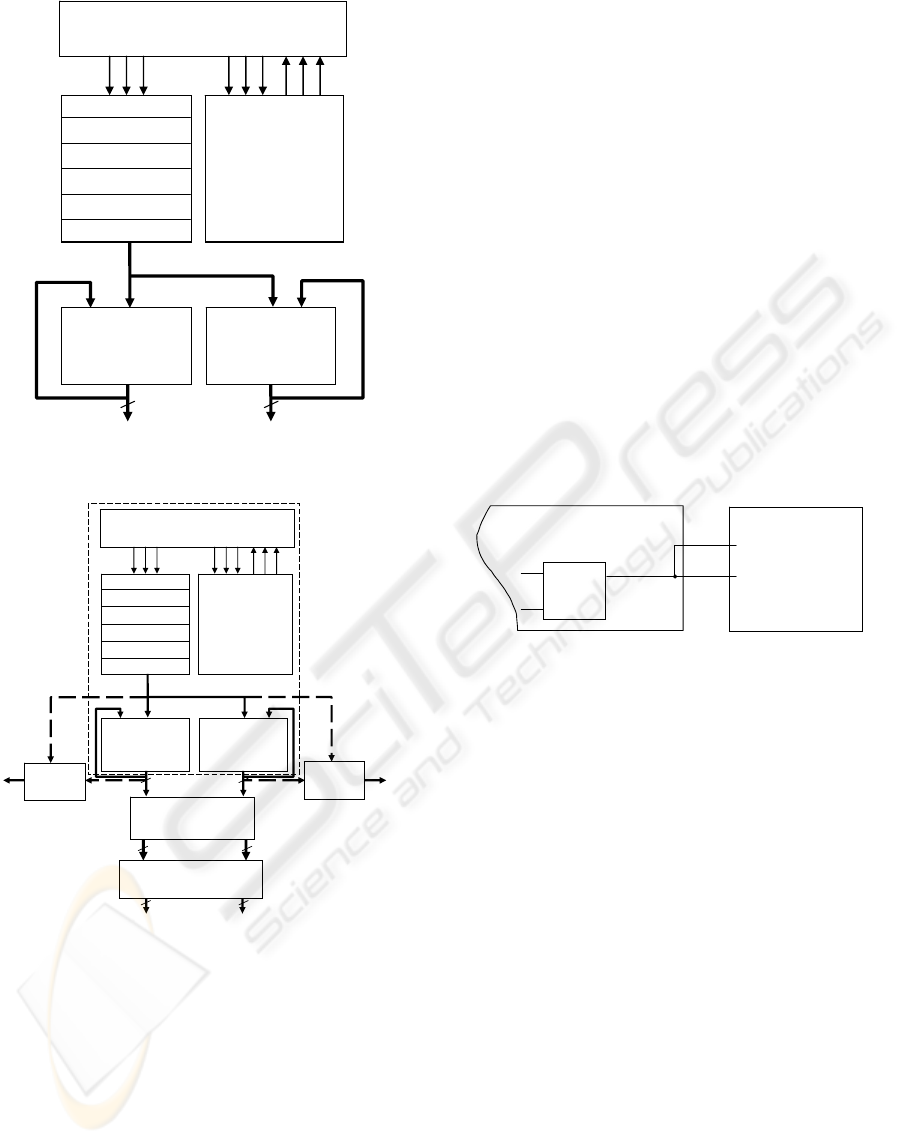

design’s block structure is shown in Figure 1.

The floating-point operators used are well-tested,

completely reliable (i.e. deterministic) ones, as

developed in the FloPoCo project (FloPoCo, 2007).

The design was aimed at computing some physical

parameters of a medical device for stimulating the

human nervous tissue (Creţ et al. 2008). We used a

Digilent XUP board featuring a Virtex2Pro30 FPGA

device and the Xilinx ISE 8.1 software.

At the beginning, the architecture was

completely deterministic (all components were

tested separately and they clearly manifested a

deterministic behavior).

This design implements a very computationally

intensive algorithm and the pipeline produces a new

number in each clock cycle. Because of some

research we did on the final results’ precision (De

Dinechin et al., 2008), we tried to improve the final

accumulator, so we designed a new one.

Of course, the results obtained by the new

accumulator had to be compared with those

produced by the old one. That is why we added the

new accumulator in the design, on 64 bits instead of

32, working in parallel with the old one (Figure 1).

At this point, the “fill threshold” mentioned

above was reached, and the design became

nondeterministic. The same .bit file downloaded into

the FPGA device produced each time a different

final result, both from the old accumulator and from

the new one.

To observe rigorously this phenomenon, we first

tested this 150 times: at each time the final result

was different. As the final result is on 64 bits, we

observed that differences in the final results

appeared after the two most significant hexadecimal

digits. The same test was done on several identical

boards, and in all cases, without exception, the

results were different at each run.

It is important to mention that as soon as the

additional accumulator (the improved one) was

removed, the design became deterministic again.

When adding it back, the design became

nondeterministic, etc.

Trying to understand what happens, we have

created a very simple debugging environment

(Figure 2).

IMPLEMENTING TRUE RANDOM NUMBER GENERATORS IN FPGAS BY CHIP FILLING

169

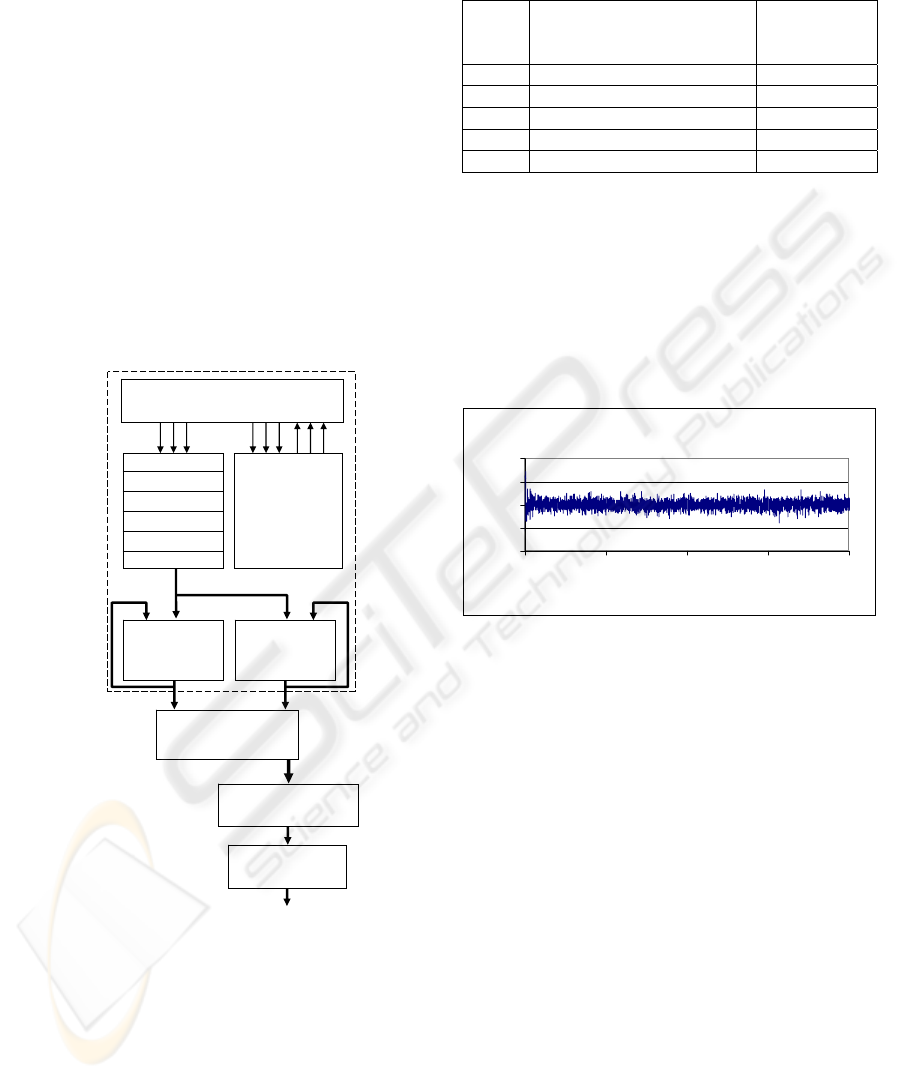

Pipeline interface (takes data from the

memory and passes it to the pipeline)

Memory

containing point

coordinates

(X, Y, Z)

Pipeline

Regular

Floating-point

accumulator

Improved

Accumulator

Pipeline result

Final result Final result

Figure 1: Architecture of the first design.

Pipeline interface (takes data from the

memory and passes it to the pipeline)

Main memory

containing point

coordinates

(X, Y, Z)

Pipeline

Regular

Floating-point

accumulator

Improved

Accumulator

Pipeline result

Final result

VGA

display

PC PC

VGA

controller

VGA

controller

PC transmission

controller

VGA

display

Cache memory

Computational

core

32 64

Figure 2: The simple debugging environment.

The intermediate results were captured in the PC

and also monitored on a VGA display. The operating

mode was simple: the computational core and the

transmission module work simultaneously. But the

former is faster than the latter; therefore, after the

computational core fills the cache memory, it must

be stalled until the transmission module empties the

cache memory and transmits all data to the PC. After

the cache memory is emptied, the computational

core is restarted. So, the transmission module works

all the time, while the computational core must

periodically be stalled. Still, the VGA display allows

monitoring the results produced by the

computational core before being cached.

During debugging the following abnormal

behavior was observed:

• The same one-bit signal was displayed on two

different rows of the VGA display: it was ‘0’ on

the first row and ‘1’ on the second one, as

shown in Figure 3.

• During a functioning cycle while the

computational core was stalled, the signals

displayed on the VGA screen changed at

apparently random moments of time, even

though the computational core did not receive

clock impulses. Of course, this means the

corresponding registers modify their content in

the absence of a clock impulse.

• We have displayed the value of the “pipeline

result” signal sent to the improved accumulator

and to the initial accumulator, and it was not the

same value.

Signal (S)

VGA display FPGA chip

CLK

Figure 3: Example of abnormal behavior: the signal S

appears to be simultaneously ‘0’ and ‘1’.

In our opinion, these phenomena are due to cross

talk and other electrostatic or magnetic interferences

that appear in the interconnection network, as

detailed in Section 7.

4 EXPLOITING THE

NONDETERMINISM

We reflected about how to use in a creative manner

this phenomenon.

As we were doing some research on random

numbers (TRNGs) (Suciu, 2007) we asked ourselves

if there is any way we could exploit this and capture

all the intermediate numbers generated by the

computational core, not only the final result. If these

numbers have all the necessary statistical properties,

the system could be successfully used as a TRNG,

because the throughput is relatively high.

Another advantage is the fact that the numbers

produced by the computational core and

accumulated in the improved accumulator are 64-bit

SECRYPT 2009 - International Conference on Security and Cryptography

170

wide, aspect that allows selecting from them only

the groups that change the most.

We had to select numbers that fulfill the

following conditions:

• Show significant differences from a run to

another – since the design is nondeterministic,

how can one be sure that the numbers, even if

they pass the statistical tests, are different in

consecutive runs?

• Show good statistical properties – i.e. do they

pass all the tests from the universally accepted

test batteries?

The first question was capital for the quality of

the TRNG. We compared successive runs and

discovered that at the beginning the numbers

generated by the computational core are identical,

but after less than 2% of the generated test file they

started being different and continued to be different

until the end of the execution. We can consider this

first period (from the beginning until the first

interference appears) a warm-up of the TRNG.

After series of testing their statistical properties,

we have concluded that not all the bits show the non

deterministic behavior with the same rate. The

phenomenon that determines the nondeterministic

behavior of the design seems to affect more often the

middle bits of the Accumulator from 39 to 8 (Figure

4). These will be the TRNG’s raw random numbers,

because they obtain the best scores when tested.

63 54 53 48 47 40 39 32 31 24 23 16 15 8 7 0

Final results from

the computational

core

Improved

accumu lator

Figure 4: Bits with the best statistical properties from the

randomness point of view.

An interesting aspect is that nondeterminism can

not be located in the architecture: it is impossible to

say that it appears in the computational core, in the

accumulators or in the PC transmission module. We

have tested several variants of PC transmission

modules (RS-232 and Ethernet), and several

accumulators (we added more “improved

accumulators” in the design, in parallel with the ones

from Figure 2, but we didn’t operate changes at the

level of the computational core). Every time, for all

combinations, the nondeterministic character of the

whole design was preserved.

5 BUILDING A HIGH QUALITY

TRNG

Based on the above described phenomenon, we

developed a hardware TRNG. The randomness

shown by the nondeterministic design is still not

enough to pass rigorous statistical tests like NIST

and TestU01. We can thus consider these numbers to

be raw numbers with high entropy, but the level of

entropy is still insufficient to make them acceptable

as high quality random numbers. Therefore, we had

to add a post-processing unit to improve the quality

of the numbers produced by the architecture.

The most popular post-processing methods

nowadays are the von Neumann (Jun and Kocher,

1999) and the XORing (Fischer and Drutarovsky,

2002) methods. We opted for the XOR method,

which takes n bits and XORs them together, thus

producing one bit. XORing is a popular post-

processing method offering multiple advantages,

like bias reduction and entropy development (by

XORing deterministic with non-deterministic bits,

the result will be non-deterministic).

If XORing is applied on more than two bits, even

greater improvements can be achieved. The

drawback of XORing is that it reduces the bit

generation rate by a factor of n (where n is the

number of bits XORed).

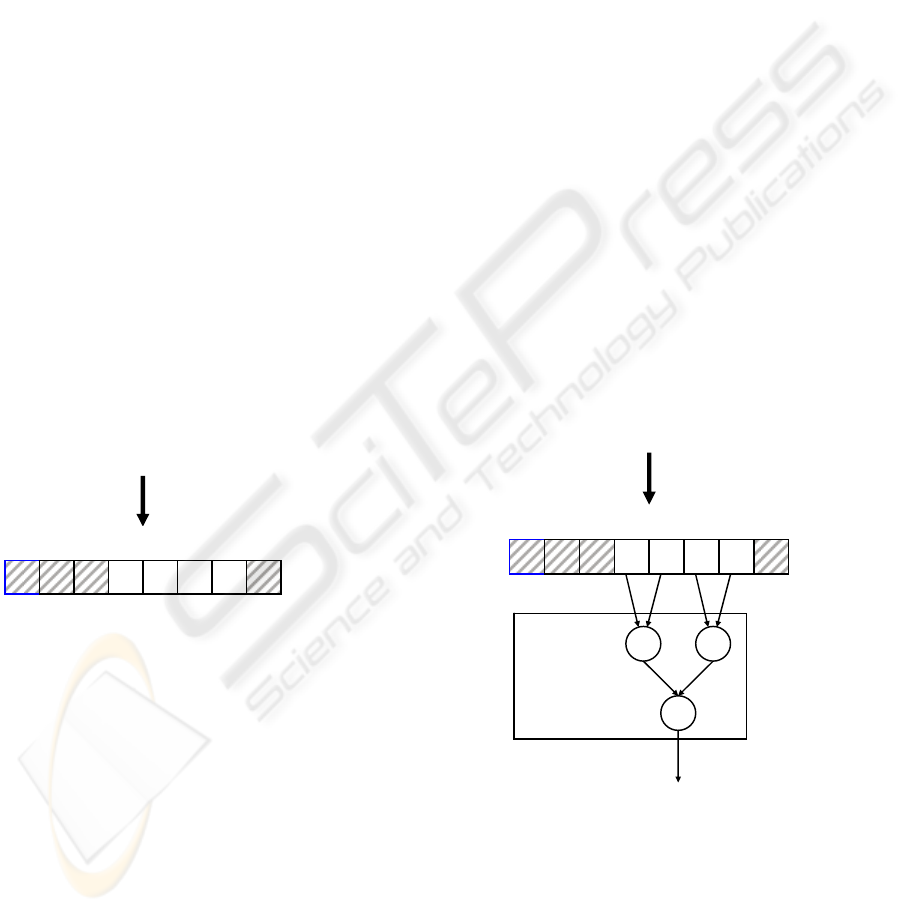

Random numbers

Xor

op erator

63 54 53 48 47 40 3 9 32 31 24 23 16 15 8 7 0

Final results from

the computational

core

High entropy

raw numbers

Post-processin

unit

Figure 5: The XOR-based post-processing unit.

The design was thus extended with a XOR-based

post-processing block, as shown in Figure 5. As one

can notice, only the groups of bits having the best

chances to pass the statistical tests were selected to

enter the post-processing unit. We have used only

the results produced by the improved accumulator.

After the end of the exploratory steps, the

debugging environment (the VGA display) was no

IMPLEMENTING TRUE RANDOM NUMBER GENERATORS IN FPGAS BY CHIP FILLING

171

longer necessary. We noticed that removing the

debugging environment and adding the post-

processing unit does not affect the system’s

nondeterministic character – Figure 6.

6 TESTING AND RESULTS

The proposed TRNG possesses a strong physical

source of entropy that is completely reliable and

shows some interesting additional features.

We have developed this TRNG on a Virtex 2 Pro

FPGA device. The random behavior was observed

on 150 tests of the same architecture (the same .BIT

file was downloaded on the FPGA chip and the

application was launched 150 times); all tests

yielded different final results (a short excerpt is

presented in Table 1).

Pipeline interface (takes data from the

memory and passes it to the pipeline)

Main memory

containing point

coordinates

(X, Y, Z)

Pipeline

Regular

Floating-point

accumulator

Improved

Accumulator

Pipeline result

Final result

PC transmission

controller

Cache memory

Computational

core

XOR-based

post-processing unit

Figure 6: Complete scheme of the TRNG.

All tests were done on several Digilent XUP

V2P30 boards (so this phenomenon does not occur

only on one particular FPGA chip). The working

frequency was of only 45MHz, which excludes

overclocking as a source of entropy.

We observed that the design is nondeterministic:

both the final value obtained in the improved

accumulator and the sequence of intermediate

numbers are different from a run to another.

Table 1: Short excerpt of the results generated by the

nondeterministic design.

Test

no.

Final value in the improved

accumulator

Final value

in the initial

accumulator

1 43EF5C23E955001C 4BB7D363

2 43EA36059DDAFEFF 4BB7D99D

3 43E3F5FEFBA49059 4BB7BD16

… … …

150 43D664FABB240B66 4BB7A1DE

We have also compared consecutive runs

(separated by a physical shut-down of the generator)

and computed the similarities between the numbers

occurring on the same position in each sequence. If

the generator is non-deterministic, then the

proportion of identical bits from different runs

should be equal with the probability that two random

bits are equal, i.e. 50%. In Figure 7 we present this

proportion.

Proportion of identical bits

0 1000 2000 3000 4000

Blocks

Proportion (%)

Figure 7: Proportion of identical bits in consecutive runs

(separated by a shutdown).

This proves that the TRNG does not tend

towards the same sequence of numbers, giving the

possibility of using it for an infinite period of time.

The generator has some coincidences at the

beginning, but after a very short warm up period of

approximately 100K numbers (with very small

variations from a run to another), the sequence of

values is clearly different. The length of the warm

up period is very small compared to the running

period of the generator.

This offers a great entropy source since neither

the occurrence of the phenomenon or its amplitude

(locally or globally) cannot be predicted.

For validating the results the NIST (Rukhin et al.

2001) and TestU01 (L’Ecuyer and Simard, 2007)

tests were used. We have applied these tests on more

than 40 sequences of outputs, testing different

lengths (between 256 KB to 200 MB). The outputs

were obtained from several Virtex 2 Pro FPGA

boards, since the architecture does not rely on any

isolated malfunction of one particular board. More

SECRYPT 2009 - International Conference on Security and Cryptography

172

than 98% of the sequences passed all the NIST tests

(there were situations when some instances of the

tests weren’t passed, but the number of failed

instances is limited – 5 out of 186 instances), and

also all the TestU01 tests. The failed instances were

not the same, and also the number of instances

varies, so there isn’t any pattern in the TRNG which

causes this. Statistically, even a TRNG can produce

sequences of outputs on which isolated tests can fail,

because of what looks to be a pattern, but since this

doesn’t repeat on multiple executions (different

outputs), this phenomenon is considered normal and

doesn’t question the quality of the RNG.

7 SOURCE OF RANDOMNESS

Our method consists in filling the chip closed to its

maximum capacity (using almost all its logic and

interconnection resources). This way, the

interconnection network will be used close to its

maximal routing capacity. It is well known that the

interconnection network occupies about 90% of the

physical space in an FPGA chip; if used close to its

maximal capacity, the electrostatic field can produce

serious interferences. Figure 8 shows the device

utilization summary produced by Xilinx tools.

Selected Device: 2vp30ff896-6

Number of:

Slices: 13380 out of 13380 100%

Flip Flops: 15350 out of 27392

56%

4 input LUTs: 24156 out of 25427 88%

BRAMs: 130 out of 136 95%

Figure 8: Synthesis report of the design.

We believe that the nondeterminism is caused by

electrostatic and/or electromagnetic interferences

generated by the full usage of the interconnection

network. It could be a cross talk between parallel

lines as well as a global influence caused by the

electrostatic field.

A strategy consisting of filling the FPGA chip

close to its maximal capacity increases the chances

for this phenomenon to take place. The happening of

this phenomenon does not ensure that the values

carried by the wire will always be modified. Its

influence can also be just a local one, so two

different receivers can read distinct values from the

same connecting wire. The uncertainties which rise

from this physical phenomenon ensure us with a

very good source of entropy.

Another possible explanation (although we tend

to give credit to the first one) would be that the

maximal fan-out of the FPGA chip is exceeded

because of the large number of Flip-Flops used in

the design.

We believe this could constitute a novel

methodology for designing TRNGs in FPGAs:

1. Create a design that performs intense

computations (preferably a pipeline on at least

64 bits) and produces a new number in each

clock cycle.

2. Make this design big enough to fill the FPGA

chip close to its maximal capacity (use as many

slices and Flip-Flops as possible).

3. Try to use the interconnection network at its full

capacity. This can be done by setting the routing

effort to “low” in the synthesis tools and by an

adequate usage of the placement constraints

(LOC, RLOC etc.). Use the “one sender-

multiple receivers” model.

If the fill threshold is reached, the design has

good chances to become a high quality TRNG.

The classical methods based on ROs are very

sensitive to a fine tuning of the ROs, which should

have almost equal periods (Kohlbrenner and Gaj,

2004). It is known that ROs are sensitive to

temperature; this can seriously affect the quality of

the generated random numbers. On the contrary, in

the present design the entropy level increases with

the temperature or any other extreme condition

which could influence the chip (like radiations, etc.).

8 CONCLUSIONS AND FURTHER

WORK

We have presented a new way of implementing

TRNGs in FPGA devices. Our design is based on

filling the chip close to its maximal capacity, from

the Flip-Flops and slices point of view, and

exploiting the interconnection network as intensely

as possible. This way, the design becomes

nondeterministic.

The design is a computationally intensive core

that produces 64-bit numbers, accumulated into a

normal, fixed-point accumulator. From the 64-bit

words we extract only those bits that exhibit the

maximal entropy and post-process them using the

classical XOR-based bias elimination method. We

consider this an interesting way of exploiting a

phenomenon that otherwise is neglected or avoided

by most designers.

IMPLEMENTING TRUE RANDOM NUMBER GENERATORS IN FPGAS BY CHIP FILLING

173

The resulting TRNG was proven to provide high

quality random numbers and we also believe it has

the advantage of resisting to extreme functioning

conditions (temperatures and radiations), which can

only increase its quality. Other advantages of this

new method are its stability and the fact that the

design encapsulates all its components in one chip,

thus increasing the generator’s security. Since it

does not depend on any external factors, an attacker

cannot intervene in any way to study it in order to

make any prediction about the source of

randomness.

The design (in the form of a .BIT file) can be

freely downloaded from (Suciu, 2007) together with

an Installation Guide, so it can be tested by anyone

who wants to convince him/herself about its

nondeterministic behavior.

We have also proposed a method for developing

new designs based on this approach, which are

FPGA vendor independent. The only drawback of

this method is that the FPGA chip will be used at its

full capacity, which will make it impossible to

implement anything else in the same chip.

Future work will focus on constructing a generic,

device-independent architecture which could be

applied to any FPGA by only modifying the generic

variables in order to completely fill the chip.

Another research direction will be to compare this

TRNG with other generators, when exposed to

external factors (temperature variations, radiations,

current fluctuations) to determine the stability of

each method.

ACKNOWLEDGEMENTS

This work was supported by the Romanian National

Centre for Program Management (CNMP) under

grant nr. 11-020/2007 (the CryptoRand project).

REFERENCES

Marsaglia, G., 1996. DIEHARD: Battery of Tests of

Randomness. [Online]. Available:

http://stat.fsu.edu/pub/diehard/

Rukhin, A., Soto, J., Nechvatal, J., Smid, M., Barker, E.,

Leigh, S., Levenson, M., Vangel, M., Banks, D.,

Heckert, A., Dray, J. and Vo, S, 2001. A Statistical

Test Suite for Random and Pseudorandom Number

Generators for Cryptographic Applications. NIST

Special Publication 800-22 (with revisions dated May

15, 2001). http://csrc.nist.gov/rng/SP800-22b.pdf.

L’Ecuyer, P. and Simard, R., 2007. TestU01: A C library

for empirical testing of random number generators. In

ACM Transactions on Mathematical Software,

33(4):22.

Drutarovsky, M. and Galajda, P., 2007. A robust chaos-

based true random number generator embedded in

reconfigurable switched-capacitor hardware. In

Radioelektronika, April 2007.

Gentle, E. J., 2004. Random Number Generation and

Monte Carlo Methods. Springer.

Kohlbrenner, P. and Gaj, K., 2004. An Embedded True

Random Number Generator for FPGAs. In

Proceedings of the ACM/SIGDA 12th International

Symposium on Field Programmable Gate Arrays,

Monterey, California, pp. 71-78.

Schellekens, D., Preneel, B. and Verbauwhede, I., 2006.

FPGA Vendor Agnostic True Random Number

Generator. In Proceedings of the International

Conference on Field Programmable Logic and

Applications, Madrid, pp. 1-6.

Jun, B. and Kocher, P., 1999. The Intel Random Number

Generator. Cryptography Research, Inc. White Paper

prepared for Intel Corporation:

http://www.cryptography.com/resources/whitepapers/I

ntelRNG.pdf.

Drutarovsky, M. and Galajda, P., 2006. Chaos-based true

random number generator embedded in a mixed-signal

reconfigurable hardware. Journal of Electrical

Engineering, vol. 57, no. 4, pp. 218-225.

Coleşa, A., Tudoran, R. and Bănescu, S., 2008. Software

Random Number Generation Based on Race

Conditions. In Proceedings of the 10th International

Symposium on Symbolic and Numeric Algorithms for

Scientific Computing SYNASC’08, Timişoara,

Romania.

Fischer, V. and Drutarovsky, 2002. True random number

generator embedded in reconfigurable hardware. In

Proceedings of the Cryptographic Hardware and

Embedded Systems Workshop (CHES), pp. 415-430.

Klein, C., Creţ, O. and Suciu, A., 2008. Design and

Implementation of a High Quality and High

Throughput TRNG in FPGA. In Proceedings of

DASIP’08 Conference on Design and Architectures

for Signal and Image Processing, Université libre de

Bruxelles, Belgium, pp. 52-56.

FloPoCo project, 2007: http://www.ens-

lyon.fr/LIP/Arenaire/Ware/FloPoCo/ .

Creţ, O., Trestian, I., De Dinechin, F., Darabant, L.,

Tudoran, R. and Văcariu, L., 2008. Accelerating The

Computation of The Physical Parameters Involved in

Transcranial Magnetic Stimulation Using FPGA

Devices. In Romanian Journal of Information, Science

and Technology, vol. 10, no.4, pp. 361-379.

De Dinechin, F., Detrey, J., Creţ, O. and Tudoran, R.,

2008. When FPGAs are better at floating-point than

microprocessors. Sixteenth ACM/SIGDA

International Symposium on Field Programmable Gate

Arrays, Monterey, California.

Suciu, A., 2007. The CryptoRand project http://crypto-

rand.utcluj.ro.

SECRYPT 2009 - International Conference on Security and Cryptography

174
