ONLINE CALIBRATION OF ONE-DIMENSIONAL SENSORS

FOR ROBOT MANIPULATION TASKS

Jan Deiterding and Dominik Henrich

Lehrstuhl für Angewandte Informatik III

Universität Bayreuth, D-95440 Bayreuth, Germany

Keywords: Learning and adaptive systems, Architectures and programming, Compliant assembly.

Abstract: The purpose of this paper is to enable a developer to easily employ external sensors emitting a one-

dimensional signal for flexible robot manipulation. To achieve this, the sensor must be calibrated using data

tuples describing the relation between the positional change of the supervised object and the resulting

sensor value. This information is used for adaptation methods, thus enabling robots to react flexibly to

changes such as workspace variations or object drifts. We present a sensor-independent method to

incrementally generate new data tuples describing this relation during multiple task executions. This

method is based on the Secant method and is the only generally applicable solution to this problem. The

method can be integrated easily into robot programs without detailed knowledge about its functionality.

1 INTRODUCTION

Industrial robots are able to perform complex tasks

with utmost precision and at high speed without

exhibiting symptoms of fatigue. However, these

tasks are nearly always executed in a fixed

environment, i.e. the precision is achieved by

ensuring that all objects are placed in exactly the

same position every time. All parts must have the

same dimension, position, orientation, etc. Only by

employing external sensors such as vision or

force/torque sensors, a robot can deal with

imprecisions and variations in objects and the

environment. When designing such programs for

more flexible robots, a developer faces the problem

of determining the relation between the sensor value

obtained and the actual physical variation of the

supervised object.

The task is to find a change function that

transforms sensor values into Cartesian descriptions

of the change in order to successfully deal with

these. The classical approach is to analytically

determine a function describing this mapping.

However, for complex sensors this task quickly

becomes difficult and it is sometimes simply not

possible to find an analytical solution if the

underlying physical principles are unknown to the

developer. In these cases data tuples describing the

relation between the positional change of an object

and the resulting sensor value are recorded and a

selected type of function is fitted to these tuples.

These approaches require a large amount of analysis

and programming before the robot executes the task

for the very first time. Another downside is, that this

pre-calculated solution is fixed and prevents the

robot from adapting to changes of the environment.

For example, the robot must be stopped and re-

calibrated if a drift in the workspace or the sensor

system occurs. The advantage in the use of change

functions is that an additional layer of abstraction is

introduced. The program can be designed

independent from the actual sensor because all

workspace changes are described in Cartesian

coordinates. Now, we may replace the sensor with a

different one using another measuring principle and

– as long as the change function is correct – no

alterations have to be made to the program. General

features of change functions are described in

(Deiterding, 08) and a general outline to determine

these functions is given, but no generally applicable

method is presented to calibrate sensors iteratively

during the execution of a robot manipulation task.

In this paper, we focus on sensors emitting one-

dimensional signals, such as distance or force/torque

sensors. We do not deal with imaging sensors as this

class of sensors usually requires an upstream pattern

matching algorithm to distinguish the relevant

information from background data. We show how

calibration data for a change function can be

387

Deiterding J. and Henrich D. (2009).

ONLINE CALIBRATION OF ONE-DIMENSIONAL SENSORS FOR ROBOT MANIPULATION TASKS.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 387-395

DOI: 10.5220/0002181803870395

 SciTePress

computed iteratively during the first executions of

the task and how these methods can be integrated

easily into the programming environment, only

requiring the developer to specify a minimum of

task-dependent parameters. Additionally, we show

how the robot adaptively optimizes the task with

respect to execution time based on a steadily

improving approximation of the function.

The rest of this paper is organized as follows: In

Section 2, we give a short overview of related work

concerning this topic. In Section 3, we will outline a

framework with which a developer can create sensor

based robot programs that automatically acquire

calibration data during execution. In Section 4, we

describe which algorithms are encapsulated into this

framework and compare them with other

approaches. Section 5 describes how a typical robot

task can be solved using our approach. In the last

section, we give a short summary of our work and

discuss further steps.

2 RELATED WORK

The task of inferring information from noisy sensor

data is covered thoroughly by various books on

pattern classification, e.g. (Duda, 00). But all of

these describe methods for extracting the relevant

information from sensor values, assuming that this

information is present in the data. Multiple papers

dealing with the planning of sensing strategies for

robots exist, e.g. (Leonhard, 98), (Rui, 06). Most of

these involve a specific task (Adams, 98), (Hager,

90) or are aimed at employing multi-sensor

strategies (Bolles, 98), (Dong, 04). Various papers

deal with the use of sensors in the work cell to allow

for information retrieval (Hutchinson, 88). In

(Kriesten, 06), a general platform for sensor data

processing is proposed, but once more it is assumed

that the sensors are already capable of detecting

changes. More general discussions of employing

sensors for robot tasks can be found in (Firby, 89),

(Pfeifer, 94).

Two types of sensors are typically used for

manipulation tasks: Force/torque and vision sensors.

When force/torque sensors are employed, maps may

be created describing the measured forces with

respect to the offset to the goal position. (Chhatpar,

03) describes possibilities to either analytically

compute these maps or create them from samples.

Based on this, (Thomas, 06) shows how these maps

can be computed using CAD data of the parts

involved in the task. In both cases, the maps must be

created before the actual execution of the task and

are only valid if the parts involved are not subject to

dimensional variations. If the information is

acquired using cameras, the first step is to perform

some kind of pre-processing of the data to extract

the relevant information. To determine how this

information relates to the positional variation is once

again the task of the developer and highly dependent

on the nature of the task. Examples for information

retrieval using vision sensors are given in (Dudek,

96), (Paragios, 99) and (Wheeler, 96).

In summary, all of the papers mentioned above

either propose specific solutions for specific types of

sensors and tasks or algorithms to extract the

relevant information from the sensor signal. A

problem is that these solutions do not outline a

general approach which can be used regardless of

the type of sensor. Additionally, all papers assume

that the developer is capable of integrating the

methods into his own robot program. Unfortunately,

this is usually not the case for developers in small

and medium sized enterprises, which often possess

only basic knowledge about robot programming.

Here, we are interested in determining the

relationship between the sensor signal and the

Cartesian deviation iteratively during multiple task

executions. We want to integrate this algorithm into

an easy-to-use interface that will enable developers

having no special knowledge in robot programming

to create adaptive robot programs. We only focus on

one-dimensional data, such as distance sensors or

force/torque sensors. Vision sensors always require

some kind of pre-processing that is highly

dependent on the task.

3 INTEGRATION INTO THE

PROGRAMMING

ENVIRONMENT

In this chapter, we will explain how a developer

with minimal knowledge about sensor data

processing can easily create robot programs that

employ external sensors. We will explain which

considerations must be made by the developer, how

the program must be structured in general, and

which parameters are mandatory.

3.1 Setting Up the Workspace

The first thing a developer has to do is to decide in

which way a change can occur between consecutive

executions of the task. Based on this, a suitable

sensor must be chosen that is capable of recognizing

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

388

this change and that satisfies the requirements

imposed on change functions. Here we will only

provide a short summary, see (Deiterding, 08) for a

detailed explanation: A change function f describes

the alteration of a sensor signal when the object

supervised by the sensor has moved. It is a function

that relates a Cartesian position to a sensor value.

Using the inverse f

-1

gives us the position p

est

for the

current sensor value. Note that all functions are

defined in relation to a pre-set reference position p

ref

and a corresponding reference sensor value s

ref

. Only

the difference of the current sensor signal to s

ref

taken into account. This is not a limitation, but

rather a standardization of the function, so the only

root of this function is (0,0) because there is only

one reference position.

3.2 Online Computation of

Change Functions

The central idea of this paper is that the change

function f

real

, which is defined by the task and the

sensor, is unknown and cannot be calculated

analytically or approximated beforehand. Instead,

the robot will compute an approximation f

est

of f

real

online during the first executions of the task. Instead

of two separate phases – the calibration of the sensor

and the actual execution of the task – the calibration

process is encapsulated in the execution (see Figure

1). The calibration may take longer now,

nonetheless the program will work correctly right

from the very first execution. In addition the

developer will spend less time setting up the sensor

and the program is capable of adapting to changes

both in the workspace and in the sensor data, e.g.

due to a warm-up of the sensor, without the need for

a manual recalibration. The robot starts with a very

rough approximation f

est

of f

real

and refines this

approximation gradually with each execution by

incorporating newly gained information.

During execution, the robot uses f

est

-1

to react to

Cartesian changes of the supervised object. If the

object has moved away from p

ref

by x

change

to p

change

this is detected through the sensor value s

act

)(

changerealact

xfs =

(1)

Thus, the robot must modify its movement by

calculating:

))(()(

changerealestactest

xffsfx

est

−−

(2)

The stored reference position is then modified

accordingly:

estrefest

xpp

(3)

Now, the robot moves to

est

. If f

est

is close enough

real

then:

changeest

(4)

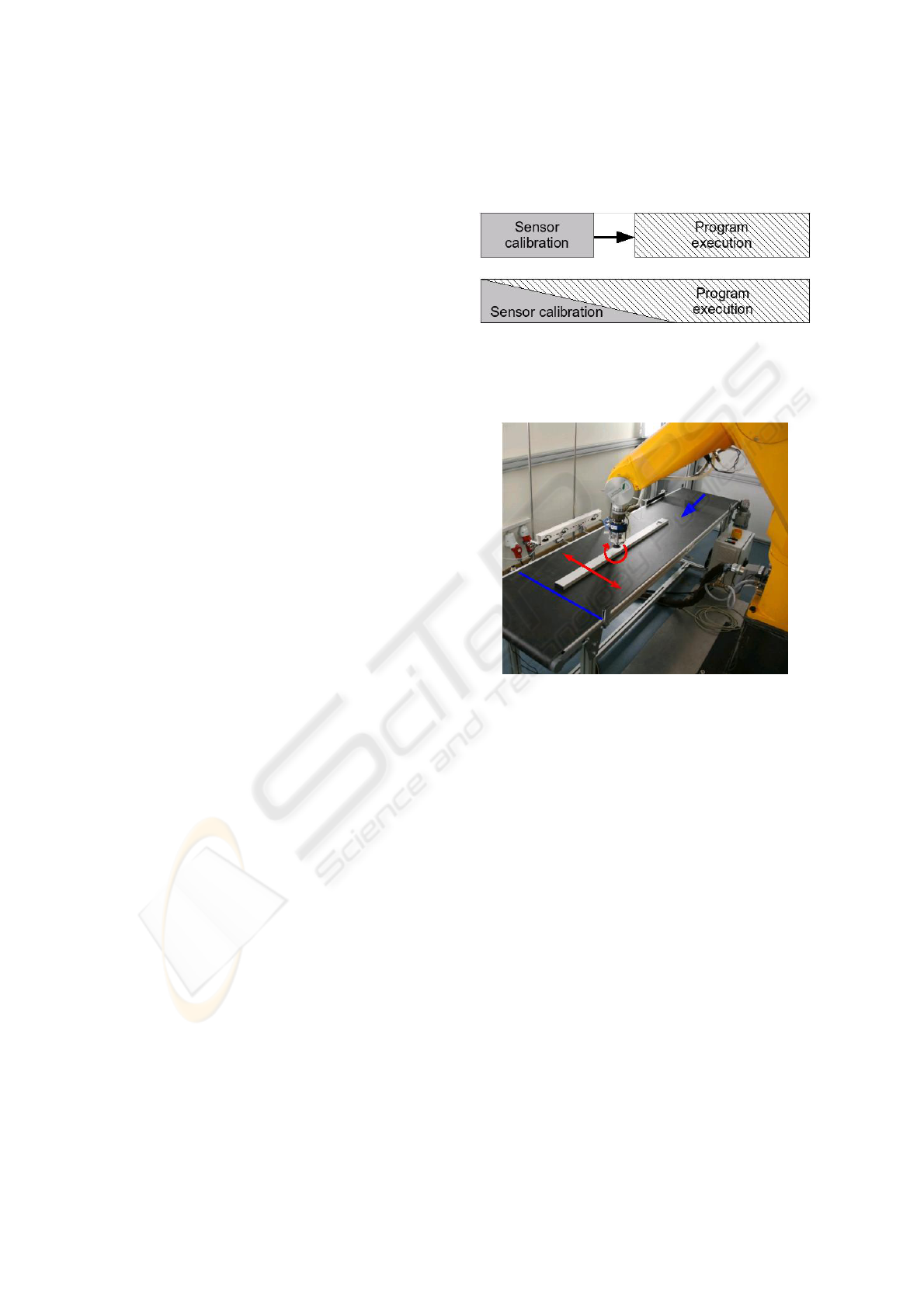

Figure 1: In the classical approach to sensor-based robot

programming, the sensor is calibrated before the actual

program is executed (top). In our approach, the calibration

process is integrated into the execution cycle (bottom).

Figure 2: Experimental setup. A steel rod is delivered

along a conveyor belt (blue arrow) until it reaches a light

barrier (blue line). The rod can be in any position on the

belt (red). Shown in this picture is the reference position

of the rod in order to be picked up.

If the change was estimated correctly, this

knowledge is incorporated into the change function.

If the estimate was wrong, then there is not enough

information stored in

S to perform a reasonable

correction using the current sensor value

act

. Thus,

the correct position must be determined and

est

must

be modified in such a way that the next estimate will

be correct for the current sensor value. Initially this

will often be the case since early values of

est

are

quite inadequate.

When the robot has performed the motion

defined by

est

, the new position is either correct or it

is skewed because

est

was not accurate enough. In

the latter case, two possibilities arise. The key point

is to decide whether the robot motion will modify

the sensor signal or not. This is best illustrated by an

example. Consider the following task: A steel rod is

delivered to the robot via a conveyor belt. The belt

ONLINE CALIBRATION OF ONE-DIMENSIONAL SENSORS FOR ROBOT MANIPULATION TASKS

389

stops when the rod passes a light barrier (see Figure

2). The robot shall pick up the rod using a vacuum

gripper and place it in a box for transport. To solve

this task, we could construct a feeding mechanism

ensuring that the rod is aligned the same way every

time. However, we want to allow the rod to be in

any position as long as it faces upwards. So we have

translational changes along the x-axis and rotational

changes around the z-axis of the coordinate system

of the conveyor belt. To sense this misalignments,

we employ two distance sensors that are placed

parallel to the y-axis of the conveyor belt. (Figure 3)

The developer faced with the task to design this

robot program now has to plan how the position and

orientation of the rod can be recognized and how the

robot should react. So, there are two cases:

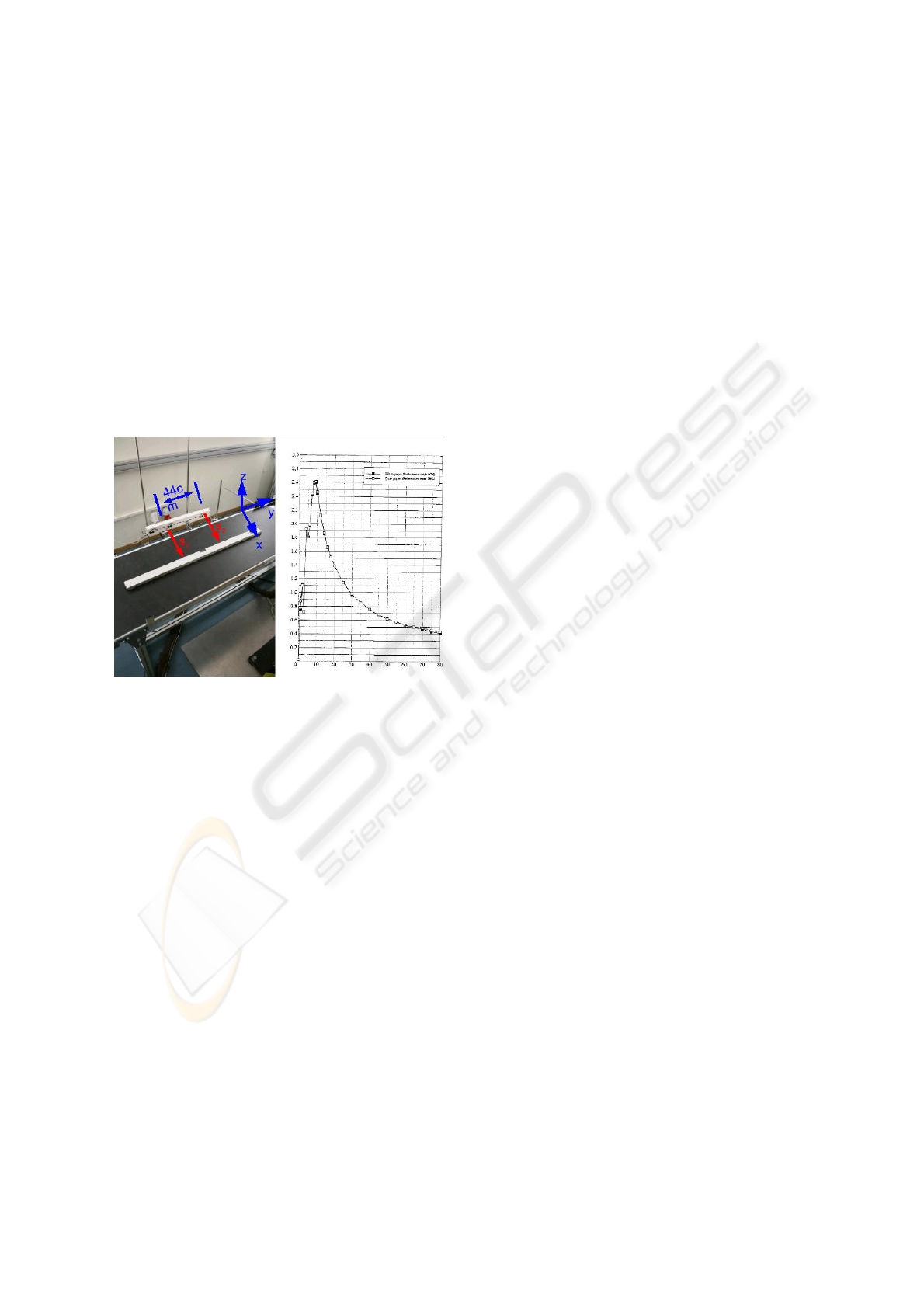

Figure 3: Left: Reference position of the rod and

placement of the distance sensors to recognize the position

and rotation of the rod on the conveyor belt. The distance

is determined using s

. The rotation is determined using

the difference between s

and s

. Right: Scan of the data

sheet provided by the manufacturer describing the sensor

signal for given distances (x-axis: distance, y-axis: sensor

signal). The resolution of the sensor is in the range [10;

80] cm.

Case 1) When the robot moves onto the belt to

pick up the rod, this motion does not alter the sensor

signal because the rod itself has not moved. In this

case the correct position must be searched for. This

is usually the case when preparatory sensors are

used. The developer can either manually guide the

robot to the correct position or use a second sensor

to perform an automated search, but it is up to the

developer to define a valid search algorithm,

because this depends strongly on the task. The

search should be kept as simple as possible. When

the sensor is calibrated adequately well, the change

function's estimate is accurate and always locates the

object correctly. So this search is only executed in

the very first iterations. Because of this it is not

necessary to implement a fast, efficient search

strategy, since this represents only a backup strategy

in case the change function is still inadequate for a

given sensor value. Once the correct position

change

has been reached,

change

is calculated as

refchangechange

ppx −

(5)

and the data tuple (

change

, s

act

) describes a valid data

point of

real

, because the sensor value has not

changed during the search. This tuple is added to a

set

S describing the current knowledge about f

real

With increasing size of

S more and more knowledge

about

real

is collected and the more precise the next

estimations will be.

Case 2) This case occurs, when the robot has

located the rod and grasped it. Now, a robot motion

will alter the sensor signal. In this case a corrective

motion can be performed instead of a search. This is

usually the case if the sensor is used concurrently.

We can employ an automated search; the direction

of the search is defined by the Cartesian coordinates

that are altered by the sensor. The search terminates

when

act

= s

ref

If this value has been reached, the

robot has corrected the change. A detailed solution

describing the motions involved is described in

Section 4.

3.3 Defining the General Program

Structure

When defining the program structure, the developer

must decide how the adaptation strategy for the

change can be integrated into the robot program.

This is done at the point when robot movements are

executed based on the sensor signal. The robot uses

the current sensor value

act

and current estimate of

the change function

est

using S to determine p

est

The key point is to decide whether the robot

motion will modify the sensor signal or not. This

leads to the following basic program structure:

If a motion does not change the signal, the

source code will look similar to this:

1 pos = changeFunction();

2 MOVE pos;

3 IF NOT isOkay() THEN {

4 performSearch();

5 pos = getCurrentPosition(); }

6 updateChangeFunction(pos,sensor.value());

The robot will calculate and move to the estimated

position using the change function by calling the

function

changeFunction (Lines 1 and 2). At this

point, a decision must be made if the position is

correct, which is either accomplished using a second

sensor or by asking the developer to check (Line 3).

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

390

If this is not the case, a search is initiated, guiding

the robot to the correct position (Lines 4 and 5).

Then a new data tuple is added to

S improving f

est

(Line 6) by calling

updateChangeFunction. This

must be called explicitly by the developer to update

S with the new, correct position p

real

for s

act

On the other hand, if a motion does change the

signal, the source code will look similar to this:

1 DO {

2 pos = getCorrection();

3 MOVE pos;

4 } WHILE sensor.value()!=s

ref

;

Here, the search is realized using a do/while-

loop. We estimate the current change (Line 2) and

move the robot accordingly (Line 3) until we have

reached the reference position (Line 4). We will

describe a suitable method to calculate reasonable

correction values in Section 4. Here, it is important

that these methods are encapsulated in the function

getCorrection, so they remain hidden from the

developer.

All the developer must do to use these methods is to

specify the following parameters:

1) The taskframe and the coordinate(s) in which the

change occurs.

ref

and s

ref

are calculated within

this taskframe. The default sensor values are

recorded when

ref

is stored.

2) The sensor used to supervise

ref

. This includes a

specification of the sensor’s signal-to-noise ratio

(SNR).

3) A Boolean value specifying if a robot motion will

alter the sensor signal. The function

getCorrection uses this value to determine

which estimation method is executed.

4) Furthermore, it makes sense to require all

estimates

est

to be within a specific range to

prevent the robot from leaving the workspace in

case of an extreme estimate. However, this may

increase the number of corrections necessary to

reach

ref

These four parameters enable the robot to learn a

change function adaptively during task execution.

All other functionality is independent from the task

and is integrated into the function

getCorrection.

The actual implementation of

est

interchangeable. The calibration data gained by the

adaptation is stored in

S. It is up to the developer to

determine how the tuples in

S are used to

approximate the function. Any interpolation method

can be employed, because no additional knowledge

about the function type of

est

is necessary. Curve-

fitting methods may be used as well, which will lead

to a reasonable approximation of

est

after fewer

executions compared to interpolation methods. But,

as is the case with all adaptation and learning

methods in general, the more information one has

available right from the start, the faster the methods

will work adequately.

4 SUPERVISING AND ADAPTING

TO CHANGES DURING

EXECUTION

In this section, we describe how corrective motions

can be executed by the robot using sensor

information gained during a movement. All

corrective motions are used to supplement the

existing knowledge about the change function. We

explain how this method can be integrated into a

programming environment and kept hidden from the

developer.

4.1 Using the Secant Method for

Corrective Motions

In principle, it is possible to use a search motion pre-

defined by the developer even if the correction has

changed the sensor signal, but this discards the

information gained by the alteration of the sensor

signal during the search. We can use this

information to our advantage and generate

corrective motions which locate

est

faster than a

standard search motion.

Since this correction alters the sensor signal, we

use it to judge the performed correction and

compute subsequent corrections accordingly.

Suppose we knew x

change

, the first tuple for S would

be (

change

, s

act

). Here, we only know s

act

, not x

change

But

change

is simultaneously the offset along the x-

axis of (

change

, s

act

) from the root, due to the

monotonicity of

est

. If we perform multiple

corrections until we reach the root, we can compute

change

as the sum of all corrections the robot has

made. From a mathematical point of view, this is

equivalent to finding the root of an unknown

function.

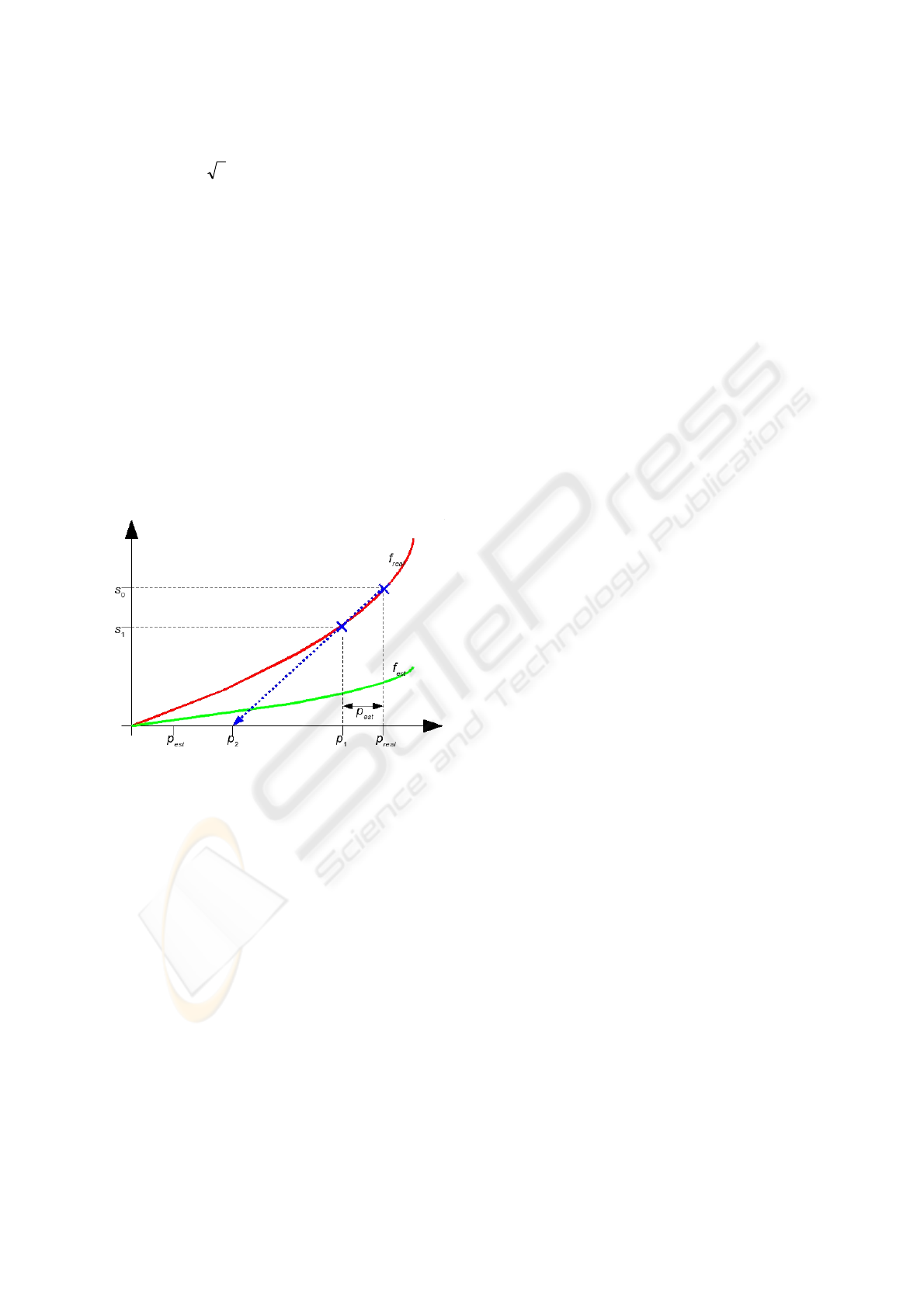

The Secant method (Press, 92) is defined by the

recurrence relation

)(

)()(

1 n

xfxf

−

−=

(6)

where

f is an unknown function. As can be seen

from the recurrence relation, the Secant method

requires two initial values,

and x

. The values x

of the Secant method converge to a root of

f if the

initial values

and x

are sufficiently close to the

ONLINE CALIBRATION OF ONE-DIMENSIONAL SENSORS FOR ROBOT MANIPULATION TASKS

391

root. The order of convergence is φ,

where

62.12/)51( ≈+=

is the golden ratio. In

particular, the convergence is superlinear. This

result only holds true under some conditions,

namely that

f is twice continuously differentiable

and the root in question is simple and may not be a

repeated root. Change functions, as we have defined

them, fulfill these conditions.

In our case, the

f is the real change function f

real

and the first value

is simply the change we wish

to calculate,

change

, while the second value x

is the

first corrective motion the robot has performed,

est

which is based on the current estimate of the change

function

est

. Note that f

est

is used only once for the

initial correction, all subsequent corrections are

based on the Secant method (see Figure 4) only

using the current sensor values provided by

real

Since the convergence of this method is superlinear,

we will not need many additional corrections

, n >

1, should

prove to be poor.

Figure 4: Illustration of the first two steps of the

correction algorithm: For a given variation p

real

perform an estimated correction p

est

based on the

corresponding sensor value s

, the real change function

real

(red) and our current estimate f

est

(green). We move

the robot to position p

and retrieve a new sensor value s

We then use the Secant method to grade the last correction

and move the robot accordingly to p

. All subsequent

corrections are performed using the Secant method only.

It is important to consider the following: When

the next value

i+1

is calculated, it must be kept in

mind that we have already performed correction

before we could measure

i+1

to rate x

. So we must

subtract the impact of

from x

i+1

Another advantage of this approach is that all

corrections

and corresponding sensor

values

)(

1−

ireali

xfs

are known. We can store these

as pairs (

, s

) in a temporary stack. When we have

reached

ref

, we can use this information to create

multiple new data tuples for

S. If we have performed

i corrections until the robot reaches p

ref

, the

topmostpair (

, s

) on the stack already describes a

valid data tuple for

S. The next pair on the stack (x

, s

i-1

) describes a correction to p

ref

altered by x

. So

(

+ x

i-1

, s

i-1

) is another valid data tuple for the set.

Subsequent processing of the stack provides us with

a valid data tuple for every correction performed, so

we add

i new data tuples to S. This leads to an

accurate approximation of

est

after fewer executions

compared to the addition of only one tuple to

S in

every execution.

The Secant method only works for one-

dimensional functions. It is possible to combine

multiple sensors to obtain an

n-dimensional signal.

In this case, the Broyden method (Broyden, 65) can

be used, which is similar to the Secant method.

This method is only applicable if a robot motion

alters the sensor signal, as is described in Case 2 in

Section 3.2. In the first case of that section, there is

no other option as to use either a manual guidance

method or an automated search.

4.2 Possible Utilization of other

Approaches

The Secant method is not the only method to

determine the root of a function. Some other

methods are Newton's method, fixed point iteration,

and the bisection method. We will now compare the

Secant method with these and show why the Secant

method is the best choice for this task.

Newton's method and fixed point iteration both

use the derivative of the function to calculate the

next correction. But, as we have explained in

Section 1, it is not always possible to find an

analytical solution. Additionally, if this solution was

known, it would be more sensible to record a

number of examples before setting up the main

program and use the examples to determine the

function parameters.

The bisection method does not rely on the

function's derivative, but has another drawback: To

find the root of a function f in an interval [a, b], both

f(a) < 0 and f(b) > 0 must hold, or vice versa. If both

values are negative or positive, this method cannot

be employed. This is a serious drawback for this

case, since we cannot ensure that the first correction

we have performed will result in a new sensor value

which has the inverse sign of the first value.

In summary, we can say that to our knowledge

the Secant method is the only applicable method that

enables a robot to perform a series of corrective

motions without any need for backtracking until the

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

392

root of an unknown change function is reached.

5 EXPERIMENTS

In this section, we show the validity of our approach

and explain the interaction of all components

described in Sections 3 and 4.

We have implemented the task described in

Section 3.2. The sensors used are distance sensors

GP2D12 made by SHARP with a measurement

range of [10; 80] cm. The first sensor supervises the

position where the robot is supposed to pick up the

rod and measures the translation along the x-axis.

The second is located 44 cm away from the first

along the y-axis of the belt (Figure 3, left). The

difference between the two sensor values describes

the rotation around the z-axis.

The data sheet for the sensors shows that the

sensor signal is not linear with respect to the

physical distance (Figure 3, right), so it is not

possible to use a simple linear conversion to

determine the translation or the rotation of the rod.

In theory, the change function describing the

rotation can be derived as an Arcus-Tangens

function, but the parameters for this function are

unknown. Therefore, the robot shall learn both

functions adaptively during task execution. A

reference position pref is set up (Figure 3, left),

describing the ideal position and orientation the rod

should have. This position would be identical with

the position of the rod in case a feeding mechanism

is employed. It is important to measure the sensor

values for

ref

as well. Later on, all measurements

are compared against these values and if the

difference exceeds the SNR of the sensor in

question, a change is recognized. The developer

now sets up two mappings describing the changes

(Table 1).

The robot program for a single task execution is

now short and relatively simple:

1 PROGRAM pickupRod() {

2 offset

est

= getCorrection(Distance);

3 MOVE offset

est

;

4 IF (force

z-axis

() < force

contact

) THEN

5 searchRod();

6 update(Distance, HERE);

7 graspRod();

8 MOVE p

ref

;

9 DO

10 rotation

est

= getCorrection(Rotation);

11 MOVE rotation

est

;

12 WHILE (rotation

est

!= p

ref

)

13 MOVE p

dropoff

;

14 releaseRod();

15 }

Table 1: Change function mappings used for the

experiment.

Distance Rotation

Position

icku

Dimension

Translation along x Rotation around z

Sensors

Sensor1 Sensor1 - Sensor2

SNR of Sensor

5.0 10.0

Movement

modifies sensor

signal

FALSE TRUE

Range of

Correction

[-240; 240] mm [-10; 10] mm

In Lines 2 and 3 the function getCorrection

receives a reference to a mapping structure defined

in Table 1 as parameter and moves the robot to the

estimated position of the rod. We use a force/torque

sensor to check whether the rod was grasped

correctly (Line 4). If this is not the case, we employ

a basic search motion probing the conveyor belt in

fixed intervals for the rod (Line 5). When the rod is

located, we manually update

S, grasp the rod and

move it to the reference position (Lines 6 to 8). At

this point the rod may still be rotated by an unknown

amount. In Lines 9 to 12 we correct this rotation by

repeatedly calling

getCorrection until the reference

position is reached. Then we move the rod to

dropoff

and release it (Lines 13 and 14). Note that the

program itself does not contain any sensor data

processing. Additionally, it is neither necessary for

the developer to determine the type of the change

functions nor any parameters for these functions. To

calculate the Cartesian change for an unknown

sensor value, we use a simple linear interpolation

over all data tuples in

We executed the program 100 times. Every time

the translation and rotation of the rod was chosen

randomly. The initial estimate of both change

functions was deliberately chosen badly as a

bisecting line (Figure 5). For the change function

describing the distance of the rod, we could have

also created data tuples using the data sheet of the

sensor (Figure 4, right). We have chosen not to do

this, for two reasons: Firstly, the data tuples would

have to be measured manually by the developer in

the figure and modified by the distance of the rod's

default position, which is a cumbersome task.

Secondly, the data sheet is rather small and the

resolution is low so it is difficult to determine exact

values. Here, it is easier to just use a bad

approximation for the very first executions, because

this will change after a few executions. Because of

this, the robot was unable to grasp the rod correctly

ONLINE CALIBRATION OF ONE-DIMENSIONAL SENSORS FOR ROBOT MANIPULATION TASKS

393

during the very first executions and also needed

multiple corrections to compensate the rod's

rotation. After 10 executions the estimations of the

change function look similar to the one in Figure 3,

and an Arcus-Tangens function respectively (Figure

6). After 100 executions we obtained a precise

interpolation of both change functions (Figure 7),

allowing the robot to grasp the rod 20 out of 20

times (100%) without the need for a search motion.

The rotation was corrected successfully with just

one rotation in 14 out of 20 cases (75%). In the

other cases, the robot had to perform more than one

rotation to align the rod correctly.

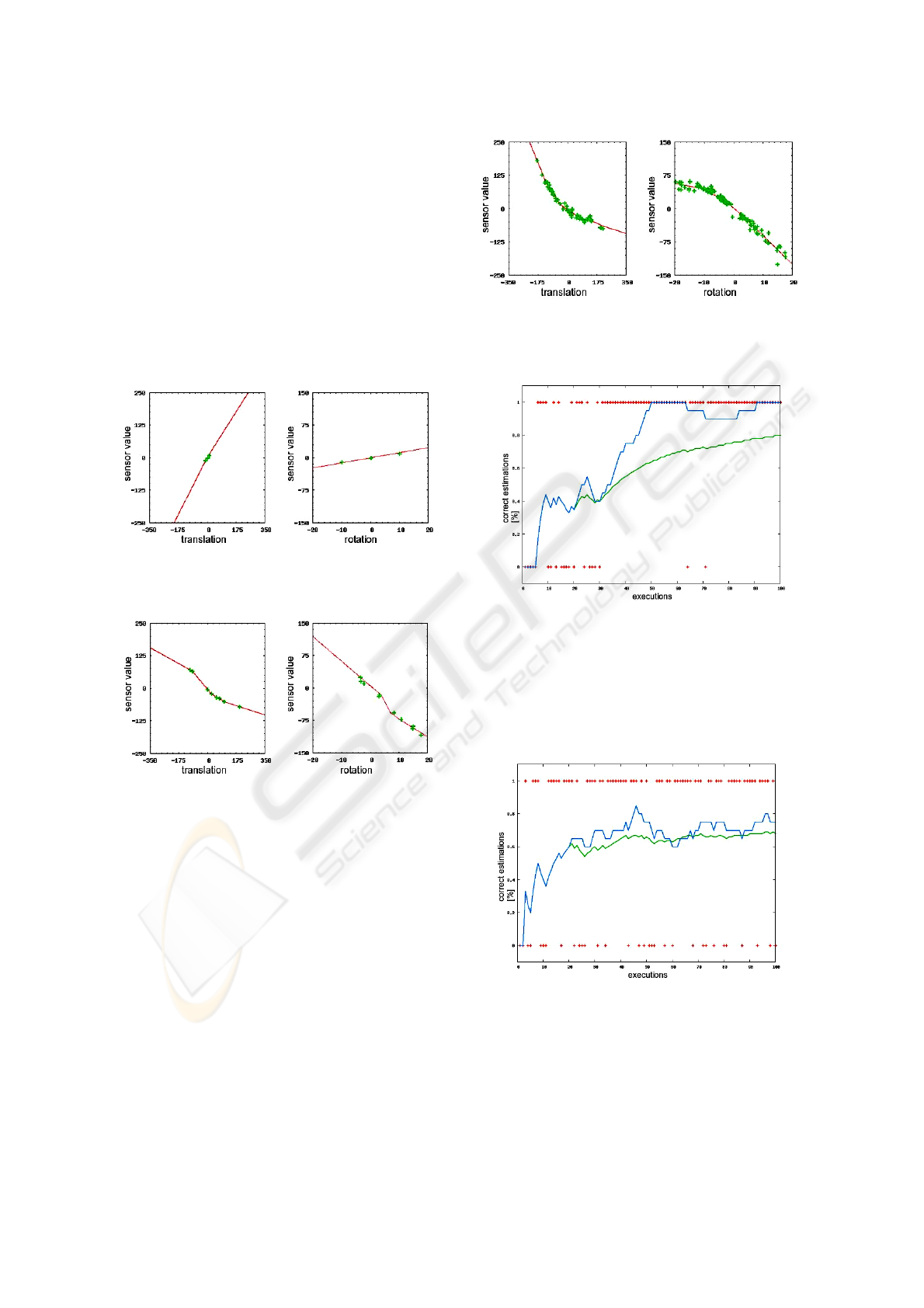

Figure 5: Initial estimates of the change functions used to

compute the translation (left) and rotation of the rod

(right).

Figure 6: Estimates of the change functions used to

compute the translation (left) and rotation of the rod

(right) after 10 executions.

The accuracy of the estimated change functions in

locating and rotating the rod during the adaptation

process is shown in Figures 8 and 9. In both figures

we show whether the robot was able to grasp the rod

and rotate it correctly using the estimates of the

change functions (red). A value of 0 means that the

robot had to search for the rod or perform multiple

rotational corrections, respectively, while a value of

1 means that the estimate was correct. The green

lines show the overall accuracy of the robot over all

task executions up to that point, while the blue lines

show the accuracy over the last 20 executions. We

can see that the robot was capable of grasping the

rod correctly nearly all the time after 50 executions,

Figure 7: Estimates of the change functions used to

compute the translation (left) and rotation of the rod

(right) after 100 executions.

Figure 8: Overall (green) and averaged (blue) percentage

of correct estimations of the rod's translation on the

conveyor belt using the change function for 100

executions. A red dot with a value of 0 indicates that the

robot could not locate the rod with the given change-

function, but had to perform a search instead. A value of 1

indicates that the rod was found without the need for a

search motion.

Figure 9: Overall (green) and averaged (blue) percentage

of correct estimations of the rod's rotation on the conveyor

belt using the change function for 100 executions. A red

dot with a value of 0 indicates that the first correction of

the rotation did not align the rod perfectly and further

corrections were necessary. A red dot with a value of 1

indicates that the rod was aligned correctly with only one

motion.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

394

and had an overall accuracy of 80%. Due to the fact

that two sensors are necessary to measure the

rotation, the SNR of this combined sensor is

relatively high, so the correction could not be

performed in one motion every time. In spite of this,

the robot was still capable of performing a perfect

correction in 75% of all cases.

6 CONCLUSIONS

The aim of this work is to enable a developer to

easily employ external sensors for flexible robot

programs. The focus of this study was to show that

data tuples describing the connection between

sensory data and positional variations can be

acquired automatically by the robot independent of

the task and without the need for intricate

calculations by the developer. We have presented a

method to determine this data online during multiple

executions of the task. The intention was to keep the

requirements and methods independent from the

type of sensor and make them universally applicable

so they can be easily incorporated into a robot

program. Finally, we presented an experiment to

validate our research. We showed that it is possible

to employ the proposed methods to successfully

determine two change functions for a pick-and-place

task.

In the next step our aim is to integrate time

stamps into the data set

S. Then we are able to deal

with drifts in the sensor data due to heating

processes of the sensor itself by discarding the older

data tuples which do not reflect the current state of

the system any more.

REFERENCES

Adams, M., “Sensor Modelling, Design and Data

Processing for Autonomous Navigation”, World

Scientific Publishing, 1998, ISBN 9810234961.

Bolles, B., Bunke, H., Christensen, H., Noltemeier, H.,

“Modelling and Planning for Sensor-Based Intelligent

Robot Systems”, Seminar on, Schloß Dagstuhl, 1998,

http://www.dagstuhl.de/Reports/98391.pdf.

Broyden, C.G., “A Class of Methods for Solving nonlinear

Simultaneous Equations”, Mathematics of

Computation, Vol. 19, No. 92. (Oct., 1965), pp. 577-

593, Jstor.

Chhatpar, S.R., Branicky, M.S. “Localization for robotic

assemblies with position uncertainty”. Proc. IEEE/RSJ

Intl. Conf. Intelligent Robots and Systems, Las Vegas,

NV, October, 2003.

Deiterding, J., Henrich, D. “Acquiring Change Models for

Sensor-Based Robot Manipulation”, Int. Conf. o.

Robotics and Automation 2008.

Dong, M., Tong, L., Sadler, B.M., “Information retrieval

and processing in sensor networks: deterministic

scheduling vs. random access”, Proc. o.t. Int. Symp.

on Information Theory, 2004. ISIT, pages 79 – 85.

Duda, R., Hart, P. and Stork, D., “Pattern Classification”,

Wiley & Sons, 2000, ISBN 0471056693.

Dudek, G., Zhang, C. “Vision-based robot localization

without explicit object models” Int. Conf. On Robotics

and Automation, 22-28 Apr 1996, ISBN 0-7803-2988-

0, pages 76-82 vol.1.

Firby, R.J. “Adaptive execution in complex dynamic

worlds”, Dissertation, Yale university, 1989,

www.uchicago.edu/users/firby/thesis/thesis.pdf.

Hager, G. “Task-Directed Sensor Fusion and Planning: A

Computational Approach”, Springer, 1990, ISBN

079239108X

Hutchinson, S.A., Cromwell, R.L. and Kak, A.C.,

“Planning sensing strategies in a robot work cell with

multi-sensor capabilities”, in. Proc. IEEE Int. Conf.

On Robotics and Automation, 1988, pages 1068-1075.

Kriesten, D., Rößler, M., et al., “Generalisierte Plattform

zur Sensordatenverarbeitung”, Dresdner Arbeitstagung

Schaltungs- und Systementwurf, 2006, http://

www.eas.iis.fhg.de/events/workshops/dass/2006/dassp

rog/pdf12_kriesten.pdf.

Leonhardt, U., Magee, J., “Multi-sensor location

tracking”, Proceedings of the 4th annual ACM/IEEE

international conference on Mobile computing and

networking, Dallas, USA, 1998, ISBN 1-58113-035-

X, pages: 203 – 214.

Paragios, N., Tziritas, G.. “Adaptive Detection and

Localization of Moving Objects in Image Sequences”

Signal Processing: Image Communication, 14:277-

296, 1999.

Pfeifer, R., Scheier, C., “From perception to action: The

right direction”, Proc. “From Perception to

Action”Conference, IEEE Computer Society Press,

Los Alamitos, 1994, pages = "1-11".

Press, W.H., Flannery, B.P., Teukolsky, S.A., Vetterling

W.T. "Secant Method, False Position Method, and

Ridders' Method." §9.2 in Numerical Recipes in

FORTRAN: The Art of Scientific Computing, 2nd ed.

Cambridge, England: Cambridge University Press,

pp.347-352, 1992.

Rui, K., Yoshifumi, M., Satoshi, M., “Information

Retrieval Platform on Sensor Network Environment”,

IPSJ SIG Technical Reports, 2006, No. 26, ISSN

0919-6072, pages 37-42.

Thomas, U., Movshyn, A., Wahl, F., “Autonomous

Execution of Robot Tasks based on Force Torque

Maps”, Proc. o. t. Jnt. Conf. on Robotics. 2006,

Munich, Germany, May 2006.

Wheeler, M. “Automatic modeling and localization for

object recognition”, Carnegie Mellon University,

Computer Science Technical Report CMU-CS-96-

118, 1996.

ONLINE CALIBRATION OF ONE-DIMENSIONAL SENSORS FOR ROBOT MANIPULATION TASKS

395
