Semi-Supervised Least-Squares Support Vector Classifier

based on Virtual Leave One Out Residuals

Stanisław Jankowski

1

, Zbigniew Szymański

2

and Ewa Piątkowska-Janko

3

1

Warsaw University of Technology, Institute of Electronic Systems

ul. Nowowiejska 15/19, 00-665 Warszawa, Poland

2

Warsaw University of Technology, Institute of Computer Science

ul. Nowowiejska 15/19, 00-665 Warszawa, Poland

3

Warsaw University of Technology, Institute of Radioelectronics

ul. Nowowiejska 15/19, 00-665 Warsaw, Poland

Abstract. We present a new semi-supervised learning system based on least-

squares support vector machine classifier. We apply the virtual leave-one-out

residuals as criterion for selection of the most influential data for label switch-

ing test. The analytic form of the solution enables to obtain a high gain of the

computational cost. The quality of the method was tested on the artificial data

set – two moons problem and on the real signal-averaged ECG data set. The

correct classification score is better as compared to other methods.

1 Introduction

The semi-supervised learning consists of numerous methods [1, 2] that attempt to

improve the supervised classifier trained on the labelled data subset L by exploring

the information contained in the (usually larger) subset of unlabelled input data U.

The supervised classifier is considered as an initial hypothesis for classification deci-

sions. In the following steps each unlabelled point is assigned with two alternative

labels, +1 or -1, and the decision is made according to the improvement of the quality

function. Hence, the computation tasks increase quickly for larger number of unla-

belled points [10, 11]. The crucial problem for efficient algorithm is to find simple

solution for the supervised learning and to define a smart criterion for the selection of

the most influential unlabelled points in order to perform the label switching tests.

Our idea of semi-supervised learning system is to use the least-squares support

vector machine (LS-SVM) [3, 4] as supervised classifier and to select unlabelled

points for label switching upon their ranking with respect to the virtual leave-one-out

residuals (VLOO), the influential statistics [5, 6]. The advantage of our idea comes

from the algebraic solution of the LS-SVM and the analytic formula for the VLOO

residuals [7, 8, 9]. We also use the VLOO residuals for pruning the final form of the

classifier. Our method is tested on the artificial data set (two moons problem) and for

Jankowski S., Szyma

´

nski Z. and Piatkowska-Janko E. (2009).

Semi-Supervised Least-Squares Support Vector Classiﬁer based on Virtual Leave One Out Residuals.

In Proceedings of the 9th International Workshop on Pattern Recognition in Information Systems, pages 71-80

DOI: 10.5220/0002196400710080

Copyright

c

SciTePress

the real-life signal averaged ECG data set. We named our system semi-supervised

least-squares support vector machine (SS-LS-SVM).

2 Semi-Supervised Least Squares Support Vector Machine

2.1 General Idea

The idea of semi-supervised least-squares support vector machine is implemented by

the following algorithm:

1. Use LS-SVM classifier for labeled data subset L

2. Initial hypothesis: classify the unlabelled data subset U according to the LS-

SVM rule

3. Calculate the virtual leave-one-out residuals for all points L∪U

4. Rank all points upon the VLOO score

5. Take NUM points of largest VLOO residuals for label switching

6. Go to 2 until the PRESS statistics reaches the required minimal value

2.2 Least-Squares Support Vector Machine

LS-SVM originates by changing the inequality constraints in the SVM formulation to

equality constraints with objective function in the least squares sense [3, 4].

Data set D is defined as:

)},{(

ii

tD x=

}1,1{, +−∈⊂∈

i

d

i

tRXx

(1)

The LS-SVM classifier performs the function:

bf

+

=

)()( xwx

φ

(2)

This function is obtained by solving the following optimization problem:

∑

=

−−+=

l

i

ii

bt

1

22

])([||||

2

1

xww

φγ

L

(3)

In the nonlinear case the kernel function is introduced:

)'()()',( xxxx

φ

φ

⋅

=

K

(4)

Hence, the solution can be expressed as the linear combination of kernels weighted

by the Lagrange multipliers

α

i

:

∑

=

+=

l

i

ii

bKf

1

),()( xxx

α

(5)

The global minimizer is obtained in LS-SVM by solving the set of linear equations

72

⎥

⎦

⎤

⎢

⎣

⎡

=

⎥

⎦

⎤

⎢

⎣

⎡

⎥

⎥

⎦

⎤

⎢

⎢

⎣

⎡

+

−

0

0

!

tα

1

1IK

b

T

γ

(6)

In this work the RBF kernel is applied:

}||'||exp{)',(

2

xxxx −−=

η

K

(7)

Therefore this system is easier to solve as compared to SVM. However the sparse-

ness of the support vectors is lost. In SVM, most of the Lagrangian multipliers α

i

are

equal 0 while in LS-SVM the Lagrangian multipliers α

i

are proportional to the errors

e

i

2.3 Virtual Leave-One-Out Cross-Validation

Leave-one-out cross-validation (LOO) provides the basis for very efficient model

selection. The drawback of such approach is its computational complexity. Each step

of LOO cross validation of an LS-SVM model requires re-computation of linear equ-

ation system (thus inversion of large matrix in case of complex problems) which is

computational expensive. One can perform leave-one-out cross-validation in closed

form without leaving an example out. Let:

)(

ii

fy x

=

(8)

and

⎥

⎥

⎦

⎤

⎢

⎢

⎣

⎡

+

=

−

0

1

T

1

1IK

C

γ

(9)

It can be shown that the virtual residual [7, 8]:

1

)()1(

−

−−

=−=

ii

i

i

iii

C

yyr

α

(10)

Hence, the residual r

i

can be computed using information already available as a by-

product of training the LS-SVM classifier on the whole data set.

3 The Algorithm of the Semi-supervised LS-SVM

The input to the SS-LS-SVM algorithm consists of:

• the data set data

L

(which contains labelled data),

• the set L of labels corresponding to the members of the data

L

set,

• the data set data

U

(which contains unlabelled data),

• integer NUM – the parameter describing how many data points are taken in-

to account during label switching,

73

• γ,σ - the hyperparameters of the ls-svm model.

We also make use of two external procedures: trainlssvm (which calculates the α

and b values of the LS-SVM model) and simlssvm (used for classification).

The output of the algorithm consists of the calculated α and b values of the LS-

SVM model, which can be used for classification task.

The algorithm of SS-LS-SVM

Require: data

L

– labelled samples

data

U

– unlabelled samples

L – labels set by the operator,

NUM – parameter of transduction algorithm – number of switched

labels

,- hyperparameters of the lssvm model

trainlssvm – procedure for calculation and b parameters of

the model,

simlssvm – classification procedure, returns the labels

Initialization {

acquire labeled data set L

//creation of the model based on the labeled data

[alpha,b]=trainlssvm(data

L

, L, RBF kernel, , );

//initial labeling of all data samples

L’=simlssvm({data

L

,L,RBF kernel, , },{alpha,b},data

U

);

}

Main loop {

[alpha,b]=trainlssvm(data

L∪U

, L’, RBF kernel, , );

for i=1 to N

L∪U

compute r

i

=alpha

i

/C

-1

ii

//label switching

for NUM largest r

i

{

switch the label in set L’

}

[alpha’,b’]=trainlssvm(data

L+U

, L’, RBF kernel, , );

for i=1 to sizeof(data

L∪U

) compute r

i

=alpha

i

/C

-1

ii

for NUM largest r

i

{

if (r

i

’>r

i

) set previous label

}

}

call pruning procedure

return [alpha, b] //variables describing obtained

classifier

The algorithm is divided into three stages – a) initialization b) computation

stage.and c) pruning stage. During the initialization stage, the ss-ls-svm classifier is

trained using the labeled data set data

L

only (Fig 1.). Thereafter unlabelled data set

data

U

is classified according to the LS-SVM rule. The results of classification are

stored in the label set L’. This is the initial hypothesis – all previously unlabelled data

points are now labeled, however it is possible that not all labels are correct (Fig 2.).

74

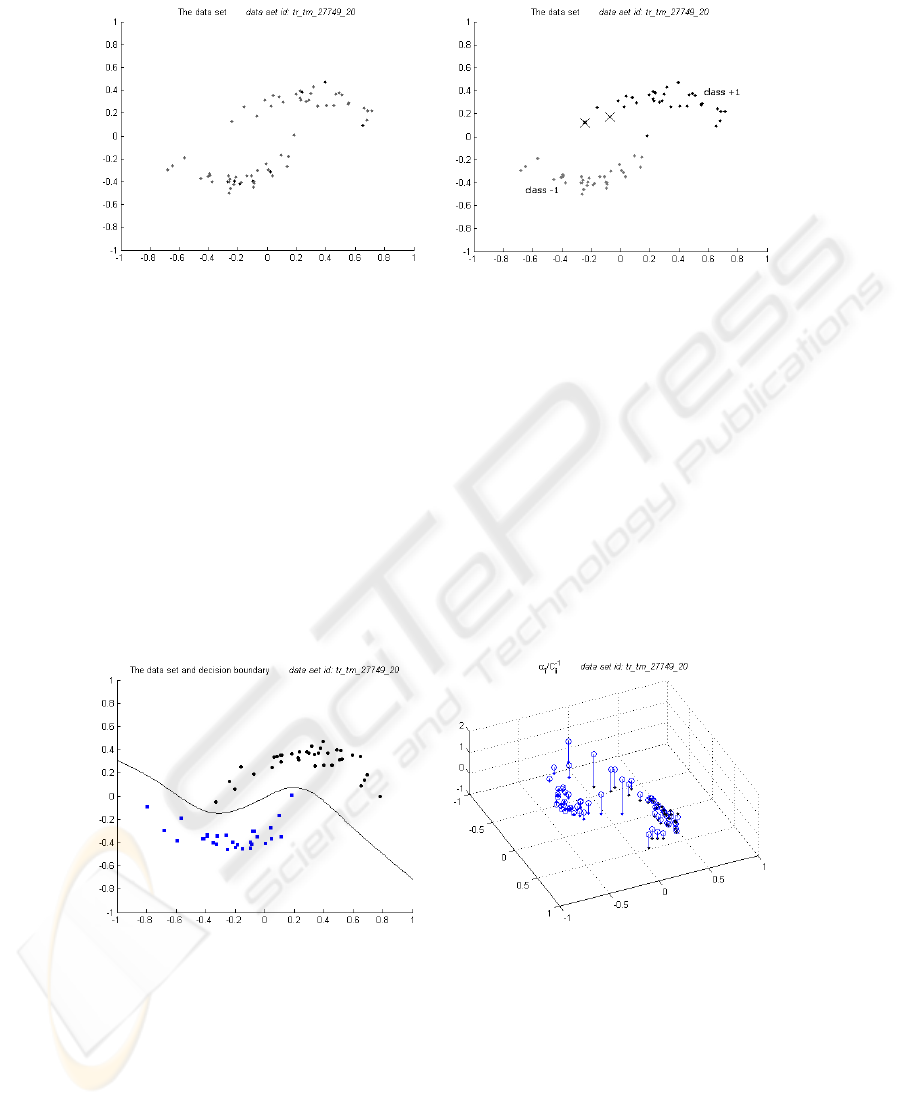

Fig. 1. The initialization stage the SS-LS-

SVM classifier – it is trained using the la-

beled data only (black points).

Fig. 2. Initial labelling – marked points

represent potentially misclassified data.

(black points – class +1, grey – class -1)

In the next stage of the algorithm we try to improve the results of initial labelling.

Potentially misclassified data points are selected using the values of virtual residuals

r

i

(computed using the Virtual Leave-One-Out Cross-Validation method [6]). The

labels of the NUM points having largest r

i

value are switched to the opposite value. If

the r

i

value after switching increases then the old label is restored.

Pruning. The last stage of SS-LS-SVM algorithm is pruning of the obtained model

by removing the least relevant data points. The original data set and the decision

boundary calculated for this data set using the LS-SVM model are shown in Fig. 3.

The relevance of the data points is determined by values of virtual residuals r

i

(Fig.

4).

Fig. 3. The decision boundary created using

whole learning data set.

Fig. 4. The values of residuals calculated for

all data points.

The pruned data set contains data points which satisfy the rule

})max({3.0

ii

rr

⋅

≥

(11)

75

This approach significantly reduces the number of support vectors without loss of

the classification score, as shown in Fig. 5.

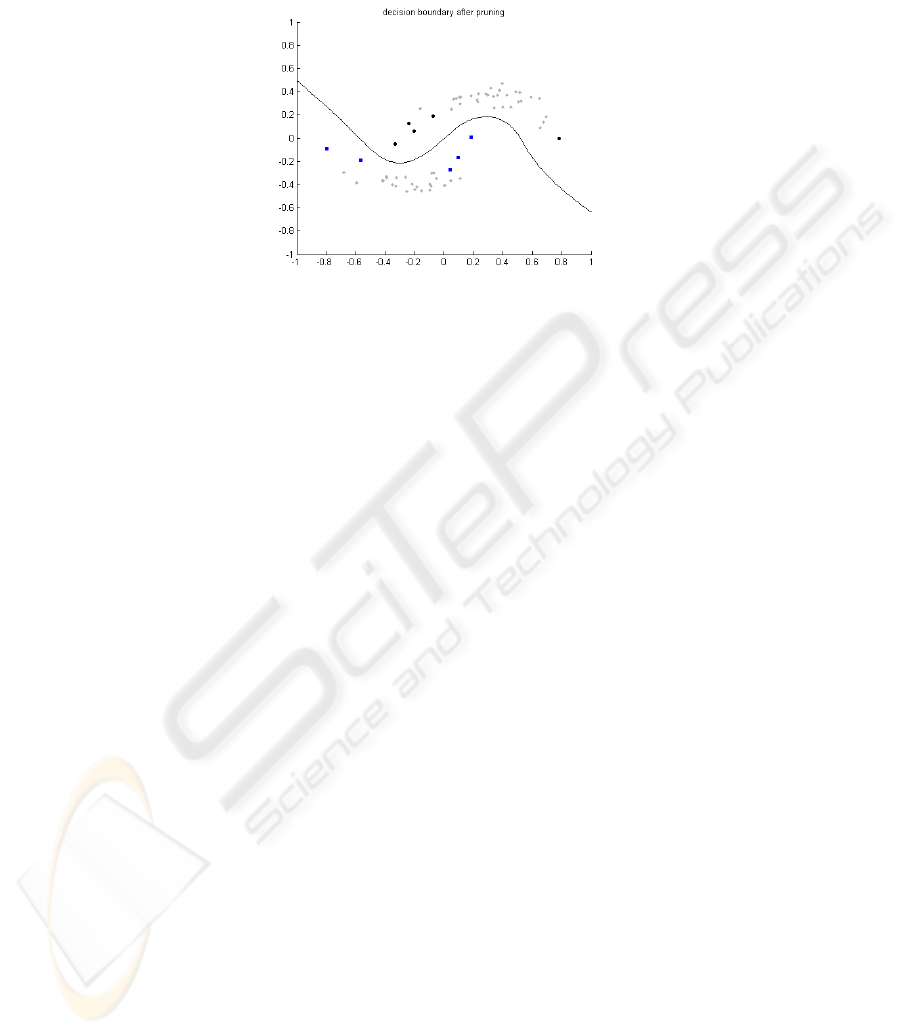

Fig. 5. The result of pruning and the decision boundary after pruning.

4 Evaluation of the SS-LS-SVM on Artificial Data Set

4.1 The Data Sets

The algorithms were evaluated on an artificially generated two dimensional data set

“Two moons – tm_27749_20”. The data set contains points belonging to two non-

linearly separable classes (positive – labelled as +1 and negative – labelled as -1). The

set was divided into two subsets – the learning set used for creating of LS-SVM mod-

els and the test set for testing of developed algorithms. The training set contains 66

data points: 33 belonging to the positive class and 33 to the negative class (shown in

Fig. 3). The test set contains 134 examples: 67 belonging to the positive class and 67

to the negative class.

The second data set tm_94326 was generated by the same algorithm as

tm_27749_20. It consists of 2000 data points: 666 points assigned to the learning set

and 1334 points of the test set. The data set was used to test the pruning algorithm.

4.2 Evaluation of VLOO Estimator

We studied the properties of VLOO estimator on the “Two moons – tm_27749_20”

dataset described in 4.1. We calculated the leave one out error and its virtual counter-

part (10) for every data point in the learning set. The diagram shown in Fig. 6 con-

tains the plot of VLOO error versus LOO error. The correlation coefficient is equal

0.95. Therefore we can conclude that VLOO calculated by (10) is sufficiently good

estimator of LOO error.

76

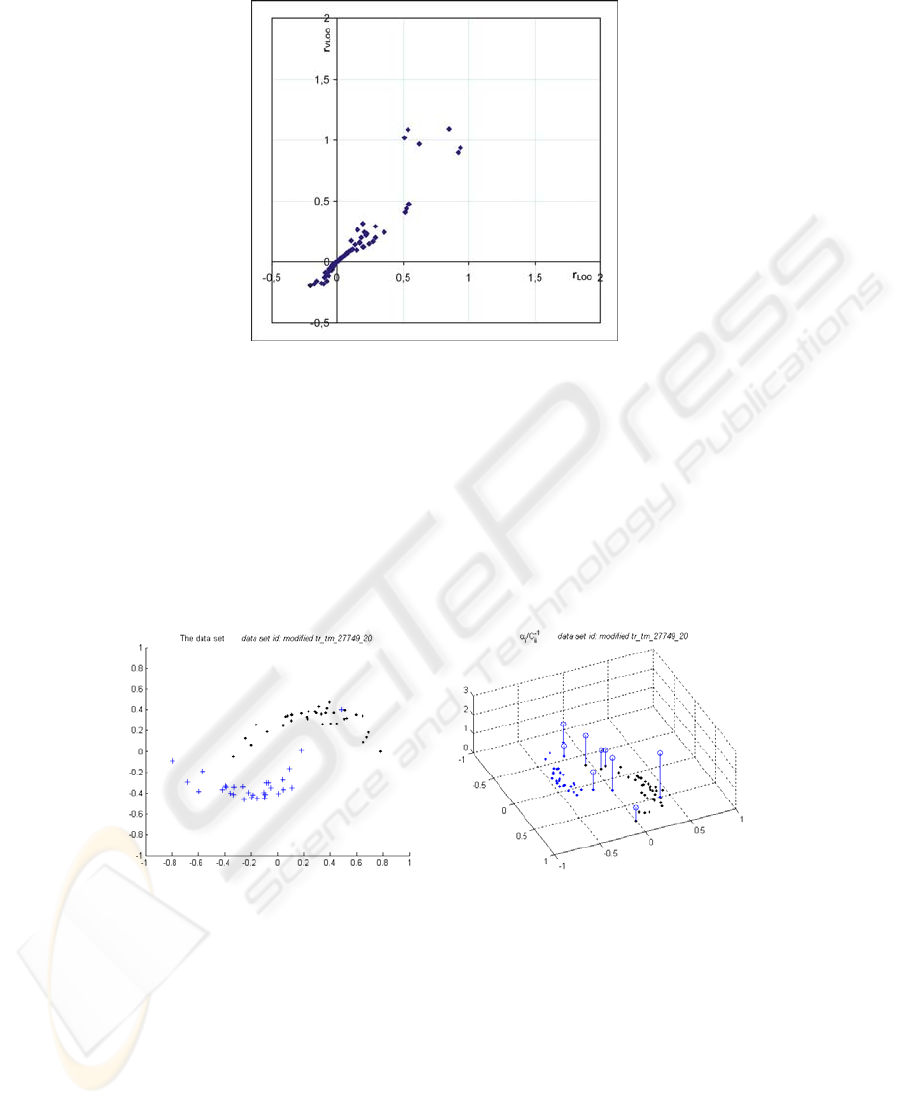

Fig. 6. VLOO versus LOO error.

4.3 Criterion for Finding of Potentially Misclassified Examples

We can use (10) to detect potentially misclassified examples. Figure 7a presents arti-

ficially generated two-dimensional data set. One point (0.4890, 0.4002) is intentional-

ly mislabelled. We trained the LS-SVM classifier for the presented data set and per-

formed VLOO procedure calculating the r

i

for all points. Figure 7b shows the data

samples and the largest corresponding r

i

values. As one can see the most influential

data samples and our misclassified sample correspond to the largest r

i

values.

a) b)

Fig. 7. a) The data set with one point (0.4890, 0.4002) intentionally mislabelled; b) the data set

and largest

α

i

/C

ii

values – a potential hint for finding misclassified points.

4.4 Results on Artificial Data Set

The tests were performed on the data set tm_27749 described in 4.1. 14 permutations

were generated by randomly assigning the points to the test subset and the training

77

set. Each learning set includes 66 points: 8 points are labeled, 58 points are unla-

belled. For the same data the supervised LS-SVM classifier was created. Average

error rate of SS-LS-SVM classification results on test set 2.3%. This is twice lower

than the error rate calculated for the LS-SVM classifier based on 8 points that is equal

5.6%. The results prove that SS-LS-SVM classifier is independent of the selection of

data points to the learning set.

4.5 Pruning Procedure for Two Moons Problem

We tested the pruning procedure on two data sets tm_27749_20 and tm_94326. Ap-

plications of pruning procedure to the learning set tm_27749_20 yields in the super-

vised LS-SVM model that consists of 10 points (the original set comprised 66 points)

shown in Fig. 5. The test set classification (using pruned model) yielded in 100%

correctly classified examples.

Table 1. Results of pruning procedure applied to 10 permutations of tm_94326 data sets.

original classifier pruned classifier

data

set tp tn fp fn prec recall tp tn fp fn prec recall

Model

size

01 673 653 5 3 99,26 99,56 673 653 5 3 99,26 99,56 83

02 657 667 4 6 99,39 99,10 658 671 0 5 100,00 99,25 56

03 661 664 4 5 99,40 99,25 662 664 4 4 99,40 99,40 70

04 646 677 3 8 99,54 98,78 648 678 2 6 99,69 99,08 61

05 665 661 5 3 99,25 99,55 667 663 3 1 99,55 99,85 63

06 654 668 8 4 98,79 99,39 654 668 8 4 98,79 99,39 82

07 668 654 7 5 98,96 99,26 669 653 8 4 98,82 99,41 76

08 648 674 8 4 98,78 99,39 647 674 8 5 98,78 99,23 76

09 661 659 6 8 99,10 98,80 662 659 6 7 99,10 98,95 64

10 657 663 8 6 98,80 99,10 658 663 8 5 98,80 99,25 72

Average

99,13 99,28 99,18 99,34 69

10 permutations of the tm_94326 data set were generated by randomly assigning

the points to the test subset and the training set. For every permutation the supervised

LS-SVM classifier was created using the learning set. Such model is based on 666

data points. The performance of the classifiers was checked on the corresponding test

data sets (see precision and recall values in Table 1). After application of the pruning

procedure the obtained LS-SVM model was evaluated (results are shown in Table 1)

on the corresponding test sets.

The average model after pruning comprises 69 data points (versus 666 in the orig-

inal classifier before pruning procedure). The recall and precision values obtained

from the tests of the pruned classifier are similar to the values obtained for the origi-

nal classifier. The pruning procedure can be safely applied for obtaining of much

smaller model with the same excellent properties as its original counterpart.

78

5 Medical application of SS-LS-SVM

Our study is based on the data set performed at the Warsaw University of Medicine.

It consists of 376 patients underwent the signal-averaged ECG recordings [12]. Upon

the medical diagnosis, these patients are divided into 3 groups: 100 patients with

sustained ventricular tachycardia after myocardial infarction (sVT+), 199 patients

without sustained ventricular tachycardia after myocardial infarction (sVT−) and 77

healthy persons.

The signal-averaged ECG signals were recorded using a system with a sampling

frequency of 1 kHz. Standard bipolar X,Y,Z leads were used. The time domain analy-

sis of the signal-averaged ECG was performed using FIR filter with the Kaiser win-

dow (45-150Hz) [12, 13]. For the filtered signal we calculated 9 parameters [13, 14].

Table 2 contains the results of SS-LS-SVM application to medical dataset. It con-

tains the classification results of the same dataset obtained by 3 different methods:

transductive support vector machine (TSVM), transductive least-squares support

vector machine (TLS-SVM) based on the Lagrange coefficients ranking and super-

vised SVM. The score of correct classification for SS-LS-SVM classifier based on

only 5% labelled data points is 88.4% - it indicates the advantage of VLOO criterion

vs. the Lagrange multiplier ranking. Also, this score is not much worse than that ob-

tained by SVM classifier for the full set of labelled data [14].

Table 2. Classification results of medical data (SVT+).

Method Labelled data Correct classifications

SS-LS-SVM (VLOO) 5% 88,4%

TLS-SVM (based on α)

5% 83,5%

TSVM [14] 50% 94,15%

SVM [14 ] 100% 95,21%

6 Conclusions

We present the novel approach to semi-supervised learning. The basic idea is the use

of information on influential statistics of each labelled point of the data – the leave-

one-out residual.

The virtual leave-one–out method (VLOO) enables to obtain the estimated values

of leave-one-out score for the entire training set in one step – no retraining is re-

quired.

For the semi-supervised least-squares support vector machine all calculations can

be expressed in an analytic form.

We applied our approach to the computer-aided medical diagnosis: the recognition

of sustained ventricular tachycardia after myocardial infarction. The score of success-

ful recognition (88.4 % based on 5 % of labelled cases) is meaningful.
