Discovery Services Interconnection
J
´
er
ˆ
ome Le Moulec
1
, Jacques Madelaine
1
and Ivan Bedini
2
1
GREYC – CNRS UMR 6072
Bd Mar
´
echal Juin, F-14000 Caen, France
2
Orange Labs., 42, rue des Coutures, F-14000 Caen, France
Abstract. This paper presents and discusses various solutions for the coopera-
tion of several components implementing Discovery Services (DS) in the EPC-
global architecture. This architecture aims to collect and store events involving
objects tagged with a Electronic Product Code (EPC) that can be accessed using
the RFID technology. Each event is stored in a repository with a standardized
interface specification: the EPC Information Services. The DS components are
used by the application layer in order to retrieve which repositories store events
about a given code. If this is not a problem for a centralized network, it is still
an open question for a decentralized architecture. Security and access controls
concerns are also taken into account.
1 Introduction
The EPCglobal architecture aims to query events about things collected by the network.
Hardware readers acquire the so called Electronic Product Codes (EPC) from tags using
the RFID technology. Each event is stored in a repository with a standardized interface
specification: the EPC Information Services (EPCIS).
As each organization has its EPCIS, information about the supply chain can be re-
trieved and processed by an application layer, if it knows which EPCIS are concerned
with a given EPC code. If this application is standardized for a centralized network
with the Object Naming Service (ONS) and the Discovery Service (DS), the problem is
still open for a decentralized network using several component for the Discovery Ser-
vices [7], [6], [1].
We present in the paper three solutions for the interconnection of the components
of the Discovery Services. The solutions are designed not to introduce to much change
in the other services specifications of the EPCglobal architecture. Another concern is in
the security and access control enforcement. Then we propose a first solution based on
peer to peer technology to share information among the components of the Discovery
Services. A second solution using XML routing is presented. Lastly, a solution giving
more importance to the ONS is given. As this last solution seems more promising to take
into account security and access control, we choose to implement it in a experimental
platform we are currently deploying jointly with Orange Labs and the GREYC labo-
ratory. The paper is organized as follows. Section 1 recalls the EPCglobal architecture
and motivates the needs for several components in Discovery Services implementation.
Le Moulec J., Madelaine J. and Bedini I. (2009).
Discovery Services Interconnection.
In Proceedings of the 3rd International Workshop on RFID Technology - Concepts, Applications, Challenges , pages 59-68
DOI: 10.5220/0002197700590068
Copyright
c
SciTePress
The following sections present the three solutions for DS interconnexion. Finally, the
conclusion presents future works.
2 EPCGLOBAL
EPCglobal
3
has been created with the specific purpose to develop a universal identifi-
cation system and an open architecture to provide interoperability in complex supply
chain scenarios. This universal identification system is based on assigning a unique
Electronic Product Code (EPC) included in each product (entity) by using tags. These
tags ensure a world traceability using the RFID technology. The applications of the
EPCglobal network is not restricted to classical supply chain management, but may be
use, for instance, in luggage management in airports.
2.1 The Epcglobal Network

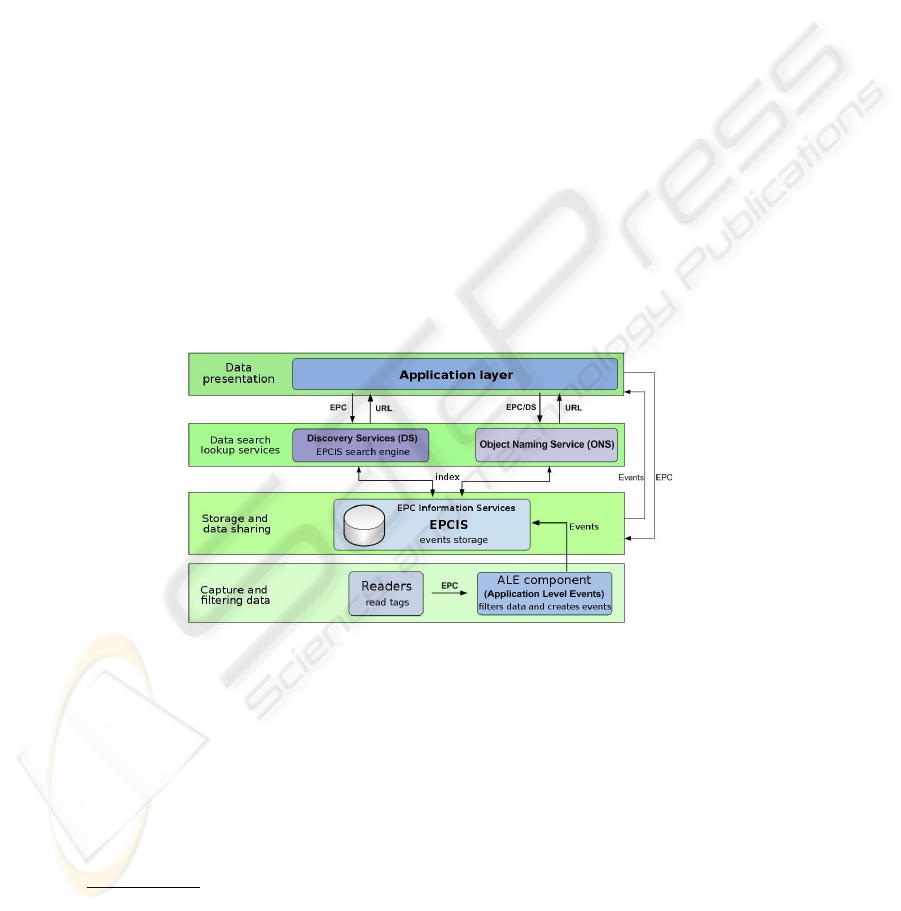

The EPCglobal network is structured in layers. Figure 1 shows the data available into
the various levels of this architecture. Note that all the layers are completely disjoint
and communicate only with messages exchanged over the network. These messages use
XML and their structures are normalized by the EPCglobal Organization [8], [2]. This
section describes the different layers as they are defined by the EPCglobal Organization.
Fig. 1. EPCGlobal Network General Architecture.
The bottom layer involves hardware that can read RFID tags. It is also responsible with
the Application Level Event component (ALE) [3] to detect read failures and to create
events with the codes read from the tags. It is configured to add several informations
such as “business step”, “read point”, “message type”, “timestamp”. . . Furthermore, it
will filter the data in order to send only once an event concerning a given code. It does
not store any data and only provide events to the upper layer. The upper layer deals only
with events formatted as valid XML entities.
The next layer is for the storage and the data sharing. This is achieved by the EPC
3
http://www.epcglobalinc.org
60
Information Services component (EPCIS) [2]. It is made of the EPCIS repository, de-
signed to store received events. It has two interfaces: the EPCIS capture interface, used
to capture events sent by the lower level layer and the EPCIS query interface, set up to
retrieve the stored information.
The third layer, the lookup layer, contains the services that we want to enhance with
the proposition of this paper. In complex scenarios where the industrial process is not
just managed by a private network and involves more than one firm, informations are
spread over multiple EPCIS servers. Therefore a lookup layer is mandatory. The Ob-
ject Naming Service (ONS) [4] carries out the indexing of EPCIS manufacturers and
can deliver their IP address. ONS uses the Internet’s existing Domain Name System
(DNS)for looking up (resolving) information about an EPC. Hence, it doesn’t provide
any identification or access control policy. Everyone can retrieve any entry. The other
component of this layer, the Discovery Services (DS), is the “search engine” for EPC
related data. They are not limited to the entities that originally assigned an EPC code,
and may return the addresses of all EPCIS containing information about the given EPC
unless it is filtered by the access control policy. Note the Discovery Services standard
is still in development [8].
At the top level, we find the application layer that uses the lookup services in order
to extract the events it is interested in, and to process and present the information.
2.2 Standards
As we mentioned, the EPCglobal network is not currently fully normalized. The stan-
dardization process allows three standard levels types for each network component: data
standards, interface standards and standards in development.
Today we cannot call EPCglobal architecture “Internet Of Things”. As is, the net-
work is ready to be used in closed networks. That means that data exchange between
firms is not currently possible or must be controlled by the firm itself giving EPCIS net-
work access to particular users. This job should be realized by the Discovery Services
component that is still at the moment in the standard development process.
To set up our own EPCglobal network, we decided to study some DS specification
proposals in several projects, as the one presented in [7]. Finally we choose the IETF
organization Internet draft [8] as a start.
2.3 A World with Several Discovery Services
DS are presented as the “search engines” of EPCglobal. But, if web search engines can
be independent, it is not the case for DS. Indeed, while web search engines users expect
only a representative subset of pages addresses corresponding to their request, DS users
usually want all EPCIS addresses storing events about a given EPC. Another difference
is that, unlike search engines with web pages, DS servers cannot crawl EPCIS servers
due to data access control concerns. EPCIS servers have to publish their events to one
(or more) DS server they know. This section motivates why it is useful to have more
than one DS server.
We explained previously that DS servers must fulfill two functions: index EPCIS
servers and manage the access control policy. What happens if, for a given EPC the
61
corresponding information is spread over multiple EPCISs referenced by more than
one DS server? It is conceivable that several companies will want to run their DS server
in order to manage their own data as also argued by K
¨
urshner et al. [6]. Furthermore,
it will be an opportunity to develop additional services
4
. It is therefore useful to allow
DS interconnection.

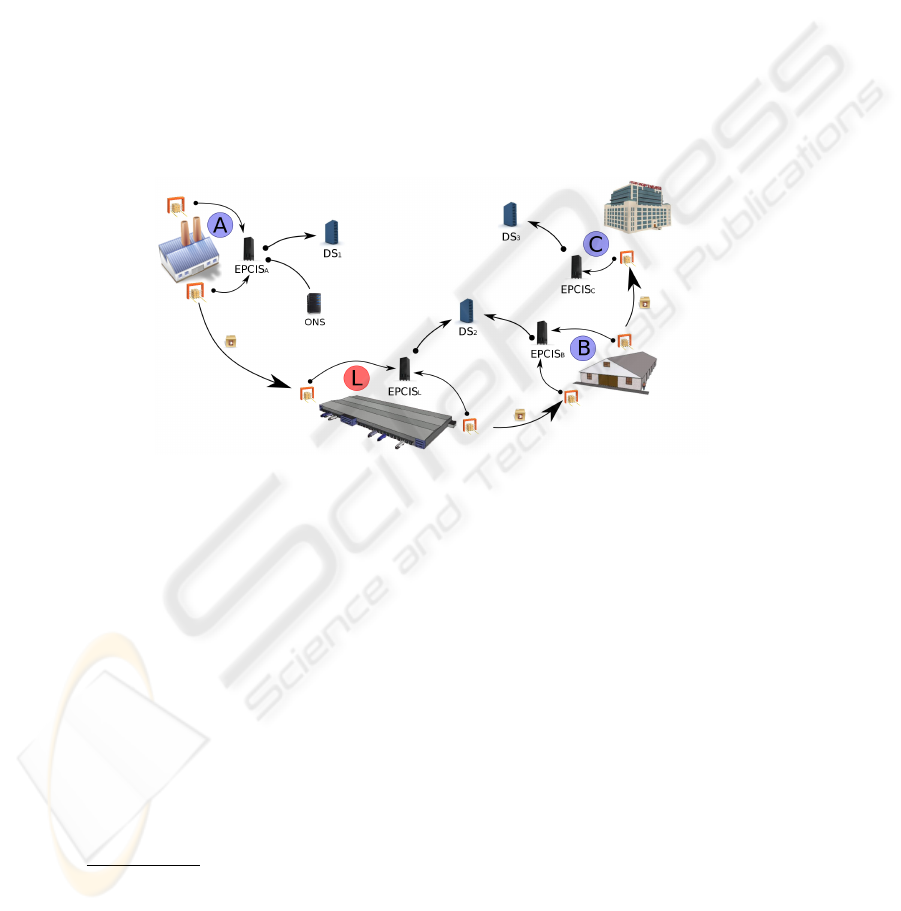

The four actors supply chain scenario depicted in figure 2 will help us to motivate
the problem of finding DS servers addresses. It is composed of:
a factory that provides manufactured products;
a logistic platform, third part actor who take products from the factory to the whole-
saler;
a wholesaler that stores the products brought from the factory;
a retailer that sells the products to consumers.
Fig. 2. The four actors supply chain scenario.
To make our scenario more realistic, we suppose that the factory imagines that its prod-
ucts are directly imported by the wholesaler whereas they are carried by our third part
actor: the logistic platform. This use case illustrates that in real conditions no actor can
exactly know who are the next ones in a business process. This test case will be useful
to show that the network will be able to find a lost product even if this information is
kept by an unknown actor.
For a given EPC that passes through this supply chain, the corresponding events
will be spread over four EPCIS (A B C and L). Consequently, for this same EPC, the
DS server 1 will index the EPCIS A, the DS2 will index EPCIS L and EPCIS B, and the
last one, the DS server 3 will index EPCIS C. How every user will be able to retrieve all
the information? Currently, it will have to know the three DS servers addresses to query
them one by one. We pictured out several solutions in the next sections:
share the DS-repository between all DS servers using Peer to Peer technologies;
4
To follow the metaphor with the Internet, this problem is similar to Internet providers inter-
connection
62
dynamically chain EPCIS servers using publish/subscribe XML routing technolo-
gies;
give a particular role to a chosen DS server (the referent DS) and reinforce the ONS
server role.
In this paper we do not investigate the LDAP solution that is already discussed by
Cantero et al. [1] that seams to be a good solution for optimal response time to queries
but is poor for distributed updates.
3 The Peer to Peer Alternative: DS like a Peer
We study in this section the possibility to use peer to peer facilities to allow DS servers
communication. Indeed, each DS server can keep a subset of the global index repository
using a Distributed Hash Table (DHT). Distributed Hash Tables are a class of decen-
tralized distributed systems that provide a lookup service similar to a hash table .Pairs
are stored in the DHT, and any participating node can efficiently retrieve the value asso-
ciated with a given name. Responsibility for maintaining the mapping between names
and values is distributed among the nodes, in such a way that a change in the set of
participants causes a minimal amount of disruption. This allows DHTs to scale to ex-
tremely large numbers of nodes and to handle continual node arrivals, departures, and
failures.

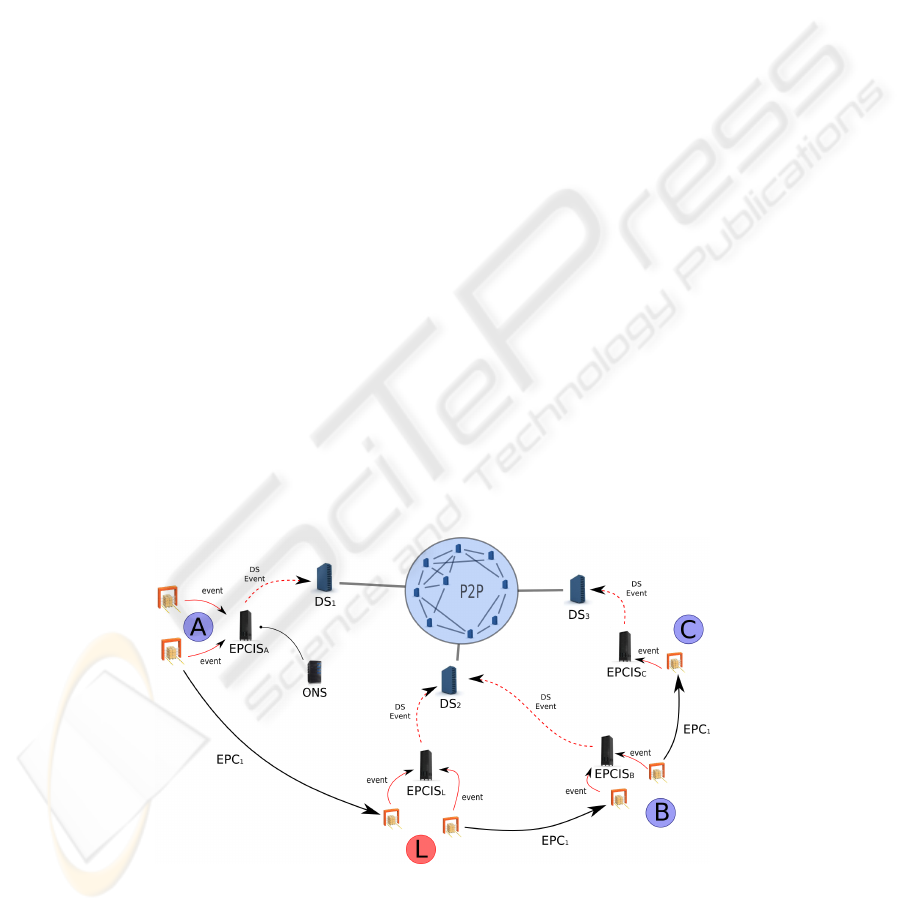

Figure 3 shows the new architecture incorporating a Peer to Peer interconnection
network. DS servers are seen like P2P nodes according to the above DHT defini-
tion. These servers need to implement all Peer to Peer protocols as discovery, data
exchange. . . It is useless to modify neither the existing EPCglobal layers architectures
nor layers communication specifications. This solution allows to add or remove DS
servers in a very simple way.
Fig. 3. Peer to Peer data sharing.
63
If we have a look at our example, as soon as the product leaves the factory, it is detected
by the reader. The corresponding informations (from the ALE component) are sent to
EPCIS A. This latter saves the incoming event in its EPCIS-repository and publishes
the corresponding DS event to the DS server 1 who finally saves the incoming event in
its DS-repository (its part of the DHT). Then, DS1 uses P2P protocols to inform other
peers (other DS servers) that it has just add a new event in its repository and pushed the
corresponding key (the EPC).
The same process happens when the object is detected while it enters the logistic
platform. But, at that time, the DS server 2 receives the DS event from EPCIS L and
saves it in its own repository (its part of the DHT). The corresponding key is shared
using peer to peer protocols.
The user who wants to retrieve information for that object can query any DS server.
They can all retrieve this information thanks to P2P discovery and data transfer proto-
cols.
Discussion. This solution does not affect the EPCglobal architecture. It simply allows
data exchange between DS servers. It is designed to be very fast and to use standard-
ized protocols. It provides a lot of start points because all DS servers can retrieve and
manage the entire distributed index.
However, several points must be detailed. The usage of P2P has been already inves-
tigated by Huang et al. in the distributed ePedigree architecture [5] and in the BRIDGE
project [7]. Nevertheless the former, ePedigree, provides a P2P based implementation
that does not consider security and access control aspects, focusing only on an EPCIS
closed environment. While the latter leaves security issues to the system responsibility.
Still remains the problem to manage security and access control policy. In fact the un-
derlying P2P network is based on a publicly shared DHT leading anybody be aware of
the existence of a code in a specific EPCIS. This point deals with data confidentiality
that can be valuable even without knowing the associated event. How to be sure that
they will not be intercepted by any malicious actor? Furthermore, another limitation of
a P2P based solution arises when a node is down. The user who queries one DS server
won’t be able to know that the information he retrieves is not up to date. Moreover, the
discovery protocol allows users to retrieve as much information as possible but does
not insure to retrieve all of it. The final point concerns the underlying TCP/IP network
management. To manage a real P2P network, all nodes must have public addresses or
must be mapped using NAT servers. That implies to open firewalls on many ports and
it may then be hard to manage a private network security.
4 Multi-DS for EPCIS Chaining: DS like a Router
The EPCIS chaining solution seams to be the simplest way to track products. Each
EPCIS knows the next one for a given EPC. For example, the wholesaler knows that its
object goes to the retailer.
The EPCIS chaining concept involves that the firm from where the objects are sent
always knows where they will go. In our scenario the factory happens to know that
it make business directly with the wholesaler whereas there is a third actor between
64
them. In this use case, the EPCIS of the factory cannot know the next one, the one from
the logistic platform. In the same way, we suppose that the object is lost between the
wholesaler and the retailer. How to find it again? There is no way for the wholesaler
EPCIS to know the address of the next EPCIS (it “thinks” that it is the retailer one but
possibly not).
This proposal uses XML routing to connect DS servers. XML routing is a XML
data transfer protocol. It allows XML document to be routed in a specific network not
using the receiver IP address but simply the content of the document. XML routing is
based on a publish/subscribe service that allows subscribers to express their interest in
documents containing specific keys or values or satisfying some patterns.

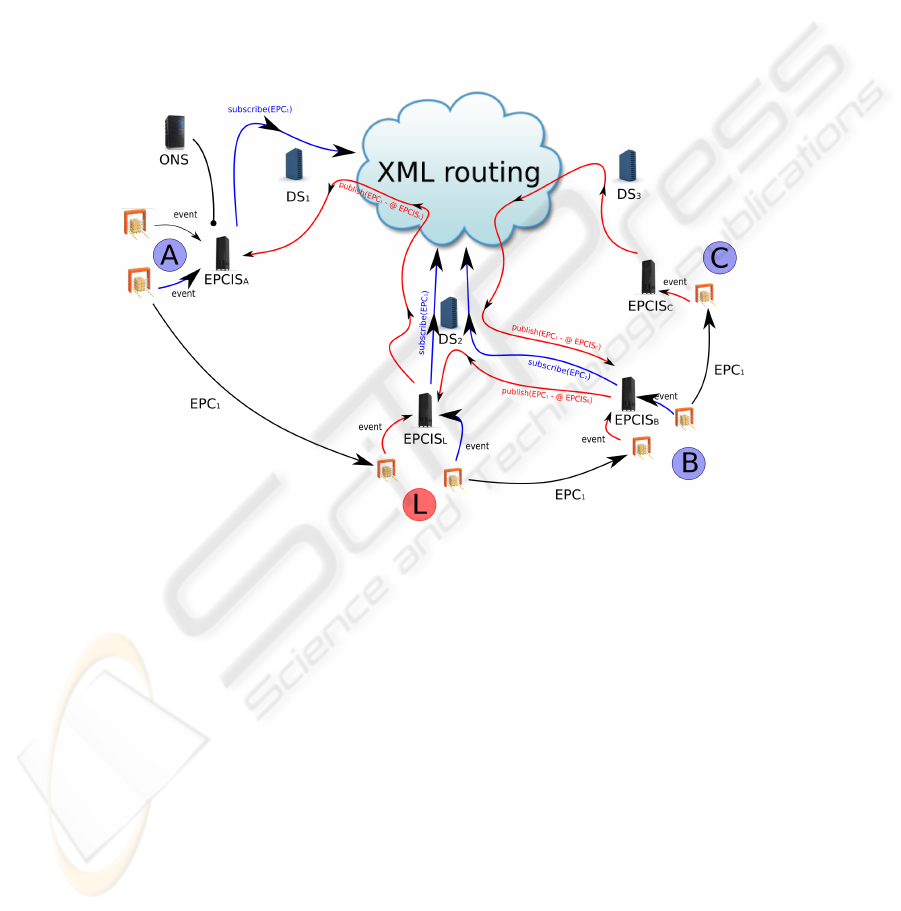

Fig. 4. Multi-DS for EPCIS chaining.
The DS servers allow EPCISs to subscribe to the XML routing network for a given
EPC. For example, the factory creates the product epc1. When the object leaves the
firm, the EPCIS subscribes to the XML routing network using its DS server for XML
messages containing the epc1 value. When the object arrives at the logistic platform,
the EPCIS L publishes an XML message containing the epc1 and its service address
to the XML routing network using DS2. As EPCIS A is interested in the product type
of epc1, it has subscribed to that XML message type, so it receives it and saves the
correspondence between the address contained in the document and the epc1. In this
way, each EPCIS ever knows what is the next EPCIS address in the chain for any EPC
code it is interested in. We have added here XML routers capabilities to the DS servers.
Discussion. This solution presents two main weak points. The first one is a conse-
quence that XML routing does not support any acknowledgment. When DS2 publishes
65
the XML document in the network it cannot know if somebody is listening and likewise
if somebody is receiving it. That may introduce lacks or errors in the EPCIS dynamic
chaining process. Let’s suppose that DS1 is out of order when the XML document is
sent, then it does not receive it. When the object arrives at the wholesaler, the corre-
sponding EPCIS (EPCIS B) publishes a new XML document using DS2. This message
is routed to EPCIS L but also to EPCIS A because DS1 is now up. As a result, EPCIS A
“thinks” that the next link is through EPCIS B, but it is absolutely not the case.
The second problem is due to the chaining itself. We suppose now that the dynamic
chaining process was successfully realized. The user who now wants to track informa-
tion about epc1 will query the first EPCIS of the chain (EPCIS A).This one returns the
information it kept and the EPCIS L address. The user queries now the second EPCIS
but this latter one is down. There’s no way to retrieve all other information, as the chain
is broken!
This solution use a real interesting concept but remains too sensitive to server fail-
ures. It is absolutely not robust enough. Furthermore, it allows mistakes not admissible
for such a network. It also raises some other questions relative to the XML routing tech-
nology. When will one server stop to listen to this XML document type if nothing is
received? Indeed, if the product is lost and will not be read again by any reader con-
nected within EPCglobal network, how to dynamically warn the listening DS servers
that they can terminate their subscription? We supposed that each EPCIS server sub-
scribes to the network when a product has left its firm and publishes a XML document
when a product arrives. How to detect that a product leaves or arrives in a firm? Using
business step? Will all firms use the same notation for these events? There are too many
questions that makes this solution finally too complicated.
5 Multi-DS and ONS: DSS Indexing DSS
Let’s recall that the ONS system is designed to reference the EPCIS where a particular
EPC product type appeared for the first time (in our example, from the factory). Our
third proposal consists to enhance the ONS system role: it does not only reference the
EPCIS, but also its connected DS servers.
Companies, that can assign EPCs, declare their EPCIS address in front of the object
type (EPC without serial number) in the ONS system configuration. As is, they also
declare there DS server address. Then, when any DS server receives an event, it can
extract the EPC out of it and query the ONS system to retrieve the corresponding DS
address. If that address is not its own address, it sends a new DS event to this address
that we call the referent DS server. In this new context, for a given EPC, the referent DS
indexes also the other DS servers that reference EPCIS dealing with that same code.
Consequently, in order to retrieve information about a given product, the application
layer can query the ONS system to find the referent DS address. Then, it queries the
corresponding server to retrieve indexed EPCISs and DSs. It does the same process
again whenever new DS addresses are found and retrieves all other EPCIS addresses.
The whole information is then reachable.
Each DS keeps its own access control policy. It means that each user must identify it-
self before querying anything to a DS. In our use case, a user who wants to track the
66

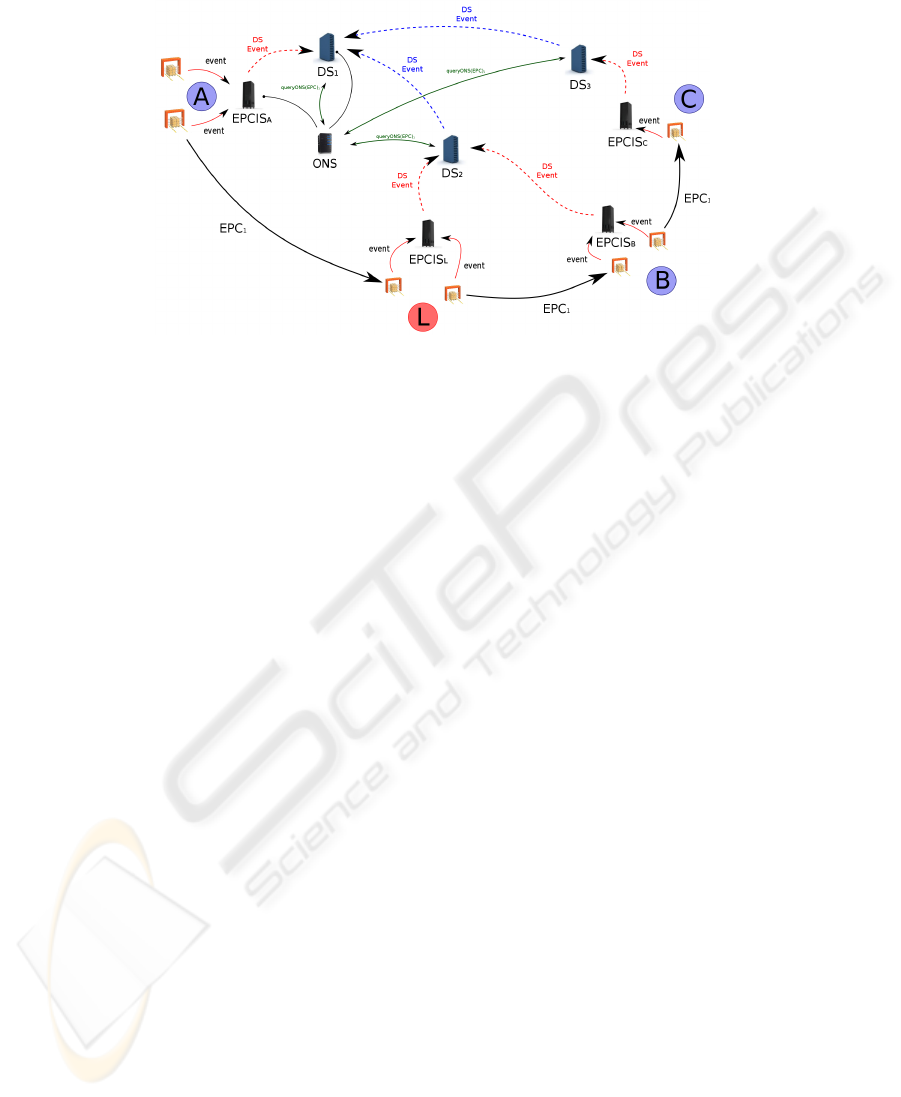

Fig. 5. Multi-DS and ONS.
product must create an account on the three DS servers. Each company must specify, in
its own DS account, that it has agreed to share information with that user. Otherwise, if,
by example, the logistic platform company does not specify (in the DS server 2) that it
has agreed to share events, no user will be able to retrieve the EPCIS L address.
If we have a look at our four actors supply chain scenario, let’s see what happens
when the product arrives in the logistic platform using this solution. The product is first
detected by the reader when it enters the platform. The corresponding ALE component
generates an event and publishes it in the EPCIS L. The EPCIS L stores the event in its
own database (EPCIS-repository) and publishes a DS event to the DS server 2 to tell
that it has information about the corresponding EPC. DS2 then stores the DS event in
its own database and queries the ONS system for the referent DS address corresponding
to that code. The answer is the address of the DS server 1. DS2 sends a new DS event
to DS1. Finally, DS1 stores the new DS event in its own database.
We suppose that our user has already created accounts on the different DS servers
and all companies agreed to share information with him. He queries first the ONS sys-
tem that answers with the DS server 1 address. Then, when queried, the DS1 answers
three addresses: those of EPCIS A, DS1 and DS2. He will now query in turn the two
new DS servers that respectively answer the addresses of the three EPCIS L, B and C.
Discussion. This solution reinforces the ONS system role. It is now the first start point
to query the network. Contrary to the two first proposals, this architecture does not
fall in case of server failures. Every component can keep a “to publish event” list and
periodically send it until the other server answers that the transaction succeeded. The
other strength of this alternative is that each DS is the master for its information and is
able to manage its own access control policy.
67
6 Conclusions
This paper has presented three different solutions for the interconnection of distributed
Discovery Services servers. Regarding confidentiality and reliability concerns, we pre-
fer the third solution: DSs indexing DSs. Nevertheless, some points remains to study
deeply. What happens in a real use case with a huge number of events to publish? How
will the network scale with the number of records? Will the DS-repository not grow to
fast?
We plan to answer to these questions thanks to the experimental platform we cur-
rently develop. It implements a EPCglobal platform gathering several EPCISs and DSs
interconnected using the last solution. Several realistic scenarios are experimented in
order to show the feasibility of this solution. The next step will be the enforcement of
access control policies.
References
1. Jose Juan Cantero, Miguel Angel Guijarro, Guillermo Arrebola, Ernesto Garcia, Janie Banos,
Mark Harrison, and Thomas Kelepouris. Traceability applications based on discovery ser-
vices. In ETFA, pages 1332–1337. IEEE, 2008.
2. EPCGlobal. Epcis - epc information services standard.
http://www.epcglobalinc.org/standards/epcis/epcis 1 0 1-standard-20070921.pdf, 2007.
3. EPCGlobal. Application level events (ale) v1.1. http://www.epcglobalinc.org/standards/ale
/ale 1 1-standard-core-20080227.pdf and http://www.epcglobalinc.org/standards/ale/ale
1 1-standard-XMLandSOAPbindings-20080227.pdf, 2008.
4. EPCGlobal. Epcglobal object name service (ons) 1.0.1.
http://www.epcglobalinc.org/standards/ons/ons 1 0 1-standard-20080529.pdf, 2008.
5. Dijiang Huang, Mayank Verma, Archana Ramachandran, and Zhibin Zhou. A distributed
epedigree architecture. In FTDCS ’07: Proceedings of the 11th IEEE International Workshop
on Future Trends of Distributed Computing Systems, pages 220–230, Washington, DC, USA,
2007. IEEE Computer Society.
6. Chris K
¨
urschner, Cosmin Condea, Oliver Kasten, and Fr
´
ed
´
eric Thiesse. Discovery service
design in the epcglobal network. In Christian Floerkemeier, Marc Langheinrich, Elgar Fleisch,
Friedemann Mattern, and Sanjay E. Sarma, editors, IOT, volume 4952 of Lecture Notes in
Computer Science, pages 19–34. Springer, 2008.
7. BRIDGE project. High level design for discovery services. Technical report,
http://www.bridge-project.eu/data/File/BRIDGE%20WP02%20High%20level%20d%
esign%20Discovery%20Services.pdf, 2007.
8. M. Young. Extensible supply-chain discovery service concepts, ietf draft.
http://tools.ietf.org/html/draft-young-esds-concepts-04, 2008.
68
