A Framework for Adaptive RDF Graph Replication for

Mobile Semantic Web Applications

Bernhard Schandl and Stefan Zander

University of Vienna, Department of Distributed and Multimedia Systems, Germany

Abstract. An increasing number of applications are based on Semantic Web

technologies and the amount of information available on the Web in the form

of RDF is continuously growing. The adaption of the Semantic Web for Personal

Information Management and the increasing desire for mobility is often accom-

panied by situations where no network connectivity is available and hence access

to remote data is limited. Such situations could be obviated when mobile devices

are able to operate on ofﬂine data replicas and synchronize changes when connec-

tivity is re-established. In this paper we present our ongoing work in developing a

framework allowing for adaptive RDF graph replication and synchronization on

mobile devices. We propose to interpose components that analyze various infor-

mation sources of semantic applications (including ontologies, queries, and ex-

pressed user interest) and use them for selecting parts of RDF data bases, which

are then made available ofﬂine using a proxy SPARQL endpoint on a mobile

device. Thus, we provide access to Semantic Web data without the need for per-

manent network connectivity.

1 Introduction

The original design of the World Wide Web is document-centric: digital information

resources are published on servers and can be retrieved by using Uniform Resource

Locators (URLs). Such documents are mainly HTML pages with embedded media like

images, which are connected by hyperlinks. While there exist a large number of static

documents (i.e., documents that reside on a server and are delivered to clients as-is),

large amounts of data are embedded in the so-called hidden web, which consists of

virtual documents that are created on request time using data that is stored in other sys-

tems, e.g. relational data bases. In most cases, these data are exposed via query forms

and are available to clients also in the form of semi-structured HTML documents.

If the consumer of such data is not a human (through the usage of a Web browser)

but a machine, it is required to re-extract the raw data from the HTML representation,

being optimized for human consumption, which is usually an expensive and error-prone

task [6]. It is the goal of the Semantic Web [2] to eliminate this source of potential er-

rors by providing the technical infrastructure to directly publish machine-interpretable

information on the Web, thus making it data-centric. The Semantic Web builds upon the

Web infrastructure [14] and extends it with a meta format for information representa-

tion (RDF [13]) and languages that allow publishers to semantically describe their data

(e.g., RDF Schema [4] and Web Ontology Language [9]). This technology stack has

Schandl B. and Zander S. (2009).

A Framework for Adaptive RDF Graph Replication for Mobile SemanticWeb Applications.

In Proceedings of the Joint Workshop on Advanced Technologies and Techniques for Enterprise Information Systems, pages 154-163

DOI: 10.5220/0002197901540163

 SciTePress

been complemented by the activities of the Linked Open Data initiative, which demon-

strate how to publish and interlink data sets using Semantic Web technologies [3] and

hence creating a world-wide distributed database.

Recently, the application of Semantic Web technologies to the problem of Personal

Information Management (PIM) has gained lots of interest, most notably in the form

of the Semantic Desktop [18], which has been investigated in the course of a number

of projects (e.g., [12, 15, 19]). With the increasing proliferation of mobile devices like

smart phones or netbooks, issues of Personal Information Management are no longer

restricted to desktop machines. In mobile scenarios, users frequently face the problem

that data is not available because of several reasons: ﬁrstly, there may be no physical

network connectivity (e.g., because of the lack of mobile network coverage), and sec-

ondly, security restrictions may apply (e.g., a VPN connection to the company network

cannot be established). In such situations it is desirable to make relevant data avail-

able on the mobile device so that applications can operate ofﬂine, and to synchronize

changes back to the base data set when connectivity is recovered. However, because

of the still limited storage and computing power of mobile devices, it is advisable to

carefully select the information to replicate; ideally in an automatic, transparent, and

adaptive manner.

In this paper we present our ongoing works towards a framework that aims to pro-

vide this functionality. Its architecture consists of a number of middleware components

that selectively replicate data from an RDF data base to a (mobile) client. This selection

is done by considering, on the one hand, automatically derived metrics about the data

set and its usage, and, on the other hand, manually deﬁned rules that allow the user to

specify subsets of the data to be replicated. On the mobile device, replicated data are

wrapped by a SPARQL endpoint to be transparently used by applications.

2 Mobile RDF Replication and Synchronization Architecture

SPARQL

Endpoint

Application

Browser

Client Machine Server Machine

SPARQL

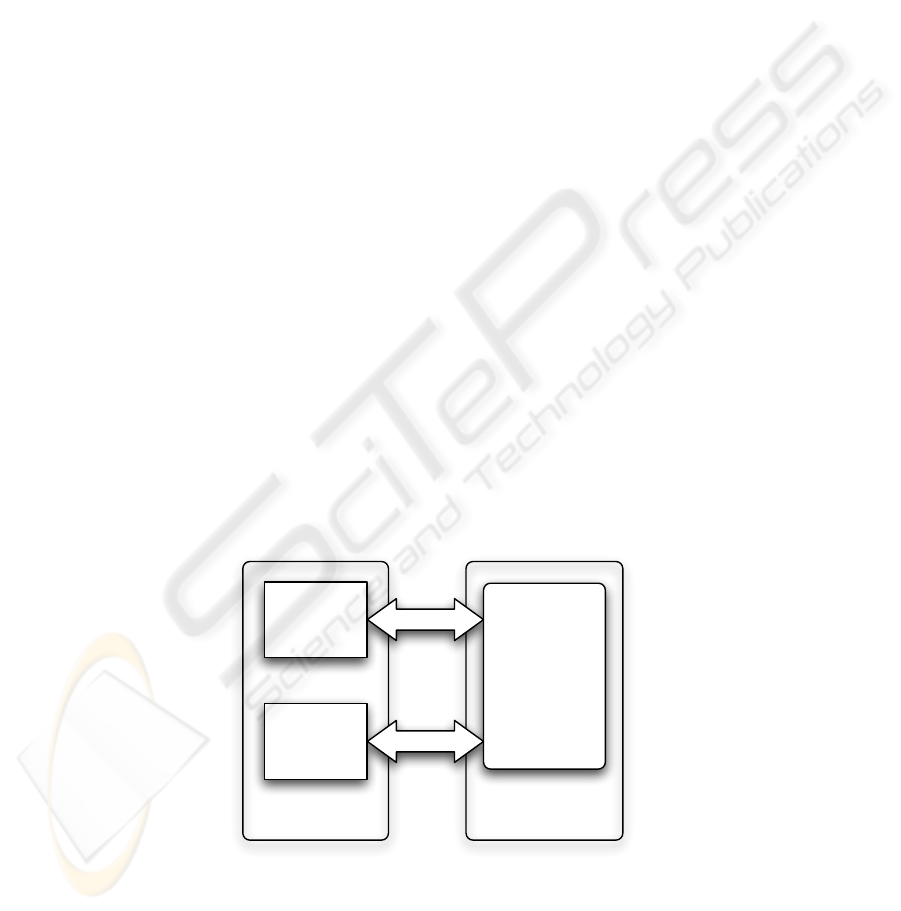

Fig. 1: Typical Architecture of Semantic Web-based Applications.

155

In Figure 1 the typical architecture of RDF-based applications is depicted. Such appli-

cations usually consist of two main components:

– A SPARQL endpoint, which wraps an RDF dataset and hides its implementation

details from a client. The data may actually be stored in a relational database, in the

ﬁle system, in memory, or it may be accessible via a network protocol. The endpoint

implementation accepts SPARQL query strings, executes them on the actual RDF

data, and returns the results in the correct target format.

– An application, which accesses RDF data by issuing SPARQL queries to the end-

point, and interprets the results

. Just as it is the case with applications that build

upon relational databases, all details of generating results and processing updates

are delegated to the SPARQL engine. The only deﬁned interface between the ap-

plication and the data set is the SPARQL language and its transport protocol [7].

Naturally, our proposed replication and synchronization mechanisms are beneﬁcial only

in situations where these components are distributed over different physical machines

and the network link between them is potentially unstable (e.g., when the SPARQL end-

point resides on a company server, while the application is executed on an employee’s

mobile device).

To introduce a replication and synchronization layer into such a semantic applica-

tion, it is not necessary to modify any of the existing system components. Instead, we

introduce two new components that serve as mediator layer between the client applica-

tion and the SPARQL endpoint. We denote these components the client-side replication

engine and the server-side replication manager. This extended system architecture is

depicted in Figure 2 and described in the following.

Replication Engine. The replication engine is instantiated on the client machine and

acts as a transparent proxy for applications. The only change to applications is a con-

ﬁguration modiﬁcation: applications must be re-conﬁgured to query the local SPARQL

endpoint instead of the original remote endpoint.

The replication engine is a fully-functional SPARQL endpoint that is able to process

queries and return the results to the application. It is conﬁgured to establish a connection

to the original SPARQL endpoint, as well as to a corresponding replication manager.

It has two operation modes, online and ofﬂine mode. In online mode all queries are di-

rectly passed to the original (remote) SPARQL endpoint, and results from the endpoint

are forwarded to the application where the request originated.

In ofﬂine mode the replication engine answers queries from its local cache, which

holds a subset of the original data set. The virtual endpoint is hence enabled to return

at least partial results for application queries, which is a signiﬁcant improvement com-

pared to situations where no data can be retrieved at all. Updates are processed in a

We assume that update functionality will be included into SPARQL in the near

future; the current effort towards this direction has been subsumed by a corre-

sponding W3C member submission, cf. http://www.w3.org/Submission/2008/

SUBM-SPARQL-Update-20080715/.

156

similar manner: in online mode they are forwarded to both the local cache and the orig-

inal data base, while in ofﬂine mode changes are recorded on the mobile device for

subsequent synchronization between the cached copy and the original data set.

SPARQL

Endpoint

Replication

Engine

Application

Browser

Client Machine Server Machine

Virtual Server

SPARQL

Replication

Manager

Replication

Protocol

CacheSPARQL

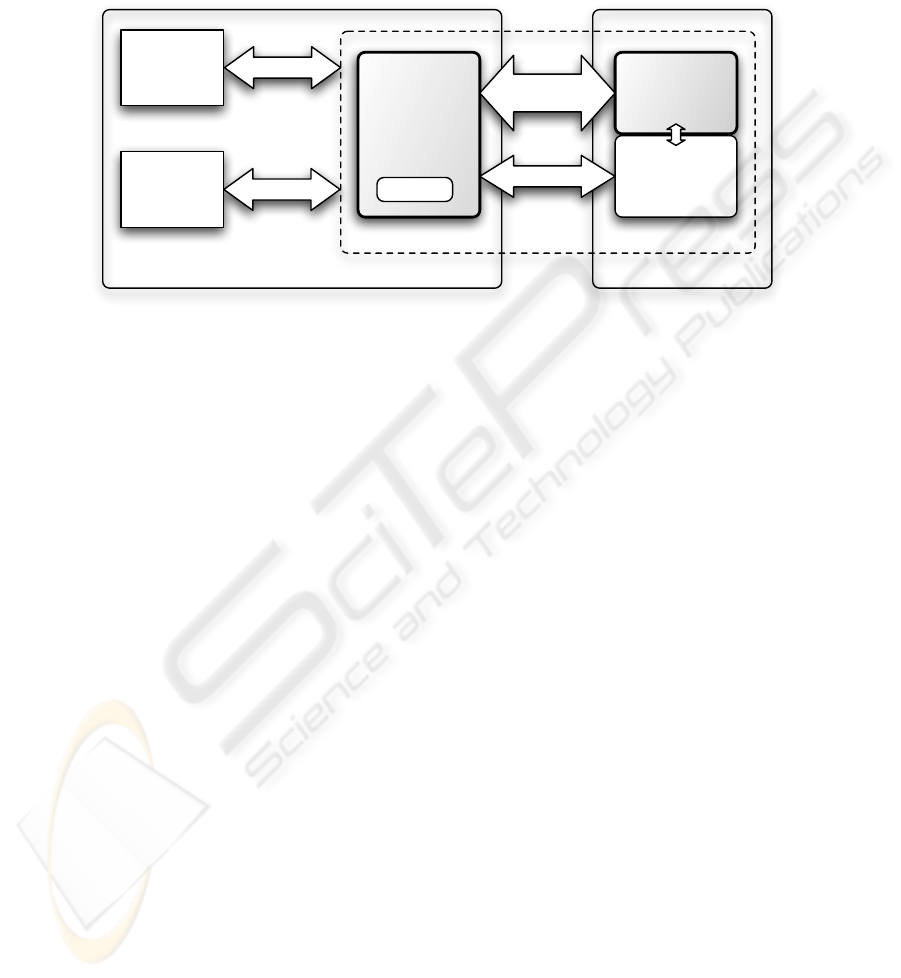

Fig. 2: Proposed Architecture Extension by an Intermediate SPARQL Proxy.

Replication Manager. The task of the replication manager is to compute a ranking for

the selective replication; i.e., it determines which subset of the data is to be replicated

on the client. To accomplish this it needs access to the whole RDF data set, which

can in general be achieved through the SPARQL endpoint. In order to achieve better

performance, it may however be necessary to integrate these two components more

tightly, as SPARQL can not be used to notify the manager about data updates. The

degree of such an integration is subject of further research.

Replication Control Protocol. The replication manager and the replication engine ex-

change information about the current status of the original endpoint and the client’s

cache via a replication control protocol, which is also used to coordinate the execution

of data replication tasks. Possible reasons for initiating a new data replication task in-

clude the execution of a SPARQL query or a data update on the client machine. The

replication control protocol should ensure a maximum of ofﬂine data availability in the

engine’s cache at any time. This strategy is preferred over manual synchronization on

demand because it also holds when the network connection is unexpectedly interrupted.

Additionally it enables the client to disconnect at any time, instead of requiring it to start

a tedious synchronization procedure before a planned disconnect.

Processing and elaborating on user-related contextual data provided by the repli-

cation engine is another important task and serves as the basis for the intelligent RDF

subgraph selection according to the user’s current activities and intentions. Some selec-

tion strategies we are considering in our ongoing works are introduced in the following

chapter.

157

3 Selection of RDF Replica Sets

It is not practicable to replicate entire data sets under the restrictions of mobile devices

imposed by technical and user-related context. To provide a tradeoff in such situations,

we are investigating algorithms for selective replication of RDF sub-graphs. The goal

of these algorithms is to provide a subjective interest ranking of RDF triples, where we

take into account structural and semantic characteristics of the dataset, as well as user

preferences and usage context information. In the following we describe some of our

envisioned input parameters in more detail.

1. Graph Structure and Metrics. RDF is based on a graph model; therefore, various

metrics and analysis algorithms can be applied to it (e.g., degrees of graph nodes).

We are currently investigating the applicability of these metrics for deriving con-

clusions on the relevance of graph elements for ofﬂine replication. Such metrics,

however, do not take into account the semantics of the RDF model and ontolo-

gies [22], which is addressed by the following two information sources, ontology

structure and queries.

2. Ontology Structure and Metrics. Ontologies are used to express shared concep-

tualizations between communicating partners. In our work we focus on the Web

Ontology Language (OWL) [9], which is one of the standard languages for on-

tology modelling on the Semantic Web. OWL ontologies consist of three types of

elements: classes, individuals, and properties. Their structure as well as the seman-

tics of the relationships between them is expressed using different OWL language

constructs, e.g., subClassOf or equivalentProperty. From the analysis

of these expressions we hope to be able to infer information about the importance

of instance data that adheres to these ontologies, and to detect redundant data that

does not need to be replicated on the client.

3. Queries. As described in Section 2, applications usually access RDF data through

issuing SPARQL queries. Hence, the structure of these queries as well as the vo-

cabularies used therein are indicators which data are relevant for an application.

To exploit this information we will analyze the syntactic and semantic structure

of queries (with the help of ontologies, as described before) and draw conclusions

regarding the importance of the data sets that these queries are applied to.

4. User Context. Context and context-awareness play a critical role in interactive in-

formation systems [8, 10]. Recent research in this area reveals that the prevailing

system-centric view of context-awareness should be replaced by a user-centric view

[20]. Intelligent and adaptive RDF subgraph selection must therefore elaborate on

the user’s tasks and information needs on a semantic level to provide appropriate

and valuable data. For instance, based on upcoming appointments or events in the

user’s calendar, the replication engine could infer on the data probably needed. We

investigate further approaches on how to utilize user behavior and contextual infor-

mation to enhance the quality of the data retrieval process.

5. Explicit User Interest. The end of the Semantic Web information chain is the human

user. In every situation, the user should have the possibility to overrule or supple-

ment automatically replicated datasets. This selection may be carried out on various

levels, e.g., using elements from an ontology, using range deﬁnitions for attribute

158

values, or even (on the lowest level) the selection of single triples out of the graph.

Depending on the user’s experience, sophisticated user interfaces are required for

this task, especially in cases where the amount of data exceeds certain sizes.

From the analysis of these data it may be possible to derive information that is relevant

not only to replication and synchronization, but also for other aspects of the stored data:

for instance, the analysis algorithms might reveal that certain parts of a data set are

never queried. In this case, it could be advisable to move these parts from the live data

store into a long-term archive. On the other hand, analysis of data graphs may evidence

that sub-graphs are disconnected, therefore semantic relations between resources are

missing. If such a graph is generated from an external data source, this may indicate a

potential error in the mapping or in the transformation algorithm.

4 Implementation

As a starting point for a reference implementation we have conducted a survey on exist-

ing mobile Semantic Web frameworks. We have analyzed two XML parsers for mobile

environments, NanoXML for J2ME

and kXML

, as well as two mobile RDF frame-

works, Mobile RDF

and µJena

. Our survey revealed that µJena is the most advanced

framework providing ontology and inferencing support, although its API is currently

in prototypical status and only allows for processing RDF data serialized in N-Triples

format

. However, none of the evaluated frameworks supports queries on RDF data via

SPARQL or other query languages. A serialization mechanism between RDF and the in-

ternal storage mechanisms used by certain mobile devices for storing data permanently

could also not be found. Such mechanisms are however needed since many mobile

platforms do not use a ﬁle system for storing application data, but provide platform-

speciﬁc storage systems, such as the Record Management System (RMS) in case of

J2ME MIDP

applications.

We are currently developing our proposed framework as a Google Android

appli-

cation since the underlying operating system provides substantial advantages compared

to other mobile operating system architectures. Android itself is an environment for run-

ning Java applications on the Dalvik Virtual Machine

which is especially optimized for

mobile environments. It includes SQLite, a lightweight and powerful relational database

engine, and makes use of some advanced software design patters such as the Model-

View-Controller (MVC) pattern to separate application logic from user interface design

and underlying data models. Android provides access to the core system operating func-

tions through standard APIs as well as a complete multitasking environment where each

NanoXML: http://sourceforge.net/projects/nanoxml-j2me/

kXML: http://kxml.sourceforge.net/

Mobile RDF: http://www.hedenus.de/rdf/index.html

µJena: http://poseidon.elet.polimi.it/ca/?page_id=59

N-Triples Syntax for RDF: http://www.w3.org/TR/rdf-testcases/#ntriples

Mobile Information Device Proﬁle (MIDP): http://java.sun.com/products/

midp/

Google Android Platform: http://code.google.com/android

Dalvik Virtual Machine: http://www.dalvikvm.com

159

application is executed within its own thread, thus providing the possibility to imple-

ment background services, like a synchronization process that is automatically activated

when the mobile device has online connectivity to its home network (e.g, by automati-

cally establishing a VPN connection within a public wireless local area network).

As a ﬁrst step we have implemented an initial prototype consisting of a client appli-

cation for initiating a request, a minimal replication engine, and the replication manager.

The replication manager is able to process a core set of contextual information, such as

the number of triples expected by the replication engine, the user’s current location, as

well as information about the serialization formats the client is able to process.

The replication engine takes these values as input parameters and sends them to

the replication manager. Based on this information the replication manager selects a

subset of the RDF data set and transmits it to the client. A RDF abstraction layer has

been introduced in the replication manager so that its implementation is independent

from the underlying RDF store. The client locally caches the data and hence makes it

available to applications, and changes made to this cache are subsequently forwarded

to the replication manager. Currently we are designing a more elaborate framework for

RDF persistance on mobile devices. On the replication manager side, we are designing

and implementing a ranking pipeline that allows for modular, customizable weighting

of RDF triples, which is used as the basis for selective replication.

5 Related Work

Although RDF databases are gaining industry strength in terms of performance and

memory efﬁciency, mechanisms for synchronization and ofﬂine replication can hardly

be found. To the best of our knowledge, many of today’s state-of-the-art triple stores,

including Jena

, Sesame

, and Redland

, do not include support for (selective) of-

ﬂine replication.

Most of the systems mentioned above can be conﬁgured to make use of a relational

data base to store RDF data. For this, they employ mapping algorithms in order to rep-

resent RDF graphs as relations. One could make use of a RDBMS’s replication and

synchronization facilities; however, this has two drawbacks: (1) it does not consider the

special aspects of RDF and semantic graphs, including ontologies, and (2) performing

selective replication is very hard unless the developer analyzes the exact mapping al-

gorithms for the target system. Usually, those systems don not provide possibilities to

elaborate on the meaningfulness and semantics of RDF data sets.

Larger-scale database systems like OpenLink Virtuoso [11] and Oracle [1] do not

solely focus on RDF but may serve as a data integration point for different sources,

including RDF. While these systems often provide support for replication and synchro-

nization, they are not designed to be deployed to mobile devices.

A different approach for selective distribution and replication of RDF data is the

Peer-to-Peer (P2P) paradigm, where multiple equal systems exchange data over a net-

work. Such systems are, for instance, Edutella [16] and RDFPeers [5]. These works

Jena Semantic Web Framework: http://jena.sourceforge.net

Sesame Framework: http://www.openrdf.org

Redland RDF Libraries: http://librdf.org

160

provide valuable knowledge about efﬁcient distribution and exchange of RDF data, but

do not focus on selective replication. Tumarrello et al. [21] describe an algorithm for

selective exchange of RDF, based on P2P systems. We aim to extend the results pre-

sented by them and apply them to non-P2P environments.

The Open Mobile Alliance (OMA) provides the SyncML framework for data syn-

chronization [17], which allows data of different kinds (including contacts, calendars,

and e-mail messages) to be synchronized between devices. The framework also speci-

ﬁes a number of bindings to protocols that are commonly used in the context of mobile

devices, as well as limited means to express device context information, e.g., the avail-

able memory or the supported databases. Since this framework does not consider a

generic data format like RDF, we will analyze potential synergies and links between

our approach and the OMA activities.

6 Conclusions

In this paper, we have outlined our ongoing works towards a framework for selective

replication of RDF data sets to mobile devices. The goal of this framework is to provide

access to RDF data sets in situations where there is no network connectivity available

and hence communication with remote data sources is impossibile. Our proposed ar-

chitecture extends current Semantic Web applications with intermediate components

that handle SPARQL queries transparently, either by forwarding them to the actual data

store if connectivity is up, or by answering them from a locally cached partial replica

of the data set on the mobile device, if there is no connectivity.

We are currently in the process of specifying in more detail the algorithms and data

models that are required to realize such a framework. This includes a model for selec-

tive replication of RDF data sets, algorithms for ranking of resources based on their

structure and usage, and checkout and update mechanisms that enable mobile devices

to stay updated with a base data set. In parallel, we are validating these artifacts by the

means of a reference implementation, which is based on the Android mobile platform

and a special variant of the popular Jena Semantic Web framework.

Acknowledgements

Parts of this work have been funded by FIT-IT grants 812513 and 815133 from Austrian

Federal Ministry of Transport, Innovation, and Technology.

References

1. Omar Alonso, Sandeepan Banerjee, and Mark Drake. GIO: A Semantic Web Application

Using the Iinformation Grid Framework. In WWW ’06: Proceedings of the 15th international

conference on World Wide Web, pages 857–858, New York, NY, USA, 2006. ACM.

2. T. Berners-Lee, J. Hendler, and O. Lassila. The Semantic Web. Scientiﬁc American Maga-

zine, 284(5):34–43, 2001.

161

3. Chris Bizer, Richard Cyganiak, and Tom Heath. How to Publish Linked Data on the

Web, 2007. Available at http://www4.wiwiss.fu-berlin.de/bizer/pub/

LinkedDataTutorial/, retrieved 02-Dec-2008.

4. Dan Brickley and R.V. Guha. RDF Vocabulary Description Language 1.0: RDF Schema

(W3C Recommendation 10 Februar 2004). World Wide Web Consortium, 2004.

5. Min Cai and Martin Frank. RDFPeers: A Scalable Distributed RDF Repository Based on

a Structured Peer-to-peer Network. In WWW ’04: Proceedings of the 13th international

conference on World Wide Web, pages 650–657, New York, NY, USA, 2004. ACM Press.

6. Chia-Hui Chang, Mohammed Kayed, Moheb Ramzy Girgis, and Khaled F. Shaalan. A Sur-

vey of Web Information Extraction Systems. IEEE Transactions on Knowledge and Data

Engineering, 18(10):1411–1428, 2006.

7. Kendall Grant Clark, Lee Feigenbaum, and Elias Torres. SPARQL Protocol for RDF (W3C

Recommendation 15 January 2008). World Wide Web Consortium, 2008.

8. Jo

elle Coutaz, James L. Crowley, Simon Dobson, and David Garlan. Context is Key. Com-

mun. ACM, 48(3):49–53, 2005.

9. Mike Dean and Guus Schreiber. OWL Web Ontology Language Reference (W3C Recom-

mendation 10 February 2004). World Wide Web Consortium, February 2004. Available at

http://www.w3.org/TR/owl-ref/.

10. Paul Dourish. What we talk about when we talk about context. Personal Ubiquitous Comput.,

8(1):19–30, 2004.

11. Orri Erling and Ivan Mikhailov. RDF Support in the Virtuoso DBMS. In S

oren Auer,

Christian Bizer, Claudia M

uller, and Anna V. Zhdanova, editors, CSSW, volume 113 of LNI,

pages 59–68. GI, 2007.

12. Tudor Groza, Siegfried Handschuh, Knud Moeller, Gunnar Grimnes, Leo Sauermann, En-

rico Minack, Cedric Mesnage, Mehdi Jazayeri, Gerald Reif, and Rosa Gudjonsdottir. The

NEPOMUK Project - On the Way to the Social Semantic Desktop. In Tassilo Pellegrini

and Sebastian Schaffert, editors, Proceedings of I-Semantics’ 07, pages pp. 201–211. JUCS,

2007.

13. Patrick Hayes. RDF Semantics (W3C Recommendation 10 February 2004). World Wide

Web Consortium, 2004.

14. Ian Jacobs and Norman Walsh. Architecture of the World Wide Web, Volume One (W3C

Recommendation 15 December 2004). World Wide Web Consortium, 2005. Available at

http://www.w3.org/TR/webarch/.

15. David R. Karger. Haystack: Per-User Information Environments Based on Semistructured

Data. In Victor Kaptelinin and Mary Czerwinski, editors, Beyond the Desktop Metaphor,

pages 49–100. Massachusetts Institute of Technology, 2007.

16. Wolfgang Nejdl, Boris Wolf, Changtao Qu, Stefan Decker, Michael Sintek, Ambj

orn Naeve,

Mikael Nilsson, Matthias Palm

er, and Tore Risch. EDUTELLA: A P2P Networking Infras-

tructure Based on RDF. In WWW ’02: Proceedings of the 11th international conference on

World Wide Web, pages 604–615, New York, NY, USA, 2002. ACM Press.

17. Open Mobile Alliance. OMA Data Synchronization V1.2.1, 2007. Available at

http://www.openmobilealliance.org/Technical/release_program/

ds_v12.aspx.

18. Leo Sauermann, Ansgar Bernardi, and Andreas Dengel. Overview and Outlook on the Se-

mantic Desktop. In Stefan Decker, Jack Park, Dennis Quan, and Leo Sauermann, editors,

Proceedings of the 1st Semantic Desktop Workshop, volume 175, Galway, Ireland, Novem-

ber 2005. CEUR Workshop Proceedings.

19. Bernhard Schandl. SemDAV: A File Exchange Protocol for the Semantic Desktop. In Pro-

ceedings of the Semantic Desktop and Social Semantic Collaboration Workshop, volume

202, Athens, GA, USA, November 2006. CEUR Workshop Proceedings.

162

20. Hong-Siang Teo. An Activity-driven Model for Context-awareness in Mobile Computing.

In MobileHCI ’08: Proceedings of the 10th international conference on Human computer

interaction with mobile devices and services, pages 545–546, New York, NY, USA, 2008.

ACM.

21. Giovanni Tummarello, Christian Morbidoni, Joackin Petersson, Paolo Puliti, and Francesco

Piazza. RDFGrowth, a P2P Annotation Exchange Algorithm for Scalable Semantic Web

Applications. In Ilya Zaihrayeu and Matteo Bonifacio, editors, P2PKM, volume 108 of

CEUR Workshop Proceedings. CEUR-WS.org, 2004.

22. Denny Vrandecic and York Sure. How to Design Better Ontology Metrics. In Proceedings

of the 4th European Semantic Web Conference (ESWC2007), 2007.

163
