A Model Driven Approach for Generating Code From

Security Requirements

Oscar S

anchez, Fernando Molina, Jes

us Garc

ıa Molina and Ambrosio Toval

Departament of Informatic and Systems, University of Murcia, Spain

Abstract. Nowadays, Information Systems are present in numerous areas and

they usually contain data with special security requirements. However, these re-

quirements do not often receive the attention that they deserve and, on many

occasions, they are not considered or are only considered when the system de-

velopment has ﬁnished. On the other hand, the use of model driven approaches

has recently demonstrated to offer numerous beneﬁts. This paper tries to align the

use of a model driven development paradigm with the consideration of security

requirements from early stages of software development (such as requirements

elicitation). With this aim, a security requirements metamodel that formalizes the

deﬁnition of this kind of requirements is proposed. Based on this metamodel, a

Domain Speciﬁc Language (DSL) has been built which allows both the construc-

tion of requirements models with security features and the automatic generation

of other software artefacts from them. An application example that illustrates the

approach is also shown.

1 Introduction

Nowadays, most organizations are depending increasingly on the use of Information

Systems. On many occasions, these systems contain data with special security require-

ments. The suitable management of that information is critical for the survival of these

organizations. However, these security requirements are frequently not considered or

they are only considered when the systems have been completely developed [1] but,

on the contrary, information security is a feature that must be considered in all the

stages of the lifecycle of a system, from requirements elicitation to implementation and

maintenance. On the other hand, the Model Driven Engineering (MDE) approaches

are gaining in popularity among practitioners as an emerging approach that provides a

cost-effective, reliable and rapid application development to get products faster and with

more quality [2]. They propose that models with different abstraction levels should be

used to drive the entire software development process. These models are built by means

of Domain Speciﬁc Languages (DSL) [3] and they make possible automatic code gen-

eration. This development paradigm, together with the need for considering security

Partially supported by the projects DEDALO (TIN2006-15175-C05-03) from the Spanish

Ministry of Science and Technology, and MELISA-GREIS (PAC08-0142-335). Fernando

Molina is partially funded by the Fundaci

on S

eneca (Reg. de Murcia).

Sánchez Ó., Molina F., Molina J. and Toval A. (2009).

A Model Driven Approach for Generating Code from Security Requirements.

In Proceedings of the 7th International Workshop on Security in Information Systems, pages 119-126

DOI: 10.5220/0002199601190126

 SciTePress

requirements in all the stages of software lifecycle lead us to consider that an MDE

approach can be useful to meet this need.

With this aim, ﬁrstly we have designed a security requirements metamodel, which

can be used as a mechanism for formalizing the elicitation of security requirements.

Based on this metamodel, a DSL that allows developers to deﬁne security requirements

models that can be used to generate other software artefacts has been devised. This au-

tomatic generation differentiates our approach from other requirements metamodelling

approaches. The generative approach will be illustrated by means of an application

example which shows how code for Oracle Label Security [4] and XACML security

policies [5] can be generated.

This paper is organized as follows. First we present the security requirements meta-

model, then the designed DSL will be presented along with an application example.

Finally we summarize the proposal.

2 Using Metamodelling to Capture Security Requirements

2.1 Requirements Metamodelling

A great number of approaches dedicated to dealing with requirements have appeared.

They often use textual descriptions for the requirements speciﬁcation, which are gath-

ered in non-formal models or organized in requirements documents which are hardly

ever formally structured [6]. However, MDE approaches have introduced a new per-

spective for dealing with requirements which is based on the use of requirements meta-

models that formally deﬁne the concepts and relationships involved in the RE process

[6]. Several approaches for requirements metamodelling have recently appeared[6–8]

but a reference model has not been established yet [6]. In our approach, the core con-

cepts from these requirements metamodelling proposals have been extracted and, from

them, the requirements metamodel shown in Figure 1 has been designed, which includes

new relationships and concepts considered relevant.

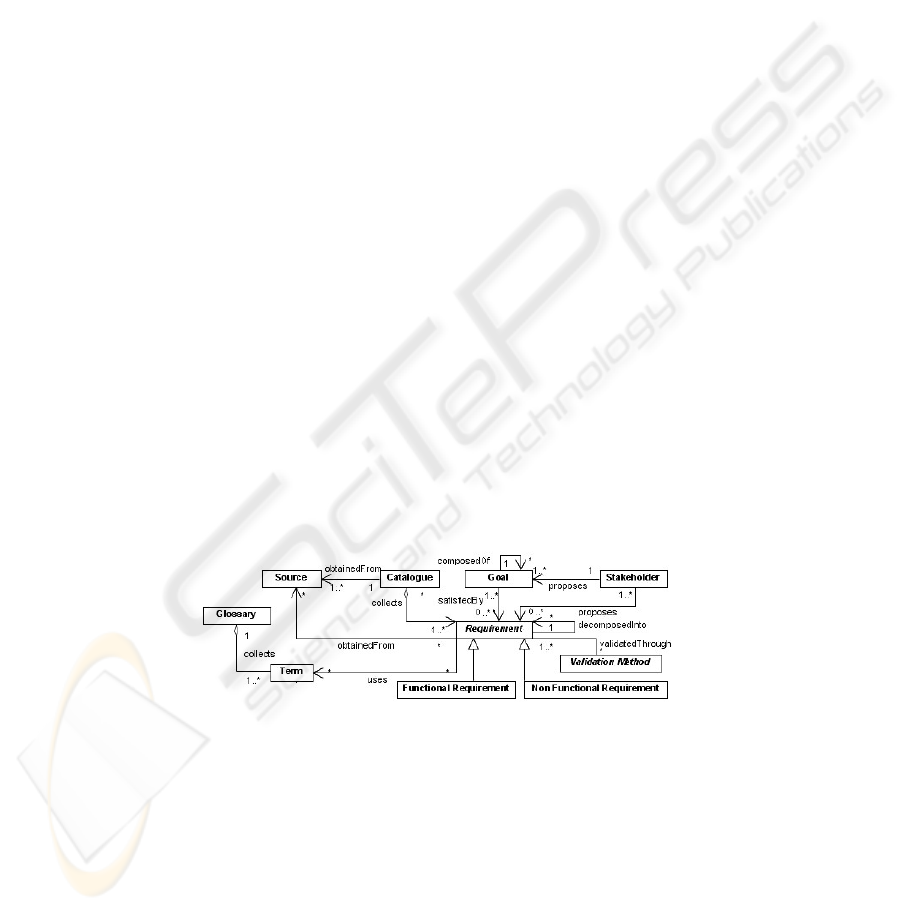

Fig. 1. Proposed requirements metamodel.

The key element in Figure 1 is that of requirement, which can be described

by using a set of attributes (hidden in the ﬁgure) such as an identifier and its

textual description. Requirements can be classiﬁed as either functional or

non-functional requirements. Due to the need for traceability with business

objectives, each requirement is connected to the set of goals that contributes to satisfy.

Every goal can be composed of other goals, and captures a high-level objective from

120

one or more stakeholders that propose it. Another concern is related to the reuse

of requirements, which is tackled by including a catalogue concept. This concept

serves to gather a set of requirements extracted from one or more sources (i.e., a law,

an organization policy, a particular domain,...) and that can be reused in all the projects

in which these sources are applicable. Still another concern is that of vocabulary disam-

biguation. Since requirements are usually described by using natural language, which

can be imprecise and ambiguous, the metamodel considers the possibility of describing

requirements using a set of well-deﬁned terms gathered into a glossary. Finally,

possible methods for assuring the fulﬁlment of requirements can be modelled through

the concept of Validation Method.

2.2 Extending the Requirements Metamodel with Security Concepts

Once the requirements metamodel of Figure 1 has been deﬁned, the next aim is to ex-

tend it with speciﬁc security concepts (see Figure 2). In order to ease the explanation,

we have classiﬁed them in several categories: basic security concepts, security require-

ments, and access control methods.

The basic security concepts are: Asset, Threat, Safeguard and Contingency

Plan. These terms have been extracted from MAGERIT [9], which conforms to the

standard ISO/IEC 15408-1999 (also known as the Common Criteria Framework [10]).

An Asset is a physical or logical object that has value itself and deserves to keep

some guarantees over it. Assets can have different types, for instance, documents,

data tables, and so forth, and they are important for a business, which is measured with

an impact index. An Asset can be damaged by a Threat, which has properties such

as its type, frequency (modelled as an annual rate), a concrete success probability and

a degradation (that is, the level of damage caused in an Asset if the threat achieves

its goal). Safeguards serve as a crackdown on a risk in order to reduce it. As shown

in the type attribute, we will distinguish between Safeguard Functions and

Safeguard Measures. The former are actions which reduce the risk whereas the

latter are physical or logical devices or processes that reduce the risk. Two operation

modes are distinguished for the safeguards: preventive if they act before a threat had

taken place and curative if they act on damaged assets. For the sake of softening a

threat that can give rise to damage, a detailed Contingency Plan composed of a

set of safeguards is recommended.

There not exists an standard classiﬁcation for Security Requirements, so

based on [11, 12], ﬁve categories of them have been considered, which tackle ﬁve cat-

egories of threats, according to the characteristics that give value to the assets. These

categories are: privacy, integrity, authentication, availability and accountability. Fre-

quently there exist sets of requirements which are related to the same asset, soften the

same attack and achieve the same security objective. This concept, which has been ex-

tracted from [13], is introduced in our metamodel as a Security Requirements

Cluster. Regarding to Privacy and Integrity requirements, they are directly

associated with an Access Control Method which has a validity period. The dif-

ferent methods considered are Permissions (DAC), Security Levels (MAC)

121

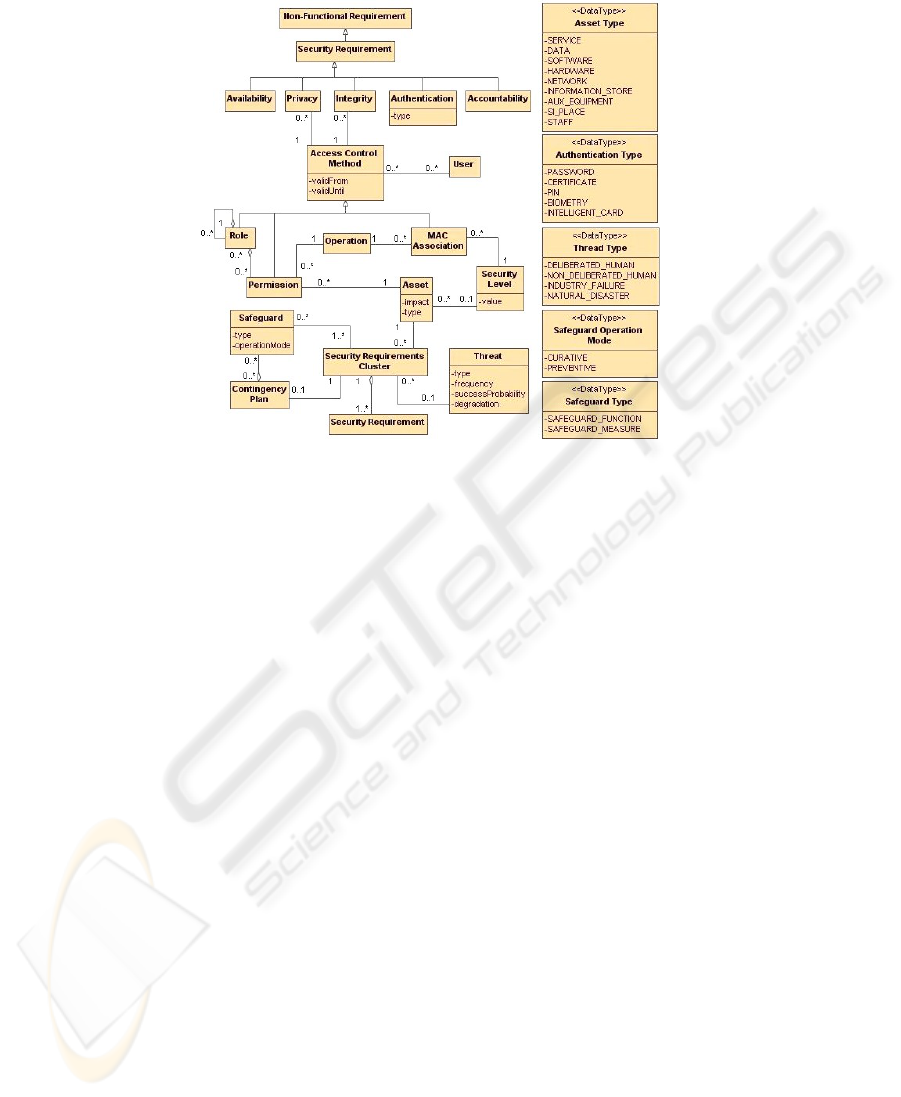

Fig. 2. Extending the requirements metamodel of Fig. 1 with security concepts.

or Roles (HRBAC) [14]. The concept of MAC Association has been introduced

for associating a security level and an operation to an user.

Bearing the above security concepts in mind, we have designed a security require-

ments metamodel that is obtained by extending the requirements metamodel shown in

Figure 1 with the speciﬁc security concepts shown in Figure 2. The reader must take

into account that for lack of space solely the most important attributes are shown, and

that the data types depicted are not all the possible values but some of them. As can be

noticed, the link between both metamodels is the NonFunctional Requirement

metaclass. Security Requirement is a specialization of NonFunctional

Requirement, with the aim of dealing with requirements in a more suitable way.

3 A DSL for Security Requirements Management

From the deﬁned security requirements metamodel, we have devised a generative ap-

proach based on a graphical DSL speciﬁcally built to specify security requirements

models. This DSL [3] allows users to create models in a handy and easy way, as well

as get software artefacts from these models. The Eclipse platform has been chosen for

building this graphical DSL. Speciﬁcally, the abstract syntax has been deﬁned using

Ecore, the concrete syntax has been established with the Graphical Modelling Frame-

work (GMF [15]) and the semantics has been provided by means of model-to-text trans-

formations expressed in MOFScript templates [16].

The process of building our DSL and enable software artefacts generation is as fol-

lows: (i) deﬁne the security requirements metamodel we have designed by using Ecore

(see Figures 1 and 2), (ii) deﬁne a graphical notation for the DSL through GMF, (iii)

122

specify the rest of elements that GMF needs to work, such as the deﬁnition of the el-

ements in the DSL toolbox and (iv) deﬁne MOFScript templates in order to generate

code from models created with the DSL. To illustrate our approach, templates for gen-

erating SQL and XACML code have been implemented, which will be explained in

Section 4.

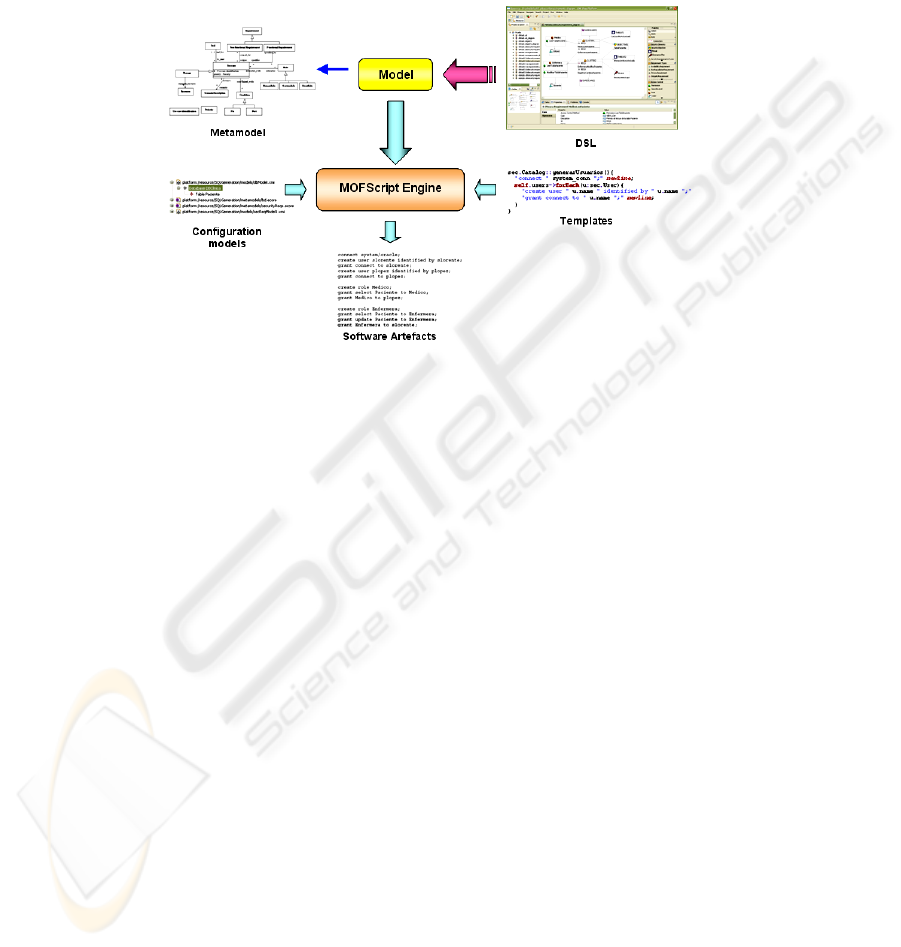

Fig. 3. Overview of the generative architecture.

The designed DSL has been splitted into two connected views. The ﬁrst one deals

with the general requirements concepts (see Figure 1) while the second one deals with

the speciﬁc security concepts that appear in Figure 2. This separation of concerns in

two views eases the modelling task and makes the tool handy.

The process of using the DSL is depicted in the Figure 3. Firstly, the developer

uses the DSL to create security requirements models that conform to the metamodel.

Secondly, the developer sets those features which are too speciﬁc for being included in

the requirements model (e.g. details regarding to a speciﬁc platform, DBMS or security

protocol). Following the MDE philosophy, we propose the use of models with this aim.

In our case, two simple metamodels have been built: a database metamodel in order to

model the DBMS speciﬁc features and a policy metamodel to specify the roles or users

allowed. The developer only needs to instantiate these metamodels to conﬁgure the gen-

eration process. These conﬁguration models provide a mechanism to parameterize the

MOFScript transformation in an easy way.

Finally, a template is executed with the MOFScript engine which also takes the re-

quirements model and the conﬁguration model as an input, with the aim of generating

software artefacts (code in this case) that implements the requirements. Although we

obtain database and XACML policies, any sort of software artefacts can be generated

such as security reports, Java code for interacting with a LDAP server or XML conﬁg-

uration ﬁles.

123

4 Application Example

A web application for the management of medical patients adapted from [17] is pro-

posed as an example of the use of our security requirements DSL. The DSL editor with

a simpliﬁed part of the example model is shown in Figure 4. It is important to highlight

that the Figure 4 focuses on the security concepts and does not show the view related to

the concepts in Figure 1 due to lack of space.

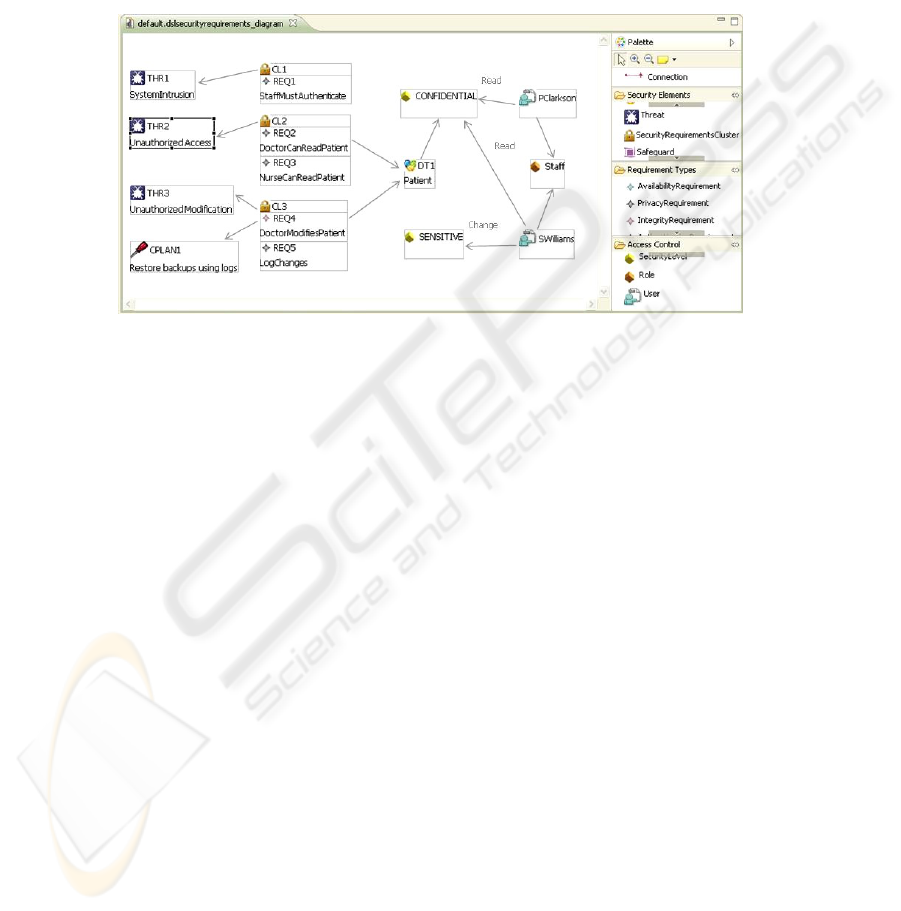

Fig. 4. A fragment of the model for the application example.

As can be seen in Figure 4, the Patient asset needs protecting. The CL1 cluster

tries to restrict the access to the system to the medical staff, which leads the mod-

eller to create a role Staff and assign this role to doctors and nurses. The CL2 clus-

ter contains security requirements which try to avoid that unauthorized staff can ac-

cess to information of Patients. In this case, the modeller grants read access for

the Confidential level to the users PClarkson (nurse) and SWilliams (doc-

tor). The CL3 Cluster requirements attempts to avoid unauthorized modiﬁcation of the

Patient data, so the modeller allows SWilliams (doctor) to update the Patients

table. Sensitive level is expected to be higher than Confidential level, so the

result is that PClarkson can read the Patients information, and SWilliams can

read and update this data.

After that, model-to-text transformations are automatically applied to the model

to take advantage of the DSL, making use of the transformation templates previously

deﬁned. On the other hand, the DSL is, on the one hand, able to generate code for

Oracle Label Security, which can be used for example in the persistence layer of the

application. An excerpt of the generated code is shown in Figure 5(a). This code creates

a policy, deﬁnes Confidential and Sensitive levels, creates the security labels,

sets the user levels, and applies the policy to the table Patient. Besides the security

levels modelled in the DSL, with the conﬁguration model the developer can indicate

that the generated code will include a default security level named ’public’ level. On

the other hand, the DSL is also able to generate XACML access policies for the web

application. A short excerpt of this code is shown in Figure 5(b). Within the code, a rule

124

is deﬁned for permitting users with a role attribute equals to Staff and a default rule

for denying all others. Both transformations also require the conﬁguration model that

includes technology-dependant parameters, which has not been shown due to lack of

space.

Fig. 5. Excerpts of the code automatically generated.

5 Conclusions and Further Work

In this paper, we have shown the viability of using metamodelling techniques aligned to

the MDE approach for the elicitation of requirements, making special emphasis in the

early consideration of security requirements. To achieve this goal, we have proposed a

security requirements metamodel, which is used as a basis of a generative architecture

that allows to obtain automatically code from requirements models. The metamodel

comes accompanied by a DSL that facilitates modellers the task of building require-

ments models.

As further work, the requirements metamodel and the associated automatic support

will be extended for considering new security features and additional capabilities for

the generation of other software artefacts such as conceptual models. For example, the

possibility of generating code related to authentication and access control policies us-

ing languages such as SAML and enriching the security metamodel to make it more

dynamic are being considered.

References

1. Villarroel, R., Fern

andez-Medina, E., Piattini, M.: Secure information systems development

- a survey and comparison. Computers & Security 24 (2005) 308–321

2. Selic, B.: Mda manifestations. The European Journal for the Informatics Professional IX

(2008)

3. Kelly, S., Tolvanen, J.: Domain-Speciﬁc Modeling: Enabling Full Code Generation. Wiley-

IEEE Computer Society Press (2008)

125

4. ORACLE: Oracle label security. http://www.oracle.com/technology/deploy/security/data

base-security/label-security/index.html (2008)

5. OASIS: extensible access control markup language. ”http://www.oasis-open.org/” (2008)

6. Goknil, A., Kurtev, I., van den Berg, K.: A metamodeling approach for reasoning about

requirements. In: ECMDA-FA. (2008) 310–325

7. Vicente-Chicote, C., Moros, B., Toval, A.: Remm-studio: an integrated model-driven envi-

ronment for requirements speciﬁcation, validation and formatting. Journal of Object Tech-

nology, Special Issue TOOLS EUROPE 2007,6 (2007) 437–454

8. Berre, A. J.: Comet (component and model based development methodology). http:// mod-

elbased.net/comet/ (2006)

9. MAGERIT: Methodology for information systems risk analysis and management. Spanish

Ministry for Public Administration. http://www.csae.map.es/csi/pg5m20.htm (2006)

10. I.S.O.: Iso/iec 15408 (common criteria v3.0): Information technology security techniques-

evaluation criteria for it security. (2005)

11. Rodr

ıguez, A., Fern

andez-Medina, E., Piattini, M.: A bpmn extension for the modeling of

security requirements in business processes. IEICE Transactions 90-D (2007) 745–752

12. Standard:ECMA-271: Extended commercially oriented functionality class for security eval-

uation. (1999)

13. Mellado, D., Fern

andez-Medina, E., Piattini, M.: A common criteria based security require-

ments engineering process for the development of secure information systems. Comput.

Stand. Interfaces 29 (2007) 244–253

14. Samarati, P., Capitani, S. D.: Access control: Policies, models, and mechanisms. In: FOSAD.

(2000) 137–196

15. Eclipse: Eclipse graphical modeling framework. http://www.eclipse.org/gmf/ (2008)

16. Eclipse: Generative Modeling Technologies (GMT): MOFScript. http://www.eclipse.org/

gmt/ (2008)

17. Fern

andez-Medina, E., Piattini, M.: Designing secure databases. Information & Software

Technology 47 (2005) 463–477

126
