Context-driven Business Process Modelling

Matthias Born

, Jens Kirchner

and J

org P. M

uller

SAP Research, Vincenz-Priessnitz-Strasse 1, 76131 Karlsruhe, Germany

Department of Informatics, Clausthal University of Technology, Germany

Abstract. Business professionals create business process models in order to get

an understanding of who is involved and which resources are needed for the ex-

ecution of a business process. Such business process models are required as a

basis for knowledge transfer, quality purposes, regulations, communication be-

tween internal and external collaborative partners, or documentation in general.

Current process modelling approaches and tools are still very costly, error-prone,

and often used in an insouciant manner. For example, changes affecting similar

process artefacts need to be executed manually in each embedding model. We

aim to increase the reusability of business process knowledge and propose the

integration of a context-driver principle for business process modelling.

1 Introduction

Business process modelling is the ﬁrst phase of the business process management life-

cycle [1]. The actual reasons why organisations model their processes may be quite

different [2]. Business process models depict and describe activities that contribute to

the production of goods or delivery of services taking place in an enterprise. This work

focuses on the conceptual business process modelling phase which depicts processes on

the level of activities, sub-processes, and the control-ﬂow between them [3]. The tar-

get group comprises professionals with business knowledge who typically do not have

a strong technical background. We concentrate on how business process models are

used as a way of documentation, communication, and collaboration of business needs.

Hence, the actual purpose of a process model in our work is to provide various infor-

mation elements to its users. Such business process models can be required for quality

purposes or compliance, with regulations to document processes explicitly. For exam-

ple, a business process model contains information about what activities are composed

in a process, who is responsible for performing certain activities, when and where they

are executed, how and why they are performed, and what business objects, and which

data is manipulated. Different business process modelling techniques are available and

each of those techniques highlights different information aspects to answer these ques-

tions [4]. In order for enterprises to beneﬁt from process modelling efforts, business

analysts require better support in creating process models. However, current process

modelling tools provide very little guidance to the user and, thus, resemble a scratch-

board rather than a technical approach. If any guidance is provided at all, it is on a

purely syntactical level.

Born M., Kirchner J. and Müller J. (2009).

Context-driven Business Process Modelling.

In Proceedings of the Joint Workshop on Advanced Technologies and Techniques for Enterprise Information Systems, pages 17-26

DOI: 10.5220/0002201500170026

 SciTePress

This paper is organised as follows. Next, we present an overview about the problem

statement, starting by an analysis of the requirements (Section 2.1) and following by a

running example (Section 2.2). Based on this, we describe the application of a context-

driver principle for business process modelling (Section 3). We will then present rele-

vant related work in Section 4 and conclude the paper with Section 5.

2 Problem Statement

2.1 Requirements Analysis

In order to gain a deeper understanding of the requirements and problem areas of cur-

rent business process modelling approaches, we have arranged several workshops with

different target groups covering a variety of industry sectors. Amongst others, we have

talked to business analysts, business consultants and technicians, SAP internal groups

and its customers, covering retail, real-estate, telecommunication, and high-tech indus-

tries, as well as public administration. The workshops have been organised in a semi-

structured way and included open discussions about general and industry related prob-

lems. Based on this analysis, we argue that current process modelling approaches and

tools are still very costly and error-prone since users are not guided in any sensible

way. This statement is supported by an analysis of Gartner [5] that shows that busi-

ness process modelling tools are too complex for the average user and that the major

modelling tool with a market share of 30% is Microsoft Visio [6]. Vendors still con-

struct their own model representations and tools, which are mostly not interchangeable,

and yet most business analysts are using ofﬁce tools (like Microsoft PowerPoint or

Microsoft Excel) to describe their process landscape [7, 8]. Instead of reusing existing

process models or parts of process models, they are usually replicated and modelled

from scratch. In addition to the low level of reusability, a further drawback is that there

is no common understanding of business process models and their involved objects of

the business world. Modellers are free to name and describe process artefacts in any

arbitrary way [7, 8].

2.2 Motivation

Let us assume that there exist two departments, namely the ﬁnancial department and

the sales department within a company, which are using their own terminology in order

to model and describe the processing of an invoice (compare Figure 1). As the nam-

ing of business process artefacts is often more art than science [9] the modellers may

apply their own naming conventions and name business artefacts in arbitrary ways.

Figure 1 shows that both processes actually describe the same process, while both de-

partments use their own terminology. Apart from using a different terminology, both

process models have a slightly different order of the activities. In this example, the ﬁ-

nancial department has to update the order after the invoice was created. Besides that

the sequence of both process ﬂows is the same. One further distinction is that the task

“Bill Creation” does not need “Outgoing goods” as an input. This example highlights

that a reuse of business artefacts is difﬁcult. We distinguish between two basic levels of

Billing – Sales departmentInvoice Processing –

Financial department

Request For

Invoicing

Create

Invoice

Created

Post Invoice

Invoice

Posted

Customer

Data

Accounting

Manager

Accounting

Manager

Sales Orders

Outgoing

goods

Invoice

responsible

Bill is

requested

Bill Creation

Bill is created

Sending of a

bill

Bill is sent

Client

Information

Accounting

Manager

Financial

Manager

Customer

Orders

Bill

responsible

Role Event Resource Activity

flow

Input

Output

Input

Output

Update order

with invoice

details

Order

updated

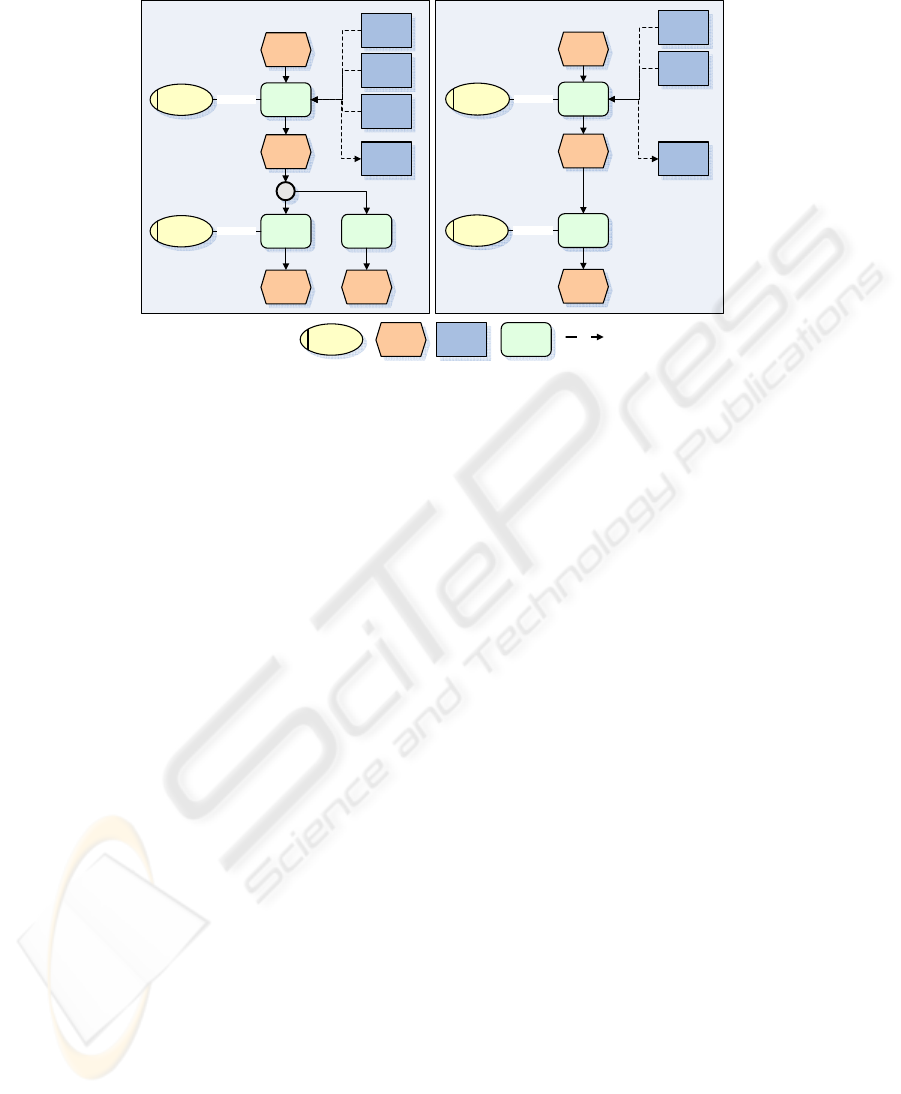

Fig. 1. Simple example of an Invoice Processing process.

reusability: On the one hand, reusability of the semantic representation and on the other

hand, reusablity of the structural characteristics of business process artefacts.

(a) Reusability across process models, i.e., parts of a process model, e.g., the activity

“Create Invoice” in the “Invoice processing” process model in Figure 1, may also

occur in other process models (e.g. sales process). However, different creators of

process models typically come up with different labels for the same activity (e.g.,

another modeller might call the activity “Creation of an invoice”).

(b) Reusability of structural dependencies, i.e., elements of the process model are typ-

ically linked to one or more elements. For example, the process step “Post Invoice”

is linked to the responsible role “Accounting Manager”. However, in the second

process model the same process step has not only a different label but is also linked

to a different responsible role, namely “Financial Manager”.

Our work aims to overcome the issue of reusability for both cases. We argue that we

can achieve a higher consistency and reusability of process knowledge by introducing

a context-driver principle into business process modelling approaches.

3 Context-driven Business Process Modelling

Context awareness plays an essential role for the dynamic appearance of structures and

the dynamic linguistic representation of components in our framework. The facets of

context awareness within this work are inﬂuenced by the context-driver idea of CCTS

[10–12]. A process model is deﬁned by its process artefacts, which have a unique se-

mantic representation, and the context in which it is used. The general idea is to create a

standardised, consistent, and understandable description of every process artefact using

controlled vocabularies and to link each process artefact to a speciﬁc business context.

We want to give a brief example. Let us assume a modeller creates an activity “create

invoice”, which is already available in the repository. Now, the idea is to avoid creat-

ing a second instance of this activity, but rather to adjust the valid business context of

the activity “create invoice”. Logically, a modeller would ﬁrst need to deﬁne, in which

business context he is modelling.

We will explain the concepts of the context-driver principle in the next sections and

show how it can improve reusability of process artefacts. In general, the conceptual

framework is designed to be ﬂexible and extensible.

3.1 Context-driver Principle

Context deﬁnes the environment in which a business process artefact is used. On the

one hand, the context-driver principle must be sufﬁciently discrete in order to enable

semantically unambiguous precision. In other words, a semantic meaning of a business

process artefact is always unambiguous, when considered in a speciﬁc context. For ex-

ample, an input resource Bank in an Issue Management is not precise if this entity is

deﬁned without context. “Bank” describes different objects in the industry area of “Fi-

nance” and “Marine”. Therefore, it is not possible to deﬁne only one “bank”, which can

be used everywhere. Rather, the context in which “bank” is used adds further semantic

meaning. This is similar to the previous approach of Stuhec [10].

On the other hand, a business process speciﬁes the sequence of activities. This in-

formation, however, is of less semantic importance and thus only the structural infor-

mation will be relevant. In this case, the context-driver principle of [10] was extended

to support such structural differences. In general, the context-driver principle allows to

identify, store, and represent a business process artefact only once while specifying the

differences depending on speciﬁc context categories (e.g., business process, industry,

country, etc). In our example process (Figure 1), each activity has only one unique se-

mantic conceptual instance in the process repository, however, there may be a structural

difference (a different predecessor or successor) or even different representations (e.g.

synonyms, abbreviations, etc) depending on the context.

We have adapted the meta-model from CCTS [11] in order to provide a ﬂexible

mechanism for creating new context categories. In CCTS, business contexts are classi-

ﬁed into eight context categories. However, our meta-model is not restricted to a ﬁxed

set of context categories. Figure 2 depicts our approach which we will explain in more

detail hereafter.

BusinessContext ContextUnit ContextValue ContextCategory

1..* 1..* 0..* 1..* 1..* 1

BusinessArtefact BusinessTerm

1 0..*

TermPerArtefact

0..*

Fig. 2. Meta Model of the adapted Context-driver Principle.

Context Categories allow the classiﬁcation of different context environments, e.g.

“Industry”, “Geography”, “Period”, etc. Within this work, we do not focus on the def-

inition of suitable context categories. However, our meta-model allows to add any ad-

ditional classiﬁcation. Every context category refers to multiple Context Values. For

example, the context category “Period” may have the context values “1st Year Quar-

ter”, “2nd Year Quarter”, or “3rd Year Quarter”. A set of arbitrary context values de-

scribes the valid environment for a business process artefact. Such a context value set

is linked to a Context Unit. Multiple context units can be linked to a Business Context.

Finally, each Business Artefact can be described by multiple Business Terms, and has

exactly one business context assigned. A business term represents the natural language

representation for a business artefact. The association between business artefacts and

business terms is also linked to a business context and thus speciﬁes the valid linguis-

tic representation for a business artefact in a given business context. Let us recall our

running example (Figure 1) where two departments use a different terminology to de-

scribe the same business case. Introducing context awareness allows both departments

to use their own terminology while using the same conceptual business artefacts. We

want to point out that context awareness does not change the semantic meaning of the

artefacts but instead delivers a mechanism that different representation can be linked to

one common conceptual business artefact.

In our work, we deﬁne a business context as the formal description of a speciﬁc

business circumstance.

3.2 Logical Deﬁnition

Business contexts can be based on mathematical sets for their representation. We will

provide an insight of the usage of the set theory within the approach by [12]. The fol-

lowing sets (Listing 1) represent three context categories. Set I represents the industry

sector which contains context values such as “Automotive”, “Finance”, “Sales”. Set G

represents geographical values which can be the ISO codes for countries (ISO 3166)

such as “DE” for Germany, “GB” for the United Kingdom, and “US” for the United

States of America. Finally, Set P represents processes which are numbered.

I = {Automotive, Finance, Sales}; G = {DE, GB, US}; P = {P1, P2, P3, P4} (1)

Let us assume, we have deﬁned a business artefact and we want to deﬁne a business

context which speciﬁes that the artefact is valid in the sales and ﬁnance sector within

Germany and the United Kingdom. It should be also applicable for process P1 and P4.

In order to build a valid business context, we need to deﬁne a context unit which builds a

Cartesian product of subsets of the context categories. These subsets are listed as set I’,

set G’, and set P’ (I’ ⊆ I ∧ G’ ⊆ G ∧ P’ ⊆ P). The valid business context, which we

name BC, is a Cartesian product that is shown in Listing 2.

BC = (I’ × G’ × P’) = ({Sales, Finance} × {DE, GB} × {P1, P4})

(2)

As we have now deﬁned the logical principle behind the context-driver approach,

we want to continue with describing how this approach can be utilised into business

process modelling techniques.

3.3 Context-driven Activity Structures

Business process models contain a set of activities which are processed in a sequential

order. The sequential order constitutes the backbone of a process. Having a closer look

at the activities, some business process modelling notations, such as the extended Event-

driven Process Chain (EPC), enable the visualisation of entities that are involved in the

execution of a process. These entities can be roles that execute the activity, or roles that

are responsible, or resources which are required for the execution of an activity, such as

input or output data or documents.

We want to recall our running example in Figure 1. The activity “Create Invoice” is

linked to one responsible role “Accounting Manager” and has several input resources,

e.g. “Customer Data” or “Sales Order”, and one output resource, namely “Invoice”.

Thus, we can see that an activity has several relations to other business artefacts which

we also call entities in the following. A set of entity-relations can be different regard-

ing the context in which an activity is represented. Our example shows that the sales

department does not have the input resource Outgoing goods. Now, we will show how

this scenario can be reﬂected using the context-driver principle.

The solution will be presented in an abstract way with variables which represent

process artefacts, such as activities (A) and entities (E). Entities reﬂect basic process

artefacts, such as roles, resources, data, documents, etc. Predicates (P) represent the

semantical meaning, e.g. “is responsible”, of the relations which are named Activity

Relations (AR). Figure 3 represents a scenario of one activity which appears in three

structural forms and is processed in two different process models. Although the relation-

structures look different, it is always the same activity with one unambiguous semantic

meaning.

AR1

AR2

AR4

(a) Context 1, Qualiﬁer Default.

AR1

AR3

AR4

(b) Context 1, Qualiﬁer Variant.

AR1

AR3

AR5

Fig. 3. Abstract Context-Driven Activity Scenario.

One major goal of our approach is the semantic formalisation of process model

components, which should be represented with low redundancy and therefore to enable

and encourage the reusability of process model knowledge. If we compare these three

activity structures, we can determine relations which are used in both contexts (AR1), in

only one context (AR4, AR5), and also relations which are even different within a single

business context (AR2, AR3). The latter is labelled as Qualiﬁer Default and Qualiﬁer

Variant. On the contrary to the context-driver approach by Stuhec [12], instances of

one semantic activity can also have different relations within the same business context.

For example, our process model from Figure 1 may contain the activity “Post Invoice”

twice, however both activities may be linked to different roles. To overcome this issue,

we introduce the concept of qualiﬁers, which can be seen as a kind of artiﬁcial context.

This artiﬁcial context will not be visible to a modeller but it is needed in order to identify

duplicate activities and relate them to the correct artefacts. One other possibility would

be to create a copy of the activity and store all relations for each instance of it. However,

this will lead to an uncontrolled number of instances which will make the reuse of

existing relations problematic. As we have already mentioned, we only want to keep one

instance of the activity and build the dependencies based on a certain context setting.

Hence, a modeller has to set his context before creating and updating a process model.

With this solution it is possible to deﬁne relation variations of an activity structure

within a context.

3.4 Context-driven Process Structures

In general, a business process model is based on activities which are performed in a

speciﬁc order. Within our framework a business process is linked to a Process Structure.

A process structure contains the sequence ﬂow of activities represented by their Activity

Structures which were introduced in Section 3.3. Activities deﬁne the executional part

of a business process. In order to present the sequential ﬂow of a process model we

introduce the concept of a Process Step. A process step is a special kind of wrapper

object that can contain activity structures or logical coordinators, such as XOR, OR, or

AND, or other relevant artefacts, such as sub-processes. In addition, a process step not

only contains an activity or other entity but also contains a qualiﬁer. The reason was

discussed in the Section 3.3. An activity might have two different structures within one

process. Thus, a process step contains also information about an artiﬁcial context value

which is used to achieve a unique identiﬁcation for such duplicate activities. Finally,

process steps are linked using a ﬂow relation from one step to another.

Although process structures are different to activity structures, the application of

context awareness in process structures is also reasonable. Figure 4 depicts an example

scenario with two abstract business process models in two different business contexts.

The process steps of these models are marked with capital letters.

A B C D

(a) Context C1.

A C D

(b) Context C2.

Fig. 4. Abstraction of a Context-Driven Process Flow Scenario.

We recognise that both business process models are similar. In fact they are the

same, apart from the aspect that process step B is omitted in business context C2. With-

out context awareness we would have to keep two separate business process model

representations. However, with the usage of context awareness we are able to have one

business process model representation which is able to consider differences regarding

its appearance in a speciﬁc business context, which is depicted in Figure 5.

C1; C2

Fig. 5. Combined Abstraction of a Context-Driven Process Flow Scenario.

One of our goals is to provide an intuitive way of maintaining business process arte-

facts. Once the process modeller enters a name into the label of a model element within

his hitherto process modelling environment, a software agent validates this term against

the current business context, compares the entered details with available knowledge in

the repository, and ﬁnally selects the appropriate business artefact. As a result, the usage

of proper business artefacts and terminology can be supported.

4 Related Work

A major facet which this work addresses is the context awareness aspect of business

process models. There are already initial approaches of the consideration of contexts

within business process models [13–15]. In [16], the authors concentrate on the context-

relevant adjustment of conﬁguration variants of the technical execution of business pro-

cesses. The authors of [17] contemplate on the situations which affect the ﬂow of busi-

ness process models. In their work, they do not focus on structural differences and how

context methods can actually change the ﬂow of these models. Their focus is set on

the formalization of these situations in the form of process contexts. However, these as-

pects primarily concentrate on business processes within companies and they primarily

focus on their context-driven ﬂow. The context awareness aspects which are described

in this paper consider the context-driven differences in the structural appearance of busi-

ness process models and focus on various levels as well as context-driven terminolo-

gies for business artefacts. Furthermore, our solution does not focus on any speciﬁc

application of contexts and neither on any speciﬁc context category. It rather contem-

plates context-driven differences in general on an abstract level. With the development

of CCTS [11], the speciﬁcation already introduced the idea of context awareness among

business-related data objects and data types. The concept of business contexts and core

components depicts the concrete characteristic of context awareness in CCTS. Based on

the speciﬁcation, business contexts are classiﬁed into eight context categories. Within

the work of Stuhec [10], the context aspects of CCTS were implemented into an SAP

prototype called CCTS Modeler Warp 10

. Currently, the approach relates only to data

CCTS Modeler Warp 10 is a Semantic Web ontology-based data integration, modelling and

mapping tool that leverages the semantics of meta data by implementing the semantic-based

approach described in ISO 15000-5 Core Component Technical Speciﬁcation.

modelling but we have successfully adapted those principles for business process mod-

elling. The approach was chosen as it has been proven efﬁcient and practical for busi-

ness data modelling.

Another related research stream is the work of [18]. The authors propose an exten-

sion of EPCs, called the aggregate EPC (aEPC), which can be used to describe a set of

similar processes with a single model. In contrast to this, our work not only focuses on

the process ﬂow but on all relations between business artefacts. Furthermore, the con-

text aware process models from our framework could be used in order to create such

aggregated EPCs.

5 Conclusions

In this paper, we have presented the adaptation of a context-driver principle for busi-

ness process modelling approaches. We argue that we can achieve a higher consistency

and reusability of process knowledge by introducing such a formalised context aware

speciﬁcation. Our current implementation assumes the existence of suitable context cat-

egories which potentially are created by knowledge engineers. A remaining open ques-

tion is, what context categories might be appropriate for business process modelling

and who will deﬁne them.

To be able to prove the conception, the semantic representation, which would be

stored in the process repository, has been reproduced in a relational form. The relational

data model was used for this purpose because all relations can be stored in a relational

database. Furthermore, this was also advantageous for the validation of the structural

relationships and dependencies, which could be proven by means of query statements.

Different real-life business processes from SAP where used in order to show the var-

ious aspects of process models. The context awareness approach enables the usage of

context-driven vocabulary and also the context-driven appearance of activity structures

and process structures in order to consider business situation dependent variations. Test

queries have emulated possible functional queries of software agents. All entities and

structures could be stored and retrieved in the expected way. This part of the validation

also showed that relational databases are an appropriate technology for an implemen-

tation. Currently, we are implementing the solution prototypically into a web-based

business process modelling tool.

In the future, we want to investigate the impact of the context-driver principle into

business process modelling activities. In order to verify the actual beneﬁts and accep-

tance of such a context aware modelling system, we want to conduct a case study. Our

analysis aims to reveal if the concepts support or hinder business process modelling

activities. One critical aspect is the performance of our approach. Having a huge set of

context values and resulting business context settings might lower the search function-

ality tremendously. In order to show the inﬂuence of the different context settings, we

are currently preparing a test environment.

Overall, the goal is to enhance the quality of process models from the very begin-

ning and enable a better reuse of existing process knowledge, by establishing a common

understanding and terminology of business process artefacts.

References

1. van der Aalst, W.M.: Business process management demystiﬁed: A tutorial on models,

systems and standards for workﬂow management. In: Lectures on Concurrency and Petri

Nets. Volume 3098., Springer-Verlag, Berlin (2004)

2. Reijers, H.: Design and control of workﬂow processes : business process management for

the service industry. Springer-Verlag New York, Inc., Springer (2003)

3. List, B., Korherr, B.: An evaluation of conceptual business process modelling languages. In:

SAC ’06: Proceedings of the 2006 ACM symposium on Applied computing, New York, NY,

USA, ACM (2006) 1532–1539

4. Curtis, B., Kellner, M.I., Over, J.: Process modeling. Commun. ACM 35 (1992) 75–90

5. Rosser, B.: Taking advantage of user-friendly business process modeling. Gartner Research

G00156919 (2008)

6. Blechar, M.: Magic quadrant for business process analysis tools, 2h07-1h08. Gartner Re-

search (2007)

7. Bandara, W., Indulska, M., Sadiq, S., Chong, S.: Major issues in business process manage-

ment: An expert perspective. In: in proceedings of the European Conference on Information

Systems (ECIS 2007), June 7-9, St. Gallen, Switzerland, School of Information Technology

and Electrical Engineering (2007)

8. Filipowska, A., Kaczmarek, M., Kowalkiewicz, M., Zhou, X., Born, M.: Procedure and

guidelines for evaluation of BPM methodologies. Business Process Management Journal

15, issue 3 (2008)

9. Mendling, J., Recker, J.: Towards systematic usage of labels and icons in business process

models. In: CAiSE 2008 Workshop Proceedings - Twelfth International Workshop on Ex-

ploring Modeling Methods in Systems Analysis and Design (EMMSAD 2008). (2008)

10. Stuhec, G.: How to solve the business standards dilemma - CCTS key model concepts.

Technical report, SAP Developer Network (SDN) (2006)

11. UN/CEFACT United Nations Centre for Trade Facilitation and Electronic Business: Core

components technical speciﬁcation - part 8 of the ebXML framework (November 2003) Ver-

sion 2.01.

12. Stuhec, G., Yu, H.: Context Driven Approach. Technical report, SAP AG (December 2007)

13. Rosemann, M., Recker, J.C., Flender, C., Ansell, P.D.: Understanding context-awareness

in business process design. In: In: 17th Australasian Conference on Information Systems,

December 6-8, 2006, Adelaide, Australia. (2006)

14. Rosemann, M., Recker, J.: Context-aware process design: Exploring the extrinsic drivers for

process ﬂexibility. In Latour, T., Petit, M., eds.: 18th International Conference on Advanced

Information Systems Engineering. Proceedings of Workshops and Doctoral Consortium.,

Luxembourg, Namur University Press (2006) 149–158

15. Saidani, O., Nurcan, S.: Towards context aware business process modelling. In: In: Pro-

ceedings of the 8th Workshop on Business Processes and Support Systems: Requirements

for ﬂexibility and the ways to achieve it, BPMDS’07. (2007)

16. Hallerbach, A., Bauer, T., Reichert, M.: Context-based Conﬁguration of Process Variants.

In: 3rd International Workshop on Technologies for Context-Aware Business Process Man-

agement (TCoB 2008). (2008)

17. Rosemann, M., Recker, J., Flender, C.: Contextualization of business processes. International

Journal of Business Process Integration and Management (IJBPIM) 3(1) (2008) 47 – 60

18. Reijers, H.A., Mans, R.S., van der Toorn, R.A.: Improved model management with aggre-

gated business process models. Data Knowl. Eng. 68(2) (2009) 221–243
