An Enhanced Approach to using Virtual Directories for

Protecting Sensitive Information

William Claycomb

and Dongwan Shin

Sandia National Laboratories, Albuquerque, NM, U.S.A.

Secure Computing Laboratory, New Mexico Tech, Socorro, NM, U.S.A.

Abstract. Enterprise directory services are commonly used in enterprise sys-

tems to store object information relating to employees, computers, contacts, etc.

These stores can act as information providers or sources for authentication and

access control decisions, and could potentially contain sensitive information. An

insider attack, particularly if carried out using administrative privileges, could

compromise large amounts of directory information. We present a solution for

protecting directory services information from insider attacks using existing key

management infrastructure and a new component called a Personal Virtual Di-

rectory Service. We show how impact to existing users, client applications, and

directory services are minimized, and how we prevent insider attacks from re-

vealing protected data. Additionally, our solution is supported by implementation

results showing the impact to client performance and directory storage capacity.

1 Introduction

Enterprise directory services (EDS) are commonly used in enterprise systems to store

information pertaining various directory objects, such as users, computers, or contacts.

EDS are used to share informationwith others, such as address books, or as authoritative

sources for authentication and access control. In most cases, this dual role is combined

in the same directory service instance.

Generally, organizations seek to establish interoperability and seamless commu-

nication between heterogeneous systems in enterprise systems, and directory services

enable them to do so. Using standard communication protocols, such as Lightweight

Directory Access Protocol (LDAP), EDS may provide authentication services or in-

formation to multiple requestors, independent of platform or implementation. This is

particularly advantageous to organizations seeking to consolidate multiple authoritative

information sources into a single repository.

However, this move towards centralized information services has serious draw-

backs. In particular, as the amount of information stored increases, the potential for

storing sensitive information increases. This is especially true in instances where certain

pieces of information are not necessarily sensitive when stored separately, but become

sensitive when combined. Consider attributes such as department number and security

level. Knowing which people are in a certain department is not necessarily sensitive.

Shin D. and Claycomb W. (2009).

An Enhanced Approach to using Virtual Directories for Protecting Sensitive Information.

In Proceedings of the 7th International Workshop on Security in Information Systems, pages 36-45

DOI: 10.5220/0002202800360045

 SciTePress

Likewise, knowing which people hold a certain security level is not necessarily sen-

sitive, particularly if many people hold the same level. However, if combined, then a

very speciﬁc set of people can be identiﬁed - those in a particular department holding

a higher security level. That information could be used to speciﬁcally target those indi-

viduals for context-aware, or spear phishing [1] attacks, where individuals are targeted

and the attack appears to come from a legitimate sender, such as a colleague.

Another potential hazard when consolidating multiple directory services into a sin-

gle EDS is the inclusion of certain information not meant to be shared among larger sets

of users. Such tightly controlled information could include attributes considered to be

personally identiﬁable information (PII) such as identiﬁcation numbers, or other con-

ﬁdential information such as bank account numbers. In these cases, the intended users

are a small subset, such as the human resources or payroll ofﬁces only.

Protecting this information is critical, and most directory services solutions provide

methods for limiting access. However, such measures can usually be circumvented by

system administrators, or those with elevated privileges. These users may obtain ac-

cess to sensitive directory information in more than one way. For instance, they might

override existing access control methods, or they may impersonate an authorized user

to gain access to the information. Another method would be to simply copy the entire

directory information store to attempt extraction of sensitive information.

We propose a method for protecting sensitive directory services information from

all users, including system administrators, using encryption. Furthermore, we base our

solution on existing infrastructure commonly used in enterprise systems. Our main con-

tributions are the introduction of a new type of virtual directory service, called a per-

sonal virtual directory service (PVDS), which interfaces with a key management sys-

tem (KMS) and handles encryption and decryption of sensitive information at the client

level. Additionally, we show how our solution’s impact to existing directory services

is minimal, in terms of directory size and performance. Finally, we demonstrate how

our solution mitigates an insider attack, where the attacker uses domain administrator

privileges to attack a directory service.

The remainder of this paper is organized as follows. Section 2 presents related work

and previous approaches, followed by Section 3, which details our approach. In Section

4, we discuss the advantages of our solution, list various attack models, and show im-

plementation results. Section 5 concludes the paper with suggestions for future work.

2 Background

The threat of unauthorized access of sensitive data by employees or other authorized

users, known as “dedicated insiders”, is well documented [2–4]. In January 2008, the

U.S. Secret Service and CERT issued a report titled “Insider Threat Study: Illicit Cyber

Activity in the Government Sector” [2]. This study outlines a multi-year project, started

in 2002, that explores the activity and threats posed by insiders. Among the key ﬁndings

of this study are the following:

– Most of the insiders had authorized access at the time of their malicious activities

– Access control gaps facilitated most of the insider incidents, including:

• The ability of an insider to use technical methods to override access controls

without detection

• System vulnerabilities that allowed technical insiders to use their specialized

skills to override access controls without detection

2.1 Previous Approaches

The structure of EDS is hierarchical, with each leaf representing an object. Objects

are described by individual attributes, such as name, title, password, etc. Solutions for

protecting directory services are generally implementation speciﬁc, and rely largely on

per-attribute access control lists (ACLs). Other directory services instances generalize

this approach by using the concept of conﬁdential attributes [5], but the underlying im-

plementation is still ACL-based. The use of encryption in directory services is very lim-

ited, with speciﬁc implementations employing encryption for every instance of certain

attributes across the entire directory [6]. However, this approach uses a single server-

based key for encrypting all attributes.

A user-centric approach to protecting directory attributes is described in [7]. This

method is not dependent on a particular directory implementation. Rather, it utilizes

user-based public/private keys to allow users control of encrypted of attributes related

to their own directory information. This solution describes different methods for using

public/private keys to ensure either data authenticity alone, or data authenticity com-

bined with conﬁdentiality. Speciﬁc solutions are proposed for scalability and usability

purposes. However, key control is maintained by the user, which raises issues of main-

tainability and ease-of-use.

2.2 Virtual Directories

”A virtual directory functions as an abstraction layer between applications and data

repositories”. [8] In contrast to metadirectories, virtual directories do not maintain data

in a standalone data source. Rather, virtual directories reference various data sources

and present a consolidated view to the end user. This has the advantage of not requiring

data synchronization - the data presented is always real-time, directly from the source.

Most virtual directory implementations have the additional capability of acquiring data

from sources other than directories, such as databases, and presenting this information

to end users via LDAP [9].

2.3 Recent Works

Virtual directory instances can be highly customized to modify, or transform, data prior

to client use. Recently, we proposed a solution for protecting information in directory

services using virtual directories [10]. This approach uses a three-layered architecture,

placing a virtual directory server (VDS) between the client and destination directory

server. Using a user-protected key, information is encrypted by the VDS before being

stored in a destination directory. Similarly, information is decrypted before being de-

livered to a requesting LDAP client. We show how to delegate access to other users

as well, by including a simple ACL with the protected information. The form of the

protected data in the destination LDAP directory is as follows:

{datakH{pwd

}kACL}

Here, H{pwd

} is the hash of the owner’s password, ACL is a list of authorized

users (identiﬁed by their password hashes), and K

is a shared secret key between a

client and the VDS. Clients supply additional information to the VDS using components

of the LDAP bind operation, in the form of an authenticationstring, which is as follows:

k{K

kH{pwd

}}

Here, ID

is the identity of the client in the destination directory, H{pwd

} is

the hash of the client’s password, and K

is a secret key managed by the VDS. Note

that in this case, all operations on the authentication string, including initialization and

modiﬁcation, are controlled entirely by the VDS.

This solution relies heavily on user-known and user-protected passwords, as well as

the secret key K

, which is known to all authorized clients, to prevent the compromise

of information in the directory store. Usability is a major drawback to this scheme,

with changes required to the protected data any time the user (or a delegate) changes a

password. Similarly, lost or forgotten passwords become a liability, because no ”back-

door” method exists for retrieving information without an original password. Using the

shared key K

also adds an additional component of risk, because it could potentially

be used to compromise information taken directly from the directory store itself. For

more detailed implementation information, please see [10].

3 Approach

We propose an approach to protecting sensitive directory services information using

encryption which does not rely on user-protected shared keys or passwords. We build on

previous work by addressing the signiﬁcant usability challenges and security concerns.

Additionally, we simplify the model by eliminating the middle component, the VDS,

and replace it with a novel approach to virtual directory technology, which we call a

personal virtual directory service (PVDS).

3.1 Personal Virtual Directory Service

Not only does the VDS component of previous works require additional conﬁguration

and administration, but it serves as a target for attacks. If the server hosting the VDS

is compromised, then all protected information it processes could be revealed to an

attacker. We propose moving the virtual directory concept from a centralized conﬁg-

uration to a more distributed conﬁguration. This is accomplished by running what is

essentially a simpliﬁed VDS on each client machine - the PVDS.

The purpose of the PVDS is to handle communication between an LDAP client

application and the destination directory. It is only used in cases where sensitive in-

formation needs to be processed - not all LDAP communications between the client

and directory services need to be protected, however. In cases where sensitive infor-

mation is not processed, standard communication should not be interrupted. This basic

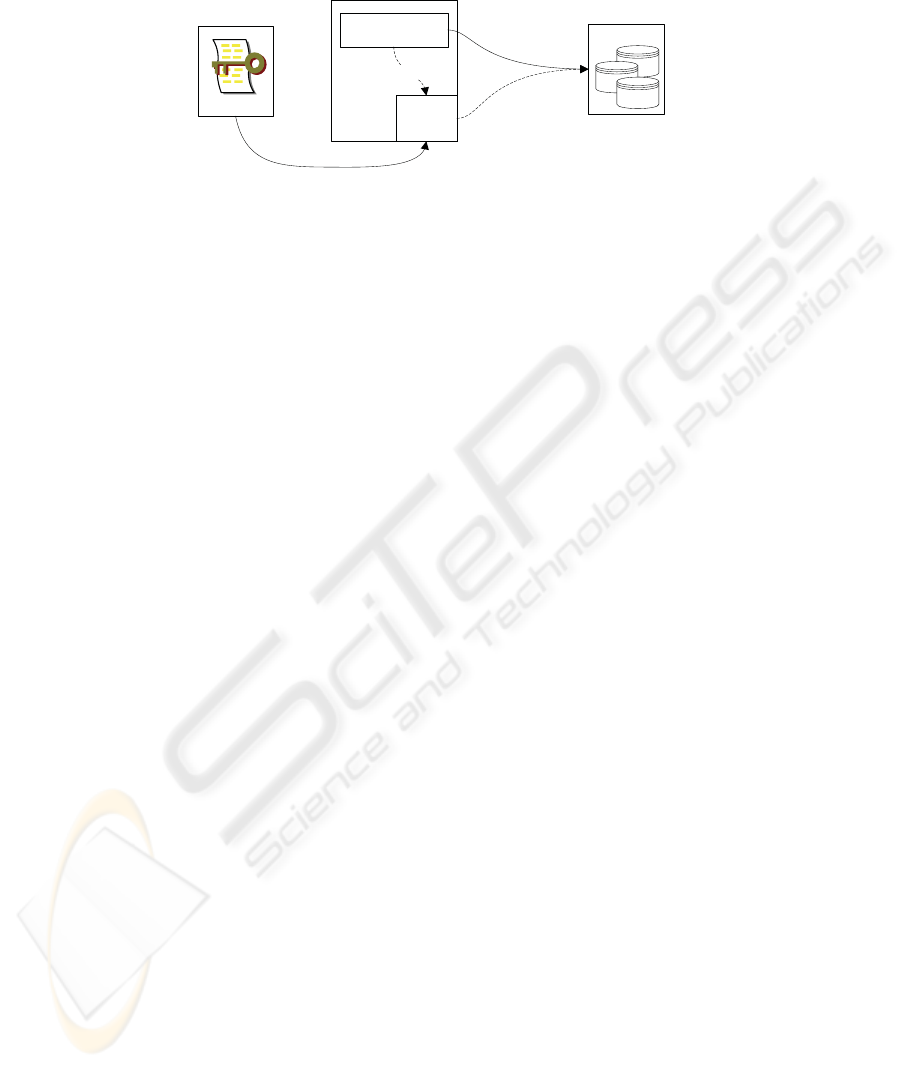

architecture is shown in Figure 1.

Destination

Data Sources

Client

Key Management

Server

PVDS

LDAP Application

Non-encrypted

data

Encrypted

data

Sensitive data

Fig.1. System architecture for a client system using a personal virtual directory service.

The PVDS is conﬁgured at a client level, instead of a centrally managed VDS. This

has the potential to increase administrative overhead, as distributed applications tend

to do. However, we will show that the function of the PVDS is largely self-contained,

requiring no additional conﬁguration once deployed. The necessary conﬁguration to

allow protected information to be processed occurs at the client level only, as with

previous approaches. Therefore, the overall administrative overhead is actually reduced

using our new model by removing the VDS component.

3.2 Using Existing Key Management Infrastructure

Instead of using user-controlled and user-protected keys, our solution makes use of ex-

iting key management infrastructure to provide encryption and decryption information

to the PVDS. This shifts the burden of key protection from systems not designed to

protect sensitive information (directory services, virtual directories, and users) to sys-

tems speciﬁcally engineered to withstand attacks on keying information. Once a user

authenticates to the KMS, the PVDS handles retrieving keying information and using it

for data protection, as well as delegation.

3.3 Client Modiﬁcation

Previous approaches utilize components called authentication strings, controlled by the

VDS, which must be changed when any conﬁguration modiﬁcation occurs. Our ap-

proach simpliﬁes this considerably. The only client modiﬁcations necessary to enable

secure information protection are to replace the destination directory information with

the local path to the PVDS, and to concatenate the username with the actual destination

directory information. That is, the information contained in the username conﬁgura-

tion of the LDAP client would be ID

kdest

LDAP

, where ID

is the username of the

client and dest

LDAP

is the network address and port of the destination LDAP directory

instance. No centrally managed authentication string is required.

3.4 Delegating Access

Because we use an existing key management infrastructure, delegation of access is

fairly straightforward. Data owners may delegate permission to read and/or write pro-

tected data. Granting access, modifying access, and revoking access are controlled via

an interface with the PVDS called a Delegation Manager. The delegation manager com-

municates directly with the KMS to obtain veriﬁed delegatee key information. Data

protection information is encrypted using veriﬁed public keys of delegatees, ensuring

that only intended parties have access to encryption and decryption keys.

3.5 Protecting the Data

Sensitive data is encrypted in the directory using a symmetric key S, which is chosen

randomly and managed by a component of the PVDS called the Cipher Manager. A

unique S is used for each attribute encrypted. In contrast to previous approaches, S is

never known by the user, nor is it stored by the PVDS on the client machine. It only

exists in the destination directory, encrypted by the public key of the owner, K

, and

any delegate users, K

By adding the capability to delegate read/write access, we necessitate additional

protection information. A public/private key pair {K

, K

′

} is generated for every

protected attribute. K

′

is used by authorized users to digitally sign the encrypted

data, {data}

. Only users delegated write permission have access to K

′

, which is

encrypted (along with S) using the delegatee’s public key K

. K

is included in the

data stored with the attribute, is signed by the data owner, and is used during all read

operations to verify the authenticity of {data}

. Using the data owner’s public key, K

(available from the KMS), the authenticity of K

can be veriﬁed.

An example of the combined form of all data stored in the directory for a protected

attribute is shown as follows:

{{data}

}

′

k{K

}

′

kID

k{S, K

′

}

k{S, K

′

}

k{S, ∅}

k . . .

In this example, we know that User 1 has read and write access because K

′

included with S in the information protected by User 1’s public key K

. Similarly,

we know that User 2 only has read access, because only S is encrypted with K

Additional users’ access control information would also be included.

Reading Protected Information. The process for reading protected information be-

gins with the PVDS X retrieving protected data from the LDAP server. The PVDS

checks to see if client X can decrypt the protected information by detecting if S has

been encrypted using K

, in which case the PVDS decrypts S using K

′

. At this point,

the data can be decrypted using S, but we need to verify it is authentic ﬁrst. To do so,

the PVDS retrieves K

from the KMS using ID

to uniquely identify the owner. With

, the signature on K

can be veriﬁed, and K

can be used to verify the signature

on the data. Once veriﬁed, the PVDS passes the plaintext data to the local application.

Writing Protected Information. The process for writing protected information is sim-

ilar to the process for reading. However, the PVDS must also verify X has access to

write the data, speciﬁcally, does X know K

′

? Any client with S can actually encrypt

new information. However, only those clients with K

′

can sign it. If K

′

is found

encrypted with K

, it is decrypted and used to sign the modiﬁed data.

LDAP-based

Application

Data Protection

Component

Destination

Data Sources

Query/Update Service

Security Service

Cipher Manager

Session Handler

Retrieve cipher key

Virtualization Service

Core Virtual Directory Services

Request Service

(read or write data)

Authentication

Preprocessor

Service Proxy

Encrypt/decrypt

Personal Virtual Directory Service

Delegation Manager

Authentication

service

Authorization

check

replication

Key Management

Server

Client

Retrieve cipher key

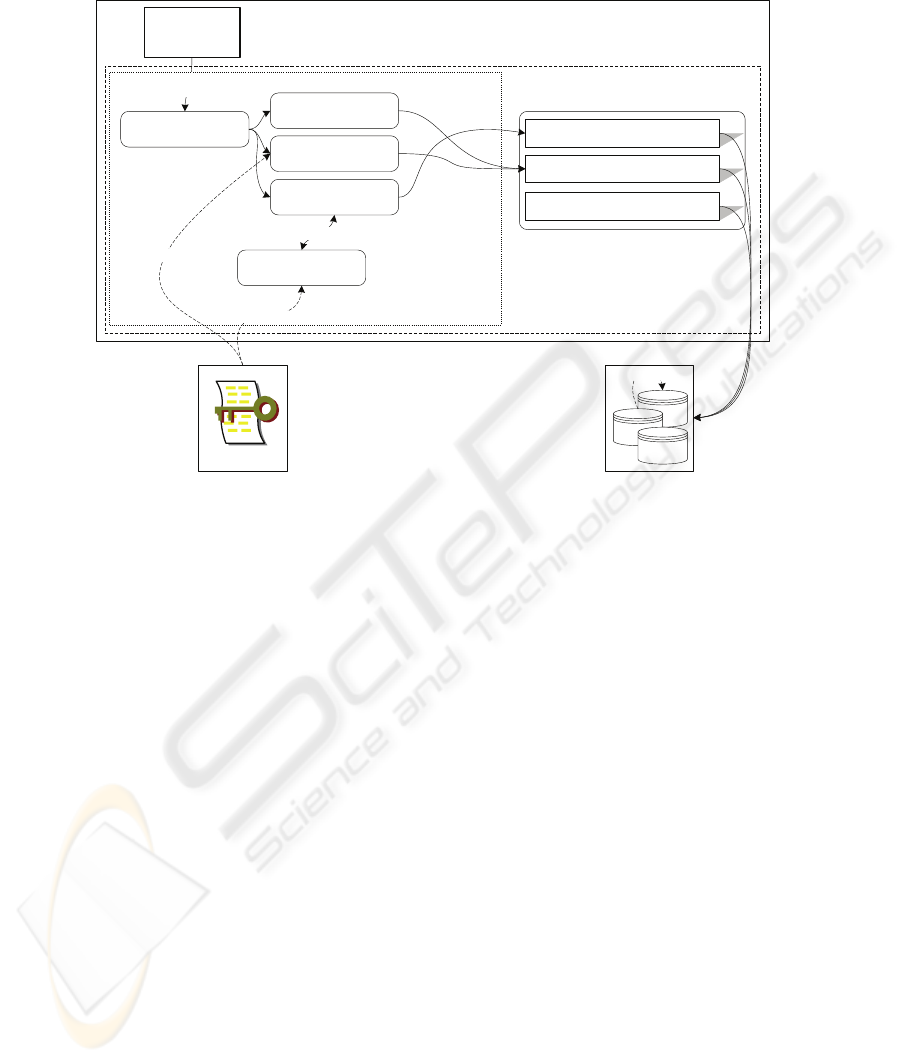

Fig.2. Personal Virtual Directory Service Framework.

3.6 Putting It All together

The interaction with the KMS when protecting sensitive directory services information

requires various core components of virtual directories, as well as the creation of several

new components to handle encryption, decryption, and delegation, as described above.

We propose a new framework to describe the interaction between these components,

which is shown in Figure 2.

4 Discussion

Our solution provides several advantages over existing work for protecting directory

information. However,it also raises newpossibilities for attacks on the data, which must

be considered. Additionally, this approach will have an effect on client performance and

destination directory storage size. To address this impact, we show the results from a

proof-of-concept implementation of our solution.

4.1 Data Protection

Using this solution, all sensitive information stored in a EDS can be encrypted, pre-

venting the capture of an entire directory store from revealing sensitive information.

The data is protected by a single symmetric key, S, meaning if an attacker could obtain

S, the information in the directory would be compromised. However, S is not stored on

any client system, nor is it kept unencrypted in the directory server; S is protected using

the keys of authorized users. Those keys are protected by an existing KMS, which still

has vulnerabilities, but is speciﬁcally designed to reduce the risk of compromise.

Additionally, data authenticity is assured through the use of digital signatures. While

all authorized users can modify the data using S, only those with K

′

are able to

digitally sign the encrypted information. This signature can be veriﬁed by all clients

using K

, which itself is veriﬁed using a signature based on the key of the owner, K

′

4.2 Advantages

There are severaladministrative advantages to this solution as well. First, it uses existing

infrastructure, speciﬁcally KMS and EDS, which do not need to be modiﬁed in any way

to support data protection. The client does need to be modiﬁed to include the PVDS,

and client LDAP applications must be reconﬁgured to point to the PVDS, but existing

LDAP clients should be able to handle this modiﬁcation.

Another major advantage over previous approaches is the removal of user-based

key protection. Additionally, by not relying on password-based veriﬁcation for data

protection, we eliminate a major cause of administrative overhead. By moving the data

protection component from a VDS to the client machine, we eliminate the VDS as a

single point of failure (or attack). Additionally, we enhance the capability for interaction

between the user and PVDS by placing it on the client machine.

The usability of this solution is quite straightforward, with little user interaction re-

quired for both conﬁguration and continued use. Because the conﬁgurationof the PVDS

is not dependent on any particular destination directory, the advantages of using a cen-

tralized VDS are not lost by moving the components to the PVDS. Some bootstrapping

is required initially to mark attributes as protected, but this is a one-time occurrence

for each protected attribute, and can easily be handled by interfacing with the PVDS.

Additionally, our solution is compatible with any LDAP directory store and any LDAP

client. In fact, by leveraging the core components of VDS, we also extend the protection

capabilities of our solution to additional data sources, such as databases [9].

4.3 Attack Models

Our solution presents some opportunities for attack. Compromising a client machine is

still a problem, though this can be minimized through good enterprise security prac-

tices. Attacking the information in the EDS would require the compromise of existing

cryptographic techniques, such as RSA encryption [11], which is shown to be infeasi-

ble using current technology. This prevents an attack where a malicious administrator

simply copies the entire directory store to attempt data extraction.

The most promising attack approach would be impersonating a legitimate client or

the data owner. To do so, an attacker would need access to the client or owner private

key, K

or K

. This could be accomplished by either stealing the user’s credentials for

the KMS, or by resetting the user’s credentials in the KMS and using the new creden-

tials. While security of KMS is beyond the scope of this paper, we should point out that

proper use of separation of duties when designing and implementing KMS solutions

can prevent a domain administrator from carrying out this attack.

4.4 Implementation

To demonstrate the feasibility of our solution, we implemented a proof-of-concept

PVDS and measured various aspects of system performance. Our EDS was imple-

mented using Microsoft ADAM [12], a simulated KMS was constructed, and we mea-

sured components such as time to access encrypted attributes, time to access non-

encrypted attributes (using the PVDS), and storage requirements for the destination

data store. We used real-world data from actual EDS, including approximately 15,000

user objects with 50-75 attributes populated for each object. To mimic data protection

conditions, we considered protecting roughly 4% of the attributes for each object, a ﬁg-

ure obtained by evaluating current implementations of EDS and considering potentially

sensitive information. The average attribute access time (reads and writes) is shown

in Table 1, and the size of the underlying directory store when using PVDS-protected

attributes versus non-protected attributes is shown in Table 2.

Table 1. Average time to access directory attributes (ms).

Conﬁguration Time (ms)

No PVDS - no encryption 5.5

PVDS - not encrypting 8.0

PVDS - 4% of attributes protected 12.6

Table 2. Directory size on disk (MB).

Conﬁguration Beginning size (MB) Final size (MB)

No PVDS - no encryption 6.3 56.6

PVDS - 4% of attributes protected 6.3 89.9

5 Conclusions

We have presented a solution for protecting sensitive information in EDS. Utilizing ex-

isting key management infrastructure, we have proposed a novel approach to the con-

cept of virtual directories, by moving the core components of a VDS onto the client, and

introducing new components to manage data protection between and LDAP client and

LDAP server. We have shown how our solution prevents insider administrative attacks,

a major risk particularly among government institutions. Finally, we have demonstrated

that our solution is feasible in enterprise computing environments by showing proof-of-

concept implementation results.

Future work in this area should include careful analysis of attack models against

KMS. Also, usability of the solution with actual users and data should be analyzed to

determine how easily this solution could be implemented in the workplace. Finally, in-

creasing performance times should be addressed. We believe that protection of sensitive

directory information is a critical task facing enterprise system administrators, and we

hope that our solution provides a solid step forward in the efforts to secure this data.

References

1. Jakobsson, M.: Modeling and preventing phishing attacks. In: Phishing Panel at Financial

Cryptography. (2005)

2. Kowalski, E., Cappelli, D., Conway, T., Willke, B., Keverline, S., Moore, A., Williams, M.:

Insider threat study: Illicit cyber activity in the government sector. Technical report, U.S.

Secret Service and CERT (2008)

3. Keeney, M., Capelli, D., Kowalski, E., Moore, A., Shimeall, T., Rogers, S.: Insider threat

study: Computer system sabotage in critical infrastructure sectors. Technical report, U.S.

Secret Service and CERT/SEI (2005)

4. Shaw, E., Ruby, K., Post, J.: The insider threat to information systems. Security Awareness

Bulletin (1998)

5. Microsoft Corporation: How to mark an attribute as conﬁdential in windows server 2003

service pack 1. (http://support.microsoft.com/kb/922836)

6. Red Hat, Inc.: Fedora directory server. (http://directory.fedoraproject.org/)

7. Claycomb, W., Shin, D., Hareland, D.: Towards privacy in enterprise directory services: A

user-centric approach to attribute management. In: Proceedings of the 41th IEEE Interna-

tional Carnahan Conference on Security Technology, Ottawa, Canada (2007)

8. Radiant Logic, Inc.: Using virtualization to leverage your investment in active directory.

Technical report, (Radiant Logic, Inc.)

9. Radiant Logic, Inc.: Radiantone vds. (http://www.radiantlogic.com/main/)

10. Claycomb, W., Shin, D.: Protecting sensitive information in directory services using virtual

directories. In: Proceedings of the 5th International Conference on Collaborative Computing:

Networking, Applications and Worksharing (CollaborateCom). (2008)

11. Rivest, R.L., Shamir, A., Adleman, L.: A method for obtaining digital signatures and public-

key cryptosystems. Commun. ACM 21 (1978) 120–126

12. Microsoft Corporation: Windows server 2003 active directory application mode.

(http://www.microsoft.com/windowsserver2003/adam/default.mspx)
