Reﬂecting on Higher Order Transformations:

Challenges and Opportunities

Olaf Muliawan and Dirk Janssens

University of Antwerp, Middelheimlaan 1

2020 Antwerp, Belgium

Abstract. The area of Model Driven Engineering focuses on the transformation

of models into source code. However, large projects require complex transfor-

mation patterns which are difﬁcult to implement and maintain. New language

features could represent often used transformation patterns. However, extending

a transformation language is not the preferred solution to keep the language con-

cise. Therefore we introduce the notion of Higher Order Transformations that

manipulate these new language features and transform them back in the origi-

nal language. In this paper we will explain the challenges of using Higher Order

Transformations and the opportunities these techniques provide.

1 Introduction

Model Driven Engineering (MDE) has matured over the years, and current projects in-

volve complex model transformation patterns. The existing model transformation lan-

guages are quite low-level and basically support create, update and delete operations

on model elements. Common but more complex operations, such as copying a subset

of model elements or creating association links between UML classes, are a number of

examples which can be expressed using low level constructs. However, if these patterns

are numerous, their speciﬁcation is cumbersome and time-consuming.

For the convenience of users, new language features representing these complex

patterns can be introduced. However, to avoid extending the original transformation

language, the features are transformed back into the original language. These actions

are called Higher Order Transformations (HOTs). Sometimes there is no access to the

original source code of the transformation tool and HOTs provide a means of introduc-

ing new language features with the possibility of considering the transformation tools

black-box. More important, these transformations are done using existing transforma-

tion tools and do not incur extra development time to support HOTs. This is possible

if the transformations can be considered as transformation models. Since model trans-

formation tools can transform a model given its meta-model, a transformation model is

treated like a normal transformation.

We believe HOTs are useful in complex and large transformations to simplify their

speciﬁcation and maintain transformations in a more efﬁcient manner. However, chal-

lenges exist: a chain of HOTs creates the problem of dependencies and order of the

transformations. Another challenge is assuring that the mapping is possible and that a

HOT exists. Merely adding a new feature without providing automated support through

transformation is not a desired outcome.

Muliawan O. and Janssens D. (2009).

Reﬂecting on Higher Order Transformations: Challenges and Opportunities.

In Proceedings of the 1st International Workshop on Future Trends of Model-Driven Development, pages 52-55

DOI: 10.5220/0002203000520055

 SciTePress

2 Simplifying Transformations: Case Studies

To illustrate the use of HOTs, we will focus on a few case studies that we already im-

plemented and presented in earlier papers. The case studies present problems where

the introduction of a new language feature improves the conciseness and readability of

the transformation. The transformation language employed in this paper is called Story

Driven Modeling (SDM) implemented in MoTMoT [1]. This is a language based on

graph transformation techniques but with an explicit control ﬂow determining which

graph transformations are executed. The basic functionality is limited to create, delete

and update operations on model elements although the control ﬂow allows greater ﬂex-

ibility to determine when and if transformations are performed.

Case 1: Creating and Deleting Associations in UML Class Diagrams. UML class di-

agrams are often used within MDE to create software working on databases or web ap-

plications. However the creation and deletion of association links involves more model

elements than just the association link itself. Observe ﬁgure 1(a): the association ends

with matching attributes have to be explicitly enumerated, and even multiplicities are

separate model elements.

A more concise manner which does not clutter the transformation diagram is draw-

ing an association with anewintroducedstereotype <createAssociation >>or <<delete-

Association >>and putting the information about the association ends on the ends of

the drawn association, as seen on ﬁgure 1(b). The attribute values regarding the asso-

ciation still have to be ﬁlled in (in this example we omitted other possible elements on

the association such as tagged values and stereotypes which would further increase the

number of model elements without the use of the new language feature), however the

use of the language feature signals the transformation tool to create all necessary model

elements to represent the association in a correct manner.

<<create>>

UAERange

{motmot.metatype=MultiplicityRange}

-upper : int = 1

-lower : int = 1

<<create>>

AEndPointA

{motmot.metatype=AssociationEnd}

-navigable : boolean = true

-name : String = "next"

<<create>>

upAss

{motmot.metatype=UmlAssociation}

<<create>>

AEndPointB

{motmot.metatype=AssociationEnd}

-navigable : boolean = false

<<bound>>

classA

{motmot.metatype=Namespace}

<<create>>

UAEMult

{motmot.metatype=Multiplicity}

<<bound>>

classB

{motmot.metatype=UmlClass}

<<create>>

-connection*

<<create>>

-connection*

<<create>>

-multiplicity

<<create>>

-range*

<<create>>

-participant1

<<create>>

-participant1

(a) Representation with primitive constructs

<<bound>>

classA

{motmot.metatype=Namespace}

<<bound>>

classB

{motmot.metatype=UmlClass}

<<createAssociation>>

-next*

(b) HOT construct

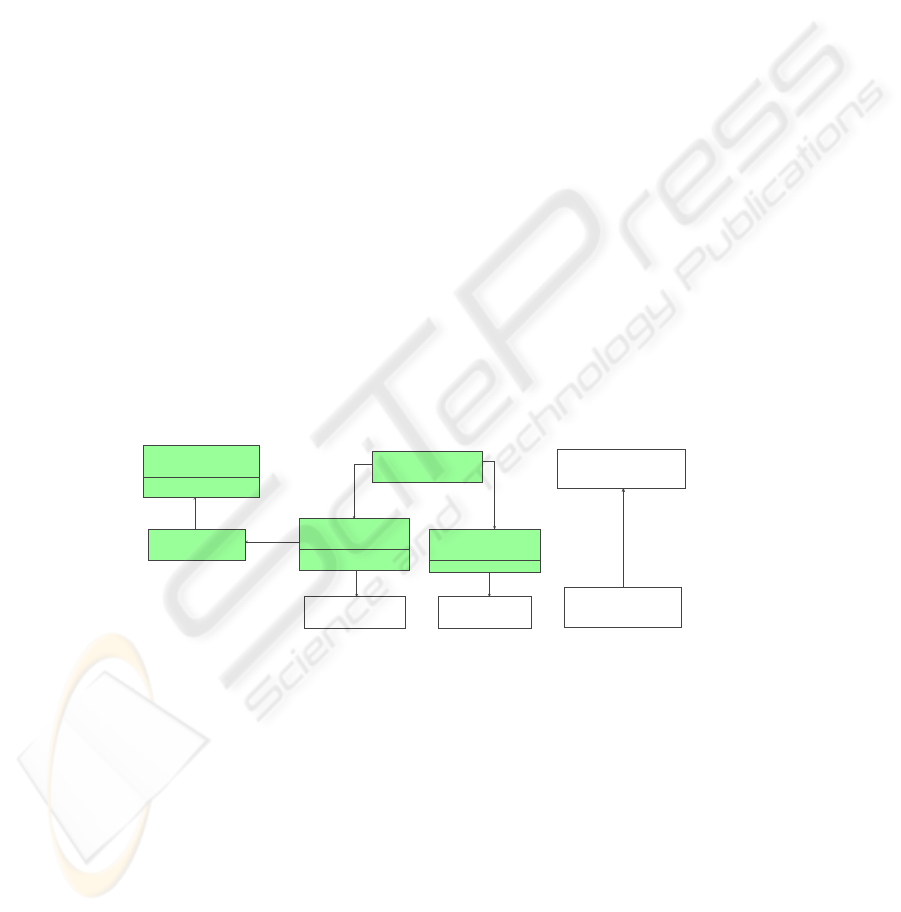

Fig.1. Creating a new UML association using HOT constructs.

Transformations regarding class diagrams are more readable because one can see

an explicit association between two classes instead of analyzing all model elements

pertaining the association to get an accurate view of which association is represented.

Case 2: Declarative Language Features in SDM. In this case we use the JDT2MDR

tool to produce an XMI-compliant model from Java source code [2] to implement three

refactorings: move method, pull up method and encapsulate ﬁeld. The move method

refactoring requires one step where references to the moved method are updated. Ac-

cording to the speciﬁcation of the refactoring there are four possibilities, though only

one of them should be applied. Moreover, the order in which these possibilities are tra-

versed is not speciﬁed. MoTMoT is imperative, so an order is imposed, even if it is

not intentional. Each option which does not match leads to the following option being

evaluated until one (or none) is matched.

Meyers et al. introduced a new construct which is called ND-state (non deterministic

state) [3]. Transformation actions in this state are randomly chosen and in our case, if

one of the actions matches, the rest of the control ﬂow is carried out. If it does not

match, the transformation tool keeps looking for other options until all are exhausted.

This language feature does not impose an order on the traversed possibilities which is

exactly the semantic meaning of this particular step in the move method refactoring. The

language feature is quite powerful and incorporates such notions as having exactly n

number of options matched during evaluation (can also be none or all options), layered

evaluation (begin evaluating the ﬁrst layer of options, then the second, ...).

Case 3: Support for ”Downcasting” in Model Transformations. The following exam-

ple is related to the transformation of visual process models (UML activity diagrams)

into low-level algebraic (CSP) programs that support formal veriﬁcation [4]. In this case

a new language feature is introduced which mimics downcasting: a model element is

ﬁrst recognized as of a general type. Only in a later stage this model element is estab-

lished as of a more speciﬁc type.

Nonetheless, SDM assumes strict static typing and the ﬁrst type declared to be the

ﬁnal and only possible type for the model element. The implementation in MoTMoT

does allow for downcasting, although it is not immediately supported through the SDM

language. The new language feature makes this functionality available for model trans-

formation speciﬁcations.

3 Challenges

Optimizing and analyzing HOTs are some of the challenges we will have to face. More

speciﬁcally the mapping problem for HOTs is more poignant because the model output

serves as input for the transformation tool. In this regard tools are necessary which

check the strict consistency of the output. The use of several new language features

introduces the problem of order of execution (preferably conﬂuence is possible in which

case the order of execution is irrelevant).

4 Related Work

The idea of HOTs has been proposed by Varr´o et al [5]. In addition, B´ezivin et al. have

also suggested treating transformations as models that are subject to further transforma-

tions which reinforces our approach in this direction [6,7]. Miguel et al [8] and Agrawal

[9] have both investigated complex model transformations.

5 Conclusions

We presented a few case studies wherein we encountered the need for new language

features. Each feature was implemented using Higher Order Transformations. We have

also illustrated that using our transformation tool, so no additional tool support is neces-

sary to achieve these goals. The introduction of language features increasing the trans-

parency, readability and understandability for model transformations is done without

adding bloat to the transformation tool. Using HOTs a given model transformation can

use selected new language features which are transformed back in the original language.

We laid out some challenges that require more research. However, we believe the

approach of Higher Order Transformations is promising to improve efﬁciency when

setting up the model transformations and providing new language features is done in a

non-intrusive manner without explicit extensions to the transformation language.

Acknowledgements

This work has been sponsored by the Belgian National Fund for Scientiﬁc Research

(FWO) under project G.0422.05 on the ’Formal Support for the Transformation of Soft-

ware Models’ and the Belgian Science Policy (Belspo) under the project on ’Modeling,

Veriﬁcation and Evolution of Software’ (MoVES) as part of the IAP-Phase VI Interuni-

versity Attraction Poles Programme.

References

1. Schippers, H., Gorp, P.V., Janssens, D.: Leveraging uml proﬁles to generate plugins from

visual model transformations. Electr. Notes Theor. Comput. Sci. 127 (2005) 5–16

2. Muliawan, O., Bois, B.D., Janssens, D.: Refactoring using jdt2mdr, an industrial based solu-

tion. In: 4th International Workshop on Graph-Based Tools (GraBaTs) on the 4th International

Conference on Graph Transformation (ICGT). (2008)

3. Meyers, B., Gorp, P.V.: Towards a hybrid transformation language: Implicit and explicit rule

scheduling in story diagrams. In: Sixth International Fujaba Days (FD08). (2008)

4. Muliawan, O., Van Gorp, P., Keller, A., Janssens, D.: Executing a standard compliant trans-

formation model on a non-standard platform. Software Testing Veriﬁcation and Validation

Workshop, 2008. ICSTW ’08. IEEE International Conference on (2008) 151–160

5. Varr´o, D., Pataricza, A.: Generic and meta-transformations for model transformation engi-

neering. In Baar, T., Strohmeier, A., Moreira, A., Mellor, S., eds.: Proc. UML 2004: 7th In-

ternational Conference on the Uniﬁed Modeling Language. Volume 3273 of LNCS., Lisbon,

Portugal, Springer (2004) 290–304

6. B´ezivin, J., B¨uttner, F., Gogolla, M., Jouault, F., Kurtev, I., Lindow, A.: Model transforma-

tions? transformation models! In: MoDELS2006. Volume 4199 of LNCS., Springer (2006)

440–453

7. Jouault, F.: Loosely coupled traceability for atl. In: Proceedings of the European Conference

on Model Driven Architecture (ECMDA) workshop on traceability, Nuremberg, Germany

(2005)

8. de Miguel, M.A., Exertier, D., Salicki, S.: Speciﬁcation of model transformations based on

meta templates. In Bezivin, J., France, R., eds.: Workshop in Software Model Engineering.

(2002)

9. Agrawal, A., Simon, G., Karsai, G.: Semantic translation of simulink/stateﬂow models to

hybrid automata using graph transformations. In: Electronic Notes in Theoretical Computer

Science. Number 109, Barcelona, Spain (2004) 43–56
