AUTONOMOUS CAMERA CONTROL BY NEURAL MODELS

IN ROBOTIC VISION SYSTEMS

Tyler W. Garaas, Frank Marino and Marc Pomplun

Department of Computer Science, University of Massachusetts Boston

100 Morrissey Boulevard, Boston, MA 02125-3393, U.S.A.

Keywords: Robotic Vision, Neural Modeling, Camera Control, Auto White Balance, Auto Exposure.

Abstract: Recently there has been growing interest in creating large-scale simulations of certain areas in the brain.

The areas that are receiving the overwhelming focus are visual in nature, which may provide a means to

compute some of the complex visual functions that have plagued AI researchers for many decades; robust

object recognition, for example. Additionally, with the recent introduction of cheap computational

hardware capable of computing at several teraflops, real-time robotic vision systems will likely be

implemented using simplified neural models based on their slower, more realistic counterparts. This paper

presents a series of small neural networks that can be integrated into a neural model of the human retina to

automatically control the white-balance and exposure parameters of a standard video camera to optimize the

computational processing performed by the neural model. Results of a sample implementation including a

comparison with proprietary methods are presented. One strong advantage that these integrated sub-

networks possess over proprietary mechanisms is that ‘attention’ signals could be used to selectively

optimize areas of the image that are most relevant to the task at hand.

1 INTRODUCTION

Recent advances in neuroscience have allowed us

unprecedented insight into how assemblies of

neurons can integrate together to establish complex

functions such as the deployment of visual attention

(Moore & Fallah, 2004), the conscious visual

perception of objects (Pascual-Leone & Walsh,

2001), or the remapping of visual items between eye

movements (Melcher, 2007). This accumulation of

detailed knowledge regarding the structure and

function of the individual neurons and neural areas

that are responsible for such functions has led a

number of neuroscientists to prepare large-scale

neural models in order to simulate these areas.

Some of the modeled areas include the primary

visual cortex (McLaughlin, Shapley, & Shelly,

2003), the middle temporal area (Simoncelli &

Heeger, 1998), or an amalgamation of areas

(Walther & Koch, 2006). Although the usual

motivation for creating such models is to ultimately

make predictions about their possible mechanisms or

functional roles in biological organisms, recent

advances in parallel computing – in particular, the

introduction of the Cell processor as well as the

graphics processing unit (GPU) – will likely direct

the attention of robotics researchers toward

developing comprehensive neural models for use in

robotic applications.

Robotic vision systems that are based on

biologically inspired neural models represent an

initially promising path to finally achieving

intelligent vision systems that have the power to

perform the complex visual tasks that we take for

granted on a daily basis. A classic example is that of

object recognition, at which computer vision

systems are notoriously poor performers. Humans,

on the other hand, can quickly – on the order of

hundreds of milliseconds – and effortlessly

recognize complex objects under a variety of

situations – e.g., various lightning conditions,

rotations, or levels of occlusion. Various models of

how this processing may occur in humans have been

proposed, which have resulted in increased object

recognition abilities by artificial systems (e.g.,

Riesenhuber & Poggio, 1999; Walther & Koch,

2006). Consequently, it is likely that subsequent

iterations of these models will make their way into

future robotic vision systems.

305

W. Garaas T., Marino F. and Pomplun M. (2009).

AUTONOMOUS CAMERA CONTROL BY NEURAL MODELS IN ROBOTIC VISION SYSTEMS.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 305-311

DOI: 10.5220/0002217303050311

 SciTePress

Most neural models of visual areas operate in an

idealized space (e.g., Lanyon & Denham, 2004);

receiving pre-captured and manipulated images,

whereas in robotic vision systems certain constraints

are necessarily imposed. These constraints largely

revolve around the need to process information in

realistic time-frames – optimally real-time – as well

as to interact directly with the physical world; likely

through some form of video camera. Since these

models will operate on input that cannot be known

ahead of time, the system should be designed to

handle a wide range of situations that may arise.

Most video cameras suitable for a robotic vision

system include some ability to automatically

monitor and adjust white-balance, exposure, and

focus. However, in a robotic vision system that

employs large-scale neural models, these automatic

functions may lead to suboptimal processing

conditions or even conflicts with the neural

mechanisms. This paper presents a proof-of-concept

method for manually controlling certain parameters

in the camera to optimize the processing of a neural

model of the retina, which will likely form the initial

processing stage of future biologically inspired

vision systems. In particular, the control of white-

balance (WB) and exposure parameters are

considered. Implementation details and a

comparison to proprietary methods are given in the

following sections.

2 SYSTEM OVERVIEW

The vision system presented here consists of a

number of simple neural layers (2D layout of

neurons that process image signals from nearby

neruons) interconnected to form the basis for a

robotic vision system; Figure 1 gives a simplified

illustration of how the neurons within each layer are

connected. The layers are modeled after a subset of

the neurons present in the human retina. Figure 2

illustrates the individual neuron types and

connections that constitute the artificial retina, which

are briefly described below in order to establish the

motivation for the WB and exposure sub-networks

(subnets) presented hereafter. The neural model

(excluding WB and exposure subnets) consists of 17

layers which total to approximately 225,000

individual neurons and 1.5 million connections. The

network is designed to be executed on the GPU of a

standard video card.

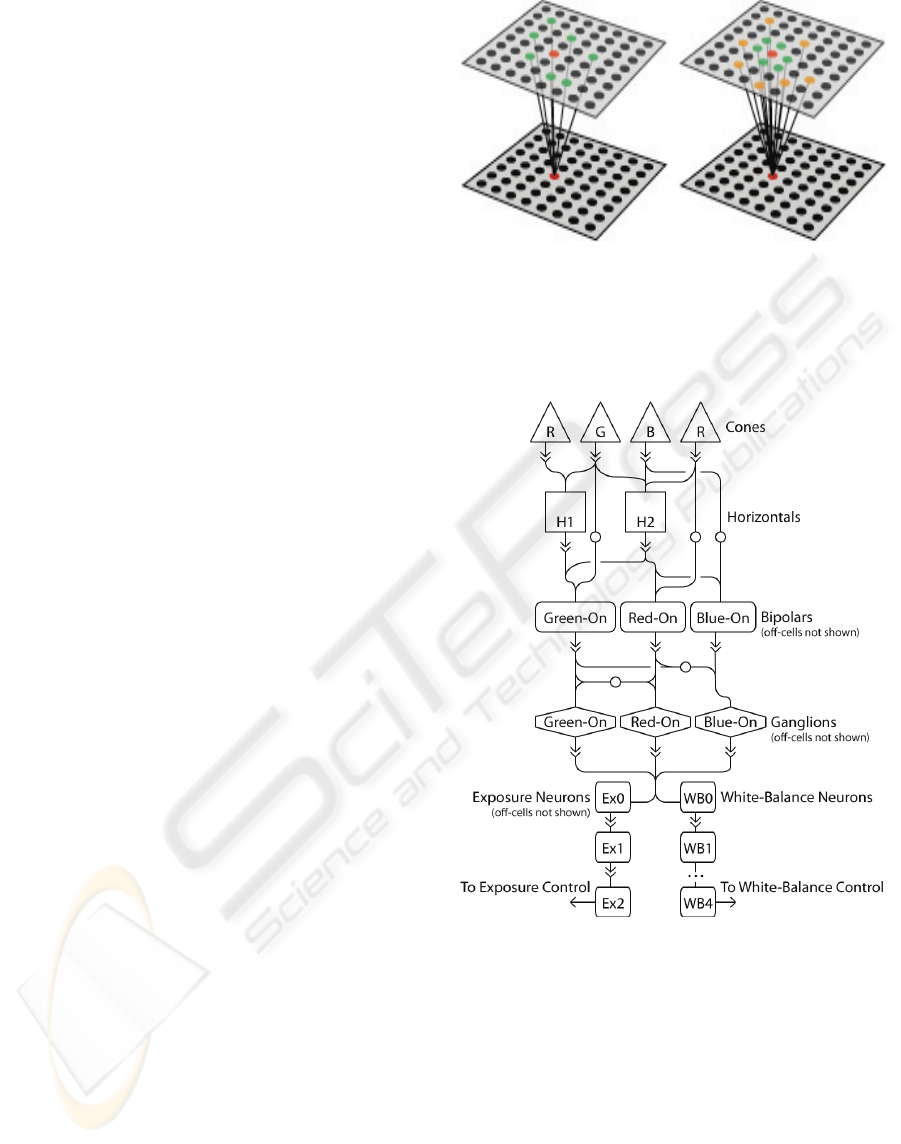

Figure 1: Simplified illustration of the connections used in

the neural model and camera control subnets: (left)

random connections to cells in previous layers and (right)

random connections demonstrating a center-surround

organization. Information in both cases flows from the

upper layer to the bottom layer.

Figure 2: Connections between the various neuron types in

the retina and camera control subnets. Solid arrows

indicate excitatory connections while arrows with a white

circle indicate inhibitory connections; ellipses between

WB1 and WB4 indicate a continuation of the connection

pattern directly above.

2.1 Apparatus

The network presented hereafter was simulated on

two computer graphics cards (Nvidia 380 gtx) using

an SLI setup. The OpenGL shading language

(GLSL) was used to implement the computations for

individual neurons. Video input was retrieved using

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

306

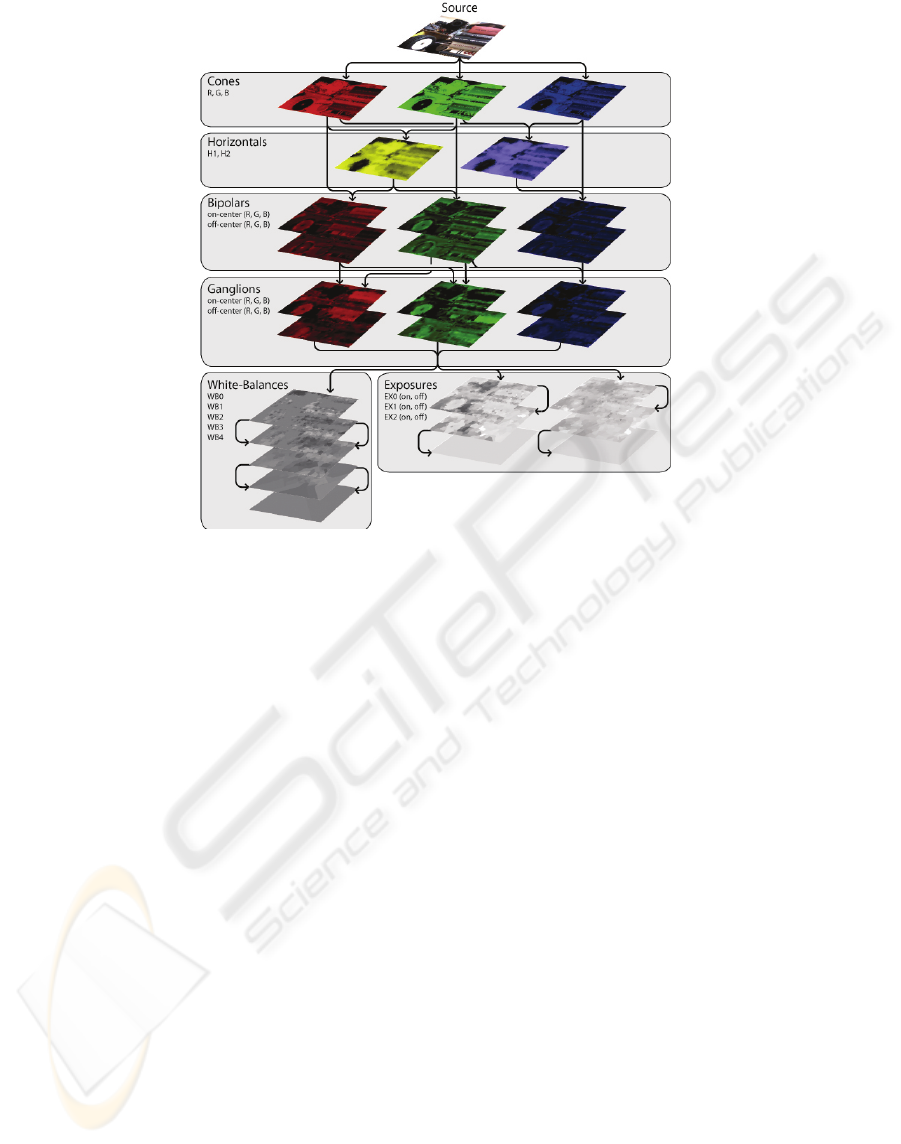

Figure 3: Activation maps and connection structure of the neural model and camera control subnets. Lighter areas represent

higher activations while the colors indicate the spectral contributions to the activations.

a Cannon VCC4 video camera, and images were

captured from the camera using the Belkin Hi-Speed

USB 2.0 DVD Creator. Activations of the entire

network can be computed very quickly: 100

iterations of computing activations for every single

neuron take approximately 0.5 seconds.

2.2 Simulated Retina

The human retina is often considered a simple

means for sensing light that enters the eye. On the

contrary, the retina is actually a complex extension

of the brain that is responsible for both reducing the

amount of information transmitted to the various

visual centers of the brain and converting the

incoming signal into a form that is suited for higher-

level processing by cortex. In the neural model

presented here, we simulate the cones (R, G, B;

referred to as long-, medium-, and short-wavelength

cones in biological organisms, which are responsible

for extracting the contributions of three primary

color-components of the image), the horizontal cells

(H1 & H2 cells, which essentially compute a

‘blurred’ version of the incoming image), on- and

off-center bipolar cells (R, G, B cells, which

compute an initial contrast-sensitive activation due

to the antagonistic center-surround arrangement),

and on- and off-center ganglion cells (R, G, B cells,

which also compute a center-surround, contrast-

sensitive signal that is also spectrally opposed, due

to the inhibitory connections from bipolar cells).

For the sake of brevity, we do not describe the

specifics of individual neuron activations and

connections. However, the essentials of the retinal

neurons simulated here follow very closely those

laid out by Dacey (2000) and Dowling (1987).

3 WHITE-BALANCE CONTROL

WB control in cameras was included so that changes

in illumination could be countered to keep white

areas within an image looking white. For instance,

lighting that is stronger across the red spectrum of

visible light will cause white areas to take on a

reddish hue. Many different algorithms, such as

white point estimation (Cardei, Funt & Barnard,

1999), chromaticity estimation using neural

networks (Funt & Cardei, 1999), and gray world

(Buchsbaum, 1980), have been proposed to control

for changes in color due to the infinite spectrum of

light sources. Although humans do not have the

ability to directly control the color of objects as they

are being received by the various early visual areas,

neural mechanisms do exist to counter the effect of

AUTONOMOUS CAMERA CONTROL BY NEURAL MODELS IN ROBOTIC VISION SYSTEMS

307

illuminants on the actual perception of color

(Brainard, 2004). This ability is aptly referred to as

color constancy.

The automatic white-balance mechanism

described here is a subnet of the neural model

portrayed above. The basic goal is largely the same

as that of previously proposed mechanisms; that is,

to make white objects project white color onto the

incoming image regardless of the illumination color.

As such, the proprietary automatic white-balance

mechanism would provide an adequate means to

achieve this; however, there are a few caveats that

may make a specifically designed WB control

mechanism desirable. First, ganglion cells, from

which the WB function will be computed, do not

directly encode the primary image colors (i.e.,

RGB); instead, they encode a spatially and spectrally

opponent signal that encodes the differences

between red/green and blue/yellow signals. This

property may introduce differences between an

optimal white-balance parameter set by proprietary

mechanisms and the optimal white-balance

parameter for network computation. Second, certain

biologically inspired mechanisms may take

advantage of having the computation of such things

implemented directly inside the network. This will

be discussed in detail later.

The WB subnet introduced here is conceptually

very simple. It begins by including a layer into the

network (WB0) that ‘extracts’ areas of the image

that represent candidates for white or light gray

regions (technically, B/Y – R/G neutral). The

candidate areas are exactly those areas in which the

on-center ganglion cells have nearly the same level

of activation and where the sum of the activations is

greater than some threshold. A small amount of

programming code is given below which gives a

basic idea of how neurons’ activations in layer WB0

are computed; red, green, and blue variables store

the average activations of incoming red, green, and

blue on-center ganglion cells, respectively; on-center

activations range from 0.0 (no activation) to 1.0 (full

activation).

float intensity = red + green + blue;

float R = red / intensity;

float G = green / intensity;

float B = blue / intensity;

if(R > 0.25 && G > 0.25 && B > 0.25 &&

total > 1.0)

activation = (B – R)*4.0;

else

activation = 0.0;

After layer WB0 has extracted the areas that are

potentially white or light gray, neurons in WB1 then

compute a local maximum of the WB0 neurons to

which it is connected; Figure 1 (left) illustrates the

basic connection structure. Finally, layers WB2

through WB4 perform a simple averaging of the

neuron activations from incoming layers; however,

only neurons with non-zero activation (i.e., those

representing a candidate area) will contribute to the

average. The end-product of the WB subnet is a

value that can be used to step the white-balance

parameter either towards a more blue hue or a more

red hue depending on the situation. If, for instance,

the activations of red and blue ganglion cells are

close to equal across the image, the step functions

will be zero and the white-balance parameter will

not change. However, if red ganglion cells have

larger activations, in general, then the stepping

function will be negative, which will cause the

camera to introduce a slightly bluer hue to the

image.

The WB subnet was designed to balance the

activations across red and blue on-center ganglion

cells. Consequently, the subjective view of the

image cannot be used to assess the performance of

the subnet, which is contrary to proprietary

mechanisms. With that said, the WB subnet adjusts

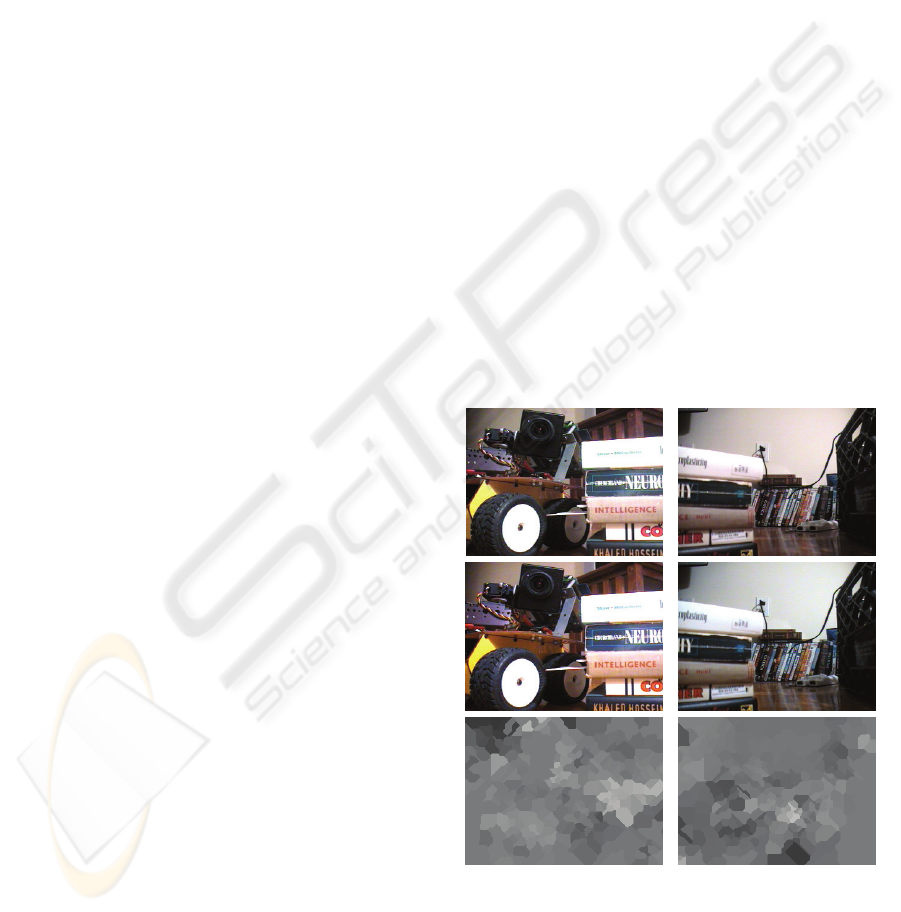

Figure 4: White-balance results: (top) adjusted image

using proprietary auto-WB mechanism, (middle) adjusted

image using the WB subnet, and (bottom) activation map

of WB2. Lighter portions in WB2 represent candidate

areas that contain greater activations of blue ganglion

cells, while darker portions represent candidate areas

greater activations of red ganglion cells.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

308

the WB of the camera in much the same way as the

proprietary mechanism in certain situations; see

Figure 4 (left), for example. In contrast, other

situations can produce deviations in WB settings

between the subnet and proprietary mechanisms; see

Figure 4 (right), for example. The size of WB steps

should also be considered, as too large a step size

will introduce over-correction and, ultimately, a

ping-ponging of the WB parameter as the subnet

slowly narrows in on the correct value; on the other

hand, too small a step size will lead to a very slowly

adjusting WB. Finally, in the current network,

following a change in the white-balance parameter,

it was necessary to insert a short delay before

another step could be made; this was needed to

allow the changes in image color due to the WB

parameter change to spread through the various

neural layers.

4 EXPOSURE CONTROL

One of the most remarkable properties of the human

vision system is its ability to function over a

strikingly large range of luminance conditions, a

span of approximately 10 billion to 1 (Dowling,

1987). The human eye has essentially two ways of

dealing with the variation it experiences in day-to-

day luminance levels. (1) The pupil can reduce its

area by a factor of approximately 16 due to changes

in ambient illumination. (2) The circuitry in the

retina is specially designed to handle two general

lighting conditions: dim light, primarily handled by

the rod-pathway in the retina; and bright light,

handled by the cone-pathway in the retina.

Video cameras, on the other hand, do not have

the luxury of such robust input mechanisms.

Nevertheless, various methods have been developed

to allow cameras to function under a rather

impressive span of luminance levels – at least when

all things are considered. The camera used for the

present study employs two primary parameters that

can be adjusted to compensate for luminance levels:

iris size and gain control.

The network control of exposure is similar to that

of WB in that a conceptually simple subnet

progressively computes various properties of the

incoming image which allows it to ‘step’ the

relevant parameter towards optimizing some

computation. The computation that is optimized in

exposure control is contrast; too much light entering

and the image gets ‘washed-out’; too little light

creates an underexposed image. This mechanism in

particular will likely be very important to robotic

vision systems using biologically neural models, as

contrast has shown to play a particularly critical role

in the neural computations that take place in the

primate visual cortex (Sceniak et al., 1999).

As with the WB subnet, the functioning of the

exposure subnet is conceptually very simple.

Essentially, the subnet attempts to maximize the

contrast of two spatially adjacent areas using the on-

and off-center ganglion cells. Recall that in the

neural model of the retina (and the biological retina)

contrast plays a specific role for two classes of

neurons, bipolar cells and ganglion cells. That is,

these cells compute an activation that highlights high

contrast areas of the image. Consequently, much of

the work required for computing our exposure

control function is already implemented.

The remaining work is performed by two

independent subnets, an off-subnet and an on-

subnet. Each subnet first computes a local

maximum of the incoming ganglion cell activations

(on-center ganglion cells will have higher

activations in bright areas, especially if it is adjacent

to a dark area, and vice-versa for off-center ganglion

cells). This maximum is then averaged across the

image to produce an exposure step-value similar in

nature to the WB step-value, with one difference, the

step value for the exposure control must work to

control both the iris and gain of the camera, which is

handled by a simple scheme: changes to the iris take

precedence over changes to gain, which instead

serves to fine-tune the exposure using small step-

values.

Sample results of the exposure subnet are shown

in Figure 5 for both bright-light conditions (left) and

dim-light conditions (right). Exposure values in

dim-light conditions closely follow those computed

by the proprietary control mechanisms. However,

significant differences can be seen in bright-light

conditions. This is likely due to the goal of the

exposure subnet to extract a maximum contrast

signal, which may only occur in a portion of the

image, as opposed to enhancing a global contrast

signal. This difference is most prominent around the

wheel in Figure 5 (left) where the proprietary

mechanism introduces spectral highlighting on the

rubber (black) portion of the wheel; whereas when

under the exposure subnet’s control, the gain is

weaker to allow the natural blackness of the wheel to

maximize the contrast between the plastic (white)

and rubber (black) portions.

AUTONOMOUS CAMERA CONTROL BY NEURAL MODELS IN ROBOTIC VISION SYSTEMS

309

5 CONCLUSIONS

The current paper introduced small subnets that can

be integrated into biologically inspired neural

models of human visual areas to control the WB and

exposure parameters on most standard video

cameras. In contrast to their usual functions, WB

and exposure parameters are used to optimize the

actual processing that occurs in the neural model, as

opposed to simply providing a clearer image. The

subnets of this particular implementation are based

on the activations of on-center and off-center

ganglion cells from a neural model of an artificial

retina.

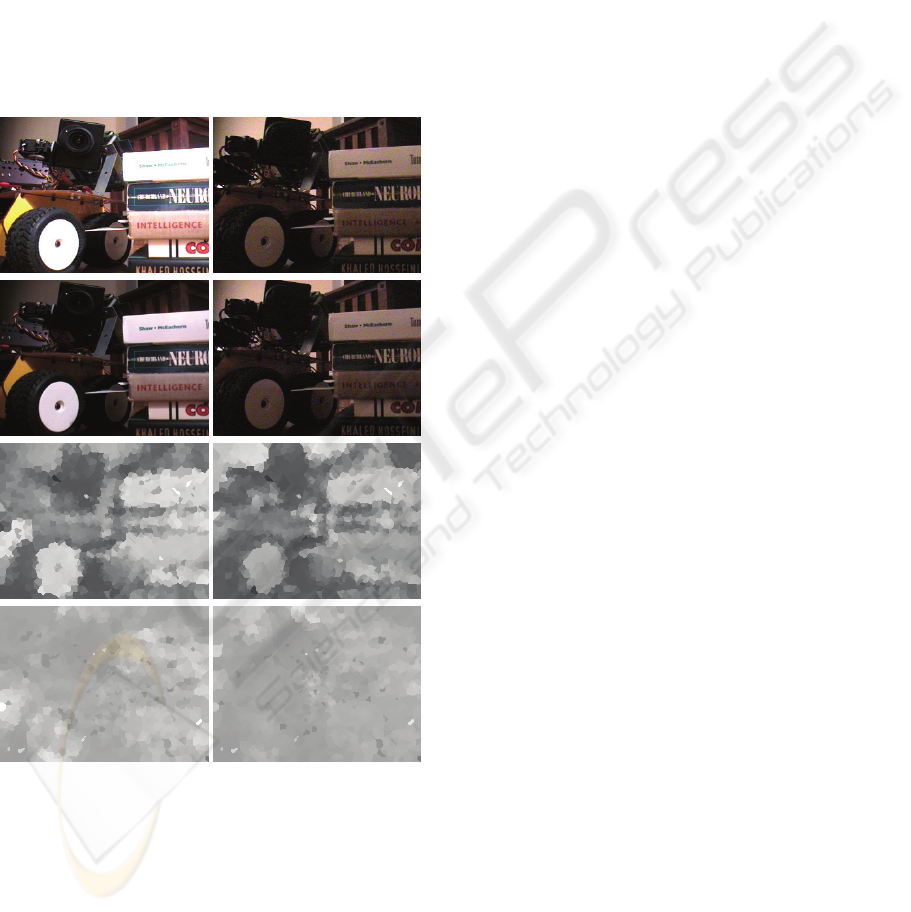

Figure 5: Exposure results: (top) adjusted image using the

proprietary auto-exposure mechanism, (upper-middle)

adjusted image using the exposure subnet, (bottom-

middle) activation map of on-center EX0, and (bottom)

activation map of off-center EX0.

Aside from customizing the parameters of the

camera to optimize model computation, the subnets

introduced here have other features that would make

them a desirable replacement for proprietary

mechanisms. One feature in particular could

provide a substantial benefit, which is the ability to

selectively optimize computation for areas in the

image in which the neural model is ‘interested’.

Indeed, one of the most studied neural signals in

biological organisms is that of attention, which is

often implemented in artificial neural models

(Lanyon & Denham, 2004). Consequently, with

very little modification, the subnets presented here

could be modified to selectively provide emphasis to

attended areas based on incoming attention signals.

For instance, imagine a robotic vision system that is

placed in a daylight setting receiving very bright

light from the sun. If the robot wishes to examine a

dark portion of the incoming image – say the

lettering of a poster printed on a black background,

proprietary mechanisms will be inadequate as they

will selectively optimize the range of high pixel

values – i.e., those representing bright areas.

Instead, if the image is adjusted to optimize the

range of low pixel values – i.e., those representing

the poster, the robot may then successfully achieve

its goal. Attention signals representing the robot’s

desire to inspect the poster would provide a perfect

indicator by which to optimize the correct portion of

the incoming image. Future implementations will be

directed toward realizing such models.

REFERENCES

Brainard, D. H. (2004). Color constancy. In L. Chalupa &

J. Werner (Eds.), The Visual Neurosciences (pp. 948-

961): MIT Press.

Buchsbaum, G. (1980). A spatial processor model for

object colour perception. Journal of Franklin Institute,

310, 1-26.

Cardei, V., Funt, B. & Barnard, K. (1999). White point

estimation for uncalibrated images. Proceedings of the

IS&T/SID seventh color imaging conference. (pp. 97-

100). Scottsdale, AZ, USA.

Dacey, M. (2000). Parallel pathways for spectral coding in

primate retina. Annual Review of Neuroscience, 23,

743-775.

Dowling, J. E. (1987). The Retina: An Approachable Part

of the Brain. Cambridge, MA, USA: Belknap Press.

Funt, B. & Cardei, V. (1999). Bootstrapping color

constancy. SPIE Electronic Imaging ’99.

Lanyon, L. H. & Denham, S. L. (2004). A model of active

visual search with object-based attention guiding scan

paths. Neural Networks, 873-897.

McLaughlin, D., Shapley, R. & Shelly (2003). Large-scale

modeling of the primary visual cortex: influence of

cortical architecture upon neuronal response. Journal

of Physiology-Paris, 97, 237-252.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

310

Melcher, D. (2007). Predictive remapping of visual

features precedes saccadic eye movements. Nature

Neuroscience, 10, 903-907.

Moore, T. & Fallah, M. (2004). Microstimulation of the

frontal eye field and its effects on covert spatial

attention. Journal of Neurophysiology, 91, 152-162.

Pascual-Leone, A. & Walsh, V. (2001). Fast

backprojections from the motion to the primary visual

area necessary for visual awareness. Science, 292,

510-512.

Riesenhuber, M., & Poggio, T. (1999). Hierarchical

models of object recognition in cortex. Nature

Neuroscience, 2, 1019-1025.

Sceniak, M. P., Ringach, D. L., Hawken, M. J. & Shapley,

R. (1999). Contrast’s effect on spatial summation by

macaque V1 neurons. Nature Neuroscience, 2, 733-

739.

Simoncelli, E. P. & Heeger, D. J. (1998). A model of

neuronal responses in area MT. Vision Research, 38,

743-761.

Walther, D. & Koch, C. (2006). Modeling attention to

salient proto-objects. Neural Networks, 19, 1395-1407.

AUTONOMOUS CAMERA CONTROL BY NEURAL MODELS IN ROBOTIC VISION SYSTEMS

311
