SEMANTIC SUPPORT FOR

RESOURCE-CONSTRAINED ROBOT SWARM

Xiang Su, Jukka Riekki and Janne Haverinen

Intelligent Systems Group and Infotech Oulu, University of Oulu, FIN-90014, Finland

Keywords: Robot Swarm, Entity Notation, Lightweight Data Representation, Ontology, Inference.

Abstract: Semantic Web technology could offer lots of intelligent functionality to multi-robot systems. But limited

processing power and storage capability of unsophisticated robots do not necessary allow them to support

and process Semantic Web technology. In this paper, we propose a novel solution to provide semantic

support for resource-constrained robots. Entity Notation is a lightweight data representation which can be

employed to transfer data between resource-constrained robots and intelligent applications at server side.

Resources-constrained robots only need to handle the lightweight Entity Notation while intelligent

applications handle the more advanced knowledge representation. When the Entity Notation is used, the

transfer between the robots and applications is unambiguous and lossless. In this way, an ontology and

ontology-based inference at server side can improve the capabilities of the robot swarm. We present a

simulator and discuss the future work.

1 INTRODUCTION

Research in multi-robot systems is producing more

and more robot swarm systems containing up to

hundreds of autonomous robots. Robot swarms can

be utilized in numerous interesting domains, like

space exploration, search and rescue operations,

cleaning, and other everyday applications.

Compared with individual complex autonomous

robots, swarms of simple and cost-efficient robots,

provide robustness against failure of individual

robots and the power of parallel operation.

To build the complex and intelligent structure of

a robot swarm, coordination among spontaneous

swarms, like stigmergy (

Holland and Melhuish 1999),

or environment-supported coordination is essential.

In this paper, we present how semantic support can

be provided for resource-constrained robots to

facilitate their coordination. Basically, the semantic

support enables reasoning the actions for achieving

the swarm’s goal.

Semantic Web technology is an ideal candidate

for implementing the reasoning, when information

can be expressed using a Semantic Web-based

formal context model – an ontology model (

Studer,

Benjamins and Fensel 1998

). But traditionally,

Semantic Web technology needs more processing

power and memory than small robots have. Hence

the robots are not capable to processing knowledge

representations such as Resource Description

Framework (RDF) (W3C.org 2004), not to mention

running the advanced reasoners or other applications

utilizing the representations.

This paper focuses on how resource-constrained

robots can be connected to Semantic Web–based

intelligent applications that have the required

resources for processing the knowledge

representations and running the reasoners. We

consider how information can be transferred from

resource-constrained robots to an advanced

knowledge representation, how actions can be

deduced, and how the actions can be transferred to

the robots performing them.

For transferring information from resource-

constrained robots to intelligent systems we propose

a lightweight representation called Entity Notation

(EN). The key idea is that the robots handle the

lightweight EN while the intelligent systems handle

the advanced knowledge representation – and an

unambiguous lossless transform can be performed

between these two representations. We develop for

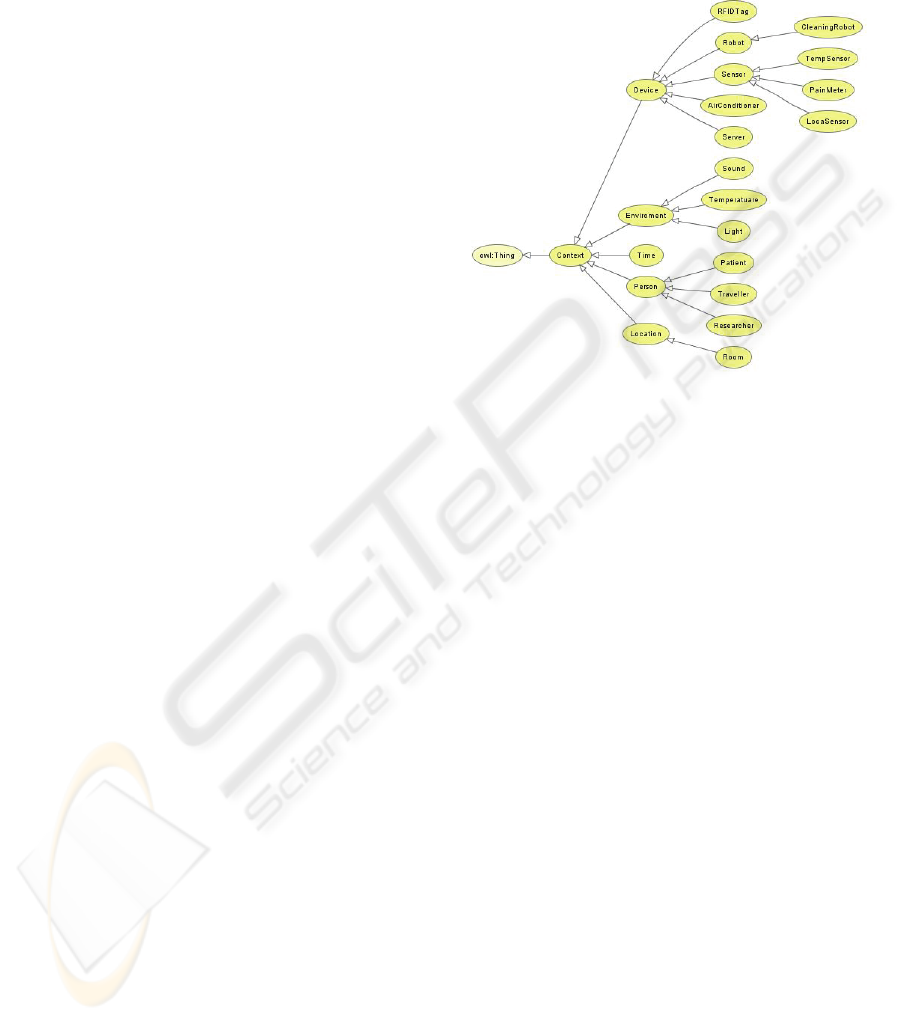

the knowledge representation a context information

ontology for describing robots, sensors, persons, and

other important entities of an indoor office

environment. This ontology allows us to use

Semantic Web technologies in deducing actions for

the robots. We utilize rule-based inference for

271

Su X., Riekki J. and Haverinen J. (2009).

SEMANTIC SUPPORT FOR RESOURCE-CONSTRAINED ROBOT SWARM.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Intelligent Control Systems and Optimization,

pages 271-277

DOI: 10.5220/0002217402710277

 SciTePress

deducing actions for robot swarm.

The rest of this article is organized as follows.

Section 2 introduces the architecture of EN-based

communication. Section 3 presents the Entity

Notation in brief. Section 4 presents the context

information ontology model. Section 5 describes the

rules and our inference mechanism. Section 6

presents the simulator for testing the system. Section

7 introduces the related work and Section 8

concludes the paper and suggests future work.

2 ENTITY NOTATION-BASED

COMMUNICATION

ARCHITECTURE

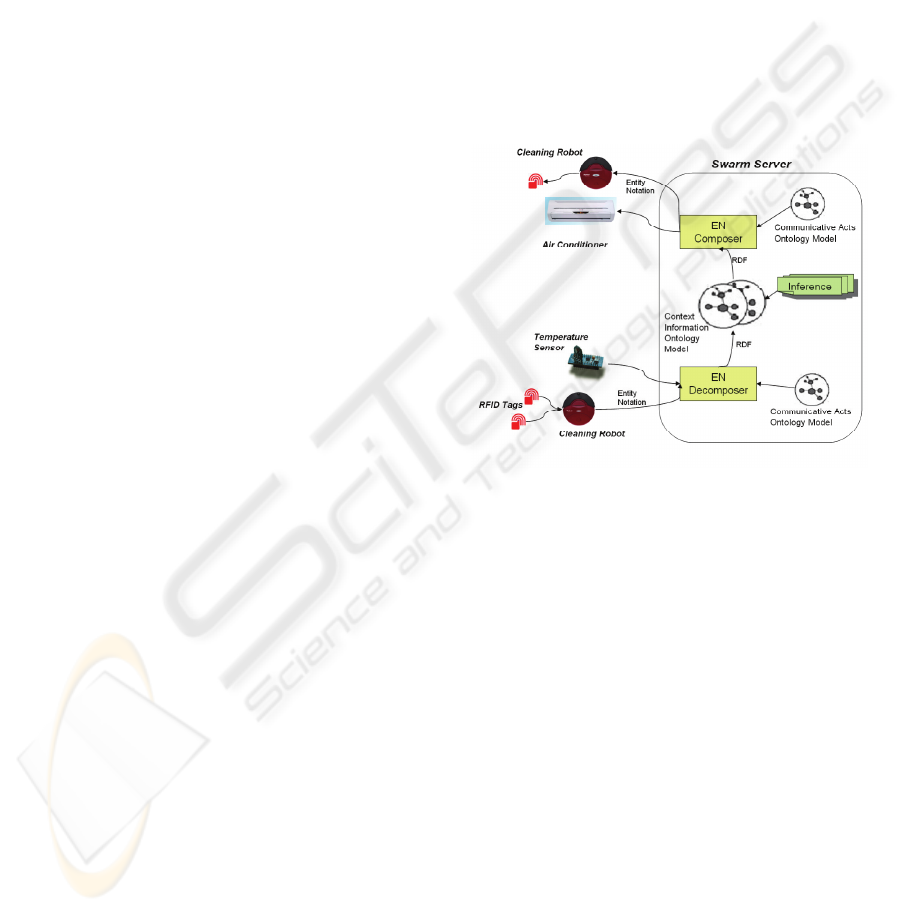

Figure 1 presents a complete loop of EN-based

communication architecture for a robot system. EN

packets are utilized in all communication acts

between a robot swarm and a swarm server. This

robot swarm system consists of cleaning robots,

RFID tags, sensors, an air conditioner, and the

swarm server. A cleaning robot can measure the

light level and the temperature of a room and read

data from and write data to RFID tags. Robots and

sensors can communicate with the swarm server.

The swarm server includes ontology models, EN

composer/decomposer, and inference engine

components. It provides semantic support to robots

by receiving data from robots and sending the

actions to be performed back to corresponding

robots. This EN-based feedback loop is a key feature

of adaptive robot system.

In the application scenario shown in Figure 1,

the RFID tag in one room is marked with the

timestamp of cleaning work inside this room. When

a cleaning robot goes inside this room, it reads the

RFID tags of the room, and measures whether light

is on in this room. This information can be

transferred to the swarm server as EN packets. The

swarm server decomposes the EN packets and

transfers them to RDF statements in a lossless way.

When the context information ontology model is

supplied with new RDF statements, the reasoner is

triggered, the deduced statements are composed into

EN format and sent to the devices. Deduced

statements can be some information to a specific

device, like message “Cleaning robot521 cleans the

room TS354” should be sent to Cleaning robot521.

The statements can also be some general

information, like “Room TS354 is clean.” should be

sent to all cleaning robots subscribed room cleanness

information. In the process of compose/decompose

EN packets, we use communicative acts ontology

model to standardize the communicative acts

between robots and swarm server, which could be

attached as the first EN packet to indicate the type of

the following packet sequence. For example, the

‘ifRoomSituation’ packet will indicate that the

following packet will inform the situation of a

specific room, while the ‘ifCleanRoom’ packet will

follow with a packet to inform a specific cleaning

robot an action of cleaning a room.

Another use case of EN-based communication in

figure 2 is that, a temperature sensor measures the

temperature in room TS354, and sends the

measurement data to the same swarm server by

utilizing EN. The reasoner could deduce that “Air

conditioner of TS354 adjusts the temperature to

23 ºC.” or “TS354 has normal temperature.”

Figure 1: Loop of EN-based Communication.

3 ENTITY NOTATION

Entity Notation is introduced briefly in this section

and more detailed description can be found in the

publication by Riekki, Su and Haverinen (2008). EN

was designed as a lightweight representation for

exchanging information between nodes of a

distributed system. We started to develop EN as a

general representation that can be used by any

resource-constrained device, but now we are

focusing on mobile robots. It’s not a protocol, hence

we assume EN packets are payload of some

protocols delivering the packets, like HTTP or

TCP/IP.

The most important goals for developing EN are

that, on the one hand, it can be used over simple

communication links by resource-constrained

devices; on the other hand, the packet content can be

used in a straightforward fashion by intelligent

system. For example, it should be possible to

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

272

transform the packets into RDF format in an

unambiguous fashion.

We achieve these goals as follows. To support

resource-constrained robots and limited

communication links, EN offers short packets that in

their simplest form can be less than 40 bytes long.

To allow the packet content to be utilized by

Semantic Web applications, the EN offers complete

packets that can be transferred to advanced

knowledge representations – RDF unambiguously

and losslessly. Hence, packet content can be

delivered to a reasonor processing knowledge in

Web Ontology Language (OWL) format. Complete

packets and short packets can be transferred between

each other straightforwardly and unambiguously.

The complete EN packet format closely follows

the RDF format, which contains a sequence of

(subject, predicate, object) triplets. The EN, as its

name implies, describes entities. An entity is some

identifiable whole, physical or digital. For example,

a robot, a sensor, an RFID tag, a sending node, a

recipient, a person, a measurement, a message, and a

user terminal are entities.

An EN packet is a sequence of entity

descriptions. Each description specifies the type of

an entity, a unique entity identifier, and a number of

property triplets (name, type, value). XML Schema

types are used for describing the data type of

property value. An entity description is of the form:

[EntityTye EntityID

PropertyName PropertyType PropertyValue

…

PropertyName PropertyType PropertyValue

]

An entity description contains a set of triplets

about a single entity. EntityId specifies the subject,

PropertyName is a predicate, and PropertyValue is

an object. EntityType and PropertyType specify the

types of the corresponding subject and object. It is

necessary that elements in EN packet are self-

describing. PropertyValue in EN can be an identifier

of the other entity, and additional statements can

give information about those entities. This allows

relations to be represented. The relations can be

between physical entities, e.g. a robot is in a room.

Or, the relations can be between digital entities. For

example, the first entity of a message can specify a

list and refer to all list member entities.

Here is an example in which a room entity

description refers to a temperature sensor in that

room. For convenience, in this and all the following

examples we replace "http://ee.oulu.fi/o" by "EE"

and "http://www.w3.org" by "W3":

[EE#Room EE#room1879

EE#hasTempSensor EE#EntityId

EE#tempSensor234

]

[EE#TempSensor EE#tempSensor234

EE#tempValue W3/2001/XMLSchema#float

“23.5”

EE#timestamp

W3/2001/XMLSchema#dateTime

“2007-10-22T12:00:00-17:00:00”

]

The type EntityID is an exception in the type

system as all other types are XML Schema types.

EntityId specifies the corresponding property value

to be an entity identifier – not a literal URI (that

would be the XML Schema type anyURI). Literals

are enclosed in double quotes, as some data types

such as base64Binary data type can contain white

space but not double quotes. EN has the ability to

carry any primitive data type defined in XML

Schema types, including text data, binary data, et al.

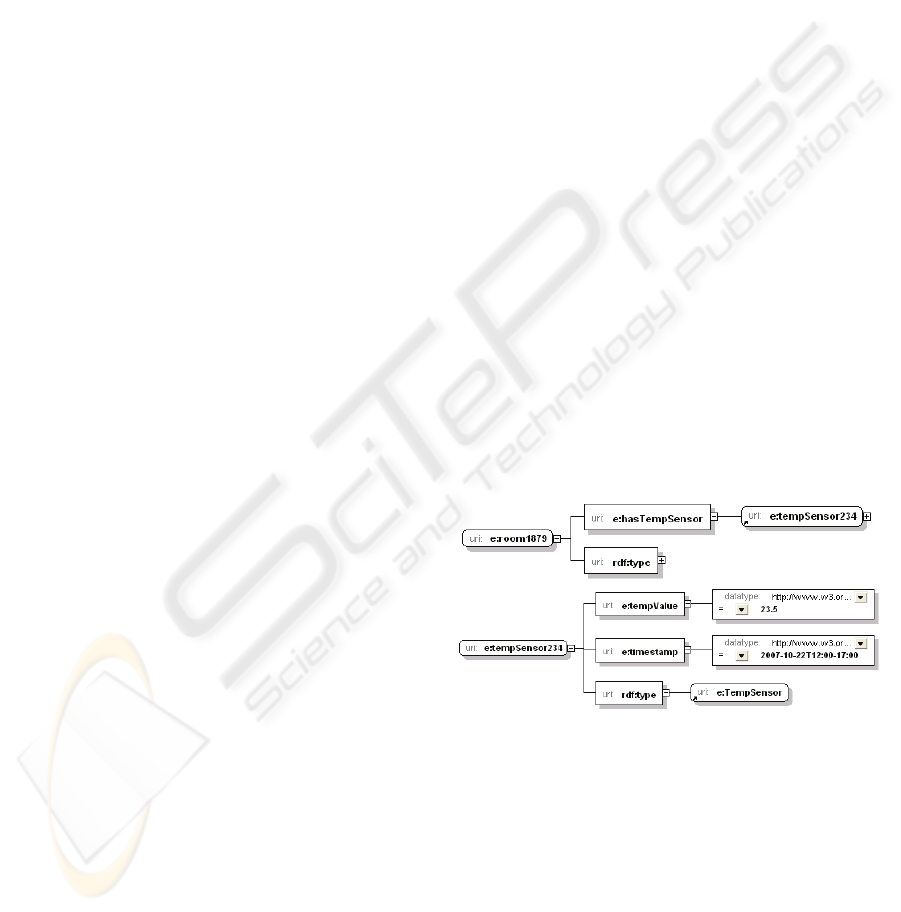

A complete packet can be transferred to a RDF

description in a straightforward fashion because of

their natural relationship. The entity type can be

represented as a resource class (using the rdf:type

property) and the entity identifier is the identifier of

the resource. Property names and values can be

mapped directly, and the property type can be

represented by adding a rdf:datatype attribute to the

property element. Here is the RDF graph

corresponding to the example above.

Figure 2: RDF graph representing a sensor’s data package.

Complete EN packets can be quite long because

of meaningful type names and URIs. To shorten the

complete packets, we suggest templates and

prefixes. The basic idea is that a template contains a

description of the constant part of a packet and

placeholders for the variable parts that differ in each

packet. The packet sent over the communication link

needs to contain only the template identifier and the

changing information. A complete packet can then

be assembled by replacing the template’s

SEMANTIC SUPPORT FOR RESOURCE-CONSTRAINED ROBOT SWARM

273

placeholders with the values contained in the

package. Prefixes are used where the values are

URIs. Such as the above example of room entity and

temperature sensor inside, if we have for the packet

the templates:

[EE#Room EE#room1879

EE#hasTempSensor EE#EntityId ?1

]

and

]

[EE#TempSensor EE#tempSensor234

EE#tempValue W3/2001/XMLSchema#float

EE#timestamp

W3/2001/XMLSchema#dateTime ?2

]

And then template has the identifier urn:uuid:

ad7g38 and urn:uuid:5e76af, we can represent

the packets as:

[urn:uuid:ad7g38 EE#tempSensor234]

[urn:uuid:5e76af

“23.5”

“2007-11-22T12:00:00-17:00:00”]

Robots and swarm server can have predefined

templates for each packet they can send. Usage of

short packets can either be decided by the engineer

at design time or the robots can use complete

packets by default and agree the short format during

communication. The negotiation of EN packets is

not in the scope of this paper.

4 THE CONTEXT

INFORMATION ONTOLOGY

MODEL

Context information gathered from environment can

increase a robot swarm’s capabilities by enabling

them to adapt to the conditions of environment. By

context, we refer to any information that can be used

to characterize the situation of an entity (

Dey and

Abowd 2000

An ontology-based approach lets us describe

contexts semantically, and share common

understanding of context among devices, users, and

services. Here, ontology refers to the formal, explicit

description of concepts, which are often conceived

as a set of entities, relations, instances, functions,

and axioms. Our context information ontology

model facilitates context reasoning, context sharing

and reuse. For example, the model can be extended

with information about other devices, or it can be

merged with another ontology to describe a larger

domain. We will introduce ontology-reasoning and

general-purpose rule-based reasoning in the next

section.

Figure 3: Main catalogue of Context Information

Ontology Model.

In our scenario, we assume a smart house which

is equipped with networked robots and devices, such

as cleaning robots, RFID tags, temperature sensors,

and air conditioners. As shown in Figure 3, context

information ontology models the basic concepts for

our scenario, like device, environment, person, time

and location; describes properties and relationship

between these concepts. The context information

ontology can be extended to different environment

easily depending on other application scenarios.

5 INFERENCE MECHANISM

As discussed above, inference engine will be

triggered when the information from robots is added

into context information ontology. New knowledge

will be produced by reasoner and distributed to

devices in EN format. If the EntityID of the deduced

statement is one device, EN composer will add one

header packet before other packets and deliver them

to that device. If its EntityID is not device, the

swarm server will distribute it to robots have

subscribed this information.

Currently, our inference mechanism supports

OWL Lite inference and rule-based inference. OWL

Lite inference supports constructs of describing

classes, properties, and also relationship between

classes and properties. The following example

illustrates that a subClassOf relationship among

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

274

devices is transitive.

(CleaningRobot rdfs:subClassOf Robot)

∧

(Robot rdfs:subClassOf Device) ->

(CleaningRobot rdfs:subClassOf Device)

Rule-based inference could provide forward

chaining, backward chaining and hybrid models to

execute rules over RDF graph. Here are example

rules to show how robots’ data is reasoned and how

reasonor deduces an informed action. In these rules,

a cleaning robot tests whether the light of room

TS354 is on, and reads previous cleaning time from

RFID tag. If the light is on, it may means that

someone is working in the office, cleaning robot will

go away. If previous cleaning time is not longer than

24 hours, room is no need to be cleaned. In case that

the light is off and previous cleaning time is longer

than 24 hours, cleaning robot will clean this room.

(roomTS354, lightIntensity, on) ->

(cleaningRobot521, goAway, roomTS354)

(rfidTS354, previousCleaningTime, ?PT)

∧

lessThan(currentTime-PT, 24hours) ->

(cleaningRobot521, goAway, roomTS354)

(roomTS354, lightIntensity, off)

∧

(rfidTS354, previousCleaningTime, ?PT)

∧

greaterThan(currentTime-PT, 24hours)

-> (cleaningRobot521, clean, roomTS354)

6 SIMULATOR

We develop a simulator to simulate the EN-based

communication between devices and provide the

semantic support from the swarm server. We create

four types of devices in the simulator: cleaning robot,

temperature sensor, a wireless device designed for

reporting the patient’s well-being to nurses (Riekki

et al. 2007) and a location sensor. In the indoor robot

system scenario we described in this paper, we pay

attention to cleaning robot and temperature sensor in

the simulator.

In the simulator, the user can specify messages for

any device, assemble short packets or complete

packets, and send them to the swarm server. The

swarm server transforms packets into RDF format,

adds them into context information ontology model,

and reasons on data from the robots. The deduced

result will be delivered to the specific device or all

devices according to the entity identification of the

deduced packet. We add one entity in front of each

message to describe the message itself: the type, the

sender, receiver, and a sequence number. This entity

is included in template. In a real implementation,

such an entity will not be needed if the same

information is carried by the lower layer protocol.

Figure 4 shows situations in which the cleaning

robot has sent a short packet to the swarm server and

got responded action. In the cleaning robot window,

user can specify the details of the message: the

receiver’s ID, message type, and the data content

which shows the room situation that the cleaning

robot is located in, including previous cleaning time

and whether the room’s light is on. Cleaning robot

can assemble complete or short message, and will

get corresponding message format from the swarm

server. The swarm server responds the robots’

message automatically, and sends the deduced

message according to the rules specified in previous

section.

The first screenshot in Figure 4 shows a short

packet including the previous cleaning time and light

on/off as following:

[urn:uuid:9c38ee “900”

“2008-05-26T05:00:00” “false”]

In this message, the identifier

urn:uuid:9c38ee determines the template, 900 is

the sequence number, and the last two values are the

previous cleaning time of the room and the light off

boolean tag. The swarm server deduces that the

cleaning robot should clean this room TS354 and

informs the cleaning robot to clean it by the

following short packet:

[urn:uuid:bd61dee5-e9b8-422e-948d-

e7799caae04b “1001” EE#TS354 “pending”]

In this message, 1001 is sequence number, and

the following value shows the room need to be

cleaned and the action status is pending.

In the simulator, the swarm server and the robots

can send 17 different packets in total: the server can

send requests to the robots, while the robots can

reply to the server’s requests, and send

asynchronous inform to the server. We calculate the

length of these 17 packets, and find the result is

quite promising. Short EN packet format contains on

the average only 12.68% of the characters that a

complete package contains and 9.67% of the

characters that the corresponding RDF document

contains.

SEMANTIC SUPPORT FOR RESOURCE-CONSTRAINED ROBOT SWARM

275

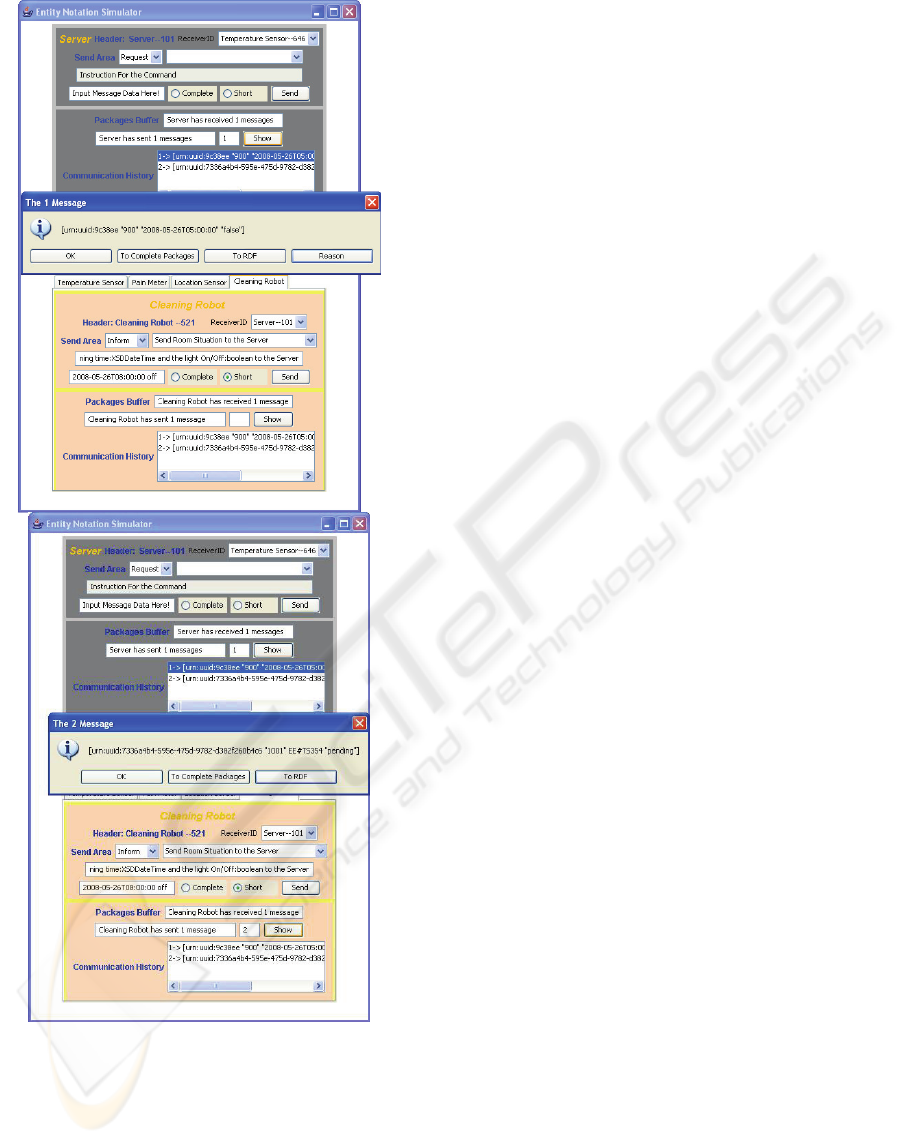

Figure 4: The Simulator Simulates the Cleaning Robot

Scenario.

7 RELATED WORK

The idea of using Semantic Web technology to

facilitate swarm intelligence has been reported by

Boley (2007), but no resource-constrained robots

have been integrated into the Semantic Web-based

system before. We propose EN as a lightweight data

representation for robots to support Semantic Web

technology. We have compared EN in (Riekki, Su

and Haverinen 2008), with XML compression

technologies, e.g. Gzip (

Gzip.org 2003), XMLPPM

(

Cheney 2000), XMLZip (XMLSolutions 1999), and

some markup or data serialization languages, like

JSON (

json.org 1999), and YAML (yaml.org 2008).

The result shows that the EN can almost reach the

best compression ratio among XML compression

technologies, while requiring minimal amount of

computation for composing EN packets. Another

alternative is binary XML formats, e.g. EXI

(

W3C.org 2008), WAP Binary XML Content Format

(

W3C.org 1999), and Infoset (W3C.org 2004). They

are designed to provide a compact representation of

XML for communication. They mainly use token-

based compression schema in which each element,

attribute, and so forth is encoded as a small integer

value. Compared with them, EN could reach better

compression rate and require less message

sterilization processing power. Besides, EN has the

advantage over the XML compression and binary

XML solutions is that the EN packets are more

human readable.

Many systems also adopted the solutions of

expressing context information as ontology and

using Description Logic (DL) based rules. Chen et

al. (2004) proposed OWL to represent context

information, and they utilized Java Expert System

Shell (Jess) (

Friedman-Hill 2008) to realize rule-based

reasoning. Want et al. (2004) also modelled context

by OWL in semantic Space project. They designed a

two-layer context model for expressing context

information, and reasoning was implemented using

Jena. Korpipää et al. (2003) also presented a work

on developing a lightweight ontology for mobile

device context-awareness. But their context structure

is represented using RDF, and this ontology contains

only concepts, properties, and concept taxonomies,

but no constraints. Our system has the advantage

that the system can produce real-time deduced

packets, and inform the robot swarm to perform

them.

8 CONCLUSIONS

This paper presented an approach for semantic

support of resource constrained robots in intelligent

applications. We described our EN-based

communicative architecture, which can complete the

loop between robots and the swarm server by EN

packets. We proposed EN formats, context

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

276

information ontology model, and a reasoner based

on context information. We presented experiments

and some promising results using a simulator.

The EN-based communicative architecture can

be utilized for very resource-limited robots. It

enables semantic functionality for the swarm of

robots. The EN allows very simple and short packets

to be sent by the robots; on the other hand these

packets can be transformed into advanced

knowledge representations in an unambiguous

fashion. For example, when the robot does not even

contain any OS but all functionality is programmed

directly using C, it is straightforward to use UUID

values as constants that are used to identify received

packets and placed at the beginning of the sent

packets.

The swarm server can transform EN packets

from the robots into RDF format, use the

information to deduce new tasks relevant to context

information, and adapt the operation of the swarm to

perform given actions efficiently. The context

information ontology model and inference

mechanism of swarm server provide semantic

support for the swarm robots.

The simulation result shows that the length of

short packets is less than 10% of the corresponding

RDF document’s length. These results are compared

with other lightweight representation. Furthermore,

when short EN packets are used, only composer and

decomposer are needed for pre-process. A resource-

constrained device does not need to run any complex

algorithm to process the packet.

The future work includes building the first

prototype where real robots use our EN-based

communication. We will consider the uncertainty

and dynamics in a real robot swarm system. EN can

also be used in robot-to-robot communication in

order to minimize bandwidth and computational

overhead. Finally, we will develop the lightweight

communication framework further based on this

work, for example, to make more complex data

structure be transferred to EN possible.

ACKNOWLEDGEMENTS

This work was funded by Infotech Oulu. The author

would like to thank the participants of

ROBOSWARM project.

REFERENCES

Boley, H & Chang, E 2007. Digital Ecosystems:

Principles and Semantics, in Proceeding of IEEE

International Conference on Digital Ecosystems and

Technologies. IEEE Computer Society Press, Cairns, pp.

398-403.

Chen, H, Finin, T, Anupam, J, Kagal, L, Perich F & Dipanjan,

C 2004, ‘Intelligent Agents meet the Semantic Web in

Smart Spaces’, Internet Computing, vol. 8, no. 6, pp.

1545-1651.

Cheney, J 2000. Compressing XML with Multiplexed

Hierarchical PPM Models, in Proceedings of the IEEE

Data Compression Conference. IEEE Computer Society

Press, Snowbird, pp.163-172.

Dey, A & Abowd, G 2000. Towards a Better Understanding

of Context and Context-Awareness, in Workshop the

what, who, where, when, and how of context-awareness at

CHI 2000. ACM Press.

Friedman-Hill, E 2008, Jess, the rule engine for the javaTM

platform, viewed by 24 April 2009,

<http://herzberg.ca.sandia.gov/jess/index.shtml>.

Gzip.org 2003, The gzip home page, viewed 24 April 2009,

<http://www.gzip.org/>.

Holland, O & Melhuish, C 1999. ‘Stimergy, Self-

Organization, and Sorting in Collective Robots’, Artificial

Life, vol.5, no. 2, pp. 375-393.

Json.org 1999, Introducing JSON, viewed 24 April 2009,

<http://www.json.org/>.

Korpipää, P, Mantyjärvi, J, Kela, J, Keranen, H & Malm, EJ

2003. ‘Managing Context Information in Mobile

Devices’, Pervasive Computing. vol.2, no. 3, pp. 42-51.

Riekki, J, Alakärppä, I, Koukkula, R, Angeria, J, Brockman,

M & Saloranta, T 2007, Wireless Pain Monitoring, in The

2nd International Symposium on Medical Information

and Communication Technology. University of OULU

Press.

Riekki, J, Su, X & Haverinen, J 2008. Connecting Resource-

Constrained Robots to Knowledge-Based System, in

Proceeding of International Conference on Modelling,

Identification and Control. ACTA Press.

Studer, R, Benjamins, VR & Fensel, D 1998. ‘Knowledge

engineering: principles and methods’, Data Knowledge

Engineering, vol.25, no.1-2, pp. 161-198.

Wang, X, Dong, JS, Chin, CY, Hettiarachchi, SR & Zhang, D

2004, ‘Semantic Space: An Infrastructure for Smart

Spaces’, Pervasive Computing, vol.3, no. 3, pp. 32-39.

W3C.org 2004, RDF Primer, viewed 24 April 2009,

<http://www.w3.org/TR/REC-rdf-syntax/>.

W3C.org 2008, Efficient XML Interchange (EXI) Format 1.0,

viewed 24 April 2009, http://www.w3.org/TR/2008/WD-

exi-20080919/.

W3C.org 1999, WAP Binary XML Content Format, viewed

24 April 2009, <http://www.w3.org/TR/wbxml/>.

W3C.org 2004, XML Information Set (Second Edition),

viewed by 24 April 2009, <http://www.w3.org/TR/xml-

infoset/>.

XMLSolutions 1999, XMLZip - XML Solutions, viewed 07

June 2008, <http://www.xmls.com/>.

Yaml.org 2008, YAML Ain’t Markup Language Version

1.2, viewed 24 April 2009, <http://yaml.org/spec/1.2/>.

SEMANTIC SUPPORT FOR RESOURCE-CONSTRAINED ROBOT SWARM

277
