FAST RE-ESTABILISHMENT OF IKEV2 SECURITY

ASSOCIATIONS FOR RECOVERY OF IPSEC GATEWAYS IN

MOBILE NETWORK

Peng Yang, Yuanchen Ma and Satoshi Yoshizawa

Hitachi (China) Research and Development Corporation

301, North Wing, Building C, Raycom Infotech Park, Beijing 100190, China

Keywords: IKEv2, Fail-over, IPsec, IPsec gateway, Fast IKEv2 SA re-establishment.

Abstract: IKEv2/IPsec has been widely deployed, such as in VPN and MIPv6, to support mutual authentication,

access control and traffic protection in internet. IKEv2/IPsec gateways may maintain huge number of

IKEv2/IPsec security associations. If gateway encounters failure or over-load, it will take a long time to re-

establish security associations in another IKEv2/IPsec gateway. The major reason is that regular procedure

of IKEv2 incurs long delay because of multiple signalling exchanges and complex computation especially

in Diffie-Hellman exchange. In this paper, a new IKE SA re-establishment solution is proposed to reduce

the overhead of computation and signalling by directly transferring IKE SA from old gateway to new

gateway via independent IKE SA storage (stub bank). The most expensive Diffie-Hellman exchange and

some of signalling can be avoided. Therefore, a huge amount of IKE/IPsec security associations can be re-

established in a short time. The applicability of this solution in mobile network is further analyzed as well.

1 INTRODUCTION

In current Internet world, IP security (IPsec) (Kent,

S. and K. Seo, 2005) has been widely deployed to

provide confidentiality, data integrity, access control,

and data source authentication to IP data packets.

These services of security are supported by

maintaining shared state between source/destination

of an IP datagram. This state, which has

cryptographic algorithms and related keys, defines

specific treatment on datagram.

The straightforward way to establish the shared

state is manual configuration. However, this way is

rather static, which may incur serious risk after a

long run. Therefore, the protocol called Internet Key

Exchange version 2 (IKEv2) (Kaufman, C., 2005)

was designed to establish state of IPsec security

associations (SA) dynamically. IKEv2 achieves

mutual authentication and access control between

two parties and establishes an IKE SA. IKE SA

includes shared secret that can be used to efficiently

establish IPsec CHILD SAs. IPsec has two modes:

Encapsulating Security Payload (ESP) and

Authentication Header (AH). A set of cryptographic

algorithms are used by the IPsec SAs to protect the

carried traffic.

Basically, the IKEv2 procedure is comprised of

two exchanges as shown in Figure 1: IKE_SA_INIT

and IKE_AUTH (Kaufman, C., 2005). In

IKE_SA_INIT, the end nodes negotiate

cryptographic algorithms, exchange NONCES, and

do Diffie-Hellman exchange (Diffie, W., and

Hellman M., 1976). The second stage (IKE_AUTH)

authenticates previous messages, exchange identities

and certificates, and establish first IPsec CHILD_SA.

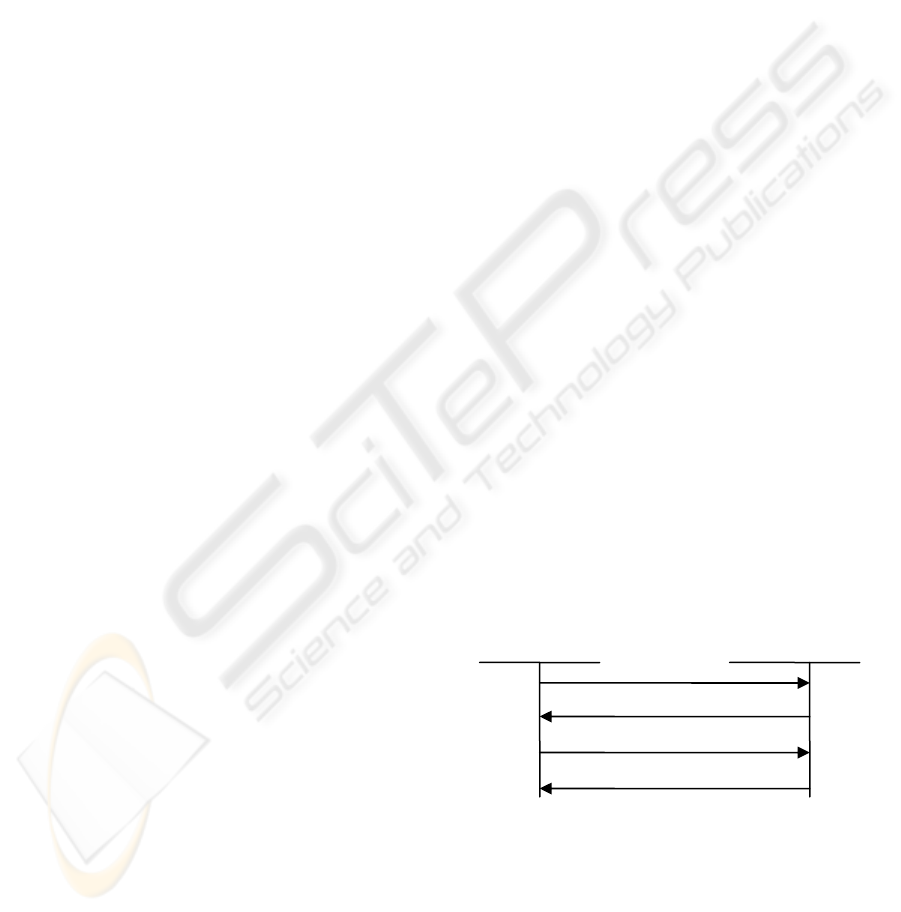

Figure 1: Basic procedure of IKEv2.

After first two exchanges, IKE SA is set up for

maintenance of IPsec SAs and protection of IKEv2

messages. With IKE SA, the two nodes can continue

to establish other necessary IPsec CHILD_SAs by

CREATE_CHILD_SA messages,

In IKE_SA_INIT, Diffie-Hellman (DH) is used

to set up a session secret, from which cryptographic

Initiato

Res

onde

1. IKE_SA_INIT

2. IKE_SA_INIT response

3. IKE_AUTH

3. IKE_AUTH response

111

Yang P., Ma Y. and Yoshizawa S. (2009).

FAST RE-ESTABILISHMENT OF IKEV2 SECURITY ASSOCIATIONS FOR RECOVERY OF IPSEC GATEWAYS IN MOBILE NETWORK.

In Proceedings of the International Conference on Security and Cryptography, pages 111-116

DOI: 10.5220/0002223801110116

 SciTePress

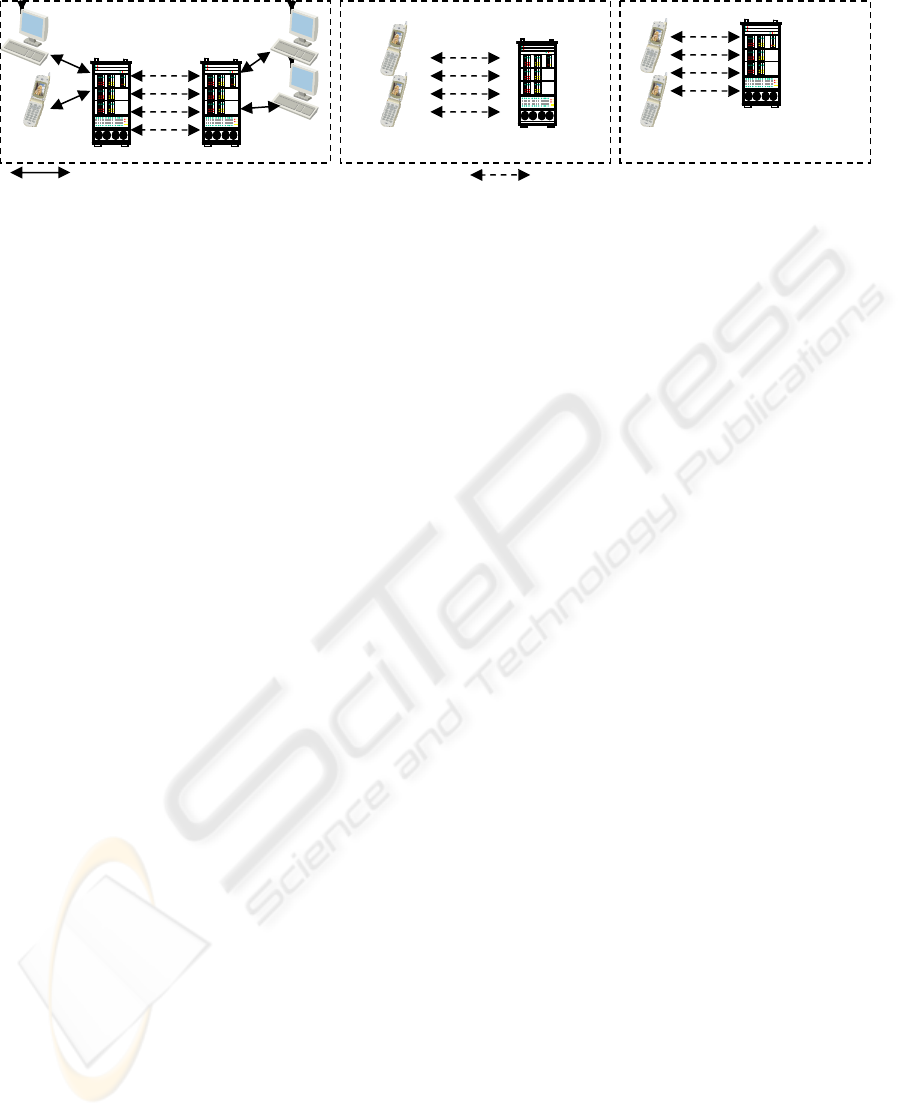

Figure 2: Application scenarios of IKEv2/IPsec.

keys are derived. DH exchange is rather intensive in

computation, since exponential calculation of large

prime factor (at least 768 bits as defined by IETF) is

done on both nodes. Some works have been done to

accelerate the expensive DH algorithm (Daniel J.

Bernstein, 2006). Besides DH exchange, timing

overhead of IKEv2 signalling is rather big especially

when the Extensible Authentication Protocol (EAP)

(Aboba, B., et.al, 2004) is used for third-party

authentication. According to our experiment, time

consumed by initial two exchanges of IKEv2 could

typically be 1 second in PentiumM PC with some

other protocol daemons running together. In the

meanwhile, the follow-up CREATE_CHILD_SA

exchanges are rather less complex and fast.

Typical application scenarios of IKEv2/IPsec are

shown in Figure 2. In IPsec tunnel mode, entire IP

packet (data and IP header) is encapsulated into a

new IP packet and encrypted and/or authenticated by

ESP/AH header. Tunnel mode is normally used by

VPN for network-to-network communications. In

IPsec transport mode, AH/ESP header is added after

the IP header for encrypted and/or authenticated,

which is used for host-to-host communications. The

third scenario (Arkko, J., et. al, 2004) is tunnel mode

for host-to-network communication, which is

typically used to protect traffic between Mobile IPv6

(MIPv6) Home Agent (HA) and Mobile Node (MN).

Sometimes the third one is still treated as tunnel

mode. In all of these scenarios, IPsec gateway/client

can be either IKEv2 initiator or responder.

In all the three scenarios, IPsec gateways (eg:

VPN server, MIPv6 HA) may serve a bunch of IPsec

clients simultaneously. If IPsec Gateway fails/over-

loads, re-establishment of IKEv2/IPsec SAs during

recovery will be quite time-consuming. Gateway

must re-run time-consuming exchanges of IKEv2

initiation for a large number of SAs with all end

points. A big number of concurrent IKE_INIT could

have high possibility of exhausting CPU resources

of IPsec gateway. And, the long time of IPsec

gateway recovery will also harm service experience

of uses. The same problem happens in the security

protocols of other layers. Solutions were made to do

fast recovery as well, such as in TLS (Salowey, J.,

et.al., 2008).

In this paper, a new IKEv2 SA re-establishment

solution is proposed to reduce the overhead of

computation and signalling by directly transferring

IKE SAs from old gateway to new gateway via

independent IKE SA storage (stub bank). The most

expensive Diffie-Hellman calculation and part of

exchanges can be avoided. Clients can re-establish

IKE SAs without IKE initiation exchanges during

gateway recovery. The paper is organized as below:

in chapter 2, the solution is discussed in details,

wherein the applicability in mobile network will also

be discussed. The security and performance are

evaluated in chapter 3, which is followed by the

conclusion.

2 PROPOSED SOLUTION

2.1 Re-building Key-ring of IKE SA

Upon failure or over-load, IPsec gateway loses all

IKE SAs stored locally. A new data structure called

"stub" is created, which has part information of all

IKE SAs. And gateway can use this data structure to

accelerate rebuilding of IKE SAs. The stubs are

stored in stub bank, which may be independent

equipment or co-locate with some other servers

(such as AAA server, etc). One stub must at least

include following information:

- IDi, IDr.

- SPIi, SPIr.

- SAr (the accepted proposal).

- SK_d_old.

- life-time

The new keys are derived from SKEYSEED.

The way of making SKEYSEED is borrowed from

Un-

rotected IP traffic

Protected IP traffic b

IPsec

Gateways

IPsec Gateway

MIPv6 HA

clients clients clients

MIPv6 MN

Tunnel Mode

Transport Mode

Tunnel Mode in MIPv6

SECRYPT 2009 - International Conference on Security and Cryptography

112

IKEv2 base protocol (Kaufman, C., 2005) with some

simplification as below:

)|,__( NrNiolddSKprfSKEYSEED=

(1)

"prf" refers to "pseudo-random function", one of the

cryptographic algorithms negotiated in IKEv2.

SK_d_old is retrieved from corresponding stub by

gateway and used for deriving new keys. It

definitely exists in IKE SAs of clients. Ni and Nr are

nonce generated by both sides. They are conveyed

by means defined in chapter 2.3.

After SKEYSEED is derived, new keys of re-

established IKE SA can be generated as following:

{_|_|_|_|_|_|_}

(,|||_)

SK dSK aiSK arSK erSK eiSK piSK pr

prf SKEYSEED Ni Nr SPIi SPIr new=+

(2)

The usage of keys derived in (2) can be found in

(Kaufman, C., 2005). SPIi is provided by client.

SPIr_new is newly generated by IPsec gateway to

avoid potential SPI conflict.

2.2 Extensions on IKEv2 Protocol

As for protocol, it’s important to make the mutual

authentication between clients and new IPsec

gateway. Client must provide references of stubs,

since new gateway probably doesn’t have stubs

beforehand at all. With this reference, new gateway

can easily find the stub from stub bank. In this sense,

the reference must uniquely index the corresponding

stub related to each client. The format of index can

be defined by operators of stub bank. In this solution,

the quaternion of {IDi, IDr, SPIi, SPIr} is used as

stub reference.

In this solution, the regular IKE_SA_INIT

exchange is extended to support fast re-

establishment of IKE SA. When, client knows

failure or over-load of old Gateway and discovers

new IPsec gateway, it will initiate the IKE_SA_INIT

message with extensions as

Figure 3. The content of

this message is defined below:

HDR, SAi1, KEi, Ni, [REF], SK{[REF]}. (M1)

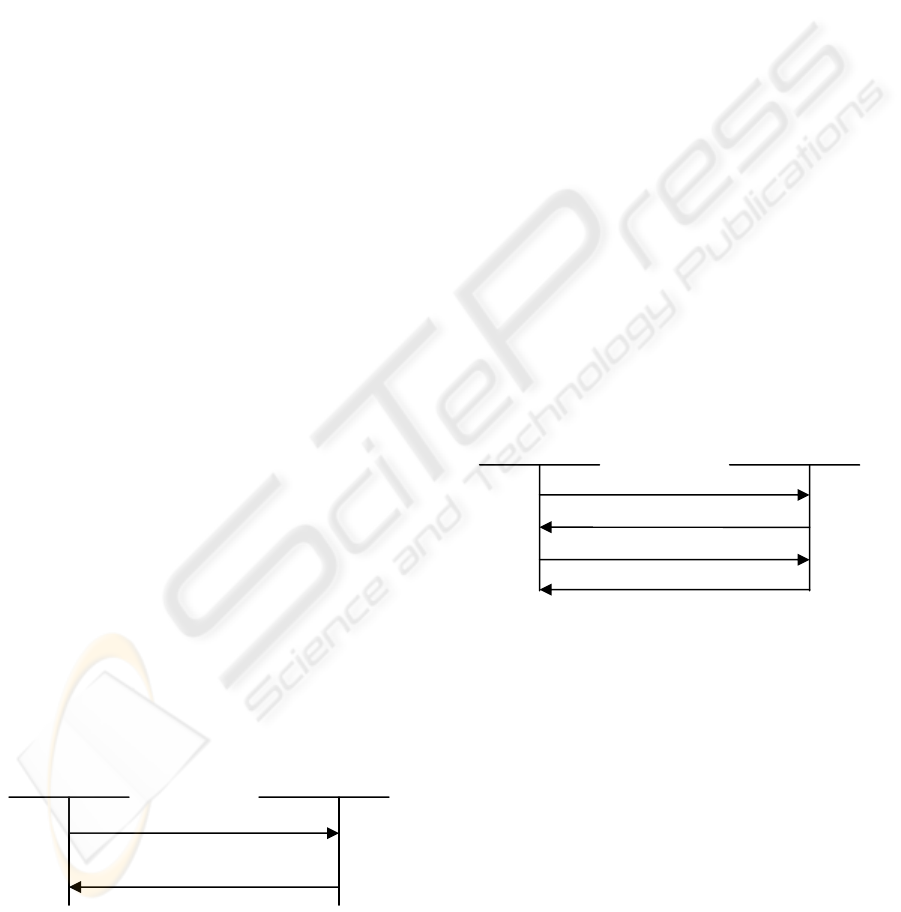

Figure 3: Exchange for re-establishment of IKE SA.

The first four fields are same as the regular

IKE_SA_INIT message in IKEv2 protocol. [REF] is

reference of stub, which is the quaternion {IDi, IDr,

SPIi, SPIr} in this paper. SK{}, as defined in

(Kaufman, C., 2005), contains encrypted stub

reference. The encryption algorithm is from stub.

Upon receiving this message, gateway will first

get the reference from [REF] and retrieve the related

stub from stub bank. Then gateway needs to decrypt

the SK{} value and compare the decrypted content

with [REF]. If they match each other, gateway can

successfully authenticate the client and proceed to

calculate new key-ring as defined in chapter 2.1.

With the new key materials, gateway could build the

IKE_SA_INIT response as below:

HDR, Nr, SK{IDr, Nr}. (M2)

HDR is the message header with the type of

IKE_SA_INIT. The new SPIr can be found inside as

well. Nr is the nonce to refresh key materials. SK{}

is encrypted by the new key materials in (2). With

the information in this message, the client can re-

calculate the key-ring and decrypt the SK{} content.

The decrypted Nr value will be compared with the

Nr value in the message, in order to authenticate the

gateway. If result is OK, the new IKE SA can be set

up quickly without DH exchange and some other

exchanges (like EAP, etc). Both nodes can proceed

to generate the IPsec CHILD SA as defined in

(Kaufman, C., 2005).

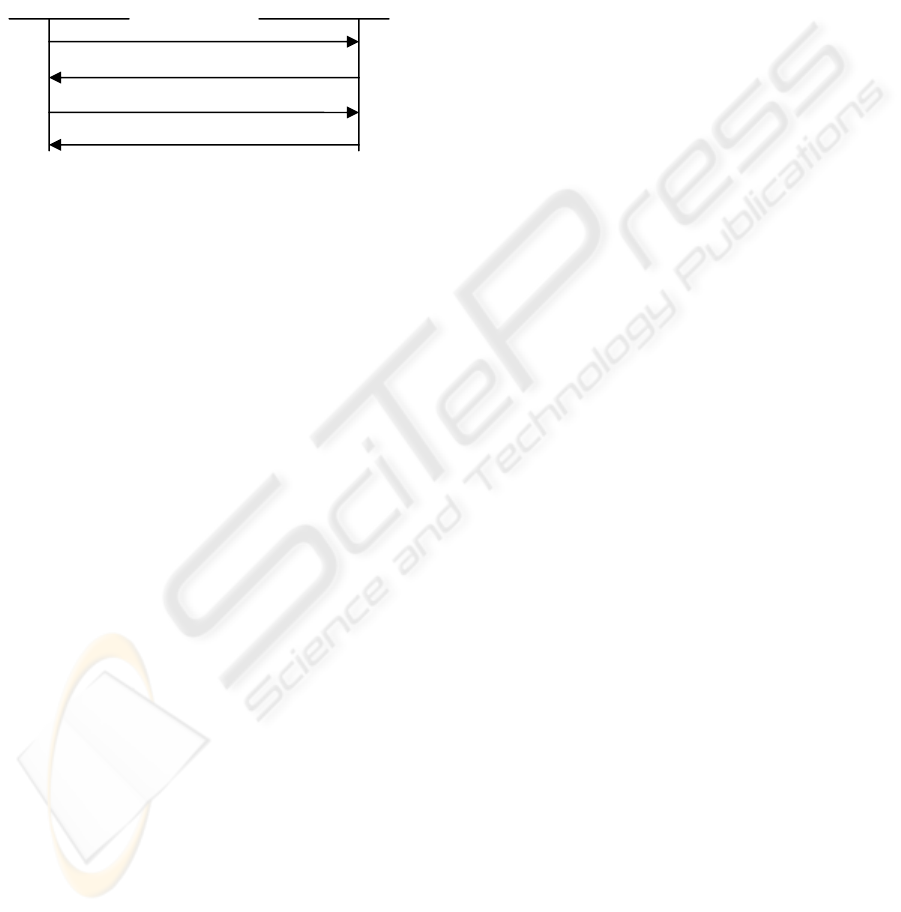

Figure 4: Exchange for re-establishment of IKE SA in

unsuccessful case.

The fast IKE SA request from client may be

rejected by gateway. For example, authentication of

client may failure, or the stub reference is not valid,

or stub is no longer valid upon the request, etc. In

these cases, gateway can fall back to the regular

IKEv2 procedure as shown in

Figure 4. If gateway

has received the IKE_SA_INIT(R) as defined at

message (M1) and decided to reject this request, it

will send regular IKE_SA_INIT response to client

and follow the regular procedure of IKEv2 as Figure

1. On the other hand, if client fails to authenticate

the gateway after message (M2), it can either choose

to re-initiate the procedure in

Figure 3, or trigger the

regular IKEv2 initiation procedure as Figure 1.

Clien

ew IPsec Gatewa

1. IKE_SA_INIT (R)

2. IKE_SA_INIT response

3. IKE_AUTH

4. IKE_AUTH response

Clien

ew IPsec Gatewa

1. IKE_SA_INIT (R)

2. IKE_SA_INIT response (R)

FAST RE-ESTABILISHMENT OF IKEV2 SECURITY ASSOCIATIONS FOR RECOVERY OF IPSEC GATEWAYS IN

MOBILE NETWORK

113

2.3 Operations of Stub Bank

There are many ways to build stub bank. It can be

independent equipment, or be together with some

servers like AAA server, OMC, etc. Whatever

embodiment of stub bank is, there must be some

way to synchronize stubs with IKE SAs on IPsec

gateway. The protocols to synchronize stubs could

be extension of other protocols (such RADUIS, etc),

or new protocols. In this paper, we implemented a

simple protocol for maintenance of stub. The stubs

will be expired after the corresponding IKE SA is

expired. Another problem is when the stubs should

be synchronized. Basically, when IKE SA is set-up,

re-keyed, expired, or closed, the related stubs must

be synchronized between stub bank and IPsec

gateway. Sometimes, the IKE session may exist for

a long time without re-key, operators can define a

cycle for synchronization. In this paper, the timer of

stub synchronization cycle is set to be half cycle of

the re-key timer. Stub is only valid for one time use.

After successful transaction, the stub will be deleted.

And, new IPsec gateway must update the stub while

IKE SA is re-built.

2.4 Analysis on Applicability in Mobile

Network

As specified in (Devarapalli V., et.al, 2007) and

(Arkko, J., et. al, 2004), IPsec is mandatory to

protect mobile IPv6 (MIPv6) signalling by transport

mode. It’s recommended to use protect traffic by

tunnel mode. IKE SA is set up between mobile node

(MN) and home agent (HA). CHILD SAs are

between home address (HoA) of MN and HA, while

IKE SA is between Care-of Address (CoA) and HA.

When HA, which is also IPsec gateway, fails or

overloads The route of CoA in MN is still available.

It can use CoA to initiate the re-establishment of

IKE SA quickly. After IKE SA is set up, MN can

use build the CHILD SA between HoA and HA by

regular IKEv2 protocol. The solution in this paper

does not rely on HoA of MN. So, unavailability of

HoA route does not hurt its applicability in MIPv6.

Another consideration is handover. MN gets new

CoA in another network after handover. If HA fails

before MIPv6 re-registration and IKE/IPsec SA

update, the new CoA will not be updated in the

network side. However, the solution of this paper

does IKE SAs’ rebuilding and mutual authentication

without the help from CoA as well.

Lastly, mobile network has limited radio

resources, especially in reverse link. When, a big

number of clients want to initiate a procedure at the

same time, the intensive signalling may congest the

reverse link. But, in the solution of this paper, the

extension part of IKE_SA_INIT is quite short: a few

bytes for reference and encrypted reference. It’s has

much low possibility of congestion.

3 EVALUATIONS

3.1 Security Analysis

3.1.1 Mutual Authentication

One of the most important functions of DH

exchange is to authenticate the IKEv2 client and

gateway with each other.

SK_d is keying material of IKE SA for deriving

new keys for CHILD SAs (Kaufman, C., 2005). It is

updated when IKE SA re-key is done. Mutual

authentication in this paper is done based on SK_d.

While client initiates IKE_SA_INIT with extensions,

it must encrypt the stub reference in SK{} by SK_d.

Gateway can authenticate the client by decrypting

SK{} content using SK_d in the stub and comparing

it to [REF] provided by client. In order to be

authenticated by clients, gateway needs to enclose

encrypted IDr and Nr in SK{} by the newly

generated keying materials as defined in (2). Then,

client will derive new keys and decrypt SK{} from

new gateway. Finally, it can authenticate the

gateway by comparing decrypted information to the

corresponding part in the message.

Operator may want to refresh key material before

IKE SA re-establishment. In this case, client can

generate a temporary key (say SK_dt) for mutual

authentication as (3). The information of SK_d_old,

SPIi and SPIr can be found in stub. Ni is generated

by client for refreshment of key materials.

)||,__(

}_|_|_|_|_{

SPIrSPIiNiolddSKprf

erSKeiSKarSKaiSKdtSK

(3)

3.1.2 Deny-of-Service (DoS) Attack

While new IPsec gateway fails/overloads, there may

have a big number of clients try to initiate the IKE

SA re-establishment at the same time. The gateway

may treat this situation as Deny-of-Service (DoS)

attack. This paper borrows the cookie mechanism of

IKEv2 protocol with some extensions.

As shown in

Figure 5, if new gateway finds

potential risk of DoS attack, it will respond the

message with cookie.

SECRYPT 2009 - International Conference on Security and Cryptography

114

The format of message is defined below (M3).

HDR, N(Cookie). (M3)

While receiving cookie, client will re-initiate the

IKE_SA_INIT with reference extensions and cookie.

The format of this message is defined below (M4):

HDR, N(Cookie), SAi1, KEi, Ni, [REF],

SK{[REF]}.

(M4)

Figure 5: Cookie mechanism for DoS attack.

At gateway, it will compare received cookie with

the one stored locally to validate client. This attack

can be less effective, if an implementation of a

gateway uses minimal CPU and commits no state

until it knows the client can receive packets at the

address from which it claims to be sending them.

3.1.3 Life-time of Stub

It’s important to set a life-time of stub. The main

reason is IKE SA of client may be expired during

unavailability of gateway. In this case, the fast IKE

SA can not be finished, since there is no information

for derivation of key materials on client. So, the life

time of stub is recommended to be the same as IKE

SA. Once key-ring is updated, life time of stub must

be reset as well.

3.1.4 Detection of Failure or Overload

It’s not the main target of this solution to define the

way to detect the gateway failure or overload. One

possible method is that client can know failure of

IPsec gateway when multiple packets of ICMP

unreachable are sent from network side. The

operators who deployed this solution can define the

related policies.

But, there is the possibility that client misjudge

gateway failure/overload, while the IKE SA is still

valid on the gateway. In this case, gateway may

rebuild IKE SA and IPsec CHILD SA in vain, which

is obviously unacceptable. Furthermore, there is the

case that client keeps on sending IKE_SA_INIT, for

example it is cheated continuously. So, gateway

must reject IKE_SA_INIT with extension, while the

corresponding IKE SA is still alive on gateway.

3.1.5 Integrity Protection and Replay

Protection

The integrity checksum at the end of SK{} payload

is used to protect the integrity of the entire messages

as defined in (Kaufman, C., 2005).

Third mid-man may intercept the IKE_SA_INIT

message and replay it to new gateway. The Ni in

IKE_SA_INIT can be used to do replay protection.

In this sense, the new gateway is needed to cache the

nonce for a while. And, new gateway can extend the

regular cookie mechanism of IKE_SA_INIT to

check return routability of client as chapter 3.1.3.

3.2 Performance Analysis

The performance improvement can be separated into

two aspects: time of IKE SA re-establishment and

computational load on new IPsec gateway.

As for timing, considering single IKEv2 session,

regular initiation procedure will at least need 2

round-trips. The solution in this paper only needs 1

round-trip of extended IKE_SA_INIT, which also

avoids DH exchange. Since authentication server

may be far away from gateway, the saved time in

case of IKEv2 with EAP is very significant in real

deployment. Furthermore, if certificate is used for

authentication in regular IKEv2 protocol, more time

will be saved as well.

As for computational load of IPsec gateway, it’s

obvious that DH exchange can be avoided, which is

much more complex than symmetrical transforms

used for SK{}.

3.3 Experimental Result

The solution is tested on openikev2 (openikev2). A

simple stub bank is implemented with a simple

protocol for maintenance of stubs. The gateway and

client are supported by PC (Pentium M 1.2GHz,

512MB RAM, 1Gbps Ethernet, Fedora Core 4). The

size of key is 128 bit. In the experiment, we just

chose DH group 1 (768 bit modulo) and DH group 2

(1024 bit modulo). Certificate is not used in the

regular IKEv2 procedure. To evaluate timing

performance, some codes are added in software of

client to code read the clock information (in micro-

second) directly from CPU registers.

The network structure in the experiment is

shown in

Figure 6. All the equipments are connected

by a CISCO 2950 switch in same VLAN. An

Client

New IPsec Gateway

1. IKE_SA_INIT (R)

2. IKE_SA_INIT response (cookie)

4. IKE_SA_INIT response (R)

3. IKE_SA_INIT (R, cookie)

FAST RE-ESTABILISHMENT OF IKEV2 SECURITY ASSOCIATIONS FOR RECOVERY OF IPSEC GATEWAYS IN

MOBILE NETWORK

115

attacker is added to test performance of replay

protection and anti-forge. A simple rule of

fail/overload detection is made: if 3 consecutive

IPsec packets (with continuous sequence numbers)

are echoed by the switch with ICMP unreachable,

the client will start the procedure of fast IKE SA re-

establishment with the other IPsec gateway. So, it

can simulate fail/overload of gateway by shutting

down the connection of original gateway. The

addresses of gateways are pre-configured in clients.

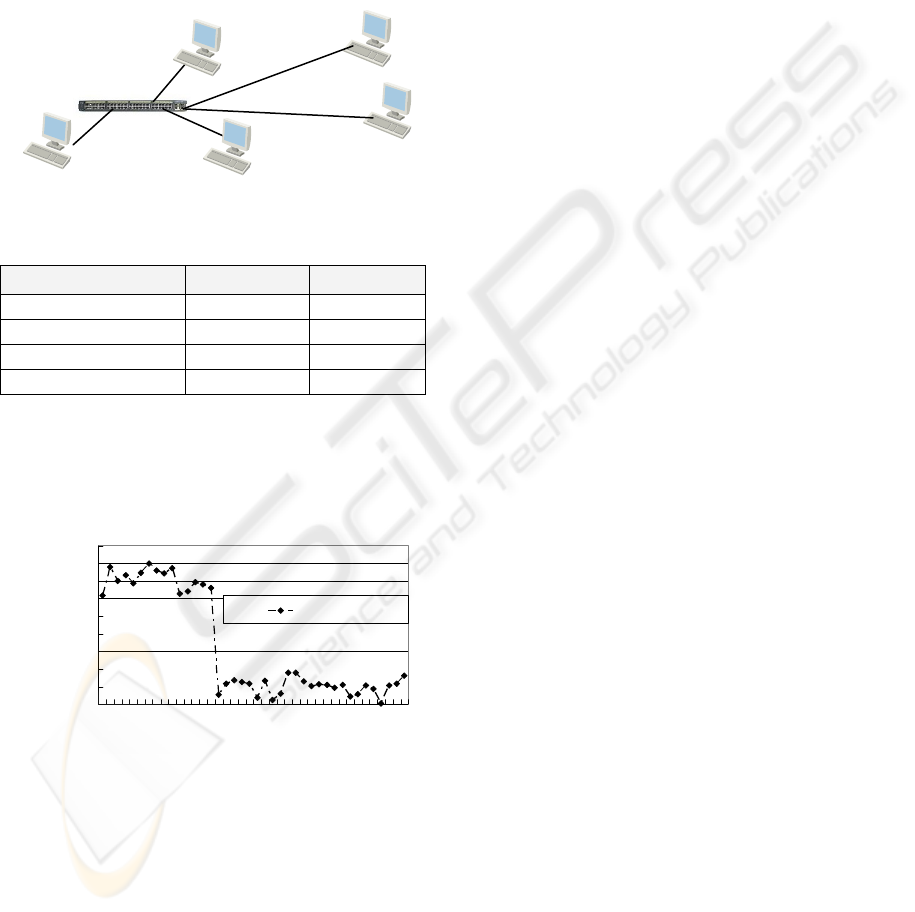

Figure 6: Experiment platform.

Table 1: Time of single connection.

Regular IKEv2 Fast solution

DH group1 954 ms 1.73ms

DH group 2 1026 ms 1.82ms

DH group1 with EAP MD5 1722 ms 1.79ms

DH group2 with EAP MD5 2035 ms 1.81 ms

The time of single IKEv2 initiation is shown in

Table 1. It can be seen that the time of fast solution

in this paper can be saved by over 98% percent. If

high order DH group is chosen, this improvement

can be much bigger.

0.00%

0.50%

1.00%

1.50%

2.00%

2.50%

3.00%

3.50%

4.00%

4.50%

1 11213141516171

time (ms)

Percentage of CPU usage in

GW(%)

Anti-Forge

Figure 7: Evaluation of anti-forge.

In regular IKEv2 initiation procedure, the time is

mainly put on DH exchange. And, much CPU

resources are consumed by exponential calculation

(50% percent on the PC). While the fast solution is

applied, it only adds 4% CPU usage by avoiding DH

exchange. So, when IPsec gateway serves a big

number of clients this solution is much more

applicable for.

In the experiment, a simple attacking test is

forged IKE_SA_INIT messages with different IP

addresses from attacker to gateway2. The CPU

usage is only increased by 3.5% averagely in a very

short time because of stub retrieval and decryption.

Then, gateway treats this case as DoS attack. The

small amount of CPU usage (0.5%) is incurred by

TCP/IP processing and cookie maintenance.

4 CONCLUSIONS

In this paper, a new solution is proposed to do

stateless fast IKE SA re-establishment, while the

IPsec gateway encounters failure or overload. By

extending regular IKE_SA_INIT messages, it can

avoid the most time-consuming IKEv2 exchanges

and computationally intensive DH exchange to re-

build IKE SAs. It can be much faster and light-

weighted to transfer millions of IKE sessions from

old gateway to target gateway. On the other hand,

the derivation of key materials and mutual

authentication can be done securely without

compromising base IKEv2/IPsec framework. No

sensitive information is sent though network. Lastly,

the modification of base IKEv2 protocol is quite

small.

REFERENCES

Kaufman, C. “Internet Key Exchange (IKEv2) Protocol”.

RFC 4306, IETF, 2005

Kent, S. and K. Seo, "Security Architecture for the Internet

Protocol", RFC 4301, IETF, December 2005.

Diffie, W., and Hellman M., "New Directions in

Cryptography", IEEE Transactions on Information

Theory, V. IT-22, n. 6, June 1976.

Arkko, J., et. al, “Using IPsec to Protect Mobile IPv6

Signaling Between Mobile Nodes and Home Agents”,

RFC 3776, IETF, June 2004.

Salowey, J., et.al., "Transport Layer Security (TLS) Session

Resumption without Server-Side State", RFC 5077, IETF,

Jan. 2008.

Daniel J. Bernstein,”Curve25519: New Diffie-Hellman Speed

Records”, Lecture Notes in Computer Science, Volume

3958/2006, pp 207-228, April, 2006

Kivinen, T. and M. Kojo, "More Modular Exponential

(MODP) Diffie-Hellman groups for Internet Key xchange

(IKE)", RFC 3526, IETF,May 2003.

openikev2, http://openikev2.sourceforge.net/

Aboba, B., et.al, “Extensible Authentication Protocol (EAP)”,

RFC 3748, June 2004.

Devarapalli V., et.al, “Mobile IPv6 Operation with IKEv2 and

the Revised IPsec Architecture”, RFC 4877, Apr. 2007.

IPsec

Gateway1

IPsec

Gateway2

Stub ban

CISCO switch

clien

tacke

SECRYPT 2009 - International Conference on Security and Cryptography

116
