VISUAL PROGRAMMING LANGUAGE FOR SECURITY

REQUIREMENTS IN BUSINESS PROCESSES AS

MODEL-DRIVEN SOFTWARE DEVELOPMENT

Mirad Zadic and Andrea Nowak

Austrian Research Centers GmbH-ARC, A-2444 Seibersdorf, Austria

Keywords: Model Driven Development, Graphical modeling environment, Security policies Architectures, Access

Control Policy, Business Processes, XACM Policy Generator.

Abstract: Our approach is based on a security modeling framework and a Meta Modeling Environment for design and

generating of access control and security policies for business processes. The framework introduces a

methodology that focuses on both, the modeling as well as the implementation aspect of security-

requirements and consists of a suite of tools that facilitates the correct realization and the cost-efficient

management of decentralized, security-critical workflows. Currently, the framework is being analyzed for

general suitability to domains in business processes, taking basic security requirements like confidentiality,

integrity and non-repudiation. We use Model-Driven Development (MDD) approach to creating our

solutions based on graphical modeling environment as EMF (Eclipse Modeling Framework), GEF

(Graphical Editor Framework) and GEMS (Generic Eclipse Modeling System). This graphical modeling

environment makes possible rapidly creating modeling tool from a visual language description or

metamodel without any coding in third-generation languages. The framework is prototypically validated

through a case study for the systematic realization of e-government related workflows. Realizations of

security issues follow the steps from provide methodologies that translate the abstract security requirements

into run-time artifacts for the target architecture through model transformation. On this approach for this

Case study is develop a Policy Specifications modeling tool based on the metamodel describing syntax of

the DSML. The important goal is the automatically generate the security artifacts (enforceable security

policies in XACML format) to improve the productivity of the development process and the platform

independent design. Our case study defines the Business processes, which provide secure Information

between three Domains: Municipality, Environment Ministry and Registry of the Combustion plant -

environmental pollution producer.

1 INTRODUCTION

In this work we present a modeling tool and

generator which use evaluated modeling

environment that enables developers to generate

security specific Modeling Language for

customizing the security requirements in security-

critical inter-organizational business processes based

on services-oriented architectures. As web services

are often composed to carry out complex business

transactions, not only the web service itself has to be

secured, but also the message exchange between

different web services. Web Service Security

specifies a mechanism for signing and encrypting

SOAP messages and this mechanism can be used to

implement message integrity and confidentiality. It

further supports the propagation of the

authentication information in the form of security

tokens (e.g., SAML, Kerberos tickets or X.509

certificates). XACML provides access control

mechanisms and policies within documents, while

SAML represents authentication and authorization

decisions in XML format and is used to exchange

this information over the internet (e.g., to support

single sign-on).

Specifying security policies in XACML,

especially access control policies, may be an

enormous task for every security administrator.

XACML policies are rich XML-based documents

with complex syntax, it is very difficult and time

consuming to write error free XML documents by

hand, especially for people who do not know the

Zadic M. and Nowak A. (2009).

VISUAL PROGRAMMING LANGUAGE FOR SECURITY REQUIREMENTS IN BUSINESS PROCESSES AS MODEL-DRIVEN SOFTWARE

DEVELOPMENT.

In Proceedings of the International Conference on Security and Cryptography, pages 29-36

DOI: 10.5220/0002227500290036

 SciTePress

syntax well. This may affect the productivity of the

administrator and the quality of the software. Hence,

a suitable XACML editor or a tool that can

automatically generate XACML policies is needed.

Another problem is the security administrator does

not take part directly in the design of business

process, so he/she may not understand the software

structure and details well enough to define policies

to fulfill the security requirements.

Many models have been developed to construct

and manage the security requirements but our

security infrastructure is deployed in a modular way

with pre-defined, configurable security components.

The goal in this work is to present the concept and

design of a generator, which should support the

process of specifying the access control policies.

Furthermore, the generator should provide a support

for security administrator and help him to tackle the

well-known problems, which may arise during the

security policy specification.

Model-driven software development can be seen

as a new generation of visual programming

languages. A visual language basically consists of

two parts – domain and presentation (visual) part.

The domain part of the visual language is defined by

means of the domain metamodel, where the relevant

language concepts and their relationships are

formalized for precise definition of language

semantic. Instances of classes in the metamodel are

types of diagram graphical elements for a diagram

definition in the presentation (or graphics) model.

Other to say and very shortly express, the syntax of

every model is defined by a metamodel, the model

plays the role of the source code, and the generator

replaces the compiler.

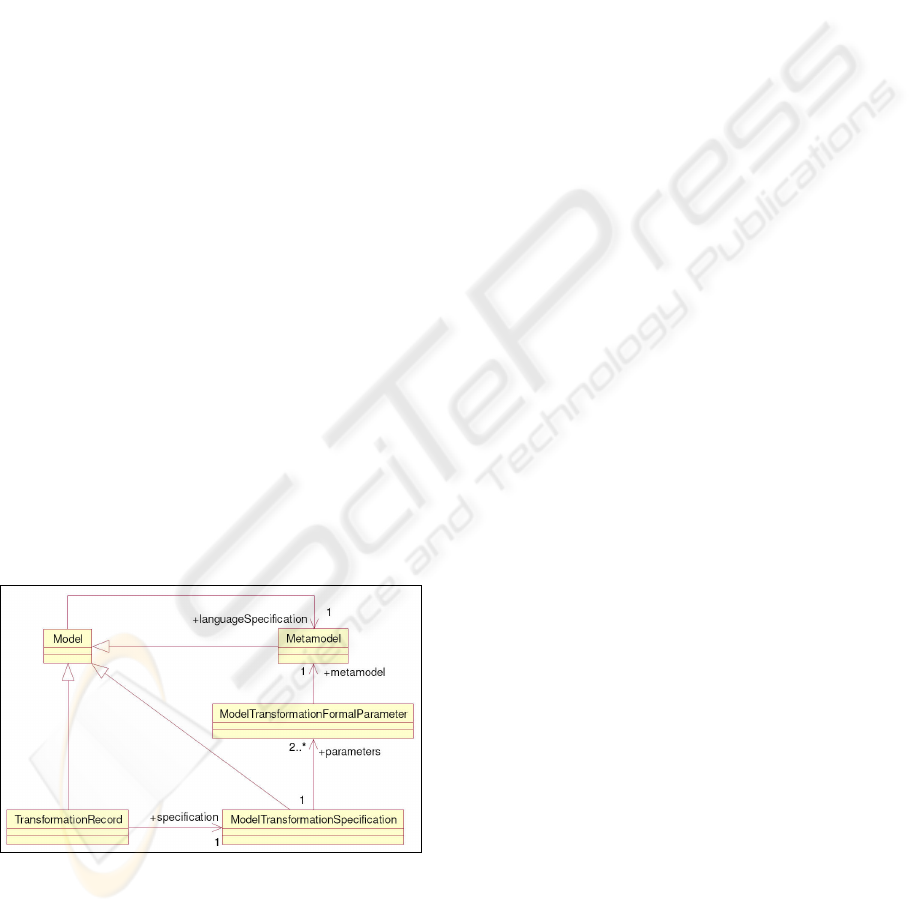

Figure 1: Core modeling process.

At the core of MDA are the concepts of models,

of metamodels defining the abstract languages in

which the models are captured, and of

transformations that take one or more models and

produce one or more other models from them.

Figure 1 shows the relationships between these

major concepts.

We use for metamodeling the Generic Eclipse

Modeling System (GEMS), a part of the Eclipse

Generative Modeling Technologies (GMT) based on

MOF (Meta Object Facility). This framework helps

developers rapidly create a graphical modeling tool

from a visual language description (metamodel)

without any coding in third-generation languages.

The Generic Eclipse Modeling System (GEMS)

substantially reduces the cost of developing a

graphical modeling tool by allowing developers to

focus on the key aspects of their tool: the

specification of the DSML and the intellectual assets

built around the use of the language. The

infrastructure to create, edit, and constrain instances

of the language is generated automatically by GEMS

from the language specification. That make possible

the separation of language development, coding, as

well as “look and feel” development, such as

changing how modeling elements appear based on

domain analyses.

Using this approach, it is possible to generate

automatically large amounts of source code and

other artifacts, e.g. deployment descriptors and make

reference XML files, all based on relatively concise

models. This improves the productivity of the

development process as well as the quality of the

resulting systems. It is also a large step towards the

platform independent design of systems.

2 SECURITY WORKFLOWS

The development of a security-critical inter-

organizational workflow starts with the analysis and

the design of the workflow, followed by a risk and

threats analysis, and the security requirements

specification. Security requirements are modeled in

a platform-independent way at predefined levels of

abstraction.

The inter-organizational business workflow is

in the workflow. The security requirements are

defined together with design of business workflow

in each business step and there is no central control

of the security requirements. The involving of

security requirements in business workflow is result

of each partner’s specification and is named global

workflow model. Very often business partners have

already implemented some kind of locale business

logic with security requirements. That means the

global workflow describes the interaction of partners

abstracting from the internal processing steps and

SECRYPT 2009 - International Conference on Security and Cryptography

from the internal business logic. In this case, the

development of an inter-organizational workflow

requires an inside-out proceeding. The interface of

the locale business logic is projected onto the global

business workflow. Business process modeling is

not a topic of this paper, but play important role in

modeling of security requirements.

The interface of every partner’s node describes

the public part of the local business logic, which is

accessible to the inter-organizational workflow and

must be conforming to a uniform technical,

syntactical and semantic specification the partners.

The partners should decide on parameter formats,

interaction protocols, operation semantics or run-

time constraints specification. This kind of partner’s

requirements is modeled in the interface models and

resulted information is typically published in WSDL

files and technical models of UDDI registries. The

interface model represents a specification of the

functional requirements the partner has to implement

at its node, as an outside-in proceeding.

From a security perspective, the business process

deals with security requirements from the involved

partners and makes the secure exchange of messages

and documents between different partners. In the

view of a partner the local software architecture

implements the security portion of the global

business workflow and offers a security interface to

its partners.

The workflow engine and the Web services in

the back-end are wrapped by security components.

So-called Policy Enforcement Point (PEP) acts as

security gateways. We differentiate between the

external and the internal PEP. The external PEP is

the single point of entry into the partner’s domain.

He is in charge of implementing requirements

related to message integrity, confidentiality and non-

repudiation for all external communication. To this

end, it checks the correct signatures and decrypts

incoming requests or response. Correspondingly, the

gateway signs outgoing requests or responses and

encrypts them as specified in the global business

workflow. Both, the security gateway and the

workflow engine implement the requirements by

configuration. The configuration data is generated

from the respective models views. After receiving a

service request the PEP authenticates the caller with

support of the Authentication and Role Mapping,

checks the compliance of the incoming message

according to signed and encrypted elements and

finally queries the Policy Decision Point (PDP) for

access rights. After successful completion of these

three steps, the PEP forwards the request to the

workflow engine which then performs the service

orchestration. Optionally, an internal PEP, that

merely acts as a role mapping unit may map the

caller’s global role to some internal role

representation required by the back-end applications.

3 MODELING ENVIRONMENT

Our approach to mapping the variant’s global

security requirements to a customizing modeling

tool involves the use of Model-driven development

techniques. Different security models of developed

customizing modeling tool can be constructed for

the automatically check of correctness application

designs meet their security requirements. Modeling

tools can also be used to generate the customization,

composition, packaging, and deployment code to

implement security artifacts. To develop such

security modeling tool, it is common to build

domain-specific modeling languages (DSML) tools

on top of a Meta-configurable Modeling

Environment. Crucial to creating a viable Meta

Modeling Environment is providing a platform that

has the appropriate level of abstract for each domain

expert. Our Meta Modeling Environment is Generic

Eclipse Modeling System (GEMS). The main

distinguishing feature of GEMS is an appropriately

built presentation meta-model. Generic Eclipse

Modeling System contains a universal metamodel-

based presentation engine for element property

editing, and an advanced project tree engine. The

GEMS reuses the basic Eclipse components such as

EMF (Eclipse Modeling Framework) and GEF

(Graphical Editing Framework), as well as parts of

GMF (Graphical Modeling Framework) runtime.

GMF utilizes Eclipse EMF and GEF technologies.

EMF is used for model management and GEF for

graphical user interface. GMF uses a static-mapping-

based approach. It defines a set of meta-models:

graphical (presentation), tooling and mapping meta-

models. Graphical meta-model defines the graphical

element types, tooling meta-model defines the

palette and menus and the mapping meta-model

defines the mapping possibilities between the

models. In addition, it uses EMF ECORE Model as

the domain meta-model.

The GEMS is created by the Distributed Object

Computing (DOC) Group at the Institute for

Software Integrated Systems (ISIS) at Vanderbilt

University. This Meta-configurable Modeling

Environment is enough comfortable and very

adaptable for customizing security artifacts via the

following capabilities:

VISUAL PROGRAMMING LANGUAGE FOR SECURITY REQUIREMENTS IN BUSINESS PROCESSES AS

MODEL-DRIVEN SOFTWARE DEVELOPMENT

- A visual interface supports the creation of

domain-specific modeling languages, contains a

meta-modeling environment that supports the

definition of paradigms, which are type systems

that describe the roles and relationships in

particular domains.

- The creation of models that are instances of

DSML paradigms within the same environment.

- Customization of such environments so that the

elements of the modeling language represent the

elements of the domain in a much more intuitive

manner than is possible via third-generation

programming languages.

- A flexible type system that allows inheritance and

instantiation of elements of modeling languages.

- An integrated constraint definition and

enforcement module that can be used to define

rules that must be adhered to by elements of the

models built using a particular DSML.

- Facilities to plug-in analysis and synthesis tools

that operate on the models.

A key challenge to developing security modeling

tools is the formal specification of the security

artifacts in DSML. Engineers must create a language

to capture both the static and dynamic semantics.

The GEMS meta-modeling language allows

developers to specify the common types in their

system, the variability in instances of the types, the

allowed containment compositions of the types, and

the allowed connections between instances of types.

These capabilities allow developers to apply object

analysis to their security artifacts and capture the

results in a metamodel. This metamodel can then be

interpreted by the GEMS framework to generate

DSML(s) for customizing the security artifacts.

By allowing developers to formally define the

commonality and the variability in the system and

automatically generating security artifacts, Meta

Modeling Environment reduces the development

effort require for a complete implementation the

customization modeling tools, and providing a

modeling language intuitive to domain experts that

customize the security requirements.

3.1 XACML Policies

The security requirements are configured and

expressed in XACML (eXtensible Access Control

Mark-up Language), which is an XML based OASIS

standard for a policy and access control decision.

The main goal of policy generator is to derive low-

level and enforceable security policies. These

policies are deduced from the business process,

which acts as the input scenario. In this scenario, the

security requirements should be already identified,

and annotated within the business process. The

visual programming languages developed with

metamodel makes possible to model security

requirements in modeling consummation tool. As a

part of modeling consummation tool the policy

generator generates the access control policies in

XACML standard, which defines the machine-

interpretable and also machine-enforceable security

policies. The generator shall generate follows types

of XACML components, Figure 2:

<PolicySet> element combines Policies in a

PolicySet. It has a target, a policy-combining

algorithm-identifier, a set of policies and

obligations.

<Policy> element combines rules in a policy.

Therefore, a policy consists of a target element, a

rule-combining algorithm identifier, a set of rules

and obligations. The target element of policy has the

same purpose as target element of rule. The rule-

combining algorithm determines rule-combining

method applied to the rules.

<Rule>

<Apply>

<Apply>

Figure 2: XACML components.

<Rule> element is the most elementary unit of

XACML policy. It has the target element, the

condition element and the effect element. The target

element specifies the environment, on which this

rule should apply. The condition element is a

Boolean function over subject, resource action and

environment attributes. In order to apply the effect

of rule on the target, this condition should evaluate

to true, otherwise, the rule will return indeterminate.

Lastly, the effect element states the decision for this

rule: either permit or deny.

SECRYPT 2009 - International Conference on Security and Cryptography

<Target> element describes the properties of the

environment, on which the Rule, Policy or Policy

Set should apply. It contains the subject description,

resource description, action performed and

environment description.

<Condition> element represents a Boolean

expression that refines the applicability of the rule

beyond the predicates implied by its target.

<Obligations> element of an XACML <Policy>

is a directive to the PEP to perform additional

processing following the enforcement of an access

control decision. It contains one or more

<Obligation> elements and typically references

elements in the request context. Processing of

<Obligations> elements is application-specific.

4 OUTCOMES AND RESULTS

The first step for building a graphical modeling tool

with selected Meta Modeling Environment, called

ARCSecu Modeling Tool, is to define a metamodel

for specifying syntax of the security artifacts based

on the DSML for secure Web services. This

metamodel describes the graphical entities,

connection types, attributes, and other visual syntax

information needed by Meta Modeling Environment.

On the Figure 3a and 3b is presented ARCSecu Meta

Model with follow artifacts:

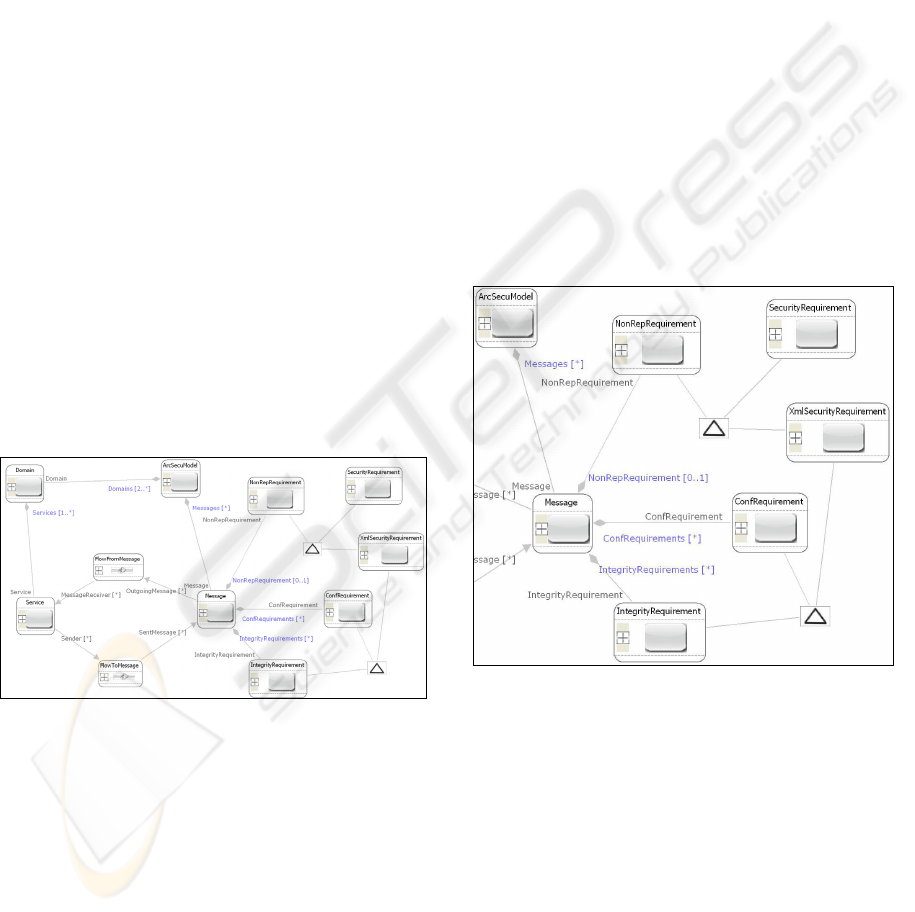

Figure 3a: Metamodel for security requirements.

The first entity (class) is the ArcSecu Meta

Model, which is represented as the root entity in our

metamodel. Domain, Service and Messages entities

describe a collection of abstract operations. Three

entity types IntegrityRequirement, ConfRequirement

and NonRepRequirement are involved for security

artifacts. These security goals are child entities of

Message. The Service entity is child entity from

Domain.

The ARCSecu Meta Model involves connections

between Message and Service. These are defined

with FlowFromMessage and FlowToMessage

connections in suitable directions. Inheritance

relationships are created by adding an Inheritance

element to the model and connecting it to the parent

type and derived type(s). Any attributes,

connections, or containment relationships specified

by the parent are inherited by derived types. The

presented ARCSecu Meta Model contains entities

with two Inheritance relationships. First Inheritance

is defined between IntegrityRequirement

(BaseClass), ConfRequirement (BaseClass) and

XmlSecurityRequirement (DerivedFrom). Second

the Inheritance between NonRepRequirement

(BaseClass), XmlSecurityRequirement (BaseClass),

SecurityRequirement (DerivedFrom).

The classes IntegrityRequirement and

ConfRequirement inherit the attributes (NS1, NS2,

NS3, NS4, NS5, NS6, NS7, XPath) from

XmlSecurityRequirement entity. Service entity

carries an attribute (string type) named Operation

Name and Message carries also an attribute

(Boolean type) named IsResponse.

Figure 3b: Metamodel for security requirements – detail.

In step two, a code generator is invoked that

produces the EMF, GEF, GMF, XML descriptors,

which are needed to create a plug-in for editing the

new language based on DSML, described by the

metamodel. A graphical design defines custom icons

and CSS styles for the DSML elements in the third

step. For the fourth step, developers specify the

constraints on the model that GEMS uses to ensure

that only correct models are built with the model.

The constraints generally involve domain

information that requires a constraint language to

express properly. Finally, domain experts use the

customizing modeling tool produced by GEMS to

VISUAL PROGRAMMING LANGUAGE FOR SECURITY REQUIREMENTS IN BUSINESS PROCESSES AS

MODEL-DRIVEN SOFTWARE DEVELOPMENT

construct models of the domains. Model interpreters

(or code generators) are developed to produce

software artifacts such as Java code or XML file

descriptors.

4.1 Modeling Tool and Generator for

the Security Artifacts

The modeling tool as an Eclipse rich client is used to

visually modeling the security needs of each

communicated domain and it is extended with the

XACML policy generator. For each involved

domain the generator creates the XACML policy

descriptor that needs to be deployed to the policy

folder of each domain. To model the communication

between two domains one first needs to drag two

domain model elements from the palette on the right

onto the canvas, Figure 4. The bottom panel of the

new domain elements is initially colored red. This

indicates that some properties have to be set to make

the model element valid. The properties can be set in

the properties panel at the bottom of the modeling

tool. For each domain a name has to be set that

denotes its role in the communication. Next one

needs to add services to each domain that

communicate with each other by dragging services

from the palette on each domain. The services need

to have a name and an operation name set to be

valid. These actually have to correspond to the real

names of the services. Now the communication

needs a message that is sent between the two nodes.

This is done by dragging a message model element

on the canvas.

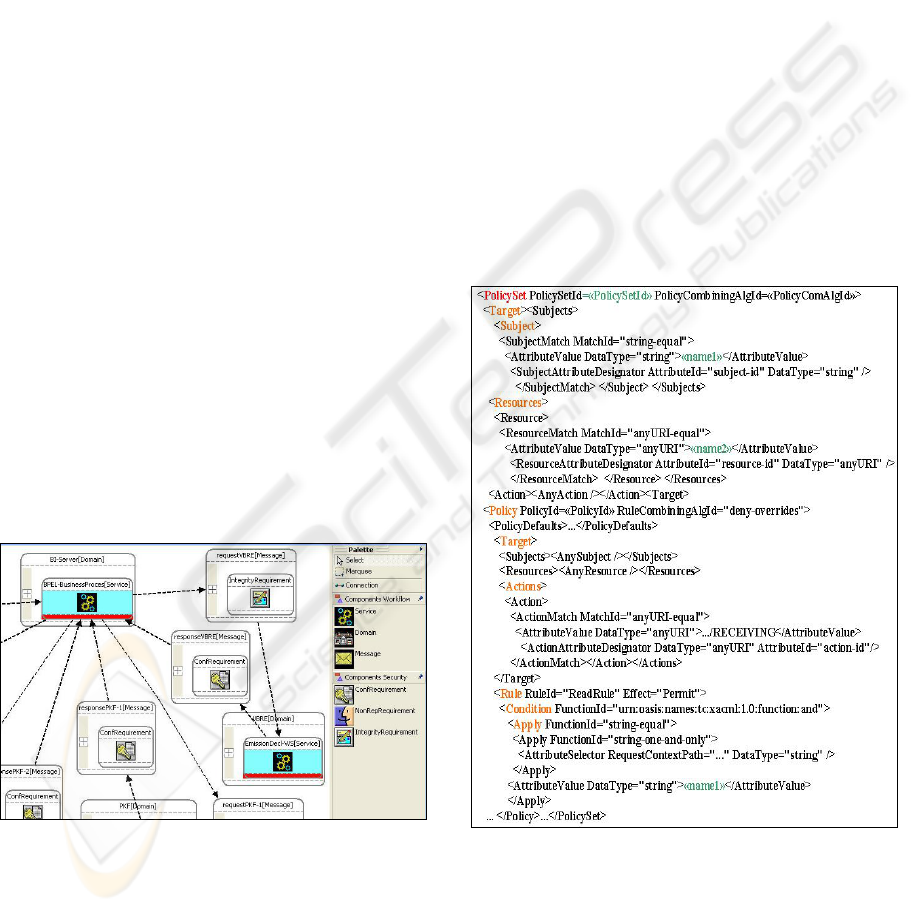

Figure 4: The modeling tool for security requirements.

Then the message has to be associated with the

initiating and receiving services by using the

connection tool. Finally the security requirements of

the communication are configured by dragging

security requirements from the palette onto the

message. For confidentiality and integrity

requirements one has to specify the XPath to the

elements on which the requirements shall be

enforced and also up to five namespaces. For the

non- repudiation requirement no further

configuration is needed. The generator can be run by

right-clicking on the canvas and selecting ArcSecu

Menu->DO IT. For each involved domain the

generator creates one folder containing the XACML

policies that need to be deployed to the policy folder

of each domain.

The security requirements are modeled and

translated for exchange of secure information

between follows e-government institutions:

Municipality (PKF Domain), Environment Ministry

Incinerators – annual report about environmental

pollution producer (vBRE Domain). The model of

this business process is developed with ARCSecu

Modeling tool and generator for three security goals:

integrity, confidentiality and non-repudiation. Very

reduced example of XACML generated policy code

is presented on Figure 5.

Figure 5: Structure of XACML policy.

Client sends the request via web application with

the necessary parameters on e-government business

service (BPEL service) to get the information about

the company's incinerators. BPEL service forwards

continuously the request to the secure component of

the BPEL server. This prepares the request message

SECRYPT 2009 - International Conference on Security and Cryptography

in accordance with defined security artifacts in the

XACML policy descriptors. This may mean that the

message (or parts of the message) is encrypted

and/or it be signed and also it holds secured date for

authentication and authorization elements. Such

secure message is transmitted over the Internet for

PKF Domain, which offers the public services with

information about the existing companies. The

security component of PKF Domain verifies

message according to the defined XACML Policy

descriptors and the message will be deciphered after

successful test and on the PKF Domain servicers

redirected. The response of the PKF Web Services is

back to the security component and skillfully using

the XACML policy again transmitted to BPEL

server.

The Business service processes the response

over security component to the filter component of

Business process, this mean each founded company

is checked on registration date in eRAS Domain –

the waste handling company register. For filtered

companies Business service create a request for

vBRE Domain about annual report for

environmental pollution from incinerators.

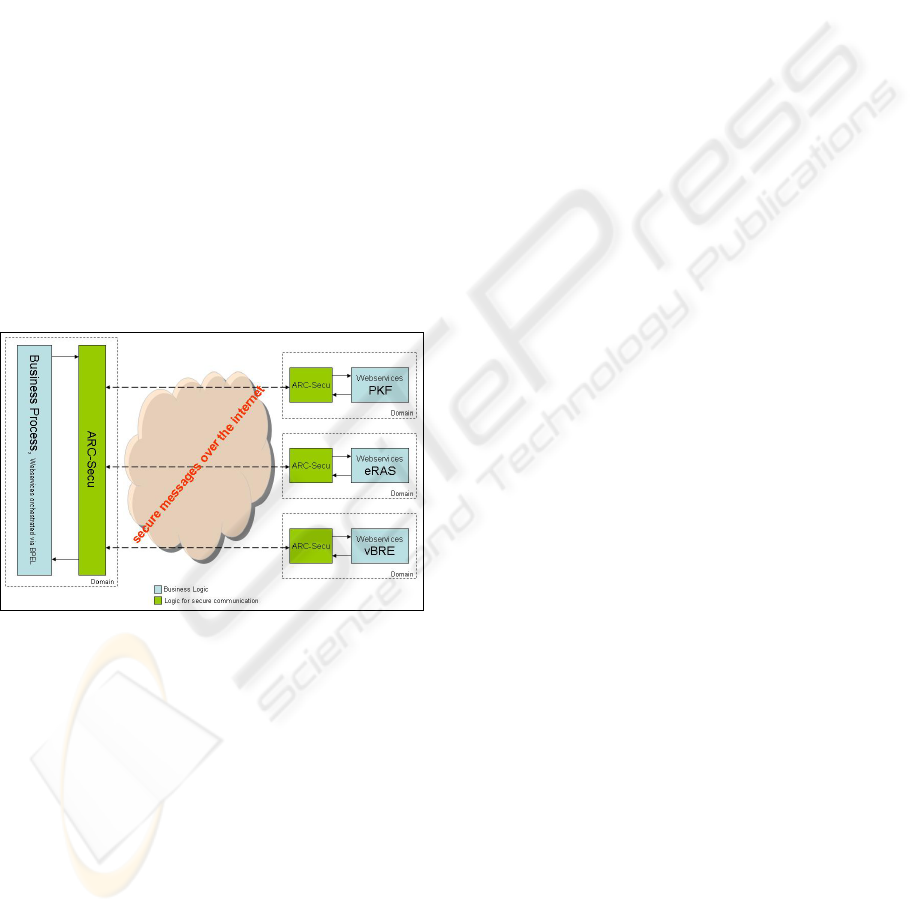

Figure 6: Secure message over internet.

The communication process for other two

domains (eRAS and vBRE) follow the similarly

security Logic as for PKF domain over predefined

XACML policy descriptors, as Figure 6 presented.

The verifying of message and integrating security

elements in message happen each time by security

component of domain after request incoming or

before response sending.

5 CONCLUSIONS

We introduce the concept of Model Driven Security

for a software development process, which allows

for the integration of security requirements through

system models. This modeling framework supports

the generation of security infrastructures with

focuses on business logic as well as on inter-

organizational workflow management.

This Meta modeling approach reduces the cost of

developing a graphical modeling tool by allowing

developers to focus on the key aspects of their tool.

The infrastructure to create, edit, and constrain

instances of the language is generated automatically

and the implementing process makes possible the

separation of language development, coding, as well

as “look and feel” development.

We have evaluated the Generic Modeling

Environment, a configurable modeling and program

synthesis tool set, which makes possible the rapid

and cost-effective creation of highly customized,

domain-specific system. It is highly applicable for

modeling XAMCL policy generator related to

security artifact for service-oriented architecture. We

focus on visually modeling an XACML system to

fulfill the XACML profile and automatic generation

the security infrastructure in XACML-formatted

documents.

This article describes the features available for

building graphical modeling tools with Meta

Modeling Environment. This Environment focuses

on allowing developers to create Eclipse-based

modeling tools without writing plug-in descriptors,

GMF mapping files, GEF code, or EMF code.

Furthermore, Meta Modeling Environment (GEMS)

provides facilities to support external specification

of visualization details so that they can be managed

by graphic designers and other individuals not

experienced with complex GUI coding.

The development of a security-critical inter-

organizational workflow starts with the analysis and

the design of the workflow, followed by a

comprehensive analysis of risks and threats, and the

ensuing specification of security requirements. The

requirements are modeled in a platform-independent

way at different levels of abstraction. The project

goal is to analyze security issues that may stem from

requirements imposed by e-government business

processes and in a second step to provide

methodologies that translate the abstract security

requirements into run-time artifacts for the target

architecture through model transformation.

Ultimately, the implementation should allow the

declaration of the secure message exchange via the

internet.

In our proof of concept we used three typically

security goals in inter-organizational workflows:

integrity, conditionality and non-repudiation. Our

aim is on sample way to present our approach for

VISUAL PROGRAMMING LANGUAGE FOR SECURITY REQUIREMENTS IN BUSINESS PROCESSES AS

MODEL-DRIVEN SOFTWARE DEVELOPMENT

automatic generate security requirements. On the

same modeling approach and similar developing of

modeling tools is possible to design other security

requirements as: Identification, Authentication and

Authorization, Trust, Privacy and so on.

Several improvements and extensions need to be

addressed in future work. Currently our approach

focuses on static design models, which are relatively

close to the implementation. It is worth considering

whether the efficiency of the development process of

secure applications can be improved by annotating

models at a higher level of abstraction (e.g. analysis)

or by annotating dynamic models. Moreover, some

critical questions concerning the development

process are still open, e.g. how are roles and

permissions identified? Beyond that, the current

prototype does not yet demonstrate the platform

independence of our concepts. Future work will

focus on modeling security requirements and design

information using dynamic models. Furthermore, the

development process for secure systems starting

with the initial analysis up to the complete secure

system design will be investigated. In this context,

we will examine the possibility of propagating

security requirements between analysis and design

models and ways to verify the compatibility of

requirements and design information given at

different levels.

REFERENCES

Xin Jin, Master Thesis, University of Ottawa, Ontario,

Canada 2006 Applying Model Driven Architecture

approach to Model Role Based Access Control System

Taufiq Rochaeli, TUD SEC, Ruben Wolf, Fraunhofer-SIT,

Policy Generator, February 10, 2006.

Jules White, Douglas Schmidt, Department of Electrical

Engineering and Computer Science, Vanderbilt

University, Nashville, USA, Simplifying the Deve-

lopment of Product-line Customization Tools via

Model Driven Development

Panos Periorellis, Jake Wu, March 2006, XACML-Role

Based Access Control

Jeremy W. Bryans, John S. Fitzgerald, Panos Periorellis,

School of Computing Science, Newcastle University,

UK, A Formal Approach to Dependable Evolution of

Access Control Policies in Dynamic Collaborations

Eduardo Fernández-Medina and Mario Piattini, Alarcos

Research Group, Universidad de Castilla-La Mancha,

Towards a Process for Web Services Security

Yuri Demchenko, Advanced Internet Research Group,

University of Amsterdam, Policy-based Access

Control to Data Ser vices in Ser vice-oriented

Architecture and Grid

GEMS EMF Intelligence Tutorial, http://wiki.eclipse.org/

GEMS_EMF_Intelligence_Tutorial

GEMS EMF Intelligence Tutorial with Mixed Constraints,

http://wiki.eclipse.org/GEMS_EMF_Intelligence_Tuto

rial_with_Mixed_Constraints

GEMS Metamodeling Tutorial,

http://wiki.eclipse.org/ GEMS_Metamodeling_Tutorial

Jules White, The Generic Eclipse Modeling System

(GEMS)

Markus Völter, openArchitectureWare 4.2 Fact Sheet,

voelter@acm.org Date: September 3, 2007

Mirad Zadic, Stockholm, Sweden, 22 - 24 October 2008,

A Meta Model Generator for Implementing Access

Control and Security Policies in Distributed Systems

based on Model-Driven Architecture, eChallenges e-

2008 Conference & Exhibition

GrTP: Transformation Based Graphical Tool Building

Platform, Institute of Mathematics and Computer

Science, University of Latvia, Building Tools by

Model Transformations in Eclipse, University of

Latvia, Audris Kalnins, Oskars Vilitis1, Edgars

Celms1

OASIS, 2005. eXtensible Access Control Markup

Language (XACML) Version 2.0. http://docs.oasis-

open.org/xacml/2.0/access_control-xacml-2.0-core-

spec-os.pdf

OASIS, 2005, Assertions and Protocols for the OASIS

Security Assertion Markup Language (SAML) V2.0.

http://docs.oasis-open.org/xacml/2.0/access_control-

xacml-2.0-saml-profile-spec-os.pdf

OASIS, 2005. Core and hierarchical role based access

control (RBAC) profile of XACML v2.0.

http://docs.oasis-open.org/xacml/2.0/access_control-

xacml-2.0-rbac-profile1-spec-os.pdf

OASIS, 2005. SAML 2.0 profile of XACML v2.0.

http://docs.oasis-open.org/xacml/2.0/access_control-

xacml-2.0-saml-profile-spec-os.pdf

OASIS, 2005. Web Service Security SAML Token Profile

1.1. http://www.oasis-open.org/specs/

index.php#wssprofilesv1.0

OASIS, 2003. XACML pr

ofile for Web-services.

http://www.oasis-

open.org/committees/download.php/3661/draft-xacml-

wspl-04.pdf

OASIS, 2004. WS-Security 1.1 Core Specification.

http://www.oasis-open.org/committees/download.php/

16790/wss-v1.1-spec-os-SOAPMessageSecurity.pdf

W3C, 2006. Web Service Policy 1.2-Framework (WS-

Policy). http://www.w3.org/Submission/WS-Policy/

ORMSC White Paper, A Proposal for an MDA

Foundation Model

Torsten Lodderstedt, David Basin, and Jürgen Doser

Institute for Computer Science, University of

Freiburg, Germany, SecureUML: A UML-Based

Modeling Language for Model-Driven Security

SECRYPT 2009 - International Conference on Security and Cryptography
