THE CHAMELEON CIPHER-192 (CC-192)

A Polymorphic Cipher

Magdy Saeb

Arab Academy for Science, Tech. & Maritime Transport

Computer Engineering Dept., Alexandria, Egypt

On-leave to: Malaysian Institute of Microelectronic Systems (MIMOS Bhd.)

Kuala Lumpur-57000, Malaysia

Keywords: Polymorphic cipher, Homophonic, Random walks, Key-driven, Cryptanalysis, Hash function.

Abstract: The Chameleon Cipher-192 is a polymorphic cipher that utilizes a variable word size and variable-size

user’s key. In the preprocessing stage, the user key is extended into a larger table or bit-level S-box using a

specially developed hash-function. The generated table is used in a special configuration to substantially

increase the substitution addressing space. Accordingly, we call this table the S-orb. We show that the

proposed cipher provides concepts of key-dependent number of rotations, key-dependent number of rounds

and key-dependent addresses of substitution tables. Moreover, the parameters used to generate the different

S-orb words are likewise key-dependent. We establish that the self-modifying proposed cipher, based on the

aforementioned key-dependencies, provides an algorithm polymorphism and adequate security with a

simple parallelizable structure. The ideas incorporated in the development of this cipher may pave the way

for key-driven encryption rather than merely using the key for sub-key generation. The cipher is adaptable

to both hardware and software implementations. Potential applications include voice and image encryption.

1 INTRODUCTION

A process is ergodic if and only if its’ time averages’

over a single realization of the process converge in

mean square to the corresponding ’ensemble

averages’ over many realizations. As an example,

suppose the process is x = k + f (t) + e where k is

unknown, f (t) is nonlinear and e is a white noise

error. Then any sample of x for a known t gives

information about k and that is enough information

to make predictions at remote times in the future that

are just as good as predictions at nearby times. In

this case one identifies such a process as a “not

ergodic” process. Using this definition, we call a

cipher, when represented by a stochastic process,

“ergodic” if sampling its cipher text does not give

enough information about its key to make

predictions regarding its plain text at subsequent

times (Gray, R.M., 2008). In this work, we apply

this principle to design a polymorphic cipher (K.

Bajalcaliev, 2001) that is based on a specially

developed hash function and ergodic substitutions to

provide the required diffusion and confusion with

aperiodic behavior. The polymorphic nature of the

cipher results from the dependency of some design

parameters on the user key. The truly random

behavior of the white noise error can be

approximated by specific functions in the cipher

structure.

1.1 CC-192 in General

We aim to design a polymorphic secure cipher that

can be efficiently implemented in both software and

hardware. The evolution of superscalar 64-bit word

processors and the expanding use of smart cards

provide the incentive for designing ciphers that are

flexible and better suited for these varying

architectures. CC-192 is a word-based cipher with

variable word and key sizes. The key stream and the

number of rounds are both key-dependent thus

eliminating the possibility of trap door functions.

The proposed ergodic process is also key-dependent

emulating a faulty compass. These key-

dependencies provide the foundation from which

this polymorphic cipher acquired its name.

Furthermore, these substitutions provide the required

aperiodic random walks. We have used the concept

198

Saeb M. (2009).

THE CHAMELEON CIPHER-192 (CC-192) - A Polymorphic Cipher.

In Proceedings of the International Conference on Security and Cryptography, pages 198-209

DOI: 10.5220/0002228501980209

 SciTePress



of a faulty compass rather than chaotic maps since

these chaotic systems usually suffer from

unpredictable reproducibility problems. In summary,

we use a group of transformations leading to an

enhanced homophonic substitution (

Penzhorn, W.T.,

1994)

, (Gunther, C., 1988), (Massey, J. L., 1987),

(Massey, J. L., 1994) in which the mapping of

characters varies depending on the sequence of bits

in the message text. In executing the method,

encryption keys are first generated. Then, enhanced

homophonic substitution is performed. Finally, a

poly-alphabetic substitution is performed on the

data. This involves using bit-wise XOR between the

partially ciphered data and the generated keys. The

operation can be viewed as a linear masking

operation. The high security of this proposed cipher

is a result of the polymorphic key-dependent

operations. The proposed cipher, implemented using

C#, performs data encryption at about 26 cycles per

byte using eight threads and 16 or 32-bit word size.

Key setup consumes about 116 cycles per byte. This

is achieved employing multithreading capabilities of

modern superscalar processors using Intel Core2

Duo CPU E6550 @ 2.33 GHz, 4 GB RAM, 32-bit

operating system. Various tests were performed and

passed with no indication of deviation from random

behavior. The security of the proposed cipher, based

on algorithm polymorphism and a variable size S-

orb, is acceptable for a large number of today’s data

security requirements. This will be established in

detail in sections 3, 5, and 10.

1.2 Organization

This article is organized as follows: in section 2, we

provide a summary of the design objectives of CC-

192. In section 3, the ideas of a polymorphic cipher

and a brief mathematical background are presented.

Section 4 provides a discussion of the cipher basic

building blocks. These are the cipher structure, the

S-orb, the hash function employed, the whitening

and the key scheduling process. In section 5, we

provide our design rationale. The details of the

algorithm are described in section 6. A section on

the key generation procedure is also provided. The

statistical tests, discussion of trap doors, cipher

security, applications and performance are discussed

in detail in sections 8, and 9 respectively. Finally,

we give a summary and our conclusions. The

appendix provides some details of the hash function

utilized.

1.3 Notation

We use the following notation:

⊕

denotes logical

XOR,

∧

denotes logical AND,

∨

denotes logical

OR, << and >> denote left and right logical bit-wise

shift, <<< and >>> denote left and right bit-wise

rotation, || denotes concatenation, and Hexadecimal

numbers are prefixed by “0x”. We apply integer

notation for all variables and constants.

2 CC-192 DESIGN OBJECTIVES

The objectives taken into consideration while

designing this cipher include:

• The design of a key-driven, polymorphic highly

secure cipher.

• Applicability to software with the proper

utilization of today’s superscalar processor

architectures.

• Applicability to hardware with a design of a

simple parallelizable cipher for FPGA-based

applications.

• Flexible design; accepts keys and data blocks of

different lengths and provide variable size S-orb

depending on changing security requirements.

• Variable, key-dependent, number of rounds.

• Key setup time is kept to a minimum using a

specially designed hash function.

• Simple construction and simple round function

with minimum internal looping.

3 POLYMORPHIC STRUCTURE

For a true polymorphic cipher design, we propose

three constructs:

• Shuffle

• Select/Remove

• Change parameters

One can visualize this approach as re-programming

the cipher depending on an instruction set (number

and function of various blocks). The micro-program

instructions are actually stored in the user key. The

larger the key size, the more “instructions” one can

store. In conventional ciphers, the attacker uses the

algorithm and the cipher to find a constant which is

the key. However, in the proposed approach, the

attacker has no substantial idea of the form of the

algorithm since it is totally key-dependent. The

attacker has to use the cipher to figure the algorithm

THE CHAMELEON CIPHER-192 (CC-192) - A Polymorphic Cipher

199



construction first and then use the discovered

algorithm and the cipher to find the key. The key is

considered the memory of the system that contains

not only the data segment, as in conventional

ciphers, but also the program segment. If Alice

sends the key to Bob, through a secure channel, she

is actually sending both the structure of the

algorithm and the data part used to expand the key.

To approach the problem quantitatively, we provide

the following discussion: In the Shuffle construct,

we use the user’s key to re-arrange the order of the

operations. This idea was clearly used in the eight-

block “Pyramids” block cipher (Hussein A. et al.,

2005). This technique, when applied to an n-

operation structure, provides (n!) different

algorithms. Each one of these algorithms has to be

individually investigated by the attacker. On the

other hand, if we change the parameters of the

different operations with values depending on the

user’s key, one arrives at selection probabilities that

correspond to one-out-of k cases. For example, if we

assume that we can perform a variable number of

rotations that depends on the register size utilized,

say 32-bit register, then the probability of choosing

the correct case is 1/2

. The same rationale applies to

a varying number of rounds; say from 1 to 8 with a

probability of choosing the correct one equal to 1/2

For the correct bit-wise substitution, with a number

of different cases equal to, say, 128 cases or

addresses, the probability is 1/2

. To choose the

correct values of the integers p

and q

used to

update the next S-orb word, the attacker has to

choose the correct values with a probability of 1 / 2

. Therefore, for an attacker to attain the correct

probability he or she would have to try 2

cases

with a success probability of approximately 7.105 x

-15

. Now to attack the hash function, acting as

PRNG, using the birthday paradox, the success

probability is given by 1 / 2

using a 192-bit hash

function. Thus, the overall probability of a

successful attack on the cipher is 1/ 2

143

or 89.68 x

-45

which is smaller than a brute force attack using

a 128-bit key. Future ciphers may embrace both of

the two basic constructs; shuffle and select for

highly secured applications. For the second construct

“Remove”, using the key one can reduce the number

of operations; say L operations, from a maximum

given number (n). Therefore, the attacker has to

investigate a number of algorithms equal to (n! + (n-

L)!). This basic notion of reprogrammable or

polymorphic cipher is shown in Figure 1.

Now to compute the probability of a successful

attack on a general polymorphic cipher, one starts

with the probability of figuring out the algorithm

a) Shuffle rounds

b) Select/Remove

c) Change parameters

Figure 1: The conceptual diagram of the constructs to

realize a polymorphic cipher. Different colors represent

different operations.

utilized from shuffled n blocks. This probability is

given by:

shuffle

= 1/ n! (3.1)

Within each block there are m operations each

operation i requires k

parameters. Therefore, to

select the correct parameter to operation i= 1, 2, …

= Pr {correctly selecting the parameter for

operation i} = 1/k

Then the probability to correctly select all

parameters for all operations is given by:

select

∏









∏

1/







(3.2)

Assuming all ki are equal to, say k, then equation 4.2

takes the form:

select

∏

1/





= 1/k

(3.3)

Then the overall probability of finding the correct

algorithm, allowing removal of certain blocks is

given by:

P





! 







!

(3.4)

For example, take m=5, k=4, n=8, L=2, then P will

be equal to 2.37954 x 10

-8

. However, the actual

probability for a practical cipher will be much

smaller than this value since the number of

operations per block and the number of parameters

will be larger than the previously given values.

Pyramids we have changed the order of operations.

On the other hand, in Chameleon Cipher, we neither

Round

1

Round

2

Round

3

Round

4

Round2Round1 Round3



Round4

Round1 Round3 Round4

Round1 Round2 Round3 Round4

SECRYPT 2009 - International Conference on Security and Cryptography

200



change the number of blocks nor their order; we

only change the parameters of various operations

and the number of rounds. Security here is founded

on the notion of producing potentially large number

of forms of a polymorphic algorithm. This is in

contrast to conventional ciphers where it is

implicitly assumed that the cipher machine is not

reprogrammable. In these ciphers, the common

wisdom dictates that there is no need to develop

algorithms that can “Rewire the Enigma Machine”.

However, one can consider the user key as the

system memory where both the user data and cipher

re-programmability parameters are stored. In

designing a cipher, the basic aim is to provide

aperiodic or, in reality, a very long average period of

the key stream. This can be partially achieved by

ensuring a large internal state of the cipher. An

ergodic process, as defined before, when sampling a

cipher text does not give enough information about

its key to make predictions regarding its plain text at

subsequent times. We show that if the internal state

of the cipher, represented by the S-orb address

space, is made large enough such that the ergodic

process can be correctly approximated.

4 CC-192 BUILDING BLOCKS

There are two distinct phases of performing this

algorithm; the initialization of the S-orb and the

encryption phase.

4.1 Initialization

The S-orb initialization of this cipher is performed

“off-line” using the following recursive equation:

= h (p

. h

i-1

+ q

) (4.1)

Where h

is the hash function of the S-orb word (i).

The total number of words of the S-orb (m) varies

depending on the available memory and degree of

security required. This value is taken equal to 6

resulting in an S-orb of six 192-bit words. The

process is initialized with h

= h (k), where k is the

user key, and p

and q

are two large secret integer

numbers. These two numbers can be also obtained

from the user key. The initial vector of the hash

function (IV) is not necessarily to be kept secret. We

use an assigned field in the round keys or S-orb

words to determine the location of the center of what

we call the “x-blocks”. The contents of each block

are used to perform the required substitution

additions. The next step is to divide the plain text

192-bit block into six 32-bit words, 12 16-bit words

or 24 eight-bit words. The same procedure is applied

to different round keys. Now, we are able to perform

the selective XOR operation, as shown in detail in

the block diagram, in order to realize the required

homophonic substitution. The next step is to perform

a number of rotations to the partially ciphered words

where this number is determined by a five-bit secret

field of the round key. Finally, to perform the poly-

alphabetic substitutions, we use the xor operation

between the resulting partially ciphered word and

the round key. The operation is repeated an

additional number of rounds depending on the value

obtained from the original user key. Other details are

shown in the block diagram of Figure 2. This

diagram illustrates the two basic operations utilized;

initialization of the S-orb and the encryption phases.

Figure 3.a illustrates some conceptual format details

of the user and round keys. The substitution x-block

is shown in at the lower side of Figure 3.b.

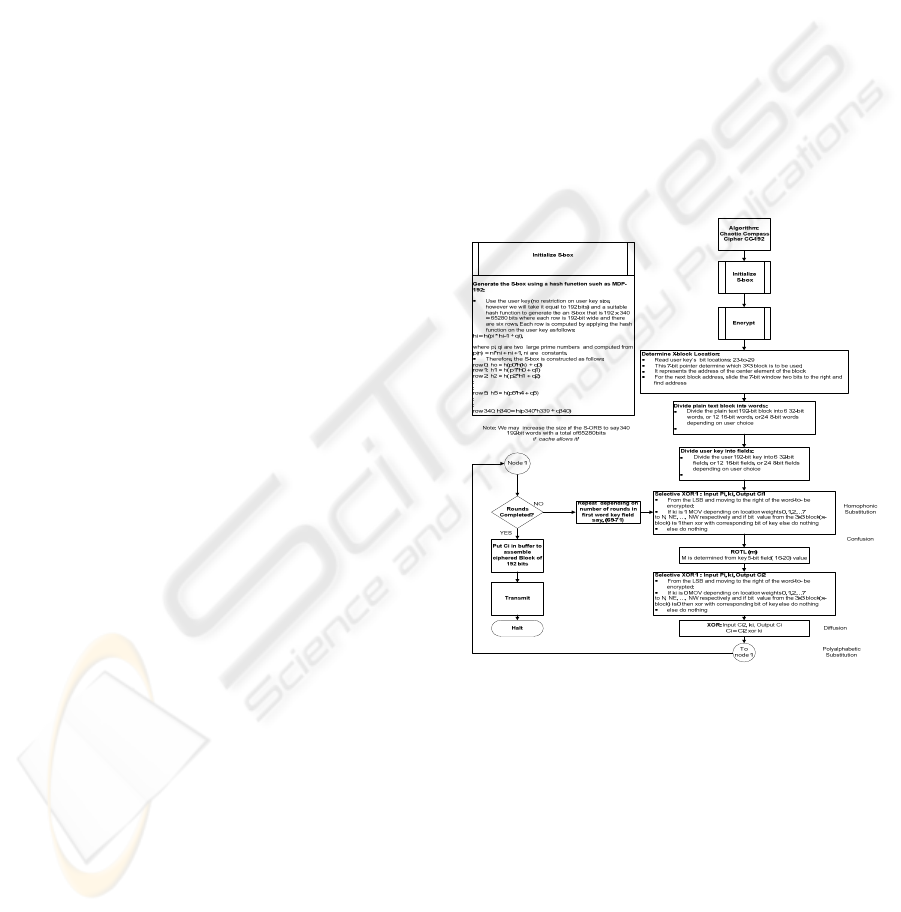

Figure 2: The Chameleon Cipher.

4.2 Key Schedule

A cipher, for a given security level, may require a

relatively large number of round keys. Therefore, the

S-orb number of words is intentionally left open to

the user to increase the internal state of the cipher

for added security. The user key can be varied from

one bit to virtually any size key since it will be

hashed using MDP-192 into a 192-bit set of round

keys depending on the size of the S-orb.

Using a preprocessing phase of xoring the plain text

with the user key and a post processing of xoring the

cipher with the user key adds appreciably to the

THE CHAMELEON CIPHER-192 (CC-192) - A Polymorphic Cipher

201



Figure 3: 3.a: (from top to bottom) The key format, the

construction of the S-orb and 3.b: the X-blocks.

security of the algorithm as shown by Merkle

(Merkle, R.C., 1991).

4.3 Key setup

There are alternatives available to the cipher

designer to build the S-box. These alternatives are:

1. Fixed S-box such as in DES (ANSI X3.92,

1981), AES (Daemen and V. Rijmen,

1998).

2. Cipher-generated such as in BlowFish

(Bruce Schneier, 1994).

3. SHA (Federal Information Processing

Standard Publication, 1995), (A. Bruen, M.

Forcinito, 2005), hash function-generated

such as in SEAL (Rogaway, P.,

Coppersmith, D., 1994).

4. Based on a specially-designed hash

function

The first alternative may seriously compromise

security. In the case of DES, there were a lot of

conjectures that it contains trap doors. The second

alternative consumes a large amount of key setup

time. The third alternative is susceptible to attacks

since it is based on a well-studied hash function. In

our design, we have chosen the fourth alternative

and designed our own hash function with features

that can stand present and some future attacks.

Moreover, the performance on modern superscalar

processors of this hash and accordingly the key

setup time were optimized and verified.

5 DESIGN RATIONALE

In the design of this cipher, we follow the general

construction, suggested by T. Ritter (Terry Ritter et

al., 2007). In this basic structure, we utilize the ideas

put forward by Ritter regarding the exchange of two

message symbols. The shown transposition provides

the required mathematical “permutation” of the

message contents. However, this type of

transposition notoriously has weaknesses when

performed on the character level, since every

character of the plain text is still visible in the cipher

text. This allows for a chance for rearranging or

“anagram’ the cipher to find the plain text that

makes sense. Nevertheless, if this permutation is

performed on the bit-level, a large number of

“Homophones” can be created. All but one is the

required message. The concept behind this technique

is rather simple. One starts by collecting data in

blocks where the number of ones is almost equal to

the number of zeros. Then the bits of these blocks

are shuffled using a keyed pseudorandom number

generator. We call this PRNG the “S-orb”. If the

sequence reuse is minimized, then one correctly

obtains scrambled words or cipher text. However, it

requires a PRNG with a relatively large internal

state. This, in a sense, partially neutralizes the ability

of the attacker to identify which permutation has

occurred. The size of the S-orb was left variable to

allow applicability to platforms with limited

memory. Using conventional substitution tables may

leak an infinitesimal fraction of these tables. This

may lead to the exploitation of these ciphering

tables. However, dynamic transposition provides an

unbiased basic ciphering operation. Many different

permutations will produce the exact same cipher

from the same plain text. Thus, even known-

plaintext does not expose the exact ciphering

transformation. This is a form of balanced, nonlinear

aggregation of the confusion sequence and data

(Terry Ritter et al., 2007). On the other hand, bit-

permutation does consume a substantial execution

time. However, in modern superscalar processors,

this cost is increasingly becoming quite endurable.

For simpler fine-grained processors, and FPGA-

based implementations, one can always resort to

parallelism or multiple similar data paths to

compensate for this unavoidable increase in

execution time. The proposed simple straight

forward structure with minimal internal sequential

looping makes this algorithm a good candidate for

this type of parallelism. The second adopted

principle in the design of this cipher is based on

“algorithm polymorphism”. The algorithm,

SECRYPT 2009 - International Conference on Security and Cryptography

202



depending on certain values embedded in the user

key, transforms (morphs) into different forms. As

shown in section 3, the attacker has a very small

probability of discovering the correct form of the

algorithm. In Chameleon Cipher, we only use

parameter changes.

The design of the round function is kept simple and

straight forward. It is based on two fast operations

substitute and add (SUBSADD), and XOR. These

two operations are supported in most modern

processors. The rotation operation, while it is

relatively slow, we found it essential for correct data

scrambling and elimination of key leakage. The bit-

wise substitutions are time- consuming. However,

with proper utilization of modern superscalar

processors, the associated delays are kept to a

minimum. Even with such simple round function, it

is well-known that increasing the number of rounds

will provide the required security. This simple round

function when iterated through a key-dependent

number of rounds that is greater than or equal to a

prescribed minimum number of rounds provides the

required security. This approach contradicts

conventional designs where the designers use strong

round functions and less number of iterations. We

view the performance as the overall execution time

not the number of rounds. There is no internal

looping per round. This feature provides the basis

for parallelization on multi-thread superscalar

processors. At the same time, the cipher can be

easily implemented on FPGA using similar multi-

data paths, as mentioned before, for improved

performance.

5.1 The Hash Function MDP-192

Cryptographic hash functions or message digest

have numerous applications in data security. The

recent crypto-analysis attacks on existing hash

functions have provided the motivation for

improving the structure of such functions. The

design of the proposed hash is based on the

principles provided by Merkle’s work (Ralph C.

Merkle, 1979), Rivest MD-5 (Rivest, R. L., 1992),

SHA-1 and RIPEMD (Hans Dobbertin et al., 1996).

However, a large number of modifications and

improvements are implemented to enable this hash

to resist present and some probable future crypto-

analysis attacks. The procedure, shown in Figure 4,

provides a 192-bit long hash that utilizes six

variables for the round function. A 1024-bit block

size, with cascaded xor operations and deliberate

asymmetry in the design structure, is used to provide

higher security with negligible increase in execution

time. The design of new hashes should follow, we

believe, an evolutionary rather than a revolutionary

paradigm. Consequently, changes to the original

structure are kept to a minimum to utilize the

confidence previously gained with SHA-1 and its

predecessors MD4 (

Rivest, R.L., 1990) and MD5.

However, the main improvements included in MDP-

1 are: The increased size of the hash; that is 192 bits

compared to 128 and 160 bits for the MD-5 and

SHA-1 schemes. The security bits have been

increased from 64 and 80 to 96 bits. The message

block size is increased to 1024 bits providing faster

execution times. The message words in the different

rounds are not only permuted but computed by xor

and addition with the previous message words. This

renders it harder for local changes to be confined to

a few bits. In other words, individual message bits

influence the computations at a large number of

places. This, in turn, provides faster avalanche effect

and added security. Moreover, adding two nonlinear

functions and one of the variables to compute

another variable, not only eliminates the possibility

of certain attacks but also provides faster data

diffusion. The fifth improvement is based on

processing the message blocks employing six

variables rather than four or five variables. This

contributes to better security and faster avalanche

effect. We have introduced a deliberate asymmetry

in the procedure structure to impede potential and

some future attacks. The xor and addition operations

do not cause appreciable execution delays for

today’s processors. Nevertheless, the number of

rotation operations, in each branch, has been

optimized to provide fast avalanche with minimum

overall execution delays. To verify the security of

this hash function, we discuss the following simple

theorem:

Theorem 5.1.

Let h be an m-bit to n-bit hash function where m >=

n input keys k

, k

to h.

Then h (k

) = h (k

) with probability equal to:

-m

+ 2

-n

– 2

-m-n

Proof.

If k

= k

, then h (k

) = h (k

However, if k

≠ k

, then h(k

) = h(k

) with

probability 2

-n

= k

with probability 2

-m

and k

≠ k

with

probability 1- 2

-m

Then the probability that h (k

) = h(k

) is given by:

Pr {h (k

) = h (k

)} = 2

-m

+ (1 - 2

-m

). 2

-n

THE CHAMELEON CIPHER-192 (CC-192) - A Polymorphic Cipher

203



As an example, assume two 192-bit different keys

, x

then

Pr {h(x

) = h(x

)} = 2. 2

-192

– 2

-384

= 2

-191

(1 - 2

-193

) ≈ 3.186 x 10

-58

This is a negligible probability of collision of two

different keys.

Figure 4: The hash function (MDP-192) used to generate

the S-orb.

5.2 The S-orb

As shown in section 4.1, the S-orb is constructed

using an iterated application of MDP-192 on the

round keys multiplied by and added to two large

numbers. The iteration is initiated using the user’s

key. However, to increase the addressing space, we

use the resulting table by folding it vertically and

diagonally as shown in Figure 5. The resulting

spherical configuration is what we have referred to

as the S-orb. The programming effort involved is

justifiable when one takes into consideration the

potential increase in the number of addressable x-

blocks.

Figure 5: The conceptual S-orb

The generation of the S-orb based on the user key

using a hash function eliminates the possibility of

trap door functions. In addition, the number of

words of the S-orb can be increased for added

security and increasing the internal cipher period.

This set of two large numbers is used to update the

iterative hash calculation and is kept secret. This set

is also user key-dependent. If we use, say six-word

192-bit per word S-box, then the number of x-blocks

will be 128 blocks. However, if we use the S-orb

configuration, then this number is increased to 1152

since each element can serve as the center of the x-

block. Accordingly with such simple transformation

of the S-box to an S-orb, the internal state of the

cipher has been enormously increased. This may

prove to be an important feature of the cipher for

devices with limited memory.

6 THE ALGORITHM

In the next few lines we provide a formal description

of the algorithm round structure.

Algorithm Chameleon-Cipher

[Given a plain text message P, key K, the aim of the

algorithm is to encrypt the plain text into a cipher

text C and decrypt it again. To achieve this the

algorithm utilizes a specially developed hash

unction to generate the key stream, and a dynamic

transposition to permute the plain text, and finally

modulo two addition to scramble a varying-size

data unit]

Encrypt:

Input: Plain text P, key K Output: Cipher C, word-

size

Algorithm body:

Initialize the S-orb

Input: n is a positive integer ε Ζ

equal to

number of words of the S-orb, p

, q

are pairs of

large positive integer numbers ε Z

required to

update the iterative application of the hash function.

Output: A 192-bit n-word table utilized as a

pseudo random number generator PRNG called the

S-orb.

{Initialize S-orb body :}

i: = 0;

:= p

. h (K) + q

;

{Hash the user key using MDP-192}

While i <= n

i+1

:= p

i+1

. h

(k) + q

i+1

;



SECRYPT 2009 - International Conference on Security and Cryptography

204



Save in S-orb file;

End while;

End Initialize;

{Encrypt}

{P[m] = m blocks in P file}

Divide the Plaintext file P into m-1 192-bit blocks;

Append last block if necessary;

Read max-number of rounds from user key; {Input

max-number of rounds from user key from assigned

secret location in user key}

If max-number of rounds < 4 then max-number of

rounds: = 4;

For round = 1 to max-number of rounds

While (P[m] ≠ EOF) {EOF: End Of File}

j := 0;

While j ≠ n

Read kw[j] of S file;

Using the round key kw[j], read value of integer

given by bit location 23-to-29; {This address

represents the address of the center element of the

block}

For the next block address, slide the 7-bit window

two bits to the right and find new block address;

Divide the plain text 192-bit block into six 32-bit

words, or twelve 16-bit words, or twenty four 8-bit

words depending on user word-size;

From the LSB and moving to the right of the word-

to- be encrypted: {Input: P[m], kw[j](round key),

Output: C

}

If k

=1 then move depending on location weights

0,1,2,...7 to N, NE, …, NW respectively then xor

with corresponding bit of round-key kw[j];

Else do nothing;

ROTL (r); {r is determined from key 5-bit field (16-

20) value, output C

}

{Input: C

, kw[j](round key), Output: C

}

If k

=0 then move depending on location weights

0,1,2,...7 to N, NE, …, NW respectively then xor

with corresponding bit of round-key kw[j];

Else do nothing;

{Input: C

, kw[j]

(round key), Output: C

}

Ci = Ci3 xor kw[j];

Save C

in output file

End while;

Next round;

End Algorithm.

The substitution operation, using the x-blocks,

explained above, provides homophonic substitutions

that considerably improve the security of the cipher.

In addition it provides the means to overcome the

potential problem of block replay. The cipher is a

binary-additive cipher that emulates a one-time-pad.

The final xor operation between the partially

ciphered text and the round key provides the

polyalphabetic substitution and masking required for

security. Inside the encryption process, the round

keys effectively act as pointers in the homophonic

substitutions without directly be part of the

computations. This contributes to added security to

the cipher. Testing of the cipher shows no bias to

either ones or zeros and an average hamming

distance of 3.8 for each byte encrypted. However,

this value can be substantially increased with the

increase of the minimum number of rounds. Testing

of the cipher conforms to the Strict Avalanche

Criteria (SAC) as required by New European

Schemes for Signal Integrity and Encryption

(NESSIE). The results are summarized and

discussed in section 12. Contrary to conventional

ciphers, the round function is kept simple and, in

general, security is obtained through a relative

increase of the number of rounds. This number of

rounds can be large to ensure security. However, we

adopted the idea of key-dependent number of rounds

as long as it is greater than four rounds. This way,

the security is increased twofold; by having an

adequate number of rounds and at the same time

hiding this number, in most cases, from the attacker.

THE CHAMELEON CIPHER-192 (CC-192) - A Polymorphic Cipher

205



7 KEY GENERATION

In this section, we provide a recap on some of the

concepts that have already been presented regarding

key-generation. Using the MDP-192 hash function

recursively, one is able to generate the required

PRNG. Most of the CPU time used in key-setup is

actually consumed by this hash. The tests on this

hash have shown that the average throughput, using

Intel Core2 Duo CPU E6550 @ 2.33 GHz, 4 GB

RAM, 32-bit operating system, is approximately

161.4 Mbps. That is 115.6 cycles per byte. If the key

size is 128 bits, then we require around 1849.6

cycles for key setup. The recursive use of the hash

function, as shown in equation 4.1, requires the

multiplication of the hash by a large integer number

. There are a number of methods to achieve this

object (Michael Welschenbach, 2005). We have

adopted a modified version of Karatsuba Algorithm

(Karatsuba A. and Yu Ofman, 1962), to perform this

task. The homophonic selective substitutions were

performed using 1152 x-blocks. No bias to the zeros

or to the ones was completely and absolutely

observed during the design phase. This was later

verified based on the tests performed on the cipher.

8 STATISTICAL TESTS

The essential part of any cryptographic primitive is

to generate a truly pseudo random sequence. A

necessary but not a sufficient condition is to verify

that there is no bias in the number of zeros or ones in

the resulting cipher. This simple fact was repeatedly

verified for various types of encrypted text, graphics

or audio files. The results of these tests are shown in

section 12. The strict avalanche criteria test is

performed by changing one bit of the key and noting

the change in the resulting cipher. As expected, and

as required by NESSIE, the number of bits that have

changed in the cipher is greater than or equal to

50%. The tests proposed by National Institute of

Standards and Technology (NIST) and

recommended by (NESSIE) were performed on the

cipher. These tests are shown in the following list:

Frequency (Mono-bit) Test, Frequency within a

block, Runs Test, Longest Run of ones in a block,

Binary Matrix Rank Test, Discrete, Fourier

Transform (spectral) Test, Overlapping Template

Matching Test, Non-overlapping Template Matching

Test, Maurer’s Universal Test, Lempel-Ziv

Compression Test, Linear Complexity Test, Serial

Test, Approximate Entropy Test, Cumulative Sums,

Random Excursions Test, Random Excursions

Variant Test. All of these tests were passed with no

indication of deviation from random behavior.

However, these tests are necessary but not a

sufficient condition for a viable cipher. The simple

cipher structure, the key-dependent number of

rotations, the key-dependent addresses of the various

x-blocks, the key-dependent number of rounds and

above all the key-dependent S-orb all of these design

parameters help eliminate the possibility of trap

doors. In addition, the trap door has to endure the

proposed variable number of rounds. The idea of a

universal hidden key, in a sense, emulates a public

key cryptography which is definitely not the case in

this cipher (

Bruce Schneier et al. 1998).

9 SECURITY & PERFORMANCE

The security features of this cipher are implicitly

discussed in the sections covering polymorphic

structure and design rationale. However, one claims

that differential cryptanalysis, linear cryptanalysis,

Interpolation attack, partial key guessing attacks,

and side-channel attacks, hardly apply in this

proposed cipher. The homophonic selective random

substitutions and the polymorphic nature of the

cipher, we believe, hide most traces that can be

utilized to launch these attacks. Each key has its own

unique “weaknesses” that will affect the new form

of the algorithm utilized. Thus, different keys will

produce different forms of the cipher. Accordingly,

statistical analysis is not sufficient to link the plain

text to the cipher text. With different inputs (user

keys), we end up with a different “morph” of the

cipher, therefore, it is totally infeasible to launch

attacks by varying keys or part of the keys.

Regarding the Key collision probability, it was

shown in section 5.1 that the key collision

probability is negligible when a 192-bit hash is

applied. Moreover, we have proven that the attacker

has a very small probability of guessing the correct

form of the algorithm utilized. As was previously

discussed, the simple structure of the proposed

cipher provides a foundation for efficient software

and hardware-based implementation. It is relatively

easy to parallelize the data path either using multi-

threading on a superscalar processor or by cloning

this path on the FPGA material. The cryptographic

selective substitution and the variable number of

rotations provide a secure barrier against pattern

leakage and block replay attacks in multi-media

applications. Using ECB mode, when encrypting

images with conventional ciphers, a lot of the

structure of the original image will be preserved

(Swenson, C., 2008). This may lead to the problem

SECRYPT 2009 - International Conference on Security and Cryptography

206



of block replay. The selective substitution operation

allows the cipher to encrypt images with no traces of

the original image. This is a major advantage of the

homophonic substitutions. In Figure 6, shown

below, we encrypt part of the image to verify that

there are no visible leaked structures from the

original image. Based on the results shown in Figure

7, we provide a summary of the tests performed on

the cipher in Table 1. The first and second ciphers,

resulting from a one-bit change in key, were XORed

to verify the SAC. The hamming distance is

computed to assert that approximately one half the

bits were changed as a result of the encryption

process.

Figure 6: A partially encrypted image, showing no

structure leakage from the original.

Figure 7: A screen shot showing the tests which results are

summarized in table 1.

The word size and the number of threads were

changed to check for execution time, throughput and

the number of cycles required to encrypt one byte.

The tests were performed using Intel Core2 Duo

CPU E6550 @ 2.33 GHz, 4 GB RAM, 32-bit

operating system.

As seen from Table 1, the SAC is satisfied since the

number of one’s resulting from XOR two ciphers,

encrypted with one-bit difference in key used

(Frankly12345 versus Erankly12345), is about 50%.

We have changed the number of threads and found

the number of cycles per byte to be in the range 26-

31 cycles per byte depending on the CPU usage.

Using only one thread, the throughput is 304.491

Mbps, the cycles per byte is 52, the execution time

with I/O included is 0.499 sec, and the execution

time without I/O is 0.343 sec. As expected, using

multithreading improves the performance

Table 1: Tests to verify SAC and no bias to zeros or ones

in the cipher file.

File Name & Size DSC923,

2.49 MB

DSC923,

2.49 MB

DSC923,

2.49 MB

Keys Frankly

1234,

Erankly

1234

Frankly

1234,

Erankly

1234

Frankly

1234,

Erankly

1234

Cipher1 Beta1 Beta1 Beta2

Cipher2 Beta2 Beta2 Beta2

Cipher1 XOR

Cipher 2

1’s =

49.9994%

1’s =

50.238%

1’s =

50.230%

Word size (bits) 8 16 32

Threads 8 8 8

Rounds 4+1 4+1 4+1

Throughput

(Mbps/round)

514.486 610.764 610.764

Cycles per byte 31 26 26

System Frequency

(MHz)

2.000 2.000 2.000

Execution time

(sec), I/O included

0.219 0.187 0.187

Execution time

(sec), I/O not

included

0.203 0.171 0.171

Hamming distance

(bits per byte

changed)

3.636 3.778 3.804

Number of zeroes

in encrypted file

49.84% 49.95% 49.95%

appreciably. This is result of utilizing the parallelism

in modern superscalar processors. We have not

compromised the security for improved

performance. We rather made full use of

contemporary superior processors’ performance.

10 SUMMARY & CONCLUSIONS

In this work, we have presented a polymorphic

cipher, the rationale of its design and the general

constructs required to build such a cipher.

Throughout the process of implementing the ideas

behind constructing such a cipher, we were able to

demonstrate the following:

Design of a polymorphic secure cipher that can

be efficiently implemented in both software and

hardware. Contrary to conventional ciphers

where it is implicitly assumed that the cipher

machine is not reprogrammable, the proposed

polymorphic cipher utilizes the user key to

change the parameters of its operations. We have

proposed three constructs in a general

polymorphic cipher; Shuffle, Select/Remove and

Change parameters as key-dependent operations.

THE CHAMELEON CIPHER-192 (CC-192) - A Polymorphic Cipher

207



One considers the user key as the system

memory where both the user key data and cipher

re-programmability parameters are stored. The

proposed cipher is a word-based cipher with

variable word and key sizes. The bit-level S-orb

replaces the conventional S-box leading to a

noticeable increase in addressing space and

added security. The key stream and the number

of rounds are both key-dependent; thus

eliminating the possibility of trap door functions.

The generated S-orb is key-dependent using a

specially-developed hash- function. The large

integer numbers used in generating the different

S-orb words are also key-dependent. The ergodic

process, on which the cipher is based, is also key

initiated emulating a faulty compass. These key-

dependencies provided the foundation from

which this polymorphic cipher acquired its name.

Furthermore, these substitutions provide the

required aperiodic random walks. We have used

the concept of a faulty compass rather than

chaotic maps since these chaotic systems usually

suffer from unpredictable reproducibility

problems. We have used selective additions

leading to an enhanced homophonic substitution.

In these homophonic bit-level substitutions, the

mapping of characters varies depending on the

sequence of bits in the message text. Inside the

encryption process, the round keys act initially as

pointers in the homophonic substitutions without

directly being part of the computations. This

contributes to added security. Finally, a poly-

alphabetic substitution is performed on the data.

This involves using bit-wise XOR between the

partially ciphered data and the generated keys.

The operation can be viewed as a linear masking

operation. The high security of this cipher is a

direct consequence of the polymorphic key-

dependent design of the cipher operations’

parameters.

The paradigm of polymorphic encryption

provides the required security with relatively

simple round function constructs. The security of

the cipher was not compromised for an increase

in its speed. We have preserved the pseudo-

random permutations using robust bit-wise

homophonic substitutions. In addition, we have

utilized the capabilities of contemporary

processors’ superior performance to achieve

acceptable

execution speeds.

REFERENCES

ANSI X3.92, (1981). American National Standard for

Data Encryption Algorithm (DEA). American

National Standards Institute.

Kostadin Bajalcaliev, May (2001). Quasi Functions and

Polymorphic Encryption. http://eon.pmf.ukim.edu.mk/

~kbajalc

Aiden A. Bruen, Mario A. Forcinito, (2005).

Cryptography, Information Theory and Error

Correction, Wiley-Inter-science.

Daemen and V. Rijmen, (1998). AES Proposal: Rijndael.

First AES conference, California, US.

Federal Information Processing Standard Publication,

April 17, (1995). Specifications for Secure Hash

Standard. FIPS PUB 180-1,

http://www.itl.nist.gov/fipspubs/fip180-1.htm

Gray, R.M., (2008). Probability, Random Processes, and

Ergodic Properties. Springer Verlag, New York.

Gunther, C., (1988). A Universal algorithm for

homophonic coding. Advances in Cryptology,

Eurocrypt 88, LNCS No. 330, pages 405-441,

Springer-Verlag.

Hans Dobbertin, Antoon Bosselaers, Bart Preneel, (1996).

RIPEMD-160: A Strengthened Version of RIPEMD.

Fast Software Encryption, LNCS 1039, Springer-

Verlag, pp. 71–82.

Hussein A. AlHassan, Magdy Saeb, Hassan D. Hamed,

(2005). The Pyramids Block Cipher. International

Journal of Network Security, Vol. 1, No., 1, pages 52-

60.

Karatsuba A. and Yu Ofman, (1962). Multiplication of

Many-Digital Numbers by Automatic Computers.

Proceedings of the USSR Academy of Sciences, 145,

pages 293-294.

Ralph C. Merkle, June, (1979). Secrecy, Authentication

and Public Key Systems, Ph.D. Dissertation, Stanford

University.

Merkle, R.C., (1991). Fast Software Encryption Functions.

Advances in Cryptology-CRYPTO ’90 Proceedings,

pages.476-501, Springer Verlag.

Massey, J. L., (1987). On Probabilistic Encipherment.

IEEE Information Theory Workshop, Bellagio, Italy.

Massey, J. L., (1994). Some Applications of Source

Coding in Cryptography. European transactions on

Telecommunications, Vol. 5, No. 4, pp.7/421-15/429.

Penzhorn, W. T., (1994). A fast homophonic coding

algorithm based on arithmetic coding. Fast Software

Encryption, second International Workshop, Leuven,

Belgium, Lecture Notes in Computer Science1008,

pages 329-346.

Discussions by Terry Ritter, et al., 2007.

http://www.ciphersbyritter.com/LEARNING.HTM.

Rivest, R.L., (1990).. The MD4 Message Digest

Algorithm. RFC 1186.

Rivest, R. L., (1992). The MD5 Message Digest

Algorithm. RFC 1321.

Rogaway, P., Coppersmith, D., (1994). A software-

oriented Encryption Algorithm. Fast Software

SECRYPT 2009 - International Conference on Security and Cryptography

208



Encryption Cambridge Security workshop

Proceedings, Springer-Verlag, pages 56-63.

Bruce Schneier, (1994). Description of a New variable-

Length key, 64-bit Block Cipher (Blowfish). Fast

Software Encryption, Cambridge Security Workshop

Proceedings, Springer-Verlag, pages 191-204.

Bruce Schneier, John Kelsey, Doug Whiting, David

Wagner, Chris Hall, Niels Ferguson, , (1998).

Twofish: A 128-bit Block Cipher. First AES

conference, California, US.

Swenson, C., (2008). Modern Cryptanalysis; Techniques

for advanced Code Breaking, Wiley Pub. Inc.

Michael Welschenbach, (2005). Cryptography in C and

C++, Apress.

THE CHAMELEON CIPHER-192 (CC-192) - A Polymorphic Cipher

209
