DIGITAL RIGHTS MANAGEMENT AS A SERVICE

Developing Towards an Internet Service for Desktop and Mobile Users

Shih-Fang Chang

Industrial Technology Research Institute, 195 Sec. 4 Chung-Hsing Rd., Chutung, Hsinchu 310, Taiwan

Keywords: Digital Rights Management, Software as a service, Platform as a service, Web 2.0, Web Service.

Abstract: In November 2002 the Open Mobile Alliance starts to work out standard protection mechanism on digital

content, so-called digital rights management (DRM). Then the OMA DRM 1.0 and 2.0 were approved in

June 2004 and March 2006. Lots of industries and companies not only use the technology to protect their

own media content, but also make sure the content should be revealed and retrieved in reasonable and

secure manner. However, the cost and the availability for operating and integrating the technology would be

very huge. Therefore, the proposed system is named DRMaaS that redesign the scenarios, those traditionally

DRM technology has, with concept of Software as a Service (SaaS). In addition, we preserve the feasible

feature to conjunct with other optional functionalities, like storage service and certification service. The

proposed system is a work in progress towards an internet service for both desktop and mobile applications.

1 INTRODUCTION

For the past decade, the main technology used in

digital content and copyright protection is DRM, the

digital rights management. The DRM system aim at

protecting ownership and copyright of electronic

content by restricting what actions an authorized

recipient may take with respect to that content. It is a

most common research direction and application

field when projecting the environment to be the

versatile heterogeneous network.

The transmission requirement of DRM would

perfectly fulfilled by the advantages of the network

that for example, a client device with heterogeneous

network accessibility can utilize wired broadband to

carry heavy and encrypted multimedia data and

retrieve authorization of the content via a more

closed and secure cellular network. Recently, in

addition to the already in place wired high speed

xDSL and cable network infrastructure, the wireless

network technologies also elevate themselves with a

more competitive bandwidth, e.g. WiFi, WiMax,

3G, 3.5G. This grants more possibilities for newer

DRM technical and service models.

In August 2003 Dhamija and Wallenberg had

illustrated and evaluated the existing and potential

DRM frameworks at that time. They pointed out

several aspects to identify what a good DRM

solution should have, and described that there are

many tradeoffs to establish and operate such a

complicated system. Besides, they have made

conclusions that a successful technical solution

would be in combination with models where the

incentives to circumvent are limited, and the motives

to cheat will depend on the price per copy of digital

works and the restriction that are placed on usage.

Therefore, a flexible and low-cost system with

privacy and efficiency issues considered will be

optimistic.

In 1999 Bennett brought he concept of “software

as a service” (SaaS). SaaS could provide flexible

environment which supports software solutions to

grow easily and rapidly. Based on the concept of

SaaS, an open platform of digital content and

research.

The proposed system tends to develop a platform

system considering the needs of content providers,

service providers and end users, and architects the

system as a service-oriented solution. It defines

consistent interfaces for technical solutions and an

integral services’ mechanism for different roles. The

new approach would be more secure and effective

than conventional client-server approaches, and

bring more opportunities for independent solution

providers and low-budget content service providers.

176

Chang S. (2009).

DIGITAL RIGHTS MANAGEMENT AS A SERVICE - Developing Towards an Internet Service for Desktop and Mobile Users.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 176-179

DOI: 10.5220/0002230401760179

 SciTePress

2 RELATED WORKS

We briefly review two related works, “Digital

Rights Management (DRM)” and “Software as a

Service (SaaS)”. Digital rights management is a

technology used in digital content and copyright

protection. Software as a service is a model of

software deployment where an application is

licensed for use as a service provided to customers

on demand.

We employ DRM into the architecture of SaaS to

expand the scenarios for fast and easy usage, and to

increase interest to people. In the followings we will

only describe the functions and architecture of these

two works.

2.1 Digital Rights Management

Digital rights management (DRM) refers to access

control technologies those are used by copyright

holders, publishers, and hardware manufacturers to

limit usage of digital media or devices. It enables the

publisher to control what can and cannot be done

with a single instance. For example, a publisher can

limit the number of viewings, number of copies, or

which devices the media can be transferred to.

Digital rights management is widely being used by

companies such as Sony, Apple Inc., Microsoft and

the BBC.

The Open Mobile Alliance (OMA) pronounced

the OMA DRM 1.0 which was started in November

2002 and approved in June 2004. It is basic DRM

standard without strong protection. There are three

main methods within the standard, Forward Lock,

Combined Delivery (combined rights object and

media object), and Separate Delivery (separated

rights object with encrypted media object). Forward

lock prevents the user from forwarding content such

as ringtones and wallpapers on their phone.

Later, the OMA also pronounced the OMA DRM

2.0 which was started in July 2004 and approved in

March 2006. It is the extension of the OMA DRM

1.0 separate delivery mechanism. Each participating

device in OMA DRM 2.0 has an individual DRM

PKI certificate with a public key, and the

corresponding private key. Each Rights Object (RO)

is individually protected for one receiving device by

encrypting it with the device public key. The RO in

turn contains the key that is used to decrypt the

media object. Delivery of Rights Objects requires a

registration with the Rights Issuer (RI, the entity

distributing Rights Objects). During this registration,

the device certificate is usually validated against a

device blacklist by means of an “Online Certificate

Status Protocol (OCSP)” verification. Thus, devices

known to be hacked can be excluded once they try to

access.

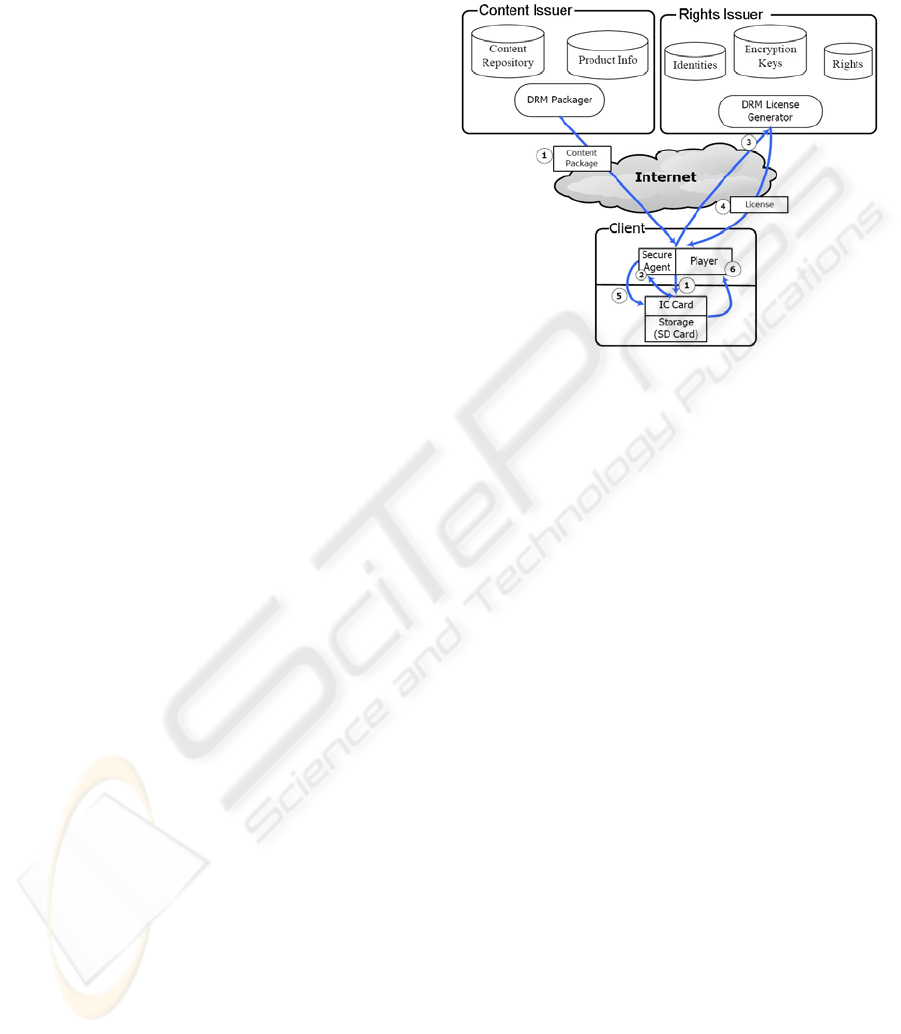

Figure 1: The structure of OMA DRM.

Since 2006, OMA has been working on DRM

2.0.1 and 2.1, and on new features such as SRM

(Secure Removable Media) and SCE (Secure

Content Exchange). It seems that DRM is the most

common use for media protection; however, it’s

extremely growing cost and preparation for system

initial always let companies cowardly to invest and

integrate. These drawbacks devalue DRM in practice,

despite how remarkable it is.

2.2 Software as a Service

The concept of “software as a service” started to

circulate prior to 1999 and was considered to be

“gaining acceptance in the marketplace” in Bennett

et al., 1999 paper on “Service Based Software”.

SaaS is generally associated with business

software and is typically thought of as a low-cost

way for businesses to obtain rights to use software as

needed versus licensing all devices with all

applications. It enables the benefits of commercially

licensed use without the associated complexity and

potential high initial cost of equipping every device

with the applications that are only used when needed.

Using SaaS can also conceivably reduce the up-

front expense of software purchases, through less

costly, on-demand pricing from hosting service

providers. The key characteristics of SaaS software

include:

i. Network-based access to, and management of,

commercially available software;

DIGITAL RIGHTS MANAGEMENT AS A SERVICE - Developing Towards an Internet Service for Desktop and Mobile

Users

177

ii. Activities that are managed from central

locations rather than at each customer's site,

enabling customers to access applications

remotely via the web;

iii. Application delivery that typically is closer to

a one-to-many model than to a one-to-one

model, including architecture, pricing,

partnering, and management characteristics;

iv. Centralized feature updating, which obviates

the need for downloadable patches and

upgrades;

v. Often used in a larger network of

communicating software, either as part of a

mash-up or as a plug-in to a platform as a

service. Service oriented architecture (SOA)

is naturally more complex than traditional

models of software deployment.

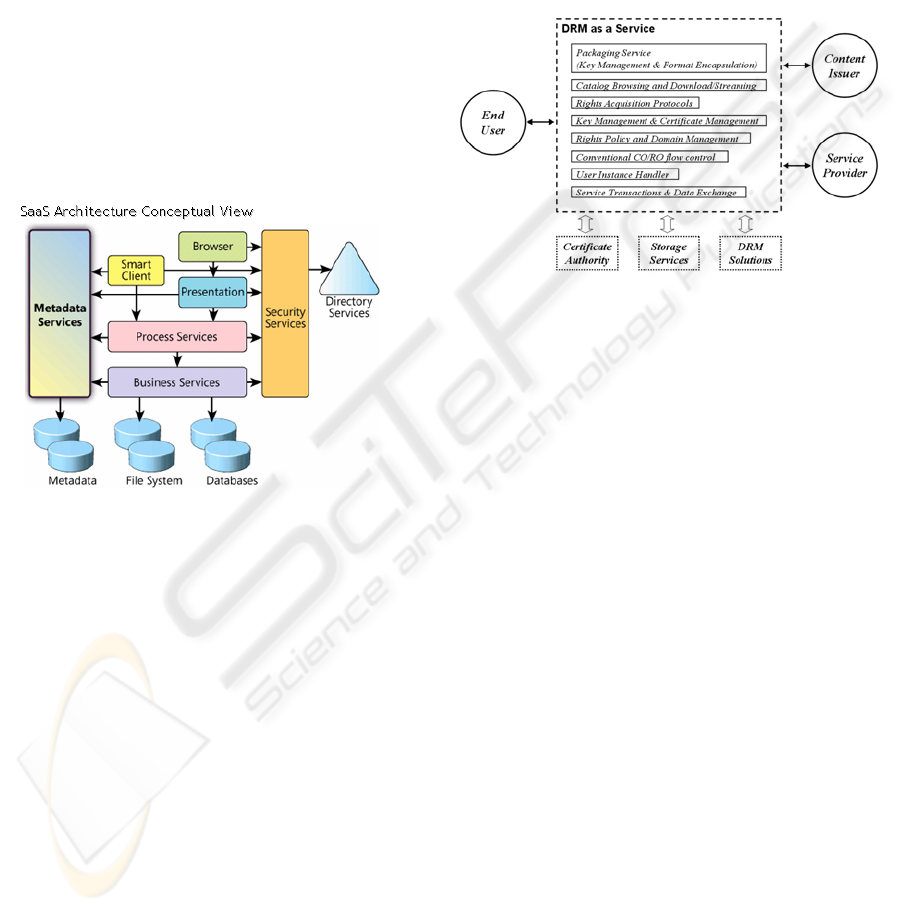

Figure 2: The architecture conceptual view of SaaS.

In the traditional world of software platforms, the

cost of the first copy of the platform was enormous,

often requiring companies to invest hundreds of

millions before they could offer the platform to their

very first customer. So, to lighten the heavy burden

in using the software or services, the SaaS would be

a fast and flexible model for general software

developing.

3 THE PROPOSED SYSTEM

The proposed DRMaaS is based on the structure of

OMA DRM technology, and extends the usage and

behaviours with the philosophy of SaaS. It is

implemented and presented as web native interface

which allows content issuers, service providers, and

end users may easily to follow their own scenario

and achieve the flows and functionalities needed.

Like the typical digital rights management

solutions, DRMaaS has the same main roles and

scenarios. The content issuers generate the digital

media content, while the service providers

publishing the content which is authorized by

content issuers. Thus, the end users purchase and

download the protected content and suitable access

rights, and then play or view it. Users of the

platform may play as different main roles, content

issuers, service providers, and end users, at the same

time with the same interface.

Figure 3: The architecture conceptual view of DRMaaS.

The content issuers may upload their own media

content online, edit the related metadata, like ID3

tag, and then authorize it to service providers. The

authorization means that content issuers allow

specified or not specified service providers to deal

with the content. The service providers may decide

using which kind of DRM protection, adjust the

parameters, like the number of viewings, number of

copies, total time or expire date of viewings, etc, and

publish the content at last.

Once the content was published, the content will

be queued to encrypt with the settings gave by

individual service provider. Then the end users may

browse and find it in the content list through the web

native interface. The content may with different

offers that indicate service providers could use to

provide kinds of programs for consumption.

According to the information revealed by service

providers, they can check it and to see if the content

is what they want. When they decide to download

one among the content listed, what they needed is

only to have a single click. Thus both the content file

and access rights document will be downloaded

simultaneously to end users as long as the payment

is made and confirmed. Finally, the end users use the

DRM client, which is reachable and downloadable

from DRMaaS, to view or play the content

according to the access rights.

DRMaaS treats DRM solutions as part of

configuration which can be easily substituted and

WINSYS 2009 - International Conference on Wireless Information Networks and Systems

178

replaceable. It uses the application programming

interface (API) which is based on http or https

protocol with the “JavaScript Object Notation

(JSON)” or the “Extensible Markup Language

(XML)” format to communicate with service

providers and achieve the goal. The service

providers can choose for using which kind of DRM

mechanism supported before publishing the content.

Currently, we only support the standard of OMA

DRM 1.0 and OMA DRM 2.0, while Windows

Media DRM (WMDRM) is still underway.

Besides above, the DRMaaS still keep the

flexibility and capability in conjunction with

supporting services extensively, like storage service

and certification service. It use the storage service to

enforce the capability of storing digital media

content, and use the certification service to verify the

users’ identity and certificate used to encrypt and

decrypt the media content. The communication

between DRMaaS and all other supporting services

is also through individual APIs. Simply transmission

with json or xml format data, both sides of DRMaaS

and supporting services may capable to maintain the

system states and exchange corresponding

information.

4 CONCLUSIONS

The DRM technologies and solutions have been

followed and practiced for years. However, the

prevalence in many ways seems not to satisfy DRM

solution providers. Most people know the important

of the technology and have the will to experience it,

but feel the gap between the technology and the

reality. With the proposed system, DRMaaS, the

significant benefit would be reducing the threshold

to enjoying the world of digital rights management.

People who want protect their content but less

experienced in security or computer science, will be

still easy to use the system without numerous

parameters and troubling settings.

DRMaaS implements the most familiar scenarios

among digital rights management solutions among

content issuers, service providers, and end users. It

basically doesn’t break any behaviour that the

traditional DRM technology has, but extends the

possibility in growing of digital rights management

solutions. However, we think DRMaaS is not

suitable for all the services that DRM used for. To

conjunct with DRMaaS, DRM solutions need to

develop extra appropriate API to maintain the

original behaviours. Thus, the close systems or the

complicated solutions of DRM may result in a

burden. Furthermore, the privacy and trust issues

also perplex the model. Normally it will lead to be

driven the service by government eventually.

There are some future works based on DRMaaS

that require continuous efforts. Since the system is

base on web technologies, the adjustment in

appearance and embellishment on handset model is

underway. We also study the improvement of the

storage management, like connecting within the

environment of cloud computing. By the mechanism

of it, the proposed system may spread out rapidly,

and reduce the response time obviously for

operations. In the long run we will try to enhance

DRMaaS with architecture of cloud computing.

REFERENCES

Bennett, K., Layzell, P., Budgen, D., Brereton, P.,

Macaulay, L., Munro, M., 1999. Service-Based

Software: The Future for Flexible Software. Service

Based Software.

Brereton, P., Budgen, D., Bennett, K., Munro, M., Layzell,

P., Macaulay, L., Griffiths, D., Stannett, C., 1999. The

Future of Software: Defining the Research Agenda. In

Comm. ACM, Vol.42, No.12, December 1999.

Chong, F., Carraro, G., 2006. Architecture Strategies for

Catching the Long Tail. http://msdn.microsoft.com/en-

us/library/aa479069.aspx

Coyle, K., 2003. The Technology of Rights: Digital Rights

Management. http://www.kcoyle.net/drm_basics.pdf

Dhamija, R., Wallenberg, F., 2003. A Framework for

Evaluating Digital Rights Management Proposals. In

Proceedings of the First International Mobile IPR

Workshop: Rights Management of Information

Products on the Mobile Internet, August 2003.

Ghosh, S., 2008. Essential decisions before choosing a

good Platform-as-a-Service.

http://wolfpaas.blogspot.com/2008/10/essential-

decisions-for-choosing-good.html

Hoch, F., Kerr, M., Griffith, A., 2001. Strategic

Backgrounder: Software as a Service.

http://www.siia.net/estore/ssb-01.pdf

Ianella, R., 2001. Digital Rights Management (DRM)

Architectures. In D-Lib Magazine, Vol. 7 (6).

Open Mobile Alliance Ltd., 2008. Architecture Document

of OMA Digital Rights Management V2.0.2.

http://www.openmobilealliance.org/Technical/release

_program/drm_v2_0.aspx

Shah, D., 2007. force.com: The Perils of Platform As A

Service.

http://onstartups.com/home/tabid/3339/bid/2421/force

-com-The-Perils-of-Platform-As-A-Service.aspx

Stefik, M., 1997. Shifting the Possible: How Trusted

Systems and Digital Property Rights Challenge Us to

Rethink Digital Publishing. In Berkeley Technology

Law Journal, Vol. 12 (1).

DIGITAL RIGHTS MANAGEMENT AS A SERVICE - Developing Towards an Internet Service for Desktop and Mobile

Users

179
