DIGITAL RADIO AS AN ADAPTIVE SEARCH ENGINE

Verbal Communication with a Digital Audio Broadcasting Receiver

Günther Schatter, Andreas Eiselt and Benjamin Zeller

Faculty of Media, Bauhaus University Weimar, Bauhausstraße 11, D-99421 Weimar, Germany

Keywords: Digital Audio Broadcasting, Digital Radio, Text-to-Speech, Automatic Speech Recognition, Speech Dialog

System, Information Retrieval System.

Abstract: This contribution presents the fundamentals for the design and realization of an improved digital broadcast

receiver. The concept is characterized on the one hand by a content repository, which automatically stores

spoken content elements. On the other hand a speech-based and a graphical interface are implemented,

which enable users to directly search for audio and data content. For that purpose a DAB/DMB receiver is

augmented to simultaneously monitor a variety of information sources. Other digital communication

methods such as Satellite and HD Radios

or DVB are applicable as well. Besides broadcast receivers, the

system can be integrated into next-generation mobile devices, such as cell phones, PDAs and sophisticated

car radios. Priority is given to the idea of establishing a compact embedded solution for a new type of

receiver, promoting the convergence of service offers familiar to users from the internet into the broadcast

environment.

1 MOTIVATION

In recent years, the relevance of the classic medium

radio is significantly decreasing. If information is

required, it is more probable to use a web-based

search engine than a radio. However, the radio is per

se the first mobile and ubiquitous electronic medium

with many proved benefits such as ubiquitous,

mobile, topical, and free of charge reception.

If access to the Internet is not available, for

instance in sparsely populated or less developed

regions, a radio service usually exists. Radio

encompasses everyone. The range of services

offered on radio networks varies from entertainment

to voice oriented information channels and to

complex multimedia applications. The latter was

possible by the development of digital radio

concepts as Digital Audio resp. Multimedia

Broadcasting (DAB/DMB), Digital Radio Mondiale

(DRM), HD Radio

, satellite-based systems as

1worldspace

, Sirius XM Radio

, and Digital

Video Broadcasting (DVB) as well. The level of

standardization for several broadcasting one-way

concepts is quite advanced. Even though digital

broadcasting offers many potential advantages, its

introduction has been hindered by a lack of

international arrangements on common standards.

However, the convergence of information

technology and consumer electronics has also

opened up a wide range of opportunities for a new

generation of Digital Radio as a gateway to newly

emerging services (Herrmann, 2007). Digital Radio

is still in a growing state of penetration worldwide

and has yet a huge development potential for

numerous and still unknown applications.

Our contribution will present an automatic

system that monitors several audio and data services

of digital radio and allows selective retrieval of news

and other information based on spoken and textual

queries. The user may choose among the retrieved

information and play back the stories of interest. The

presented solution ist somewhat different from

previous approaches in that the repository is

expanded on data services and the user need not

exclusively express a textual query. The results are

applicable also for other digital broadcasting

systems than DAB/DMB.

2 PREHISTORY

Information retrieval on spoken radio documents has

been investigated since the 1990s because first

Automatic Speech Recognition (ASR) systems were

157

Schatter G., Eiselt A. and Zeller B. (2009).

DIGITAL RADIO AS AN ADAPTIVE SEARCH ENGINE - Verbal Communication with a Digital Audio Broadcasting Receiver.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 157-164

DOI: 10.5220/0002234401570164

 SciTePress

fed with recorded radio news, due to the fact that the

news speakers were trained speakers, the reports

were spoken clearly and were well-pronounced

without background noise (Glavitsch, 1992).

Preliminary investigations into the use of speech

recognition for analysis of a news story was carried

out by (Schäuble, 1995). Their approach used a

phonetic engine that transformed the spoken content

of the news stories into a phoneme string.

Later Whittaker et al. evaluated interfaces to

support navigation within speech documents

providing a mixed solution for global and local

navigation by a graphical interface in combination

with an audio output as well (Whittaker, 1999).

Emnett and Schmandt developed a system that

searches for story boundaries in news broadcasts,

and enables a nonlinear navigation in the audible

content with the help of different interface solutions

(Emnett, 2000).

The problems of mobile devices in rough

environments in relation with a speech-based

interaction are reported on in (Sawhney, 2000). A

notification model dynamically selects the relevant

presentation level for incoming messages (such as

email, voice mails, news broadcasts) based on

priority and user activity. Users can browse these

messages using speech recognition and tactile input

on a wearable audio computing platform.

There are prototypes for web-based Speech

Dialog Systems (SDS) and audio search engines that

are able to search spoken words of podcasts and

radio signals for queries entered with a keyboard

(ComVision, 2009) (TVEyes, 2009). In this context,

the European Telecommunications Standards

Institute has developed a standard for DAB/DMB-

based voice applications. The VoiceXML profile

will in the future explain the dialog constructs, the

user input/output, the control flow, the environment

and resources.

3 FOUNDATION

Several basics are necessary for the development of

the system: An analysis of the different data

transmission techniques, a survey of the available

information sources in the Digital Radio

environment, methods for the Music-Speech

Discrimination (MSD) resp. speech extraction, and

procedures for the Information Retrieval (IR) and

the output of spoken information as well.

3.1 Information Sources

Two general types of information sources are

distinguished in a digital broadcast receiver:

(1) The audible signals (internet audio and

podcast files are applicable as well) are converted by

an ASR system into plain text in order to perform a

content-based analysis. The set of recorded

information include such as breaking news,

headlines, educational and cultural items, current

affairs discussions etc.

(2) The data services are available as text

(internet-based information is applicable too).

Broadcast Websites (BWS) contain multifaceted

news, press reviews etc. Other sources of

information are Electronic Program Guides (EPG),

Dynamic Label Plus, Intellitext, and Journaline

(ETSI 2005).

Compared with (1) these information sources are

more reliable with respect to structure and content,

but less detailed and not always available. It was

indispensable to establish a hierarchical sequence of

sources depending on reliability, quality, and

convenience.

3.2 Information Processing

For most digital receivers the Music/Speech Flag

(M/S) is defined to distinguish music from speech,

but broadcasters do not consistently broadcast this

information. Another way to discriminate music

from speech is to analyze the signal for typical

patterns. Features which are abstracting this

information were analyzed focusing on the

requirements of MSD in digital broadcasting.

An ASR system is capable of transforming

speech signals into machine-readable text. A Text to

Speech System (TTS) synthetically generates a

speech signal. There are nearly two dozen

proprietary as well as open source systems for ASR

and TTS systems on the market, differentiating in

terms of speed, accuracy, speaker dependence, and

robustness. A good overview of current research

topics about the advanced development of SDS is

given in (Minker, 2006).

To reduce the text generated by the ASR and

make it searchable, a stemming algorithm is used. It

reduces inflected or derived words to their stem.

Although the derived stem of a word is not always

the morphological root of the word, it is sufficient to

be able to map different forms of a word to the same

stem. The algorithm tries to reduce inflected or

derived words to their stem. Another useful

technique to reduce the amount of text is called stop

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

158

word removal, which removes words with no

semantic meaning. After words have been stemmed

and the common ones removed, the system converts

each text to a term vector if necessary using well-

known log-entropy weighting schemes (Porter,

1980).

3.3 Metadata for Audio Content

The functionality of IR systems is highly dependent

on the usage of appropriate metadata. The internal

structure of all standards allows describing content

elements in a hierarchical structure with any depth

and level of granularity according to numerous

descriptors. Even though music may be labeled with

ID3-tags by internet radios, there is no wide-spread

method to retrieve spoken content by tagging. As an

alternative it is possible to apply subsets of the TV-

Anytime standard (ETSI, 2004) offering XML-

structures feasible in the field of search,

recommender and archive applications (Schatter,

2006, 2007). The contained keywords resemble the

radio-specific extensions of ID3v2 mainly

concerning the music-related domain. An early

proposal for a technique of machine-interpretable

DAB content annotation and receiver hardware

control, involving the utilization of Dynamic Label

(DL) fields in the transmitted frames, was

formulated by Nathan et al. in (Nathan, 2004). A

similar approach was chosen in (Schatter, 2007).

The separation of information is carried out in both

cases by machine-readable control characters.

This specific metadata is commonly encoded in

an XML-based data structure. There are a few

standards enabling the description of AV-content

such as EPG, TV-Anytime and MPEG-7. The

defined catchwords and descriptors respectively

derive from a controlled vocabulary that is capacious

but of fixed extent. The TV-Anytime standard

embraces a comprehensive collection of

classification schemes. These schemes consist of

elaborate arrangements containing pre-assigned

terms that are used as catchwords to attach several

categories to AV-contents. However, the

descriptions appear not to be chosen systematically

in every respect.

4 DESIGN OF THE SYSTEM

There are two fundamental designs proposed for the

system:

(1) A user-based model: The navigation through

the broadcast audio content is possible even without

additional metadata from the broadcaster. In this

case, all processes of IR have to be done on the

receiver, see Figure 1, section B + C.

(2) A provider-based model: All IR processes

will be done by the broadcaster who submits the

gathered information to the DAB receivers using an

appropriate meta description, see Figure 1, section A

+ B.

To match the fundamental premises of an

independent and ubiquitous system, two additional

features were proposed with the focus on improved

usability in a mobile environment:

(1) The entire controllability of the radio device

by verbalized user queries,

(2) A memory function allowing not only to

search in the current broadcast content but in stored

content as well.

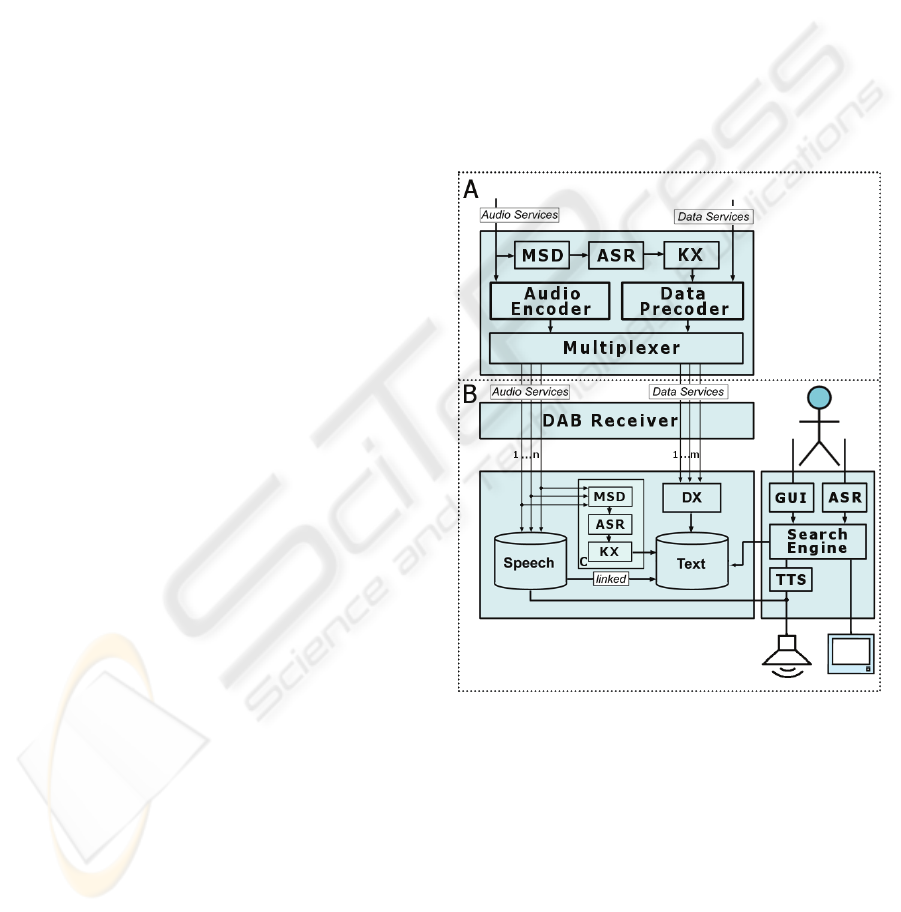

Figure 1: System overview of provider- and user-based

model.

4.1 Comprehensive Structure

4.1.1 User-based Model

The concept of the system is realized on the mobile

device itself, which consists of three main parts: the

monitoring of the audio services by MSD, the ASR,

and the keyword and metadata extraction. The MSD

and the keyword extraction can be done

simultaneously and in real time for more than one

monitored service, whereas the ASR is much more

DIGITAL RADIO AS AN ADAPTIVE SEARCH ENGINE - Verbal Communication with a Digital Audio Broadcasting

Receiver

159

time-consuming. There are three principal system

architectures for ASR on mobile devices proposed in

(Zaykovskiy, 2006), which take account of this

aspect. Because two of these concepts are involving

additional mobile devices whose availability could

not be guaranteed in our case, the third, an

embedded approach, is recommended.

4.1.2 Provider-based Model

In this design, the duties are arranged to avoid the

restrictions brought about by limited resources on

mobile devices. The process of IR was centralized

and sourced out to the broadcaster, who adds the

gathered information to the data services. Due to

these changes and because the broadcaster is able to

use high-capacity hardware the quality of the

retrieved data may increase as well. The

disadvantage of this model compared to the first, is

the dependency on the broadcast information. Our

experience is that radio stations for reasons of costs

do not consistently broadcast this information.

4.2 Information Retrieval and

Management

4.2.1 Central processes

The process of IR is divided into three sub-processes

which are successively executed: the MSD, the ASR

and the Keyword Extraction, see Figure 2.

The MSD was complicated by common

arrangements in radio such as background music and

cross-fadings. To solve the problem, a new audio

feature was proposed which is more insensitive to

such audible structures. The feature based on the fact

that speech is recorded by one microphone, whereas

music is recorded by at least two microphones. Due

to that, a speech signal has no significant phase

differences between the audio channels.

In order to retrieve information from the

broadcast audio, the speech-based content is

processed by an ASR system converting the audio

data into plain text. To make the data searchable, the

extraction of semantic information is processed by a

stop word removal and stemming algorithm. In order

to enrich the searchable data, information about the

current program is extracted from EPG, BWS, DL

and if available from appropriate sources in the

internet. Those data from different sources and

services are complementing the information pool on

the hard disc storage.

4.2.2 Strategy to manage File Space in Case

of Low Capacities

Of course the capacity of mobile devices storing

content locally is limited. Therefore a strategy was

implemented that is deleting those content elements

that are probably not relevant for the user. For that

purpose the personal preferences of users are stored

separately based on the work in (ETSI, 2005). Here

the preferences of users are centrally defined in a

standardized format. Each element in the user’s

preferences defines a preference value ranging

between -100 and 100 for a certain content type or

element. Depending on the value, the content

element is persisted for a longer or a shorter time.

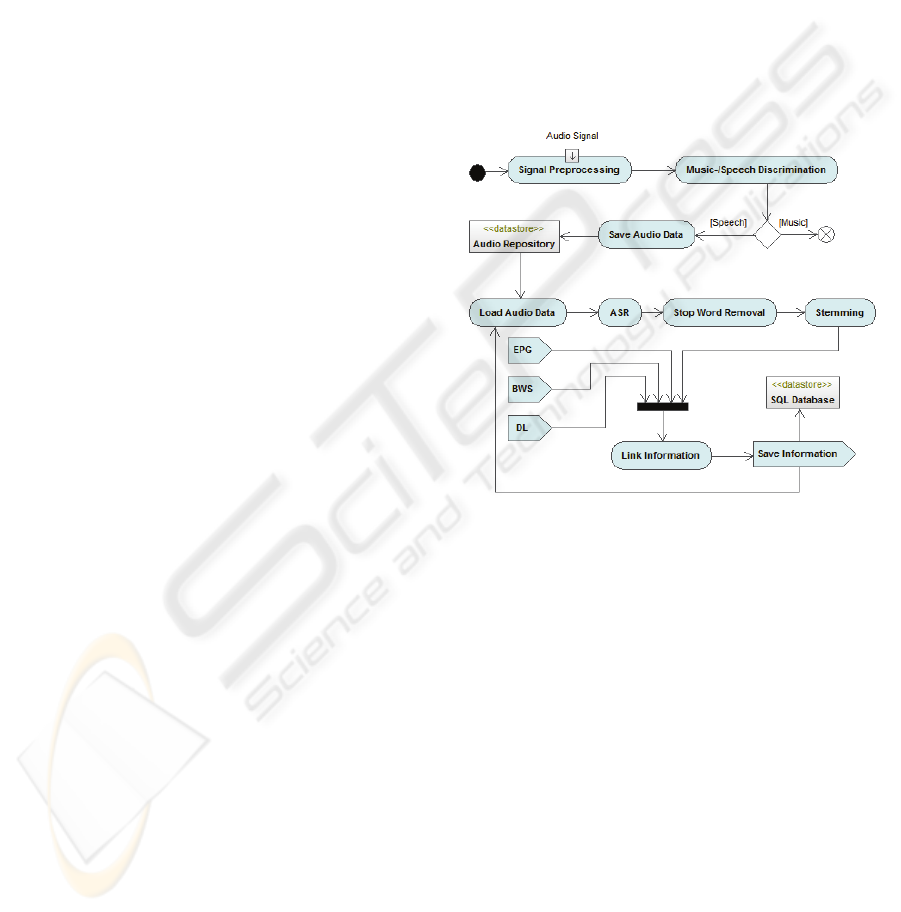

Figure 2: Activity diagram of the IR process.

4.2.3 Automatic Generation of Metadata

The data which were extracted during the preceding

IR process are subsequently subject to the automatic

generation of metadata. They are transmitted in

parallel to the audio services. There are three entities

comprising this process:

(1) The extracted data conforming to a proprietary

structure,

(2) The standardized metadata to transmit (EPG,

TV-Anytime, MPEG-7), and

(3) The converter that is automatically generating

the metadata on the basis of the extracted data

and the metadata structure to transmit.

4.3 Interfaces

The system incorporates a multimodal user-

interface, which enables the user to interact in two

ways:

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

160

• by a Speech-based User Interface (SUI)

• by a Graphical User Interface (GUI)

The structure of the system is based on the client-

server model, see Figure 3.

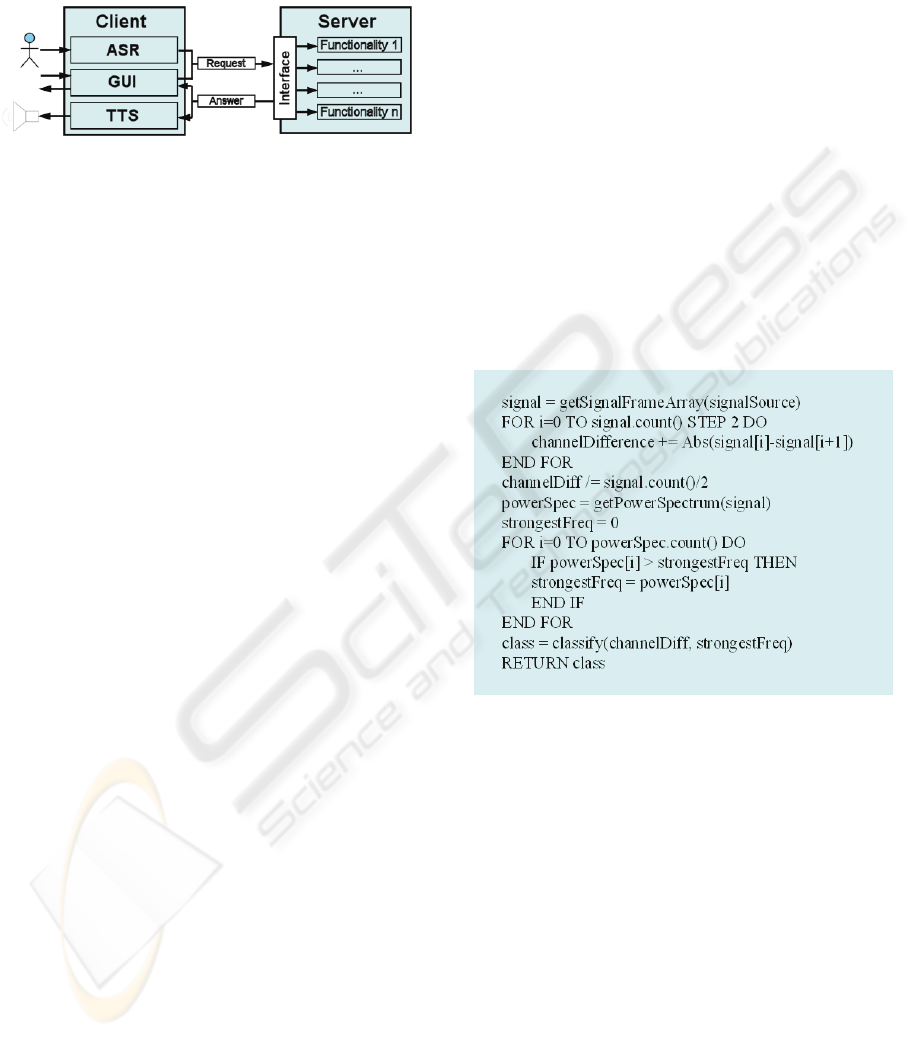

Figure 3: Structure of the multimodal interface.

At the one hand the client incorporates all

functionalities related to ASR, speech synthesis and

The GUI and at the other hand the server enables the

client to access the entire functional scope of the

radio.

The choice of voice commands for the SUI was

based on the following requirements:

• Memorability: Commands had to be easily

memorable in order to enable the user to reliably

utilize all commands.

• Conciseness: Users should be able to easily

associate commands to functions.

• Briefness: The length of a command was kept at

a target size of 1-2 syllables.

• Unambiguousness: The use of homonyms was

strongly avoided.

• Tolerance: The use of synonyms was desirable to

a high degree.

5 IMPLEMENTATION

Our solution was realized on the basis of a DAB

receiver (DR Box 1, Terratec) connected by USB.

The System has been implemented in

Java JDK 6/MySQL 5.1 on a standard laptop

(Core2Duo; 1,8 GHz; 4GB DDR3-RAM; 500 GB

HDD) and operates quite mobile. The system was

exemplarily implemented based on the user-based

model pursuing the two design ideas:

The identification of speech-based content and

the possibility for users to directly search for

specific audio content was implemented with a

graphical user interface.

The accumulation of text-based data services in

combination with the capability to search for desired

information was realized with a speech-based user

interface.The system consists of two main parts. The

first is the monitor itself comprising the three main

processes of the information retrieval subsystem:

MSD, ASR and keyword. The second part is a

graphical user interface allowing the user to directly

search for content and access the audio files related

to the results found.

It is important to note that both interfaces could

be utilized for either case.

5.1 Information Retrieval and

Management

The first main process records and processes the

incoming audio data by MSD. The MSD is

accomplished by at first decompressing the

incoming MPEG signal. The raw PCM format is the

processed by two audio feature extractors

calculating the channel difference and the strongest

frequency, to classify the current content, see Table

Table 1: Music-Speech Discrimination in pseudo code.

All audio data is recorded to a repository with

separate folders for each digital broadcast service

and child folders for music and speech. In order to

persist content elements in the original sequence the

according audio files are labeled with the time stamp

of their starting time.

The second main process monitors the audio

repository in parallel, see Table 2. This process

permanently retrieves new files in the repository and

converts the audio data into plain text (ASR). The

prototype uses a commercially available, large-

vocabulary ASR engine that was designed for

speech-to-text dictation. Those dictation recognizers

do not perform well at information retrieval tasks,

but they can operate as speaker-independent

systems.

After the extraction the text is processed by a

stop word removal and the stemming algorithm. The

resulting set of words is written to a database

DIGITAL RADIO AS AN ADAPTIVE SEARCH ENGINE - Verbal Communication with a Digital Audio Broadcasting

Receiver

161

including obligatory information about the

associated audio file and contextual metadata.

Additional metadata are included by parsing the

BWSs, EPGs, DLs, and appropriate internet

services.

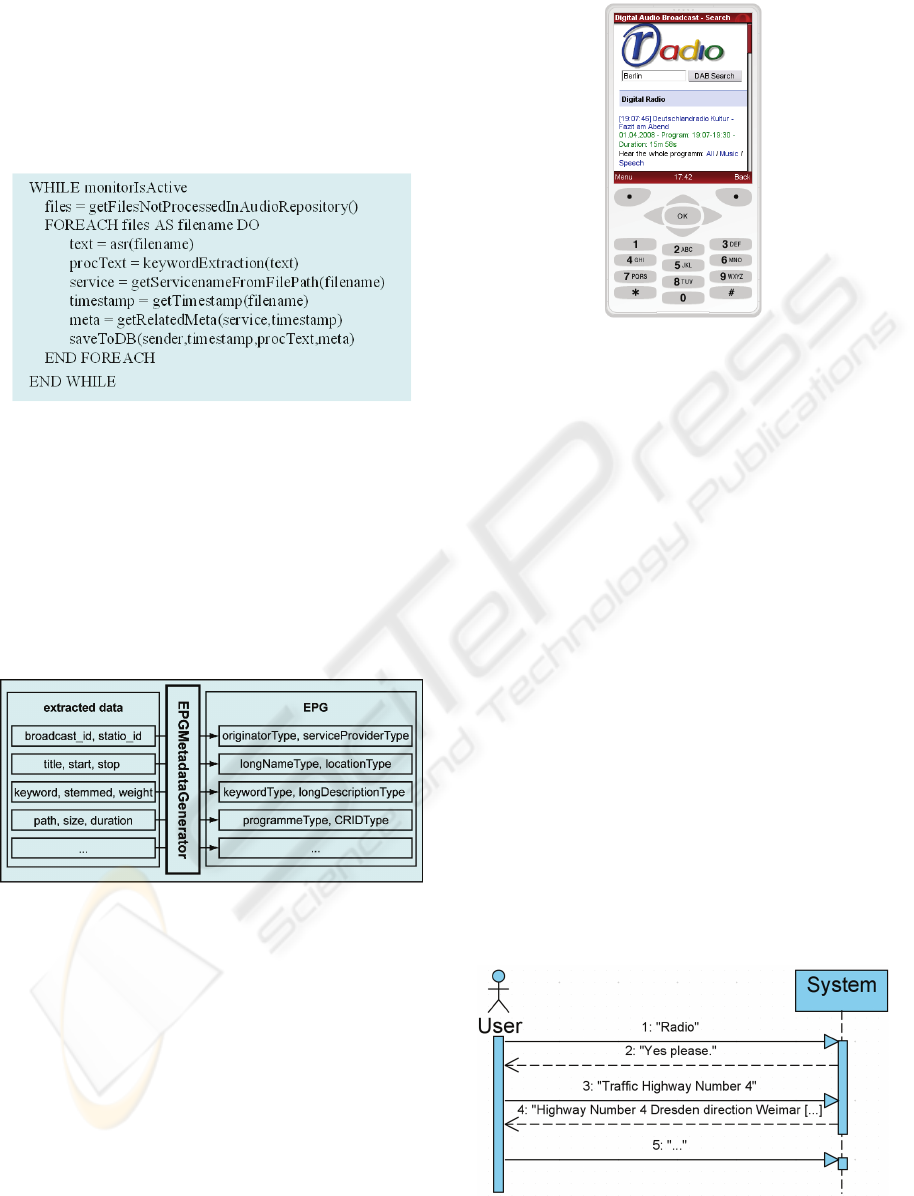

Table 2: Automatic Speech Recognition in pseudo code.

In case of the provider-based model it is

necessary to map the proprietary data to

standardized XML-based metadata. This requires a

converter for each pair of proprietary data structures

and possible metadata standards to use for

broadcasting. This aspect was realized exemplarily

by a converter mapping the data structure to the EPG

metadata standard, see Figure 4. The converter

automatically maps the information from the

extracted data to the standardized descriptors of the

metadata structure.

Figure 4: Schematic mapping of proprietary data structure

to standardized metadata.

5.2 User Interface

The second part of the system is the User Interface

(SUI/GUI). The user is able to specify a query by

voice or over via a web interface. Subsequently the

system parses/interprets the user’s input and

searches for corresponding data in the database. The

results are listed in the GUI as shown in Figure 6.

The user is able to select a content element similar to

a web browser and to listen to the associated audio

file. Although our prototype utilizes underlying

textual representation and employs text-based

Figure 5: Design of a GUI on mobile devices for searching

audio content.

information retrieval techniques, this mechanism is

hidden to a great extent from the user.

Over the GUI the user is able to decide for each

result if he wants to hear only the piece where the

keyword occurred, the whole program in which this

piece occurred or only the speech/music of this

program. A possible result-set is exemplified in

Table 3. How this result-set could be presented to

the user by the GUI is shown in Figure 5.

6 USE CASE AND EXPERIENCES

The user is able to search the indexed content

through verbal queries or accepts textual queries via

a web-based interface with a query window, see

Figure 5. In case of a spoken request, the system

utilizes a speech recognition engine to retrieve a

searchable string, which in the case of the web-based

interface is entered by the user directly. The results

could be presented either as spoken response

utilizing TTS technologies, see Figure 6 or through a

text-interface, see Table 3.

Figure 6: Example spoken dialog about traffic.

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

162

The results are furthermore ordered by their

relevance represented by the count of occurrences of

the keywords and the time when the related audio

content was broadcast. For each result the user can

decide to hear only the piece where the keyword

occurred, the whole program in which this piece

occurred or only the speech/music of this program.

Table 3: Excerpt of results for search query “Literature”.

[19:53:14] Deutschlandradio Kultur - Literature

"Our history is full of violence" literature as contemporal history by E. L.

Doctorow and Richard Ford Von Johannes Kaiser

01.02.2009 - Program: 19:30-20:00 - Duration: 6m 36s

Hear: All / Music / Speech

[19:14:02] HR1 - hr1 - PRISMA

The magazine in the evening: amusing and informativ, relaxing and inspiringly!

The most important of the day with tones and opinions, tips for the spare time,

the best from society and life-style.

01.02.2009 - Program: 18:05-20:00 - Duration: 3m 23s

Hear: All / Music / Speech

[17:19:19] Deutschlandradio Kultur – Local time

The most important topics of the day

01.02.2009 - Program: 17:07-18:00 - Duration: 7s

Hear: All / Music / Speech

Through relatively recent improvements in large-

vocabulary ASR systems, recognition of broadcast

news has become possible in real-time. Though,

problems such as the use of abbreviations, elements

of foreign languages, and acoustic interferences are

complicating the recognition process. The

combination of informal speech (including dialect

and slang, non-speech utterances, music, noise, and

environmental sounds), frequent speaker changes,

and the impossibility to train the ASR system on

individual speakers results in poor transcription

performance on broadcast news. The result is a

stream of words with fragmented units of meaning.

We confirmed with our experiments an older

study of ASR performance on broadcast news of

Whittaker to this day (Whittaker, 1999), who

observed wide variations from a maximum of 88%

words correctly recognized to a minimum of 35%,

with a mean of 67% (our results: 92%, 41%, 72%).

Unfortunately most ASR programs do not show

additional information; they do not offer any

measure of confidence, nor do they give any

indication if it fails to recognize anything of the

audio signal. When the speech recognizer makes

errors, they are gaps and deletions, insertions and

substitutions of the inherent word pool, rather than

the kinds of non-word errors that are generated by

optical character recognition. Recent proper nouns,

especially names, contribute significant error

because they can not be transcribed correctly. It

seems unlikely that error-free ASR will be available

in the foreseeable future.

However, highest precision is not really required

for our approach. The goal is not to obtain a correct

transcript, but simply to gather enough semantic

information to generate a characterization that the

system can employ to find relevant content. The

interface offers primary the user the original audible

content from recordings, because audio is doubtless

a much richer medium of communication. Voice

quality and intonational characteristics are lost in

transcription, and intonational variation has been

widely shown to change even the semantics of the

simplest phrases. Hence, the presentation of texts is

intentionally limited in contrast to (Whittaker,

1999).

An advantage of our system, also respective to

the previously mentioned problem, is the low

complex but efficient MSD. It enables us to monitor

up to 30% more channels with still a good accuracy

compared to a system with MSD of higher

complexity. In any case MSD and ASR often lead

into major difficulties while modern broadcast uses

background music for spoken amounts.

During an evaluation time of one month we were

able to process up to four radio channels at the same

time and integrate the obtained information

automatically into our database for instant use On

the other hand the monitoring of several data

services is possible without any problems. The

limitation of ASR could be avoided by splitting up

the task by parallel processing which can reduce the

lag of time between the recording and the end of the

indexing process. The current limitations of the

introduced system have to be handled by more

efficient speech recognition subsystems,

sophisticated semantic retrieval algorithms, and a

higher degree of parallel processing. Furthermore,

prospectively a more natural communication style

using a combination of speech, gesture and

contextual knowledge should be possible. Therefore,

a system able to interpret the semantics of speech is

inevitable.

7 CONCLUSIONS

The Digital Radio was extended with the capability

to systematically search for contents in DAB/DMB

audio and data services; no major obstacles exist to

extend the principles also on HD Radio

, internet

services, and podcasts etc. The functional

enlargement of a digital receiver significantly adds

value by promoting the evolution towards an

embedded device providing innovative

functionalities:

DIGITAL RADIO AS AN ADAPTIVE SEARCH ENGINE - Verbal Communication with a Digital Audio Broadcasting

Receiver

163

• Interactive search for content from audio and

data information sources,

• Speech-based output of content,

• Conversion of highly accepted internet services

into the broadcast environment.

The information extraction and retrieval process

of broadcast information delivers a newspaper-like

knowledge base, while web services provide an

encyclopedia-like base.

Even if ASR engines could supply accurate

transcripts, they are to this day faraway from

comprehending all that speech has to offer.

Although recognizers have reached a reasonable

standard recently, there are other useful information

which can be captured from audio recordings in the

future: language identification, speaker tracking and

indexing, topic detection and tracking or non-verbal

ancillary information (mood, emotion, intonational

contours, accentuation) and other pertinent

descriptors (Magrin, 2002).

Furthermore, the prospective capability of

devices to adapt to preferences of specific users

offers an enormous variety of augmentations to be

implemented. In case of the functionality of directly

searching for content elements as described in this

paper, there is the possibility of especially selecting

respectively appropriately sorting those elements

that are conforming to the preferences of the current

user.

Hence, the development of radio usage from

passive listening towards an interactive and

individual dialog is strongly supported and the

improved functionalities render the radio to be an

appropriate device to satisfy much more multifarious

necessities for information than before. As a result

users are capable of selecting desired audio contents

more systematically, with higher concentration and

with higher density of information from current and

past programs.

REFERENCES

ComVision, 2009. Audioclipping.

http://www.audioclipping.de. [Acc. 10.03.2009].

Emnett, K. and Schmandt, C., 2000: Synthetic News

Radio. IBM Systems Journal vol. 39, Nos. 3&4, pp.

646-659.

ETSI, 2004. Broadcast and Online Services: Search,

select, and rightful use of content on personal storage

systems TVA; Part 3 In: ETSI TS 102 822-3-1.

ETSI, 2005. Digital Audio Broadcasting (DAB); XML

Specification for DAB Electronic Programme Guide

(EPG). In: ETSI TS 102 818.

Glavitsch, U. and Schäuble, P., 1992. A system for

retrieving speech documents. In: Proceedings of the

15th annual international ACM SIGIR conference on

Research and development in information retrieval,

pp.168-176.

Herrmann, F. et al., 2007. The Evolution of DAB. In: EBU

Technical Review. July 2007, pp. 1-18.

Magrin-Chagnolleau, I. and Parlangeau-Vallès, N., 2002.

Audio-Indexing: what has been accomplished and the

road ahead. In: Sixth International Joint Conference

on Information Sciences - JCIS'02, pp. 911-914.

Minker, W. et al. 2006. Next-Generation Human-

Computer Interfaces. In: 2nd IEE International

Conference on Intelligent Environments, 2006.

Nathan, D. et al., 2004. DAB Content Annotation and

Receiver Hardware Control with XML. Computer

Research Repository (CoRR), 2004.

Porter, M. F., 1980. An Algorithm for Suffix Stripping.

Program-Automated Library and Information Systems,

vol. 14, July 1980, No. 3, pp. 130–137.

Sawhney, N. and Schmandt, C., 2000. Nomadic radio:

speech and audio interaction in nomadic

environments. In: ACM Transactions on Computer-

Human Interaction, vol. Volume 7, pp. 353 - 383.

Schatter, G. and Zeller, B., 2007. Design and

implementation of an adaptive Digital Radio DAB

using content personalization. IEEE Transactions on

Consumer Electronics, vol. 53, pp. 1353-1361.

Schatter, G., Bräutigam, C. and Neumann, M., 2006.

Personal Digital Audio Recording via DAB. In: 7th

Workshop Digital Broadcast., Erlangen, pp. 146-153.

Schäuble, P. and Wechsler, M., 1995. First Experiences

with a System for Content Based Retrieval of

Information from Speech Recordings. In: IJCAI-95

Workshop on Intelligent Multimedia Information

Retrieval.

TVEyes, 2009. Podscope - The audio video search engine.

http://podscope.com/. [Acc. 10.03.2009].

Whittaker, S. et al.., 1999. SCAN: Designing and

Evaluating User Interfaces to Support Retrieval. In:

Proceedings of ACM SIGIR ’99. pp. 26–33.

Zaykovskiy, D., 2006. Survey of the Speech Recognition

Techniques for Mobile Devices. In: 11th International

Conference on Speech and Computer, St. Petersburg.

SIGMAP 2009 - International Conference on Signal Processing and Multimedia Applications

164
