PRIVACY-AWARE DATA PROVIDING WEB SERVICES

COMPOSITION

Amin Cherbal

LIG Laboratory, Grenoble, France

Djamal Benslimane

LIRIS Laboratory, Lyon, France

Keywords:

Privacy, Data integration, Web services, Composition techniques, Data anonymity.

Abstract:

Web services are increasingly used to promote data sharing in collaborative environments such as eBusiness,

eHealth, eEnterprise, etc. They facilitate data integration and interoperability across autonomous independent

information systems in the collaboration environments. Many mediation solutions were proposed for data

integration using Web services. Unfortunately privacy aspects were not addressed in these solutions. In this

paper, we proposed a framework for privacy-preserving data integration based on Web services. Our proposal

is a centralized access control mechanism allowing for the speciﬁcation and enforcement of privacy rules in

Web services composition based on domain ontologies.

1 INTRODUCTION

Web services are highly recognized in collaborative

environments for their ability to provide ﬂexible inte-

gration and high interoperability across autonomous

independent information systems. Recently many re-

search works have proposed the use of Web services

as the means to large scale data sharing in collab-

orative information systems (Srivastava et al., 2006;

Carey, 2006). Our work is based on the mediator sys-

tem proposed in (Barhamgi et al., 2008). In this sys-

tem legacy databases are wrapped by services allow-

ing partners to collaborate. This type of Web services

are called Data Providing Web Services (DPWS),

each one is modeled as an RDF view over a medi-

ated ontology. Users expresses their queries on the

mediated ontology using SPARQL language. Queries

are resolved by composing Web services.

Web services can provide data that can be private

for two types of entities: the organizations that of-

fer these services (e.g., hospitals) and the data objects

whose data is stored by these organizations (e.g., pa-

tients). These entities may have various privacy poli-

cies and preferences regarding the disclosure of their

conﬁdential data. Such aspects of data privacy have

not been taken into account in previous systems of

data sharing based on Web services composition.

1.1 Motivation

Assume we have a set of DPWS, for example, in a

healthcare facility, contact patients informations are

accessible through an administrative Web service and

medical patients informations are accessible through

an health Web service. Now suppose that this health-

care facility wants to apply privacy policies to ex-

presse that contact patients informations (e.g, address,

phone number, etc.) are only accessible for some ad-

ministrative staff whereas medical informations (e.g,

disease, medical test, etc.) are only accessible for

some medical staff. But in case of medical emer-

gency, qualiﬁed personal may access to all informa-

tions of the patient. This situation shows the com-

plexity of expressing and applying such policies.

The challenge that we address in this paper relates

to devising such mediator, taking into account the pri-

vacy aspects.

1.2 Problem

Our goal is to preserve data privacy in the query

answering process based on Web services composi-

tion. The semantic query expressed with SPARQL is

rewritten in terms of available Web services to enable

the composition of DPWS.

167

Cherbal A. and Benslimane D. (2009).

PRIVACY-AWARE DATA PROVIDING WEB SERVICES COMPOSITION.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 167-170

DOI: 10.5220/0002240301670170

 SciTePress

In this paper we consider privacy centralized at the

mediator system (i.e., Web services share data with-

out any privacy protection). The problem is to al-

low a context-based access only to authorized users

(e.g., scientist for infectious diseases researches). The

control access mechanism should be able to specify:

First, privacy policies as applied on the schema of

the data (e.g., policies to disclose patients address in

the hospital). Second, the privacy preferences applied

for each data objects (e.g., patients preferences to dis-

close theirs diseases for scientiﬁc researches).

1.3 Contribution

In this paper we propose a new privacy-preserving

method for data integration based on Web services

composition. We devised a centralized access con-

trol mechanism allowing for the speciﬁcation and the

enforcement of privacy access rules in Web services

composition based on ontologies domain:

• It allows the high level privacy policies and pref-

erences speciﬁcation. Based on the mediation on-

tology and the access rules propagation process.

This reduces the efforts required for speciﬁcation.

• The access rules are extended with conditions ex-

pressed on the mediated ontology. This gives

more richness to it.

• We have proposed a new method to apply the

access rules for Web services composition, this

method is based on query rewriting techniques.

Our contribution extends the mediator system pro-

posed in (Barhamgi et al., 2008) as shown in Figure 1.

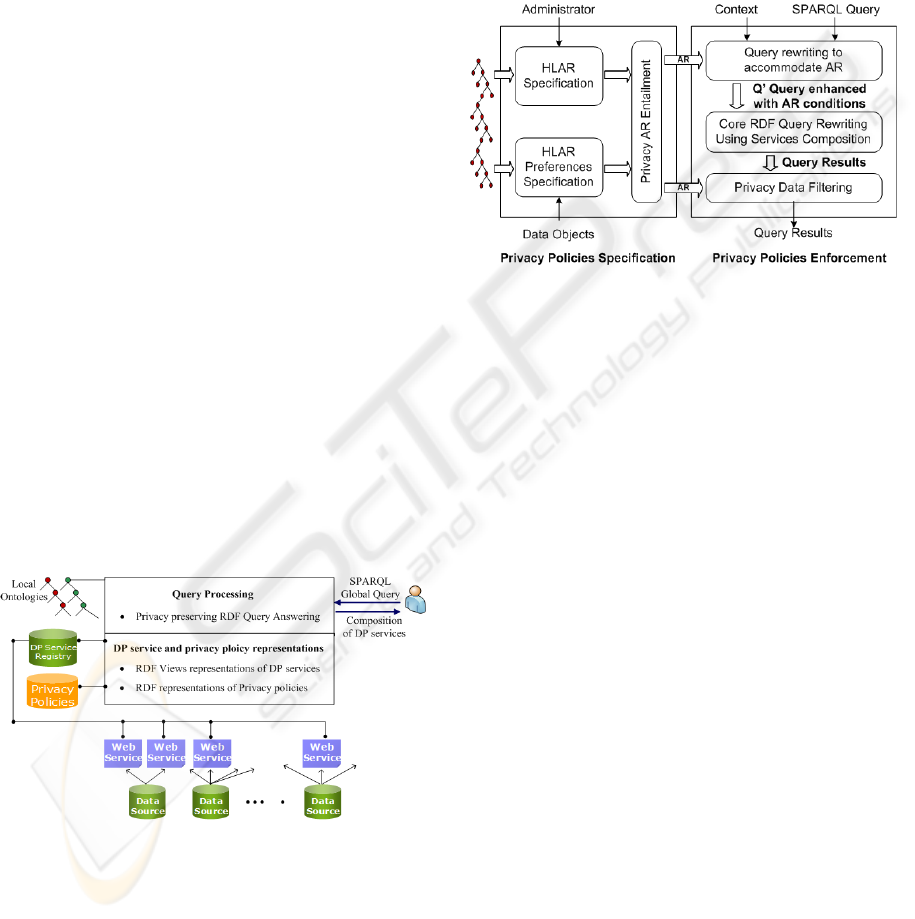

Figure 1: Mediator system for DPWS composition.

In the rest of the paper we describe in the next sec-

tion our access control mechanism, followed by the

section 3 where we give a short overview of related

works and ﬁnally we concludes the paper and give

some directions in section 4.

2 ACCESS CONTROL FOR DPWS

COMPOSITION

In this section we present our control access mecha-

nism. There are two distinct steps, see Figure 2. First,

privacy policies are speciﬁed in the form of access

rules on the mediation ontology. In the second step

these policies are enforced into services composition

process.

Figure 2: Privacy preserving mechanism.

2.1 Ontology based Privacy Policies

Speciﬁcation and Propagation

Privacy policies speciﬁcation is the ﬁrst step in deﬁn-

ing a access control mechanism. Also we consider

that policies can be speciﬁed and imported from ser-

vice providers. Deﬁning such policies are the results

of analyzing the security and privacy requirements,

carried out by the security administrator. The ad-

ministrator can specify the High Level Access Rules

(HLAR) on an RDFS ontology. In our approach,

the HLAR is a set of 4-tuple comprising the Pur-

pose, the Subject, the Object and the set of Authorized

Property-Conditions couples:

[ P, S, O, Ai<Pi,Ci> ]

For example, the rule R1 express the fact that

the subject “Specialist” has only access to properties

“Name”, “Disease” and to “Test” under the condition

of location (e.g., the same ﬂoor in the hospital):

Rule R1.

[ P : Emergency,

S : Ont:Specialist,

O : Ont:Patient,

Ai : { <Ont:HasName, - >

<Ont:HasDisease, - >

<Ont:HasTest,

Ont:Patient.Location =

Ont:Specialist.Location> } ]

The data objects expresses her privacy preferences

with the same format augmented by the identifying

attribute:

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

168

[ Id, P, S, O, Ai<Pi,Ci> ]

After HLAR have been expressed, we process it

to propagate all Access Rules (AR). We use a top-

down algorithm based on the subjects hierarchy of the

mediated ontology.

Figure 3: AR propagation through hierarchical part of the

mediated ontology.

An example part of these AR propagation is

shown in Figure 3. Where AR are inherited through

the subjects hierarchy from the higher level subjects

(e.g. “MedicalActor”) to the lower levels subjects

(e.g. “Specialist”, etc).

2.2 Enforcing Policies into DPWS

Composition

In this section we explain how AR are enforced into

the DPWS composition, we explain this with an ex-

ample. Suppose that the user express the query Q:

SELECT ?Name ?Disease ?Test ?Address

WHERE { ?P rdf:type Ont:Patient

?P Ont:HasName ?Name

?P Ont:HasDisease ?Disease

?P Ont:HasTest ?Test

?P Ont:HasAddress ?Address }

Assume that we have the following context infor-

mations associating the request Q with the rule R1

seen in the previous subsection:

{ Purpose:Emergency, Subject:Specialist,

SubjectName:Pavlov }

In our mechanism, privacy is enforced by the

query rewriting techniques based on AR. Algorithm 1

describe this process, lines (4–5) allows to remove

all unauthorized properties into the query to denied

it, and lines (6–7) allow to switch-on all authorized

properties with his conditions into the query.

In our example, the query Q must be rewritten

as the following query Q

to denied access to the

property “Address” and switch-on condition with the

property “Test”.

Algorithm 1: Query rewriting for enforcing

AR.

Data: query Q, access rules base ARB, purpose p and subject s

Result: rewritten query Q

begin1

foreach concept o

in Q do2

Extract the set of property-conditions couples3

= {< pr

>} from ARB(p,s,o

);

forall {pr

} ∈ Q and {pr

} /∈ A

do4

remove {pr

} from Q5

forall {pr

} ∈ Q and {pr

} ∈ A

do6

replace {pr

} into Q by OPT IONAL{pr

∪ c

end8

SELECT ?Name ?Disease ?Test

WHERE{ ?P rdf:type Ont:Patient

?P Ont:HasName ?Name

?P Ont:HasDisease ?Disease

OPTIONAL {

?P Ont:HasTest ?Test

?D rdf:type Ont:Specialist

?D Ont:HasName "Pavlov"

?D Ont:HasLocation ?Location

?P Ont:HasLocation ?Location } }

The rewritten query Q

will be answered by the

composition of available Web services, see Figure 4.

The “Test” result of “Alice” are not disclosed accord-

ing to the unresolved condition of location.

Figure 4: DPWS composition for Q

query answering.

Before disclosing the results of Q

we verify the

preferences of each data object appearing in the re-

sults. In the data ﬁltering step (see Figure 2) we ap-

ply Q

on the local results and eventually by invok-

ing other DPWS if the data are missing. For exam-

ple, suppose that patient ”Bob” wish to disclose their

”Diseases” only to her physician contractor, in this

case a second DPWS composition is executed. The

results revealed in the end of this stage respects at the

same time the privacy policies and preferences.

PRIVACY-AWARE DATA PROVIDING WEB SERVICES COMPOSITION

169

3 RELATED WORK

In many scenarios individuals supply their personal

informations to data collectors under privacy con-

straints (e.g., patients to the hospitals). However, it’s

important that the collaborations and the data shar-

ing does not affect their privacy. The control access

approaches for preserving privacy are used to enable

data sharing only with the authorized thirds. Con-

ventional access control models are very studied in

databases, as DAC, MAC and RBAC. Privacy-aware

RBAC (Bertino et al., 2006) use conditions evaluation

on hierarchy of roles and objects. However, the con-

ditions in this models are concern only environment

variables. In our system the conditions are expressed

on the data domain with SPARQL.

Hippocratic databases (Agrawal et al., 2002) are

distinguished by the context management and the

management of privacy preferences at the cells gran-

ularity. This approach limits itself to a centralized

DBMS and it is not well adapted for data sharing,

even less for the composition of the Web services.

There have been many research efforts (Hamadi et al.,

2007; Kagal et al., 2004; Cheng and Hung, 2005)

addressing privacy at the services discovery time.

In (Tumer et al., 2003) the proposed mechanisms

allow inferences and negotiations deal between the

users preferences and the services policies. All

these works proposes approaches to design privacy-

preserving Web services. Our approach is designed

for automatic Web services composition, allowing it

to ﬁnd alternatives and authorized data sources.

Notorious efforts for standardization of languages

for privacy policies speciﬁcation were made (e.g.,

P3P, XACML). It is possible to express with XACML

conditions to evaluate access authorizations. In our

approach we specify a semantic conditions over the

mediated ontology to evaluate access authorizations

through the DPWS composition. We provide also an

mediation ontology based approach to specify a high

level access rules, that reduce efforts of privacy anal-

ysis. To our knowledge no work related to the privacy

in the data integration based on the composition of

Web services. In addition, the beneﬁts of the seman-

tic Web have been largely exploited in our solution.

4 SUMMARY AND DIRECTIONS

In this paper we proposed a privacy-preserving frame-

work for data integration based on Web services com-

position. This work extends the mediator system pro-

posed by (Barhamgi et al., 2008) with the central-

ized access control mechanism. Allowing the high

level privacy policies and preferences speciﬁcations.

These speciﬁcations are based on the mediation ontol-

ogy and the inference process, reducing the efforts of

analyzing the privacy requirements. The access rules

are increased by conditions expressed on the medi-

ated ontology giving it more semantic richness. We

have also proposed a new method to enforce the ac-

cess rules through the Web services composition pro-

cess, based on queries rewriting techniques.

Several horizons open in our privacy approach.

First, we are studying the possibility to import stan-

dards policies speciﬁcations as XACML and we be-

lieve improve the rules inference algorithm. We have

also intend to optimize the privacy-aware Web ser-

vices composition algorithm. Finally, for lack of

space we don’t present an other privacy approach for

anonymous data integration based on Web services

composition, that can be easily combined with our ac-

cess control mechanism. These approach allows we to

ﬁnd alternatives to unauthorized requests by process-

ing approximative queries.

REFERENCES

Agrawal, R., Kiernan, J., Srikant, R., and Xu, Y. (2002).

Hippocratic databases. In 28th Int’l Conf. on Very

Large Databases (VLDB), Hong Kong.

Barhamgi, M., Benslimane, D., and Ouksel, A. M. (2008).

PWSMS: A Peer-to-Peer Web service Management

System for Data Sharing in Collaborative Environ-

ments. International Journal of Computer Systems

Science and Engineering (IJCSSE), 23(2).

Bertino, E., Squicciarini, A. C., Paloscia, I., and Martino, L.

(2006). Ws-ac: A ﬁne grained access control system

for web services. volume 9, pages 143–171, Hingham,

MA, USA. Kluwer Academic Publishers.

Carey, M. J. (2006). Data delivery in a service-oriented

world: the bea aqualogic data services platform. pages

695–705.

Cheng, V. S. Y. and Hung, P. C. K. (2005). Towards an in-

tegrated privacy framework for hipaa-compliant web

services. In 7th IEEE International Conference on E-

Commerce Technology (CEC 2005), 19-22 July 2005,

unchen, Germany, pages 480–483.

Hamadi, R., Paik, H.-Y., and Benatallah, B. (2007). Con-

ceptual modeling of privacy-aware web service proto-

cols. In CAiSE, pages 233–248.

Kagal, L., Paolucci, M., Srinivasan, N., Denker, G., Finin,

T. W., and Sycara, K. P. (2004). Authorization and

privacy for semantic web services. IEEE Intelligent

Systems, 19(4):50–56.

Srivastava, U., Munagala, K., Widom, J., and Motwani, R.

(2006). Query optimization over web services. In

VLDB, pages 355–366.

Tumer, A., Dogac, A., and Toroslu, I. H. (2003). A semantic

based privacy framework for web services.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

170
