DEVELOPMENT OF SECURITY METRICS

Based on Decomposition of Security Requirements and Ontologies

Reijo M. Savola

VTT Technical Research Centre of Finland, Oulu, Finland

Keywords: Security metrics, Security requirements, Decomposition, Ontologies.

Abstract: Systematically and carefully designed information security metrics can be used to provide evidence of the

security solutions of the system under development. The lack of appropriate security solutions in software-

intensive systems might have serious consequences for businesses and the stakeholders. We investigate

holistic development of security metrics based on security requirement decomposition and ontologies. The

high-level security requirements are expressed in terms of lower-level measurable components applying a

decomposition approach. Security requirement analysis of a distributed messaging system is used as an

example.

1 INTRODUCTION

Information security is clearly a challenging system-

level problem. One cannot accurately determine the

information security requirements outside the

context and environment of the target system.

Building security requirements is often a process of

making trade-off decisions especially between high

security, high usability and low cost.

The rest of this paper is organized into the

following sections. Section 2 presents the metrics

development approach and different parts of it.

Section 3 discusses related work and finally, Section

4 summarizes the study with some future research

questions and conclusions.

2 PROPOSED APPROACH

In this study, we use the following iterative process

for security metrics development, partly based on

Savola (2007). The steps for the process are as

follows:

1. Carry out threat and vulnerability analysis.

Carry out threat analysis of the system under

investigation and its use environment (use

cases). Identify known or suspected

vulnerabilities.

2. Define and prioritize security requirements in a

holistic way based on threat analysis. The most

critical security requirements should be paid the

most attention. Pay attention to the coherence of

requirements.

3. Identify basic measurable components from the

higher-level requirements using a

decomposition approach.

4. Define measurement architecture for on-line

metrics and evidence collection mechanisms for

off-line metrics.

5. Select basic measurable components based on

e.g. feasibility and importance.

6. Apply suitable metrics ontologies to the chosen

basic measurable components to plan the actual

metrics development.

7. Develop appropriate off-line and on-line

security metrics, and the functionalities and

processes where they are used.

Note that all steps are highly iterative and the

sequence of the steps can be varied. Steps 1 and 2

should be started as early as possible in the system

development process and elaborated iteratively as

the system design gets more mature. Steps 3 and 4

can be carried out in parallel to each other. Step 4

can also be started partially already during the

architectural design phase of the system.

2.1 Threat and Vulnerability Analysis

Threat analysis is the process of determining the

relevant threats to a System Under Investigation

(SUI). The outcome of the threat analysis process is

a description of the threat situations. In practice,

there are many ways to carry out threat analysis,

171

M. Savola R. (2009).

DEVELOPMENT OF SECURITY METRICS - Based on Decomposition of Security Requirements and Ontologies.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 171-174

DOI: 10.5220/0002243501710174

 SciTePress

from simply enumerating threats to modelling them

in a rigorous way. The extent of threat analysis

depends, e.g., on the criticality of the use cases in

SUI. The following threat and vulnerability analysis

process can be used, based on the Microsoft threat

risk modelling process (Howard and LeBlanc,

2003):

1. Identify security objectives,

2. Survey the SUI architecture,

3. Decompose the SUI architecture to identify

functions and entities with impact to security,

4. Identify threats, and

5. Identify vulnerabilities.

The security objectives can be decomposed, e.g.,

to identity, financial, reputation, privacy and

regulatory and availability categories (OWASP,

2009). There are many different sources of risk

guidance that can be used in developing the security

objectives, such as laws, regulations, standards, legal

agreements and information security policies.

Vulnerability analysis can be carried out after

appropriate technological choices have been made.

Vulnerabilities in the technology and

implementation affect to threats of the system. In

vulnerability analysis, well-known vulnerability

listings and repositories such as OWASP (Open

Web Application Security Project) Top 10

(OWASP, 2009) can be used.

2.2 Definition and Prioritization of

Security Requirements

Security requirements derive from threats, policies

and environment properties. Security requirements

that are derived from threats are actually

countermeasures. Policies are security relevant

directives, objectives and design choices that are

seen necessary for the system under investigation.

Environment properties contribute to the security of

the SUI from outside.

In general, every security risk due to a threat

chosen to be cancelled or mitigated must have a

countermeasure in the collection of security

requirements.

A security requirement of the SUI r

is derived

from applicable threat(s) θ

, policies p

and the

environment properties e

= (

, p

, e

∈ R,

∈

, p

∈

, e

∈ E,

(1)

where R is the collection of all security

requirements of SUI, Θ is the collection of all

security threats chosen to be cancelled or mitigated,

P is the collection of all security policies applied to

SUI, and E is the collection of all environment

properties that contribute to the security of the SUI

from outside.

2.3 Decomposition of Security

Requirements

The core activity in the proposed security metrics

development process is in decomposing the security

requirements. In the following, we discuss the

decomposition process and give an example of it.

The following decomposition process, based on

Wang and Wulf (1997), is used to identify

measurable components from the security

requirements:

1. Identify successive components from each

security requirement (goal) that contribute to the

success of the goal.

2. Examine the subordinate nodes to see if further

decomposition is needed. If so, repeat the

process with the subordinate nodes as current

goals, breaking them down to their essential

components.

3. Terminate the decomposition process when none

of the leaf nodes can be decomposed any further,

or further analysis of these components is no

longer necessary.

When the decomposition terminates, all leaf

nodes should be measurable components. In the

following, we decompose the requirements

presented above and discuss the results. Since

adaptive security contains higher-level requirements,

we leave it to the last. It is easier to investigate the

six lower-level requirement categories first.

In general, the model depicted in Fig. 1 can be

used for the authentication decomposition (Wang

and Wulf, 1997) during the process of identifying

potential metrics for authentication performance.

Authentication

Identity

Mechanism

Effectiveness

Integrity

Reliability

Integrity

Uniqueness Structure

Figure 1: Decomposition of authentication.

See (Savola and Abie, 2009) for a more detailed

discussion of security requirement decomposition

and identification of basic measurable components.

2.4 Measurement Architecture and

Evidence Collection

The next step requires identification of measurable

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

172

information and the mechanisms how to obtain and

process that data. Both on-line and off-line evidence

collection should be designed. In many cases, on-

line and off-line measurements can be dependent on

each other.

Identification of measurable information can be

carried out, e.g., from data flow diagrams and

protocol descriptions. As an example, Fig. 2 shows a

conceptual picture of information flows of a

distributed messaging system GEMOM, Genetic

Message Oriented Secure Middleware (Abie et al.,

2008). Security metrics of the Security Monitor

module can use information from the Broker

module, Audit and Logging module and Security

module. In addition, the metrics get information

from memory, storage and network interfaces.

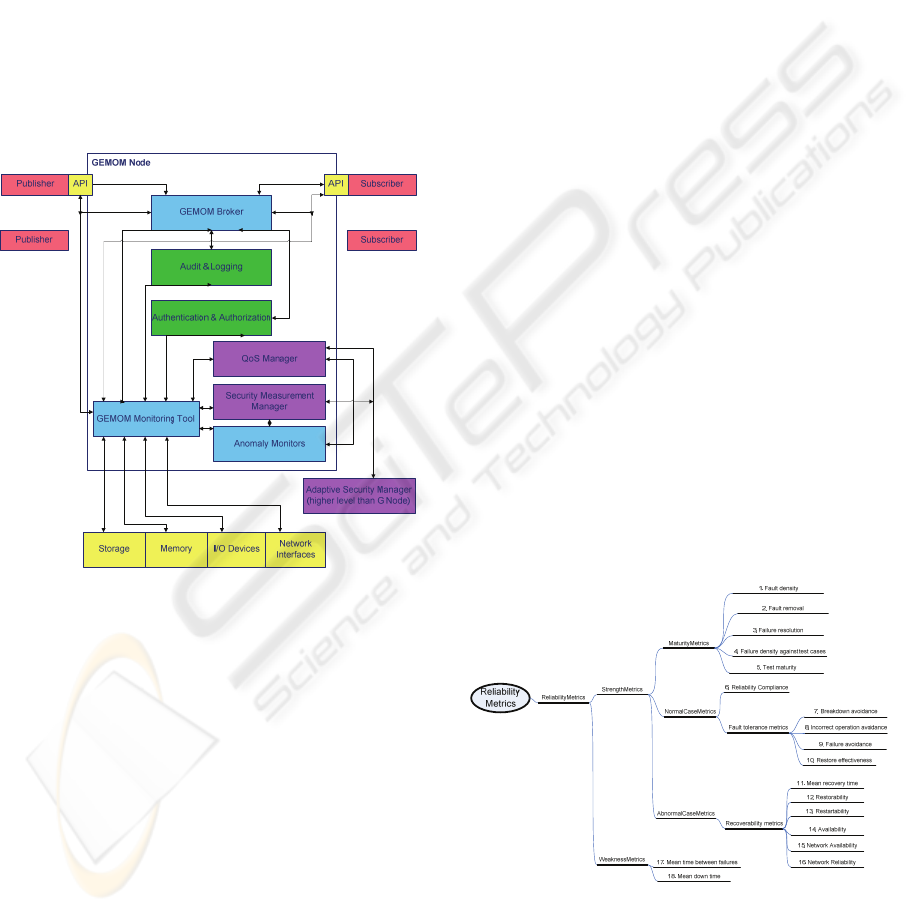

Figure 2: Example of information flows to and from the

GEMOM Monitoring Tool containing security metrics.

2.5 Feasibility and Importance of

Metrics

According to Jelen (2000), a good metric is Specific

(well-defined, using unambiguous wording),

Measurable (quantitative when feasible), Attainable

(within budgetary and technical limitations),

Repeatable (measurements from which metric is

derived do not vary depending on the person taking

them) and Time-dependent (takes into consideration

measurements from multiple time slices)

(“SMART”). Payne (2006) remarks that truly useful

security metrics indicate the degree to which

security goals, such as data confidentiality, are being

met.

The feasibility of measuring security and

developing security metrics to present actual

security phenomena has been criticized in many

contributions. In designing a security metric, one has

to be conscious of the fact that the metric simplifies

a complex socio-technical situation down to

numbers or partial orders. McHugh (2002) is

skeptical of the side effects of such simplification

and the lack of scientific proof. Bellovin (2006)

remarks that defining metrics is hard, if not

infeasible, because an attacker’s effort is often

linear, even in cases where exponential security

work is needed. Another source of challenges is that

luck plays a major role (Burris, 2000) especially in

the weakest links of information security solutions.

Those pursuing the development of a security

metrics program should think of themselves as

pioneers and be prepared to adjust strategies as

experience dictates (Payne, 2000).

2.6 Use of Metrics Ontologies

After the decomposition of security requirements,

metrics ontologies can be used to help in planning

the actual metrics development process.

Fig. 3. shows an example metrics ontology for

reliability metrics, see example in Fig. 3 (Niemelä et

al., 2008). Reliability can be seen at the leaf of the

authentication taxonomy of Fig. 1. From the

example reliability metrics ontology, it can be seen

that there are reliability metrics that emphasize

either strengths or weaknesses. Strength metrics can

be divided into maturity metrics, normal case

metrics and abnormal case metrics.

Figure 3: Example of a reliability metrics ontology

(Niemelä et al., 2008).

DEVELOPMENT OF SECURITY METRICS - Based on Decomposition of Security Requirements and Ontologies

173

3 RELATED WORK

Wang and Wulf (1997) describe a general-level

framework for measuring system security based on a

decomposition approach. CVSS (Common

Vulnerability Scoring System) (Schiffman, 2004) is

a global initiative designed to provide an open and

standardized method for rating information

technology vulnerabilities from a practical point of

view. NIST’s Software Assurance Metrics and Tool

Evaluation (SAMATE) project (Black, 2006) seeks

to help answer various questions on software

assurance, tools and metrics. OWASP (2009) (Open

Web Application Security Project) contains an

active discussion and development forum on

security metrics. More security metrics approaches

are surveyed in (Savola, 2007) and (Savola, 2008).

4 CONCLUSIONS

The field of developing security metrics

systematically is young and the current practice of

information security is still a highly diverse field,

and holistic and widely accepted approaches are still

missing.

We have introduced a novel methodology for

security metrics development based on threats,

policies, security requirements and requirement

decomposition. The developed approach enables to

describe and relate different types of security metrics

in a systematic way.

Further work is needed in definition of the

measurement architecture, evidence collection and

selection of measurable components. Methods to

assess the importance, feasibility and complexity of

security metrics are needed. Furthermore, more

detailed metrics to the system under investigation

should be developed and validated in the actual

system. The future work includes more thorough

investigation of suitable generic decomposition

models.

ACKNOWLEDGEMENTS

The work presented in this paper has been carried

out in the GEMOM FP7 research project, partly

funded by the European Commission.

REFERENCES

Abie, H., Dattani, I., Novkovic, M., Bigham, J., Topham,

S. and Savola, R. GEMOM – Significant and

Measurable Progress Beyond the State of the Art. In

ICSNC 2008. Malta, Oct. 26-31, 2008, pp. 191-196.

Bellovin, S. M. On the Brittleness of Software and the

Infeasibility of Security Metrics. In IEEE Security &

Privacy, Jul/Aug. 2006, p. 96.

Black, P. E. SAMATE’s Contribution to Information

Assurance. In IAnewsletter, Vol. 9, No. 2, 2006.

Burris, P. and King, C. A Few Good Security Metrics.

METAGroup, Inc. Oct. 2000.

Howard, M. and LeBlanc, D. Writing Secure Code,

Second Edition, Microsoft Press, 2003.

Jelen, G. SSE-CMM Security Metrics. In NIST and

CSSPAB Workshop, Washington, D.C., 2000.

McHugh, J. Quantitative Measures of Assurance:

Prophecy, Process or Pipedream? In Workshop on

Information Security System Scoring and Ranking,

ACSA and MITRE, Williamsburg, Virginia, May

2001 (2002).

Niemelä, E., Evesti, A. and Savolainen, P. Modeling

Quality Attribute Variability. In 3

Int. Conf. on

Evaluation of Novel Approaches to Software

Engineering. Funchal, Portugal, May 4-7, 2008, pp.

169-176.

OWASP. Open Web Application Security Project.

http://www.owasp.org./, 2009

Payne S. C. A Guide to Security Metrics. SANS Institute

Information Security Reading Room, 2006.

Savola, R. Requirement Centric Security Evaluation of

Software Intensive Systems. In 2

Int. Conf. on

Dependability of Computer Systems DepCOS-

RELCOMEX ’07, Szklarska Poreba, Poland, June 14-

16, 2007, pp. 135-142.

Savola, R. A Novel Security Metrics Taxonomy for R&D

Organisations. In 7

Annual Information Security

South Africa (ISSA) Conference, Johannesburg, South

Africa, July 7-9, 2008, pp. 379-390.

Savola, R. and Abie, H. Identification of Basic Measurable

Components for a Distributed Messaging System. In

Int. Conf. on Emerging Security Information,

Systems and Technologies (SECURWARE) 2009,

Athens, Greece, June 18-23, 2009.

Schiffman, M., Eschelbeck, G., Ahmad, D., Wright, A.

and Romanosky, S. CVSS: A Common Vulnerability

Scoring System, National Infrastructure Advisory

Council (NIAC), 2004.

Wang, C. and Wulf, W. A. Towards a Framework for

Security Measurement, 20

National Information

Systems Security Conference, Baltimore, MD, Oct.

1997, pp. 522-533.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

174
