THE PERFORMANCE OF OPC-UA SECURITY MODEL AT

FIELD DEVICE LEVEL

Olli Post, Jari Seppälä

Department of Automation Science, Tampere University of Technology, Tampere, Finland

Hannu Koivisto

Department of Automation Science, Tampere University of Tecnology, Tampere, Finland

Keywords: OPC-UA, IPSec, Field device security.

Abstract: This paper discusses the performance of OPC UA security model at field device level. Process networks

have traditionally been isolated networks but today there is interest to integrate process networks to

manufacture and office network. Remote management of field devices via Internet is also gaining interest.

This requires implementation of TCP/IP in field devices. However, this causes process networks not being

isolated anymore and attention must be paid to the security of process networks. OPC UA is a specification

for data transfer in automation systems that can be used to integrate information, horizontally and vertically.

Security has also been considered in OPC UA but security measures implemented by OPC UA are too

heavy to be uses in field devices. Thus, implementing security profile for authentication without encryption

in OPC UA or running OPC UA on IPSec without its own security profile is proposed.

1 INTRODUCTION

Today, there is a growing interest towards the

integration of TCP/IP to the process networks. In

process networks, security has traditionally been

based on access control. Traditional fieldbus based

process networks have been isolated networks.

Security has been based on restricting physical

access. Therefore it has been assumed that there are

neither passive nor active attacks in process

network. Security measures in isolated process

networks have been targeted against user errors.

However, this isolation is not the case anymore as

TCP/IP is merged to field devices. This allows field

devices to be managed over Internet using web

applications but this also provides a path for an

attacker from Internet to process network using

attacks that are well trained in the Internet. It seems

that the focus on attacks on automation systems is

shifting from internal attacks towards external

attacks (Treytl et al., 2005). Still, backdoor accesses

such as desktop modems, wireless networks, laptop

computers and trusted vendor connections are

remarkable sources of attacks (Byres & Hoffman,

2003). The shift can be inflicted because of the path

to automation systems that TCP/IP produces. It

appears that the external attacks aren’t targeted

specifically to automation systems but they inflict

them as well (Treytl et al., 2005). There is also much

interest towards wireless techniques in process

network. Controlling access to a wireless media is

very hard, if not impossible. Considering these

changes in process networks it is clear that the

assumption of a secure media in process network is

no longer valid. Therefore security against

intentional misuse must be considered.

2 SECURITY AT THE FIELD

DEVICE LEVEL

2.1 Concepts of Security

Security can be divided into sub concepts and

examine security using these sub concepts. These

sub concepts are confidentiality, integrity and

availability. Confidentiality guarantees the data from

unauthorized disclosure, integrity guarantees that

data is transferred unaltered in the information

337

Post O., SeppÃd’lÃd’ J. and Koivisto H.

THE PERFORMANCE OF OPC-UA SECURITY MODEL AT FIELD DEVICE LEVEL.

DOI: 10.5220/0002249103370341

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2009), page

ISBN: 978-989-674-000-9

channel. Availability is reachability of data for

authorized users.

The confidentiality of the data can be assured by

encrypting data, the integrity of data can be assured

using hash codes to authenticate data. Availability is

more complex concept and any single technique

can’t assure it. It’s also usually reverse requirement

compared to confidentiality and integrity. Securing

availability requires common practices and

techniques to ensure that all the field devices and

fieldbus in process network are fully functional

continuously.

2.2 Device Level Limitations

The International Society of Automation (ISA,

2004) has defined distinctions between process

networks and office networks that create differing

requirements for security. Specific features for

process network, that are important in the sense, of

this paper is that field devices have little resources,

unwanted incidents can cause serious damage to

property, injuries and even death to people, events in

the network are time critical, data and services must

be available, integrity of data is very important and

that data in process network isn’t confidential.

It is a well-known fact that encryption causes

much more delay in communication than

authentication. For example in IPSec, encryption

takes multiple times more time than authentication

(Elkeelany et al., 2002). Because the events in the

process automation are time critical and data has

importance for only short period of time

confidentiality isn’t a requirement for process

network. Availability on the other hand is an

important requirement for process network, because

missing control or measurement data can inflict

serious damage to property and people. Another

requirement for process network is integrity of data,

because modification of messages and unauthorized

messages can also inflict serious damage.

3 MINIMUM REQUIREMENTS

FOR FIELD DEVICE LEVEL

SECURITY

3.1 Security Requirements for Process

Network

The requirements for security in process control are

availability of data and data integrity. However

availability in process network can’t be guaranteed

with just a single technique. It can be assured with

security policies and different techniques. Therefore

it’s out of scope of this paper. As processing time is

scarce resource in field devices, requirements for

process network, in the sense of this paper, can be

compressed to following sentence. In process

network, data integrity has to be assured as little

process time as possible without endangering the

keys used in authentication.

3.2 Processing Time Consumed by

Authentication

Processing time consumed by authentication is

dependent on the used algorithm and length of the

key. Therefore short keys would be better in field

device level than longer keys. European Network of

Excellence in Cryptology divides algorithms to

secure or not secure (ECRPYT) (2008). Key lengths

on the other hand, can only be secure enough,

because every key is possible to break using brute

force. However, it should be noted that if a key is

adequate today it doesn’t mean that it’s still

adequate in future. Automation systems can be used

even for decades and same cryptographic keys are

probably used in process networks from start-up to

shutdown. Therefore, it shouldn’t be possible to

break algorithms and keys during periods between

yearly maintenance for decades to come. It isn’t

possible to concretize this because future is hard to

predict but it’s not advisable to use algorithms and

key lengths defined as not secure.

4 OPC UA

4.1 Introduction to OPC UA

OPC means open connectivity via open standards in

industrial automation and the enterprise systems that

support industry. OPC UA is the specification that is

supposed to integrate data exchange in automation,

horizontally and vertically. There are nine other

OPC standards that are in use. These specifications

are used in different purposes and they all have their

own niche. OPC UA on the other hand is suppose to

operate in all those different niches and ultimately

replace all the other OPC specifications completely.

The motivation to start the standardization of this

unification was compatibility issues in integration of

different specifications. OPC UA responds this by

offering a unified interface to be used in all the

networks in automation. OPC UA specification is

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

338

already released and reference models are soon to be

ready.

4.2 OPC UA Security Model

The security model of OPC UA is specified in part 2

of the specification by OPC Foundation (2009). This

document describes how security can be assured

using OPC UA. First, secure channel is established

to guarantee confidentially, integrity and application

authentication. Second, secure session is established

between server and client to guarantee user

authentication and authorization. It should be noted

that confidentiality is not a requirement at field

device level and it consumes more calculation power

than integrity.

Security of data transfer in OPC UA is specified

in part 4 of the specification by OPC Foundation

(2009). Secure data transfer between clients and

servers in OPC UA is based on certificates issued by

certificate authority (CA). OPC UA client and server

both have application instance certificates, which are

sent to the other member of communication channel

while establishing secure channel. Both parties

validate received certificates from CA. After secure

channel have been established client starts to

establish a session with server by sending its

software certificate to server. While application

instance certificates identify instances, software

certificates identify particular users. Server responds

to this request by sending its own certificates and

once again both members validate received

certificates from CA. Certificates validated in OPC

UA are X.509 certificates. In field device level

verifying every received certificate from CA would

cause significant delay to data transfer. Therefore,

due to X.509 hierarchical nature it would be feasible

for automation system provider to act as CA. For

example PLC could act as CA for all the field

devices connected to it.

The security profiles of OPC UA are specified in

part 7 of the specification by OPC Foundation

(2009). There are three security profiles available in

OPC UA: Basic128Rsa15, Basic256 and none.

Basic128Rsa15 is a suite of security algorithms that

include aes128 for encryption, sha1 for

authentication and rsa15 for key wrap. Similarly

basic256 includes aes256 for encryption, sha1 for

authentication and RsaOaep for key wrap. Security

policy none doesn’t include any security algorithms.

There are also asymmetric equivalents for

symmetric algorithms but they are probably too

calculation expensive to be used in field device level

to guarantee security.

OPC UA Stack is specified in part 6 of the

specification by OPC Foundation (2009). OPC UA

is located at the application layer in OSI model. In

figure 1 is depicted OPC UA stack compared to OSI

model. From figure 1 can be seen that OPC UA

stack and OSI model overlap. For example transport

layer is done again in OPC UA stack. UA Transport

Layer establishes session between two entities as

does transport layer in OSI model.

Figure 1: OPC UA stack in OSI model.

5 IPSEC

IPSec is a network layer protocol that can assure

data confidentiality and integrity, origin

identification and prevent replay attacks (Douligeris

et al., 2007). IPSec consists of three elements. First

element is security mechanisms. In IPSec there are

two of them: authentication header (AH) for

authentication and encapsulating security payload

(ESP) for encryption. Security mechanisms can also

be united to guarantee both encryption and

authentication. Second element is security

association. This is an agreement on which security

mechanisms are used between two members in data

transfer. Third element is the infrastructure for key

management. It is used to agree an SA between two

members.

There are also two modes for transferring data:

transport and tunnel. In transport mode ESP

mechanism encrypts and optionally authenticates IP

payload. AH on the other hand, authenticates

payload and also selected portions of IP header. In

tunnel mode IP packet is encapsulated inside another

IP packet. This way inner IP packet is examined

only by the end-points of the data transfer. Thus,

data integrity and confidentiality of the whole inner

IP packet can be guaranteed.

Another security solution providing data

integrity for TCP/IP based field device could be TLS

(Dierks & Allen, 1999). It offers the same security

as IPSec and it is implemented in common web

browsers, which makes it a good choice for remotely

configure field devices (Treytl et al., 2004).

However, in process network control and

THE PERFORMANCE OF OPC-UA SECURITY MODEL AT FIELD DEVICE LEVEL

339

measurement data are one-way traffic. There is no

need to acknowledge received packets. Data has

value for only a short period of time. If a packet is

lost on transfer is doesn’t matter because another

packet is sent shortly after previous. Therefore, there

is no need to establish connection between field

devices and connectionless UDP would be better

solution than TCP. TLS can’t be used over UDP but

UDP can be packed to IPSec (Alshamsi & Saito,

2005). Thus, IPSec was chosen to under inspection

in this paper.

6 PERFORMANCE ANALYSIS

This paper tries to determine whether the security

model of OPC UA is efficient in data transfer or

could there be another solution for secure data

transfer in process network, still allowing OPC UA

services to be used.

All three OPC UA security profiles, none,

basic128 and basic256, were measured as well as

IPSec AH. Also basic128 and basic256 data

authentication without encryption were measured.

However it should be noted that authentication

without encryption is not an OPC UA security

profile. By doing also these measurements IPSec

AH and authentication done by OPC UA security

profiles can be compared. Three packet sizes were

used in calculations 1024 bytes, 10 240 bytes and

102 400 bytes to measure delay caused by security

measures.

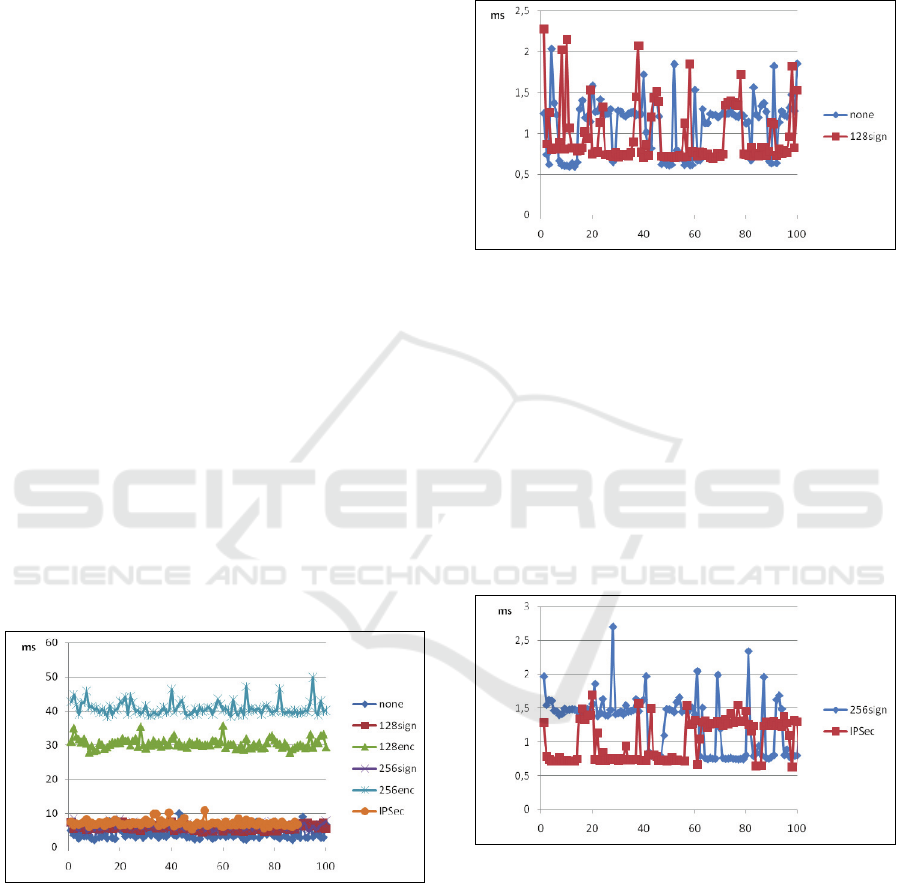

Figure 2: Delay inflicted using 102 400 bytes packet size.

In figure 2 is presented measurements done using

packet size 102 400. Although this packet size isn’t

realistic in field device level it depicts the overall

situation well. From figure 2 can be seen that

encryption causes much more delay compared to

authentication and security profile none. It can be

also seen that measurements for all authentication

algorithms and security policy none were similar.

Therefore it can be said that because confidentiality

isn’t a requirement in field device level and because

encryption adds a lot of overhead to measurement,

encryption is not feasible solution to guarantee field

device level security.

Figure 3: Delay inflicted using packet size 1024 bytes.

In figures 3 and 4 are presented delay inflicted

using 1024 bytes packet size. In figure 3 are

presented security profile basic128 and none. In

figure 4 are presented security profile basic256 and

IPSec AH. From figure 3 and 4 can be seen that

delay caused by all of these security profiles is alike.

It can’t be said whether one is better than the other.

More measurements are needed for to draw

conclusions. However measurements clearly show

that in small packet sizes authentication doesn’t

cause significant delay compared to security profile

none.

Figure 4: Delay inflicted using 1024 bytes packet size.

7 CONCLUSIONS AND FUTURE

WORK

Preliminary results show support the hypothesis that

OPC UA security models are not efficient enough to

be used in field device level data transfer because

there isn’t plain authentication supported. Therefore

it’s suggested that either new security profile for

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

340

authentication is included or that IPSec is used along

OPC UA to guarantee integrity at automation field

device level. This way field devices can be remotely

managed over TCP/IP and still assure integrity of

data efficiently at field device level. Data transfer in

OPC UA rests on x.509 certificates. In future it

should be considered whether there would be better

solution for field device level. For example by PLC

acting as CA.

REFERENCES

Alshamsi, A., Saito, T., 2005. A technical comparison of

IPSec and SSL. In: IEEE (Institute of Electrical and

Electronics Engineers), The 19th International

Conference on Advanced Information Networking and

Applications. Tamkang, Taiwan 28-30 March 2005.

Byres, E. & Hoffman D., 2003. The Myths and Facts

behind Cyber Security Risks for Industrial Control

Systems. In: ISA (International Society of

Automation), Process Control Conference 2003.

Dierks, T. & Allen, C, 1999. The TLS Protocol Version

1.0, Request for Comments: 2246.

Douligeris, C. et al., 2007. Network Security Current

Status and Future Directions. Hoboken, NJ: Wiley-

IEEE Press.

Elkeelany, O,; Matalgah, M.M., Sheikh, K.P., Thaker, M.,

Chaudhry, G., Medhi, D. & Qaddour, J., 2002.

Performance Analysis of IPSec Protocol: Encryption

and Authentication. In: IEEE (Institute of Electrical

and Electronics Engineers), International Conference

on Communications 2002.New York, United States of

America 28 April - 2 May 2002.

European Network of Excellence in Cryptology, 2008.

Yearly Report on Algorithms and Keysizes (2007-

2008) [Online] Available at:

http://www.ecrypt.eu.org/ecrypt1/documents/D.SPA.2

8-1.1.pdf [Accessed 25 March 2009].

International Society of Automation, 2004. ISA-

TR99.00.02-2004 Integrating Electronic Security into

the Manufacturing and Control Systems Environment

OPC Foundation, 2009. OPC Unified Architecture

Specification, Part: 2 Security Model, Release 1.01

OPC Foundation, 2009. OPC Unified Architecture

Specification, Part: 4 Services, Release 1.01

OPC Foundation, 2009. OPC Unified Architecture

Specification, Part: 6 Mappings, Release 1.00.

OPC Foundation, 2009. OPC Unified Architecture

Specification, Part: 7 Profiles, Release 1.00.

Treytl, A., Sauter, T. & Schwaiger, C., 2004. Security

measures for industrial fieldbus systems - state of the

art and solutions for IP-based approaches. In: IEEE

(Institute of Electrical and Electronics Engineers),

IEEE International Workshop on Factory

Communication Systems. Vienna, Austria 22-24

September 2004.

Treytl, A., Sauter, T. & Schwaiger, C., 2005. Security

measures in automation systems-a practice-oriented

approach. In: IEEE (Institute of Electrical and

Electronics Engineers), 10th IEEE Conference on

Emerging Technologies and Factory Automation.

Catania, Italy 19-22 September 2005.

THE PERFORMANCE OF OPC-UA SECURITY MODEL AT FIELD DEVICE LEVEL

341
