AUTOMATIC GENERATION OF USER INTERFACE MODELS

AND PROTOTYPES FROM DOMAIN AND USE CASE MODELS

António Miguel Rosado da Cruz

E.S.T.G., Instituto Politécnico de Viana do Castelo, Av. do Atlântico, s/n, 4900-348 Viana do Castelo, Portugal

João Pascoal Faria

Faculdade de Engenharia da Universidade do Porto/INESC Porto, Rua Dr. Roberto Frias, s/n, 4200-465 Porto, Portugal

Keywords: Model-driven software development, Use case model, Domain model, Automatic user interface generation,

Iterative incremental process, Form-based business applications.

Abstract: The model-driven automatic generation of interactive applications has been addressed by some research

projects, but only few propose the model-to-model generation of a graphical user interface (UI). Existing

solutions generate only part of the interactive application and most of them require as input the full

specification of a UI model. This paper proposes an iterative and incremental approach that enables the

modeler to generate a form-based executable prototype from the constructed models, favouring an

evolutionary construction of models starting with a domain model, proceeding with an extended domain

model and finally complementing it with a use case model. The approach derives a UI model from the

previously referred models and allows its execution by generating an executable description of the UI in a

XML-based UI description language, together with code for the specified logic and for persisting the data

entities. The generated UI description may be further refined and supplemented with style definitions in

order to obtain a final UI.

1 INTRODUCTION

Model-driven software development (MDD)

approaches, like Domain Specific Modeling – DSM

– (Kelly and Tolvanen, 2008), or the OMG’s Model

Driven Architecture – MDA – (Warmer et al., 2003),

are based on the successive refinement of models

and on the automatic generation of code and other

sub-models. This paper presents an approach for the

automatic generation of form-based applications

within a model-driven software development setting.

The approach proposed involves the iterative and

incremental development of a domain model, and

optionally a use case model, by the modeler, and the

testing of an automatically generated executable

prototype.

In order to disambiguate and raise the rigour of

the models, the domain model is enriched with OCL

constraints, from which the generation process takes

advantage to produce validation procedures in the

user interface (UI).

In the next sections, the proposed approach is

presented focusing on the features that are derived in

the generated interactive application or its UI, and

the model characteristics that are explored in order

to derive those features. The relations between the

three metamodels involved in the process are

analysed, namely an extended domain metamodel, a

use case metamodel and a user interface metamodel.

The extended domain metamodel extends the

domain metamodel with derived attributes, derived

classes (views) and user defined operations and

triggers. An example will help to perceive the

differences between a domain-model only approach

to modeling, developed during simple domain

analysis and addressed in (Cruz and Faria, 2008),

and a use case driven approach followed when

eliciting and modeling requirements, within a

Unified Process-like software development process

(Jacobson et al., 1999). In the latter case the use case

model must be constructed in close connection with

the extended domain model, referring to its classes

(base or derived) and operations (user-defined or

169

Rosado da Cruz A. and Pascoal Faria J. (2009).

AUTOMATIC GENERATION OF USER INTERFACE MODELS AND PROTOTYPES FROM DOMAIN AND USE CASE MODELS.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 169-176

DOI: 10.5220/0002253501690176

 SciTePress

pre-defined CRUD operations – create/retrieve/

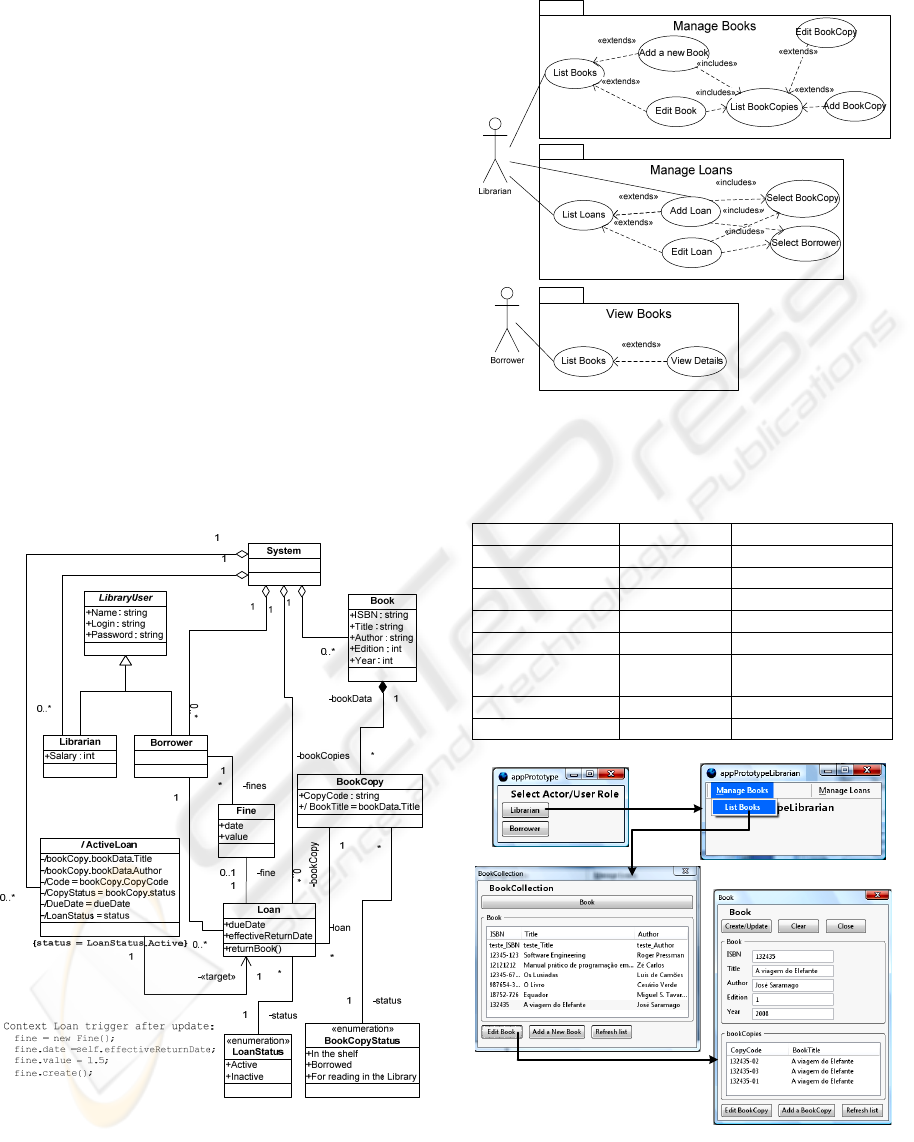

update/delete). An example is presented in section 6.

Before concluding the paper, related work is

addressed and compared to the presented approach.

2 GENERAL APPROACH

The goal of our approach, illustrated in Figure 1, is

to allow the automatic generation of user interface

models (UIM) and executable user interface

prototypes (UIP), from early, progressively

enriched, system models.

In the first iterations, a simple domain model

(DM) is constructed, represented by a UML class

diagram, with classes (domain entities), attributes

and relationships. From this DM a simple UI can be

automatically generated (by the EDM2UIM process,

a model to model transformation, and M2C, model

to code transformation, in Figure 1) supporting only

the basic CRUD operations and navigation along the

associations defined.

In subsequent iterations, the domain model is

extended with additional features (to be explained in

more detail in section 4) that allow the generation of

richer user interfaces: OCL constraints, default

values, derived attributes, derived classes (views),

user-defined operations, and triggers. Indeed, lists of

possible field values can be generated from OCL

class invariants, and operations' pre-conditions will

influence what the user is able to do in the generated

user interface. Derived classes allow the generation

of UI forms with a more flexible data structure.

Simultaneously, the modeler may develop a use

case model (UCM), integrated with the extended

domain model (EDM). This UCM will enable the

separation of functionality by actor, and its

customization (e.g.: hiding functionality for some

actors). Corresponding UI models and prototypes are

then automatically generated from both the EDM

and UCM (EDM+UCM2UIM and M2C processes in

Figure 1). As will be explained in section 5, there is

a full integration between the UCM and EDM, as

use case specifications are established over the

structural domain model.

On each iteration, the generated UI may be tuned

by a UI designer in two points of the process: after

having generated an abstract UIM, but before

generating a concrete UI; and, after generating a

concrete UI in a XML-based UI description

language (e.g.: XUL), which allows for the a

posteriori customization and application of style

sheets. A proof of concept tool has been developed

for fully automating the EDM2UIM,

EDM+UCM2UIM and M2C processes. The

prototyped M2C process uses XUL to represent a

concrete executable UI description, JavaScript for

the executable functionality and RDF to persist data.

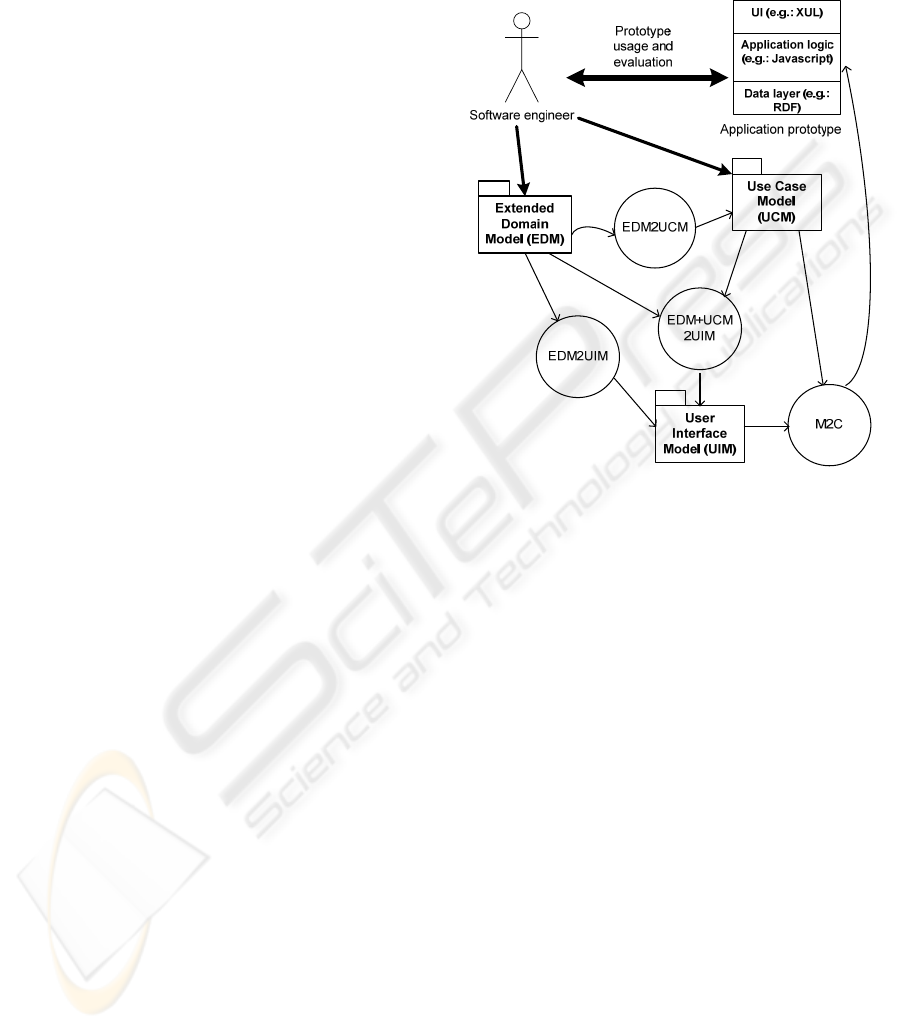

Figure 1: General approach to UI generation.

3 CONCEPTUAL META-MODEL

Each of the models (EDM, UCM and UIM)

presented in Figure 1 is an instance of a defined

metamodel, of which an excerpt is shown in Figure

2 (EDMM, UCMM and UIMM, respectively).

Elements in the user interface model are traced back

to elements in the UCM or EDM, e.g.:

 A Menu in the UI traces back to a Use Case

(UC) Package in the UCM;

 a Menu Item traces back to a top-level UC in

the UCM, i.e. a UC that directly links to an actor;

 A Form can be traced back to a UC, which is

always related to a base or derived domain Entity;

 An Action Button may trace back to a CRUD

operation that may be identified in a UC, or to a UC

that extends another UC and has an associated user

defined operation.

In the next section the mappings for deriving a

UI model from one or both the other models (EDM

and UCM), as depicted in figure 1, are defined.

A set of rules has also been defined for

transforming an EDM into a default UCM

(EDM2UCM process), but these are not presented

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

170

E.D.M.M. U.C.M.M. U.I.M.M.

Figure 2: Excerpt of the conceptual metamodels and their relations.

due to space reasons. The default use case model has

only one actor that has access to all the system

functionality, and may serve as the basis for

producing the intended use case model, by

eliminating or redistributing functions among actors.

4 EDM FEATURES AND

TRANSLATION TO THE UIM

Besides classes (domain entities), attributes and

relationships, an extended domain model may

contain the following features:

 Class Invariants. intra-object (over attributes

of a single instance) or inter-object (over attributes

of multiple instances of the same or related classes)

constraints defined in a subset of OCL.

 User-defined Operations. Operations defined

in an Action Semantics-based action language,

supplementing the basic CRUD operations (Create,

Retrieve, Update and Delete).

 Derived Attributes. Attributes whose values

are defined by expressions in a subset of OCL, over

attributes of self or related instances. A common

special case is a reference to a related attribute,

using a sequence of dot separated names.

 Default Values. Initial attribute values defined

in a subset of OCL.

 Derived Classes (views). Classes that extend

the domain model with non-persistent domain

entities with a structure closer to the UI needs.

Currently, each derived class must be related to a

target base class, and is treated essentially as a

virtual specialization of the base class, possibly

restricted by a membership constraint and extended

with derived attributes.

 Triggers. Actions to be executed before, after

or instead of CRUD operations, or when a condition

holds within the context of an instance of a class. By

defining triggers, the modeler is able to modify the

normal behavior of CRUD operations, or define

generic business rules.

The main transformation rules for generating a

user interface model from an extended domain

model are summarized in table 1. Rules for

transforming simple domain models were previously

addressed in (Cruz and Faria, 2008).

When the UIM/UIP is generated solely from the

domain model, a special class named System has to

be created and linked to the domain classes that

should correspond to the application entry points. A

more flexible approach is explained in the next

section.

AUTOMATIC GENERATION OF USER INTERFACE MODELS AND PROTOTYPES FROM DOMAIN AND USE

CASE MODELS

171

Table 1: EDM to UIM/UIP transformation rules.

EDM feature Generated UI feature (UIM/UIP)

Domain entity

Form with an input/output field for

each attribute, and buttons and

associated logic for the CRUD

operations.

Inheritance

A field for each inherited attribute in

the form generated for the specialized

class.

To-many

association,

aggregation or

composition

UI component in the source class form,

with a list of the identifying attributes

of the related instances of the target

class, and buttons for adding new

instances and for editing or removing

the currently selected instance.

To-one

association,

aggregation or

composition

Group box in the source class form,

with a field for each identifying

attribute of the related instance. If the

related instance is not fixed by the

navigation path followed so forth, then

a button is also generated for selecting

the related instance.

Enumerated

type

Group of radio buttons for selecting

one option.

Class

invariant

Validation rule that is called when

creating or updating instances of the

class.

User-defined

operation

Button and associated logic, within

the form corresponding to the class

where the operation is defined. Forms

are also generated for entering the

input parameters and displaying the

result, in case they exist. The

operation pre-condition determines

when the button is enabled.

Derived

attribute

Output-only field (calculated field).

Default value Initial field value.

Derived class

(view)

Form with an input/output field for

each attribute of the target class, an

output-only field for each derived

attribute, and buttons for the CRUD

logic (over the target class).

Operation-

Action

Trigger

Logic that is executed before, after or

instead of the CRUD operation that it

refers to.

Condition-

Action

Trigger

Logic that is executed every time the

condition holds, after creating or

updating an instance of the class

where the trigger is defined.

5 UCM FEATURES AND

TRANSLATION TO THE UIM

In our approach, a UCM can be defined in close

connection with the EDM, to indicate and organize

the CRUD, user-defined or navigational operations

over base or derived domain entities that are

available for each actor (user role). The data

manipulated in each use case is determined by the

domain entity and/or operation associated with it.

Several constraints are posed on the types of use

cases and use case relationships that can be defined.

Two categories of use cases are distinguished:

 Independent use Cases: use cases that can be

initiated directly, and so can be linked directly to

actors (that initiate them) and appear as application

entry points;

 Dependent use Cases: use cases that can only

be initiated from within other use cases, called

source use cases, because they depend on the

context set by the source use cases; the dependent

use cases extend or are included by the source ones,

according to their nature (optional or mandatory,

respectively).

The types of independent use cases that can be

defined in connection with the EDM are:

 List Entity. view the list of instances of an

entity (usually only some attributes, marked as

identifying attributes, are shown);

 Create Entity. create a new instance of an

entity;

 Call StaticOperation. invoke a static user-

defined operation defined in some entity; this

includes entering the input parameters and viewing

the results, when they exist.

The types of dependent use cases that can be

defined in connection with the EDM are:

 Retrieve, Update and/or Delete Entity. view

(retrieve) or edit (update or delete) an instance of the

entity previously selected (in the source use case);

 Call InstanceOperation. invoke a user-defined

operation over an instance of an entity previously

selected (in the source use case); this includes

entering the input parameters and viewing the

results, when they exist;

 List Related Entity. view the list of (0 or more)

instances of the target entity that are linked to a

previously selected source object (in the source use

case); in case of ambiguity, in this and in the next

use case types, the link type (association) must also

be specified;

 Create Related Entity. create a new instance of

the target entity type and link it to a source object

previously selected (in the direct or indirect source

use case);

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

172

List E1

Create E1

«extend»

a) Entity

d) Dependent collection

CRUD

Create

Related E2

«extend»

List

Related E2

Retrieve, Update

and/or Delete

Related E2

«extend»

«include»

e) Independent collection

CRUD

«extend»

List

Related E2

Select and

Link Related

«extend»

«include»

Retrieve

Related E2

Unlink

Related E2

«extend»

Retrieve, Update

and/or Delete E1

b) Dependent instance

or 1

CRUD

«extend»

Retrieve, Update

and/or Delete

Related E2

c) Independent instance

0..1

CRUD

«extend»

Select

Related E2

Retrieve

Related E2

Unlink

Related E2

0..1

or 1

«extend»

«include»

Create

Related E2

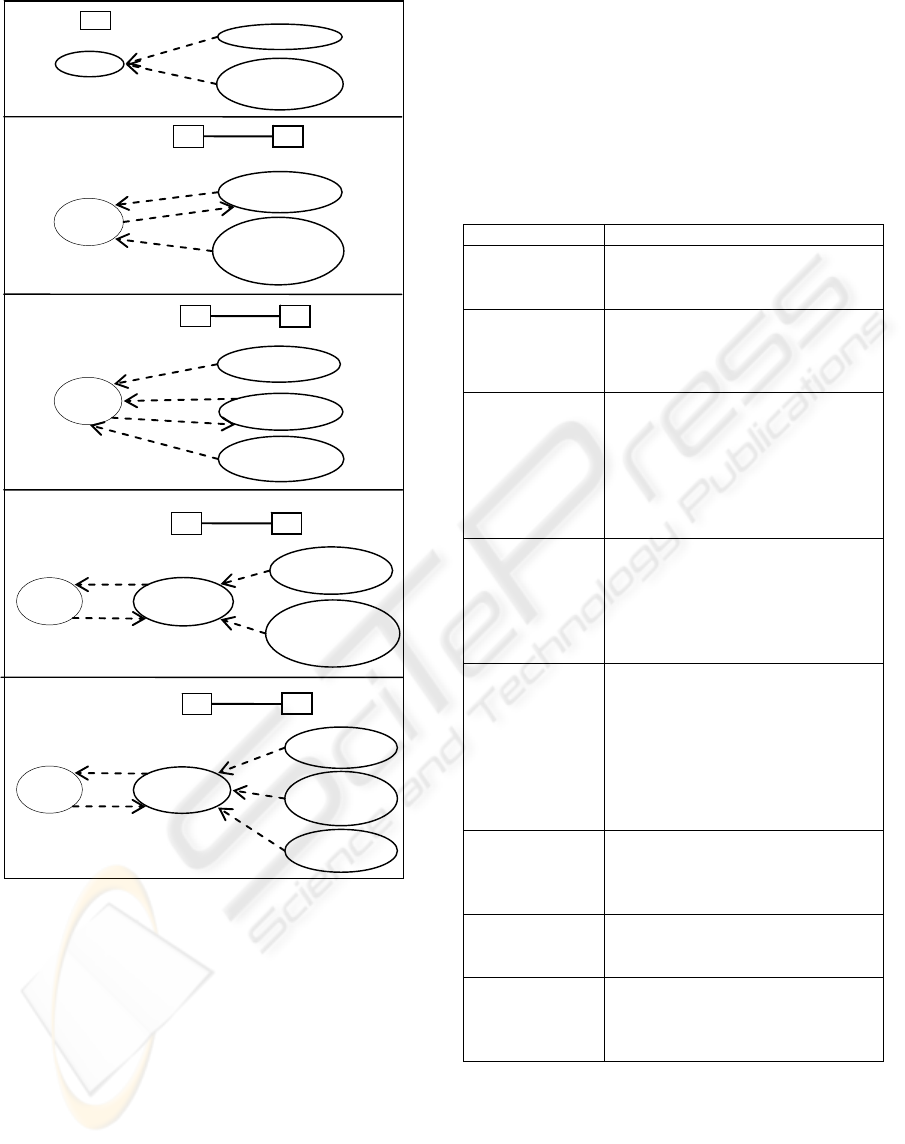

Figure 3: Possible types of relationships among use cases

for different domain model fragments (note: aggregations

and compositions are treated similarly to associations).

 Retrieve, Update and/or Delete Related

Entity. view (retrieve) or edit (update or delete and

unlink) the instance of the target entity type that is

linked with a source object previously selected (in

the direct or indirect source use case);

 Select Related Entity. select (and return to the

source use case) an instance of the target entity that

can be linked to a source object previously selected

(in the source use case);

 Select and Link Related Entity. select an

instance of the target entity and link it to the source

object previously selected (in the source use case);

 Unlink Related Entity. unlink the currently

selected instance of the target entity (in the source

use case) from the currently selected source object

(in the source use case).

Table 2: UCM to UIM transformation rules.

UCM feature Generated UI feature (UIM/UIP)

Actor

Button in the application start

window, linking to the actor’s main

window.

Use Case

Package

Menu in the actor's main window,

with a menu item for each use case

that belongs to the package and is

directly linked to the actor.

Use Case of

type List Entity

or List Related

Entity

Form that displays the full list of

instances or the list of related

instances of the target entity, with

buttons for the allowed operations

(according to the dependent use

cases). Only the identifying attributes

are shown.

Use Case of

type Select

Related Entity

or Select and

Link Related

Entity

Form that displays the list of

candidate instances and allows

selecting one instance. Only the

identifying attributes are shown.

Use Case of

type CRUD

Entity or CRUD

Related Entity

Form that displays the object

attribute values, with buttons and

functionality corresponding to the

CRUD operations allowed. In the

case of a related instance, the

identifying attributes of the source

object are shown but cannot be

edited.

Use Case of

type Call User-

Defined

Operation

Forms for entering and submitting

input parameters and presenting

output parameters, when they exist.

Extend

relationship

Button in the form corresponding

the base use case that gives access

to the extension.

Include

relationship

If the included use case is of type

"List...", it is generated a sub-

window. Otherwise, it is generated

a button in the source use case.

The entity, operation(s), and link type (when

needed) associated to each use case are specified

with tagged-values.

The types of relationships that can be defined

among use cases are illustrated in Figure 3.

AUTOMATIC GENERATION OF USER INTERFACE MODELS AND PROTOTYPES FROM DOMAIN AND USE

CASE MODELS

173

Table 2 summarizes the rules for generating UI

elements from the UCM. Their application is

illustrated in the next section.

6 EXAMPLE

This section presents an example of a Library

System that illustrates the approach. Figure 4 shows

the constructed EDM. Such model has been

developed in several iterations; an executable

prototype has been automatically generated and

tested at the end of each iteration. After having a

partial or complete EDM, the modeler may also

develop a UCM. Figure 5 illustrates an extract of a

UCM that was developed for this system. Table 3

shows the entity types and operations associated (via

tagged values) with some of the use cases. By

applying the mapping rules described in the previous

sections, the EDM+UCM2UIM process generates a

UI model and then an executable prototype, part of

which is shown in Figure 6.

Figure 4: Extended domain model (EDM) for a Library

Management System, with an example trigger.



Figure 5: Partial use case model (UCM) for the Library

Management System.

Table 3: Entities and operations associated (via UML

tagged values) with some of the use cases in Figure 5.

Use case Entity Operation(s)

List Books Book List

Add a new Book Book Create

Edit Book Book Update

List BookCopies BookCopy List Related

Add BookCopy BookCopy Create Related

Edit BookCopy BookCopy Update Related,

Delete Related

Select BookCopy BookCopy Select Related

View Details Book Retrieve

Figure 6: Excerpt of the application prototype generated

for a Librarian executing use cases List Books Æ Edit

Book (that includes List BookCopies).

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

174

7 RELATED WORK

Few approaches found in the literature allow a

model-to-model generation of a graphical user

interface, within a MDD setting. The XIS profile

and method (Silva, 2003; Silva et al., 2007; Silva

and Videira, 2008), just like the OO-

Method/Olivanova (Pastor and Molina, 2007) and

the ZOOM approach (Jia et al., 2005, Jia et al.,

2007) are able to produce a fully functional

(executable) application, but the demanded input

models are very time consuming and arduous to

build.

The need to attach a stereotype to every model

element, in XIS, makes the models hard to read and

build. Unlike XIS, our approach doesn’t demand the

stereotyping of every model element, as the full

model package is submitted to the transformation

process.

XIS allows two approaches to interactive

systems generation: a dummy approach, where a

domain model, an actors’ model, and a UI model

must be fully specified; and the XIS smart approach,

that enables the derivation of the UIM, called the

user interfaces view, by demanding the construction

of two other models, a business entities model and a

use case model. This approach to the UIM derivation

is simpler than its full construction, but it comes

with the cost of the inflexibility of the generated UI.

XIS business entities select domain entities

relations to provide a lookup or master/detail pattern

to the UI needed for the interaction inside the

context of a use case (Silva, 2003; Silva et al.,

2007).

XIS business entities are similar to our derived

entities. Like in the XIS smart approach, the modeler

must attach to each use case an Entity (base or

derived) from the EDM. The difference is that, in

our approach, relations between entities are inferred

from the EDM, thus not being needed a separate

business entities model to provide higher level

entities to the UCM. The relation’s selection

provided by the XIS business entities model can be

done, within our approach, in the UCM by not

modeling UC for navigating through the relations.

Similarly to XIS and the OO-Method, in our

approach CRUD operations are predefined.

It is not possible, in XIS, to specify complex

behavior - only CRUD operations may be used

attaching it to Business Entities and to the

connection between the UCs and business entities.

In the OO-Method user defined operations

(services and transactions) can be specified by using

OASIS (Pastor and Molina, 2007). Also, for not

demanding the knowledge of OASIS, the OO-

Method has a solution that comes with the cost of

inflexibility: it is possible to specify how each

service changes the object state depending on the

arguments of the involved service and the current

object state, by categorizing every attribute in one of

three categories, and introduce the relevant

information depending on the corresponding

selected category. Possible attribute categories are

push-pop, state-independent, and discrete-domain

valued attributes. The OO-Method permits, as well,

the specification of allowed states and state

transitions within a class. Each state transition may

have attached a control (guard) or triggering

condition. It is also possible to define transactions

involving services of different classes.

In our approach user defined operations may be

specified using an UML Action Semantics-based

language.

Just like our approach, the OO-Method allows

the definition of derived attributes, by assigning a

calculation formula to the attributes.

The ZOOM approach models a system using the

ZOOM language, which is a formal object oriented

extension of Z. Additionally it allows the building of

a graphical model, which is then translated to

ZOOM. The models that are demanded by the

approach, in order to automatically generate an

executable application, are (Jia et al., 2005): a class

model, which models the structure of the system and

contains all the classes of the application; a finite

state machine model that models the system

behavior and is the central communication

mechanism to connect the structural model to the UI

model; and, a UI model, which models the UI

screens by using predefined components that are

organized according to a user defined layout.

Elkoutbi et al. (Elkoutbi et al., 2006) and

Martinez et al. (Martinez et al., 2002) approaches are

able to produce a UI from the structural, use case

and UI behavioral models, but demand the

attachment of UI related information (input/output

fields and/or widgets) to collaboration diagrams and

message sequence charts used to specify use case

behavior. The generated output is only able to

simulate the specified use cases through the

generated UI, with no business level application

behavior.

Forbrig et al. approach (Forbrig et al., 2004) and

Wisdom (Nunes, 2001) are not automatic. Forbrig et

al. base their approach on the manual selection of

patterns, from a repository, that drives the model

construction and transformation towards a final

application. In Wisdom, the Winsketch tool

AUTOMATIC GENERATION OF USER INTERFACE MODELS AND PROTOTYPES FROM DOMAIN AND USE

CASE MODELS

175

(http://apus.uma.pt/~winsketch) helps building and

validating Wisdom models, and supports the tracing

of model elements through the different process

phases. Despite this, no code generation is done.

8 CONCLUSIONS AND FUTURE

WORK

The presented approach enables a gradual

approximation to system modeling, by being able to

derive a default UI and an executable prototype from

the DM alone, an EDM or from the EDM and the

UCM. It is also possible to have these initial models

in different levels of abstraction or rigour, and refine

them in an incremental and iterative manner.

As depicted in section 2, this approach is able to

generate a UI model from the system's non-UI

submodels, helping the modeler in creating a system

model for the final application. The approach

derives a default UI and an executable prototype

from the domain model alone, turning possible to

interactively evaluate the system model with the end

users, and to iteratively evaluate and refine the

model. It also allows to add rigour and model

elements to the system model, generating refined

UIs and refined executable prototypes that support

an evolutionary model-driven development with the

close participation of the end users.

The main contributions of our work are to take

advantage of class invariants and operation pre-

conditions to generate validation routines in the

executable application, enabling the enhancement of

the usability of the generated UI by helping the user

in entering valid data into forms, and by giving

feedback identifying invalid data; and, the use of an

action language to specify the semantic of operations

at class level, and enable the definition of triggers

activated either by the invocation of a CRUD oper-

ation or by the holding of a given state condition.

As future work, we intend to refine the definition

of complex UCs with pre-/post-conditions, that will

enable workflow definitions. Also the validation of

the approach will be further accomplished by using

more representative case studies.

ACKNOWLEDGEMENTS

We would like to thank Rui Gomes, Hugo Sereno,

Filipe Correia and André Restivo for their comments

and suggestions on the first versions of this article.

REFERENCES

Cruz, A. M. R., Faria, J. P., 2008. Automatic generation of

interactive prototypes for domain model validation. In

Proceedings of the Int’l Conference on Software

Engineering and Data Technologies (ICSoft 2008),

vol. SE/GSDCA/MUSE, pp 206-213. INSTICC Press.

Elkoutbi, M., Khriss, I., Keller, R. K., 2006. Automated

prototyping of user interfaces based on UML

scenarios. Journal of Automated Software

Engineering, 13(1):5-40, January 2006.

Forbrig, P., Dittmar, A., Reichart, D., Sinnig, D., 2004.

From models to interactive systems tool support and

XIML. In Proceedings of the First Int’l Workshop

MBUI 2004, vol. 103-CEUR Workshop Proceedings,

Funchal, Portugal. Available at http://ceur-ws.org.

Jacobson, I., Booch, G., Rumbaugh, J., 1999. The Unified

Software Development Process. Addison-Wesley.

Jia, X., Steele, A., Liu, H., Qin, L., Jones, C., 2005. Using

ZOOM approach to support MDD. In Proceedings of

the 2005 Int’l Conference on Software Engineering

Research and Practice (SERP'05), Las Vegas, USA.

Jia, X., Steele, A., Qin, L., Liu, H., Jones, C., 2007.

Executable visual software modelling - the ZOOM

approach. Software Quality Control, 15(1):27-51.

Kelly, S., Tolvanen, Juha-Pekka, 2008. Domain Specific

Modeling: Enabling Full Code Generation. Wiley-

IEEE Computer Society Press.

Martinez, A., Estrada, H., Sánchez, J., Pastor, O., 2002.

From early requirements to user interface prototyping:

A methodological approach. In Proceedings of the

17th IEEE Int’l Conf. on A.S.E., pp 257-260.

Molina, P. J., Hernández, J., 2003. Just-UI: Using patterns

as concepts for IU specification and code generation.

In Perspectives on HCI Patterns: Concepts and Tools

(CHI'2003 Workshop).

Molina, P. J., 2004. User interface generation with

olivanova model execution system. In IUI '04:

Proceedings of the 9th Int’l Conference on Intelligent

User Interfaces, pages 358-359, NY, USA. ACM.

Nunes, N. J., 2001. Object Modeling for User-Centered

Development and User Interface Design: The Wisdom

Approach. PhD thesis, University of Madeira, July.

Pastor, O., Molina, J., 2007. Model-driven Architecture in

Practice – A software production environment based

on Conceptual Modeling. Springer-Verlag.

Silva, A., 2003. The XIS approach and principles. In IEEE

Computer Society, Proceedings of the 29th

EUROMICRO Conference "New Waves in System

Architecture" (EUROMICRO '03).

Silva, A., Videira, C., 2008. UML, Metodologias e

Ferramentas CASE, vol. 2. Centro Atlântico, 2nd ed.

Silva, A. R., Saraiva, J., Silva, R., Martins, C., 2007. XIS -

UML profile for extreme modeling interactive

systems. In 4th Int’l Workshop on Model-based

Methodologies for Pervasive and Embedded Software

(MOMPES 2007). IEEE, March.

Warmer, J., Bast, W., Pinkley, D., Herrera, M., Kleppe,

A., 2003. MDA Explained – The Model Driven

Architecture: Practice and Promise. Addison-Wesley.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

176
