ON THE CORRECTNESS OF SOFTWARE ARCHITECTURES

Formal Specification of Correctness Properties using π-AAL

Flavio Oquendo

European University of Brittany

University of South Brittany, VALORIA, BP 573, 56017 Vannes Cedex, France

Keywords: Software Architecture, Architecture Analysis Language, Structural and Behavioral Properties, Modal

μ-Calculus.

Abstract: Software has become a critical part of a rapidly growing range of products and services. Key aspects of the

development of such software-intensive systems are the description and analysis of their software architec-

ture, encompassing both the formal model of the component-based architecture and the formal specification

of the correctness properties that the modeled architecture must satisfy. Therefore, an Architecture Descrip-

tion Language (ADL) must be complemented by an Architecture Analysis Language (AAL) enabling the

specification of architecture-related correctness properties. A major challenge for an AAL is to provide

adequate expressive power to specify both structural and behavioral correctness properties, and to be well-

suited for machine-automated processing for verification, at a time. This paper presents how π-AAL com-

plements π-ADL (designed in the ArchWare European Project) for enabling the specification of architectur-

al correctness properties based on the modal π-calculus. The toolset and its experimentation in industrial

pilot projects are outlined.

1 INTRODUCTION

Software has become a critical part of a rapidly

growing range of products and services. Key aspects

of the development of such software-intensive sys-

tems are the description and analysis of their soft-

ware architecture, i.e. the fundamental organization

of the system embodied in its components, their re-

lationships to each other and to the environment,

and the principles guiding its design and evolution

(IEEE Std 1471-2000).

From the perspective of the system design, an

architecture description provides a formal model of

a software architecture in terms of its structure and

behavior:

 The structure may be specified in terms of: (i)

components (units of computation of a system);

(ii) connectors (interconnections among compo-

nents supporting their interactions); (iii) configu-

rations of components and connectors.

 The behavior may be specified in terms of: (i)

actions a component or connector executes or

participates in; (ii) relations among actions to

specify behaviors; (iii) behaviors of components

and connectors, and how they interact.

In the past decade, several Architecture Descrip-

tion Languages (ADLs) have been defined for mod-

eling the structure and behavior of software

architectures. However, describing the structure and

behavior of an architecture is needed, but it is not

enough. Indeed, in addition to describing software

architectures, designers need to rigorously specify

their correctness properties.

An architectural correctness property is a seman-

tic property that specifies a constraint which an ar-

chitecture must enforce to be correct with respect to

defined requirements. Thereby, an architecture is

correct when it, by its structure and behavior in

terms of configurations of components and connec-

tors, meets the functional and nonfunctional re-

quirements as described by the correctness

properties.

Before using an architecture description as a blu-

eprint to implement a system, designers must be able

to specify, validate and verify the correctness of the

architecture, i.e., that the architecture model satisfies

the specified correctness properties. In addition, as

the cost of addressing correctness properties is a

function of how late they are addressed (the later,

208

Oquendo F. (2009).

ON THE CORRECTNESS OF SOFTWARE ARCHITECTURES - Formal Speciﬁcation of Correctness Properties using π -AAL.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 208-217

DOI: 10.5220/0002256302080217

 SciTePress

the more costly) (Barber & Holt 2001), addressing

them in the architectural phase leads to more cost-

effective solutions.

Therefore, an Architecture Analysis Language

(AAL) must complement (or be part of) an ADL in

order to enable the specification and support the

verification of architectural correctness properties. A

major challenge for an AAL is to provide sufficient

expressive power to specify both structural and be-

havioral correctness properties and to be well-suited

for machine-automated processing for verification,

at a time.

Formal methods are increasingly used for model-

ing software architectures (Marcos et al. 2007).

Their potential advantages have been widely recog-

nized (Oquendo 2007). Designing an AAL enabling

the specification of structural and behavioral cor-

rectness properties of component-based architec-

tures is a key research challenge.

π-AAL has been designed in the ArchWare

European Project to meet this challenge. It comple-

ments π-ADL and provides a uniform framework

for specifying correctness properties of software

architectures. These properties have different na-

tures: they can be structural (e.g., cardinality of arc-

hitectural elements, interconnection topology) or

behavioral (e.g., safety and liveness properties de-

fined on actions of the architectural elements’ beha-

viors).

The remainder of this paper is organized as fol-

lows. Section 2 introduces π-AAL design principles

and Section 3 the architecture description concepts

underlying π-ADL. Section 4 presents π-AAL con-

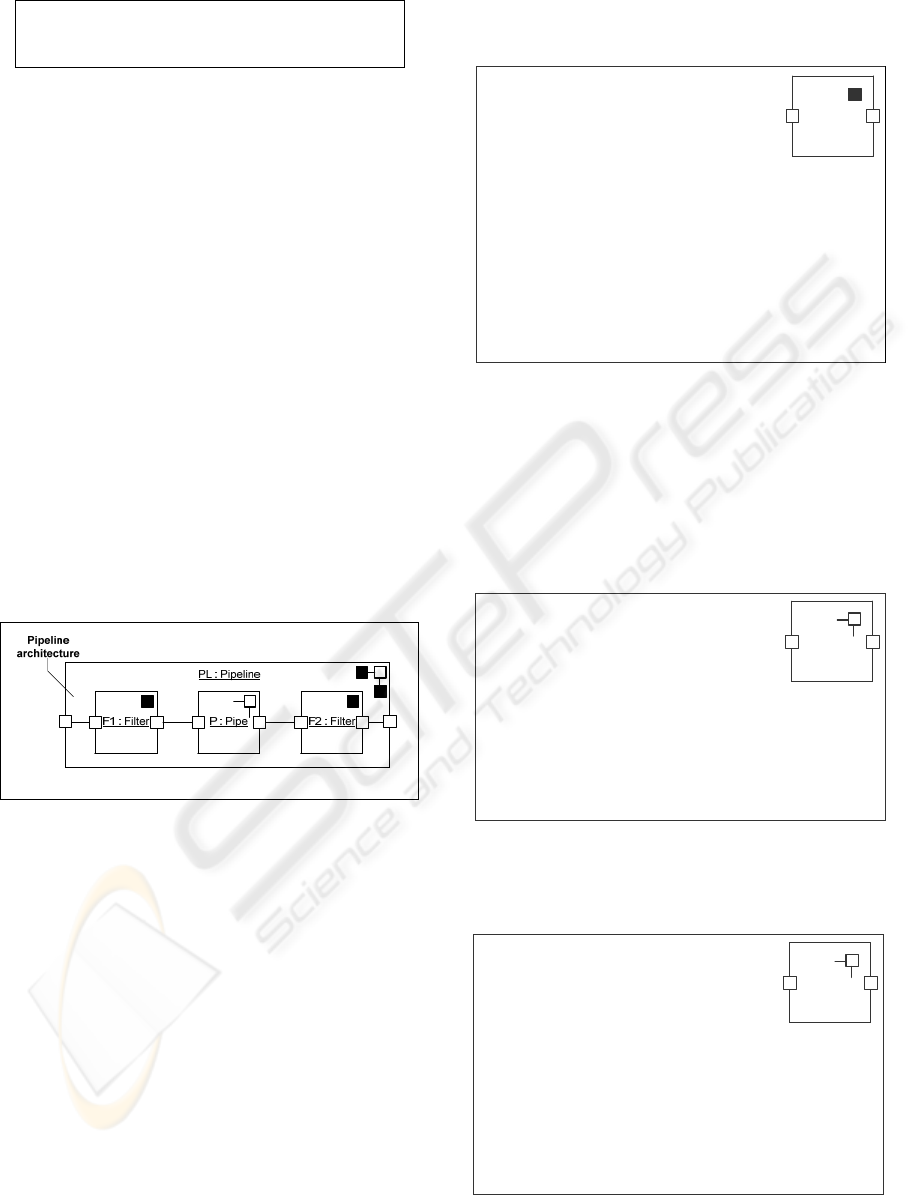

cepts and notation. Section 5 presents through a case

study how π-AAL can be used for specifying struc-

tural and behavioral correctness properties. In Sec-

tion 6, we compare π-AAL with related work and in

Section 7, briefly outline the π-AAL toolset and its

experimentation in pilot projects. To conclude we

summarize, in Section 8, the main contributions of

this paper and sketch future work.

2 DESIGN PRINCIPLES OF

π-AAL

π-ADL (Oquendo 2004) and π-AAL (Alloui et al.

2003) are companion languages for architecture

description and analysis, respectively. With π-ADL,

The ArchWare European Project has been partially funded by

the European Commission under contract No. IST-32360 in the

IST Framework Program.

architectures are described, expressing the structure

and behavior of their components, connectors, and

configurations. With π-AAL, correctness properties

that the architecture must satisfy in terms of struc-

ture and behavior of components, connectors, and

configurations are specified, enabling the analysis of

architecture models.

The following principles guided the design of π-

AAL:

 π-AAL is a formal language: it provides a for-

mal system (at the mathematical sense) for

specifying correctness properties and reasoning

about them;

 π-AAL is defined in a layered approach, with a

core canonical abstract syntax and formal se-

mantics;

 π-AAL offers a user-friendly enhanced con-

crete syntax to be easily used by software sys-

tem architects.

π-AAL has as formal foundation the modal μ-

calculus (Kozen 1983), a calculus for expressing

properties of labeled transition systems by using

least and greatest fixed point operators. π-AAL is

itself a formal language defined as an extension of

the μ-calculus: it is a well-formed extension for de-

fining a calculus for expressing structural and beha-

vioral properties of dynamically communicating

architectural elements.

π-AAL takes its roots in previous work concern-

ing the extension of modal operators with data-

handling constructs (Mateescu & Garavel 1998), the

use of regular expressions as specification formal-

ism for value-passing process algebras (Garavel

1989), and the extension of fixed point operators

with typed parameters (Groote & Mateescu 1999).

Indeed, a natural candidate for “pure” behavioral

properties would be the modal μ-calculus, which is a

very expressive fixed point-based formalism sub-

suming virtually all temporal logics defined so far in

the literature (Stirling 2001). However, since π-AAL

must also provide features for expressing structural

properties of architectures, the modal μ-calculus is

not sufficient. Therefore, a formalism encompassing

both the predicate calculus and the modal μ-calculus

is needed. The π-AAL is, thereby, this encompass-

ing formalism.

π-AAL combines predicate logic with temporal

logic in order to allow the specification of both

structural and behavioral properties. It enables au-

tomated verification of property satisfaction by

model checking (through on-the-fly model check-

ing) and theorem proving (through deductive verifi-

cation).

ON THE CORRECTNESS OF SOFTWARE ARCHITECTURES - Formal Specification of Correctness Properties using

PI-AAL

209

3 ARCHITECTURE

DESCRIPTION WITH π-ADL

Software architectures can be described with π-ADL

which is a formal language based on the typed π-

calculus (Milner 1999; Sangiorgi 1992). One can

mechanically check whether an architecture de-

scribed in π-ADL satisfies a property expressed in

π-AAL.

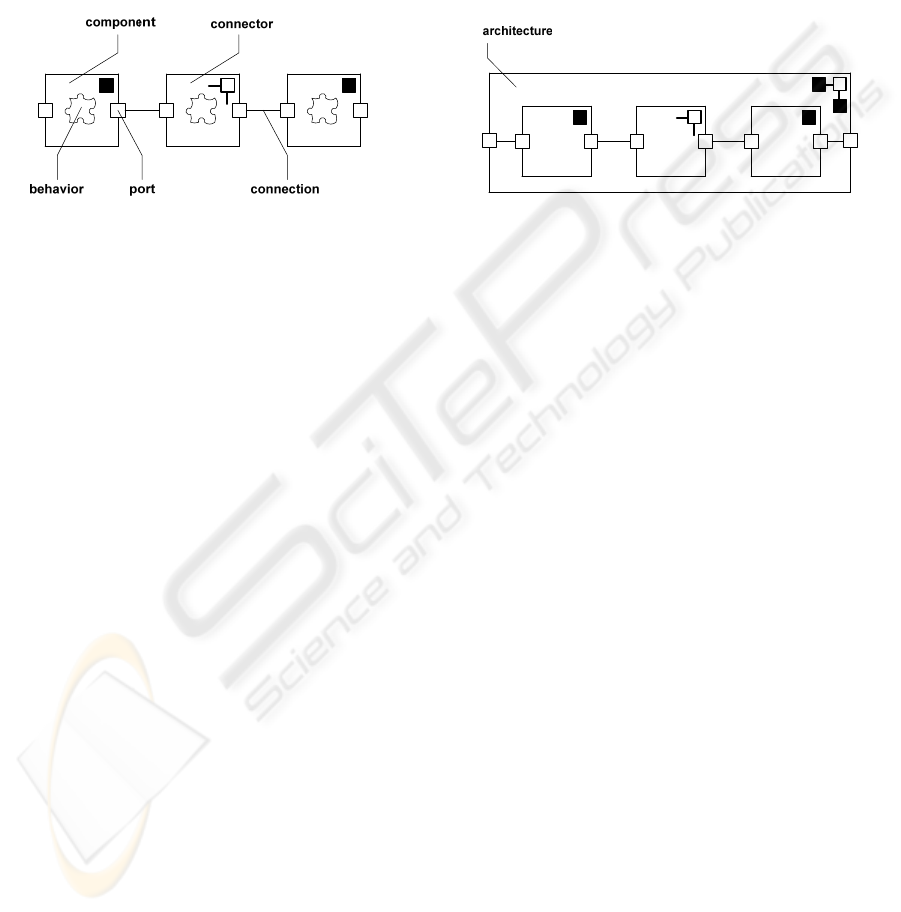

Figure 1: Architectural concepts in π-ADL.

In π-ADL, an architecture is described in terms

of components, connectors, and their composition.

Figure 1 depicts its main constituents.

Components are described in terms of external

ports and an internal behavior. Their architectural

role is to specify computational elements of a soft-

ware-intensive system. The focus is on computation

to deliver system functionalities.

Ports are described in terms of connections be-

tween a component and its environment. Their arc-

hitectural role is to put together connections

providing an interface between the component and

its environment. Protocols may be enforced by ports

and among ports.

Connections are basic interaction points. Their

architectural role is to provide communication chan-

nels between two architectural elements.

A component can send or receive values via

connections. They can be declared as output connec-

tions (values can only be sent), input connections

(values can only be received), or input-output con-

nections (values can be sent or received).

Connectors are special-purpose components.

They are described as components in terms of exter-

nal ports and an internal behavior. However, their

architectural role is to connect together components.

They specify interactions among components.

Therefore, components provide the locus of

computation, while connectors manage interaction

among components. A component cannot be directly

connected to another component. In order to have

actual communication between two components,

there must be a connector between them.

Both components and connectors comprise ports

and behavior. A connection provided by a port of a

component is attached to a connection provided by a

port of a connector by unification or value passing.

Thereby, attached connections can transport values

(that can be data or even connections).

Components and connectors can be composed to

construct configured composite elements, which

may themselves be components or connectors.

Figure 2: Architectural composition in π-ADL.

Architectures are composite elements

representing systems (e.g., see Figure 2). An archi-

tecture can itself be a composite component in

another architecture.

4 CORRECTNESS

SPECIFICATION WITH π-AAL

π-AAL supports analysis of component-based soft-

ware architectures, described with π-ADL. In π-

AAL, an architectural correctness property is speci-

fied in terms of logical formulas comprising: predi-

cate formulas, action formulas, regular formulas,

state formulas, and connection formulas. When eva-

luated, a formula is checked against the architecture

description, that provides the interpretation domain.

4.1 π-AAL Semantic Model

The formal foundation of π-AAL is the modal μ-

calculus extended with the predicate calculus. As

cited so far, π-AAL is itself a formal language de-

fined as an extended calculus subsuming the modal

μ-calculus and the predicate calculus for specifying

correctness properties on component-based software

architectures.

Formulas in π-AAL are formally interpreted

relative to a predicate-extended labeled transition

system.

Formally, a predicate-extended labeled transition

system (pLTS) is of the form pLTS = (StateSet,

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

210

ActionSet, TransitionRelationSet, PredicateSetLa-

belling, state

), where:

 StateSet is a non-empty set of states;

 ActionSet is a set of actions (actions that label

transitions);

 TransitionRelationSet is a set of transition rela-

tions, such that each transition relation transition

∈ TransitionRelationSet, is of the form transi-

tion ⊆ StateSet × ActionSet × StateSet;

 PredicateSetLabelling : StateSet → 2

PredicateSet

a function that labels each state with the set of

atomic predicates true in that state (where Predi-

cateSet is the set of atomic predicates and

PredicateSet

the powerset of PredicateSet);

 state

∈ StateSet is the initial state.

All states of StateSet are assumed to be reachable

from the initial state via sequences of (zero or more)

transitions of the TransitionRelationSet.

The actions action of ActionSet are defined as:

 via connection send value

,…, value

 via connection receive value

,…, value

where connection is a connection and value

,…,

value

are data values (base values or constructed

values).

In addition to communication actions, actions

can be internal to a component or connector:

 the action unobservable, where unobservable ∉

ActionSet, is used to model an internal “unob-

servable” action of a component or connector

behavior,

 the match action if, is used to express conditional

behaviors of components or connectors.

The predicates predicate of PredicateSet are de-

fined either as built-in predicates related to the arc-

hitectural structure, or as user-defined predicates.

Finally we can define BehaviorStateSet as the set

of states of a behavior in an architectural element

(e.g., component or connector). Therefore for all s ∈

BehaviorStateSet, PredicateSet contains all predi-

cates related to types and data declared in an archi-

tectural element expressed with π-ADL.

For a complete definition of the π-AAL semantic

model see (Alloui et al. 2003).

4.2 π-AAL Types

π-AAL is a typed language. It shares all base types

and type constructors of π-ADL equipped with their

operators. All types are value types. Value types are

base types or constructed types. Type environments

are expressed through declarations.

Typing

ValueType ::= BaseType | ConstructedType

BaseType ::= Any | Natural | Integer | Real | Boolean

| String | Behavior

ConstructedType ::= tuple [ ValueType

, …, ValueType

]

| view [ label

: ValueType

, …, label

: ValueType

]

| union [ ValueType

, …, ValueType

] | quote [ name ]

| variant [ label

: ValueType

, …, label

: ValueType

]

| location [ ValueType ] | sequence [ ValueType ]

| set [ ValueType ] | bag [ ValueType ]

| in [ ValueType ] | out [ ValueType ]

| inout [ ValueType ]

4.3 π-AAL Formulas

π-AAL provides the formula constructs for specify-

ing structural and behavioral properties to be satis-

fied by component-based software architectures.

The definition of π-AAL is structured in terms of

kinds of formula constructs:

 predicate formula constructs for writing data

predicate formulas over a set of data values us-

ing data variables, data operators and predicate

operators;

 action formula constructs for writing action pre-

dicate formulas over a set of connection and data

values;

 regular formula constructs for writing regular

expressions (i.e., regular formulas) defined over

action formulas using regular operators;

 state formula constructs for writing modal for-

mulas defined over regular formulas and value

variables using predicate, modal, and paramete-

rized fixed point operators;

 connection formula constructs for writing formu-

la on connections as first-class elements, taking

into account connection mobility among archi-

tectural elements, i.e., components and connec-

tors.

4.4 Relating Properties to

Architectures

An architectural correctness property is specified by

a formula that may be a data predicate formula, an

action formula, a regular formula or a state formula.

Architectural properties are related to architec-

ture descriptions for specifying their correctness.

They are assumptions on the correctness of the ar-

chitecture model and state proof obligations.

Relating architectural properties to architecture

descriptions is defined as follows.

ON THE CORRECTNESS OF SOFTWARE ARCHITECTURES - Formal Specification of Correctness Properties using

PI-AAL

211

Relating Correctness Properties to Architectures

architecture { architectureDescription }

assuming { architecturalCorrectnessProperties }

5 CASE STUDY: CORRECTNESS

USING π-AAL

Instead of providing a formal description (Alloui et

al. 2003), we will present hereafter the use of π-

AAL for specifying correctness properties through a

case study of a typical component-based software

architecture, a pipe-and-filter architecture, described

in π-ADL.

Pipe-and-filter architectures, e.g., pipelines, are

used when a sequence of transformations is applied

to a stream of data by a sequence of filters, produc-

ing a final output. Hence, pipelines are pipe-and-

filter architectures composed of a single chain of

pipes and filters.

A pipe transmits output of one filter to input of

another filter. A filter transforms data received from

its input and sends the transformed data to its output.

Filters do not share state, i.e., they do not know

about upstream or downstream filters.

Figure 3: A simple pipeline architecture.

Figure 3 depicts a pipeline architecture compris-

ing two components (that are filters) which ex-

change data through a connector (that is a pipe).

5.1 Architecture Description

In a pipeline architecture:

 the architecture is composed of filters and pipes;

 filters are components;

 a filter has a set of input and output connections

and uses a function to transform data;

 pipes are connectors;

 a pipe has a set of input and output connections

and transmits data from input to output as they

are;

 a pipe connects two filters, it transmits an output

of a filter to an input of another filter.

Using π-ADL, the Filter component abstraction

can be formally described as follows.

component Filter is abstraction() {

type Data is Any.

port is {

connection input is in(Data).

connection output is out(Data)

} assuming {

protocol is {

( via input receive any. true*. via output send any )* }

behavior is {

transform is function(d : Data) : Data {unobservable}.

via input receive d : Data.

via output send transform(d).

behavior()

}

Filter

The protocol is specified as a regular formula

built upon action predicates (one-step sequences) by

using the standard regular operators: ‘.’ (concatena-

tion), ‘|’ (choice), and ‘*’ (transitive reflexive clo-

sure). In these formulas ‘true’ means any action and

‘false’ no action.

The Pipe connector abstraction can be formally

described as follows.

connector Pipe is abstraction() {

type Data is Any.

port is {

connection input is in(Data).

connection output is out(Data)

} assuming {

protocol is {

(via input receive d : Data. via output send d)* }

behavior is {

via input receive d : Data. via output send d.

behavior() } }

Pipe

This pipe is reliable. Let us now describe a pipe

that is unreliable, i.e., it can nondeterministically

choose either to transmit data correctly, or to lose it.

connector UnreliablePipe is abstraction() {

type Data is Any.

port is {

connection input is in(Data).

connection output is out(Data)

} assuming {

protocol is {

(via input receive d : Data. (via output send d | nil))* }

behavior is {

via input receive d : Data.

choose {

via output send d. behavior()

or unobservable. behavior()

Unreliable

Pipe

A simple pipeline architecture, with two filters

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

212

connected by one pipe as the one shown in Figure 3,

can be formally described as follows. It uses an un-

reliable pipe.

architecture OnePipeTwoFilters is

abstraction() { behavior is compose {

F1 is Filter()

and P is UnreliablePipe()

and F2 is Filter()

} where { F1::input as i1

and P::input unifies F1::output as o1

and P::output unifies F2::input as i2

and F2::output as o2

}

OnePipe

TwoFilters

A general pipeline architecture, with at least one

pipe and two filters, but with as many reliable pipes

and filters as needed, can be formally described as

follows.

architecture Pipeline is abstraction(n : Natural) {

behavior is compose {

F is sequence for i = 1 to n using Filter()

and P is sequence for i = 1 to n using Pipe()

} where {

iterate sequence(1..n) by i do {

P::i::input unifies F::i::output

and P::i::output unifies F::(i+1)::input }

}

} assuming {

parameter is { n >= 1 }

and F −> size >= 2

and P −> size >= 1

}

Pipeline

5.2 Specification of Correctness

Properties

Let us now specify with π-AAL different kinds of

architectural properties that must be analyzed in

order to guarantee the correctness of the architec-

ture, including architectural completeness and con-

sistency.

Architectural completeness means that the archi-

tecture description does not lack components, con-

nectors, connections or their parts or

interrelationships with respect to architecture-

specific, architect-defined, properties.

For instance, a pipeline architecture could be

considered to be complete if all pipes have their

input and output connections connected to filters

and all filters, but the first and last one, have their

input and output connections connected to pipes. Of

course, input connections must be unified to output

connections.

Regarding architectural consistency, it means

that the architecture description makes sense; that

different parts of the description do not contradict

each other. For instance, protocols of ports of uni-

fied connections must be compatible.

Regarding correctness, in addition to complete-

ness and consistency, it is defined with respect to the

correctness of the system features, i.e., the conformi-

ty with correctness requirements. For instance, all

filter transformations must be applied to all data.

Thereby, correctness (including completeness

and consistency) are semantic properties, and as so

are defined with respect to analysis of architecture-

specific, architect-defined, properties.

For instance, an architect could specify architec-

tural correctness properties for verifying that:

 protocols of ports are projections of behaviors of

components or connectors;

 protocols of unified ports are compatible, with

corresponding send-receive actions, and dead-

lock-free;

 components, connectors, and the architecture are

deadlock-free;

 ports of components and connectors in the confi-

guration are connected accordingly;

 configuration of components and connectors

conform to the architectural style constraints.

More specifically, for the described pipeline ar-

chitecture, an architect could specify and verify if:

 there is the right connectivity, in terms of the

pipeline style, among pipes and filters;

 there is a safe alternation of send and receive

actions in components, i.e., in filters;

 the pipeline is deadlock free;

 there is an inevitable reachability of the trans-

form function after receive actions in the pipe-

line;

 all data received in components and connectors

are transmitted.

Let us use the pipeline architecture and its com-

ponents and connectors described so far in π-ADL

to show how these properties could be specified

using π-AAL.

The concrete syntax of π-AAL is based on the

Object Constraint Language (OCL) and is part of a

UML Profile for π-ADL. The with construct intro-

duces the context for the property. The variable

declared in the with construct is used to refer to the

contextual instance. The “.”, “−>”, relational, logical

and collection operators have their usual meaning as

in OCL. Least and greatest fixed point operators

have their usual meaning as in modal μ-calculus.

The structural property “there is the right con-

nectivity, in terms of the pipeline style, among pipes

and filters” can be formally specified as follows. It

ON THE CORRECTNESS OF SOFTWARE ARCHITECTURES - Formal Specification of Correctness Properties using

PI-AAL

213

expresses that every pipe input port is connected to a

filter output port and every pipe output port is con-

nected to a filter input port in a pipeline architecture.

with { pl : Pipeline }

connectivityBetweenPipesAndFilters is property() {

-- every pipe input port is connected to a filter output port

-- and

-- every pipe output port is connected to a filter input port

pl.connectors −>

forall { p | p.ports.connections −>

forall { inp,outp |

pl.components −>

exists { fi, fo |

(fi.ports.connections union

fo.ports.connections) −>

forall { infi, outfo |

(p.ports.connections −> includes inp)

and (inp.type = input)

and (p.ports.connections −> includes outp)

and (outp.type = output)

and (fi.ports.connections −> includes infi)

and (infi.type = input)

and (fo.ports.connections −> includes

outfo)

and (outfo.type = output)

and (inp unifies outfo)

and (outp unifies infi)

}

The behavioral property “there is a safe alterna-

tion of send and receive actions in filters” can be

formally specified as follows. It expresses that there

is no send before a receive initially, no two consecu-

tive receives without a send in between, and no two

consecutive sends without a receive in between.

with { c : Filter }

safetyAlternation is property() {

-- no send before a receive initially

-- no two consecutive receives without a send in between

-- no two consecutive sends without a receive in between

c.ports.inputPrefixes −>

forall { r | c.ports.outputPrefixes −>

forall { s |

every sequence {

(not via r receive any)* . via s send any }

leads to state { false }

and

every sequence {

true* . via r receive any . (not via s send any)* .

via r receive any }

leads to state { false }

and

every sequence {

true* . via s send any . (not via r receive any)* .

via s send any }

leads to state { false }

}

The behavioral property “the pipeline architec-

ture is deadlock free” can be formally specified as

follows. It expresses that at any moment, the pipe-

line system can execute an action. Thereby, it is

never deadlocked.

with { pl : Pipeline }

deadlockFreedom is property() {

-- at any moment, the system can execute an action

pl.instances −>

every sequence { true* }

leads to state {

some sequence { true } leads to state { true }

}

The behavioral property “there is an inevitable

reachability of the transform data function after re-

ceive actions in a pipeline architecture” can be for-

mally specified as follows. It expresses that after a

receive action in a filter, the function transform will

always be carried out after a finite number of steps.

with { pl : Pipeline }

inevitableReachabilityOfTransformAfterReceive is

property() {

-- the inevitable reachability of a function transform data

-- after a receive

pl.components −>

forall { f | f.functions −>

forall { transf |

transf.name = transform implies {

f.ports.inputPrefixes −>

exists { r |

every sequence { true* . via r receive any }

leads to state {

finite tree Y given by {

some sequence { true } leads to state

{true}

and

every sequence { not via transf send any}

leads to state { Y }

}

The property “in a pipeline architecture, all data

received in components and connectors are transmit-

ted” can be formally specified as follows. It ex-

presses that every data that is received will be

eventually sent after a finite number of steps.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

214

with { pl : Pipeline }

dataTransmission is property() {

-- every data that is received will be eventually sent

-- after a finite number of steps

pl.components −>

forall { f | f.ports.inputPrefixes −>

forall { r | f.ports.outputPrefixes −>

exists { s | r.data −>

forall { d |

every sequence { true* . via r receive d }

leads to state {

finite tree Y given by {

some sequence { true }

leads to state { true }

and

every sequence {not via s send d }

leads to state { Y }

}

Now let us attach the architectural properties de-

fined above to the pipeline architecture described so

far.

architecture Pipeline is abstraction(n : Natural) {

behavior is compose {

F is sequence for i = 1 to n using Filter()

and P is sequence for i = 1 to n using Pipe()

} where { iterate sequence(1..n) by i do {

P::i::input unifies F::i::output

and P::i::output unifies F::(i+1)::input }

}

} assuming {

components −> forall { f : Filter | f.safetyAlternation()}

and connectivityBetweenPipesAndFilters()

and deadlockFreedom()

and inevitableReachabilityOfTransformAfterReceive()

and dataTransmission()

}

6 RELATED WORK

Several Architecture Description Languages (ADLs)

have been proposed in the literature (Medvidovic &

Taylor 2000), including: ACME, AESOP, AML,

CHAM-ADL, DARWIN, META-H, PADL,

RAPIDE, SADL, UNICON-2, and WRIGHT.

Most of these ADLs integrate or are coupled

with an Architecture Analysis Language (AAL),

e.g., ARMANI (Monroe 2001) extends ACME

(Garlan et al. 2000) for supporting the specification

of design constraints on the architecture structure;

and DARWIN (Kramer et al. 2003) embeds FSP for

supporting the specification of safety and (a limited

form of) liveness properties on the architecture be-

havior.

The main limitation of these AALs is that they

address either structural or behavioral properties, but

not both. Overall, they do not have the expressive

power to specify architectural correctness properties

such as those presented in this paper.

Indeed, π-AAL provides a novel language that

on the one side has been specifically designed for

architecture analysis taking into account the need to

specify and verify properties on both structure and

behavior from an architectural perspective and on

the other side is highly expressive. It allows the spe-

cification of both structural properties and behavior-

al properties concerning architecture descriptions

modeled in π-ADL.

Regarding behavioral properties, the choice of

the modal μ-calculus as the underlying formalism

provides a significant expressive power. Moreover,

the extension of μ-calculus modalities with higher

level constructs such as regular formulas inspired

from early dynamic logics like PDL (Fischer &

Ladner 1979) facilitates the specification task of the

practitioners, by allowing a more natural and con-

cise description of properties involving complex

sequences of actions. The extension of fixed point

operators with data parameters also provides a sig-

nificant increase of the practical expressive power,

and is naturally adapted for specifying behavioral

properties of value-passing languages such as π-

ADL.

In the context of software architectures, several

attempts at using classical process algebras and ge-

neric model checking technology have been reported

in the literature. In (Heisel & Levy 1997), various

architectural styles (e.g., repository, pipe-and-filter,

and event-action) are described in LOTOS, by using

specific communication patterns and constraints on

the form of components, and verified using the

CADP toolbox (Fernandez et al. 1996; Garavel et al.

2002). In (Rongviriyapanish & Levy 2000), several

variants of the pipe-and-filter style are described in

LOTOS and analyzed using CADP. In (Kerschbau-

mer 2002), the transformation of software



rchitecttures specified in LOTOS and their verifi-

cation using the XTL model checker (Mateescu &

Garavel 1998) of CADP are presented. Finally, an

approach for checking deadlock freedom of software



rchitecttures described using a variant of CCS is

described in (Bernardo et al. 2001).

All these works provide rather ad-hoc solutions

for a class of software architectures limited to static

communication between architectural elements.

None of them addresses dynamic architectures and

they can be subsumed by the more general frame-

ON THE CORRECTNESS OF SOFTWARE ARCHITECTURES - Formal Specification of Correctness Properties using

PI-AAL

215

work provided by π-AAL (with π-ADL) and its ve-

rification tools.

7 IMPLEMENTATION AND

EXPERIMENTATION

A major impetus behind developing formal languag-

es for architecture analysis is that their formality

renders them suitable to be manipulated by software

tools. The usefulness of an AAL is thereby directly

related to the kinds of tools it provides to support

automated verification. Indeed, π-AAL is supported

by a comprehensive analytical toolset composed of:

 a model checking tool based on CADP;

 a theorem proving tool implemented in XSB.

π-AAL (jointly with π-ADL) has been applied in

practice in several pilot projects in France, Italy,

UK, Switzerland, and China for designing compo-

nent-based software architectures. For instance, π-

AAL and its supporting toolset have been applied at

CERN (the European Organization for Nuclear Re-

search, Switzerland) for enforcing the correctness of

distributed control systems to restart particle accele-

rators.

Particle accelerators at CERN, as in many soft-

ware-intensive systems, are composed of a large

amount of distributed components, including nu-

merous sensors, actuators, processing and storage

devices. The CERN’s Technical Control Room de-

fined an architectural style with π-ADL and π-AAL

by formalizing all the correctness properties of sys-

tems controlling the restart of a particle accelerator.

These properties were embodied as a software envi-

ronment integrating the π-AAL toolset, in order to

guide the architectural design of such systems, ana-

lyze and generate the code of CERN’s particle acce-

lerator restart control systems.

This and other experimentations have shown that

π-AAL and its toolset are suitable for formally spe-

cifying and verifying structural and behavioral cor-

rectness properties of component-based software

architectures.

Furthermore, the ArchWare integrated develop-

ment environment itself (Oquendo et al. 2004) that

supports the architecture and development of soft-

ware-intensive systems using π-ADL and π-AAL is

itself a validation of π-ADL and π-AAL since it was

designed based on a component-based software ar-

chitecture and has been specified and developed

using these languages.

8 CONCLUSIONS AND FUTURE

WORK

This paper presented, in a nutshell, how π-AAL can

be used for specifying correctness properties of

component-based software architectures described

in π-ADL. It complements other publications on π-

AAL by providing a practical view on how to use its

concepts and notation for specifying correctness

instead of presenting its formal semantics.

π-AAL supports formal specification and corres-

ponding verification of both structural and beha-

vioral properties. This is a key factor in the

architectural design phase in order to support se-

mantic correctness.

Future work will mainly focus on specializing π-

AAL for Service-Oriented Architecture (SOA)

(OASIS 2008), a mainstream architectural style for

developing software-intensive component-based

systems based on the Web service technology stack,

in particular by refining the level of description and

analysis by providing service-oriented abstractions.

REFERENCES

Alloui I., Garavel H., Mateescu R., Oquendo F. (2003).

The ArchWare Architecture Analysis Language: Syn-

tax and Semantics. Deliverable D3.1b, ArchWare Eu-

ropean RTD Project, IST-2001-32360, January 2003,

URL: http://www-valoria.univ-ubs.fr/

ARCHLOG/ArchWare-IST/documents.htm

Barber K.S., Holt J. (2001). Software Architecture Cor-

rectness. IEEE Software, November/December 2001.

Bernardo M., Ciancarini P., Donatiello L. (2001). Detect-

ing Architectural Mismatches in Process Algebraic

Descriptions of Software Systems. Proceedings of the

2nd Working IEEE/IFIP Conference on Software Ar-

chitecture, Amsterdam, IEEE-CS Press, August 2001.

Fernandez J-C., Garavel H., Kerbrat A., Mateescu R.,

Mounier L., Sighireanu M. (1996). CADP (CAESAR/

ALDEBARAN Development Package) – A Protocol

Validation and Verification Toolbox. Proceedings of

the 8th International Conference on Computer-Aided

Verification, New Brunswick, USA, LNCS 1102,

Springer, August 1996.

Fischer M.J., Ladner R.E. (1979). Propositional Dynamic

Logic of Regular Programs. Journal of Computer and

System Sciences, Vol. 18, 1979.

Garavel H. (1989). Compilation and Verification of

LOTOS Programmes. PhD Dissertation, Univ. Joseph

Fourier (Grenoble), November 1989 (In French).

Garavel H., Lang F., Mateescu R. (2002). An Overview of

CADP 2001. European Association for Software

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

216

Science and Technology (EASST) Newsletter, Vol. 4,

August 2002.

Garlan D., Monroe, R., Wile D. (2000). ACME: Architec-

tural Description of Component-Based Systems.

Foundations of Component-Based Systems, Leavens

G.T, and Sitaraman M. (Eds.), Cambridge Univ. Press,

2000.

Groote J. F., Mateescu R. (1999). Verification of Tempor-

al Properties of Processes in a Setting with Data. Pro-

ceedings of the 7th International Conference on

Algebraic Methodology and Software Technology,

Amazonia, Brazil, LNCS 1548, January 1999.

Heisel M., Levy N. (1997). Using LOTOS Patterns to

Characterize Architectural Styles. Proceedings of the

International Conference on Theory and Practice of

Software Development, LNCS 1214, Springer, 1997.

IEEE Std 1471-2000 (2000). IEEE Recommended Prac-

tice for Architectural Description of Software-

Intensive Systems, October 2000.

Kerschbaumer A. (2002). Non-Refinement Transforma-

tion of Software Architectures. Proceedings of the

ZB2002 International Workshop on Refinement of

Critical Systems: Methods, Tools and Experience,

Grenoble, January 2002.

Kozen D. (1983). Results on the Propositional μ-Calculus.

Theoretical Computer Science, Vol. 27, 1983.

Kramer J., Magee J., Uchitel S. (2003). Software Archi-

tecture Modeling and Analysis: A Rigorous Approach.

Formal Methods for Software Architectures, Springer,

LNCS 2804, 2003.

Marcos E., Cuesta C.E., Oquendo F. (Eds.) (2007). Spe-

cial Issue: Software Architecture. International Jour-

nal of Cooperative Information Systems (IJCIS), Vol.

16, No. 3/4, September/December 2007.

Mateescu R., Garavel H. (1998). XTL: A Meta-Language

and Tool for Temporal Logic Model Checking. Pro-

ceedings of the 1st International Workshop on Soft-

ware Tools for Technology Transfer, Aalborg,

Denmark, July 1998.

Medvidovic N., Taylor R. (2000). A Classification and

Comparison Framework for Architecture Description

Languages. ACM TOSEM, Vol. 26, No. 1, January

2000.

Milner R. (1999). Communicating and Mobile Systems:

The -Calculus. Cambridge University Press, 1999.

Monroe R. (2001). Capturing Software Architecture De-

sign Expertise with ARMANI. Technical Report

CMU-CS-98-163, Carnegie Mellon University, Janu-

ary 2001.

OASIS (2008). Reference Architecture for Service

Oriented Architecture, V. 1.0, OASIS Standard, 23

April 2008, URL: http://docs.oasis-open.org/soa-

rm/soa-ra/v1.0/soa-ra-pr-01.html.

Oquendo F. (2004). -ADL: An Architecture Description

Language based on the Higher Order Typed -

Calculus for Specifying Dynamic and Mobile Soft-

ware Architectures. ACM Software Engineering Notes,

Vol. 29, No. 3, May 2004.

Oquendo F. (2006). Formally Modeling Software Archi-

tectures with the UML 2.0 Profile for -ADL. ACM

Software Engineering Notes, Vol. 31, No. 1, January

2006.

Oquendo F. (Ed.) (2007). Proceedings of the European

Conference on Software Architecture (ECSA’07).

LNCS 4758, Springer, September 2007.

Oquendo F., Warboys B., Morrison R., Dindeleux R.,

Gallo F., Garavel H., Occhipinti C. (2004). ArchWare:

Architecting Evolvable Software. Software Architec-

ture. Software Architecture, LNCS 3047, Springer,

May 2004.

Rongviriyapanish S., Levy N. (2000). Variations on the

Pipe and Filter Architectural Style. Proceedings of

AFADL 2000

, Grenoble, France, January 2000 (In

French).

Sangiorgi, D. (1992). Expressing Mobility in Process Al-

gebras: First-Order and Higher-Order Paradigms.

PhD Thesis, University of Edinburgh, 1992.

Stirling C. (2001). Modal and Temporal Properties of

Processes. Springer, 2001.

ON THE CORRECTNESS OF SOFTWARE ARCHITECTURES - Formal Specification of Correctness Properties using

PI-AAL

217
