A KNOWLEDGE BASE FOR JUSTIFIED INFORMATION

SECURITY DECISION-MAKING

Daria Stepanova, Simon E. Parkin and Aad van Moorsel

School of Computing Science, Newcastle University, Newcastle-upon-Tyne, U.K.

Keywords:

Information security, Ontology, Knowledge base, Human-behavioural factors.

Abstract:

The majority of modern-day companies store commercially sensitive and valuable information assets in digital

form. It is essential for the Chief Information Security Ofﬁcer (CISO) within an organisation to ensure that

such information is adequately protected. External standards exist to advise CISOs on how to secure infor-

mation, but these are essentially “one-size-ﬁts-all”. Furthermore they do not consider the human-behavioural

aspects that determine the impact of security controls upon employees, or how security controls can be best

deployed to manage insecure employee behaviour. CISOs require more information than they are currently

provided with to justify their information security management decisions.

Here we present a knowledge base and accompanying user interface. The knowledge base represents key struc-

tural components of the ISO27002 security standard, formally relating them to one another. This empowers

CISOs to understand how different security measures impact upon each other. It also considers how human-

behavioural factors can be associated with these concepts. The accompanying user interface provides a means

to present formalised information security concepts to CISOs. This paper describes the development of the

knowledge base and user interface, highlighting and discussing key challenges and how they were resolved.

1 INTRODUCTION

Large organisations increasingly follow information

security standards when managing their assets (e.g.

the ISO27K series, such as ISO 27002 (BS, 2005)).

Such standards offer only management-level recom-

mendations, which must be adjusted to the speciﬁc re-

quirements of individual companies. However, Chief

Information Security Ofﬁcers (CISOs) are often not

provided with a complete picture of the organisation’s

operational requirements and how IT impacts upon

them (C. Alberts, 2004).

Within this paper we relate knowledge from stan-

dards to the consideration of employee behaviour

within information security management. CISOs can-

not afford to ignore the human element within the or-

ganisation (KTN, 2007). Organisations must cultivate

an awareness of the human-behavioural implications

of their information security decisions, and the CISO

is best positioned to achieve this. An example would

be acknowledging both a need for employees to use

removable storage devices and the potential for em-

ployees to lose these devices, and mandating that all

storage devices be encrypted to protect valuable data

in such an event. Understanding the usability needs of

employees should be a priority for CISOs (Skidmore,

2003), as it can help in identifying and managing per-

sistent clashes between security mechanisms and end-

users (ISACA, 2009).

This paper is focused on structuring knowledge

from information security standards so as to provide

additional beneﬁts. For this we develop a knowledge

base application to encapsulate facts and processes

relating to information security. We build upon the

static content of an information security standard by

identifying relationships between the different infor-

mation security concepts within. We then associate

these concepts with additional information relating to

the work behaviours of staff.

The knowledge base is built on an information

model (or ontology), populated with management

recommendations from multiple information security

standards. We also developed a user interface appli-

cation driven by the knowledge base content.

Discussion of the ontology and user interface fol-

lows in Sections 2 and 3 respectively. Related work

is described in Section 4, with concluding remarks in

Section 5.

326

Stepanova D., Parkin S. and Moorsel A. (2009).

A KNOWLEDGE BASE FOR JUSTIFIED INFORMATION SECURITY DECISION-MAKING.

In Proceedings of the 4th Inter national Conference on Software and Data Technologies, pages 326-331

DOI: 10.5220/0002256703260331

 SciTePress

2 KNOWLEDGE BASE DESIGN

CISOs require more information to inform their in-

formation security management decisions. We re-

fer speciﬁcally to information relating to human-

behavioural factors within the workplace, and how

human behaviour can inﬂuence or be inﬂuenced by

information security measures. There is then a re-

quirement to associate information relating to human-

behavioural factors with existing decision-making

criteria. In this case the existing criteria may be in-

formation security standards, as these are often im-

plemented to provide a measure of an organisation’s

security competence.

A second requirement is to present existing and

additional (i.e. human-behavioural and usability)

management criteria to a CISO effectively. This is ad-

dressed in the user interface (Section 3). Any further

knowledge derived from or associated with informa-

tion security management content must be presented

logically if it is to assist the decision-making process.

2.1 The Need for an Ontology

To create an information security knowledge base it is

essential to deﬁne the concepts to be represented, and

the relationships that exist between them. For this we

chose to develop an ontology, which would be appro-

priate for a number of reasons (as stated elsewhere in

(S. E. Parkin, 2009):

• By providing a taxonomy of information security

terminology, there is scope for security engineers

to broaden their knowledge of related concepts.

• An ontology facilitates interoperability, not least

between different assessment methodologies or

software tools. This can potentially generate new

knowledge.

• To represent terminology in an ontology it is nec-

essary to reduce a diverse array of terms, concepts

and relations into a reﬁned, structured information

model. This makes precise any knowledge and

process information.

2.2 Scope of the Knowledge Base

Our work uses the ISO27002 standard as a context,

as an example of a framework that CISOs often work

within, and with which we could associate human-

behavioural factors. The University Colleges and

Information Systems Association (UCISA) Informa-

tion Security Toolkit (developed by the University of

Reading) (UCISA, 2005) was chosen as an additional

source of information. The UCISA toolkit differs in

that it is targeted towards educational institutions. As

the UCISA standard references and expands upon the

BS7799 standard (a predecessor to ISO27002), using

these two standards together allows us to investigate

ways of representing knowledge from similar sources.

The content of the knowledge base was restricted

to guidelines relating to employees’ use of remov-

able data storage devices (e.g., to transfer work to

client premises for presentation). This allowed us to

build on previous ﬁndings that have shown a need

to consider human-behavioural factors when secur-

ing information on removable USB storage devices

(A. Beautement, 2008),(R. Coles, 2008).

2.3 Approach to Ontology Development

We followed recommendations for ontology design as

found in (N. F. Noy, 2000). The structure of the on-

tology was also inspired in part by the work of Fenz

et al (S. Fenz, 2007), who developed an ontology in-

corporating ISO27001/2 content (discussed further in

Section 4).

The ontology was developed using the Ontology

Web Language (OWL) (W3C, 2004). We chose OWL

as it is extensible and well-supported. By following

ontology design recommendations and encoding our

ontology in an ontology language we provide well-

structured, meaningful information security knowl-

edge. We used the Prot

e Ontology Editor applica-

tion (Stanford, 2009) to construct the ontology and

enter data.

2.4 Overview of Knowledge Base

Components

The content of the ontology is introduced in Figure 1.

For brevity the Asset deﬁnitions are restricted to those

relating to removable media. The components of the

ontology are described in the following sections.

2.4.1 Asset

An Asset represents something of value to an organ-

isation which may require protection. We focus on

‘Removable Device’ Assets. This includes remov-

able USB storage devices (USB sticks, external hard

drives etc.), as well as write-once and rewritable CDs

and DVDs.

2.4.2 Source

A Source represents the standard from which guide-

lines are taken. We represent two Sources, ISO27002

and the UCISA Toolkit. Each standard has corre-

sponding subclasses that describe its structure. The

A KNOWLEDGE BASE FOR JUSTIFIED INFORMATION SECURITY DECISION-MAKING

327

Asset

In ta n g ib le

T a n g ib le

R em ovable D evice

Data

Business

Administrative

Security

In fo rm a tio n

Source

ISO 27002

Category

Objective

Control

UCISA

Section

Subsection

Chapter

G u id e lin e

Step

Vulnerability

Hum an-Behavioural

Technical

hasStepAsset

is S o u rc e R e la te d

hasSubsectionSection

hasStepSource

hasG uidelineC hapter

hasStepG uideline

hasStepVulnerability

is S te p R e la te d

Figure 1: Overview of the ontology.

Source class allows representation of different infor-

mation sources, so it is possible to add additional stan-

dards in the future (owing to the extensibility of an

ontology).

To facilitate integration of different Sources, a

unifying knowledge hierarchy was created. This

structure consists of the Chapter, Guideline and

Step classes (where a Step is a reﬁnement of part

of a Guideline). Content relating to use of remov-

able storage devices was extracted from the stan-

dards and arranged according to this hierarchy via the

‘hasStepSource’ relation. The ‘isStepRelated’

relation identiﬁes links between (potentially previ-

ously non-associated) Steps.

Once concrete Guideline and Step deﬁnitions

have been created, it is possible to identify the

Assets that speciﬁc recommendations refer to (via

the ‘hasStepAsset’ relation).

2.4.3 Vulnerability

Each Asset can have additional knowledge attached

to it, as per the established information security

paradigm that “an Asset may expose a weakness or

Vulnerability which can potentially be exploited”, via

the ‘hasStepVulnerability’ relation. We can then

relate human-behavioural vulnerabilities to the con-

tent of a standard in a structured manner.

In our ontology a Vulnerability may be ei-

ther Technical (i.e. relating to the informa-

tion security hardware/software infrastructure) or

Human-Behavioural (i.e. part of an activity or pro-

cess that requires the interaction of a person). The

separation of technical and human factors within

a standards framework provides CISOs with a for-

malised perspective on behavioural issues and their

relevance to existing IS management concerns.

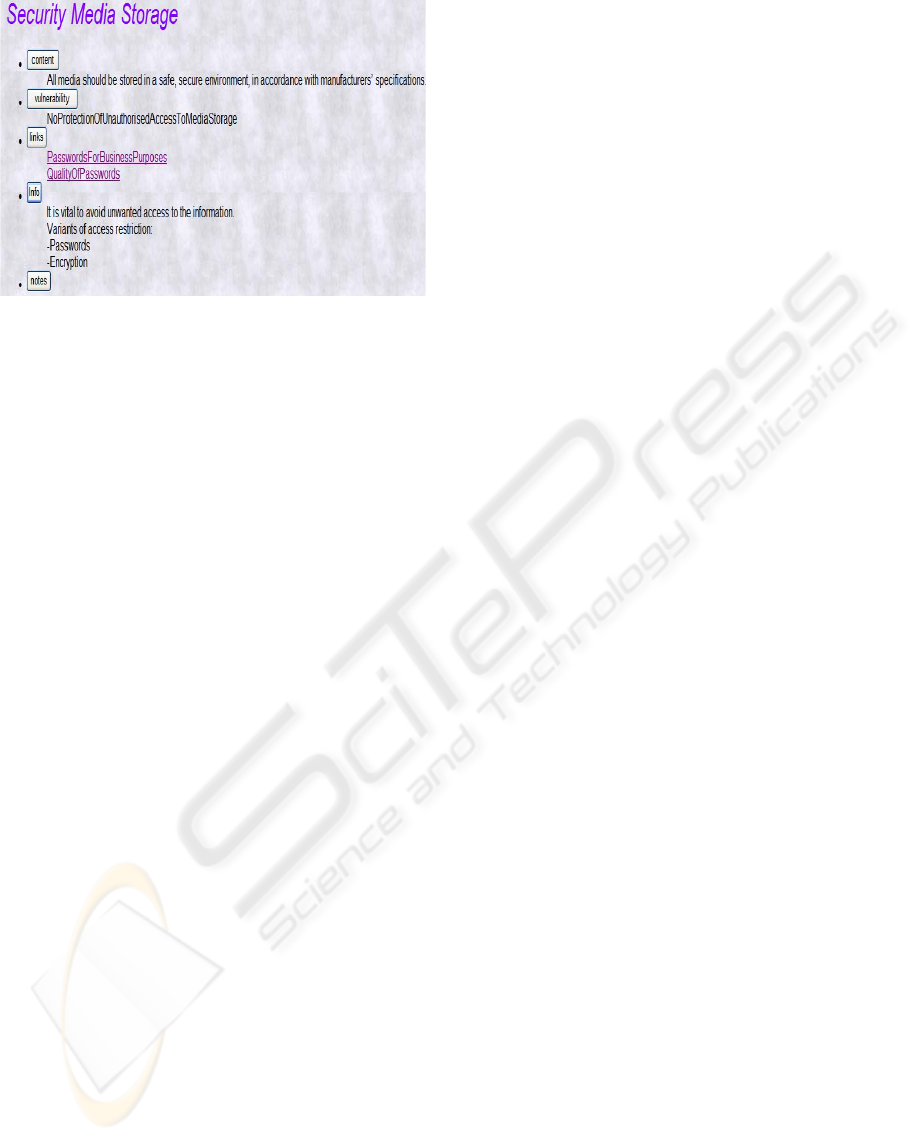

As an example, a Step “Security Media

Storage” hasStepAsset {“USB”, “CD”}, and

hasStepVulnerability “NoProtectionOfUnautho-

risedAccess”.

We developed Vulnerability deﬁnitions asso-

ciated with each guideline and links between guide-

lines by decomposing the ISO27002 and UCISA stan-

dards. We also consulted experts within a large IT

consultancy and reviewed related research documen-

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

328

tation. Ideally development of further ontology con-

tent would be achieved through consultation with ex-

perienced IS professionals and existing research in

this way. This approach also proved effective in the

work in (S. E. Parkin, 2009), wherein an information

security ontology incorporating human-behavioural

factors was developed and content produced to repre-

sent management considerations in an organisation’s

password authentication policy.

3 KNOWLEDGE BASE

INTERFACE APPLICATION

A user interface was developed for CISOs to access

the knowledge base. We considered the usability re-

quirements of CISOs by building a system that aligns

the knowledge base and the representation of that

knowledge to the user. Through consultation with a

CISO within a large ﬁnancial organisation we were

able to structure and illustrate the relationships be-

tween ontology classes in a more logical manner. The

main interface window is shown in Figure 2.

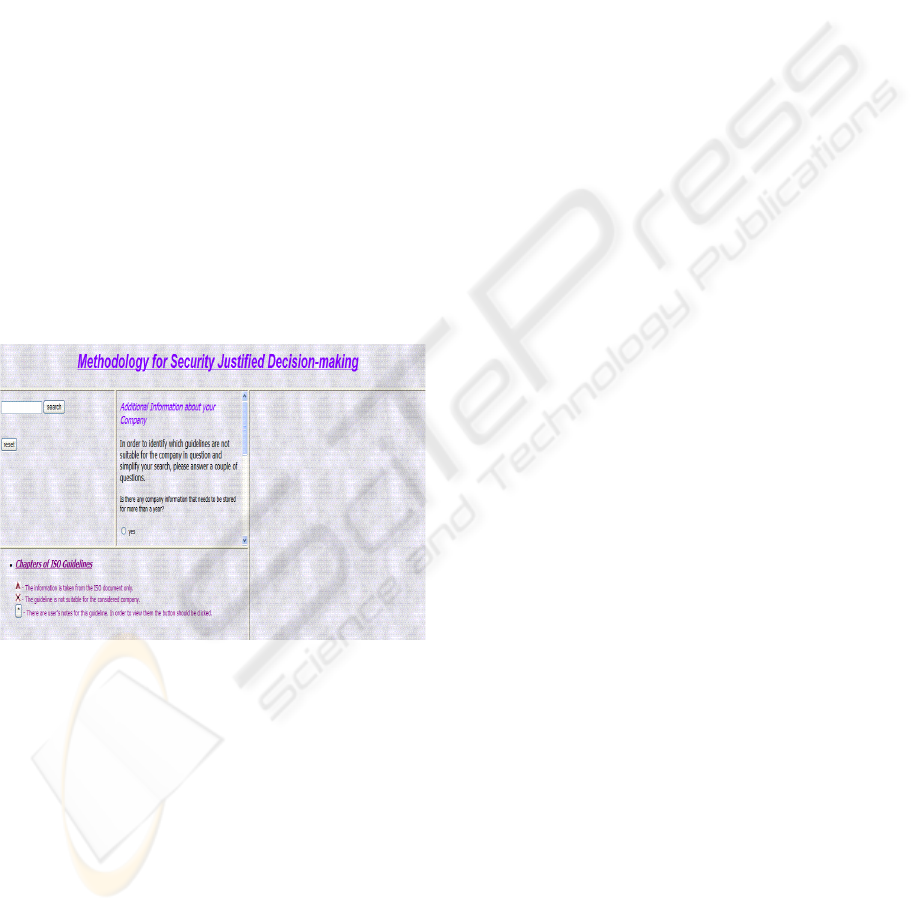

Figure 2: Overview of Knowledge Base user interface ap-

plication.

In Figure 2 a number of features can be seen:

• Search Window (Top-Left): users can search for

content featuring speciﬁc keywords, instead of

traversing the guidelines in search of it.

• Questionnaire (Middle): a CISO can answer spe-

cialised management questions. The answers are

used to reﬁne the guidelines that apply to the or-

ganisation.

• Guideline Hierarchy (Bottom): content from stan-

dards is arranged in a hierarchy to enable sim-

ple navigation. Our example content follows

the structure of the ISO27002 standard. Con-

tent should have a logical structure and indicate

its source to aid in auditing and compliance pro-

cesses.

• Guideline Information (Right): provides speciﬁc

guideline content, as well as associated Asset

and Vulnerability information. This is where

human-behavioural factors are linked to individ-

ual guidelines.

We developed the user interface using HTML,

JavaScript and jOWL (Decraene, 2009). This pro-

vided a lightweight, browser-based application that

could be accessed across various systems and with

limited resource requirements.

3.1 Accessing Knowledge Base Content

The simplest way to view content is to follow the

guideline hierarchy to an individual guideline. Each

guideline link provides a tool-tip text box indicating

the source.

Use of the hierarchy is appropriate for users who

know which guidelines they wish to view, however

other approaches to ﬁnding knowledge base content

are also useful. Users may be assisted through use

of the search engine (as shown in Figure 2), which

ﬁnds mention of entered Asset names within guide-

line Steps. We assume that a user would use sim-

ilar terminology to the Source standards. However

the knowledge base application can use synonyms to

associate keywords with speciﬁc guidelines (e.g., if

“portable storage device” and “removable media” re-

fer to the same Asset).

Ontology content can be tailored to a particular or-

ganisation by use of the questionnaire shown in Fig-

ure 2 (which here focuses on removable storage de-

vice policy). An example would be to ask a CISO if

they store data on removable devices for more than a

year at a time (in which case a particular ISO27002

guideline applies). The questionnaire identiﬁes both

guidelines that are applicable to the organisation and

those that can be ignored.

3.2 Presentation of Guideline Content

When a user has chosen a speciﬁc guideline to view,

content is presented as in Figure 3.

Content for each guideline is divided into:

• Content: original text from a Guideline or Step.

• Vulnerability: the Vulnerability types associ-

ated with the guideline.

• Links: cross-references to other stored guidelines.

• Info: additional related knowledge from the

Source or other sources such as modelling tools

(see Section 3.3).

A KNOWLEDGE BASE FOR JUSTIFIED INFORMATION SECURITY DECISION-MAKING

329

Figure 3: Example of guideline advice.

• Notes: notes can be attached to a speciﬁc guide-

line e.g., to record progress with compliance.

Links between guidelines hinge on the identi-

ﬁed Asset and Vulnerability types. For in-

stance, removable storage devices may be secured by

password-authenticated encryption, so the user could

then consult advice on password quality and usability.

Use of an ontology formalises the relations between

guidelines from within and across different standards.

We focus on guideline relations that identify human-

behavioural considerations (e.g. usability of pass-

words when encrypting removable storage devices).

3.3 Integration of Modelling Tools

CISOs should assess the impact that management de-

cisions will have upon members of an organisation.

Modelling tools that assess the usability of security

controls can potentially provide further insight into

these impacts. This would support decision-making

while enabling analysis of various policy scenarios.

Our knowledge base user interface integrates a

demonstrative modelling tool that measures password

strength and memorability. Much existing research

(e.g. (A. Adams, 1997)) has highlighted that pass-

word security and memorability are often conﬂicting

goals, so a balance must be found. Here a CISO can

enter sample passwords as per their own prospective

policies, and be informed of both how secure the pass-

word would be and how easy or hard it might be to

remember (as determined by a simple demonstrative

algorithm). Presenting the tool in this way provides

a perspective similar to that of an individual in the

organisation. The tool output could be used as evi-

dence for management decisions e.g., whether a spe-

ciﬁc password format would meet an organisation’s

usability and security requirements.

The simple password strength/memorability tool

demonstrates the potential for using modelling tools

to consider human-behavioural factors in security

management decision-making. More complex mod-

elling tools with appropriately formalised human-

behavioural metrics could be added over time.

4 RELATED WORK

Fenz et al (S. Fenz, 2007) created a security ontol-

ogy incorporating content from the ISO27001/2 stan-

dards. Guidelines are related to organisational secu-

rity controls, allowing assessment of security policies

within the ISO27001/2 framework. Our ontology also

incorporates structural components and content from

ISO27002, for the purposes of knowledge derivation

and expansion.

Lee et al (S. Lee, 2006) describe a process for

identifying interdependencies across different stan-

dards and deriving security requirements from these

standards. Questionnaires are used to align stan-

dards and internal security conﬁgurations. This work

demonstrates adaptation of natural-language stan-

dards to internal security infrastructures, by way of in-

formation models that identify and relate assets, vul-

nerabilities etc. We formalise the relationships be-

tween guidelines and subject matter within and across

information security standards to deepen knowledge

and facilitate integration of additional knowledge.

The ENISA Knowledgebase tool (ENISA, 2008)

is a directory for managing content from different IT

standards. It can be used to decompose standards con-

tent and store it in a consistent, systematised format.

We break standards down into their structural compo-

nents, but to the level of objects and procedures that a

CISO can consider within their policies.

Commercial tools exist to assist organisations pur-

suing compliance with external standards (e.g. Cura

Compliance (Cura, 2009), Modulo Risk Manager

(Modulo, 2009)). These products integrate knowl-

edge of e.g. ISO27002 controls into a compliance

process, providing guideline content and additional

functionality to relate guidelines with an organisa-

tion’s information security position (by way of spe-

ciﬁc organisational assets and processes). Our knowl-

edge base associates external standards with security

infrastructure components, allowing further knowl-

edge to be developed and in part tailored to speciﬁc

organisations.

5 CONCLUSIONS

We have developed a knowledge base structure and

associated user interface that expand the informa-

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

330

tion security management knowledge available to

CISOs, and improve awareness of the relationships

between various information security concepts. The

work also serves to illustrate how consideration of

human-behavioural factors can be incorporated into

this knowledge structure. Investigation of the require-

ments of the interface further informed development

of inter-concept connections, and how they are pre-

sented to target users.

The decomposition of external standards into indi-

vidual concepts and relationships, integrated with ad-

ditional knowledge, provides potential for CISOs to

better understand IS management knowledge and so

inform their security management decisions further.

There is potential to build upon the work de-

scribed in this paper, by for instance integrating more

complex, specialised modelling tools, and by expand-

ing the range of guidelines in the knowledge base.

ACKNOWLEDGEMENTS

The authors are supported in part by EPSRC grant

EP/F066937/1 (“Economics-inspired Instant Trust

Mechanisms for the Service Industry”) and UK Tech-

nology Strategy Board (TSB), grant nr. P0007E

(“Trust Economics”).

We are grateful for the feedback we received from

Robert Coles (Merrill Lynch) and members of the

Trust Economics project (Newcastle, 2009). Daria

Stepanova was a Visiting Researcher at Newcastle

University, visiting from Saint-Petersburg State Uni-

versity, Russia.

REFERENCES

A. Adams, M. A. Sasse, P. L. (1997). Making passwords

secure and usable. In HCI 97: Proceedings of HCI

on People and Computers XII, pages 1–19. Springer-

Verlag.

A. Beautement, R. Coles, e. a. (2008). Modelling the human

and technological costs and beneﬁts of usb memory

stick security. In Workshop on Economics in Informa-

tion Security (WEIS).

BS (2005). BS ISO/IEC 27002:2005 - Information Tech-

nology - Security Techniques - Code of Practice for

Information Security Management. British Standards

Institution.

C. Alberts, A. D. (2004). An intro-

duction to the octave method. http://

www.cert.org/octave/methodintro.html. Software

Engineering Institute, Carnegie Mellon University,

last viewed 12/03/09.

Cura (2009). Cura compliance. Cura Software Solutions,

http://www.curarisk.com/pages/content.asp?SectionID

=7&SubSectionID=50. last viewed 12/03/09.

Decraene, D. (2009). jowl - semantic javascript library.

http://jowl.ontologyonline.org/. last viewed 12/03/09.

ENISA (2008). Knowledgebase: Tool-based security pol-

icy composition. European Network and Information

Security Agency (ENISA). Version 1.0.

ISACA (2009). An Introduction to the Business Model for

Information Security. ISACA.

KTN (2007). Human Vulnerabilities in Security Systems:

White Paper. KTN Human Factors Working Group.

Modulo (2009). Modulo risk manager. http://

www.modulo.com/products/modulo-risk-manager-

overview.jsp. last viewed 12/03/09.

N. F. Noy, D. L. M. (2000). Ontology development 101:

A guide to creating your ﬁrst ontology. Stanford KSL

Technical Report KSL-01-05.

Newcastle (2009). Trust economics website. Newcastle

University, UK, http://www.trust-economics.org/. last

viewed 24/02/09.

R. Coles, J. Grifﬁn, e. a. (2008). Trust economics feasibility

study. In 38th Annual IEEE/IFIP International Con-

ference on Dependable Systems and Networks (DSN

2008), pages A45–A50. IEEE Computer Society.

S. E. Parkin, A. v. M. (2009). An information security on-

tology incorporating human-behavioral implications.

School of Computing Science, Newcastle University

CS-TR No 1139.

S. Fenz, G. Goluch, e. a. (2007). Information security forti-

ﬁcation by ontological mapping of the iso/iec 27001

standard. In PRDC ’07: Proceedings of the 13th

Paciﬁc Rim International Symposium on Dependable

Computing, pages 381–388. IEEE Computer Society.

S. Lee, R. Gandhi, e. a. (2006). Building problem do-

main ontology from security requirements in regula-

tory documents. In SESS ’06: Proceedings of the 2006

international workshop on Software engineering for

secure systems, pages 43–50. ACM.

Skidmore, P. (2003). Beyond Measure. Demos.

Stanford (2009). The prot

e ontology editor

and knowledge acquisition system. Stanford

Center for Biomedical Informatics Research,

http://protege.stanford.edu/. last viewed 24/02/09.

UCISA (2005). UCISA Information Security Toolkit. Uni-

versities and Colleges Information Security Associa-

tion (UCISA), 3rd edition.

W3C (2004). Owl web ontology language overview. http://

www.w3.org/TR/owl-features/. last viewed 24/02/09.

A KNOWLEDGE BASE FOR JUSTIFIED INFORMATION SECURITY DECISION-MAKING

331
