JAAF-S: A FRAMEWORK TO IMPLEMENT AUTONOMIC

AGENTS ABLE TO DEAL WITH WEB SERVICES

Baldoino F. dos S. Neto, Andrew D. da Costa, Carlos J. P. de Lucena

PUC-Rio, Computer Science Department, LES, Rio de Janeiro, Brazil

Viviane T. da Silva

Universidade Federal Fluminense, Computer Science Department, Niterói, Brazil

Manoel T. de A. Netto

PUC-Rio, Computer Science Department, LES, Rio de Janeiro, Brazil

Keywords: Agent, Self-adaptation, Semantic web service and Framework.

Abstract: Due to the widespread interest and deployment of web services and service-oriented architectures in

industry, it is necessary to develop systems able to, at run-time, discover, reason and select services.

Considering that agents present properties like reasoning, autonomy, pro-activity and self-adaptation, the

multi-agent system is a paradigm that fits these concerns. Agents can be used to autonomously and pro-

actively discover services, decide about the most appropriate service and adapt themselves if they face a

problem while using the selected service. In this paper we focus on a framework (Java self-Adaptive Agent

Framework for Service – JAAF-S) to implement self-adaptive agents able to adapt themselves while

searching and using web services. The framework also provides support to three main agent-related

properties: autonomy, pro-activity and reasoning. JAAF-S extends the JADE framework that already gives

support to autonomy and pro-active agents, provides reasoning methods based on rules, cases and genetic

algorithms as well as mechanisms to discover and select web services.

1 INTRODUCTION

As mentioned in (Huns, Singh et. al., 2005), service-

oriented computing (SOC) has taken hold in

business in, for instance, the use of shipping services

in e-commerce transactions; the aggregation of

hotel, car rental, and airline services; or the book-

rating services for libraries, consumers and

bookstores. Given the widespread interest and

deployment of web services and service-oriented

architectures in industry, SOC represents a

fundamental shift in the way web applications are

developed.

Therefore, it is necessary to provide techniques

to discover, invoke, compose and monitor web

services. In this context, Semantic Web Service

(SWS) (McIlraith, Son,and Zeng 2001) has been

pointed as a way to address these issues. SWS

provides a way to capture the data and metadata

associated with a service together with specifications

of its properties and capabilities, the interface of its

execution, the prerequisites and consequences of its

use.

Although SWS can solve some of the mentioned

issues, the complexity of current systems has

directed the software engineering community to look

for systems able to adjust or adapt their behavior in

response to requirement changes. Considering that

adaptive agents present properties like: reasoning,

learning, autonomy and pro-activity, multi-agent

system is a paradigm that fits on these concerns.

In order to support the creation of agents with

such capabilities, the Java Autonomic Agent

Framework for Services (JAAF-S) was proposed. It

provides mechanisms to develop self-adaptive

agents by the implementation of different self-

adaptation processes based on services. Nonetheless,

it provides reasoning methods based on rule-based

245

dos S. Neto B., da Costa A., de Lucena C., da Silva V. and de A. Netto M. (2009).

JAAF-S: A FRAMEWORK TO IMPLEMENT AUTONOMIC AGENTS ABLE TO DEAL WITH WEB SERVICES.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 245-250

DOI: 10.5220/0002259702450250

 SciTePress

reasoning (Costa, Lucena et. al., 2008), case-based

reasoning (Amodt and Plaza, 1994) and genetic

algorithm (Mitchell, 1998), and also service

discovery and selection implementation that can be

used by the agents. JAAF-S can be instantiated to

implement, for instance, biological, ubiquitous

computing and autonomic computing systems.

This paper is organized as follow. Section 2

presents some related work. In Section 3 the Java

Autonomic Agent Framework for Service is

detailed, while Section 4 states a case study by

describing the use of the framework to help

implementation of agents capable of discovering and

selecting Web services and also able to adapt

themselves to changes in the requirement. Finally,

Section 5 concludes and presents some future work.

2 RELATED WORKS

Rainbow (Garlan, Cheng, Huang, Schmerl and

Steenkiste, 2004) uses an abstract architectural

model at runtime to monitor the properties of an

executing system, to evaluate the model for

constraint violation, and — if a problem occurs — to

perform global and module adaptations on the

running system. However, Rainbow presents two

limitations: (i) it uses mechanisms based on a fixed

self-adaptation process, based on (Dobson, S.,

Denazis et. al., 2006), to monitor and adapt the

system behavior at runtime, and (ii) it uses only

constraints (rules) to verify problems (or violations)

beyond utility functions (Petrucci and Loques, 2007)

to determine the most appropriate adaptation within

a set of applicable ones. Designed to treat these

limitations, the JAAF-S enables the elaboration of

different self-adaptation processes and provides not

only rule-based reasoning and utility functions, but

also case-based reasoning (CBR) mechanisms.

According to CBR is an efficient way to implement

some of the properties of autonomic systems. Beside

this, the JAAF-S provides support to discovery

services based on OWL-S (Martin et. al., 2009).

Such technology presents important properties to

perform automatic discovery, selection and

composition of services.

The Agent Building and Learning Environment

(ABLE) (Bigus, Schlosnagle, Pilgrim et. al., 2002)

provides an autonomic management in the form of a

multi-agent architecture; that is, each autonomic

manager is implemented as an agent or a set of

agents, thus allowing different autonomic tasks to be

separated and encapsulated into different agents.

Although ABLE provides different reasoning

mechanisms, it does not have the intention of

providing support to the elaboration of different self-

adaptation processes.

The work in (Poggi, Tomaiuolo and Turci, 2007)

proposes a framework with the aim of supporting

agent-based service oriented architecture. The

peculiar characteristic and strength of this work is

the integration of the agent technology with web

services, workflow, rule engine and semantic web.

Similar to this, the JAAF-S works with web

services, rule engine and semantic web. But in

addition our framework provides case-based

reasoning and different mechanisms to discover and

select web services.

3 JAAF-S

JAAF-S is a framework implemented by the use of

software agents and extends JADE (Bellifemine,

Caire, Trucco, Rimassa, Mungenast, 2007), a FIPA-

compliant framework to implement multi-agent

systems (MAS) developed in Java, in order to

represent four concepts: (i) agents that perform self-

adaptation, (ii) plans executed by agents

representing self-adaptation processes (or control-

loops), (iii) activities that are the steps of such

processes, and (iv) techniques that can be used to

discover and select services.

More details about the JAAF-S implementation

can be seen in the class diagram depicted in Figure

1, which illustrates the main JAAF-S classes. The

self-adaptive agents are represented by the

AdaptationAgent class and the self-adaptation

process by the PlanAdaptation class. The

PlanAdaptation class extends the JADE

FSMBehaviour class that provides support to the

implementation of finite automata composed of

activities (or behaviors) represented by the

Behaviour class. Therefore, in order to implement an

autonomic agent it is necessary to perform three

tasks: (i) create an agent by extending the

AdaptationAgent class, (ii) create new activities or

instantiate some default provided by the framework,

and (iii) create a self-adaptation process by

extending the PlanAdaptation class.

In order to work with services it is important to

instantiate MatchingSelection and SelectionStrategy

classes to give support to the discovery and selection

of services.

JAAF-S already provides a self-adaptation process,

mentioned on (Dobson, Denazis et. al., 2006),

represented by the ControlLoop class that is

composed of four activities: Collect, Analyze,

Decision and Effector, quickly introduced below.

Due to space limitations, we will detail in the

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

246

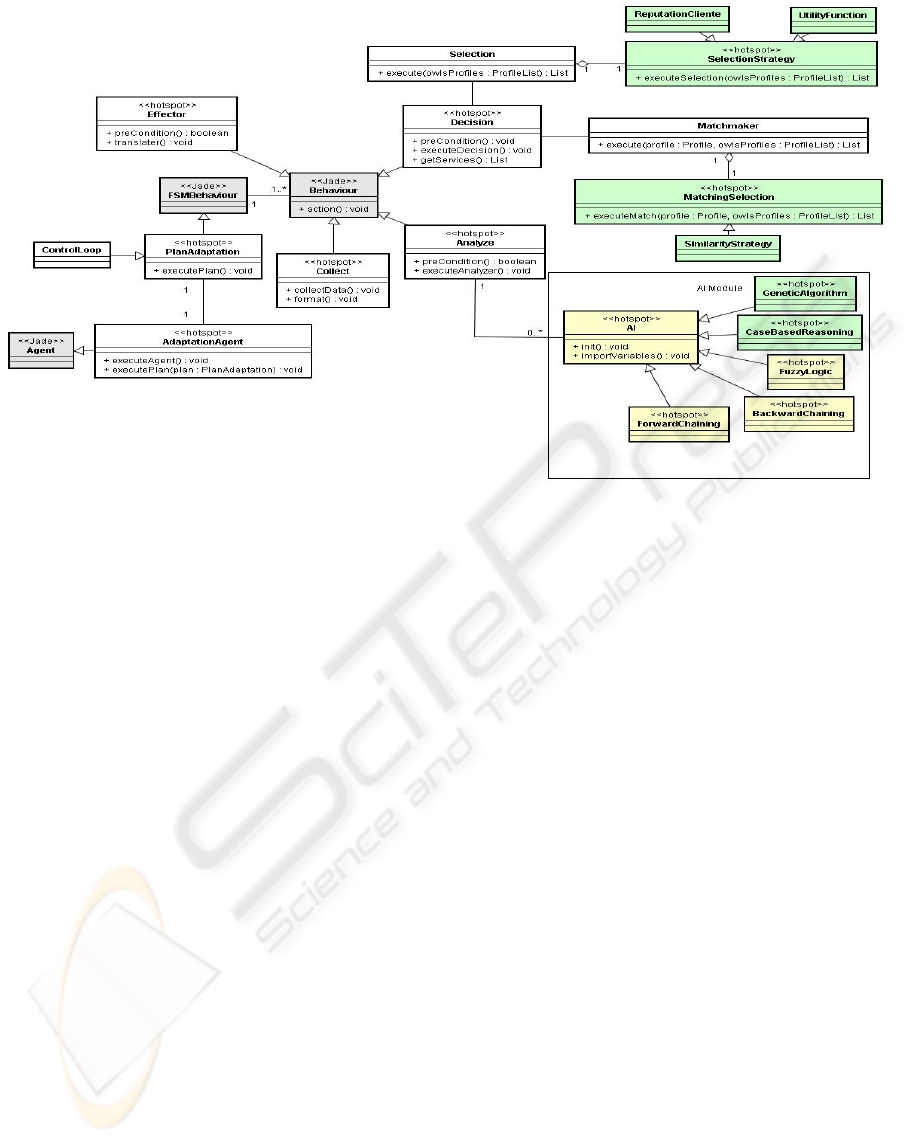

Figure 1: JAAF-S Class Diagram.

following sub-sections only the two most

important ones: analyze and decision.

Collect: It is responsible for receiving, filtering

and formatting the data provided by the sensor.

Therefore, when the sensor informs which data are

available, the agent that has received this

information should filter and format them in order to

be manipulated by others activities of the control

loop.

Analyze: The analyze activity is responsible for

providing methods to analyze the data collected in

the previous activity in order to detect problems (or

necessities) and suggest new solutions in OWL-S

description. Such descriptions provide data that are

useful in defining which services can be used in

different situations. Moreover, the framework gives

support to three reasoning mechanisms: rules, cases

and genetic algorithms. Details about this activity

are presented in Section 3.1.

Decision: This activity provides support to

automatically discover and select web services that

address the target problem (or requirement).

Initially, it receives the service descriptions

suggested by the previous activity and applies

matchmaking algorithms (Srinivasan, Paolucci,

Sycara, 2006) between such descriptions and a

semantic web service. It aims to meet services that

can be used to solve some request or problem.

Subsequently, the activity uses selection techniques

(reputation, utility function, etc.) to choose the best

services.

Effector: This activity receives the selected

services from the Decision activity, making them

understandable (for instance, by translating them) to

the application layer. The control-loop can be

executed again if any self-adaptation is necessary.

3.1 Analyze Activity

The analyze activity uses the reasoning mechanisms

provided by the AI module while analyzing the data

it collects. In order to provide a rule-based

mechanism, we use the AI module provided by

DRPMAS (Costa, Lucena et. al., 2008), which is

composed of three algorithms: fuzzy logic,

backward chaining and forward chaining. Therefore,

in order to develop these algorithms, the

ForwardChaining, BackwardChaining and

FuzzyLogic classes should be instantiated to

implement forward chaining, backward chaining and

fuzzy logic reasoning, respectively. The work of the

instantiation will be only to define the rules applied.

The second mechanism, case-based reasoning,

uses past experiences of similar problems to solve

the current problem. As past experiences can be

useful for performing self-adaptations, we have

incorporated this reasoning mechanism in the

framework. We provide an infrastructure (case-

base), which enables the storing of past experiences,

and algorithm implementations that makes it

possible to discover similar cases with the current

problem. It is necessary to instantiate the

JAAF-S: A FRAMEWORK TO IMPLEMENT AUTONOMIC AGENTS ABLE TO DEAL WITH WEB SERVICES

247

CaseBasedReasoning class and select the similarity

algorithm that will be used in order to implement

CBR.

The third mechanism, genetic algorithm,

provided by the framework, allows finding exact or

approximate solutions to optimization and search

problems. Such an approach uses techniques

inspired in evolutionary biology, such as inheritance,

mutation, selection and crossover (also called

recombination). The JAAF-S provides the

infrastructure necessary to perform such techniques.

In order to apply genetic algorithms it is necessary to

implement the GeneticAlgorithm class and elaborate

a fitness function (Mitchell, 1998).

3.2 Decision Activity

Service discovery and selection mechanisms have

played an important role in service oriented

architecture and JAAF-S provides such features.

In order to represent the discovery mechanism,

the SimilarityStrategy class implements the service

discovery matching algorithm shown in (Srinivasan,,

Paolucci, Sycara, 2006). Furthermore, the

framework also considers two attributes of the

OWL-S Profile: text description and service

parameter.

Text description briefly describes the service,

summarizes which service is offered, describes what

is necessary for the service to work and informs any

additional necessary information. The attribute

parameter represents a list of properties which

informs the quality being provided by the service.

This attribute is composed of two sub-attributes. The

first sub-attribute is the serviceParameterName,

which is the name of the current parameter, while

that the second sub-attribute, sParameter, represents

the value of the parameter.

In order to provide selection, two mechanisms

are offered by the JAAF-S: reputation and utility

function. Reputation of services is represented by

the Reputation class that is able to identify which

services are good or bad based on consumer

feedback about the quality of the service. While that

utility functions, represented by the UtilityFunction

class, it performs the selection of services based on

the quantitative level of desirability of each service.

To do so, it takes a set of OWL-S Profiles as input,

verifies the quantitative level of desirability of each

attribute in the OWL-S Profiles and outputs the

Profiles with the highest level of desirability.

3.3 Hot-spots and Frozen-spots

Since JAAF-S extends JADE, the JADE kernel is

also the kernel of JAAF-S and the hot-spots of the

JADE are the hot-spots of JAAF-S. For instance, the

process used by agents to communicate, and the

agents’ identifiers are examples of JAAF-S hot-spots

inherited from JADE.

The hot-spots specifically defined in JAAF-S

are:

Agent (AdaptationAgent Class). By extending this

class and implementing the executedPlan method, it

is possible to define different algorithms to execute

the plans of an agent.

Plan of self-adaptation (PlanAdaptation Class). It

is possible to define new control-loops (or plans)

and the sequence to execute the activities of the

control loops. JAAF-S already provides a default

control-loop implemented in the ControlLoop class.

Activities (Behaviour Class). It is possible to define

new activities to be called by the control loops by

extending the Behaviour class. JAAF-S already

offers four activities (Collect, Analyze, Decision and

Effector).

Intelligent Algorithm Module. JAAF-S offers three

kinds of algorithms: rule-based reasoning (forward

chaining, backward chaining and fuzzy logic), case-

based reasoning and genetic algorithm. These types

of algorithms can be used at any point of the system

to help with the self-adaptation.

The JAAF-S already provides one matching

algorithm based on (Srinivasan, Paolucci, Sycara,

2006) and two selection techniques one based on

reputation (Koogan and Houaiss, 1995) and other in

utility function (Petrucci and Loques, 2007).

However, we use the strategy pattern (Gamma,

Helm, Johnson and Vlissides, 1994) in order to

enable the addition of others algorithms and

techniques in the framework.

4 CASE STUDY:

SELF-ADAPTIVE PERSONAL

WEB PAGE

In this section we describe a service-oriented multi-

agent system that applies self-adaptation in order to

satisfy customers’ needs. Such needs are represented

by a user requirement ontology that is used to

discover and select the most adequate service for a

given situation.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

248

4.1 Main Idea

The implemented system provides three kinds of

services: hotel reservation, buy airline tickets and

car rental. The application begins with a customer

accessing a Web page in order to specify which

service he/she desires. Depending on the chosen

service, different information is requested. From the

data provided by the customer the system will

discover the most appropriate service to attend

him/her.

The agent responsible for receiving the

information is called Manager agent. It first

identifies the context of the desired service (hotel

reservation, buy airline tickets or car rental) and then

tries to find a Service agent able to provide the

desired service. Service agents are chosen according

to their reputations. Reputations are defined based

on feedback provided by the customers about the

quality of the services they have used.

Note that different Service agents can be used to

provide the same type of service and each agent is

responsible for managing a set of semantic web

services. Therefore, when a request is performed the

chosen agent will select which web service is the

most adequate in order to attend the customer. If the

selected web service is offline, the agent adapts to

meet another service. Otherwise, the Manager agent

is the one that should adapt in order to choose

another Service agent that can provide the requested

service.

At the end, when a service is selected from a

Service agent, the customer executes it. After having

executed the service, the customer informs the

Manager agent whether he/she liked or not the

service provided. After the Manager agent receives

the feedback, it updates the reputation of the

executed service and forwards the feedback to the

Service agent.

In order to clarify the tasks of the agents

provided by the application, each one is explained in

detail in following subsections.

4.2 Manager Agent

As mentioned previously, the Manager agent

receives the data provided by the customer,

identifies the context of the request and meets the

Service agent that can provide the desired service.

When a service fails while it is being provided, the

Manager agent receives the feedback from the

customer to search for another service. The Manager

agent uses the default control-loops provided by the

framework to perform these activities.

In the collect activity the agent receives the

information provided by the user. Next, in the

analyze activity the agent uses rule-based reasoning

to identify the context and send it to the decision

activity. This activity selects the Service agent that is

able to provide a service in the context required and

that has the service with best reputation. If a chosen

Service agent had a previous failure while providing

a service, its reputation is changed and compared

with the reputation of the other Service agents that

can attend the same request. Therefore, the Manager

agent adapts itself to select another Service agent.

Finally, in the effector activity the Manager agent

forwards the data provided by the user to the chosen

Service agent.

4.3 Service Agent

Each Service agent is responsible for selecting the

web service that best satisfies the customer’s

necessities. If the service selected cannot be

executed, the Service agent should perform a self-

adaptation to select another service. In order to

represent such self-adaptation, the agent applies a

control-loop composed of five steps: Collect,

Analyze, Decision, Test and Effector. Note that

different from the default control loop, the

framework JAAF was used to define another

control-loop composed of a new activity, the Test

activity.

In the collect activity the agent receives the

information provided by the Manager agent. Next,

in the analyze activity the agent uses case-based

reasoning to discover which services could be used.

The reasoner takes into account similar situations

where these services were used to select the service.

The services are then provided to the decision

activity by using the OWL-S ontology to describe

the service, by creating the profile of the desired

service

The decision activity applies matchmaking

algorithms between the OWL-S profile provided by

the analyze activity and the OWL-S profiles of the

available services also provided by the Service

agent. In the case of matching, the reputation of the

services is used to select the one that is most

reliable.

After selecting a service, it is tested in the tester

activity to assure that it is online. In the case the

service is offline, the information is stored in a

“Service with Problem” database and the decision

activity is executed again. However, when the

decision activity meets an online service, the

effector activity is executed. It is responsible for

communicating the chosen service to the application.

JAAF-S: A FRAMEWORK TO IMPLEMENT AUTONOMIC AGENTS ABLE TO DEAL WITH WEB SERVICES

249

5 CONCLUSIONS

This paper proposes a framework that provides

support to discover, reason and select web services

by the creation of self-adaptive agents, i.e., agents

able to adapt their behavior due to problems that

may occur while trying to access a service.

Nonetheless, it also provides reasoning methods

based on rules and cases algorithms that can be used

by the agents.

The applicability of such a framework can be

verified by the case study presented in Section 4.

The two different agents (Manager and Service

agent) illustrated in that section use different self-

adaptation processes while manipulating services.

One of them uses the adaptation process proposed as

default by the framework while the other instantiates

the framework by implementing another activity and

defining a different self-adaptation process in order

to test if the service is online before providing the

service to the user. Working together these agents

are able to keep the customer satisfied with the

services provided by the system.

We are in the process of defining new self-

adaptation control-loops and mechanisms able to

handle the control-loops. It is also our intention to

extend JAAF-S in order to provide a framework not

only for self-adaptation but also for self-organization

in a multi-agent environment. This framework

would guide the development of organizations

inspired by biological systems.

REFERENCES

Amodt, A. and Plaza, E., 1994, Case-based reasoning:

Foundational issues, methodological variations, and

system approaches. In AI Communications, volume

7:1, pages 39–59.

Bellifemine, F., Caire, G., Trucco, T., Rimassa, G., 2007,

Jade Programmer’s Guide.

Bigus, J. P.; Schlosnagle, D. A., Pilgrim, J. R.; et. al.

2002, .ABLE: A toolkit for building multiagent

autonomic systems. IBM Syst. J. 41, 3, 350–371.

Costa, A., Lucena, C. J. P.; Silva, V., Cowan, D.; Alencar,

P., A Hybrid Diagnostic-Recommendation System for

Agent Execution in Multi-Agent Systems, ICSOFT

2008 – 3

International Conference on Software and

Data Technologies, Porto, Portugal, July 2008.

Dobson, S., Denazis, S., Fernández, A., Gaiti, D.,

Gelenbe, E., Massacci, F., Nixon, P., Saffre, F.,

Schmidt, N., and Zambonelli, F., 2006, A survey of

autonomic communications. ACM Transactions

Autonomous Adaptive Systems (TAAS),

1(2):223{259}.

Gamma, E., Helm, R., Johnson, R., Vlissides, J., 1994,

Design Patterns : Elements of Reusable Object-

Oriented Software, Addison-Wesley Professional

Computing Series.

Garlan D., Cheng, S., Huang, A., Schmerl B. and

Steenkiste, P., 2004, Rainbow: Architecture-Based

Self Adaptation with Reusable Infrastructure. In IEEE

Computer, Vol. 37(10).

Huns, M., Singh, M., et. al., 2005. Research Directions for

Service-Oriented Multiagent Systems. IEEE Internet

Computing.

Koogan, A.,Houaiss, 1995, A.: Encyclopedia and

Dictionary. Delta Publisher.

Martin, D., et. Al. ,OWL-S: Semantic Markup for Web

Services, Last access at April 2009 ,

http://www.w3.org/Submission/OWL-S/.

McILraith, S., Son, T. and Zeng, H., 2001. Semantic Web

Services, IEEE Intelligent System.

Mitchell, M., 1998,An Introduction to Genetic Algorithms

(Complex Adaptive Systems), The MIT Press.

Petrucci, V. and Loques, O. 2007, Suporte a adaptação de

aplicações usando funções de utilidade. In 1st

Workshop on Pervasive and Ubiquitous Computing,

WPUC 2007, SBAC-PAD 2007.

Poggi, A., Tomaiuolo, M. and Turci, P. 2007, An Agent-

Based Service Oriented Architecture, WOA.

Srinivasan, N., Paolucci, M., Sycara, K., 2006, Semantic

Web Service Discovery in the OWL-S IDE,

Proccedings of the 39th Hawaii International

Conference on System Sciences.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

250
