A Design for Real-time Neural Modeling on the GPU

Incorporating Dendritic Computation

Tyler W. Garaas

, Frank Marino

, Halil Duzcu

and Marc Pomplun

University of Massachusetts Boston

100 Morrissey Boulevard, Boston, MA 02125-3393, U.S.A.

Middle East Technical University, İnönü Bulvarı, 06531, Ankara, Turkey

Abstract. Recent advances in neuroscience have underscored the role of single

neurons in information processing. Much of this work has focused on the role

of neurons' dendrites to perform complex local computations that form the basis

for the global computation of the neuron. Generally, artificial neural networks

that are capable of real-time simulation do not take into account the principles

underlying single-neuron processing. In this paper we propose a design for a

neural model executed on the graphics processing unit (GPU) that is capable of

simulating large neural networks that utilize dendritic computation inspired by

biological neurons. We subsequently test our design using a neural model of

the retinal neurons that contribute to the activation of starburst amacrine cells,

which, as in biological retinas, use dendritic computational abilities to produce

a neural signal that is directionally selective to stimuli moving centrifugally.

1 Introduction

As with most research topics, neural modeling has broadened into a spectrum of

methodologies that sometimes use the terms artificial neural networks, computational

neuroscience, and brain models to illustrate methodological differences. The authors

of [1] have chosen the terms realistic brain models and simplified brain models to

illustrate two sides of the research spectrum. Realistic brain models refer to models

that go to painstaking lengths to model the individual components of neurons and

their assemblies. In these models, the goal is often directed toward gaining greater

insight into actual brain function [2]. Indeed, this is a very active avenue of research

in both the neuroscience and computational neuroscience fields.

Unlike their counterpart, simplified brain models, often implemented as artificial

neural networks (ANNs), are usually directed toward computing meaningful

information. Their simplified nature is both a distinct advantage and disadvantage

over realistic brain models, as it is the conceptual and computational intractability that

has hindered the use of realistic brain models as functional entities. Despite the large

range of successful applications of ANNs, future networks that attempt to solve

complex problems such as robust object recognition [3] or modeling complex

behaviors [4] will likely require more realistic organization principles.

If neural networks are to be realized in a more biologically realistic manner, the

two aforementioned hindrances will need to be overcome. The first, conceptual

intractability, is being slowly broken apart by a large number of neuroscientists such

Garaas T., Marino F., Duzcu H. and Pomplun M. (2009).

A Design for Real-time Neural Modeling on the GPU Incorporating Dendritic Computation.

In Proceedings of the 5th International Workshop on Artiﬁcial Neural Networks and Intelligent Information Processing, pages 69-78

DOI: 10.5220/0002265100690078

 SciTePress

as those previously referenced. Their progress has led to many new ideas and models

regarding the functioning of individual neurons. A major insight that has emerged

from these studies involves the role of the single neuron in the computational abilities

of neural networks –both biological and artificial [2, 5]. In particular, the structural

organization of the neuron’s dendrite (the part of the neuron that receives signals from

other neurons) has become an important concept in both the theory of biological

neuron functioning [2, 5-7] and computational studies [8]. Models that do not take

into account the physical structure of the neuron are in effect using point neurons.

Point neurons are named as such to illustrate the lack of dendrites where afferent

neurons instead synapse directly onto the soma (cell body).

One biological phenomenon that has been attributed to interactions between

neurons synapsing at proximal locations on a dendrite is the directionally selective

activation of starburst amacrine cells [9]. Euler et al. [9] demonstrated that the signal,

which responds vigorously for stimuli moving centrifugally –i.e., away from the

soma–, is the result of local computations that take place on the dendrites of the cell.

Following this result, Tukker et al. [10] created a realistic computational model that

showed the directionally selective signal found at the distal tips of the dendrites could

be accounted for by an interaction between a temporally delayed global signal and

local synaptic input.

The second hindrance, computational intractability, is a result of the large number

of calculations needed to model a realistic neuron. One approach that is being used to

overcome computational insufficiencies in highly parallel applications, such as neural

modeling, is to use the graphics processing unit (GPU) [11], which is the primary

computational unit integrated into present-day computer graphics cards.

In this paper, we present a neural network design that has been crafted for

execution on the GPU. The design achieves real-time computational abilities while

preserving potentially crucial features of realistic brain models such as dendritic

computing. To demonstrate the neural network design, we implement a sample

network that simulates the subset of the retinal circuitry responsible for generating the

directionally selective signal in the starburst amacrine cells.

2 GPU Processing

In recent years, the computational abilities of certain systems have seen enhanced

growth due to the expansion of parallel systems such as cluster computing and

distributed computing. Another highly parallel paradigm that has recently been

exploited by computationally hungry scientists is the GPU, which is currently being

used for image processing, computer vision, signal processing, video encoding, and

ray tracing, among others [11]; applications such as these have been given the

acronym GPGPU for general-purpose computation using graphics hardware.

2.1 Brief Overview of GPU Architecture

The massive computational power underlying the GPU comes from its parallel

architecture, which is implemented using a computational unit known as a stream

processor. Essentially, a stream processor is a highly restricted form of a processor

core; whereas processor cores are able to perform a wide variety of complex tasks,

stream processors use a specialized instruction set to perform the tasks that are

repeatedly executed during computer graphics rendering. By performing only a

handful of tasks, the GPU can pack hundreds of stream processors into a single GPU,

as opposed to the eight processor cores available in modern CPUs at the time of

writing.

Given the restricted nature of stream processors, applications that wish to exploit

the computational advantages of the GPU must adhere to a narrow flow of execution.

This flow is divided into four primary steps: vertex operations, primitive assembly,

rasterization, and fragment operations. All programs executed on the GPU must

perform all four steps; however, in many GPGPU applications, the first three steps are

executed at a bare minimum to support the bulk of the computation, which takes place

at the final stage. Those interested in the details of the first three stages are

encouraged to visit a community website dedicated to GPGPU programming [12].

The fragment operations that support the bulk of GPGPU computations are

performed by a simple program designed to execute on the GPU known as a fragment

shader. Fragment shaders perform a series of operations that manipulate one pixel of

data per execution. However, since there are hundreds of stream processors, many

millions of pixels of data can be processed in a very short period of time.

Data used by GPGPU applications must also conform to computer graphics

constructs which use images known as textures to store data. In traditional computer

graphics applications, a texture stores visual attributes not suited for –or too

computationally expensive for– representation by geometry, such as the clothes of a

character or the asphalt of a highway.

2.2 Neural Networks on the GPU

Many ANNs involve a highly parallel design that is well suited for implementation on

the GPU. Consequently, a number of researchers have taken advantage of this to

achieve notable gains in execution time [13-15]. For instance, Bernhard and Keriven

[13] were able to achieve a 5 to 20 fold increase in performance over a CPU

implementation while simulating spiking neural networks for image segmentation.

Gobron et al. [14] use the GPU to model the retina using cellular automata, and

Woodbeck et al. [15] use the GPU to implement a model of the processing that takes

place in the primary visual cortex. However, in each of these instances of neural

network processing, simple point-neurons were used to perform the pertinent

computations, which will likely be insufficient to for complex tasks such as robust

object recognition.

3 Neural Network Design

3.1 Single Neuron Model

As mentioned previously, researchers now believe the physical organization of

synapses plays a key role in the processing of information by neurons. In the design

presented here, we take into account the organization of afferent synapses to facilitate

some of the mechanisms that underlie the computational power of biological neurons.

Figure 1 shows two neurons that can be simulated using the present model. The key

thing to notice is the labeling of dendrite segments, which permits local computations

to take place in individual segments. London and Häusser [5, pp. 509] note, “Because

the branch points in the dendritic tree can be seen as summing up the current in

individual branches, ... the whole dendrite can implement complex functions.” The

addition of this type of organization will allow the use of what London and Häusser

refer to as the dendritic toolkit [5]. In the sample network we use this dendritic toolkit

to compute a direction selective signal in the dendrites of a simulated starburst

amacrine cell.

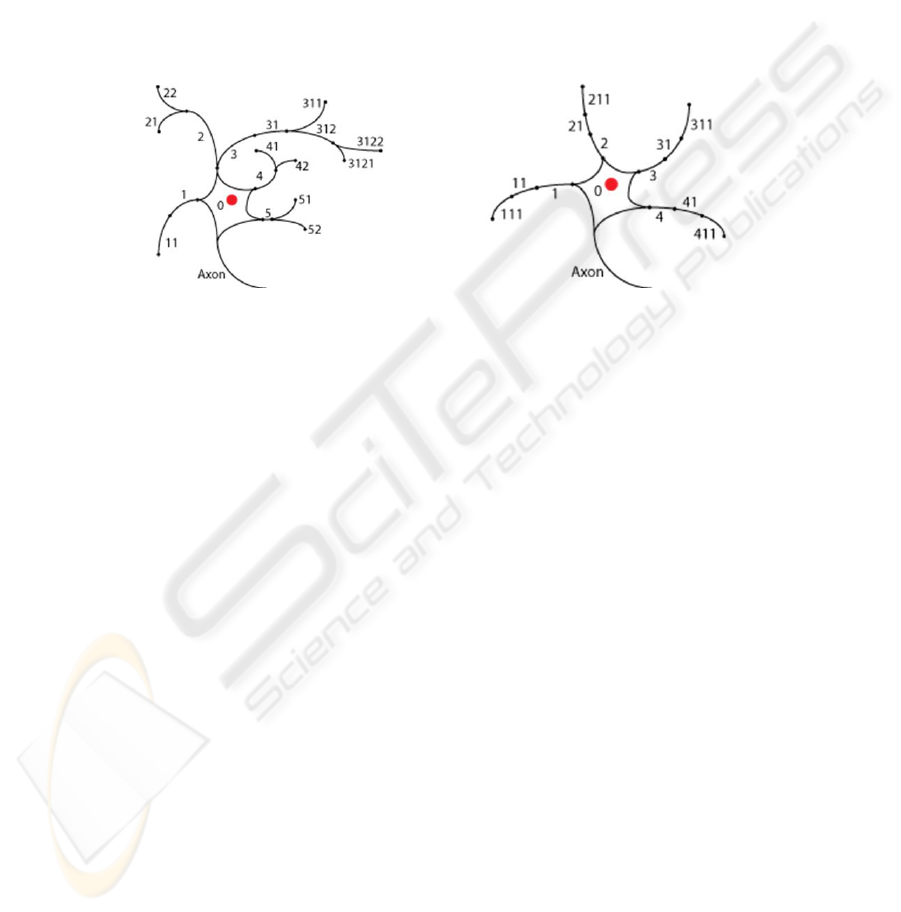

Fig. 1. Illustration of potential neurons in the present model.

3.2 Single Neuron Creation

The single neuron model described in the previous section allows inputs to be

grouped together on a single dendrite segment so that local computations can take

place independently. However, it may not be entirely clear how the dendrite segments

can be generated or how afferent synapses can be connected to each segment.

Consequently, we have included the pseudocode for a recursive function that

generates the dendrite branching patterns from a branch code. For example, the

branch code that is used to generate the left neuron in Figure 1 is given on the first

line of pseudocode, and the branch code to generate the right neuron is

41110111011101110.

Essentially, each digit in the branch code, which can be stored in string form,

represents the number of new segments that are to be generated from the current

location. For example, ‘2’ represents a binary split, ‘1’ represents a single segment,

and ‘0’ represents the end of a segment. When a split is encountered, the subsequent

digit(s) is used to generate the first segment of the split until that branch is terminated

with a ‘0’ at which point the following digit(s) is used to generate the second segment

of the most recent split, and so on until all segments have been terminated.

branchCode = “5210102101012102101021010110”

SetupDendriteSegment(int codeIndex)

if branchCode[codeIndex] equals ‘0’

delete digit from branchCode at codeIndex and

return

DendriteSegment d = new DendriteSegment

while SynapsesNeeded() equals true

Add GetNextSynapse() to d

for i = Integer of branchCode[codeIndex] to 0

SetupDendriteSegment(codeIndex+1)

delete digit from branchCode at codeIndex and return

End SetupDendriteSegment

The SetupDendriteSegment function can generate a complex branching

pattern from a string of digits; however, it still must be decided how afferent inputs

will be connected to the individual dendrite segments. Since this is different for each

type of neuron, a general procedure is described which invokes two undefined

functions, SynapsesNeeded and GetNextSynapse which are left to the reader

to implement as needed by their application.

One final item needs to be handled before the segments are complete, which is the

fact that the local membrane potentials of neighboring segments should be part of the

local computation that takes place on each individual dendrite segment. This can be

solved by simply treating the neighboring segments as synapses and identifying these

with a unique synapse type (described in the following section).

3.3 Data Storage

In the present model, functionally identical neurons are arranged into a single layer

which forms the functional unit of the network. Each layer of simulated neurons in the

network requires three textures to be maintained throughout execution: a neuron

texture, a dendrite texture, and a synapse texture. Individual pixels in the neuron

texture store the activation (i.e., membrane potential; A

) for each individual neuron

as well as an index to the first dendrite segment of the neuron (I

) stored in the

dendrite texture. Pixels in the dendrite texture store the local membrane potential of

each dendrite segment (A

), an index to the first synapse of the segment (I

) stored in

the synapse texture, and a weight used to moderate how much local potential is

transferred from the segment (W

). Finally, each pixel in the synapse texture stores an

index to the afferent membrane potential that is being transferred by the synapse (I

);

for instance, bipolar cells in the sample network receive input from the photoreceptor

neurons, which will be indexed by the synapse texture of the bipolar cell’s synapses.

However, as with biological neurons, synapses in the model can also receive their

input from a dendrite segment of another neuron. The synapse texture also contains a

weight used to modify the synapse strength (W

) and the type of the synapse (T)

which determines the texture that is indexed by the synapse. Figure 2 illustrates a

summary of the data model described above.

3.4 Model Execution

As mentioned in the previous section, functionally identical neurons are grouped into

layers. Each layer is executed by two fragment shaders each time a neuron’s

activations are calculated. The first fragment shader computes the local activation

function of individual dendrite segments. This shader executes by beginning at the

first indexed synapse in the synapse texture and iterating over subsequent synapses

until a blank synapse is encountered –denoted by a -1 in I

. The membrane potential

calculated in this way is then stored in the G component of the dendrite texture. The

second shader computes the global activation function of the neurons in the network.

This shader works in a manner very similar to the first shader by iterating over the

dendrite segments directly connected to the neuron soma, and the activation of the

neuron is stored in the G component of the neuron texture.

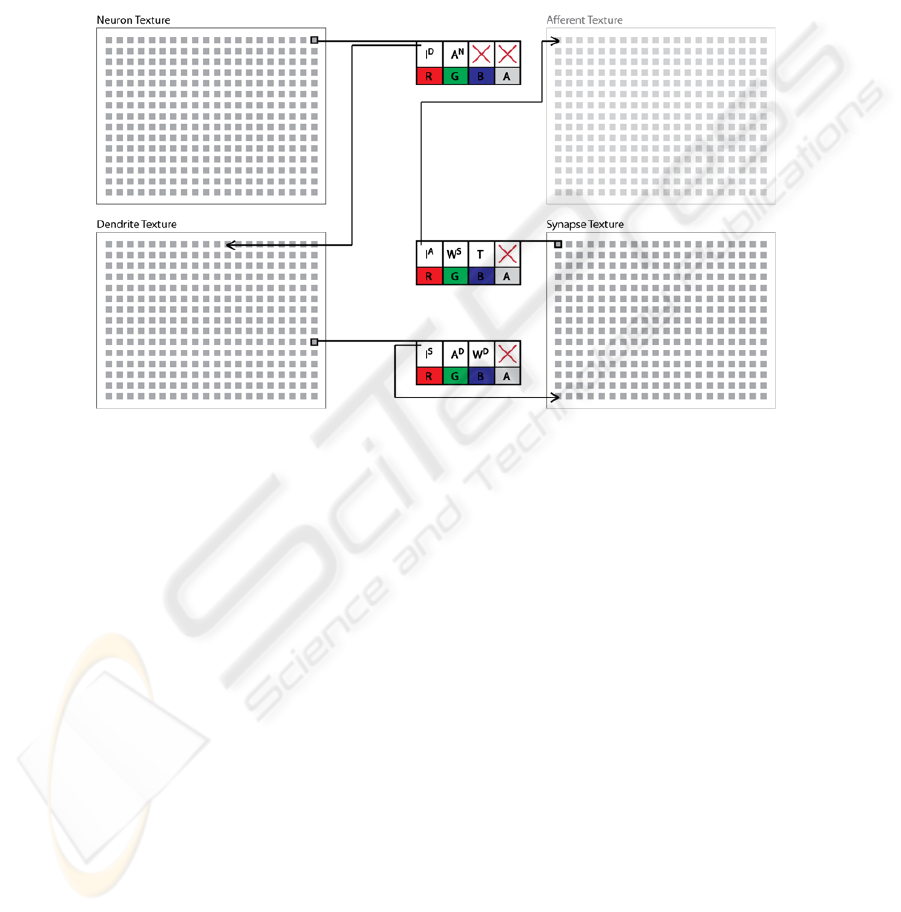

Fig. 2. Data model for the neural network design. Each pixel (grey square) is used to store the

various indexes and parameters used to compute the activations of the neurons and dendrites in

the network.

4 Sample Network

The sample network presented hereafter is used to demonstrate how the organization

principles previously described can be implemented to achieve both function and

efficiency. To this end, the following network will be used to model a subset of the

retinal circuitry responsible for the directionally selective signal found in the distal

dendrite branches of the starburst amacrine cells. In particular, we model the

photoreceptors (short-, medium-, & long-wavelength cones; implemented in the

model using individual red, green, and blue color channels), horizontal cells (H1 and

H2), on-center bipolar cells (short-, medium-, & long-wavelength cells), and starburst

amacrine cells. The local membrane potentials of the network demonstrate that the

computation of the centrifugal direction selective signal is very similar to that of

biological neurons [9, 10].

4.1 System Overview

Input to the network is achieved using a standard webcam setup that captures video at

30 frames per second (FPS). After each frame is captured, it is transferred to video

memory on the graphics card using the OpenGL API. Fragment shaders, which

encompass nearly all of the network processing and implementation, are implemented

using OpenGL’s high level shading language, GLSL. The neuron, dendrite, and

synapse textures are created prior to execution using an extension of the methods

detailed in previous sections. All computations were executed on a desktop computer

running Windows XP with a 2.6 Ghz AMD 64 bit dual-core processor with 4 GBs or

RAM and a Nvidia GTX 280 graphics card.

4.2 Network Organization

The wiring of photoreceptors, horizontal cells, and on-center bipolar cells is modeled

directly from the biological wiring described in [9, 10, 16, 17]. Figure 3 (left)

illustrates the connections that exist between a single starburst amacrine cell and the

cells that contribute to its activation; essentially, the neurons shown for the classic

receptive field for a single starburst amacrine cell. Dendritic branching of horizontal

and bipolar cells incorporates only single dendrite branch segments –e.g., a branch

code of 410101010. Bipolar cells compute a contrast modulated activation through

an antagonistic center-surround organization of its afferent synapses from cones

(center) and horizontal cells (surround). For the sake of brevity, the equations used to

compute neural activations are not presented. However, the neural activations follow

very closely those of their biological counterparts as described by Dowling [17], and

are similar in effect to those of [18].

Starburst amacrine cell dendrites follow the basic design present in Figure 1. This

dendrite branching pattern, though highly simplified, still preserves the necessary

geometric relationship that allows the computation of the centrifugal-selective signals

as described by Tukker et al. [10]. As dendrite segments of the starburst amacrine cell

move progressively farther from the soma, inputs to these segments are selectively

received from bipolar cells that are more distant from the starburst cell.

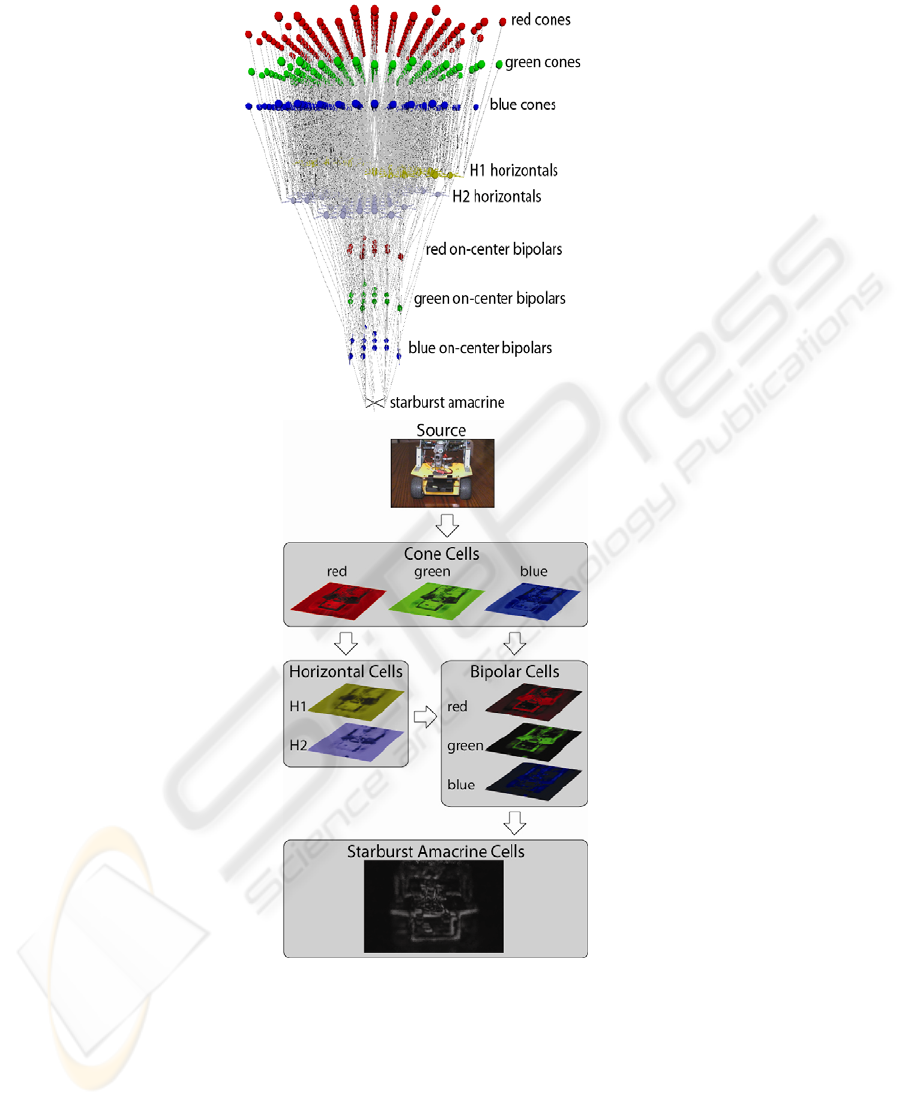

Fig. 3. Connections and data flow in the sample network. (left) A 3-dimensional rendering of

the actual connections that contribute to the activation of a single starburst amacrine cell in the

sample network. Illustrated neurons represent the classic receptive field of the starburst neuron.

(right) Source image and the activations of each layer in the network. Lighter portions represent

higher activations whereas the color represents the relative contribution by red, green, and blue

components of the source signal.

4.3 Network Results

The sample network consists of nine layers of neurons, more than 225,000 individual

neurons, and more than 2 million synapses. Despite its size, the activations of every

neuron in the network can be computed in 7 ms or, put another way, the network

operates at roughly 142 pulses per second (1 pulse = 1 computation of all neuron

activations). In preliminary versions of the network, the GPU version outperformed

an analogous, multi-threaded CPU version by a factor of approximately 20 when

executed on a 2.4 Ghz quad-core processor.

The activations of the individual layers in the network are illustrated in Figure 3

(right). The activations of all layers, with the exception of the starburst amacrine

layer, are illustrated during a single, similar pulse step. The activations of the starburst

amacrine layer, however, are from a pulse that is many steps into the future relative to

the other layers, which demonstrates the motion of the robot pictured. Although the

starburst amacrine cells are directionally selective, their highly overlapped nature

instead results in activations similar to image subtraction from traditional image

processing techniques. This result in itself could be achieved with a simpler network

[c.f., 18]; however, starburst amacrine cells form a crucial input for the

computationally more complex directionally selective ganglion cells [9]. As such, this

network represents a significant first step in the creation of a larger, more complex

network dedicated to modeling the complex visual processes that contribute to our

own remarkable visual abilities.

5 Discussion

In the present work we have demonstrated a novel neural network design that

combines biologically realistic –and potentially computationally crucial– mechanisms

that can be executed in real-time by taking advantage of the highly parallel

organization of modern GPUs. This design was then demonstrated by modeling the

subset of the retinal neural circuitry that is responsible for computing a directionally-

selective signal in the starburst amacrine cell. As in its biological form, the signal

computed in the cell is the result of the physical organization of the afferent input on a

starburst cell’s dendrites.

The sample network, which consists of more than 225k neurons, can be computed

at a rate that is nearly 5x the frame rate of the incoming signal. As such, this sample

network could already be extended to include much more sophisticate motion

processing by including layers subsequent to starburst cells such as directionally

selective ganglion cells and neurons in extra-striate areas and the middle temporal

area, which are known to be very important to motion processing in primate vision

[19]. Additional cortical mechanisms important for primate vision have been

proposed to directly rely on computations that take place in the dendrites [e.g., 20,

21]. The single neuron model that is introduced here could be used directly to

implement such proposed complex neural mechanisms in a computationally efficient

manner. Future work will be directed toward building more complex visual abilities

of the network, and, when necessary, utilizing the dendritic toolkit that is supported

by the current neural network design to implement such abilities.

References

1. Sejnowski, T. J., Koch, C. & Churchland, P. S. (1988). Computational neuroscience.

Science, 241, 1299-1306.

2. Koch, C. & Segev, I. (2000). The role of single neurons in information processing. Nature

Neuroscience, 3, 1171-1177.

3. Gray, C. M., König, P., Engel, A. K. & Singer, W. (1989). Oscillatory responses in cat

visual cortex exhibit inter-columnar synchronization which reflects global stimulus

properties. Nature, 338, 334-347.

4. Vaadia, E., Haalman, I., Abeles, M., Bergman, H., Prut, Y., Slovin, H. & Aertsen, A.

(1995). Dynamics of neuronal interactions in monkey cortex in relation to behavioural

events. Nature, 373, 515-518.

5. London, M. & Häusser M. (2005). Dendritic computation. Annual Review of Neuroscience,

28, 503-532.

6. Agmon-Snir, H., Carr, C. E. & Rinzel, J. (1998). The role of dendrites in auditory

coincidence detection. Nature, 393, 268-272.

7. Mainen, Z. F. & Sejnowski, T. J. (1996). Influence of dendritic structure on firing pattern in

model neocortical neurons. Nature, 382, 363-366.

8. Segev, I & Rall, W. (1988). Computational study of an excitable dendritic spine. Journal of

Neurophysiology, 60, 499-523.

9. Euler, T., Detwiler, P. B. & Denk, W. (2002). Directionally selective calcium signals in

dendrites of starburst amacrine cells. Nature, 418, 845-852.

10. Tukker, J. J., Taylor, W. R. & Smith, R. G. (2004). Direction selectivity in a model of the

starburst amacrine cell. Visual Neuroscience, 21, 611-625.

11. Owens, J. D., Luebke, D., Govindaraju, N., Harris, M., Krüger, J., Lefohn, A. E. & Purcell,

T. J. (2007). A survey of general-purpose computation on graphics hardware. Computer

Graphics Forum, 26, 80-113.

12. GPGPU. Retrieved April 01, 2009 from http://www.gpgpu.org

13. Bernhard, F. & Keriven, R. (2006). Spiking Neurons on GPUs. International Conference

on Computation Science. Workshop general purpose computation on graphics hardware

(GPGPU): Methods algorithms and applications, Readings, U.K.

14. Gobron, S., Devillard, F. & Heit, B. (2007). Retina simulation using cellular automata and

GPU programming. Machine Vision and Applications, 18, 331-342.

15. Woodbeck, K., Roth, G. & Chen, H. (2008). Visual cortex on the GPU: Biologically

inspired classifier and feature descriptor for rapid recognition. IEEE Computer Society

Conference on Computer Vision and Pattern Recognition (CVPR), Anchorage, AK, U.S.A.

16. Dacey, D. M. (2000). Parallel pathways for spectral coding in primate retina. Annual

Review of Neuroscience, 23, 743-775.

17. Dowling, J. E. (1987). The Retina: An Approachable Part of the Brain. Cambridge, MA,

USA. Belknap Press.

18. Garaas, T. W. & Pomplun, M. (2007). Retina-inspired visual processing. Proceedings of

BIONETICS, Workshop on Computing and Communications from Biological Systems:

Theory and Applications (CCBS). Budapest, Hungary.

19. Blake, R., Sekuler, R., & Grossman, E. (2003). Motion processing in human visual cortex.

In J H Kaas and C E Collins (Eds.), The Primate Visual System. Boca Raton: CRC Press.

20. Mel, B. W., Ruderman, D. L., & Archie, K. A. (1998). Translation-invariant orientation

tuning in visual “complex” cells could derive from intradendritic computations. The

Journal of Neuroscience, 18, 4325-4334.

21. Barlow, H. (1996). Intraneuronal information processing, directional selectivity and

memory for spatio-temporal sequences. Network, 7, 251-259.
