Unıversal Wireless Sensor Networks Technology
Platform and its Applications
L. S. Voskov
, P. B. Panfilov
, A. N. Vabischevich
, M. M. Komarov
and S. G. Efremov
VEK-21 Ltd., Startovaya str., 33-105, Moscow, 129336, Russia
Moscow State Institute of Electronics and Mathematics
Wireless Sensor networks Laboratory, Department of Computer Systems and Networks
B. Tryohsvyatitelsky, 3, Moscow, 109028, Russia
Abstract. Wireless sensor networks (WSN) are becoming more and more
popular due to the growing area of their application. However, finding a single
approach to different tasks is rather difficult, as each task has its own
peculiarities. In this paper we propose a universal hardware platform as the first
step to a quicker development of finished solutions based on WSN. We
demonstrate the use of our platform in different types of applications.
1 Introduction
A wireless sensor network [8] is a distributed self-organizing network, consisting of
miniature electronic devices, which exchange data through wireless channels. These
devices (nodes) do not require special installation and do need to be serviced. The key
feature of a sensor network is a possibility of retranslating messages from one node to
another, which allows covering large territories without using high-power
A common node of a WSN uses the ZigBee standard for wireless data
transmission. The ZigBee is an international open standard, which was developed by
the ZigBee Alliance. This standard allows using wireless connection with low-power
consumption for different applications for monitoring and/or management. The
Zigbee supports different network topologies, it has special network functions for
self-organization as well as several methods to ensure secure transmission.
The most popular applications for WSN are different monitoring systems (e.g.
security monitoring), different management and control systems (climate-control,
home automation systems etc.), remote access control and positioning systems
(tracking systems).
2 Universal Platform for WSN [1]
A proprietary universal wireless sensor network (WSN) platform was proposed,
developed and released by the Wireless Sensor Networks Lab (VEK-21 Ltd.) of the
Department of Computer Systems and Networks at Moscow State Institute of
Electronics and Mathematics (MIEM) (Fig. 1) because now it’s necessary to use
Voskov L., Panfilov P., Vabischevich A., Komarov M. and Efremov S. (2009).
Unıversal Wireless Sensor Networks Technology Platform and its Applications.
In Proceedings of the International Workshop on Networked embedded and control system technologies: European and Russian R&D cooperation,
pages 11-16
similar devices in different application areas. We also can save resources by using our
platform because of the universality. It also allows us quickly change priorities of the
system, which makes possible using our platform to achieve different goals by
working with all popular COTS sensors.

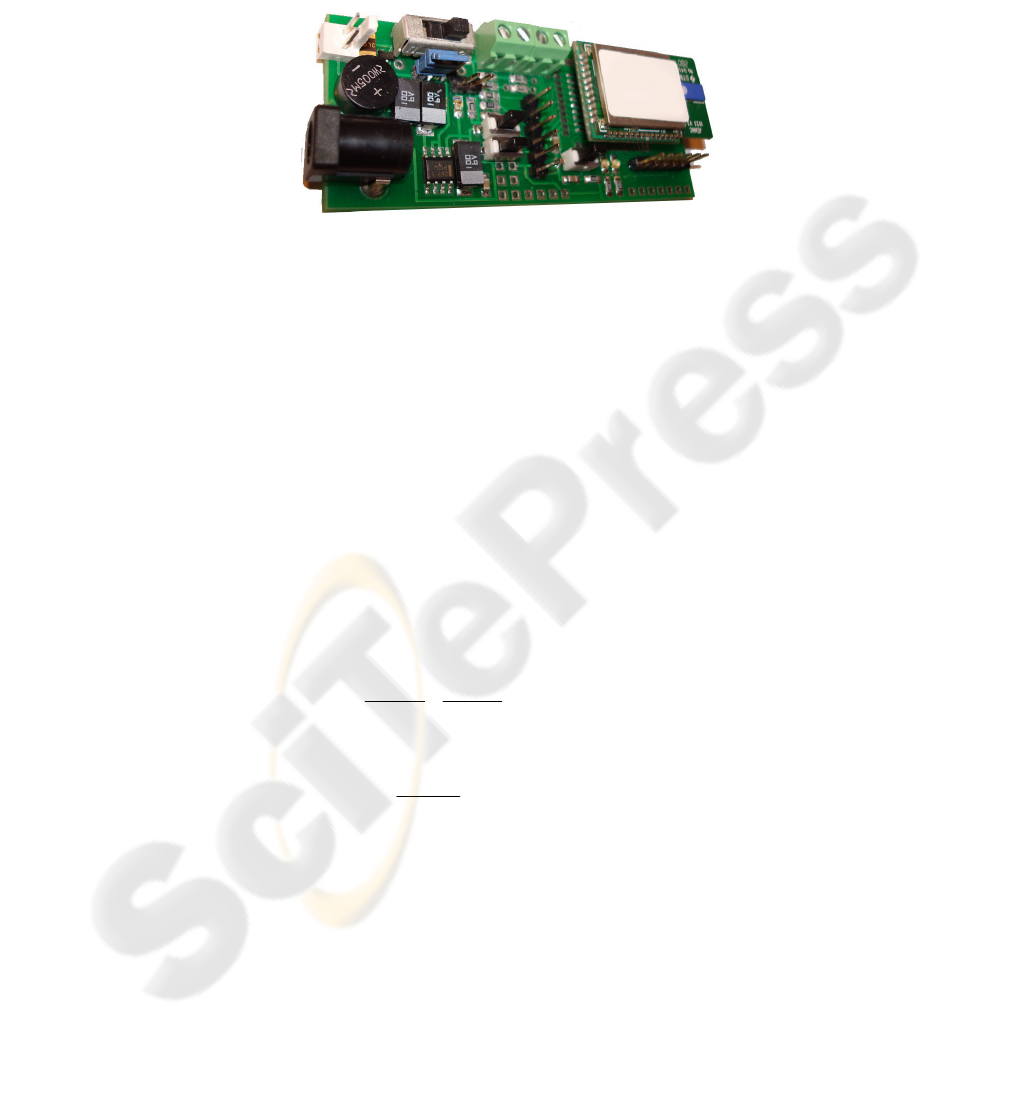

Fig. 1. Universal platform for WSN.
3 Energy Consumption and Lifetime
As sensor network applications depend so much on energy efficiency we want to
analyze energy consumption and lifetime of our platform with microcontroller.
Typical energy consumption for the sensor node: 37 mA – energy consumption for
receiving, 37 mA – energy consumption for sending, 9mA – energy consumption for
the CPU while transceiver is off, 0,002 mA – energy consumption in sleep mode.
The time which is taken to wake from sleep mode is 15 ms and energy consumption
9mA (from the microcontroller data sheet):
015,09 ×
=0,135 mAs (milli Ampere seconds).
The microcontroller is running at a clock rate of 16MHz which means that a single
cycle takes 1/10
seconds. Let’s assume that the average instruction takes 3 clock
cycles and that we need 7,000 instruction for the measurement, for data processing
and for preparing a packet for transmission over the network. This would result in
7000 3 21
16 10 16 10
=1,312 ms.
The amount of energy consumed at a current of 37mA would be:
mAs .
This means that the battery has to supply amount of energy which is equivalent to
1mA for 48.6ms.
And also the time to transfer data from I2C (for instance) is 5 ms with energy
consumption – 9mA:
=0,045 mAs .
Sending data takes place at a speed of 250,000 bits/s. We assume that our own
measurements occupy 32 bytes of memory. A single bit takes 1/250000 seconds to be
sent which sums up to:
mA 033,0
Time of calculating and sending took:
21/16 ms + 1ms+15ms+5ms 22,3ms. (6)
This means that the node can sleep for about:
1-0,022 = 0,978 s. (7)
The node consumes:
0,978×0,0020,002 mAs. (8)
The total amount of energy is:
0,135+0,0486+0,045+0,033+0,0020,262mAs. (9)
We assume the AA battery delivers about 2300 mAh:
(365 days).
4 Our Projects based on WSN
We used our platform in implementation of some “standard” WSN applications as
monitoring systems, SCADA and remote identification systems. Also some “unusual”
applications to WSN technology were demonstrated built around proposed platform.
These include autonomous system of secured wireless audio transmission and a
wireless real-time 3D visualization system (WSN-based Motion Capture application
for virtual environment simulation).
Security Monitoring System [3]. Security monitoring system based on WSN, which
can work with different security sensors and integrated with GSM, can be used with
existent security systems to increase reliability, it’s easier to install this system and it
uses cheap data transmission channel than, for instance, Wi-Fi.
It consists of hardware (WSN devices) and special software (for devices and PC),
which allows you to control object status through Internet.
Examples of using: private home security systems, offices security system.
Climate Control System (Home automation system) (temperature, illuminance,
humidity) [4]. Climate control system based on WSN is a multifunctional system
which gives us possibility to work with different electronic devices (air conditioners,
light systems etc.) and might be integrated with other systems to increase efficiency
of using electricity, water etc.
The main difference of this system from other monitoring applications is the use of
special profiles that allow for using diverse devices with diverse algorithms. It also
can use GSM channel.
Examples of using: climate control systems, home-automation systems etc.
Remote Identification System. Mobile objects wireless identification.
Fig. 2. Wearable sensor for wireless remote identification system.
We’ve developed a prototype of the system, which consists of different number of
sensors. Each sensor measures power level of radio signal and sets up critical power
level. If there is pair of sensors – one of them (base station) always measure power
level, other – sends testing data packets. When someone is trying to walk between
pair of sensors, one of them receives weak radio signal compare it with critical level,
and if power level of the signal is less than critical level it sends interruption
information to the central server and turns on alarm system. But if there is someone
with special WSN device (Fig. 2) is trying to walk between pair of sensors, our
system analyses situation and position of that person with WSN device and if that
WSN device is registered at one of the sensors from that pair, system make a decision
that there is no interrupt.
Base stations can be easily connected to GSM-channel or Internet.
Examples of using: security systems, special exhibition systems, home-automation
Intellectual System of Wireless Audio Transmission [5]. This system is our first
attempt of using WSN in “unusual” way – multimedia transmission. We have
developed a prototype of a system, which will provide wireless access to different
services using a WSN.
It consists of several base blocks (stations) and portable devices (handsets). A base
block can be connected to a public telecoms network (throw special “bridge”),
internet (VoIP service) or to a mobile phone. A portable device is a low-power
handset using a 10 mW transmitter. Each element of this system is a node of a WSN.
Therefore it contains an internal processor, which allows local data processing. For
example, when a person talking on the phone listens to his (her) interlocutor, the data
from his handset is not transferred thus minimizing the amount of traffic in the WSN.
General features:
base station translates incoming calls to portable devices;
portable devices can accept incoming calls, close connection, call a Skype-
400 meters distance between base station and portable devices;
Internet-radio translation with reasonably good quality – up to 100 meters
Bodynet System [7]. A wireless bodynet system consists of multiple wearable
sensors and a central stationary module, each being a node of a sensor network. This
system has two main applications – telemedicine and motion capture. The first one
has focus on remote health monitoring of people with chronic diseases, patients in
hospitals and elderly people. The task is solved with the use of sensors that measure
blood pressure, pulse rate and other vital parameters.
A wireless tracking system [2] makes it possible to transform real movements of a
person into a virtual 3D environment and visualize them in real-time. This is actually
a first completely wireless system, which means that every sensor has a radio
transmitter attached to it. In comparison, most existing solutions have a single
communication module, which is usually placed in a rucksack, and all the sensors are
connected to it with the help of wires. The system hardware consists of many end
devices equipped with sensors for capturing acceleration and rotation of a certain part
of a human body. A central unit collects all the data and transfers it to the computer,
which performs all calculations and visualization. To measure all parameters we use
MEMS-based accelerometers and gyroscopes, which are notable for their miniature
size, low costs, low energy consumption and high performance. Apart from
visualization, our software can also save all captured information for its future
analysis in simulation programs, e.g. Autodesk 3ds Max, Maya, Blender.
The main applications for the motion capture system include:
- interface to 3D virtual reality;
- research in human-computer interaction;
- remote control of robots and manipulators with real movements;
- motion capture systems for character animation in films, games or television studios.
a) b)

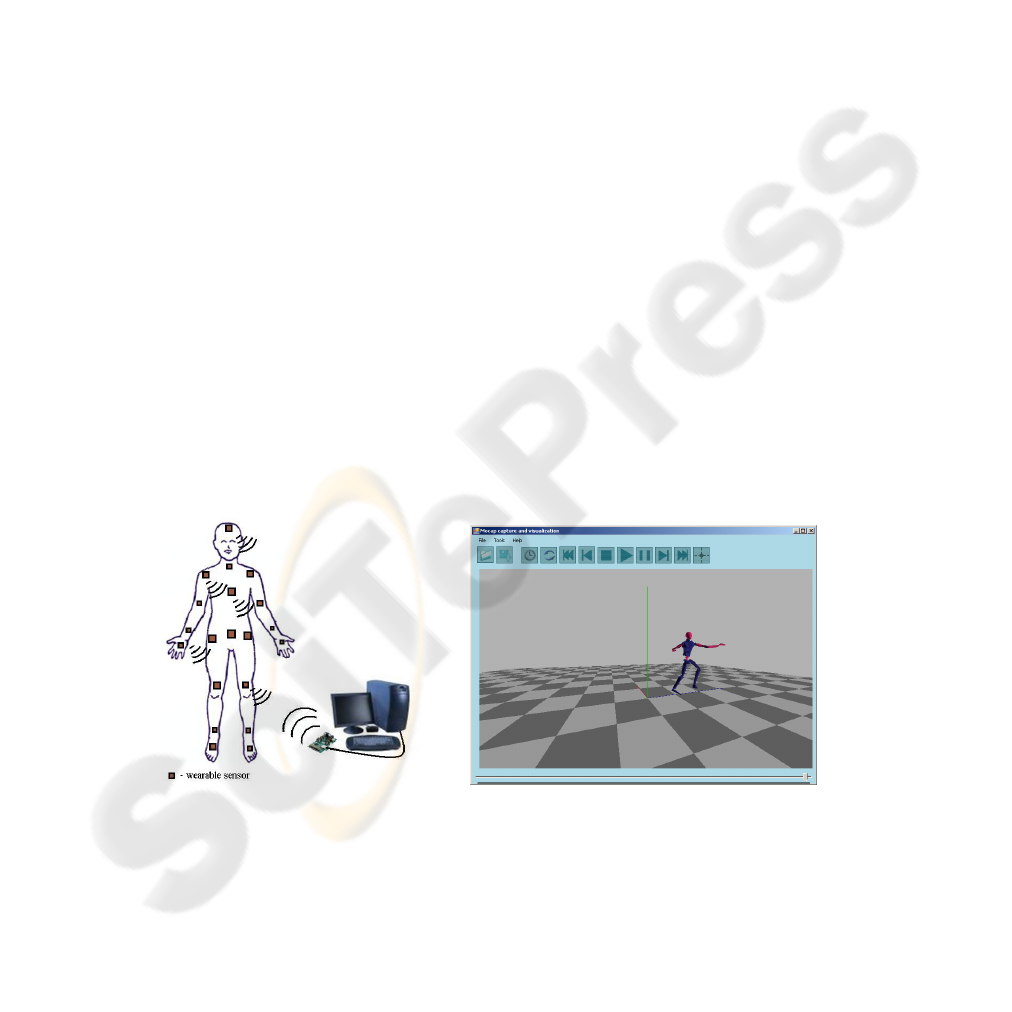

Fig. 3. Wireless bodynet system.
A combination of different wearable sensors can be used for efficient control of police
or fire squads during dangerous operations.
5 Future Work
We’re planning to continue our work and we’re going to develop:
- real time virtual reality system which will provide all possibilities of computer-
human interface interaction;
- full home-automation system;
- sports-monitoring system;
- conveyor monitoring system (getting and analyzing all information about
conveyor and environmental influence on it);
- home gaming systems, which will provide real interaction with the game;
- professional motion capture system for movie-making companies.
