UNIFYING SEMANTIC ANNOTATION AND QUERYING IN

BIOMEDICAL IMAGE REPOSITORIES

One Solution for Two Problems of Medical Knowledge Engineering

Daniel Sonntag

German Research Center for Artiﬁcial Intelligence, Saarbrcken, Germany

Manuel M¨oller

German Research Center for Artiﬁcial Intelligence, Kaiserslautern, Germany

Keywords:

Medical Imaging Systems, Semantic Data Model, User/Machine Dialogue, Semantic Search and Retrieval.

Abstract:

In the medical domain, semantic image retrieval should provide the basis for the help in decision support and

computer aided diagnosis. But knowledge engineers cannot easily acquire the necessary medical knowledge

about the image contents. Based on their semantics, we present a set of techniques for annotating images and

querying image data sets. The uniﬁcation of semantic annotation (using a GUI) and querying (using natural

dialogue) in biomedical image repositories is based on a uniﬁed view of the knowledge acquisition process.

We use a central RDF repository to capture both medical domain knowledge as well as image annotations and

understand medical knowledge engineering as an interactive process between the knowledge engineer and the

clinician. Our system also supports the interactive process between the dialogue engineer and the clinician.

1 INTRODUCTION

Image analysis in the biomedical context plays an im-

portant role in diagnosing and treating diseases; so

does semantic querying of medial image content. The

objective is to enable a seamless integration of medi-

cal images and different user applications by provid-

ing direct access to image semantics. Semantic image

retrieval should provide the basis for the help in clin-

ical decision support and computer aided diagnosis.

For example, during the course of lymphoma di-

agnosis and continual treatment, image data is pro-

duced several times using different modalities. As a

result, the image data consist of many medical images

in different formats, which additionally need to be as-

sociated with the corresponding patient data.

With traditional applications, users may browse or

explore visualized patient data, but little to no help is

given when it comes to the interpretation of what is

being displayed. This is due to the fact that the se-

mantics of the data are not explicitly stated, the se-

mantics therefore remain inaccessible to the system

and in turn also to the medical expert user. This

can be overcome by incorporating external medical

knowledge from ontologies which provide the mean-

ing (i.e., the formal semantics) of the data at hand.

To overcome the limitations of current medical im-

age systems, the authors use the Semantic Web stan-

dards OWL and RDF as a common representational

basis for both medical domain knowledge and anno-

tations in the same formalism. On the application

layer, the system leverages the structural information

in the ontologies to allow a multilingual and multi-

modal search, and to perform query expansion in or-

der to retrieve images which are annotated with se-

mantically similar concepts.

In this text, the authors describe the challenges

in Medical Knowledge Engineering (section 2) and

present a set of techniques for analyzing and query-

ing image data sets based on image semantics (sec-

tion 3). We use a natural, dialogue-based interaction

in a multimodal query interface (section 4) accessing

a semantic image repository embedded into an anno-

tation and querying framework (section 5). Section 6

provides related work and a conclusion.

This research has been supported in part by the re-

search program THESEUS in the MEDICO project which

is funded by the German Federal Ministry of Economics

and Technology under the grant number 01MQ07016. The

responsibility for this publication lies with the authors.

Sonntag D. and Möller M. (2009).

UNIFYING SEMANTIC ANNOTATION AND QUERYING IN BIOMEDICAL IMAGE REPOSITORIES - One Solution for Two Problems of Medical

Knowledge Engineering.

In Proceedings of the International Conference on Knowledge Management and Information Sharing, pages 89-94

DOI: 10.5220/0002273400890094

 SciTePress

2 CHALLENGES

Various challenges exist in medical knowledge engi-

neering, all of which arise from the requirements of

the clinical reporting process. The clinical reporting

process focuses on the general question

What is the disease? (or, as in the lymphoma

case, Which lymphoma?). To answer these questions,

semantic annotations on medical image contents are

required. These are typically anatomical parts such

as organs, vessels, lymph nodes, etc. Image pars-

ing and pattern recognition algorithms can extract the

low-level image feature information. The low-level

information is used to produce higher-level semantic

annotations to support tasks such as differential diag-

nosis.

For this purpose, we envision a ﬂexible and

generic image understanding software for which im-

age semantics, which are expressed using concepts

from existing medical domain ontologies, play a ma-

jor role for access and retrieval. Unfortunately, al-

though automatic detection of image semantics seems

to be technically feasible (e.g., see (Kumar et al.,

2008)), it is too error-prone (at least on the desired

annotation level where multiple layers of tissue have

to be annotated at different image resolutions). Ac-

cordingly, one of the major challenges is the so-called

knowledge acquisition bottleneck. We cannot easily

acquire the necessary medical knowledge about the

image contents which makes the image retrieval stage

difﬁcult (also cf. (Sonntag et al., 2009)). Further-

more, the representational basis of the image annota-

tions must match the querying architecture. Thus, we

address the knowledge acquisition bottleneckproblem

by concerning ourselves with the problems how to (1)

provide a semantic image annotation tool; (2) provide

a multimodal interface for semantic image querying;

and (3) connect the annotation and querying task into

a common framework.

3 IMAGE ANNOTATION TOOL

The image annotation tool consists of a component

that implements a method to annotate images and up-

load/maintain a remote RDF repository of the im-

ages and image semantics. For annotations, we

reuse existing reference ontologies and terminologies.

For anatomical annotations we use the Foundational

Model of Anatomy (FMA) ontology (Mejino et al.,

2008). To express features of the visual manifesta-

tion of a particular anatomical entity or disease of

the current image, we use fragments of RadLex (Lan-

glotz, 2006). Diseases are formalized using the Inter-

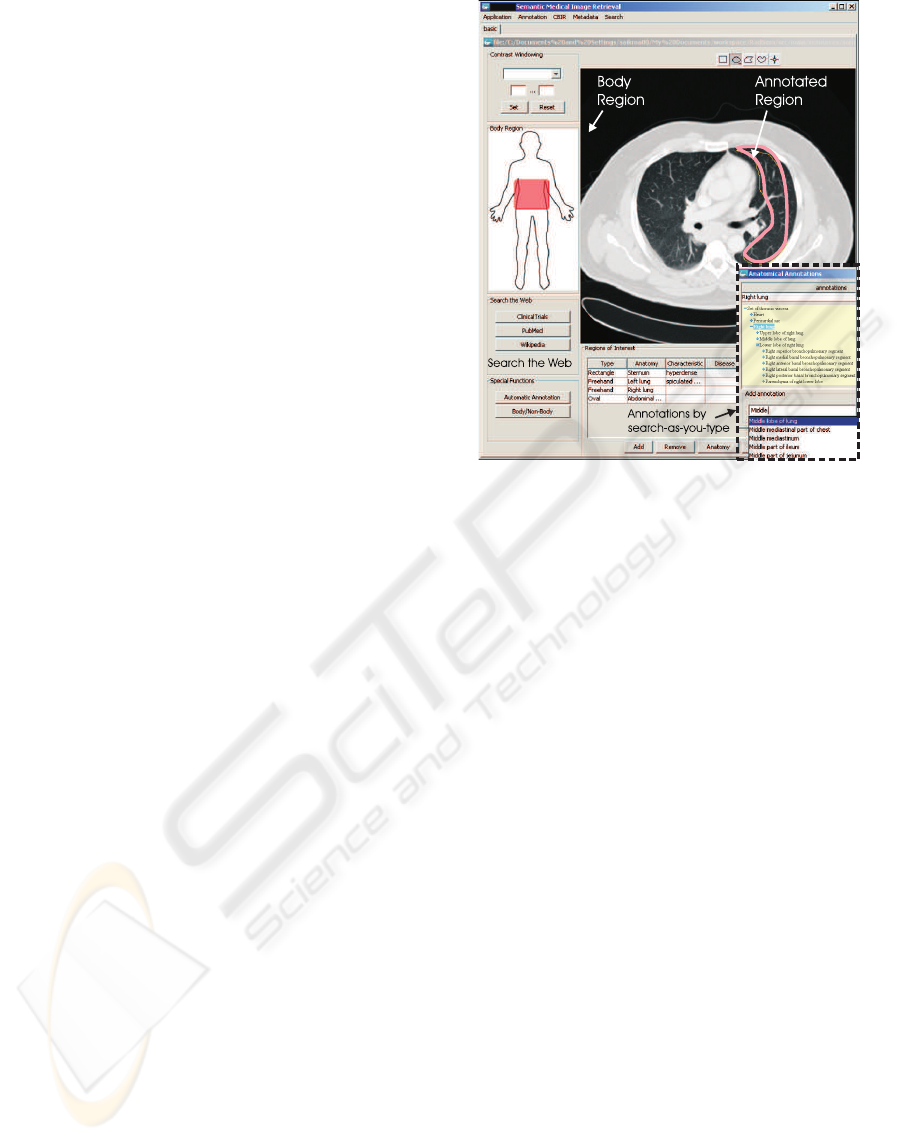

Figure 1: Graphical User Interface of the Annotation Tool.

national Classiﬁcation of Diseases (ICD-10). Figure

1 shows the graphical user interface of the annota-

tion tool. Images can be segmented into regions of

interest (ROI). Each of these regions can be anno-

tated independently with anatomical concepts (e.g.,

“lymph node”), with information about the visual

manifestation of the anatomical concept (e.g., “en-

larged”), and with a disease category using ICD-10

classes (e.g., “Nodular lymphoma” or “lymphoblas-

tic”). However, any combination of anatomical, vi-

sual, and disease annotations is allowed and multiple

annotations of the same region are possible. In order

to ease the task of ﬁnding appropriate annotations, we

use auto-completing combo-boxes. While typing in a

search term, concept names with matching preﬁxes

are shown in a drop down box and can be selected.

The annotation application leverages information

from headers of images in the medical exchange for-

mat DICOM (Mildenberger et al., 2002) to collect

demographic data about the patient and imaging ac-

quisition parameters. These data are used to provide

the visualization in the top left corner of ﬁgure 1. It

shows which body part the current image belongs to

in order to ease the navigation in the image of the

human body. The extracted metadata can further be

used to construct a history of examinations for a pa-

tient. This automatically acquired history is stored

together with the manually added semantic annota-

tions (representing the expert’s diagnoses) in RDF

format in a central Triple Store (see section 5.2). Ex-

isting annotations of an image can also be used to

query online resources on the web such as PubMed

KMIS 2009 - International Conference on Knowledge Management and Information Sharing

(http://www.ncbi.nlm.nih.gov/pubmed) and Clinical-

Trials (http://clinicaltrials.gov) for similar cases.

4 MULTIMODAL INTERFACE

The multimodal query interface implements a

situation-aware dialogue shell for semantic access to

image media, their annotations, and additional tex-

tual material. It enhances user experience and us-

ability by providing multimodal interaction scenarios,

i.e., speech-based interaction with touchscreen instal-

lations for the health professional.

4.1 Medical Dialogue

Which recommendations can support building up and

querying new medical knowledge repositories? A

knowledge engineering methodology (Wennerberg

et al., 2008) helped us to formalize these require-

ments. The medical dialogue illustrates how this

relates to the doctor’s practical interest in using a

semantic search engine or dialogue interface.

For example, consider a radiologist at his daily

work: The diagnostic analysis of medical images

typically concentrates around three questions: i) what

is the anatomy? ii) what is the name of the body

part? iii) is it normal or is it abnormal? To satisfy the

radiologist’s information requirement, this scattered

knowledge has to be gathered and integrated from

disparate dynamic information sources. According

to the Query Pattern Derivation step, a set of hy-

pothetical user queries is derived while using the

domain ontologies and domain corpora (subsequently

evaluated by the clinicians). After identifying the

relevant subparts of the domain ontologies, the query

patterns can be combined into a multimodal dialogue.

Multimodal Example Dialogue

1 U: “Show me the CTs, last examination, patient XY.”

2 S: Shows corresponding patient CT studies as DICOM picture series and

MR videos.

3 U: “Show me the internal organs: lungs, liver, then spleen and colon.”

4 S: Shows corresponding patient image data according to referral record.

5 U: “This lymph node here (+ pointing gesture) isenlarged; solymphoblas-

tic. Are there any comparative cases in the hospital?”

6 S: “The search obtained this list of patients with similar lesions.”

7 U: “Ah okay.”

Our system switches to the comparative records to help the radiologist in the

differential diagnosis of the suspicious case, before the next organ (liver) is

examined.

8 U: “Find similar liver lesions with the characteristics: hyper-intense

and/or coarse texture ...”

9 S: Our system again displays the search results ranked by the similarity

and matching of the medical ontology terms that constrain the semantic

search.

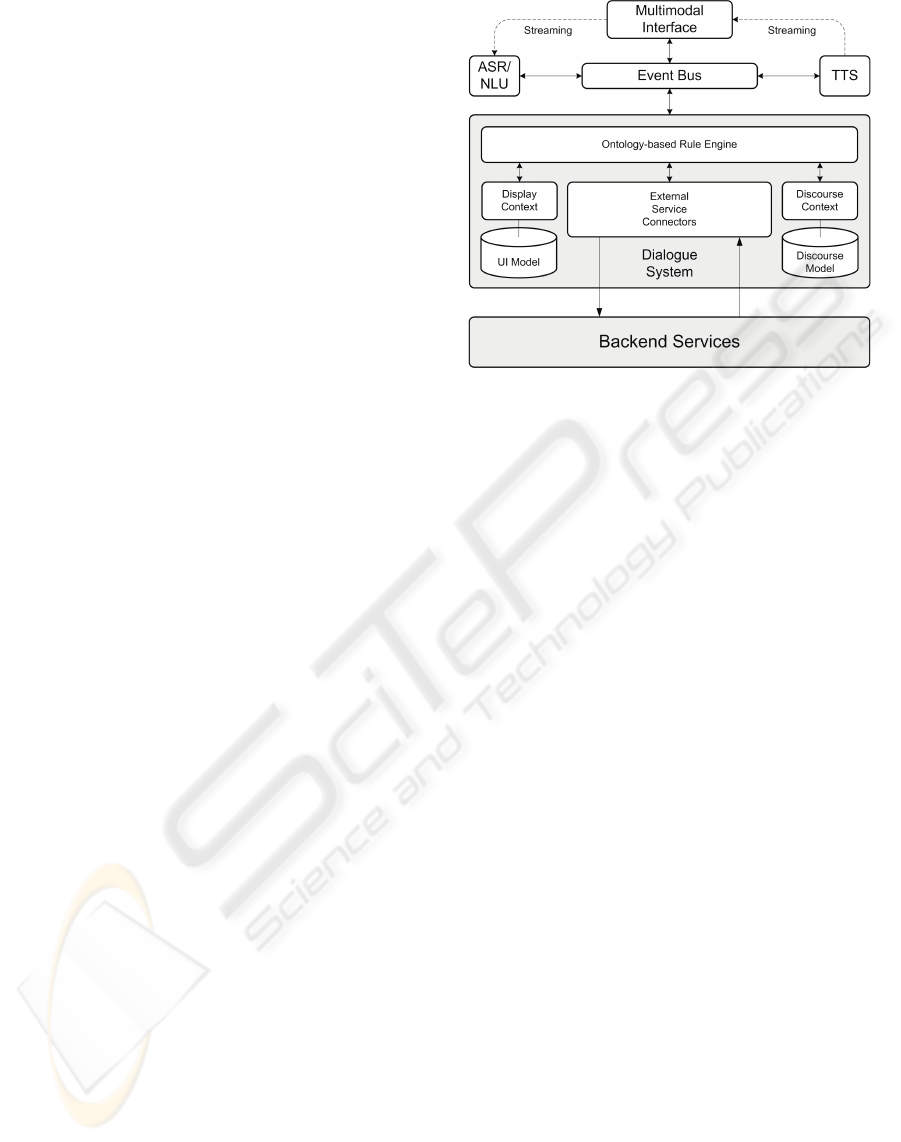

Figure 2: Architecture of the Dialogue System, where ex-

ternal components, such as automatic speech recognition

(ASR), natural language understanding (NLU), and text-to-

speech Synthesis (TTS), are integrated.

4.2 Technical Architecture

In order to accommodate the limited processing capa-

bilities of (mobile) user interface platforms, we use a

distributed dialogue system architecture, where every

major component can be run on a different platform,

increasing the scalability of the overall system (ﬁgure

2). Thereby, the dialogue system also acts as mid-

dleware between the clients and the backend services

that hide complexity from the user by presenting ag-

gregated data. There are three major parts: the mul-

timodal interface, the dialogue system, and the event

bus.

4.2.1 Multimodal Interface

The multimodal interface is implemented as a na-

tive application using a special window manager for

pointing gestures on a touchscreen display (ﬁgure 3).

The client provides means to connect to the dialogue

system via the event bus, to notify it of occurred

events, to record and playback audio streams, and to

render the received display data obtained from the di-

alogue system. In general, the client application is de-

signed as a lightweight component, and the dialogue

system is responsible for maintaining the interaction

and display context.

4.2.2 Dialogue System

The ontology-based dialogue platform (including

ASR/NLU and text-to-speech (TTS)) provides a run-

time environment for multimodal dialogue applica-

tions supporting advanced dialogue interaction. The

UNIFYING SEMANTIC ANNOTATION AND QUERYING IN BIOMEDICAL IMAGE REPOSITORIES - One Solution

for Two Problems of Medical Knowledge Engineering

Show me the internal

organs: lungs, liver, then

spleen and colon.

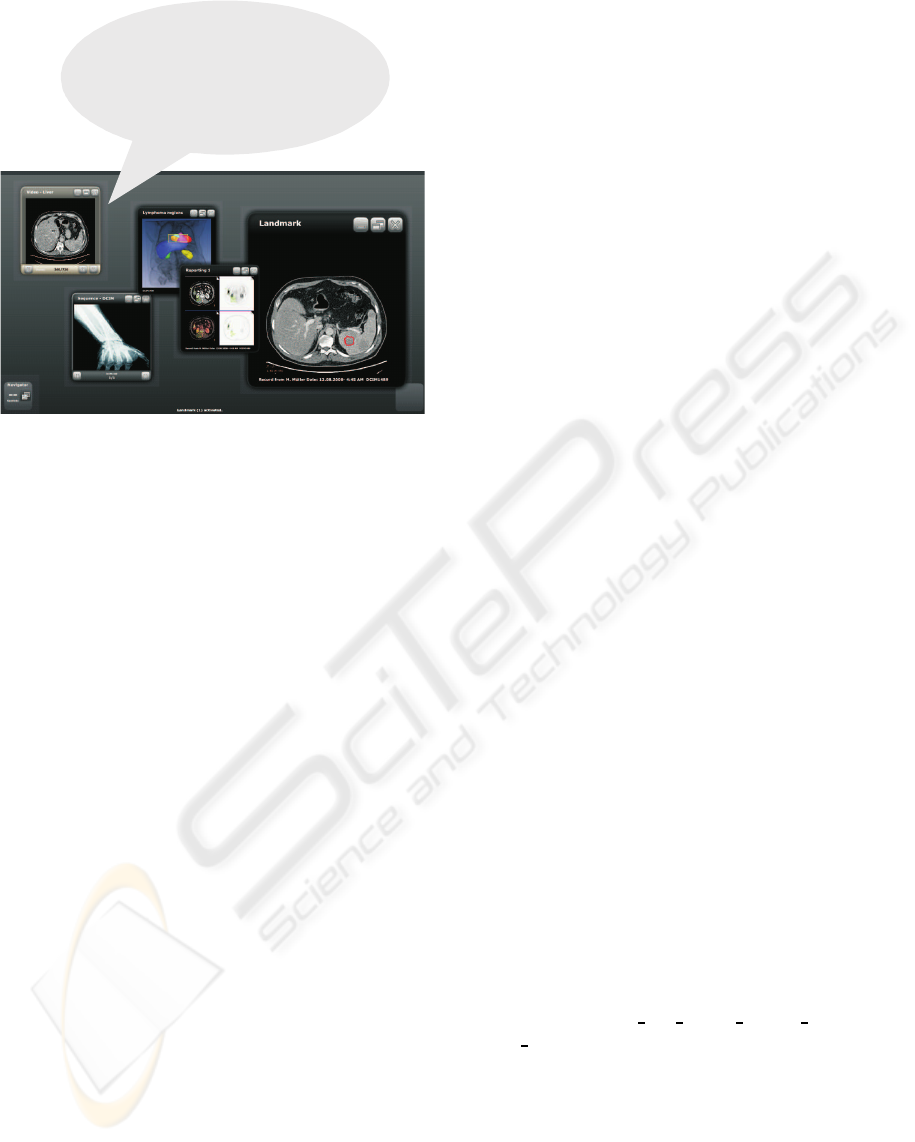

Figure 3: Multimodal Touchscreen Interface. The clinician

can touch the items and ask questions about them.

central component is a dialogue system which pro-

vides a programming model for connecting external

components (both in the frontend and backend layer).

On the frontend side, it connects with the mobile de-

vice for presentation and interaction purposes. This

includes the representation of displayed graphics and

speech output, natural language understanding, and

the reaction to pointing gestures. On the backend

side, the dialogue system provides interfaces to rel-

evant third-party software, e.g., ASR and TTS. In-

terestingly, the NLU component directly delivers the

concepts to be searched for in ontological form ac-

cording to the domain ontologies. These concepts are

the input to generate the SPARQL queries (following

the guidelines in (Sonntag et al., 2007)).

4.2.3 Event Bus

The main task of the event bus is routing messages

between each connected component which currently

includes a third-party ASR, a third-party TTS mod-

ule, and several client applications (i.e., the touch-

screen client and the dialogue system itself). When

the multimodal client connects to the event bus, it es-

tablishes a new session for the client at the dialogue

system. It informs the client about the connection

parameters of the ASR and TTS. The speech data is

streamed to/from the device in order to ensure fast re-

action times. Since we use push-to-activate for the

microphone (the user activates the microphone manu-

ally), a typical message ﬂow for speech interaction is

as follows:

1. The user pushes the microphone button on the

GUI.

2. The client sends a respective pointing gesture

event via the event bus to the dialogue system.

3. The dialogue system resolves the pointing ges-

ture as open the microphone and informs the

ASR/NLU via the event bus that it should pre-

pare for speech input. (The doctor poses a medical

question.)

4. The ASR/NLU acknowledges this to the dia-

logue system, which in turn notiﬁes the client that

recording and streaming can now begin (on the

client GUI, the microphone button turns green).

5. The user can talk to the client/touchscreen inter-

face. Upon successful recognition of a spoken

phrase, the ASR/NLU sends the recognition result

(as NLU-Info structure) to the dialogue system.

6. The dialogue system informs both the ASR and

the client to stop the recording and close the mi-

crophone (the microphone button turns red again).

7. Finally, the dialogue system processes the re-

sult by sending a SPARQL query to the backend

servers.

5 ANNOTATION AND QUERYING

5.1 Basic Strategy

Maintaining a remote repository, we view medical

knowledge engineering as an interactive process be-

tween the knowledge engineer and the clinician. The

ﬁrst essential step requires the knowledge engineer

to gather and pre-processes available medical knowl-

edge from various resources such as domain ontolo-

gies and domain corpora, whereupon the domain ex-

pert, i.e., the clinician, evaluates the outcome of the

process and provides feedback and, ﬁnally, the im-

age annotations. To provide access to the incremen-

tal knowledge base, a subset of SPARQL can be

used (a popular standard used to access RDF and

OWL data). The semantic RDF store Sesame, also

see http://www.openrdf.org, serves assertions on el-

ements (e.g., images and image annotations, i.e., re-

lationships such as is part of, has disease annotation,

or has anatomy) in the medical datasets provided by

the use case.

Within the Interactive Semantic Mediator, we im-

plemented a highest-level API for the purpose of

interactive semantic mediation within the dialogue

shell. For example, we can populate and maintain

an RDF store with only two upper-level Java func-

tions. The HTTP Server consists of a number of

Java servlets that implement a protocol for accessing

Sesame repositories over HTTP. Here, we provide a

KMIS 2009 - International Conference on Knowledge Management and Information Sharing

Interactive Semantic Mediator

Application

Layer

Query Model/

Semantic

Search Layer

Dynamic

Knowledge

Base

Layer

IUI, Multimodal Dialogue System

Dialogue Manager, GUI:

Query by images, text, speech

Sesame/SPARQL

Retrieval Engine

Concept Query Dialogue Module

Remote

Information

Source

Remote

Information

Source

Remote

Information

Source

Figure 4: Three Tier Querying Architecture.

wrapper around the Sesame client library to handle

the communication for Remote Use Case Reposito-

ries. Figure 4 outlines the three tier architecture con-

sisting of an application layer (the dialogue system),

a query model/semantic search layer, and a dynamic

knowledge base layer which addresses information

sources in general. The knowledge layer hosts the

access ontologies and the interactive semantic medi-

ator which is responsible for inducing an appropriate

(partial) alignment between two heterogeneous infor-

mation services, e.g., different ontologies.

5.2 Central RDF Repository

The semantic image repository, a triple store setup

at the remote RDF repository site, is based on two

VMWare instances which differentiate between

development and production environment. (Both

systems use the open source triple store Sesame.) We

use this central RDF repository to store and retrieve

information about the medical domain, clinical

practice, patient metadata, and image annotations.

(Also cf. the dynamic knowledge base layer in ﬁgure

4.) OWL-Horst reasoning (supporting a subset of

OWL-DL) is performed using Ontotext’s OWLIM on

top of Sesame.

The integration cycle for new ontologies and

updates begins with a check-in to a central subversion

repository. Nightly checks with the open source tool

Eyeball (http://jena.sourceforge.net/Eyeball) ensure

syntactic correctness and detect common modeling

mistakes. New versions of the ontology are ﬁrst

checked out from the SVN to the development RDF

repository and tested before being propagated to the

production system. From here the ontologies are

accessed by with the Interactive Semantic Mediator.

The central repository offers different interfaces

for data retrieval and manipulation. They provide

access to two different abstraction layers of the

data. A direct access to the RDF statements is

possible while using the query language SPARQL.

This allows us to specify queries of almost arbitrary

complexity. They can span from patient metadata to

image annotations to medical domain knowledge and

are used to translate most of the dialogue questions

presented in section 4.

The system also allows us to perform a semantic

query expansion based on the information in the

medical ontologies. Accordingly, a query for the

anatomical concept lung also retrieves images which

are not annotated with “lung” itself but parts of the

lung. The query expansion technique is implemented

in Java and provided as an API. Below we show a

SPARQL query example, according to our query

model in the semantic search layer in ﬁgure 4, which

retrieves all images of patient XY annotated with the

FMA concept “lung”.

SELECT ?personInstance ?patientInstance ?imageRegion ?imageURL WHERE {

?personInstance surname ?var0 .

FILTER (regex(?var0, "XY", "i")) .

?patientInstance referToPerson ?personInstance .

?patientInstance participatesStudies ?studyInstance .

?seriesInstance containedInStudy ?studyInstance .

?seriesInstance containsImage ?mdoImageInstance .

?mdoImageInstance referenceFile ?imageURL .

?imageRegion hasAnnotation ?imageAnnotation1 .

?imageAnnotation1 hasAnatomicalAnnotation ?medicalInstance1 .

?medicalInstance1 rdf:type fma:Lung.

?imageInstance hasComponent ?imageRegion .

?imageInstance hasImageURL ?imageURL .

?mdoImageInstance referenceFile ?imageURL . }

Note that this query spans across patient metadata

(the name, automatically extracted from the image

header) and anatomical annotations (manually added

by the radiologist). For readability, we removed the

name spaces from most of the properties. The query

example is an indirect translation of the clinician’s

dialogue question. The dialogical competence and

the query complexity increases with additional image

annotations. Figure 5 comprises an attempt to illus-

trate this process, in which the clinician’s expertise is

paramount, in a common view.

Medical knowledge engineering is an interactive

process between the knowledge engineer and the clin-

ician; and dialogue engineering is an interactive pro-

cess between the dialogue engineer and the clinician.

6 RELATED WORK

AND CONCLUSIONS

Large scale efforts exist for the effective or-

ganization and aggregation of medical image

data, for example the Cancer Biomedical Infor-

mation Grid (https://cabig.nci.nih.gov), myGrid

(http://www.mygrid.org.uk), and the THESEUS

UNIFYING SEMANTIC ANNOTATION AND QUERYING IN BIOMEDICAL IMAGE REPOSITORIES - One Solution

for Two Problems of Medical Knowledge Engineering

Knowledge

Engineering

Text & Image

Source Data

Command

Dialogue

Specificity

Dialogue

Engineering

Data

Abstraction

Repository

Dialogue Shell

Medical Domain Expert

Remote

Figure 5: Knowledge and Dialogue Engineering in a com-

mon view. More data abstraction (i.e., image annotation

through the medical expert) leads to more dialogue possi-

bilities according to the image semantics.

MEDICO program (http://theseus-programm.de/en-

us), whereby only the latter two explicitly state

working with Semantic Web data structures and

formats. In recent years there has been great interest

in storage, querying, and reasoning on assertion box

(ABox) instances, for which several Semantic Web

frameworks for Java (e.g., JENA and OWLIM) have

been proposed. We chose Sesame because of its

easy online deployment and fast built-in persistence

strategies.

Maintaining a single central repository with

remote access, we presented medical knowledge

engineering as an interactive process between the

knowledge engineer and the clinician. The ﬁrst es-

sential step requires the knowledge engineer to gather

and pre-processes available medical knowledge

from various resources such as domain ontologies

and domain corpora. The domain expert, i.e., the

clinician, evaluates the outcome of the process and

provides feedback and, ﬁnally, the image annotations,

as well as the corresponding dialogue questions. To

satisfy the radiologist’s information need, scattered,

heterogeneous information has to be gathered, se-

mantically integrated and presented to the user in a

coherent way. An enabling force towards this goal

has been provided, principally, by unifying semantic

annotation and querying, as discussed. The common

annotation and dialogue querying framework will

now be tested in a clinical environment (University

Hospitals Erlangen). Furthermore, the question of

how to integrate this information and image knowl-

edge with other types of data, such as patient data, is

paramount.

In intensive discussions with clinicians we an-

alyzed how the use of semantic technologies can

support the clinician’s daily work tasks, apart from

the fact that in daily hospital work, clinicians can

only manually search for similar images—for which

we provided a solution. For clinical staging and

patient management the major concern is which

procedure step has to be performed next in the

treatment process. This is where the textual content

of the patient records and other semi- and unstruc-

tured external medical knowledge comes into play

and has to be semantically integrated. Thus, our

current work focuses on investigating information

extraction techniques to include patient health record

information into the remote RDF repository.

REFERENCES

Kumar, V. S., Narayanan, S., Kurc, T., Kong, J., Gurcan,

M. N., and Saltz, J. H. (2008). Analysis and semantic

querying in large biomedical image datasets. Com-

puter, 41(4):52–59.

Langlotz, C. P. (2006). Radlex: A new method for in-

dexing online educational materials. RadioGraphics,

26:1595–1597.

Mejino, J. L., Rubin, D. L., and Brinkley, J. F. (2008).

FMA-RadLex: An application ontology of radiolog-

ical anatomy derived from the foundational model of

anatomy reference ontology. In Proc. of AMIA Sym-

posium, pages 465–469.

Mildenberger, P., Eichelberg, M., and Martin, E. (2002).

Introduction to the DICOM standard. European Radi-

ology, 12(4):920–927.

Sonntag, D., Engel, R., Herzog, G., Pfalzgraf, A.,

Pﬂeger, N., Romanelli, M., and Reithinger, N. (2007).

SmartWeb Handheld—Multimodal Interaction with

Ontological Knowledge Bases and Semantic Web Ser-

vices. In Proc. of Artiﬁcal Intelligence for Human

Computing, pages 272–295.

Sonntag, D., Wennerberg, P., Buitelaar, P., and Zillner, S.

(2009). Cases on Semantic Interoperability for Infor-

mation Systems Integration, chapter Pillars of Ontol-

ogy Treatment in the Medical Domain. ISR.

Wennerberg, P., Zillner, S., Mller, M., Buitelaar, P., and Sin-

tek, M. (2008). KEMM: A Knowledge Engineering

Methodology in the Medical Domain. In Proc. of the

5th International Conference on Formal Ontology in

Information Systems (FOIS).

KMIS 2009 - International Conference on Knowledge Management and Information Sharing
