LEVERAGING LIGHT-WEIGHT FORMAL METHODS WITH

FUNCTIONAL PROGRAMMING APPROACH ON CLOUD

Shigeru Kusakabe, Yoichi Ohmori and Keijiro Araki

Graduate School of Information Science and Electrical Engineering, Kyushu University

744, Motooka, Nishi-ku, Fukuoka city, 819-0395, Japan

Keywords:

Light-weight formal methods, Testing, Cloud computing, Parallel processing, Functional programming,

MapReduce programming.

Abstract:

We discuss the features of functional programming related to formal methods and an emerging paradigm,

Cloud Computing. Formal methods are useful in developing highly reliable mission-critical software. How-

ever, in light-weight formal methods, we do not rely on very rigorous means, such as theorem proofs. Instead,

we use adequately less rigorous means, such as evaluation of pre/post conditions and testing speciﬁcations,

to increase conﬁdence in our speciﬁcations. Millions of tests may be conducted in developing highly reliable

mission-critical software in a light-weight formal approach. We consider an approach to leveraging light-

weight formal methods by using ”Cloud.” Given a formal speciﬁcation language which has the features of

functional programming, such as referential transparency, we can expect advantages of parallel processing.

One of the basic foundations of VDM speciﬁcation languages is Set Theory. The pre/post conditions and

proof-obligations may be expressed in terms of set expressions. We can evaluate this kind of expression in

a data-parallel style by using MapReduce framework for a huge set of test cases over cloud computing en-

vironments. Thus, we expect we can greatly reduce the cost of testing speciﬁcations in light-weight formal

methods.

1 INTRODUCTION

Functional programming has many advantages in-

cluding features useful to create short, fast, and safe

software(Hughes, 1989). In this paper, we focus

on the features serving as a glue between light-

weight formal methods and a new programming

model MapReduce on emerging Cloud Computing

paradigm.

While formal methods are useful in developing

highly reliable mission-critical software, we do not

rely on very rigorous means, such as theorem proofs,

in light-weight formal methods. Instead, in or-

der to increase conﬁdence in our speciﬁcations, we

use adequately less rigorous means, such as eval-

uation of pre/post conditions and testing speciﬁca-

tions. While the speciﬁc level of rigor depends on

the aim of the project, millions of tests may be con-

ducted in developing highly reliable mission-critical

software in a light-weight formal approach. For

example, in an industrial project using VDM++, a

model-oriented formal speciﬁcation language(Larsen

et al., 1998), they developed formal speciﬁcations

of about 100,000 steps including test cases (about

60,000steps) and commentswritten in the natural lan-

guage(Kurita et al., 2008). They carried out about

7,000 black-box tests and 100 million random tests.

We believe Cloud Computing is useful in performing

this kind of activity.

The Cloud Computing paradigm seems to bring a

lot of changes in many IT ﬁelds. We believe it also

has impact on the ﬁeld of software engineering and

consider an approach to leveraging light-weight for-

mal methods by using Cloud. Given a formal speci-

ﬁcation language, such as VDM-SL, which supports

functional programming style(Fitzgerald and Larsen,

1998), we can exploit the features suitable for paral-

lel processing such as referential transparency. One

of the basic foundations of VDM speciﬁcation lan-

guages is Set Theory. The pre/post conditions and

proof-obligations may be expressed in terms of set

expressions. We can evaluate this kind of expression

in a data-parallel style by using MapReduce frame-

work for a huge set of test cases over cloud computing

environments(Dean and Ghemawat, 2008). By using

MapReduce framework, we expect we can greatly re-

264

Kusakabe S., Ohmori Y. and Araki K. (2009).

LEVERAGING LIGHT-WEIGHT FORMAL METHODS WITH FUNCTIONAL PROGRAMMING APPROACH ON CLOUD.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 263-268

DOI: 10.5220/0002281802630268

 SciTePress

duce the cost of testing speciﬁcations in light-weight

formal methods. MapReduce framework provides an

abstract view of computing platforms, and is suit-

able for Cloud Computing which has the following

aspects(Armbrust et al., 2009):

1. The illusion of inﬁnite computing resources avail-

able on demand, thereby eliminating the need for

Cloud Computing users to plan far ahead for pro-

visioning;

2. The elimination of an up-front commitment by

Cloud users, thereby allowing organizations to

start small and increase hardware resources only

when there is an increase in their needs; and

3. The ability to pay for use of computing resources

on a short-term basis as needed and release them

as needed, thereby rewarding conservation by let-

ting machines and storage go when they are no

longer useful.

2 LIGHT-WEIGHT FORMAL

METHODS

Formal methods are useful in developing highly reli-

able mission-critical software, and can be used at dif-

ferent levels:

Level 0: In this light-weight formal methods level,

we develop a formal speciﬁcation and then a pro-

gram from the speciﬁcation informally. This may

be the most cost-effectiveapproach in many cases.

Level 1: We may adopt formal development and for-

mal veriﬁcation in a more formal manner to pro-

duce software. For example, proofs of proper-

ties or reﬁnement from the speciﬁcation to an im-

plementation may be conducted. This may be

most appropriate in high-integrity systems involv-

ing safety or security.

Level 2: Theorem provers may be used to perform

fully formal machine-checked proofs. This kind

of activity may be very expensive and is only

practically worthwhile if the cost of defects is ex-

tremely expensive.

In light-weight formal methods, we do not rely on

very rigorous means, such as theorem proofs. Instead,

we use adequately less rigorous means, such as evalu-

ation of pre/post conditions and testing speciﬁcations,

to increase conﬁdence in speciﬁcations, while the spe-

ciﬁc level of rigor depends on the goal of the project.

One of the formal methods is to use a model-

oriented formal speciﬁcation language, such as

VDM-SL and VDM++, to write, verify, and validate

speciﬁcations of the products. VDM languages have a

tool with functionalities of syntax check, type check,

interpreter, and generation of proof-obligations. We

can use the interpreter to evaluate pre/post condi-

tions in the speciﬁcations and test the speciﬁcations.

In addition to explicit-style executable speciﬁcations,

implicit-style non-executable speciﬁcations can be

checked through the evaluationof pre/postconditions,

and proof-obligations by using interpreter.

One of the basic foundations of the VDM speci-

ﬁcation language is Set Theory. The pre/post condi-

tions and proof-obligations are expressed in terms of

set expressions, so that we expect these expressions

can be evaluated by using MapReduce framework. In

addition to evaluating different test scenarios in par-

allel, we can exploit data-parallelism in ﬁne-grained

boolean expressions over huge sets of values. We gen-

erate test cases and easily unfold their evaluation over

cloud computing environments.

3 LIGHT-WEIGHT FORMAL

APPROACH WITH VDM ON

CLOUD

Figure 1 shows the outline of our light-weight formal

approach. In our light-weight formal approach, we

ﬁrst develop a formal model in VDM languages. Exe-

cutable speciﬁcation in VDM languages can be evalu-

ated with interpreter. We can also translate a large part

of VDM models into models in a functional program-

ming language as VDM languages share several fea-

tures with functional programming languages. There

have been works focusing on their relations(Borba

and Meira, 1993)(Visser et al., 2005). Both types

of model may be evaluated using MapReduce frame-

work on Cloud, while functional programming lan-

guages seem to have more integrated evaluation envi-

ronment.

3.1 Modelling in VDM

We have following components in formal speciﬁca-

tion models in VDM.

• Data types are built from basic types (

int,

real, char, bool

etc.), and built by using type

constructors (

sets, sequences, mappings,

records

). Newly constructed types can be

named and used throughout the model.

• A data type invariant is a Boolean expression used

to restrict a data type to contain only those values

that satisfy the expression.

• Functions deﬁne the functionality of the system.

Functions are referentially transparent with no

LEVERAGING LIGHT-WEIGHT FORMAL METHODS WITH FUNCTIONAL PROGRAMMING APPROACH ON

CLOUD

265

(fine grain)

boolean expression

– pre/post condition

– invariant

+ collection of possible values

(coarse grain)

+ random test sequences

specification in VDM

! specification in functional language

Cloud

with

MapReduce

Figure 1: Outline of our approach using Cloud.

side-effects and no global variables. A different

modelling style, operational style, is used in cases

where it is intuitive to have states.

• A pre-condition is a Boolean expression over the

input variables. This expression is used to record

restrictions assumed to hold on the inputs.

• A post-condition is a Boolean expressions relating

inputs and outputs. Function abstraction is pro-

vided by implicit speciﬁcation when appropriate.

Post-conditions are used when we do not wish to

explicitly deﬁne which output is to be returned,

or where the explicit deﬁnition would be too con-

crete at the time of modelling.

As an approach of validation to check whether the

model of the target system behaves as desired, we can

test the speciﬁcation model. In order to efﬁciently

check the speciﬁcation on cloud, we discuss inherent

parallelism in evaluating VDM speciﬁcations.

3.2 Speciﬁcation over Collection

There are type constructors to deﬁne a ﬁnite collec-

tion of values. Conditions using values of such types

may be evaluated over a collection of values in a data-

parallel manner.

set of _ Finite sets

seq of _ Finite sequences

map _ to _ Finite mappings

We discuss set as an example of source of parallelism

in this section. The

set of

is a ﬁnite set type construc-

tor and there are three ways of deﬁning sets: enumer-

ation, subrange, and comprehension. Comprehension

is a powerful way to deﬁne a set. The form of a set

comprehension is:

{value-expression | binding & predicate}

The

bindings

binds one or more variables to a type

or set. The

predicate

is a logical expression using

the bound variables. While the

value-expression

is an expression using the bound variables, the

value-expression

deﬁnes elements of the set being

constructed.

Evaluation of a set comprehension generates all

the values of the expression for each possible assign-

ment of range values to the bound variables for which

the predicate is true. We often use sets in the speci-

ﬁcation model in VDM languages. We may have to

handle a huge number of values even in a single eval-

uation of a speciﬁcation.

We can gain conﬁdence through tests on the for-

mal model. Systematic testing is possible, in which

we deﬁne a collection of test cases, execute each test

case on the formal model, and compare with expec-

tation. Test cases can be generated by hand or auto-

matically. Automatic generation can produce a vast

number of individual test cases.

VDM languages share many features with func-

tional programming languages. We expect we can

exploit MapReduce framework in evaluating VDM

speciﬁcations. Techniques for test generation in func-

tional programs can carry over to formal models es-

pecially when written in the functional style(Claessen

and Hughes, 2000).

3.3 Using MapReduce

MapReduce programming model is useful in process-

ing and generating large data sets on a cluster of ma-

chines. Programs are written in a functional style,

in which we specify a map function that processes

a key/value pair to generate a set of intermediate

key/value pairs, and a reduce function that merges all

intermediate values associated with the same interme-

diate key.

Its implementation allows programmers to eas-

ily utilize the resources of a large distributed system

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

266

without expert skills for parallel and distributed sys-

tems. MapReduce programs are automatically paral-

lelized and executed on a large cluster of machines.

The run-time system takes care of the details of par-

titioning the input data, scheduling the program’s ex-

ecution across a set of machines, handling machine

failures, and managing the required inter-machine

communication.

3.4 Hadoop Streaming

Hadoop, open source software written in Java, is a

software framework implementing MapReduce pro-

gramming model(Hadoop, ). While we write map-

per and reducer functions in Java by default in this

Hadoop framework, Hadoop distribution contains a

utility, Hadoop streaming. The utility allows us to

create and run Map/Reduce jobs with any executable

or script as the mapper and/or the reducer. The util-

ity will create a Map/Reduce job, submit the job to an

appropriate cluster, and monitor the progress of the

job until it completes. When an executable is spec-

iﬁed for mappers, each mapper task will launch the

executable as a separate process when the mapper is

initialized. When an executable is speciﬁed for reduc-

ers, each reducer task will launch the executable as a

separate process then the reducer is initialized.

This Hadoop streaming is useful in invoking in-

terpreter of VDM languages and executing functional

programs with MapReduce framework.

4 PRELIMINARY EVALUATION

We consider the impact of Cloud with MapReduce

framework on leveraging light-weight formal meth-

ods. We focus on the productivity in preparing the

platform and the scalability of the platform in increas-

ing its size.

4.1 Platform

According to (Armbrust et al., 2009), Cloud Comput-

ing is the sum of SaaS and Utility Computing, but

does not normally include Private Clouds, which is

the term to refer to internal datacenters of a business

or other organization that are not made available to

the public. However, we use a private cloud comput-

ing platform, which is a small version of IBM Blue

Cloud, for our preliminary evaluation. Figure 2 shows

the outline of our cloud. In our Cloud platform, we

can dynamically add or delete servers which com-

pose the Cloud if the machines are x86 architecture

and able to run Xen. We can add a new server as

the resource of Cloud by automatically installing and

setting up Domain 0 (Dom0) through network boot.

When a user requests a computing platform from the

Web page of Cloud portal, the user can specify the vir-

tual OS image (Domain U (DomU) of Xen in our plat-

form) and applications from registered ones as well as

the number of virtual CPUs (VCPUs), the amount of

memory and storage within the resource of Cloud. In

our Cloud, the number of VCPUs is limited within

the number of physical CPUs to guarantee the perfor-

mance of DomU. When the request is admitted, the

requested computing platform is automatically pro-

vided.

Our Cloud supports an automatic set up of Hadoop

programming environment in provisioning requested

platforms. We need the following steps to set up

Hadoop environment:

1. Installing base machines into nodes

2. Installing Java

3. Mapping IP address and hostname of each ma-

chine

4. Permitting non-password login from the master

machine to all the slave machines

5. Conﬁguring Hadoop on the master machine

6. Copying the conﬁgured Hadoop environment to

all slave machines from the master machine

Setting up Hadoop Platform (Step 2 - 6). Our

Cloud is able to perform the step 2, 3, 5, and 6 au-

tomatically to set up the Hadoop environment by se-

lecting Hadoop as the application in provisioning the

platform.

Addition of Base Machine. For the step 1, we only

have to set the machine network bootable in the BIOS

conﬁguration when adding the machine to our Cloud.

4.2 Scalability in Cloud Platform

We evaluate the scalability of our approach when in-

creasing the number of the slave machine nodes of in

running Hadoop streaming on our Cloud. We mea-

sure the elapsed time of simple program with the data

of 1GB and 5GB. We change the number of the slave

machines from 2 to 9. All the slave machines have

1GB of memory and 20GB of storage. Users cannot

control the allocation of the master and the slave ma-

chines on the physical machines in our Cloud.

We show the result in Figure 3. As we see in Fig-

ure 3, the increase of the number of nodes does not

always reduce the elapsed time in both data size. For

example, the elapsed time increases when we increase

the number of DomUs from 2 to 3 with the data of

1GB and from 4 to 5 with the data of 5GB.

LEVERAGING LIGHT-WEIGHT FORMAL METHODS WITH FUNCTIONAL PROGRAMMING APPROACH ON

CLOUD

267

Cloud Manager

User

Cloud

Portal

VM VM VM VM

Hadoop

Provisioning

Server

LDAP Server

NFS Server

Resources CPU servers / storage servers

Administration

Server

NFS

Server

Server Administrator

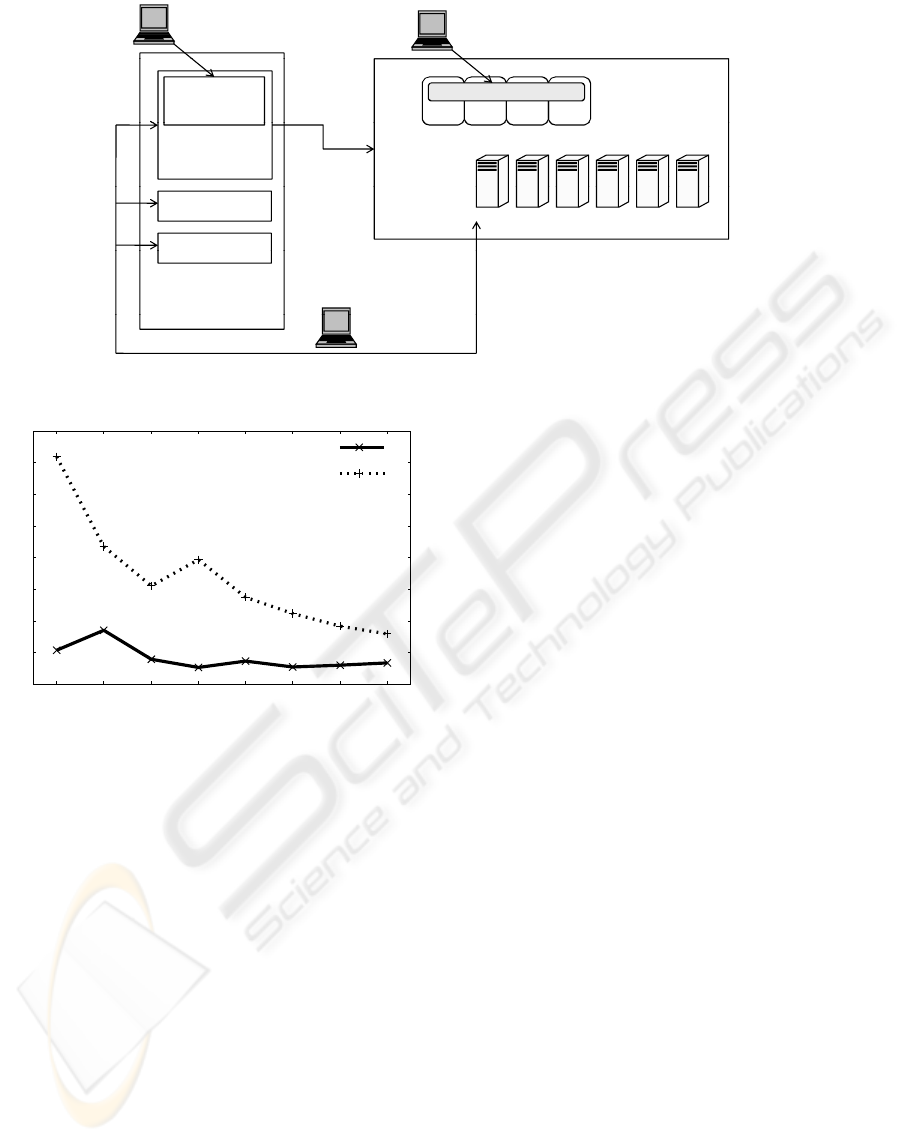

Figure 2: Overview of our private Cloud.

100

150

200

250

300

350

400

2 3 4 5 6 7 8 9

Elapsed Time (seconds)

number of machines

1 GB

5 GB

Figure 3: Scalability of a small program in increasing the

number of nodes of Hadoop.

Thus, the performance of Hadoop did not always

scale according to the number of the slave machines

provisioned in our Cloud. Users are not aware of

the hierarchy of the locality between each physical

machine such as machines, chassis, and racks. The

group of nodes provisioned over different hierarchies

can degrade the performance caused by the cost of

communication. However, we can expect some scal-

ability, while it is easy to set up platform and scale

up/down the size of platform.

5 CONCLUDING REMARKS

We discussed our idea to leverage light-weight for-

mal methods, which use speciﬁcation languages with

functional style, such as a model oriented forma spec-

iﬁcation language VDM-SL, and a functional pro-

gramming languages, such as Haskell, on Cloud. By

applying MapReduce framework, we can expect scal-

able speed-up without caring the details of paral-

lel and distributed processing. Although preliminary

evaluation shows some problems and we have a lot of

feature works, we believe our approach is promising.

REFERENCES

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin,

A., Stoica, I., and Zaharia, M. (2009). Above the

clouds: A berkeley view of cloud computing. Tech-

nical report, UCB/EECS-2009-28, Reliable Adaptive

Distributed Systems Laboratory.

Borba, P. and Meira, S. (1993). From vdm speciﬁcations to

functional prototypes. J. Syst. Softw., 21(3):267–278.

Claessen, K. and Hughes, J. (2000). Quickcheck: a

lightweight tool for random testing of haskell pro-

grams. ACM SIGPLAN Notices, 35(9):268–279.

Dean, J. and Ghemawat, S. (2008). Mapreduce: simpli-

ﬁed data processing on large clusters. Commun. ACM,

51(1):107–113.

Fitzgerald, J. and Larsen, P. G. (1998). Modelling Systems:

Practical Tools and Techniques in Software Develop-

ment. Cambridge University Press.

Hadoop. As of Jun.1, 09. http://hadoop.apache.org/core/.

Hughes, J. (1989). Why functional programming matters.

Computer Journal, 32(2):98–107.

Kurita, T., Chiba, M., and Nakatsugawa, Y. (2008). Ap-

plication of a formal speciﬁcation language in the de-

velopment of the ”mobile felica” ic chip ﬁrmware for

embedding in mobile phone. In FM, pages 425–429.

Larsen, P. G., Mukherjee, P., Plat, N., Verhoef, M., and

Fitzgerald, J. (1998). Validated Designs For Object-

oriented Systems. Springer Verlag.

Visser, J., Oliveira, J. N., Barbosa, L. S., Ferreira, J. a. F.,

and Mendes, A. S. (2005). Camila revival: Vdm meets

haskell. In First Overture Workshop.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

268
